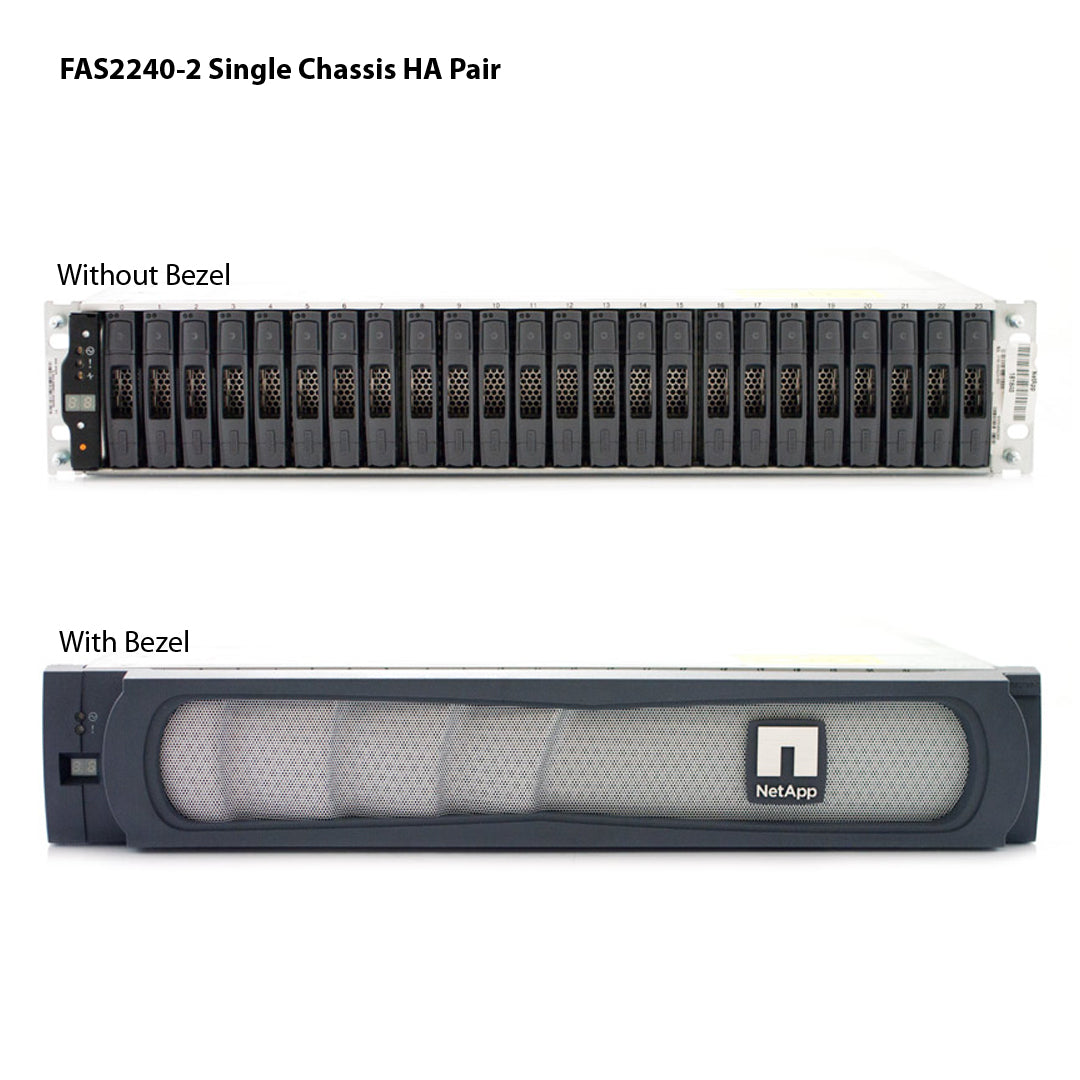

NetApp FAS2240-2 Single Chassis HA Pair Expansion Storage Array Filer Head (FAS2240-2HA)

NetApp FAS2240-2 Filer Head (Controller)

Price: Ask for Quote

Brand:

NetApp

MPN:

FAS2240-2

Type:

Filer Head

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS2240-2 Enterprise Storage System

Maximum Raw Capacity (HA): 518TB
Maximum Disk Drives: 144
Maximum Internal Drives: 24
Controller Form Factor: 2U
Max Memory: 12GB
Disk Type: SSD/Flash, NL-SAS, SAS, SATA, Fibre Channel
Disk Form Factor: 2.5", 3.5"
Host Connectivity: 2Gb Fibre Channel (FC), 4Gb Fibre Channel (FC), 8Gb Fibre Channel (FC), 1GbE, 10GbE
Storage Protocols Supported: CIFS (NAS), Fibre Channel (FC), NFS (NAS), iSCSI (IP SAN), HTTP
Supported RAID: RAID 4, RAID 6 (RAID-DP)

*Available in Single or Dual Controller ('C' Cluster / 'A' Active-Active / 'HA' High-Availability). Ask for pricing with disks. Call for Details and Pricing

The FAS2200 series is not only affordable, but also provides a more powerful platform than other systems in its class. The FAS2200 series supports SSDs across all FAS systems. FAS2200 series has the ability to get more out of applications and improve storage efficiency with ultra fast flash using Flash Pool technology.

You don't need to be a storage expert to deploy and manage NetApp storage systems. The NetApp FAS2200 series offers a powerful range of technologies to help increase the efficiency of your storage administrators. The FAS2200 series gives you the option to optimize your data whether it's stored on flash or disk for better performance and management simplicity.

Clustered Data ONTAP allows you to expand to more nodes. Seamlessly upgrade to other NetApp systems while using the same operating system and software tools. FAS2240 gives you the ability to convert your storage system to an external disk shelf for upgrading to larger NetApp systems. NetApp FAS2240-2 utilizes up to 144 disks and can supply up to 518TB of raw capacity in a 2U/24 drive configuration.

FAS2240-2 Technical Specifications

FAS2240-2 OVERVIEW
Form Factor	2U/24 Drive
Dual Controllers	Yes
Maximum Disk Drives	144
Maximum Ethernet Ports	8
Onbaord SAS Ports	4
NetApp Flash Pool Support	Yes
8Gb FC Support	Yes
10GbE Support	Yes
Remote Management	Yes
Storage Protocols	FCP, iSCSI, NFS, CIFS

TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS
Maximum Raw Capacity (HA)	518TB
Recommended Min Raw Capacity Array LUNs (GB)	N/A
Absolute Min Raw Capacity Array LUNs (GB)	N/A
Maximum Storage Devices (HA)	144 Disks
Max DS2246 Shelves (HA)	5
Max DS4243 Shelves (HA)	5
Max DS4246 Shelves (HA)	5
Max DS4486 Shelves (HA)	N/A
Max DS14-Class Shelves (HA)	6
Max Nodes per Cluster (NAS)	Not Supported
Max Nodes per Cluster (SAN)	Not Supported
Aggregate Size 32 bit (TiB)	16
Aggregate Size 64 bit (TiB)	60
Min Size for an Array LUN Aggregate (GB)	N/A
Flex Volume Size 32 bit (TiB)	16
Flex Volume Size 64 bit (TiB)	60
Max Infinite Volume Data Constituent Size (TiB)	Not Supported
Max Volume Count (Single)	500
Max Array LUN Size (GB)	N/A
Min Array LUN Size (GB)	N/A
Min Array LUN Size - Root Volume (GB)	N/A
Min Root Volume Size (Single/HA)	162GB / 162GB
Spare Core Array LUN Min Size (GB)	N/A
Max RAID Groups in an Aggregate	N/A
Block Size (Bytes)	N/A
Chassis Height	3.34"
Chassis Width	17.61"
Chassis Depth	19.03"
Rack Units (Single/HA)	2U/2U
Operating Temperature Range	50°F to 104°F
Storage Temperature Range	-40° to 158°F
Input Power Voltage	100v to 120v, 200v to 240v
Processor (Single)	1x 64-bit 2-core with HT 1.73Ghz
Memory (Single/HA)	6GB/12GB
NVRAM (Single)	786.43MB (NVMEM)
Ethernet Ports (Single)	4x RJ45 (1Gbps)
Fibre Channel Ports (Single)	N/A
UTA2 Ports (Single)	N/A
Expansion Slots (Single)	1x Mezzanine
SAS Ports (Single)	2x QSFP (6Gbps)
Max Back-End FC Loops (HA)	1
Min Version of Data ONTAP 7	N/A
Min Version of Data ONTAP 8 (both modes)	8.1, 8.2RC1, 8.3RC1
Max Version of Data ONTAP 8 (both modes)	8.1.4, 8.2.4, 8.3.2RC1

Ask about our NetApp Disk Shelves! We can create custom Turn-Key configurations based on your needs!

Storage Limits

Max # of Drives (Total)	Max # of Internal Drives	Max # of MSATA Drives	Max # of NL-SAS Drives	Max # of SAS Drives	Max # of SATA Drives	Max # of NVMe SSD Drives	Max # of SSD Drives	Max # of DS2126 Shelves	Max # of DS212C Shelves	Max # of DS2246 Shelves	Max # of DS224C Shelves	Max # of DS4243 Shelves	Max # of DS4246 Shelves	Max # of DS4486 Shelves	Max # of DS460C Shelves	Max # of FS424C Shelves	Max # of NS224 Shelves
144	24	-	120	144	120	-	96	N/A	1 internal + 5 external	5 external	5 external	5 external	5 external	-	-	-	-

Capacity Limits

Marketing Max Raw Capacity - Node	HA Pair	Cluster	Effective Capacity - Node	HA Pair	Cluster
1603200	1603200	-	-	-	-

Core Cluster Limits

Max SVM's - NAS	Max LIF's - NAS	Max Connections - NAS	Max Flexible Volumes - NAS	Max Flexible Volumes with DPO - NAS	Max Lock Manager Locked Objects	Max Intercluster LIFs - Node	Min Root Aggregate (MiB) - Node	Min Root Aggregate (with core dump device) (MiB)	Min Root Volume (GiB) - Node	Min Root Volume (with core dump device) (GiB)	Max IPsec Policies	Max # of IPspaces	Max Auditing-Enabled SVMs - Cluster
Node:- HA Pair:- Cluster:512	Node:256 HA Pair:256 Cluster:512	Node:10000 HA Pair(Non-Scalable):10000	Aggregate (Single data Agg. per Node):- Aggregate (Multiple data Agg. per Node):- Node:1000 HA Pair:2000 Cluster:2000	Node:- HA Pair:- Cluster:-	Node:70000 HA Pair:70000 Cluster:140000	-	226927.04	180	-	-	SVM:- Cluster:-	-	50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN)	Max FabricPool Size	Max FlexGroup Data Constituent Size	Max Infinite Volume Data Constituent Size	Min Root Volume Size	NetApp Volume Encryption
44655	Not Supported	60 TiB	Not Supported	180 GiB	Not Supported

Processor

Processor Model	Processor Architecture	Processor Speed	Processor Count (Per Node)	Processor Count (Per Config)	Processor Cores (Per CPU)	Processor Cores (Per Node)	Processor Cores (Per Config)
64-bit 2-core with HT	64 bit	1.73 Ghz	1	2	2	2	4

Memory

NVRAM (Per Node)	NVRAM (Per Config)	NVME (Per Node)	NVME (Per Config)	NVMEM (Per Node)	NVMEM (Per Config)	RAM (Per Node)	RAM (Per Config)
-	-	-	-	0 GB	1 GB	6 GB	12 GB

Onboard Ports

Ethernet Ports	Fibre Channel	Ports UTA2 Ports	Expansion Slots	SAS Ports
8 x RJ45 (1Gb)	-	Not Supported	2 x Mezzanine	4 x QSFP (6Gb)

Physical Characteristics

Rack Units	Chassis Height	Chassis Width with Mounting Flanges	Chassis Width without Mounting Flanges	Chassis Depth with Cable Mgmt	Chassis Depth without Cable Mgmt	Chassis Weight
2	3.34" (8.49 cm)	-	17.61" (44.72 cm)	23.13" (58.75 cm)	19.03" (48.34 cm)	See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling)	Front Clearance (Maintenance)	Rear Clearance (Cooling)	Rear Clearance (Maintenance)
22.02" (55.9 cm)	22.02" (55.9 cm)	12.02" (30.5 cm)	12.02" (30.5 cm)

Environmental Requirements

Operating	Storage	Transit	Acoustic Noise	Input Power Voltage
Tempature: 50 to 104 deg F - 10 to 40 deg C Humidity: 20 to 80 % Altitude: 0.0 to 10000.0 ft - 0.0 to 3048.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 5 to 95 % Altitude: 0.0 to 40000.0 ft - 0.0 to 12192.0 m	Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 5 to 95 % Altitude: 0 to 39989.8 ft - 0 to 12192 m	Sound Power: 6.9 bels Sound Pressure: 51 dBA	100 to 120 200 to 240

Storage OS Requirements

Full OS Matrix	Recommended Version	Minimum OS	Maximum OS
View Full OS Report Below	9.1P20	9.1RC1	9.1P20

Storage and Firmware

Full Firmware Matrix	BIOS	BMC
Full Firmware Report Below	8.3*	-

Product Standards Compliance

Full Compliance and Certificates Report	Cert. EMC/EMI	Cert. Safety	Service Processor Firmware	Cert. Safety/EMC/EMI	Cert. Safety/EMC/EMI/RoHS	Standard Safety/EMC/EMI	Standard Safety
- Below	-	-	-	-	-	-	-

NFS Cluster Limits

Max Export Policies - Cluster	Max Export Rules - Cluster	Max NFSv4 Access Control Entries	Max Client Objects	Max pNFS objects
12000	140000	1024	Node:10000 HA Pair:10000	Node:524288 HA Pair:524288 Cluster:1048576

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB)	Size 64-bit Volume (TiB)	File size 64-bit Volume (TiB)	Volume Snapshot Copies	Character length for Snapshot copy names	Hard links - File	inodes/files - Volume	Number of qtrees	Concurrent DataMotion for Volumes ops
120	60	16	Volume:255 Node:127500 HA Pair:255000	255	100000	2000000000	Volume:4995 Node:100000 HA Pair:200000 Cluster:400000	Node:8 HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster	Max QoS User Workloads - Cluster
12000	12000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN	# of flexible volumes - SAN	# of Flexible Vol with DPO -	# of LUNs	LUN mappings	LUN size (TiB) - LUN	FC queue depth available	# of SAN Hosts (ITNs)	# of LIFS - iSCSI	# of LIFS - FCP	# of igroups	# of Initiators	# of Portsets	# of iSCSI sessions
Node:125 HA Pair:250 Cluster:500	Single data Aggregate: Multiple data Aggregates: Node:500 HA Pair:1000 Cluster:2000	Node:512 HA Pair:- Cluster:-	Valume:- Node:2048 HA Pair:4096 Cluster:8192	Node:2048 HA Pair:4096 Cluster:8192	16	2048	Port:512 Node:2048 HA Pair:4096 Cluster:8192	Port:32 Portset:32 Node:256 HA Pair:512 Cluster:1024	Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:2048	Node:512 HA Pair:1024 Cluster:2048	igroup:256 Node:1024 HA Pair:2048 Cluster:4096	Node:512 HA Pair:1024 Cluster:2048	Node:2048 HA Pair:4096 Cluster:8192

CIFS Cluster Limits - All Maximums

# of Connected Shares	# of Regular Shares	# of Open files	# of Local users - Cluster	# of Local groups - Cluster	# of Local group members - Cluster
Node:100000 HA Pair:100000	Node:- HA Pair:- Cluster:40000	Connection:35000 Node:35000 HA Pair:35000	1000	1000	20000

Data Protection Cluster Limits - All Maximums

NDMP Sessions	Data Protection Mirrors	Load Sharing Mirrors - NAS SVM	Concurrent Snap Mirror / SnapVault transfers - Node	DP Mirror fan-out - Volume	LS Mirror fan-out - NAS SVM	# of Clusters that can be peered - Cluster	Volumes, SnapMirror relationship
Node:8 HA Pair (Non-Scalable):8	Volume:1 Node:1000 HA Pair:2000 Cluster:2000	2	20	8	2	255	FlexGroup:32 FlexGroup-Node:- Node:- HA Pair:- Cluster:100

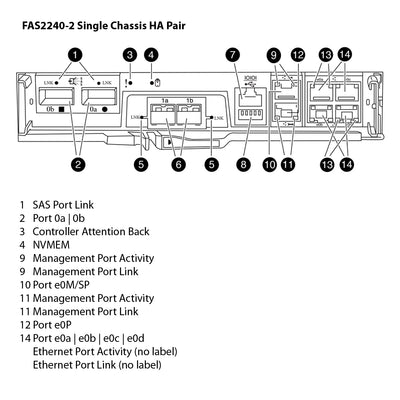

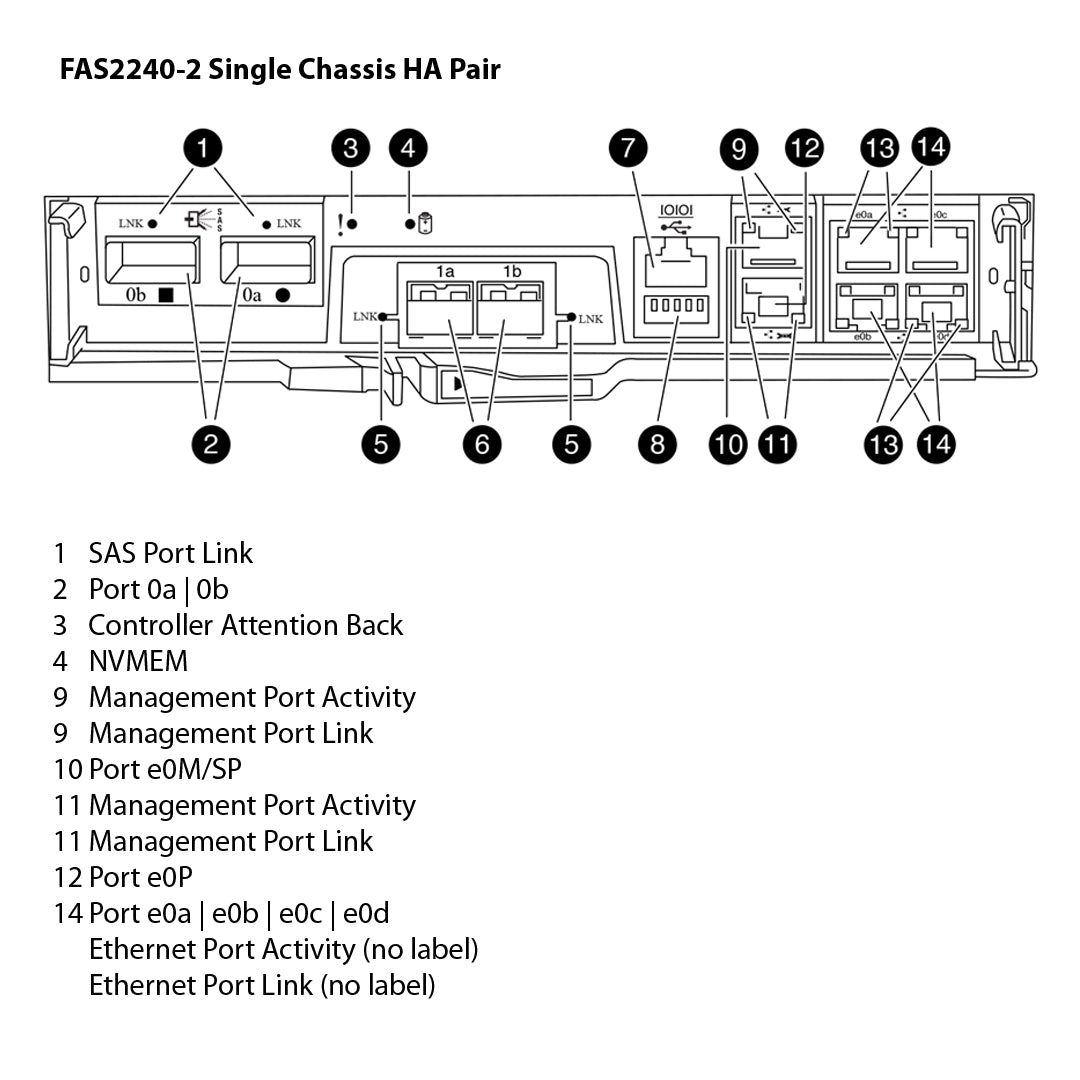

Platform LED for FAS2240-2HA

LED Label	LED Name	Type	Status Indicator	Description
1	Chassis Attention LED, front	On Amber	The system halted or a fault occurred in the chassis.	The system is operating normally.
-	-	Off	The system is operating normally.	At least one of the two PSUs is delivering power to the system.
2	Chassis Power Config	On Green	At least one of the two PSUs is delivering power to the system.	Neither PSU is delivering power to the system.

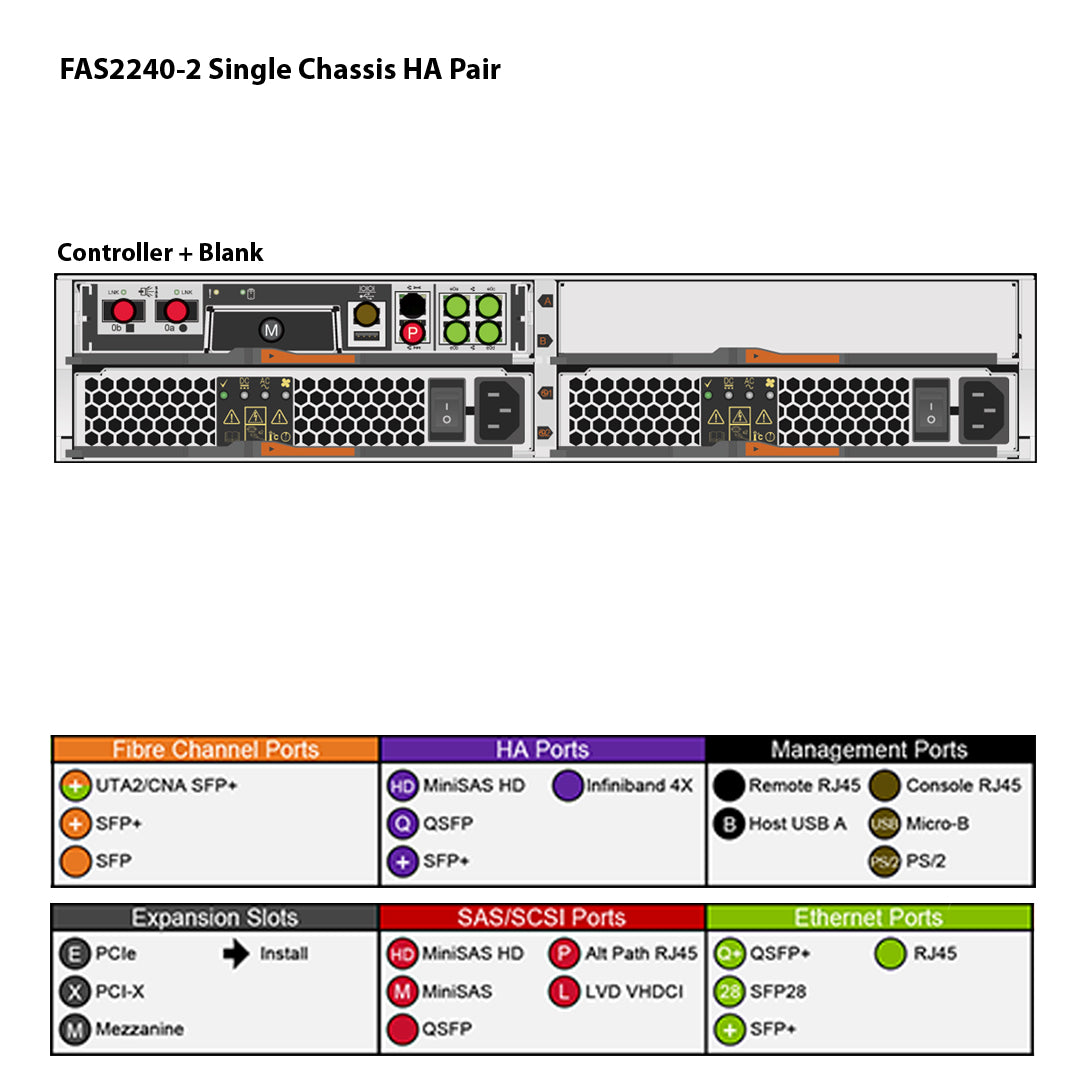

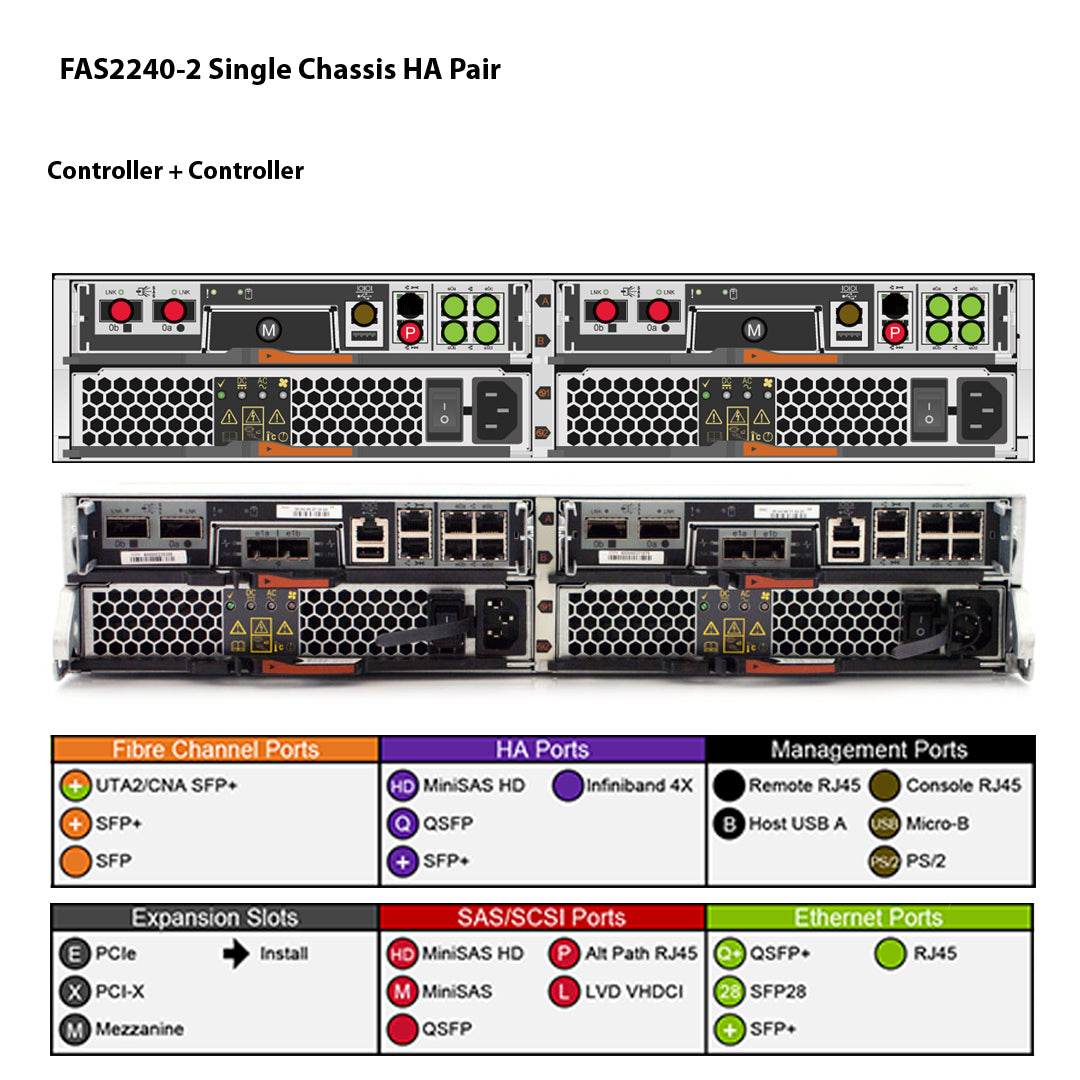

Back View
0a	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
0b	Port SAS Onboard Config	Link	Green	Link is established on at least one external SAS lane
-	-	-	Off	No link is established on any external SAS lane
e0a	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0b	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0c	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0d	Port Ethernet Config	Port Activity	Blinking amber	Traffic is flowing over the connection
-	-	-	Off	No traffic is flowing over the connection.
-	-	Port Link	Green	A connection is established on the port
-	-	-	Off	No connection is established on the port.
e0M/SP	Port Remote Management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and some upstream device.
-	-	-	Off	No link is established.
-	-	-	Off	No traffic is flowing over the connection.
e0P	Port Private management Config	-	Blinking amber	Traffic is flowing over the connection.
-	-	-	Green	A link is established between the port and a downstream disk shelf.
-	-	-	Off	No link is established.

Supported Shelves Drives for FAS2240-2HA

Part No.	Capacity	RPM	Drive Type	Encryption	Root-Data Partitioning	Root-Data-Data Partitioning	Storage Pool Partitioning	Max Drive Count	FlexArray
FAS2240-2HA Internal Drives [4]
X341A-R6	900GB	10K	SAS	No	Yes	No	No	24	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	24	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	24	No
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	24	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	24	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	24	No
X416A-R5 [1] [2]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X417A-R6 [1] [2]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X421A-R5	450GB	10K	SAS	No	Yes	No	No	24	No
X422A-R5	600GB	10K	SAS	No	Yes	No	No	24	No
X423A-R5	900GB	10K	SAS	No	Yes	No	No	24	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	24	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	24	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	24	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	24	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	24	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	24	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	24	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	24	No
DS212C with IOM12 / IOM12 shelf modules
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	60	No
X364A	3.84TB	N/A	SSD	No	No	No	Yes	60	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	60	No
X374A	960GB	N/A	SSD	No	No	No	Yes	60	No
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	60	No
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	60	No
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	60	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	60	No
X577A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	60	No
X302A-R5	1TB	7.2K	SATA	No	No	No	No	60	No
X306A-R5	2TB	7.2K	SATA	No	No	No	No	60	No
X308A-R5	3TB	7.2K	SATA	No	No	No	No	60	No
X315A-R6 [1] [2]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	No	No	No	60	No
X317A [1] [3]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	No	No	No	60	No
X318A-R6	8TB	7.2K	NL-SAS	No	No	No	No	60	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	No	No	No	60	No
X336A-R6	4TB	7.2K	NL-SAS	No	No	No	No	60	No
X339A	2TB	7.2K	NL-SAS	No	No	No	No	60	No
X380A	10TB	7.2K	NL-SAS	No	No	No	No	60	No
X388A	16TB	7.2K	NL-SAS	No	No	No	No	60	No
X477A-R6	4TB	7.2K	NL-SAS	No	No	No	No	60	No
X488A-R5	900GB	10K	SAS	No	No	No	No	60	No
X489A-R6	1.2TB	10K	SAS	No	No	No	No	60	No
X490A-R6	1.8TB	10K	SAS	No	No	No	No	60	No
DS224C with IOM12 / IOM12 shelf modules
X319A	7.6TB	N/A	SSD	No	No	Yes	No	72	No
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	72	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	72	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	72	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	72	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	72	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X446A-R6	200GB	N/A	SSD	No	No	No	Yes	72	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	72	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	72	No
X670A	15.3TB	N/A	SSD	No	No	Yes	No	72	No
X341A-R6	900GB	10K	SAS	No	No	No	No	120	No
X342A-R6	1.2TB	10K	SAS	No	No	No	No	120	No
X343A-R6	1.8TB	10K	SAS	No	No	No	No	120	No
X416A-R5 [1] [2]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X417A-R6 [1] [2]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X421A-R5	450GB	10K	SAS	No	No	No	No	120	No
X422A-R5	600GB	10K	SAS	No	No	No	No	120	No
X423A-R5	900GB	10K	SAS	No	No	No	No	120	No
X425A-R6	1.2TB	10K	SAS	No	No	No	No	120	No
X426A-R6	1.8TB	10K	SAS	No	No	No	No	120	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
DS2246 [4] with IOM6 / IOM6 shelf modules
X356A-R6	3.84TB	N/A	SSD	No	No	Yes	Yes	72	No
X357A	3.84TB	N/A	SSD	No	No	Yes	Yes	72	No
X358A [1]	3.84TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X365A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X371A	960GB	N/A	SSD	No	No	Yes	Yes	72	No
X438A-R6	400GB	N/A	SSD	No	No	Yes	Yes	72	No
X439A-R6	1.6TB	N/A	SSD	No	No	Yes	Yes	72	No
X440A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X440B-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	Yes	Yes	72	No
X446B-R6	200GB	N/A	SSD	No	No	No	Yes	72	No
X447A-R6	800GB	N/A	SSD	No	No	Yes	Yes	72	No
X341A-R6	900GB	10K	SAS	No	Yes	No	No	120	No
X342A-R6	1.2TB	10K	SAS	No	Yes	No	No	120	No
X343A-R6	1.8TB	10K	SAS	No	Yes	No	No	120	No
X416A-R5 [1] [2]	600GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X417A-R6 [1] [2]	900GB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X421A-R5	450GB	10K	SAS	No	Yes	No	No	120	No
X422A-R5	600GB	10K	SAS	No	Yes	No	No	120	No
X423A-R5	900GB	10K	SAS	No	Yes	No	No	120	No
X425A-R6	1.2TB	10K	SAS	No	Yes	No	No	120	No
X426A-R6	1.8TB	10K	SAS	No	Yes	No	No	120	No
X427A [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
X427B-R6 [1]	1.8TB	10K	SAS	FIPS 140-2 Level 2, NSE	Yes	No	No	120	No
DS4246 [4] with IOM6 / IOM6 shelf modules
X363A-R6	3.84TB	N/A	SSD	No	No	No	Yes	72	No
X366A-R6 [1]	1.6TB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	72	No
X374A	960GB	N/A	SSD	No	No	No	Yes	72	No
X441A-R5	100GB	N/A	SSD	No	No	No	No	72	No
X442A-R5 [5]	100GB	N/A	SSD	No	No	No	No	72	No
X448A-R6	200GB	N/A	SSD	No	No	No	Yes	72	No
X449A-R6	800GB	N/A	SSD	No	No	No	Yes	72	No
X575A-R6	400GB	N/A	SSD	No	No	No	Yes	72	No
X576A-R6	1.6TB	N/A	SSD	No	No	No	Yes	72	No
X577A-R6 [1]	800GB	N/A	SSD	FIPS 140-2 Level 2, NSE	No	No	Yes	72	No
X302A-R5	1TB	7.2K	SATA	No	No	No	No	120	No
X306A-R5	2TB	7.2K	SATA	No	No	No	No	120	No
X308A-R5	3TB	7.2K	SATA	No	No	No	No	120	No
X309A-R6 [1] [2]	3TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X310A-R5	500GB	7.2K	SATA	No	No	No	No	120	No
X315A-R6 [1] [2]	4TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X316A-R6	6TB	7.2K	NL-SAS	No	No	No	No	120	No
X317A [1] [3]	6TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X318A-R6	8TB	7.2K	NL-SAS	No	No	No	No	120	No
X322A [1]	10TB	7.2K	NL-SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X336A-R6	4TB	7.2K	NL-SAS	No	No	No	No	120	No
X380A	10TB	7.2K	NL-SAS	No	No	No	No	120	No
X410A-R5	300GB	15K	SAS	No	No	No	No	120	No
X411A-R5	450GB	15K	SAS	No	No	No	No	120	No
X412A-R5	600GB	15K	SAS	No	No	No	No	120	No
X414A-R5 [1] [2]	600GB	15K	SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
X477A-R6	4TB	7.2K	NL-SAS	No	No	No	No	120	No
X488A-R5	900GB	10K	SAS	No	No	No	No	120	No
X489A-R6	1.2TB	10K	SAS	No	No	No	No	120	No
X490A-R6	1.8TB	10K	SAS	No	No	No	No	120	No
DS4243 [4] with IOM3 / IOM6 / IOM6 / IOM3 shelf modules
X441A-R5	100GB	N/A	SSD	No	No	No	No	72	No
X442A-R5 [5]	100GB	N/A	SSD	No	No	No	No	72	No
X302A-R5	1TB	7.2K	SATA	No	No	No	No	120	No
X306A-R5	2TB	7.2K	SATA	No	No	No	No	120	No
X308A-R5	3TB	7.2K	SATA	No	No	No	No	120	No
X310A-R5	500GB	7.2K	SATA	No	No	No	No	120	No
X410A-R5	300GB	15K	SAS	No	No	No	No	120	No
X411A-R5	450GB	15K	SAS	No	No	No	No	120	No
X412A-R5	600GB	15K	SAS	No	No	No	No	120	No
X414A-R5 [1] [2]	600GB	15K	SAS	FIPS 140-2 Level 2, NSE	No	No	No	120	No
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[2] In Flash Pool NSE SSD drives can only be used with NSE HDD drives.
[3] Mixing encrypted with unencrypted drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[4] Total number of SSD drives cannot exceed 96 drives on the FAS2240. However, other drive types (SAS/SATA/NL-SAS) can be added to these system to achieve the maximum drive count of 144 drives.
[5] This drive does not support the sanitization feature.

Supported RAID Configurations - FAS2240-2HA

Drive Type	Drive Capacity Min	Drive Capacity Max	Minimum	Default	Maximum
Data Aggregate
RAID4
NL-SAS	0 TB	8 TB	3	7	7
SAS	0 TB	5.999 TB	3	8	14
SATA	0 TB	5.999 TB	3	7	7
SSD	0 TB	5.999 TB	3	8	14
RAID-DP
NL-SAS	0 TB	5.999 TB	5	14	20
NL-SAS	6 TB	8 TB	5	14	14
SAS	0 TB	5.999 TB	5	16	28
SATA	0 TB	5.999 TB	5	14	20
SSD	0 TB	5.999 TB	5	23	28
RAID-TEC
NL-SAS	0 TB	10 TB	7	21	29
SAS	0 TB	8 TB	7	24	29
SATA	0 TB	8 TB	7	21	29
SSD	0 TB	8 TB	7	24	29
Root Aggregate
RAID4
NL-SAS	0 TB	8 TB	2	-	7
SAS	0 TB	5.999 TB	2	-	14
SATA	0 TB	5.999 TB	2	-	7
SSD	0 TB	5.999 TB	2	-	14
RAID-DP
NL-SAS	0 TB	5.999 TB	3	-	20
NL-SAS	6 TB	8 TB	3[1]	-	14
SAS	0 TB	5.999 TB	3[2]	-	28
SATA	0 TB	5.999 TB	3[2]	-	20
SSD	0 TB	5.999 TB	3	-	28
RAID-TEC
NL-SAS	0 TB	10 TB	7	-	29
SAS	0 TB	8 TB	7	-	29
SATA	0 TB	8 TB	7	-	29
SSD	0 TB	8 TB	7	-	29
Footnote:
[1] RAID-DP is supported with 10TB NL-SAS drives only if HA pair has 10-14 drives
[2] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - FAS2240-2HA

Priority	Category	Bus Type	Mktg Part No.	Mfg Part No	Description	Plug Type	Optical Module Included?	Cables	Supported Protocol(s)	Min ONTAP	Max Qty [1]	Priority Slot Assignment
1	Networking	Mezzanine	X1160A-R6 [2]	111-00810	2p 10GbE NIC Op	111-00810	2p 10GbE NIC Op	SFP+	Ethernet 10Gb	View	Ethernet 10Gb	9.0RC1, 9.1RC1, 8.1, 8.2RC1, 8.3RC1
Footnote:
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown.
[2] Requires X6589-R6 SFP+ optical module or copper twinax cable. The X6589-R6 SFP+ module is optional and NOT included with the 10GbE mezzanine adapter by default. See Ethernet Ports Usage table for Cluster-Mode port assignment.

Supported Connections for FAS2240-2HA

Configuration Type	Port Configuration	Image	Cluster Ports per Node	Switch Ports per Node
Cluster Interconnect
2-node Switchless Cluster	Default, Minimum, Recommended	N/A	2	None
Switched 10GbE Interconnect	Default, Minimum, Recommended	N/A	2	2
Switched 40GbE Interconnect (10GbE breakout)	Default, Recommended	N/A	2	1

Platform Mixing Rules: FAS2240-2HA

Platform Configuration Type	Maximum Nodes (NAS) [1]	Maximum Nodes (SAN) [1]	Min ONTAP Version for Platform Mixing
FAS - Legacy EOA Configuration(s)
FAS2220A	4 Nodes	Not Supported	9.0RC1
FAS2240-2HA	4 Nodes	4 Nodes	9.0RC1
FAS2240-4HA	4 Nodes	4 Nodes	9.0RC1
FAS2520HA	4 Nodes	4 Nodes	9.0RC1
FAS2552HA	4 Nodes	4 Nodes	9.0RC1
FAS2554HA	4 Nodes	4 Nodes	9.0RC1
FAS2620A	4 Nodes	4 Nodes	9.1
FAS2650A	4 Nodes	4 Nodes	9.1RC1
FAS3220A	4 Nodes	4 Nodes	9.0RC1
FAS3220AE	4 Nodes	4 Nodes	9.0RC1
FAS3250AE	4 Nodes	4 Nodes	9.0RC1
FAS3270A	4 Nodes	4 Nodes	9.0RC1
FAS3270AE	4 Nodes	4 Nodes	9.0RC1
FAS6210A	4 Nodes	4 Nodes	9.0RC1
FAS6220A	4 Nodes	4 Nodes	9.1
FAS6240A	4 Nodes	4 Nodes	9.1
FAS6250A	4 Nodes	4 Nodes	9.1
FAS6280A	4 Nodes	4 Nodes	9.1
FAS6290A	4 Nodes	4 Nodes	9.1
FAS8020A	4 Nodes	4 Nodes	9.0RC1
FAS8040A	4 Nodes	4 Nodes	9.1
FAS8060A	4 Nodes	4 Nodes	9.1
FAS8060AE	4 Nodes	4 Nodes	9.1
FAS8080AE EX	4 Nodes	4 Nodes	9.1
FAS8200A	4 Nodes	4 Nodes	9.1RC1
AllFlashFAS - Legacy EOA Configuration(s)
AFF A200A	4 Nodes	4 Nodes	9.1RC2
AFF A300A	4 Nodes	4 Nodes	9.1RC1
AFF8020A	4 Nodes	4 Nodes	9.0RC1
AFF8040A	4 Nodes	4 Nodes	9.1
AFF8060A	4 Nodes	4 Nodes	9.1
AFF8060AE	4 Nodes	4 Nodes	9.1
AFF8080A EX	4 Nodes	4 Nodes	9.1
AFF8080AE EX	4 Nodes	4 Nodes	9.1
V-Series - Legacy EOA Configuration(s)
V3220A	4 Nodes	4 Nodes	9.0RC1
V3220AE	4 Nodes	4 Nodes	9.0RC1
V3250AE	4 Nodes	4 Nodes	9.0RC1
V3270A	4 Nodes	4 Nodes	9.0RC1
V3270AE	4 Nodes	4 Nodes	9.0RC1
V6210A	4 Nodes	4 Nodes	9.0RC1
V6220A	4 Nodes	4 Nodes	9.1
V6240A	4 Nodes	4 Nodes	9.1
V6250A	4 Nodes	4 Nodes	9.1
V6280A	4 Nodes	4 Nodes	9.1
V6290A	4 Nodes	4 Nodes	9.1
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS2240-2HA

Standard	Description
No Information Found

Supported OS Version - FAS2240-2HA

OS Major Version	Supported OS Version	Supported Milestones	Recommend Version
EOS OS
Clustered Data ONTAP 8.3	8.3.2P12, 8.3.2P11, 8.3.2P10, 8.3.2P9, 8.3.2P8, 8.3.2P7, 8.3.2P6, 8.3.2P5, 8.3.2P4, 8.3.2P3, 8.3.2P2, 8.3.2P1, 8.3.2, 8.3.2RC2, 8.3.1P2, 8.3.1P1, 8.3.1, 8.3.1RC1, 8.3P2, 8.3P1, 8.3, 8.3RC2, 8.3RC1	End of Full Support: 31-Oct-2017 End of Limited Support: 30-Apr-2019 End of Self-Service Support: 30-Apr-2022	8.3.2P12
Clustered Data ONTAP 8.2	8.2.4P6, 8.2.4P5, 8.2.4P4, 8.2.4P3, 8.2.4P2, 8.2.4P1, 8.2.4, 8.2.3P6, 8.2.3P5, 8.2.3P4, 8.2.3P3, 8.2.3P2, 8.2.3P1, 8.2.3, 8.2.2P2, 8.2.2P1, 8.2.2, 8.2.2RC2, 8.2.2RC1, 8.2.1P3, 8.2.1P2, 8.2.1P1, 8.2.1, 8.2.1RC2, 8.2.1RC1, 8.2P6, 8.2P5, 8.2P4, 8.2P3, 8.2P2, 8.2, 8.2RC1	End of Full Support: 31-Jul-2017 End of Limited Support: 31-Jan-2019 End of Self-Service Support: 31-Jan-2022	8.2.4P6
7-Mode 8.2	8.2.5P5, 8.2.5P4, 8.2.5P3, 8.2.5P2, 8.2.5P1, 8.2.5, 8.2.4P6, 8.2.4P5, 8.2.4P4, 8.2.4P3, 8.2.4P2, 8.2.4P1, 8.2.4, 8.2.3P6, 8.2.3P5, 8.2.3P4, 8.2.3P3, 8.2.3P2, 8.2.3P1, 8.2.3, 8.2.2, 8.2.2RC2, 8.2.2RC1, 8.2.1, 8.2.1RC2, 8.2.1RC1, 8.2, 8.2RC1	End of Full Support: 31-Dec-2020 End of Limited Support: 31-Dec-2022 End of Self-Service Support: 31-Dec-2025	8.2.5P5
7-Mode 8.1	8.1.4P10, 8.1.4P9, 8.1.4P8, 8.1.4P7, 8.1.4P6, 8.1.4P5, 8.1.4P4, 8.1.4P3, 8.1.4P2, 8.1.4P1, 8.1.4, 8.1.3P3, 8.1.3P2, 8.1.3P1, 8.1.3, 8.1.3RC1, 8.1.2P4, 8.1.2P3, 8.1.2P2, 8.1.2P1, 8.1.2, 8.1.2RC2, 8.1.1P2, 8.1.1P1, 8.1.1, 8.1.1RC1, 8.1P3, 8.1P2, 8.1P1, 8.1	End of Full Support: 30-Aug-2015 End of Limited Support: 28-Feb-2017 End of Self-Service Support: 28-Feb-2020	8.1.4P10
Clustered Data ONTAP 8.1	8.1.4P10, 8.1.4P9, 8.1.4P8, 8.1.4P7, 8.1.4P6, 8.1.4P5, 8.1.4P4, 8.1.4P3, 8.1.4P2, 8.1.4P1, 8.1.4, 8.1.3P3, 8.1.3P2, 8.1.3P1, 8.1.3, 8.1.3RC1, 8.1.2P4, 8.1.2P3, 8.1.2P2, 8.1.2P1, 8.1.2, 8.1.2RC2, 8.1.1P2, 8.1.1P1, 8.1.1, 8.1.1RC1, 8.1P3, 8.1P2, 8.1P1, 8.1	End of Full Support: 30-Aug-2015 End of Limited Support: 28-Feb-2017 End of Self-Service Support: 28-Feb-2020	8.1.4P10
ONTAP 9.1	9.1P20, 9.1P19, 9.1P18, 9.1P17, 9.1P16, 9.1P15, 9.1P14, 9.1P13, 9.1P12, 9.1P11, 9.1P10, 9.1P9, 9.1P8, 9.1P7, 9.1P6, 9.1P5, 9.1P3, 9.1P2, 9.1P1, 9.1, 9.1RC2, 9.1RC1	End of Full Support: 31-Jan-2020 End of Limited Support: 31-Jan-2022 End of Self-Service Support: 31-Jan-2025	9.1P20
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS2240-2HA

Marketing Part No.	End 1 / End 2	Length	Description
Non-Cabinet Power Cords
X800B-R6	CEE 7/7 (Schuko) / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6	BS1363 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6	JIS-C-8303 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6	NEMA 5-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6	AS/NZS 3112 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6	SEV 1011 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6	IRAM 2073 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6	GB2099 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6	DHCR107-2-D1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6	SANS 164-1 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6	SI32 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6	CEI 23-16 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6	NEMA 6-15P / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6	CNS 10917-3 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6	NBR14136 / IEC60320-C13	2.50 m	Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6	CNS10917/CNS690 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6	JIS-C-830 / IEC60320-C13	1.83 m	Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6	IEC60320-C14 / IEC60320-C13	1.20 m	Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35	IEC60320-C14 / IEC60320-C13	0.89 m	Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43	IEC60320-C14 / IEC60320-C13	1.09 m	Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64	IEC60320-C14 / IEC60320-C13	1.63 m	Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6	IEC60320-C14 / IEC60320-C13	0.68 m	Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: FAS2240-2HA

Port Address	Description	Supported Protocols	Port Icon	Port Type
0a [1]	Serial-Attached SCSI	SAS 3/6 Gb	SAS	QSFP
0b [1]	Serial-Attached SCSI	SAS 3/6 Gb	SAS	QSFP
e0a	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0b	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0c	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0d	Ethernet	Ethernet 10/100/1000 Mb	Ethernet	RJ45
e0M/SP [2]	Management	Ethernet 10/100 Mb	Wrench	RJ45
e0P	Private Management	Ethernet 10/100 Mb	Wrench w/Padlock	RJ45
Serial Interface Icon [3]	Serial Console	RS-232 9600bps	Serial Interface	RJ45
Footnote:
[1] 0a (circle) is Expander port, 0b (square) is HBA port.SAS tape supported
[2] Default management port
[3] RS232, RJ45 connector

Supported Platform Configurations - FAS2240-2HA

Platform Configuration	Description	Chassis Configuration	Chassis Count	Controller Count (per chassis)	IOXM Count (per chassis)	Rack Units (Per System)	Weight (Per Chassis)	Min ONTAP
Stand Alone
FAS2240-2	FAS2240-2 Single Node	Cb	1	1	0	2	37.48 lb (17 kg)	9.0RC1, 9.1RC1
HA Pair
FAS2240-2HA	FAS2240-2 Single Chassis HA Pair	CC	1	2	0	2	42.55 lb (19.3 kg)	9.0RC1, 9.1RC1

Platform Memory Specifications - FAS2240-2HA

Part Number	Description	Mfg Part Number	Non-Volatile	Qty	Capacity (GB)	NVRAM/NVMEM Used Capacity (GB)	RAM Used Capacity (GB)
X3208A-R6	4GB DIMM, ECC, DDR3-800, System	107-00100	no	2	4	-	12
X3209A-R6	2GB DIMM, ECC, DDR3-800, NVMEM Slot	107-00099	yes	2	2	1.53	-

Supported Rail Kit for FAS2240-2HA

Marketing Part No.	Manufacturing Part No.	Description
NetApp System Cabinet Rail Kits
X877B-R6	111-00596	Rail Kit II, NetApp Cabinet, R6
X8783A-R6	111-01110	Rail Kit III, NetApp Cabinet, R6
Third-Party Cabinet Rail Kits
X-02659-00	113-00232	Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6 [1]	111-00232	Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5526A-R6	111-00593	Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6	111-00864	Kit,2-Post,Round-Hole
X5529A-R6	111-00310	Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Field Replacement Unit Parts - FAS2240-2HA

Marketing Part No.	Manufacturing Part No.	Description
Adapter Card
X1160A-R6 [1]	111-00810	CARD Mezzanine 2-port 10GbE
Battery
X1847	271-01847	Lithium System Battery CR2032
X1847-R6	271-01847	Lithium System Battery CR2032,R6
X3117A-R6	111-00908	Battery,FAS22XX,FAS25XX,NVMEM
Bezel
X80067A-R6	111-00814	Bezel,2U,FAS2240,R6
Blank
X5055-R6	111-00812	BLANK,CHASSIS FILLER,REAR,DS2246,R6
Boot Media
X1425A-R6	N/A	MEM,USB Media,2GB,Blank
Chassis
X559A-R6	111-00804	SHELF,EMPTY,2PSU,AC,DS2246,R6
Data Cable
X-SFP-H10GB-CU1M-R6	112-00210	Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C	112-00210	Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6	112-00211	Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C	112-00211	Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6	112-00212	Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C	112-00212	Cable,10GBase Copper SFP+ 5m,-C
X6536-R6	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C	112-00090	Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C	112-00091	Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6546-R6	112-00074	Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6	112-00073	Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C	112-00188	Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6	112-00189	Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C	112-00189	Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6557-EN-R6-C	112-00176	Cbl,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,EN,-C
X6557-R6	112-00176	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m
X6557-R6-C	112-00176	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,-C
X6558-EN-R6-C	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6558-R6	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m
X6558-R6-C	112-00177	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6559-EN-R6-C	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6559-R6	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m
X6559-R6-C	112-00178	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6560-R6	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C	112-00194	Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6	112-00195	Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C	112-00195	Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6	112-00196	Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C	112-00196	Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C	112-00297	Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6	112-00299	Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C	112-00299	Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6	112-00300	Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C	112-00300	Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6	112-00301	Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C	112-00301	Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6	112-00238	Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C	112-00238	Cable,Ethernet,30m RJ45 CAT6,-C
X6585-R6	112-00291	Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C	112-00291	Cable,Ethernet,3m RJ45 CAT6,-C
X6590-R6	112-00242	Cable,SAS Cntlr-Shelf/Shelf-Shelf,10m
X6591-R6	112-00243	Cable,SAS Cntlr-Shelf/Shelf-Shelf,20m
X6592-R6	112-00246	Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C	112-00246	Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6	112-00247	Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C	112-00247	Cable,Ethernet,20m RJ45 CAT6,-C
X6594-R6	112-00256	Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m
X6594-R6-C	112-00256	Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m,-C
X6595-R6	112-00255	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m
X6595-R6-C	112-00255	Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m,-C
X66020A-R6	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C	112-00429	Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C	112-00430	Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C	112-00431	Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66120-3	112-00545	Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m
X66120-3-C	112-00545	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-3-N-C	112-00545	Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-5	112-00546	Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m
X66120-5-C	112-00546	Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X66120-5-N-C	112-00546	Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C
X66205-30	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C	112-00261	Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C	112-00260	Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66250-15	112-00346	Cable,LC-LC,OM4,15m
X66250-15-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-15-N-C	112-00346	Cable,LC-LC,OM4,15m,-C
X66250-2	112-00342	Cable,LC-LC,OM4,2m
X66250-2-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-2-N-C	112-00342	Cable,LC-LC,OM4,2m,-C
X66250-30	112-00347	Cable,LC-LC,OM4,30m
X66250-30-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-30-N-C	112-00347	Cable,LC-LC,OM4,30m,-C
X66250-5	112-00344	Cable,LC-LC,OM4,5m
X66250-5-C	112-00344	Cable,LC-LC,OM4,5m,-C
X66250-5-N-C	112-00344	Cable,LC-LC,OM4,5m,-C
Disk Drive Blank-Filler
X5054-R6	108-00224	BLANK,DSK DRV FILLER,DS2246,R6
Drive
X302A-R5	108-00268	Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5	108-00270	Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5	108-00277	Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X309A-R6 [2]	108-00301	DSK DRV,3TB 7.2k,NSE,DS424x,FAS2220/2240-4
X310A-R5	108-00235	Disk Drive,500GB 7.2k SATA,DS4243
X315A-R6 [2]	108-00368	DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X316A-R6	108-00389	Disk Drive,6TB 7.2k,DS4246,FAS2554
X317A [2]	108-00399	DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6	108-00455	DSK DRV,8TB,7.2K,12G,DS212C
X319A	108-00687	SSD,7.6TB,12G,DS224C
X322A [2]	108-00551	DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6	108-00427	DSK DRV,4TB,7.2K,12G,DS212C
X339A	108-00426	DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X341A-R6	108-00430	DSK DRV,900GB,10K,12G,DS224C
X342A-R6	108-00432	DSK DRV,1.2TB,10K,12G,DS224C
X343A-R6	108-00433	DSK DRV,1.8TB,10K,12G,DS224C
X356A-R6	108-00468	SSD,3.8TB,DS2246,FAS2552
X357A	108-00572	SSD,3.8TB,12G,DS224C,W/MSW
X358A [2]	108-00575	SSD,3.8TB,12G,NSE,DS224C
X363A-R6	108-00467	SSD,3.8TB,FAS2520/2554
X364A	108-00650	SSD,3.8TB,DS212C,FAS2620,w/MSW
X365A-R6 [2]	108-00477	SSD,1.6TB,NSE,DS2246,FAS2552
X366A-R6 [2]	108-00470, 108-00478	SSD,1.6TB,NSE,DS4246,FAS2554
X371A	108-00546	SSD,960GB,12G,DS224C,W/MSW
X374A	108-00573	SSD,960GB,12G,DS212C,W/MSW
X380A	108-00549	DSK DRV,10TB,7.2K,12G,DS212C
X388A	108-00885	DSK DRV,16TB,7.2K,12G,DS212C
X410A-R5	108-00232	Disk Drive,300GB 15k,DS424x
X411A-R5	108-00233	Disk Drive,450GB 15k,DS424x
X412A-R5	108-00227	Disk Drive,600GB 15k,DS424x
X414A-R5 [2]	108-00159	Disk Drive,600GB 15K,NSE,DS424x
X416A-R5 [2]	108-00223	Disk Drive,600GB 10k,NSE,DS224x,FAS2240-2
X417A-R6 [2]	108-00246	DSK DRV,900GB,10K,NSE,DS2246,2552/2240-2
X421A-R5	108-00220	Disk Drive,450GB 10k,DS224x,FAS2240-2
X422A-R5	108-00221	Disk Drive,600GB 10k,DS224x,2552/2240-2
X423A-R5	108-00222	DSK DRV,900GB,10K,DS2246,2552/2240-2,R5
X425A-R6	108-00321	DSK DRV,1.2TB,10K,DS2246,2552/2240-2
X426A-R6	108-00424	DSK DRV,1.8TB,10K,DS2246,2552/2240-2
X427A [2]	108-00476	DSK DRV,1.8TB,10k,NSE,DS2246,FAS2552
X427B-R6 [2]	108-00438	DSK DRV,1.8TB,10K,12G,NSE,DS224C
X438A-R6	108-00369	SSD,400GB,DS224x,FAS2552/2240-2
X439A-R6	108-00372	SSD,1.6TB,DS224x,FAS2552/2240-2
X440A-R6 [2]	108-00374	SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552
X440B-R6 [2]	108-00460	SSD,800GB,12G,NSE,DS224C
X441A-R5	108-00278	Solid State Drive,100GB,DS424x
X442A-R5 [3]	108-00249	Solid State Drive,100GB,3Gb,DS4243
X446A-R6	108-00257	SSD,200GB,DS224x,FAS2240-2
X446B-R6	108-00323	SSD,200GB,B,DS224x,FAS2240-2,FAS2552
X447A-R6	108-00260	SSD,800GB,DS224x,FAS2552/2240-2
X448A-R6	108-00253	SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6	108-00319	SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6	108-00315	DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X488A-R5	108-00298	Disk Drive,900GB 10K,2520/2220
X489A-R6	108-00322	Disk Drive,1.2TB 10K,2520/2220
X490A-R6	108-00425	Disk Drive,1.8TB 10K,FAS2520
X575A-R6	108-00370	SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6	108-00373	SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 [2]	108-00375	SSD,800GB,NSE,DS4246,FAS2554
X670A	108-00530	SSD,15.3TB,12G,DS224C
Memory Module
X3208A-R6	107-00100	DIMM,4GB,Sys Memory,FAS2240,R6
X3209A	107-00099	Controller,MEM,A400,8300
X3209A-R6	107-00099	DIMM,2GB,NVMEM,Sys Memory,FAS2240,R6
Mezzanine Blank
X1165A-R6	111-00813	CARD Mezzanine Filler Blank,FAS2240,R6
X1558A-R6-C	N/A	Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C	N/A	Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N	N/A	Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N	N/A	Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C	N/A	Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N	N/A	Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N	N/A	Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C	N/A	Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N	N/A	Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N	N/A	Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6	N/A	Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C	N/A	Jumper Crd,In-Cab,C13-C14,-C
X800B-R6	N/A	Power Cable,Continental Europe,R6
X800B-R6-C	N/A	Power Cable,Continental Europe,-C,R6
X800C-R6	N/A	Power Cable,UK and Ireland,R6
X800C-R6-C	N/A	Power Cable,UK and Ireland,-C,R6
X800D-R6	N/A	Power Cable,Japan,R6
X800D-R6-C	N/A	Power Cable,Japan,-C,R6
X800E-R6	N/A	Power Cable,North America,R6
X800E-R6-C	N/A	Power Cable,North America,-C,R6
X800F-R6	N/A	Power Cable,Australia/New Zealand,R6
X800F-R6-C	N/A	Power Cable,Australia/New Zealand,-C,R6
X800G-R6	N/A	Power Cable,Switzerland,R6
X800G-R6-C	N/A	Power Cable,Switzerland,-C,R6
X800H-R6	N/A	Power Cable,Argentina,R6
X800H-R6-C	N/A	Power Cable,Argentina,-C,R6
X800I-R6	N/A	Power Cable,China,R6
X800I-R6-C	N/A	Power Cable,China,-C,R6
X800J-R6	N/A	Power Cable,Denmark,R6
X800J-R6-C	N/A	Power Cable,Denmark,-C,R6
X800K-R6	N/A	Power Cable,India,South Africa,R6
X800K-R6-C	N/A	Power Cable,India,South Africa,-C,R6
X800L-R6	N/A	Power Cable,Israel,R6
X800L-R6-C	N/A	Power Cable,Israel,-C,R6
X800M-R6	N/A	Power Cable,Italy,R6
X800M-R6-C	N/A	Power Cable,Italy,-C,R6
X800P-R6	N/A	Power Cable,North America,250V,R6
X800P-R6-C	N/A	Power Cable,North America,250V,-C,R6
X800T-R6	N/A	Power Cable,Taiwan,BSMI,R6
X800T-R6-C	N/A	Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6	N/A	Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6	N/A	Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C	N/A	Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6	N/A	Power Cable,Japan,250V/15A
X800Y-R6-C	N/A	Power Cable,Japan,250V/15A,-C
Power Supply Unit
X519A-R6	114-00065	PSU W/FANS,750W,AC,DS2246,R6
X523A-R6	114-00027	PSU W/FANS,Estar,750W,AC,DS2246
Processor Controller Module (PCM)
X3245A-R6	111-00846	FAS2220/2240,Controller,W/O MEM,W/O BATTERY
Transceiver
X6589-N-C	332-00279R6	SFP+Optical 10Gb Shortwave,-C
X6589-R6	332-00279R6	SFP+Optical 10Gb Shortwave
X6589-R6-C	332-00279R6	SFP+ Optical 10Gb Shortwave,-C
X6599A-N-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
X6599A-R6	332-00363	SFP+ Optical 10Gb Shortwave
X6599A-R6-C	332-00363	SFP+ Optical 10Gb Shortwave,-C
Footnote:
[1]	Requires X6589-R6 SFP+ optical module or copper twinax cable. The X6589-R6 SFP+ module is optional and NOT included with the 10GbE mezzanine adapter by default. See Ethernet Ports Usage table for Cluster-Mode port assignment.
[2]	Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[3]	This drive does not support the sanitization feature.

Supported Firmware Matrix - FAS2240-2HA

Major OS Version	OS Version	Firmeware
BIOS
Clustered Data ONTAP 8.3	8.3.2, 8.3.2RC2, 8.3.1, 8.3.1RC1, 8.3, 8.3RC2, 8.3RC1	8.3*
Clustered Data ONTAP 8.2	8.2.4, 8.2.3, 8.2.2	8.3 (7-Mode), 8.3, 8.2, 8.1*
Clustered Data ONTAP 8.2	8.2.2RC2, 8.2.2RC1	8.3 (7-Mode), 8.3, 8.2, 8.1*
Clustered Data ONTAP 8.2	8.2.1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2, 8.1
Clustered Data ONTAP 8.2	8.2.1RC2, 8.2.1RC1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2, 8.1*
Clustered Data ONTAP 8.2	8.2, 8.2RC1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2, 8.1.0 (7-Mode), 8.1.0, 8.1*
7-Mode 8.2	8.2.5P5	8.3 (7-Mode)*
7-Mode 8.2	8.2.5	8.3 (7-Mode), 8.2, 8.1
7-Mode 8.2	8.2.4, 8.2.3, 8.2.2	8.3 (7-Mode), 8.3, 8.2, 8.1*
7-Mode 8.2	8.2.2RC2, 8.2.2RC1	8.3 (7-Mode), 8.3, 8.2, 8.1*
7-Mode 8.2	8.2.1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2, 8.1
7-Mode 8.2	8.2.1RC2, 8.2.1RC1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2, 8.1*
7-Mode 8.2	8.2, 8.2RC1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2, 8.1.0 (7-Mode), 8.1.0, 8.1*
ONTAP 9.1	9.1P17-P20, 9.1P13-P16, 9.1P10-P12, 9.1P9, 9.1P8, 9.1P3-P7, 9.1P1-P2, 9.1, 9.1RC2, 9.1RC1	8.3*
Clustered Data ONTAP 8.1	8.1.4	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2*
Clustered Data ONTAP 8.1	8.1.3, 8.1.3RC1, 8.1.2, 8.1.2RC2, 8.1.1, 8.1.1RC1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.1.0 (7-Mode), 8.1.0
Clustered Data ONTAP 8.1	8.1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.1.0 (7-Mode), 8.1.0, 8.0.0
7-Mode 8.1	8.1.4	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.2*
7-Mode 8.1	8.1.3, 8.1.3RC1, 8.1.2, 8.1.2RC2, 8.1.1, 8.1.1RC1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.1.0 (7-Mode), 8.1.0
7-Mode 8.1	8.1	8.3 (7-Mode), 8.3, 8.2.0 (7-Mode), 8.2.0, 8.1.0 (7-Mode), 8.1.0, 8.0.0
ONTAP 9.0	9.0P1-P4, 9.0, 9.0RC2, 9.0RC1	8.3*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS2240-2HA

Certificate Name	Geo / Region / Country	Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00029	Global	Platforms : FAS2220, FAS2240-2, FAS2240-4, FAS2520, FAS2552, FAS2554
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00029	Global	Platforms : FAS2220, FAS2240-2, FAS2240-4, FAS2520, FAS2552, FAS2554
Declaraion of Similarity NAJ-1001	Global	Platforms : FAS2240-2, FAS2552
NAJ-1001 G-K-U-SoR	Gabon,Kenya,SaudiArabia,Uganda	Platforms : FAS2240-2, FAS2552
NAJ-1001 (FXN Mexico) BIS	BIS - India	Platforms : FAS2240-2, FAS2552
NAJ-1001 (FXN Taiwan) BIS	BIS - India	Platforms : FAS2240-2, FAS2552
NAJ-1001 ACMA	ACMA - Australia, New Zealand	Platforms : FAS2240-2, FAS2552
NAJ-1001 BSMI	BSMI - Taiwan	Platforms : FAS2240-2, FAS2552
NAJ-1001 CB	CB - International	Platforms : FAS2240-2, FAS2552
NAJ-1001 CE	CE - European Union DoC	Platforms : FAS2240-2, FAS2552
NAJ-1001 CSA	CSA - United States, Canada	Platforms : FAS2240-2, FAS2552
NAJ-1001 EAC	EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia	Platforms : FAS2240-2, FAS2552
NAJ-1001 IRAM	IRAM - Argentina	Platforms : FAS2240-2, FAS2552
NAJ-1001 KC	KC - South Korea	Platforms : FAS2240-2, FAS2552
NAJ-1001 Morocco	Morocco	Platforms : FAS2240-2, FAS2552
NAJ-1001 NOM	NOM - Mexico	Platforms : FAS2240-2, FAS2552
NAJ-1001 SONCAP	SONCAP - Nigeria	Platforms : FAS2240-2, FAS2552
NAJ-1001 TBS	TBS - Tanzania	Platforms : FAS2240-2, FAS2552
NAJ-1001 UKRSepro	UKRSepro - Ukraine	Platforms : FAS2240-2, FAS2552
NAJ-1001 VCCI	VCCI - Japan	Platforms : FAS2240-2, FAS2552
NAJ-1001_NRCS	NRCS - South Africa (Safety)	Platforms : FAS2240-2, FAS2552
Voluntary Product Accessibility Template
NAJ-1001_NRCS	NRCS - South Africa (Safety)	Platforms : FAS2240-2, FAS2552

Size, Weight, Acoustic, Power FAS2240-2HA

Associated Part No.	Configuration	Rack Units	Weight	Sound Power	Sound Pressure	Line Voltage Actual (Min to Max)	Amps Typical	Amps Worst	Watts Typical	Watts Worst	BTU / Hr Typical	BTU / Hr Worst
Embedded Drive Config (Half)
FAS2240-2-12X450-2-R6	FAS2240-2 1 PCM 12x450GB SAS	2	451.9 lb (205.0 kg)	69 Bels	51 dBA	100 (100 to 120)	2.29	3.93	224	385	765	1314
FAS2240-2-12X450-2-R6	FAS2240-2 1 PCM 12x450GB SAS	2	451.9 lb (205.0 kg)	69 Bels	51 dBA	200 (200 to 240)	1.13	1.93	220	378	751	1291
FAS2240-2-12X450-2-R6	FAS2240-2 2 PCM 12x450GB SAS	2	50.0 lb (22.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.06	4.69	299	459	1021	1567
FAS2240-2-12X450-2-R6	FAS2240-2 2 PCM 12x450GB SAS	2	50.0 lb (22.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.5	2.3	294	450	1004	1536
FAS2240-2-12X600-2-R6	FAS2240-2 1 PCM 12x600GB SAS	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.36	3.99	231	391	789	1335
FAS2240-2-12X600-2-R6	FAS2240-2 1 PCM 12x600GB SAS	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.16	1.96	227	384	775	1311
FAS2240-2-12X600-2-R6	FAS2240-2 2 PCM 12x600GB SAS	2	50.0 lb (22.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.12	4.76	305	466	1041	1591
FAS2240-2-12X600-2-R6	FAS2240-2 2 PCM 12x600GB SAS	2	50.0 lb (22.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.53	2.34	299	457	1021	1560
FAS2240-2-12X900-2-R6	FAS2240-2 1 PCM 12x900GB SAS	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.4	4.05	235	396	803	1352
FAS2240-2-12X900-2-R6	FAS2240-2 1 PCM 12x900GB SAS	2	45.2 lb (20.5 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.18	1.99	231	389	789	1328
FAS2240-2-12X900-2-R6	FAS2240-2 2 PCM 12x900GB SAS	2	50.0 lb (22.7 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.17	4.81	310	471	1058	1608
FAS2240-2-12X900-2-R6	FAS2240-2 2 PCM 12x900GB SAS	2	50.0 lb (22.7 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.56	2.36	304	462	1038	1577
Embedded Drive Config (Full)
F2240A-2-24X1.2TB-2-R6	FAS2240-2 2 PCM 24x1.2TB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.82	4.78	381	477	1302	1628
F2240A-2-24X1.2TB-2-R6	FAS2240-2 2 PCM 24x1.2TB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.92	2.36	373	462	1274	1580
F2240A-2-24X200-SSD-2-R6	FAS2240-2 2 PCM 24x200GB	2	55.3 lb (25.1 kg)	6.9 Bels	51 dBA	100 (100 to 120)	2.71	3	270	300	922	1024
F2240A-2-24X200-SSD-2-R6	FAS2240-2 2 PCM 24x200GB	2	55.3 lb (25.1 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.4	1.72	267	335	912	1144
F2240A-2-24X450-2-R6	FAS2240-2 2 PCM no mezz 24x450GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.6	4.76	356	474	1215	1618
F2240A-2-24X450-2-R6	FAS2240-2 2 PCM no mezz 24x450GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.76	2.31	339	456	1157	1557
F2240A-2-24X450-2-R6	FAS2240-2 2 PCM no mezz 24x450GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	215 (200 to 240)	1.64	2.15	336	456	1147	1557
F2240A-2-24X600-2-R6	FAS2240-2 2 PCM no mezz 24x600GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.6	4.76	356	474	1215	1618
F2240A-2-24X600-2-R6	FAS2240-2 2 PCM no mezz 24x600GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.76	2.31	339	456	1157	1557
F2240A-2-24X600-2-R6	FAS2240-2 2 PCM no mezz 24x600GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	215 (200 to 240)	1.64	2.15	336	456	1147	1557
F2240A-2-24X600N-2-R6	FAS2240-2 2 PCM FC mezz 24x600GB	2	56.0 lb (25.4 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.61	5.07	357	509	1219	1738
F2240A-2-24X600N-2-R6	FAS2240-2 2 PCM FC mezz 24x600GB	2	56.0 lb (25.4 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.78	2.47	340	487	1161	1663
F2240A-2-24X600N-2-R6	FAS2240-2 2 PCM FC mezz 24x600GB	2	56.0 lb (25.4 kg)	6.9 Bels	51 dBA	215 (200 to 240)	1.66	2.29	338	487	1154	1663
F2240A-2-24X600N-2-R6	FAS2240-2 2 PCM no mezz 24x600GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.6	4.76	356	474	1215	1618
F2240A-2-24X600N-2-R6	FAS2240-2 2 PCM no mezz 24x600GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.76	2.31	339	456	1157	1557
F2240A-2-24X600N-2-R6	FAS2240-2 2 PCM no mezz 24x600GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	215 (200 to 240)	1.64	2.15	336	456	1147	1557
F2240A-2-24X900-2-R6	FAS2240-2 2 PCM 24x900GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.71	4.45	370	450	1263	1536
F2240A-2-24X900-2-R6	FAS2240-2 2 PCM 24x900GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.88	2.23	360	420	1229	1434
F2240A-2-24X900N-2-R6	FAS2240-2 2 PCM 24x900GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.71	4.45	370	450	1263	1536
F2240A-2-24X900N-2-R6	FAS2240-2 2 PCM 24x900GB	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.88	2.23	360	420	1229	1434
Embedded Drive Config (Mixed)
F2240A-2-18TB-24M-2-R6	FAS2240-2 2 PCM 4x200GB SSD 20x900GB HDD	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	100 (100 to 120)	3.41	4.18	342	420	1168	1434
F2240A-2-18TB-24M-2-R6	FAS2240-2 2 PCM 4x200GB SSD 20x900GB HDD	2	55.6 lb (25.2 kg)	6.9 Bels	51 dBA	200 (200 to 240)	1.73	2.07	356	408	1215	1393

Category: 2u, drive-count-24, FAS2200, fas2240, lff, netapp, sff

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground
- Shipping time: 2-7 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-10 business days
- Excludes weekends, holidays or weather delays.
3 Business Days
- Shipping time: 3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 3-6 business days
- Excludes weekends, holidays or weather delays.
2 Business Days
- Shipping time: 2 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-5 business days
- Excludes weekends, holidays or weather delays.
Overnight / Next Business Day
- Shipping time: 1 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 1-4 business days
- Excludes weekends, holidays or weather delays.

International Shipments

International Economy
- Shipping time: 4-6 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 5-9 business days
- Excludes weekends, holidays or weather delays.
International Priority
- Shipping time: 1-3 business days
- Order processing time: 0-3 business days
- Delivery time after order is placed: 2-6 business days
- Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
any improper use that contravenes the instructions in the user manual;
problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping

At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In

At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab

Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.
