EMC VNXe3200 Disk Processor Enclosure (DPE)

Brand:
MPN:
VNXe3200
Type:
Storage Array
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EMC VNXe3200 Disk Processor Enclosure (DPE)

VNXe3200 Storage Processor Enclosure (SPE) enables VNXe3200 customers to keep pace with their growing businesses by expanding their system storage capacity. The VNXe3200's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools. The VNXe3200 allows you to mix SSD (EFD), SAS or NL-SAS to achieve certain storage capacities or performance metrics. As a unified storage system, data can be shared by SAN for applications and NAS for CIFS or NFS shares. The VNXe3200 is a high-performance, I/O dense, high-capacity storage system in a small 2U form factor.

The VNXe3200 is a unified hybrid flash and all flash storage system. The VNXe3200 provides support for MCx multicore optimization, FAST Cache SSD caching, FAST VP auto-tiering, and Fibre Channel host connectivity, all of which come standard. The VNXe3200 is a dense, 2U dual-controller unified storage system that provides Fibre Channel and IP connectivity for concurrent SAN or NAS operations.

DELL EMC VNXe3200 Base Knowledge
This is the second generation VNXe Disk Processors Enclosures (DPE). One major difference between the VNXe 3200 and the 3300 or the 3150 VNXe DPE. The VNXe3200 can’t have different SP modules installed. They must all be the same. The VNXe3200 also supports a new SP Personality Module, a 4 port 8Gb FC. The new SP also has 48GB of RAM per SP.

Form Factor: 2U

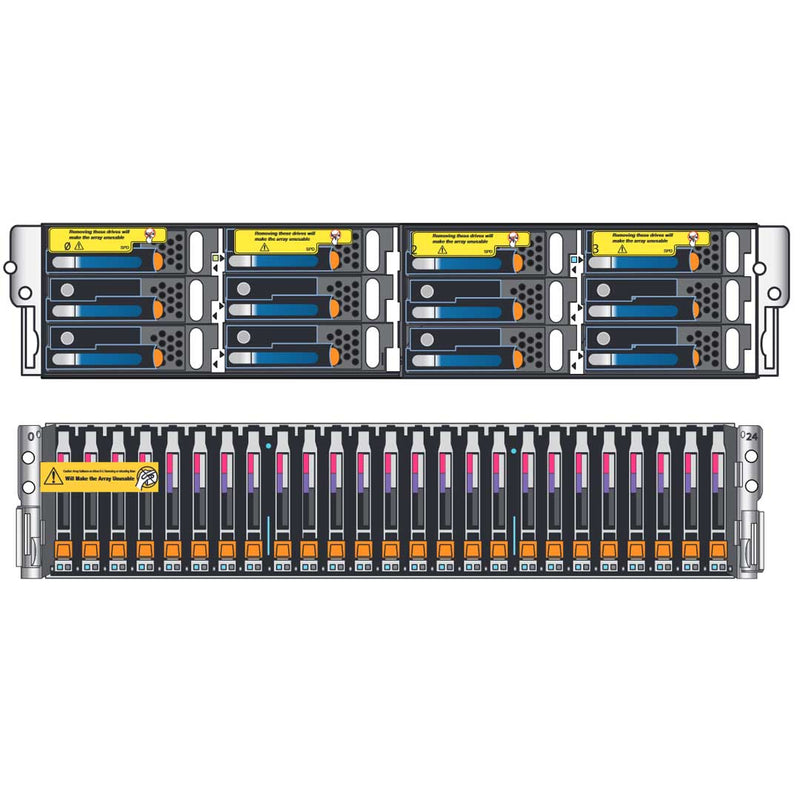

Chassis: 12 LFF / 25 SFF
Max Drives: 150 Disk Drives.
Drives Supported: The DPE supports Serial attached-SCSI (SAS), near-line SAS (NL-SAS), and Flash drives in two types of carriers, 2U, 12 (3.5-inch) disk drive carrier or a 2U, 25 (2.5-inch) disk drive carrier.

Storage Processor (SP)
A CPU module with an Intel Xeon Quad Core 2.2-GHz processor with three Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots supporting 24 GB (3 x 8 GB) of memory per SP, for a total of 48 GB per DPE.

I/O Configurations:
Three supported personality or I/O modules:
Four-port 1Gb/s copper Ethernet I/O personality module supporting 1 Gb/s
Four-port 8-Gb/s Fibre Channel (FC) I/O personality module supporting 2/4/8 Gb/s
Four-port 10-Gb/s Optical Ethernet I/O personality module supporting 10 Gb/s
Only one supported personality module can be installed at a time. Additionally, both SPs must have the same personality module installed

Supported DAEs
V32-DAE-12 - 2U, 12 (3.5-inch) disk drive DAE
V32-DAE-25 - 2U, 25 (2.5-inch) disk drive DAE

Disk Array Enclosure (DAE)

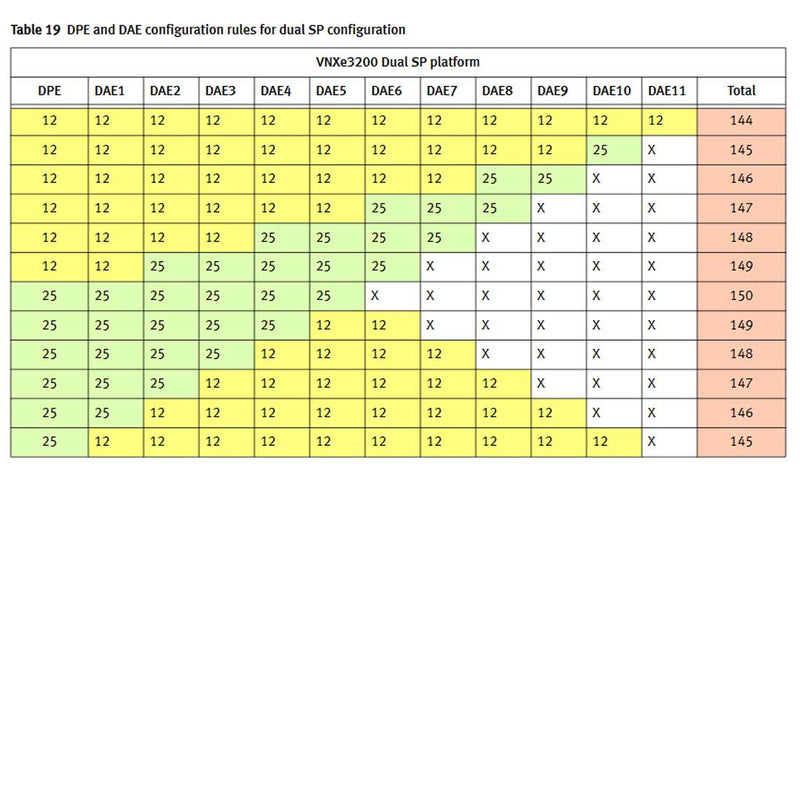

In a VNXe3200 Dual SP system, when the 2U, 12 (3.5-inch) disk drive DAE is used with a 2U, 12 (3.5-inch) disk drive DPE, the VNXe3200 platform supports one 2U, 12 (3.5-inch) disk drive DAE or a maximum of 24 (3.5-inch) disk drives. When the 2U, 25 (2.5-inch) disk drive DAE is used with a 2U, 25 (2.5-inch) disk drive DPE, the VNXe3200 Dual SP platform supports one 2U, 25 (2.5-inch) disk drive DAE or a maximum of 50 (3.5-inch) disk drives.

Product Specs

Storage Array Specs

EMC VNXe3200 Technical Specifications

EMC VNXE3200 TECHNICAL SPECIFICATIONS
Form Factor 2U Rack
Storage Type Unified
Maximum Raw Capacity (per controller) 500TB
Max FAST Cache 400GB
Number of Drives (Min/Max) 6/150
Drive Enclosure Options 12x 3.5" SAS/Flash (2U)
25x 2.5" Flash/SAS Drives (2U)
Drive Options 3.5" Drive Enclosure (12 x 3.5")
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
2TB 6Gbps 7.2K NL-SAS
4TB 6Gbps 7.2K NL-SAS

2.5" Drive Enclosure (25 x 2.5")
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
CPU / Memory Per Controller 1x 2.2GHz Xeon (Sandy Bridge) Quad Core Processor / 24GB per Controller
Base 10Gbps IP Ports per Controller (BASE-T) 4
Max Flex IO Modules per Controller 1
Management Ports 2x 10/100/1000 GbE
Interconnect Two 6Gbps x 4 SAS Ports
RAID Options 1/0, 5, 6
System Limits and Support
Maximum Number of Supported LUNs Up to 512
Maximum LUN Size 16TB
Maximum File System Size 16TB
Total Raw Capacity 500TB
Maximum File Systems 500
1GbE 4 Ports per module
10GbE Optical 4 Ports per Module
8 Gbps Fibre Channel 4 Ports per module
Compatible Disk Arrays V2-DAE-12
V2-DAE-25
V31-DAE-N-15E
V31-DAE-R-15E
V31-DAE-N-25E
V31-DAE-R-25E
Protocols Supported CIFS (CMB 1, SMB 2 and SMB 3), NFSv3, iSCSI, Fibre Channel
Network Lock Manager (NLM) v3, v4
Routing Information Protocol (RIP) v1-v2
Simple Network Management Protocol (SNMP)
Network Data Management Protocol (NDMP) v1-v4
Address Resolution Protocol (ARP)
Internet Control Message Protocol (ICMP)
Simple Network Time Protocol (SNTP)
Lightweight Directory Access Protocol (LDAP)
Server Operating System Support Apple MAC OS 10.8 or higher
Citrix XenServer 6.1
HP-UX
IBM AIX
IBM VIOS 2.2, 2.3
Microsoft Windows Server 2008
Windows Server 2008 R2+
Windows Server 2012
Windows Server 2012 R2
Microsoft Windows 7
Microsoft Windows 8
Microsoft Windows Vista
Microsoft Hyper-V
Novell Suse Enterprise Linux
Oracle Linux
RedHat Enterprise Linux
Solaris 10 x86
Solaris 10 Sparc
Solaris 11 and 11.1, SPARC and x86
VMware ESXi5.x
ECS Warranty 1-Year Parts Replacement Warranty
