Dell PowerEdge M1000E Modular Chassis

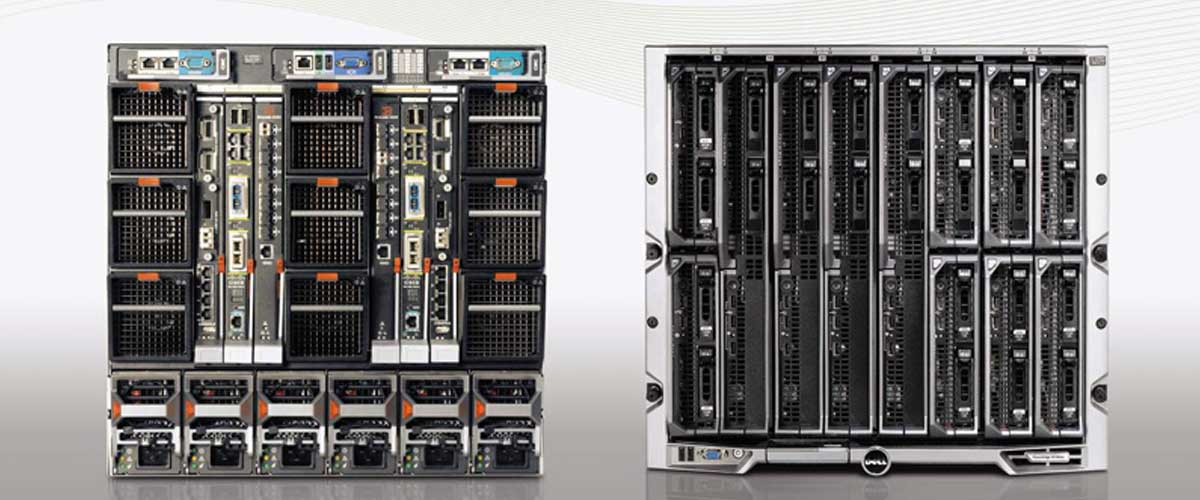

PowerEdge M1000E Enclosure

Overview

The Dell PowerEdge M1000e Modular Blade Enclosure is the rock-solid foundation for Dell’s blade server architecture, providing an extremely reliable, flexible and efficient platform for building any IT infrastructure.

Benefits

Built from the ground up to combat data center sprawl and IT complexity, the PowerEdge M1000e delivers one of the most energy- efficient, flexible and manageable blade server products on the market. The Dell PowerEdge M1000e Modular Blade Enclosure is built from the ground up to combat data center sprawl and IT complexity, delivering one of the most energy efficient, flexible, and manageable blade server implementations on the market.

Configurability	Availability	Expandability, I/O, Storage

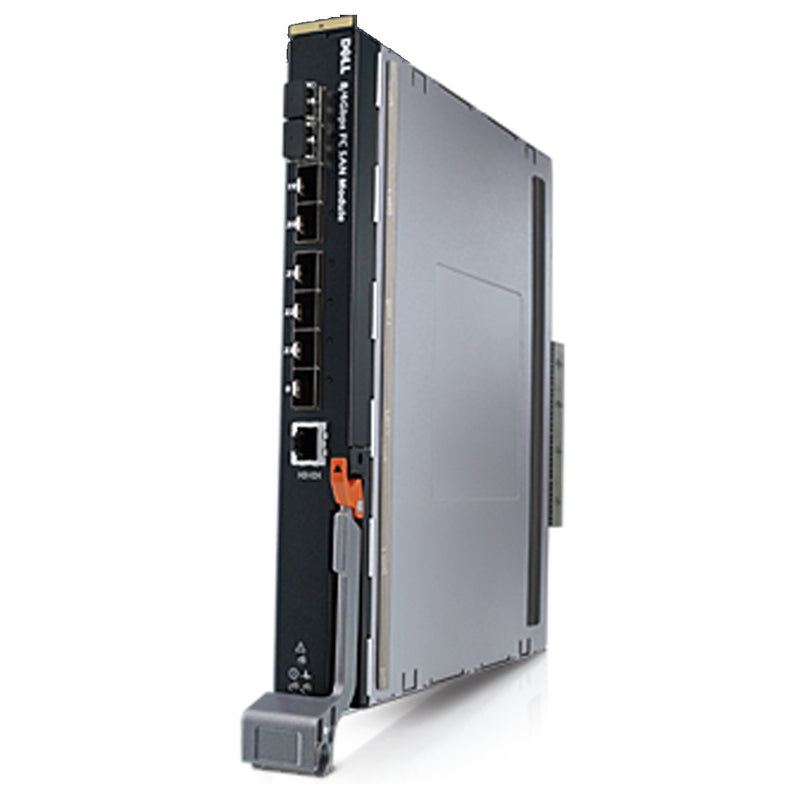

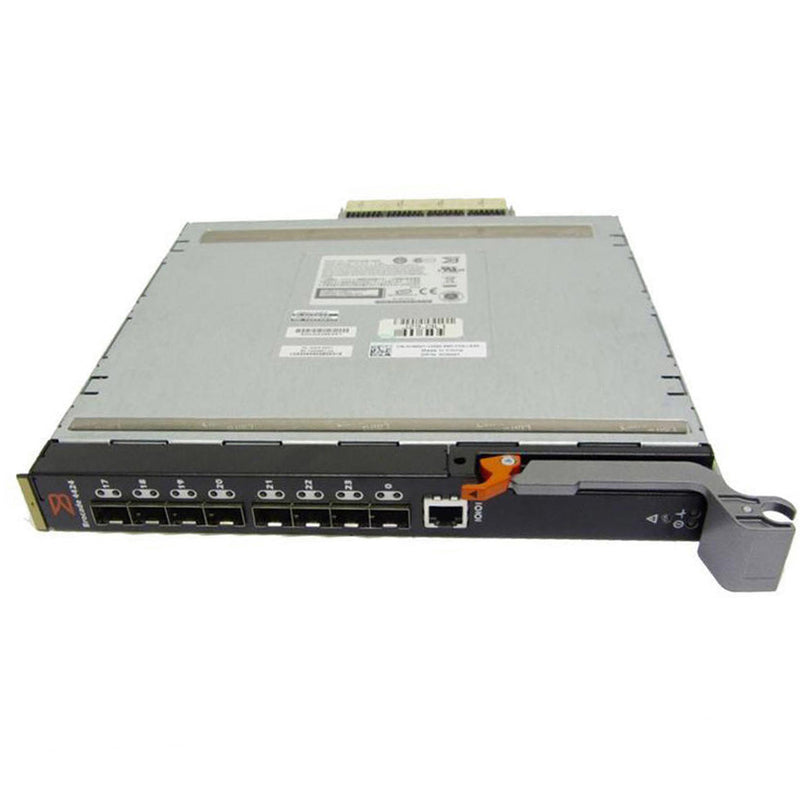

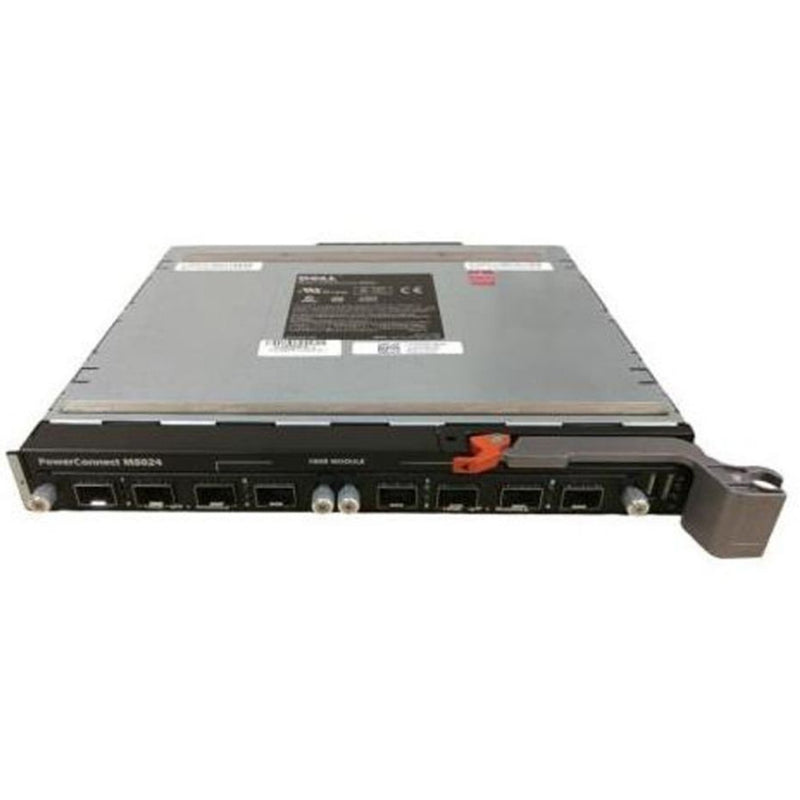

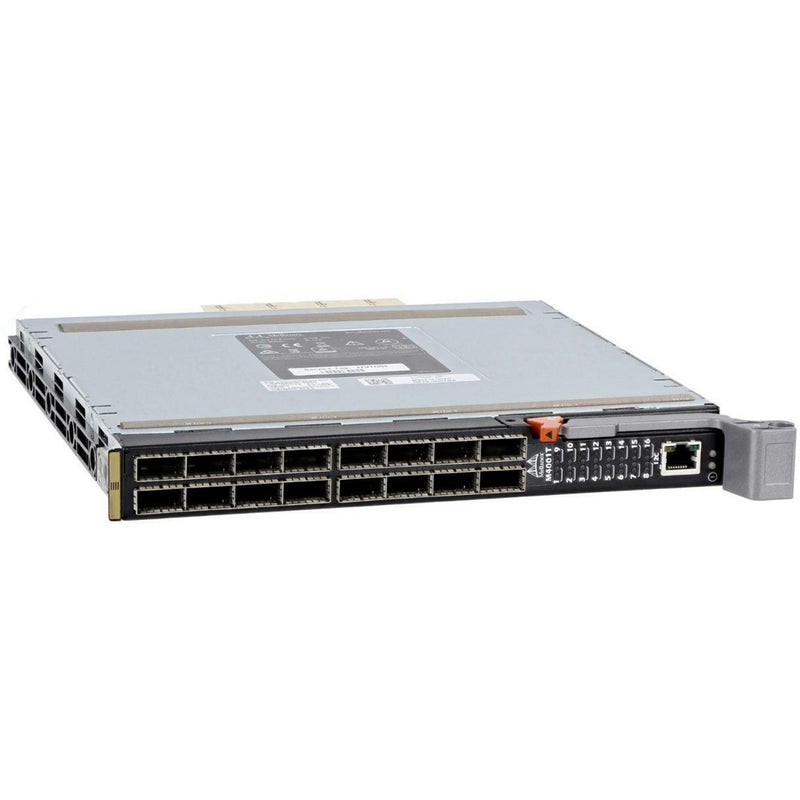

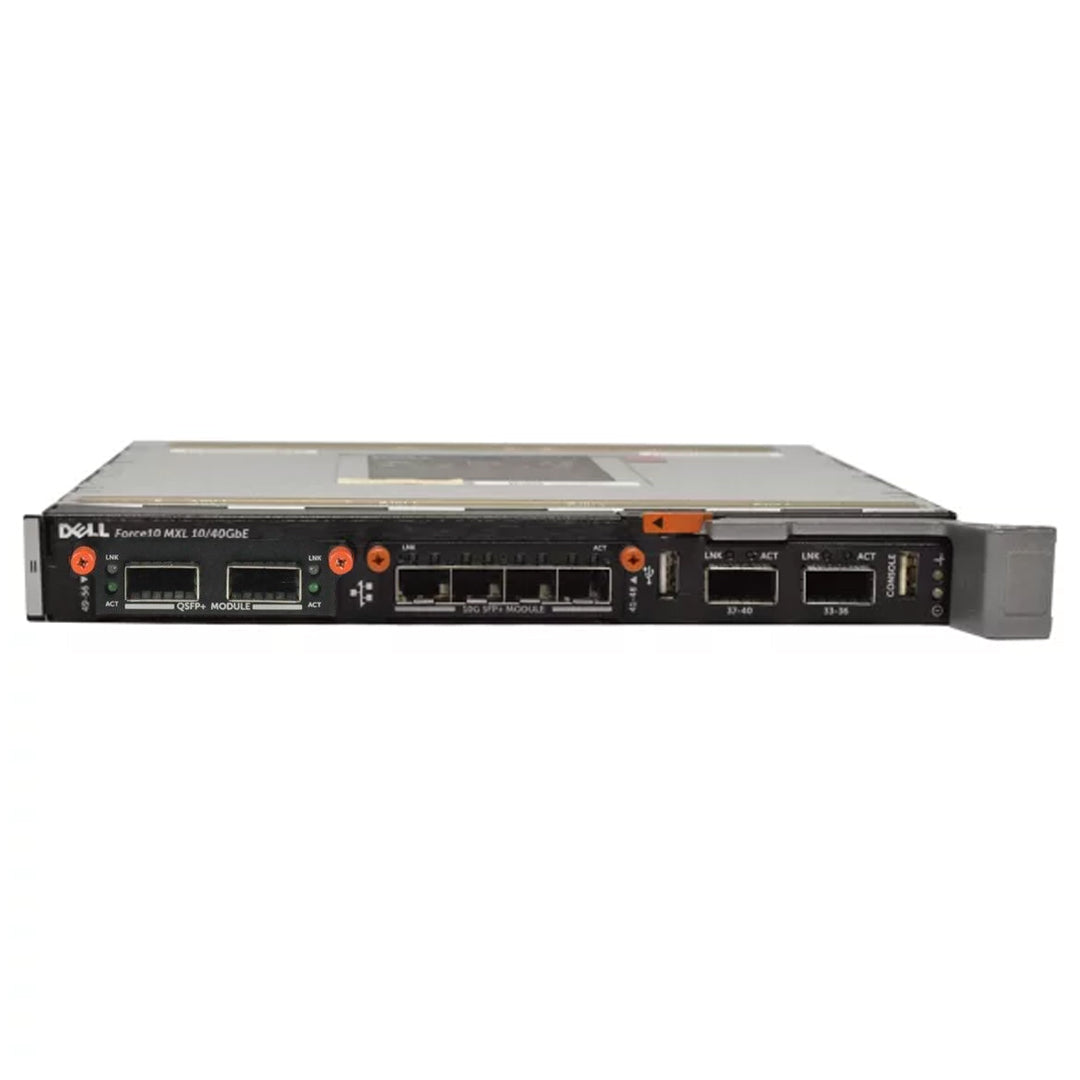

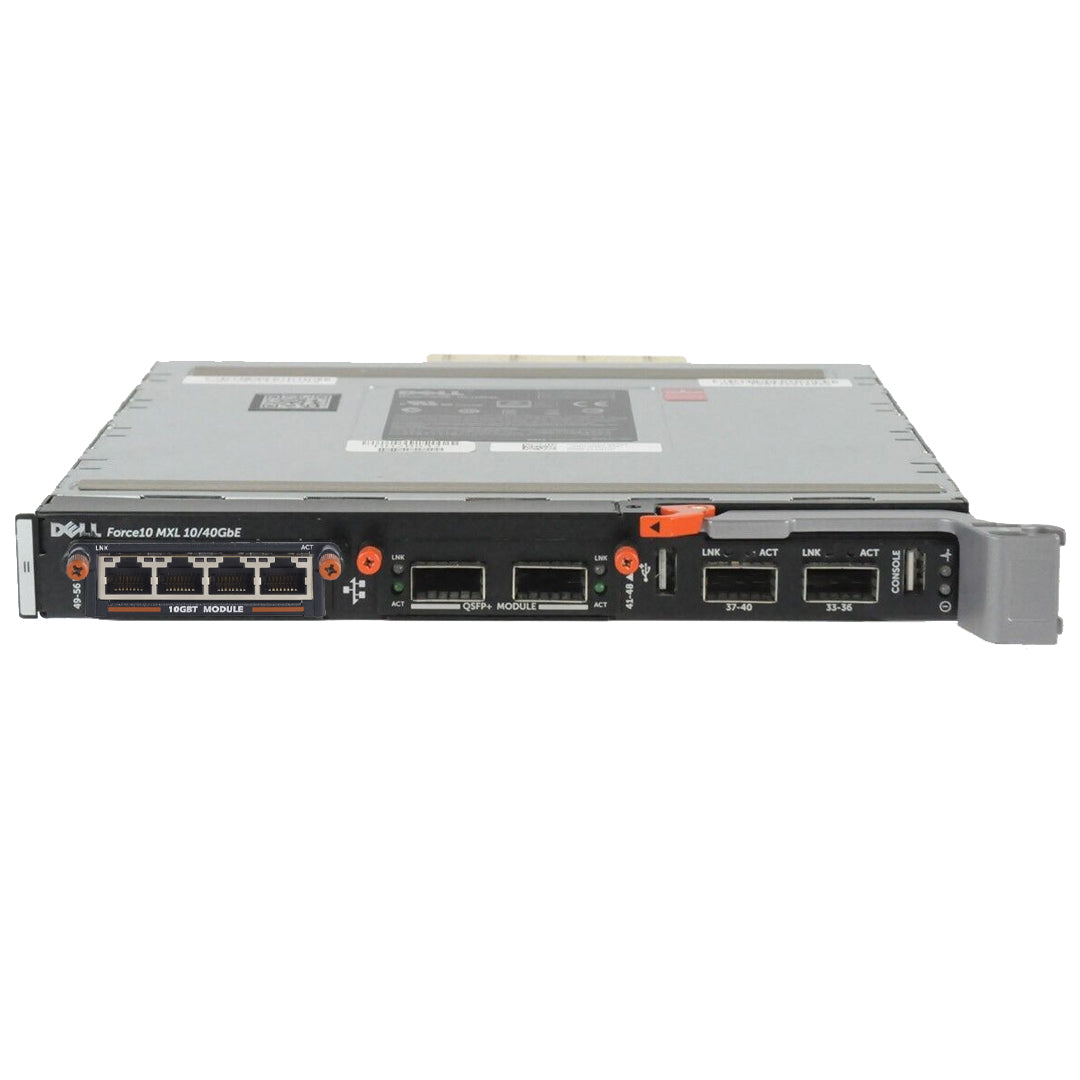

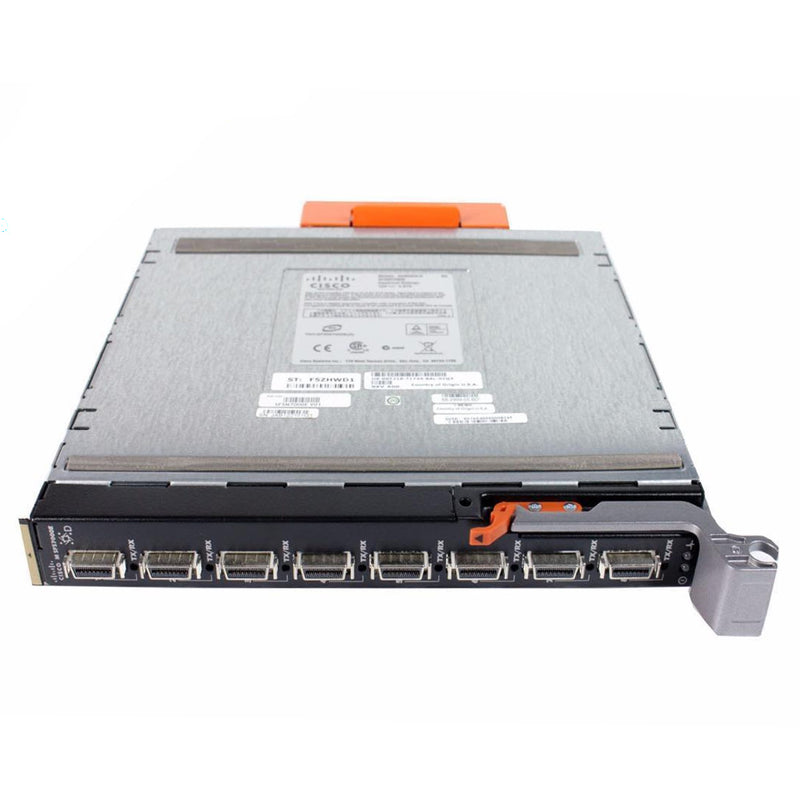

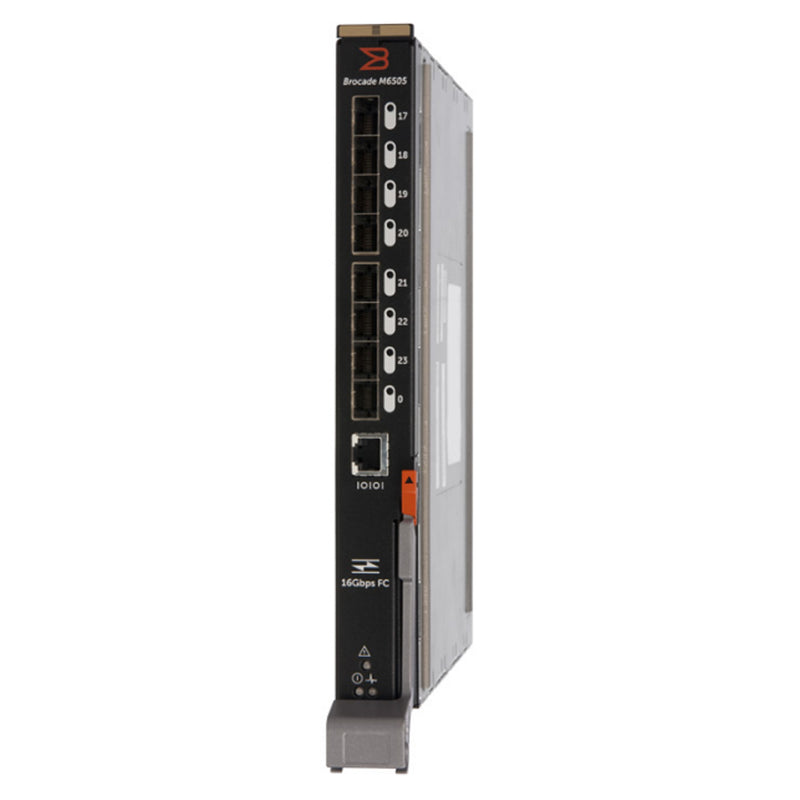

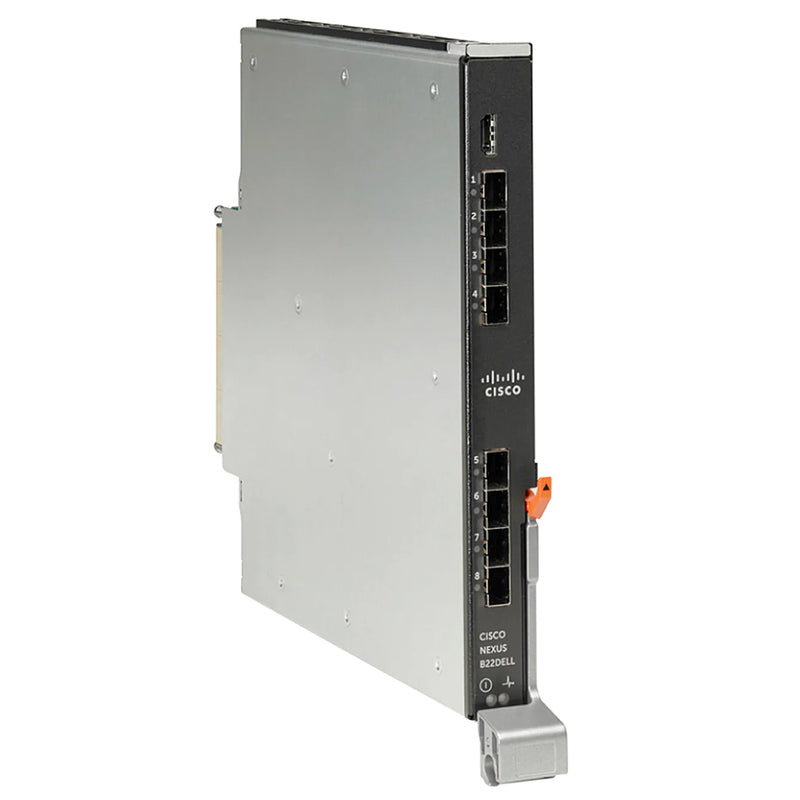

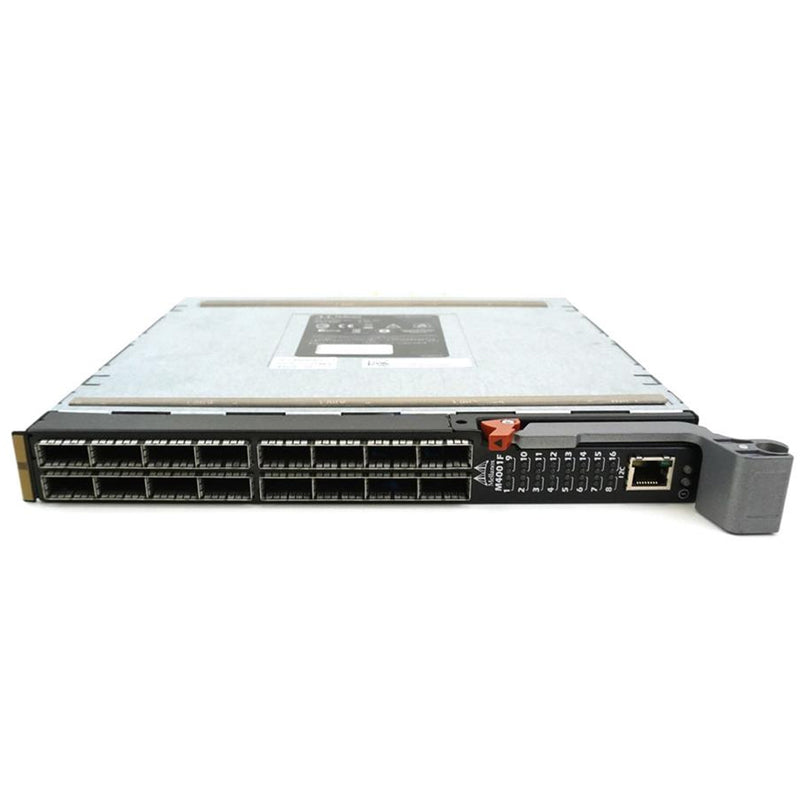

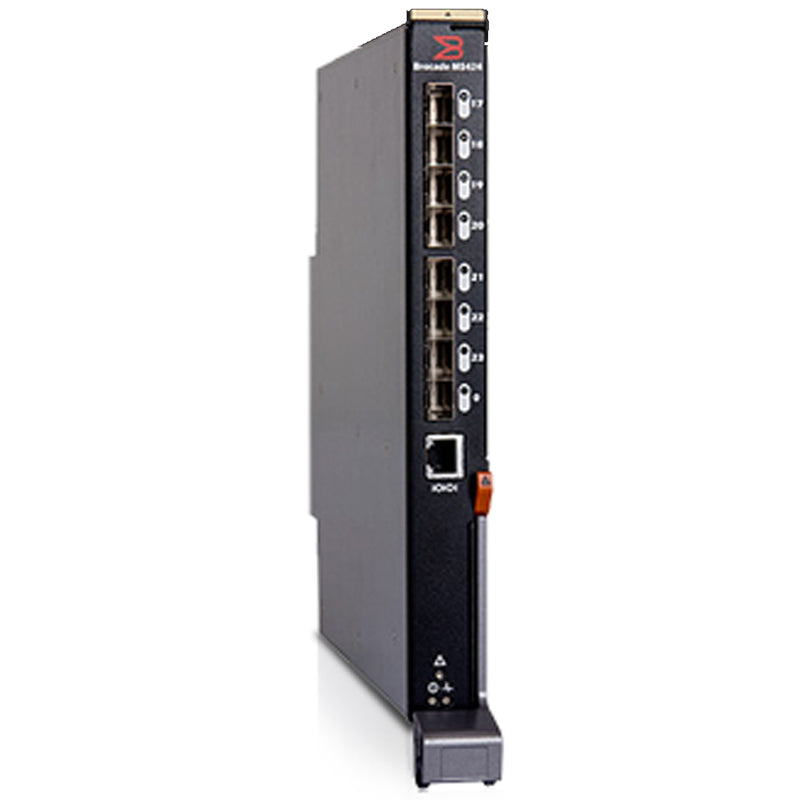

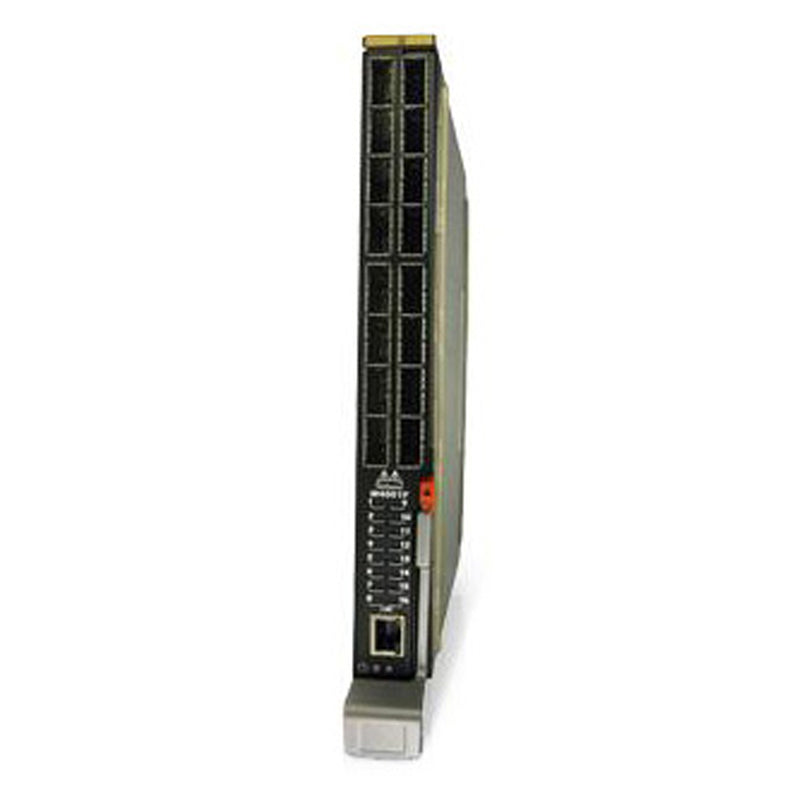

Up to 16 server modules. Up to 6 network & storage I/O interconnect modules. Up to 6 hot pluggable, redundant Power Supplies and 9 hot pluggable, N+1 redundant Fan Modules. System Front Control panel w/ LCD panel and two USB Keyboard/Mouse and one Video “crash cart” connections.	Up to two Chassis Management Controllers (CMC‐ 1 is standard, 2nd provides optional redundancy) and 1 optional integrated Keyboard/Video/Mouse (iKVM) switch. Broad management ability including private Ethernet, serial, USB, and low level management connectivity between the Chassis Management Controller (CMC), Keyboard/Video/ Mouse switch, and server modules.	Comprehensive I/O options support dual links of 20 Gigabits per second today (with 4x DDR InfiniBand) with future support of even higher bandwidth I/O devices when those technologies become available. This provides high‐speed server module connectivity to the network and storage now and well into the future. A high speed passive midplane connects the server modules in the front and power, I/O, and management infrastructure in the rear of the enclosure.

Shop All Dell PowerEdge M1000E Servers

Dell PowerEdge M420 Quarter-Width

Configure an M420

Overview

The Dell™ PowerEdge™ M420 quarter-height blade server delivers unprecedented computational density, allowing up to 32 individually serviceable blade servers per chassis, with no compromise on enterprise-class features.

Targeted Workloads

High node-count virtual environments
Cloud
High-performance computing (HPC) environments

Benefits

Ultra-dense, quarter-height blade
Individually serviceable
Hot-plug solid-state drives and hardware RAID
Impressive systems management capabilities
Leverages M1000e enclosure

Performance	Networking Options	Expandability, I/O, Storage
Intel® Xeon® processor E5-2400v2 product family Up to 6 DIMM slots and 4GB/8GB/16GB/32GB DDR3 up to 1600MHz Hot-plug hard drive options: Up to two 1.8” SATA SSD (50GB or 200GB)	Ethernet 10Gb Enhanced Ethernet and Converged Network Adapters (CEE/DCB/FCoE) Infiniband Fibre channel PERC H310	Up to 4 M420 in 1 M420 Sleeve, 8 Sleeves/10U 64 processors/10U 640 cores/10U 192 DIMMs/10U 64x 1.8” SAT SSD/10U

Dell PowerEdge M520 Blade Server Half-Width

Configure an M520

Overview

The Dell™ PowerEdge™ M520 2-socket, half-height blade server delivers an extraordinary balance of value and performance for mainstream business applications, with no compromise on enterprise-class features.

Features

Up to 12 DIMMs
Mainstream performance
Hot-pluggable hard drives and hardware RAID
Impressive systems management capabilities

Benefits

A tremendous option for dense vSAN environments, with SSD caching drives in the server block(s) and low cost, high capacity HDDs in the FD332 storage block
Great for consolidation of performance hungry high performing computing machines (Hadoop) that require high performance, low cost scale-out storage.
Excellent for database-driven centralized software, scale-up, and scale-out solutions
Spans customer environments with flexibility and scalability from Traditional IT to Service Providers

Performance	Availability	Expandability
E-Mail Databases Mid-tier virtual environments	Two front-accessible, hot-plug, 2.5-inch hard drives E5-2400 v2 product family is designed specifically for servers and workstation applications	Up to 16 Blades in 1 PowerEdge M1000E 32 Drives 192 DIMM's 320 Processor Cores

Dell PowerEdge M620 Blade Server Half-Width

Configure an M620

Overview

An exceptionally feature-rich, two-socket blade server, the Dell PowerEdge M620 is designed for maximum performance combined with extreme density and power efficiency.

Targeted Workloads

E-Mail
Databases
Virtual environments

Benefits

Scalable I/O capabilities
Supports load reduced DIMMs (LRDIMMs)
Flexible LAN on motherboard (LOM) card options for Dell PowerEdge 12th generation

Performance	Availability	Expandability, I/O, Storage
2 Intel Xeon processor E5-2600v2 (8 cores) 32 DIMM's up to 768GB Memory Supports SATA, SAS, and PCIe SSD	Two PCIe 3.0 mezzanine connectors for add-in cards Two front-accessible USB connectors Intel Turbo Boost Technology 2.0 iDRAC7 Enterprise	Supports up to 80 lanes of PCIe 3.0 Up to 256 cores per 10U Up to 768 DIMMs per 10U Up to 32 2.5” Drives per 10U

Dell PowerEdge M630 Blade Server Half-Width

Configure an M630

Overview

An ultra-efficient blade server with up to 44 cores of Intel processing power and 24 DIMMs of DDR4 memory in a dense, easy-to-manage platform ideal for data center workloads.

Targeted Workloads

IT as a service (XaaS) providers
Private clouds
Branch offices

Benefits

Up to 44 cores with the latest Intel Xeon processor E5-2600 v4 product family
24 DIMMs of DDR4 memory
iDRAC8 bringing System Management automation to mainstream IT

Performance	Availability	Expandability, I/O, Storage
16 nodes in a 10U M1000e Chassis Up to 44 cores with the latest Intel Xeon processor E5-2600 v4 product family 24 DIMMs of DDR4 memory Up to four 1.8” SSDs with double the storage bandwidth	Up to 4 x1.8” SSD or 2 x 2x2.5” Supports DDR4 registered DIMMs (RDIMMs) and load-reduced DIMMs (LRDIMMs). supports PERC H330, PERC H730P, and PERC H730 Dual port 10 Gb Ethernet, quad port 1 Gb, FC8 Fibre Channel, FC16 Fibre Channel, or Infiniband mezzanine cards	Up to two 2.5-inch, hot-swappable SAS, SATA hard drives or SAS or SATA or PCIe SSDs Up to four 1.8-inch, hot-swappable SATA SSDs Supports internal optional USB, internal optional SD card and optional vFlash card (with integrated iDRAC8 Enterprise)

Dell PowerEdge M640 Compute Sled Half-Width

Configure an M640

Overview

The PowerEdge M640 is a density optimized, half-height blade server designed for performance and efficiency. It is ideal for XaaS, private cloud, and HPC applications.

Targeted Workloads

High-performance computing (HPC)
Anything as a service (Xaas)
Virtualization
Private cloud / On-premises

Benefits

M.2 available for Boot Optimized Storage System (BOSS)
iDRAC9 with Lifecycle Controller
The hard drives or SSDs are supplied in a hot-swappable drive carriers
Supports two internal micro SD cards dedicated for the hypervisor

Performance	Availability	Expandability, I/O, Storage
Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor 16 DDR4 DIMMs RDIMM /LRDIMM speeds up to 2666MT/s Software RAID S140, PERC9 H330, H730P TPM 1.2/2.0 optional	Network daughter card options, 2 x 10GE + 4 X 1GE, 4 x 10GE Two 2.5-inch HDDs/SSDs 3 slots mezzanine card	FC8 Fibre Channel, FC16 Fibre Channel, or Infiniband mezzanine cards Internal Dual SD Module optional, supports one dedicated micro SD card for vFlash support. PCIe Slots support dual port 10 Gb Ethernet or quad port 1 Gb

Dell PowerEdge M710 Blade Server Full-Width

Configure an M710

Overview

Dell’s innovative full-height M710 provides 18 DIMM slots and up to 192GB of total RAM, coupled with double the I/O capabilities of half-height blades and full-fabric redundancy on all three fabrics. The M710 blade server allows quick virtualization with software from leading industry vendors using an SD card or internal USB for embedded hypervisors.

Features

A future-ready, passive midplane capable of supporting multiple generations of blade servers and a full array of upcoming I/O technologies
FlexIO eliminates “rip and replace” blade switch upgrades; modularity is built into the switches
Energy Smart Technologies, including ultra-efficient fans and power supplies for outstanding energy efficiency

Targeted Workloads

To keep pace with changing requirements, you can effectively scale I/O application bandwidth with end-to-end 10Gbe or Fibre Channel solutions.
FlexAddress™ technology simplifies efforts and interactions between server and networking teams by providing slotassigned, persistent WWN/iSCSI/MAC addresses for maintenance, without additional management tools or proprietary hardware

Performance	Availability	Expandability, I/O, Storage
Quad-core or six-core Intel® Xeon® processors 5500 and 5600 series Up to 192GB (18 DIMM slots) ECC DDR3 up to 1333MHz 2.5” SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K)	1Gb & 10Gb Ethernet, 10Gb Enhanced Ethernet & Converged Network Adapters (CEE/DCB), Fibre Channel, and Infiniband I/O Mezzanine Card Hot-plug Hard Drive Options RAID ControllersPERC H200, PERC H700, CERC 6/i iDRAC6 Enterprise	32 drives 32TB /10u 144 DIMM's 1536GB /10u 16 CPUs up to 96 cores /10u

Dell PowerEdge M710HD Compute Sled Half-Width

Configure an M710HD

Overview

The Dell™ PowerEdge™ M710HD blade server helps you run business applications efficiently, reduce your data center footprint, ease data management and trim system maintenance time.

Features

The M710HD is the first Dell M-Series server with a flexible network daughtercard (NDC) designed to allow for future integrated connectivity options.
The PowerEdge M710HD allows you to utilize more virtual machines from your existing hypervisor licensing
Virtual File Share simplifies the update process for BIOS

Targeted Workloads

Designed for enterprise database and virtualization deployments, the PowerEdge M710HD features tremendous I/O throughput, maximized memory density and robust processing power.
An optimized blade solution for customers looking for large capacity memory capabilities and I/O scalability in a dense, easy-to-deploy, half-height blade form factor.

Performance	Availability	Expandability, I/O, Storage
Quad-core or six-core Intel® Xeon® processor 5500 and 5600 series Up to 288GB (18 DIMM slots) ECC DDR3 up to 1333MT/s Three redundant I/O fabrics per blade	PERC H200 Integrated SAS Controller (6Gb/s) 2 x8 PCIe Mezzanine Dual SD cards for redundant hypervisor iDRAC6 Enterprise	16 blades in one M1000e chassis 18 DIMMs Per Blade = 288 DIMM's /10u 288GB Per Blade = 4.6TB /10u 2 Drives per Blade = 32 Drives / 10u 6 Cores per Blade = 96 Cores

Dell PowerEdge M820 Blade Server Full-Width

Configure an M820

Overview

The Dell™ PowerEdge™ M820 blade server delivers exceptional performance and scalability for core business applications or consolidated environments with no compromise on enterprise-class features.

Features

Combines highly dense compute and memory resources with extremely flexible storage and IO options.
Dedicated hosting
Light analytics

Targeted Workloads

Virtual environments supporting large numbers of sizeable virtual machines
With Dell’s Select Network Adapter, you can fully customize the I/O capabilities of the M820 to match the networking technology that’s right for your applications.
M820 takes advantage of the capabilities of the PowerEdge M1000e’s Chassis Management Controller (CMC).

Performance	Availability	Expandability, I/O, Storage
4x Intel® Xeon® processor E5-4600 product family Up to 1.5TB (48 DIMM slots) DDR3 up to 1600MT/s Up to 4x2.5” SAS, SSD, or Up to (2) PCIe SSD. PERC H310, PERC H710, PERC H710P	2 USB Ports in front Three redundant I/O fabrics per blade Dual SD cards for redundant hypervisor iDRAC7 Express for Blades with Lifecycle Controller	8 Blades per M1000E 48 DIMM's up to 1.5TB Per Blade = 12TB/10u 4x 2.5" up to 4.8TB = 32 Drives up to 38.4TB/10u 4 CPU's up to 8 Cores = 32 CPU's up to 64 Cores/10u

Dell PowerEdge M830 Compute Sled Full-Width

Configure an M830

Overview

The PowerEdge M830 is a 4-socket converged platform designed to boost application performance, consolidation, and time-to-value in data center or remote office applications by delivering vast amounts of compute, memory and storage resources that are easy to deploy and manage.

Features

Supports DDR4 R-DIMMs & LR-DIMMs at 2400 MT/s, 2133 MT/s, and 1866 MT/s.
2 x PCIe 3.0 (x8) Dell Select Network Adapters
4 x PCIe 3.0 (x8) mezzanine cards

Targeted Workloads

Technical computing
Virtualized environments
Exceptionally demanding database
Memory-intensive workloads with DDR4 DIMMs offering 28 percent higher MT/s than DDR3

Performance	Availability	Expandability, I/O, Storage
Up to 88 cores with the latest Intel Xeon E5-4600 v4 processors Up to 3TB (48 DIMM slots) DDR4 up to 2400MT/s 12 x 1.8" SSD, 4 x 2.5" SATA HDD/SSD or SAS HDD/SSD OR... 2 x 2.5" PCIe SSD and 2 x 2.5" SATA HDD/SSD or SAS HDD/SSD	PERC9/SAS HBA/Chipset SATA Hot-plug, redundant power/cooling (chassis) Dual SD cards for redundant hypervisor iDRAC8 Enterprise w/ Lifecycle Controller	8 M830 Full-Height Blades per M1000E 12 or 4 drives per blade = 86x1.8" or 32x2.5" drives/10u 48 DIMM's (3TB) Per blade = 384 DIMM's (24TB)/10u 4 CPU's up to 88 cores = 32 CPU's up to 704 cores/10u
