EMC VNX7500 Disk Processor Enclosure (DPE)

Brand:
MPN:
VNX7500
Type:
Storage Array
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EMC VNX7500 Disk Processor Enclosure (DPE)

VNX7500 Disk Processor Enclosure helps customers to keep pace with their growing businesses by expanding their system storage capacity. The VNX7500's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.
  • 15-bay 3.5", 25-bay 2.5" or 60-bay 3.5"
  • 3.5" & 2.5" SAS / Flash
  • RAID 0 / 1 / 3 / 5 / 6 / 10
  • iSCSI, FCoE, Fibre Channel (FC), NFS, CIFS, MPFS, pNFS
  • 1000 Max Disk Drives

VNX7500 Storage Processor Enclosure (SPE) is a high-performance unified storage system based on modular architecture that integrates hardware components for block, file, and object with concurrent support for native NAS, CIFS, iSCSI, Fibre Channel, and FCoE protocols. The VNX5700 delivers file (NAS) functionality via X-Blade data movers and block (iSCSI, FCoE, and FC) storage via dual storage processors leveraging full 6Gbps SAS disk drive topology. Optimized for virtual applications, the VNX5700 achieves new levels of performance, compliance, protection and ease of management. VNX5700 allows you to take advantage of Flash performance using all Flash (EFD) drives for extendable cache and quick virtualization with its high bandwidth configurations.

DELL EMC VNX7500 Base Knowledge.

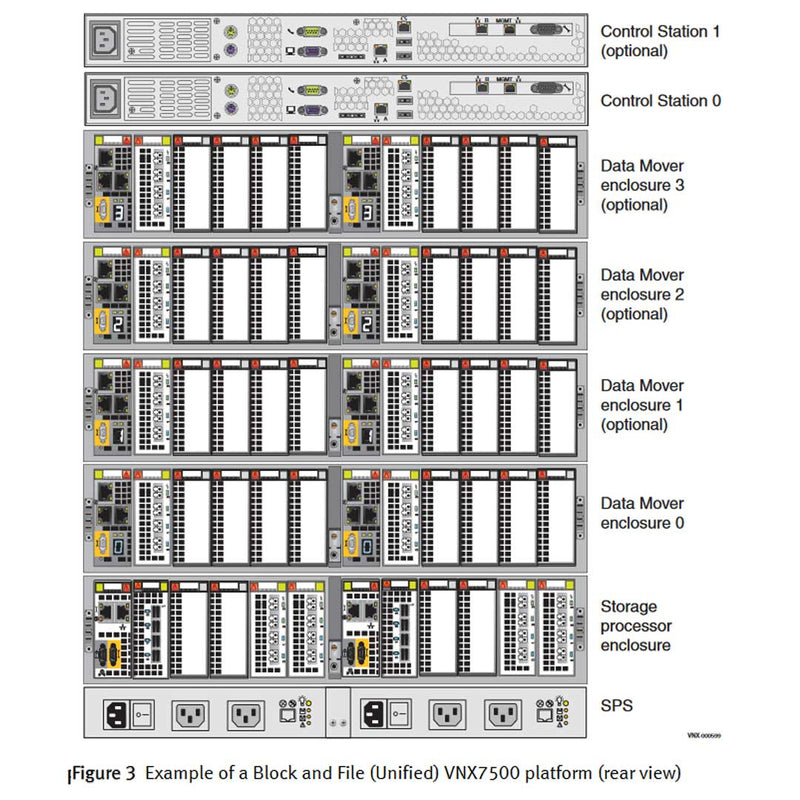

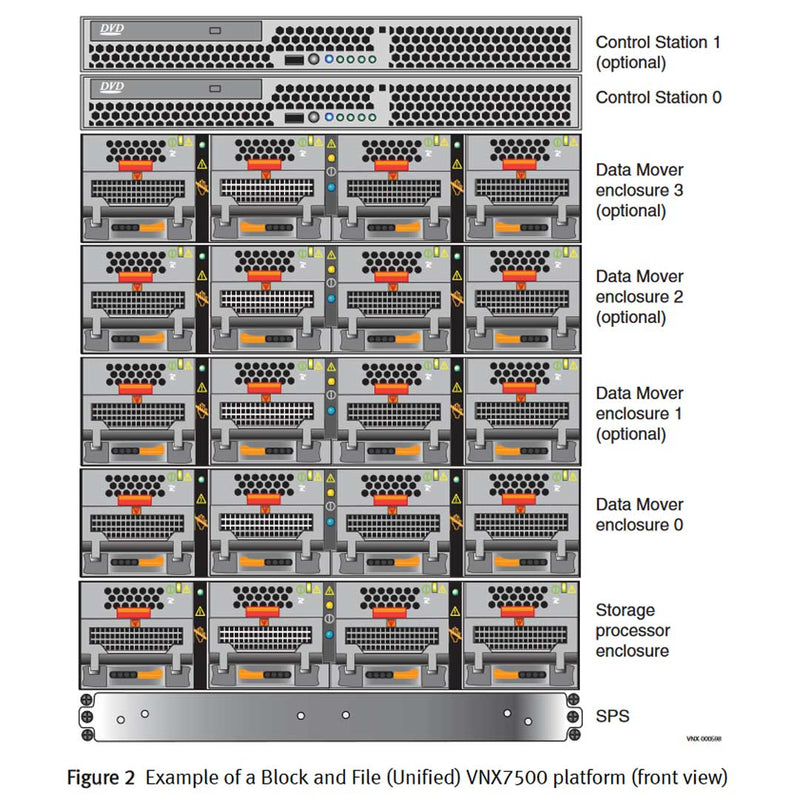

The VNX7500 is a high-end/large-capacity storage platform. It offers Block, File, or Unified Block and File services. These services are composed of:

  • Block-only—Includes a storage processor enclosure (SPE), a 1U 1.2 KW or a 2U 2.2 KW standby power supply (SPS), and disk-array enclosures (DAEs) for holding hard disk drives that are integrated to facilitate Fibre Channel, Fibre Channel over Ethernet (FCoE), and iSCSI Block services to Windows and UNIX hosts.
  • File-only—Adds the Data Mover enclosure (DME) and Control Station (CS) to SPE, SPS, and DAEs to facilitate File services to CIFS/NFS clients.
  • Unified Block and File—Uses same hardware as the File-only configuration but adds FC, iSCSI, and FCoE I/O connectivity to provide Block services to host simultaneously so as to provide File services to clients.

Form Factor: 6U – 7U Block | 8U – 13U File / Unified
Chassis: N/A
Standby Power Supply:
Disk Array Enclosures (DAE):

  • 4U 3.5” x 60
    • VNX6GSDAE60
    • VNX6GSDAE60P
  • 3U 3.5” x 15
    • VNX6GSDAE15
    • VNX6GSDAE15F
    • VNX6GSDAE15P
    • VNX6GSDAE15PF
  • 2U 2.5” x 25
    • VNX6GSDAE25
    • VNX6GSDAE25F
    • VNX6GSDAE25P
    • VNX6GSDAE25PF

Max Drives: 1000
Drives Supported: 3.5 in. SAS, NL-SAS, Flash, and 2.5 in. 10 K SAS
Protocols Supported: Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

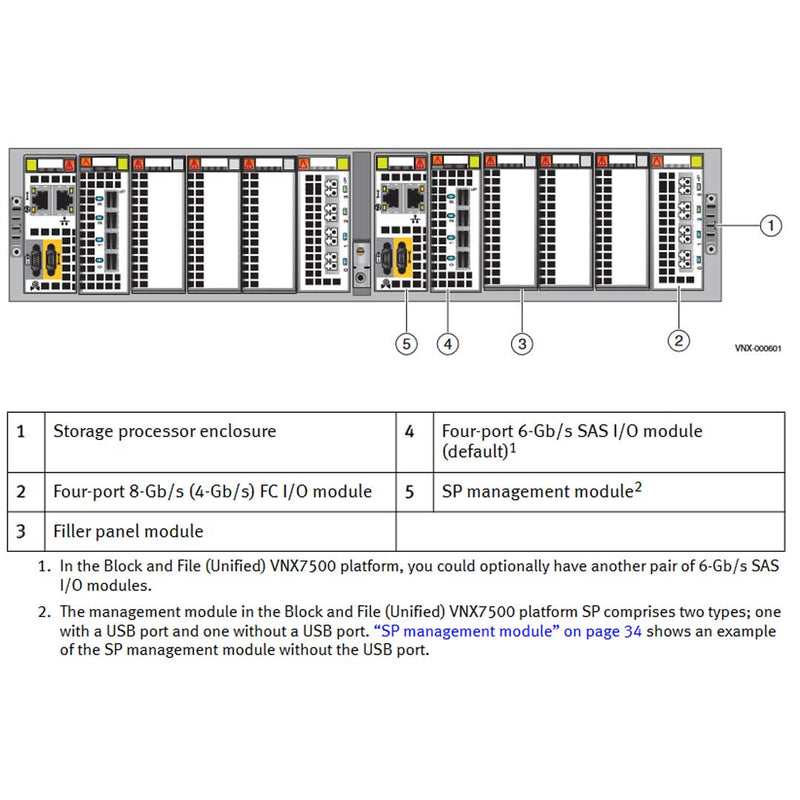

Storage Processor Enclosure (SPE):
A CPU module with an Intel Xeon 4-core 2.8-GHz processor with six Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots supporting 2-, 4-,and 8-GB SDRAM

Storage Processor I/O Supported:
The 6-Gb/s SAS I/O module is always located in slot 0 of SP A and SP B.
Five PCI Gen 2 x4 I/O module slots supporting a combination of the following five UltraFlex ™ I/O modules:

  • Four-port 6-Gb/s SAS (slot 0 only)
  • Four-port 8-Gb/s optical Fibre Channel (running at 2, 4, or 8-Gb/s)
  • Two-port 10-Gb/s optical or active Twinax 3 (iSCSI protocol)
  • Two-port 10-Gb/s optical or active Twinax 6 Fibre Channel over Ethernet (FCoE)
  • Four-port 1-Gb/s copper iSCSI

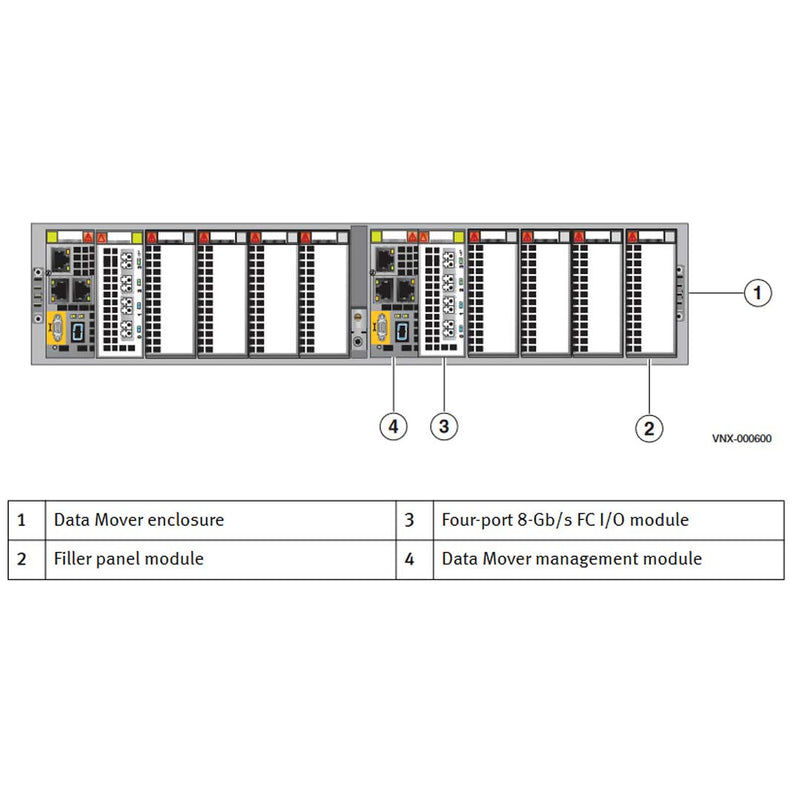

Data Movers Enclosure (DME):
Each Data Mover consists of a CPU module with an Intel Xeon 4-core 2.8-GHz processor with six Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots supporting 2-, 4-, and 8-GB SDRAM

Five PCI Gen 2 x4 I/O module slots supporting a combination of the following four UltraFlex I/O modules:

  • Four-port 8-Gb/s optical (running at 2, 4, or 8 Gb/s); in slot 0
  • Two-port 10-Gb/s optical or active Twinax 6
  • Four-port 1-Gb/s copper
  • Two-port 1-Gb/s copper plus two-port 1 Gb/s optical

Any combination of these I/O modules is supported and must be the same for each Data Mover installed in the same VNX7500.

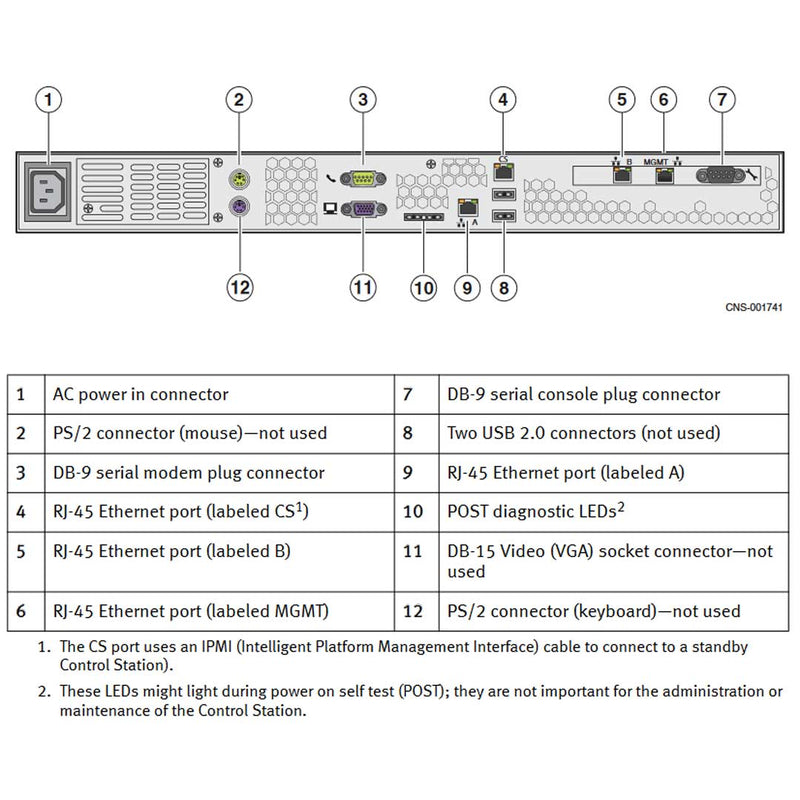

Control Station (CS):

One to two Control Stations. Each Control Station consists of the following features:

  • Intel 2.0 GHz single-core Celeron processor
  • 2 GB of RAM
  • One 250-GB SATA hard drive
  • Two rear-mounted USB ports and one front-mounted USB port
  • Four RJ-45 10BASE-T/100BASE-TX/1000BASE-T network interface connectors(located on the rear panel)
  • Two integrated serial ports, one for laptop/console redirection and one for the CallHome modem
  • One DVD-ROM drive

Standby Power Supply (SPS)
Both the 1U and 2U SPS perform the same functions.

An additional SPS can be added for redundancy.  Two SPSs provide higher availability and allow write caching, which prevents data loss during a power failure, to continue. A faulted or not fully charged SPS disables the write caching

Use a dual 2U SPS when a 4U DAE with Flash drives is used in a Vault drive configuration. Otherwise, the dual 1U SPS is used with the 2U or 3U DAE as the Vault drive.

Disk Array Enclosure (DAE)
Expansion of up to fifteen 4U DAEs and one 3U DAE (a maximum of 915 disk drives), sixty-six 3U DAEs (a maximum of 990 3.5-inch disk drives), or up to forty 2U DAEs (a maximum of 1000 2.5-inch disk drives) is possible.

EMC VNX7500 Disk Processor Enclosure (DPE) Spec Sheet

Manuals

EMC VNX7500 Disk Processor Enclosure (DPE) Spec Sheet

Manuals

Product Specs

Storage Array Specs

EMC VNX7500 Technical Specifications

EMC VNX7500 TECHNICAL SPECIFICATIONS
Form Factor 2U Storage Processor Enclosure (SPE) (No Drives)
Storage Type Unified
Maximum Raw Capacity 2,970 TB
Max SAN Hosts 8,192
Max Number of Pools 60
Max Number of LUNs 8,192
Max LUN Size 16TB (Virtual Pool LUN)
Max File System Size 16 TB
Maximum Usable File Capacity per X-Blade 256 TB
Dual Controllers (SPs) Standard
Number of Drives (Min/Max) 4/1000
Drive Enclosure Options 15x 3.5" SAS/Flash (3U)
25x 2.5" SAS/Flash Drives (2U)
60 x 3.5" SAS/Flash (4U)
Drive Options 3.5" Drive Enclosures (15 x 3.5") & (60 x 3.5")

300GB 10K 6Gbps SAS (VX-VS10-300) (15-Disk DAE)
300GB 15K 6Gbps SAS (VX-VS15-300) (15-Disk DAE)
600GB 10K 6Gbps SAS (VX-VS10-600) (15-Disk DAE)
600GB 15K 6Gbps SAS (VX-VS15-600) (15-Disk DAE)
900GB 10K 6Gbps SAS (VX-VS10-900) (15-Disk DAE)
1TB 7.2K 6Gbps SAS (VX-VS07-010) (15-Disk DAE)
2TB 7.2K 6Gbps SAS (VX-VS07-020) (15-Disk DAE)
3TB 7.2K 6Gbps SAS (VX-VS07-030) (15-Disk DAE)

600GB 10K 6Gbps SAS (VX-DS10-600) (60-Disk DAE)
900GB 10K 6Gbps SAS (VX-DS10-900) (60-Disk DAE)
1TB 7.2K 6Gbps SAS (VX-DS07-010) (60-Disk DAE)
2TB 7.2K 6Gbps SAS (VX-DS07-020) (60-Disk DAE)
3TB 7.2K 6Gbps SAS (VX-DS07-030) (60-Disk DAE)

100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXVS6F-100) (15-Disk DAE)
100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-VS6F-100) (15-Disk DAE)
200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXVS6F-200) (15-Disk DAE)
200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-VS6F-200) (15-Disk DAE)

100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXDS6F-100) (60-Disk DAE)
100GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-DS6F-100) (60-Disk DAE)
200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (FLVXDS6F-200) (60-Disk DAE)
200GB 6Gbps SAS 3.5" EFD (Enterprise Flash Drive) (VX-DS6F-200) (60-Disk DAE)

2.5" Drive Enclosure (25 x 2.5")
300GB 10K 6Gbps SAS (VX-2S10-300) (25-Disk DAE)
600GB 10K 6Gbps SAS (VX-2S10-600) (25-Disk DAE)
900GB 10K 6Gbps SAS (VX-2S10-900) (25-Disk DAE)
100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLVX2S6F-100) (25-Disk DAE)
100GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (VX-2S6F-100) (25-Disk DAE)
200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (FLVX2S6F-200) (25-Disk DAE)
200GB 6Gbps 2.5" EFD (Enterprise Flash Drive) (VX-2S6F-200) (25-Disk DAE)
Block Components
CPU / Memory Per Controller Intel Xeon 5600 Series / 48GB or 96GB
Standby Power System 1U 1.2KW
2U 2.2KW required for 60-Disk Array
Max Block UltraFlex IO Modules per Array 10
Embedded IO Ports per Array 0
Max Total Ports per Array 32
RAID Options 0, 1, 10, 3, 5, 6
2/4/8 Gbps FC Max Ports per Array 32
1 GBaseT iSCSI Max Total Ports per Array 16
10GbE iSCSI Max Total Ports per Array 12
Max FCoE Total Ports per Array 12
6 Gbps SAS Buses (4 Lanes per Bus) for DAE Connections 4 or 8 (consumes 2 or 4 UltraFlex IO Modules per array)
File Components
# File X-Blades 2-8
# Control Stations 1-2 x 1U Server
X-Blade: CPU/Memory Intel Xeon 5600 Series / 24GB
Max File UltraFlex IO Modules per X-Blade 5
Min/Max 2/4/8 Gbps FC Ports per X-Blade 4
Max IP Ports per X-Blade 16
Max 1GBaseT Ports per X-Blade 16
Max 10GbE Ports per X-Blade 8
Management LAN 2x 10/100/1000 Copper GbE
Compatible Disk Arrays VNX6GSDAE60
VNX6GSDAE60P
VNX6GSDAE15
VNX6GSDAE15F
VNX6GSDAE15P
VNX6GSDAE15PF
VNX6GSDAE25
VNX6GSDAE25F
VNX6GSDAE25P
VNX6GADAE25PF
Chassis Part Number 100-562-178 SPE & DME Chassis Assembly, 2U SPE4 Empty Enclosure -CR
100-562-440 Chassis Assembly, 2U CX4 SPE Empty Chassis Enclosure
100-562-558 DAE Chassis D15 LF DAE Chassis with M/R
100-562-964 DAE Chassis 25 Slot Empty DAE Chassis
100-563-109 Chassis Assembly, 2U SPE4 Empty Enclosure Gen2 AC Only
Host Connections 2Gbps Fibre Channel
4Gbps Fibre Channel
8Gbps Fibre Channel
1Gbps iSCSI
10Gbps iSCSI
10Gbps FCoE
ECS Warranty 1-Year Parts Replacement Warranty
