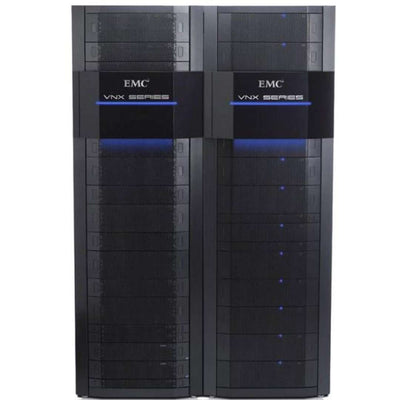

EMC VNX7600 Disk Processor Enclosure (DPE)


Price: Request a Quote

Brand:
MPN:
VNX7600
Type:
Storage Array
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

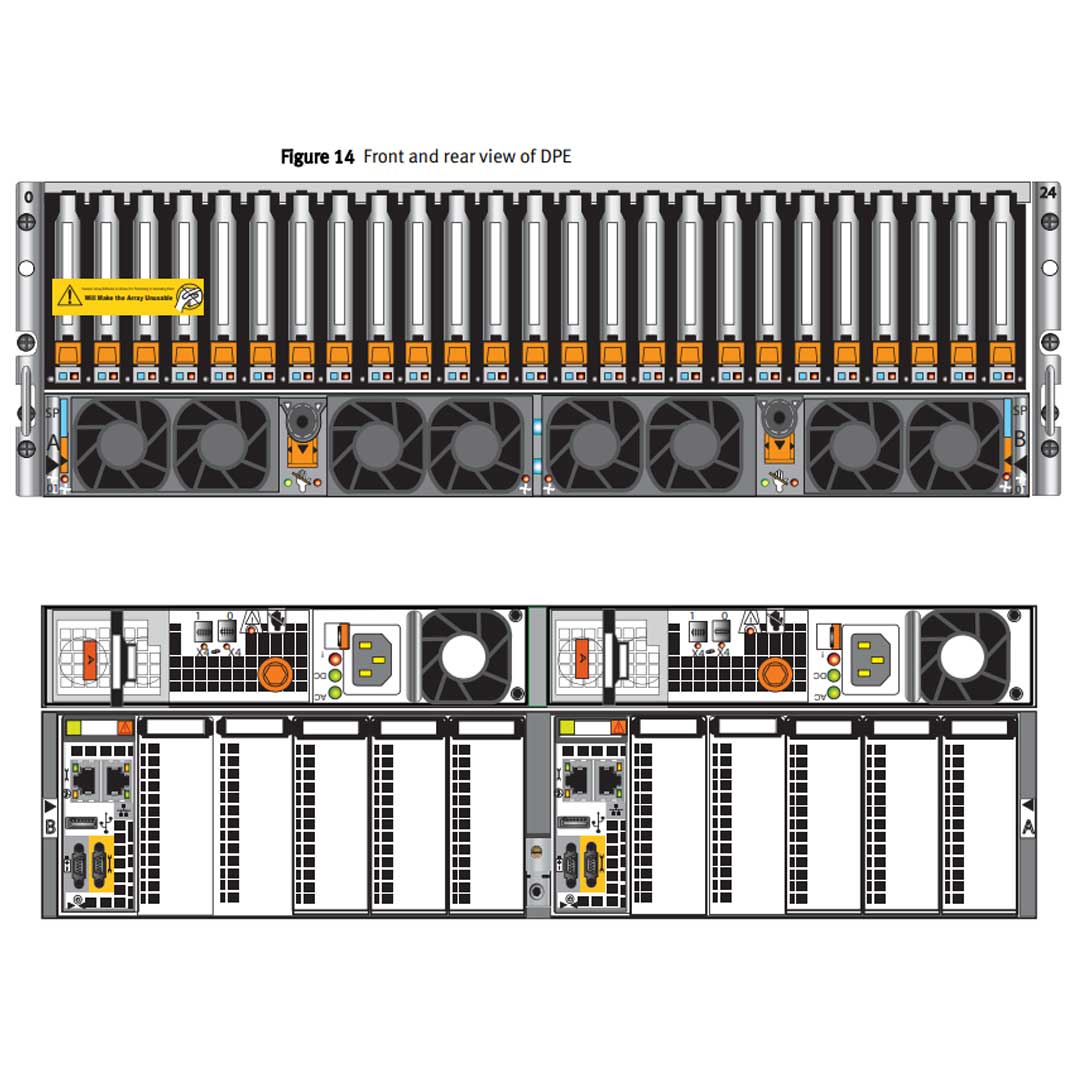

EMC VNX7600 Disk Processor Enclosure (DPE)

VNX7600 Disk Processor Enclosure helps customers to keep pace with their growing businesses by expanding their system storage capacity. The VNX7600's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.

  • DAE's: 15 x 3.5", 25 x 2.5", 60 x 3.5" and 120 x 2.5"
  • 3.5" & 2.5" SAS / NL-SAS / Flash
  • RAID 0 / 1 / 3 / 5 / 6 / 10
  • Fibre Channel (FC)
  • 1000 Max Disk Drives

EMC VNX7600 series unified storage system delivers uncompromising scalability and flexibility for mid-tier applications while providing market-leading simplicity and efficiency to minimize total cost of ownership. Using a modular architecture, the VNX7600 integrates hardware components for block, file and object with concurrent support for native NAS, iSCSI, Fibre Channel and FCoE protocols. The VNX7600 delivers file (NAS) functionality via 2-8 Data Movers and block (iSCSI, FCoE, and FC) storage via dual Storage Processors leveraging full 6Gbps SAS disk drive topology.

DELL EMC VNX7600 Base Knowledge.

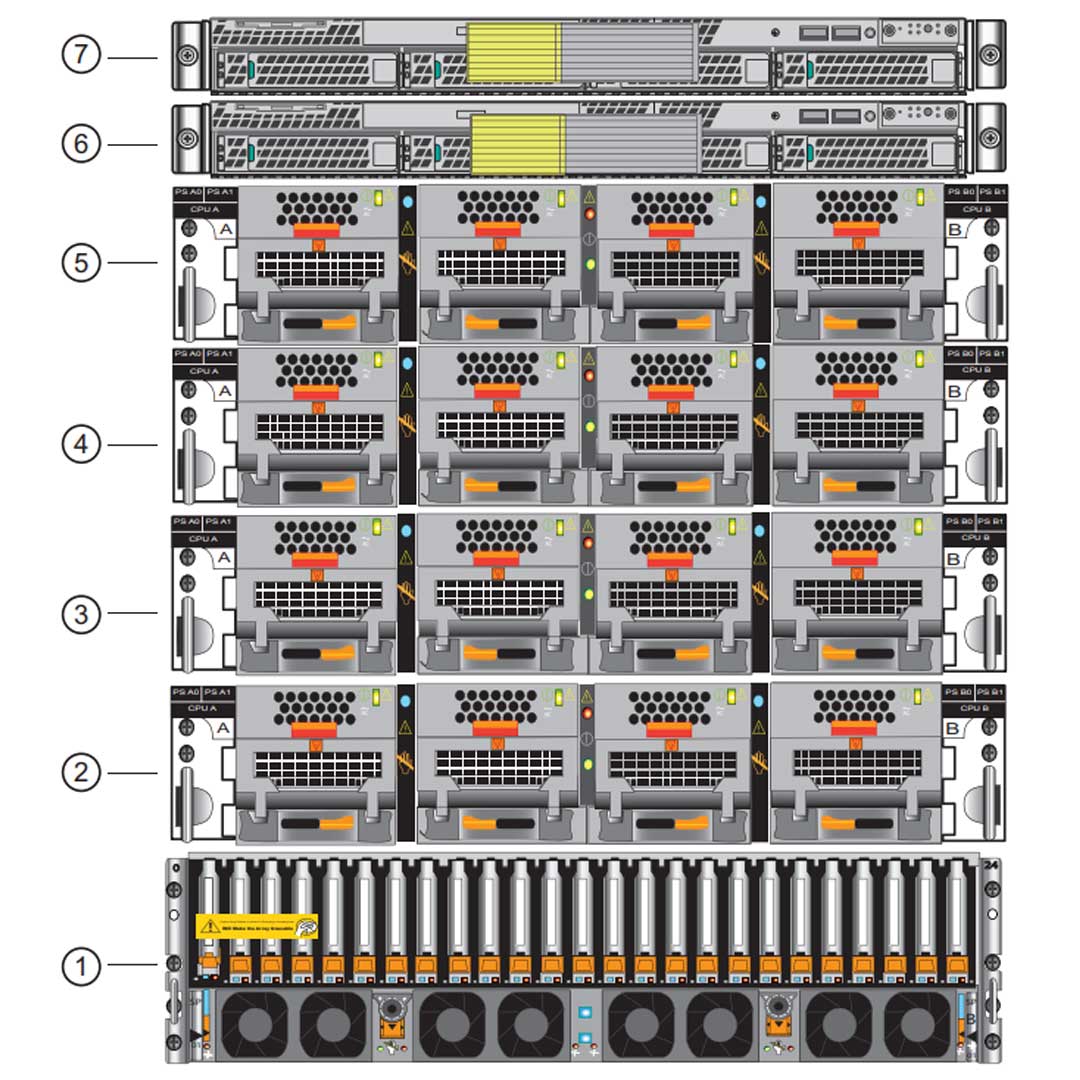

The VNX7600 can support up to 4 Data Mover Enclosures (DME’s). Each DME holds two Data Movers (DMs) Blades for a total of 16 DMs.

Form Factor:
Chassis: 3U 25 (2.5”) | 3U 15 (3.5”)
Standby Power Supply:1U PS
Disk Array Enclosures (DAE):15x3.5” | 60x3.5” | 25x2.5” | 120x2.5”
Max Drives: 1000
Drives Supported: SAS, NL-SAS and Flash
I/O Supported:
Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

Storage Processor I/O Supported:
2 x Intel Xeon E5-2600 8-Core 2.2 GHz/128 GB (block)

Data Movers Enclosure (DME):
2-8 Data Movers for file (Intel Xeon 5600 / 24 GB for each DM)

Control Station (CS):
Supports up to 2 Control Stations.

Disk Array Enclosure (DAE)
15x3.5”
60x3.5”
25x2.5”
120x2.5”

EMC VNX7600 Disk Processor Enclosure (DPE) Spec Sheet

Manuals

EMC VNX7600 Disk Processor Enclosure (DPE) Spec Sheet

Manuals

Product Specs

Storage Array Specs

EMC VNX7600 Technical Specifications

EMC VNX7600 TECHNICAL SPECIFICATIONS
Storage Type Unified
Maximum Raw Capacity (per controller) 4000TB
Max FAST Cache 4.2TB
Number of Drives (Min/Max) 4/1000
Array Enclosure 3U Disk Processor Enclosure - 25 x 2.5" SAS/Flash Drives
Drive Enclosure Options 25 x 2.5" NL-SAS/SAS/Flash Drives (2U)
15 x 3.5" NL-SAS/SAS/Flash (3U)
60 x 3.5" NL-SAS/SAS/Flash Drives (4U)
120 x 2.5" NL-SAS/SAS/Flash Drives (3U)
Drive Options 15 x 3.5" Drive Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
2TB 6Gbps 7.2K NL-SAS
3TB 6Gbps 7.2K NL-SAS
4TB 6Gbps 7.2K NL-SAS

25 x 2.5" Drive Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
1TB 6Gbps 7.2K NL-SAS

60 x 3.5" Drive Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
2TB 6Gbps 7.2K NL-SAS
3TB 6Gbps 7.2K NL-SAS
4TB 6Gbps 7.2K NL-SAS

120 x 2.5" Disk Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
1.2TB 6Gbps 10K SAS
Standby Power System Internal Batteries, one for each storage processor
CPU / Memory Per Controller 2x Intel Xeon E5-2600 Eight Core 2.2GHz / 128GB per Controller
Max Block UltraFlex IO Modules per Array 10
Embedded IO Ports per Array 2 x 4 Lane SAS ports (for BE Connection)
Base 6Gbps SAS BE Buses per Array 2 x 4 Lane
Max 6Gbps SAS BE Buses per Array 6 x 4 Lane or
2 x 4 Lane + 2 x 8 Lane
Max Total Ports per Array 44
2/4/8 Gbps FC Max Ports per Array 40
1 GBaseT iSCSI Max Total Ports per Array 32
10 GbE iSCSI Max Total Ports per Array 20
Max FCoE Total Ports per Array 20
File Components
# File Data Movers 2-8
# Control Stations 1 x 1U Server Standard, 2nd x 1U Server Optional
Data Mover CPU/Memory Intel Xeon 5600 / 24GB
Max File UltraFlex IO MOdules per Data Mover 4
Min/Max 2/4/8 Gbps FC Ports per Data Mover 4
Max IP Ports per Data Mover 12
Max 1 GBaseT Ports per Data Mover 12
Max 10GbE Ports per Data Mover 6
Management LAN 2x 10/100/1000 Copper GbE
Functional Limits
Max Raw Capacity 4000TB
Max SAN Hosts 4,096
Max Max Number of Pools 60
Max Number of LUNs (Pool) 3000
Max Number of LUNs (Classic) 8192
Max Pool Based LUN Size 256TB (Virtual Pool LUN)
Max File System Size 16TB
Maximum Usable File Capacity per Data Mover 512TB
Compatible Disk Array Expansions (DAEs) VNXB6GSDAE15
VNXB6GSDAE25
VNXB6GSDAE60
VNXB6GSDAE120
Protocols Supported CIFS, NFS, pNFS, FC, FCoE, ISCSI
Power - 25 x 2.5" DPE
AC Line Current (Operating Maximum) 4.7 A max at 200 Vac
Power Consumption (Operating Maxium) 939 VA (900 W) max
Power Factor 0.98 min at full load, low voltage
In-rush Current 30 A max for 1/2 line cycle, per line cord at 240 Vac
Startup Surge Current 29 A rms max for 50 ms, at any line voltage
AC Protection 10 A fuse on each power supply
AC Inlet Type IEC320-C14 appliance coupler, per power zone
Dimensions
Height 5.25"
Width 17.5"
Depth 24"
Vertical Size 3 NEMA Units
Weight 90.395 lbs
ECS Warranty 1-Year Parts Replacement Warranty
