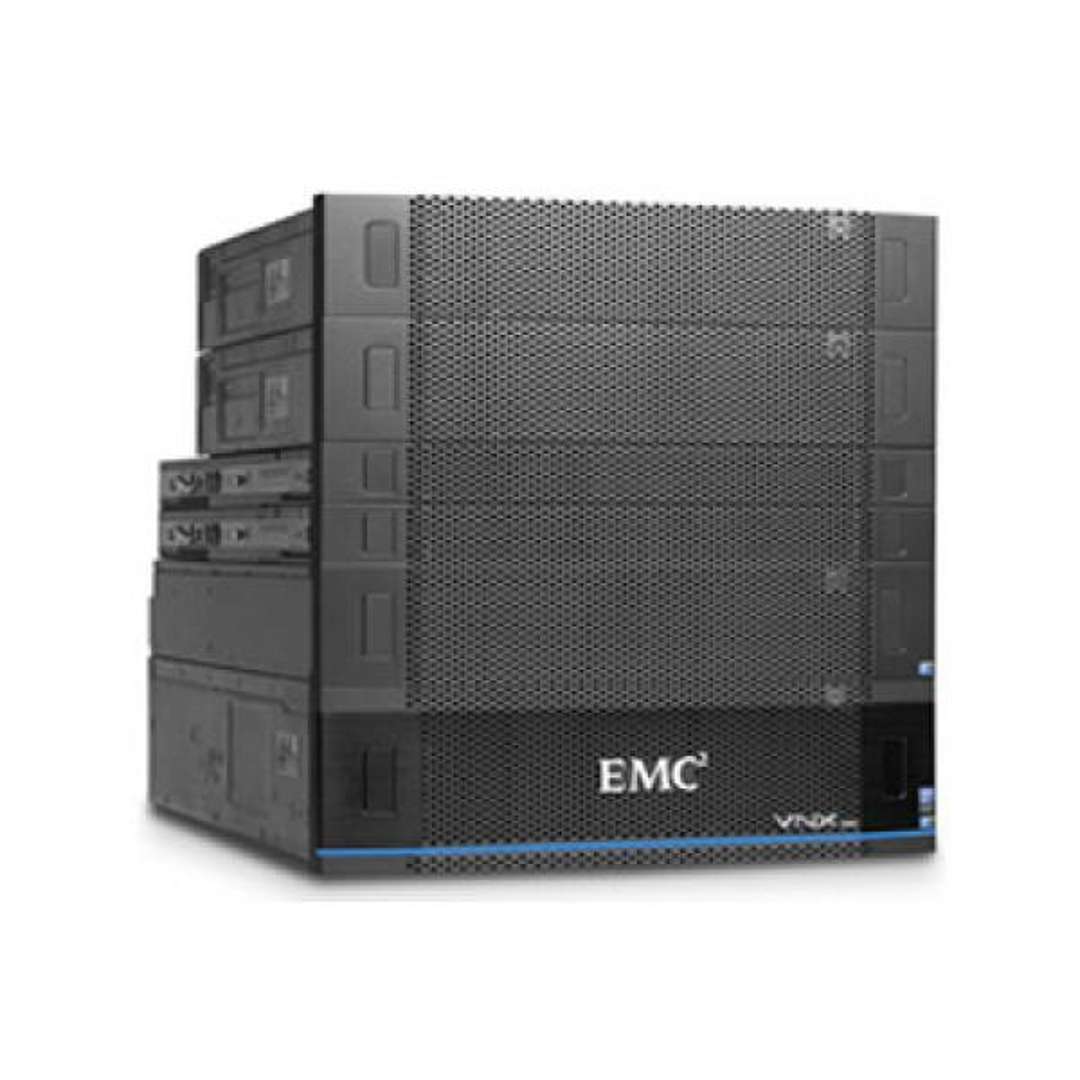

EMC VNX5400 Disk Processor Enclosure (DPE)

Brand:
MPN:
VNX5400
Type:
Storage Array
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EMC VNX5400 Disk Processor Enclosure (DPE)

VNX5400 Disk Processor Enclosure helps customers to keep pace with their growing businesses by expanding their system storage capacity. The VNX5400's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.
  • 15 x 3.5", 25 x 2.5", 60 x 3.5" and 120 x 2.5"
  • 3.5" & 2.5" SAS / NL-SAS / Flash
  • RAID 0 / 1 / 3 / 5 / 6 / 10
  • Fibre Channel (FC)
  • 250 Max Disk Drives

EMC VNX5400 series unified storage system delivers uncompromising scalability and flexibility for mid-tier applications while providing market-leading simplicity and efficiency to minimize total cost of ownership. Using a modular architecture, the VNX5400 integrates hardware components for block, file and object with concurrent support for native NAS, iSCSI, Fibre Channel and FCoE protocols. The VNX5400 delivers file (NAS) functionality via 1-4 Data Movers and block (iSCSI, FCoE, and FC) storage via dual Storage Processors leveraging full 6Gbps SAS disk drive topology.

DELL EMC VNX5400 Base Knowledge.
One CPU module with an Intel Xeon 4-core 1.8-GHz processor facilitating Simultaneous Multi-Threading (SMT). Eight Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots supporting up to 16 GB of SDRAM per CPU module or SP using 4 or 8 GB DIMMs

Form Factor: 3U – 9U
Chassis: 25 (2.5”)
Standby Power Supply: 3 Power Types
Disk Array Enclosures (DAE): 4 Different DAE types
Max Drives: 250
Drives Supported: Serial attached-SCSI (SAS) and Flash
I/O Supported:
Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

Storage Processor I/O Supported:
Four PCI Gen 3 x8 I/O module slots (A1 – A4 and B1 – B4) featuring the following SP I/O module types:

  • Four-port 8-Gb/s FC optical (running at 2, 4, or 8 Gb/s)
  • Four-port 16-Gb/s FC optical (running at 4, 8, or 16 Gb/s)
  • Four-port 1-Gb/s Base-T iSCSI I/O module
  • Two-port 10-Gb/s optical or active Twinax5
  • Two-port 10-Gb/s RJ45 Base-T iSCSI/IP
  • Two-port 10-Gb/s Fibre Channel over Ethernet (FCoE)

Storage Processor Power Supply:
Storage processor power supply types — Three SP power supply modules are supported in the VNX5400 storage system. They are:

  • AC Power supply; 200-240 V
  • AC Power supply; 100-240 V
  • DC Power supply

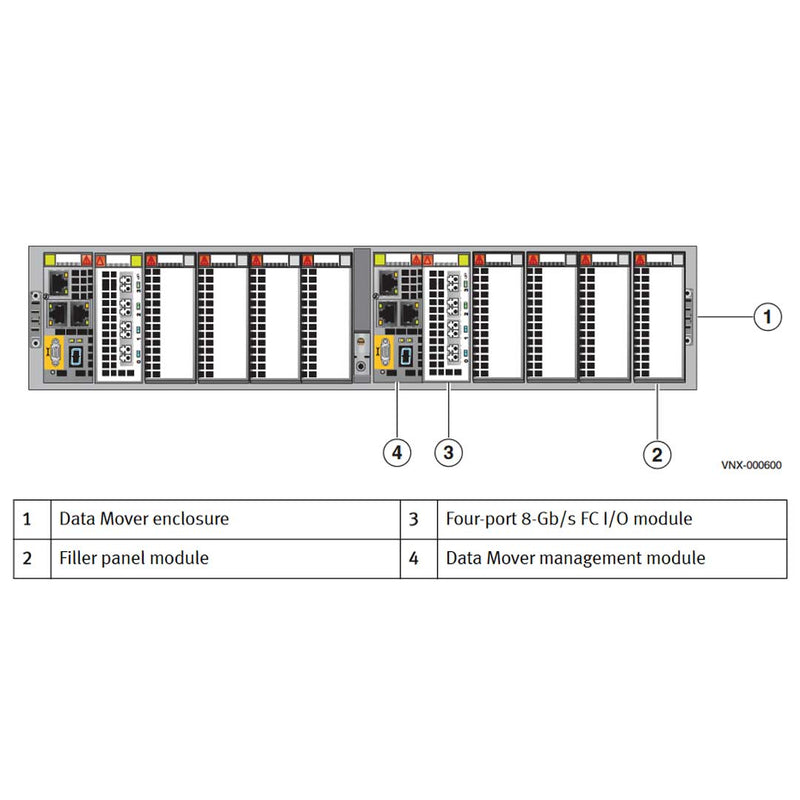

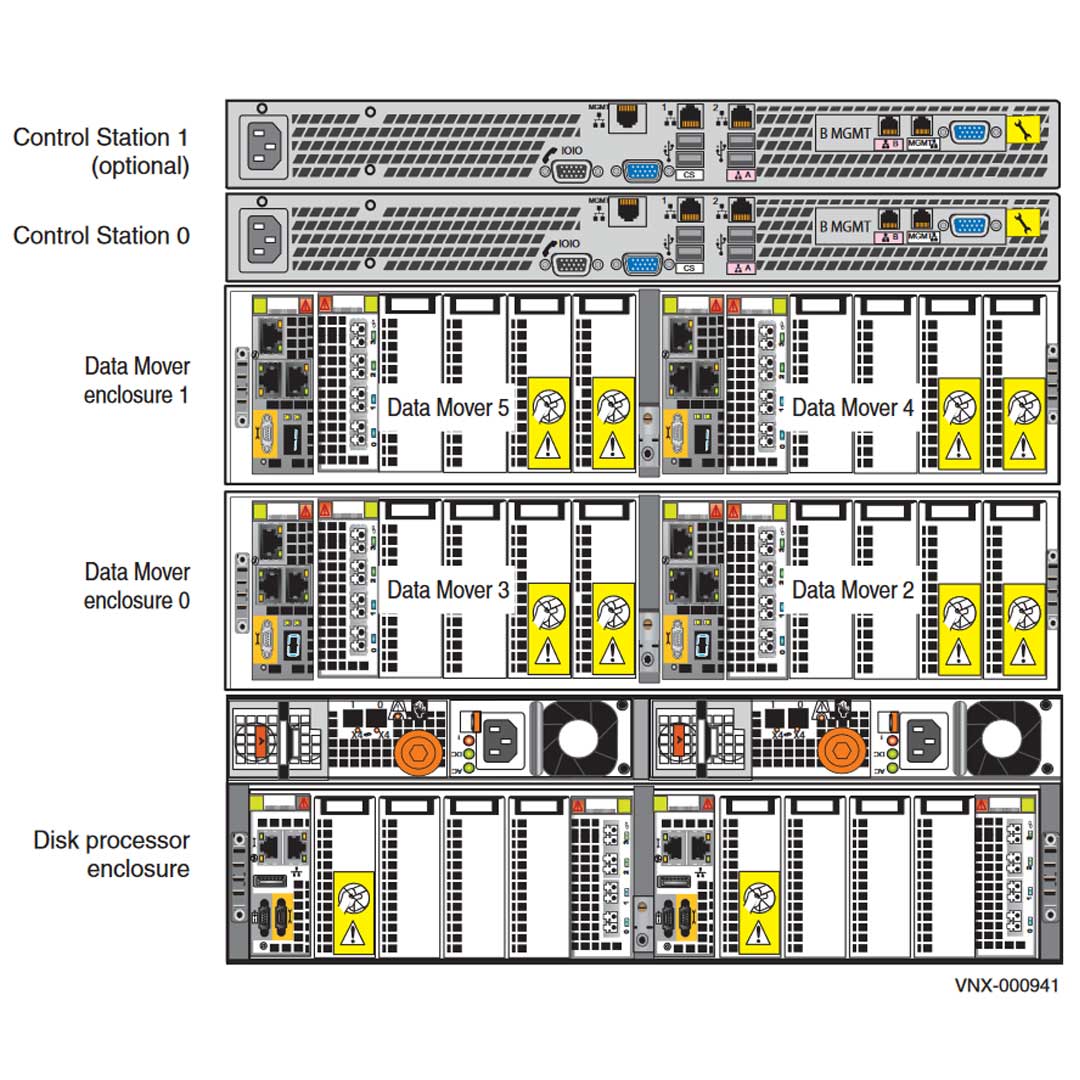

Data Movers Enclosure (DME):
One CPU module consisting of one Intel Xeon 4-core 2.13-GHz processor. The CPU modules in the DME contain the power, fault, and unsafe-to-remove LEDs. Six DDR3 synchronous dynamic RAM (SDRAM) slots support up to 6 GB per CPU module using 2 or 4 GB DIMMs.
Each Data Mover has 4 I/O slots with the first one being a Four Port 8GbE Fibre and the other three can be any combination of the following.

  • Two-port 10-Gb/s optical or active Twinax;
  • Four-port 1-Gb/s copper;
  • Two-port 10-Gb/s RJ45 Base-T iSCSI/IP;

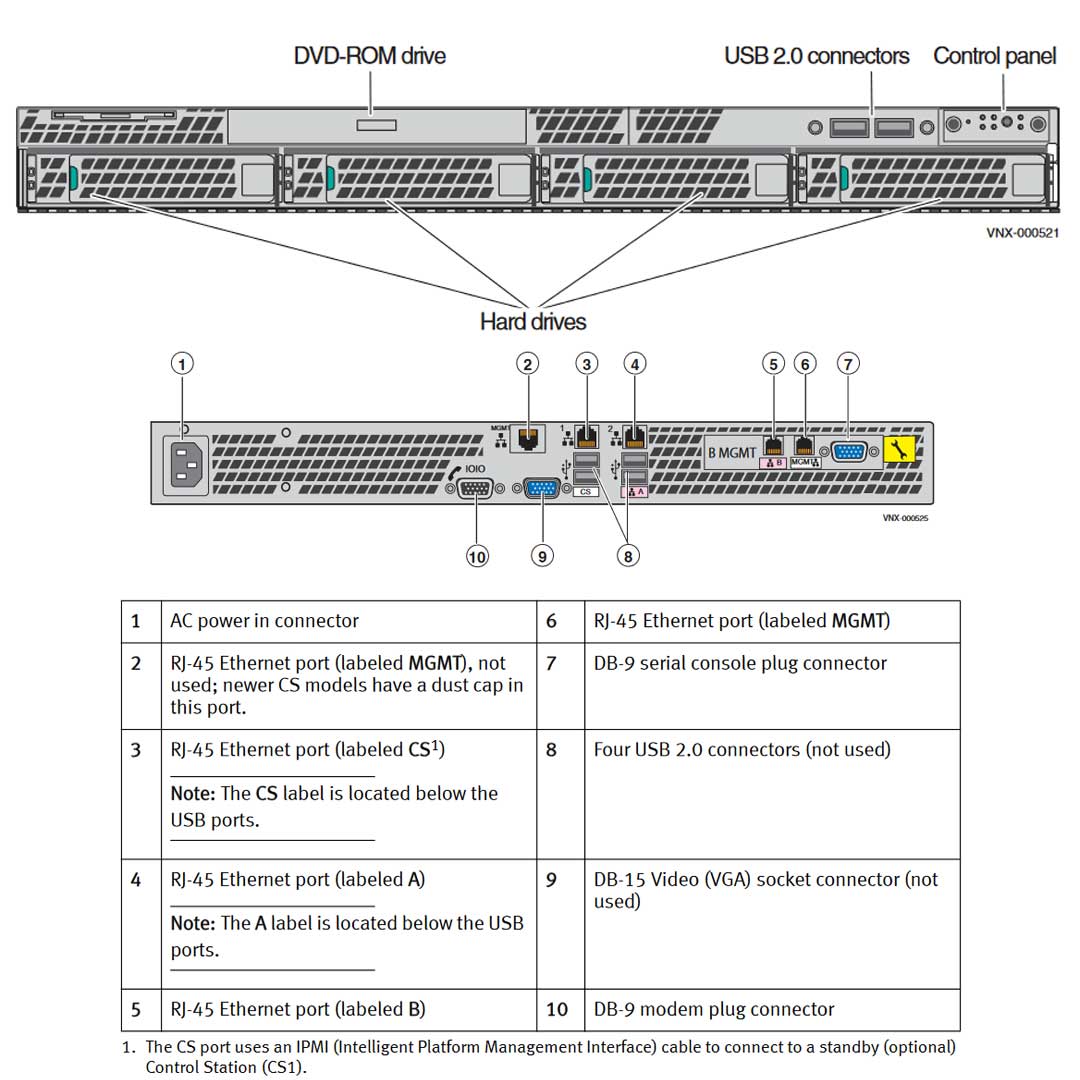

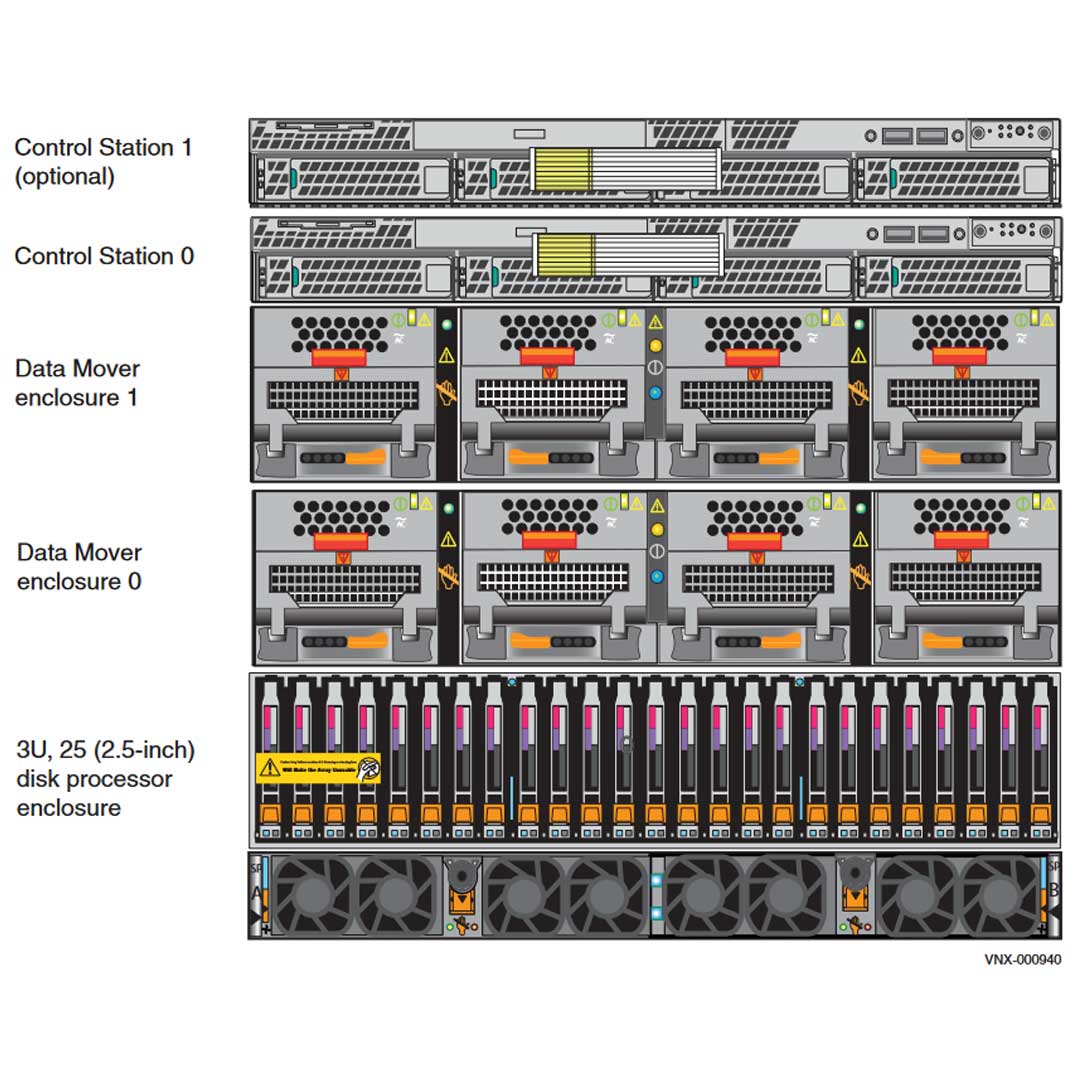

Control Station (CS):
One to two 1U Control Stations supported in a File or Unified Configuration.
On the front, viewing from left to right, the File/Unified VNX5400 platform 1U Control Station includes the following components:

  • One DVD-ROM drive
  • Two USB 2.0 connectors (not used)
  • Front control panel with various buttons and status LEDs
  • Four hot-swappable SATA hard drive bays

Disk Array Enclosure (DAE)
The number of DAEs and the disks supported by the VNX5400 platform is variable depending on the type of DAE. Typically, the VNX5400 platform supports up to nine 2U, 25 (2.5-inch) DAEs (for a total of 225, 2.5-inch disk drives), up to fifteen 3U, 15 (2.5- or 3.5-inch) DAEs (for a total of 225, 2.5- or 3.5-inch disk drives), up to one, 3U, 120 (3.5-inch) DAE (for a total of 120, 2.5-inch disk drives), or up to three 4U, 60 (2.5- or 3.5-inch) DAEs (for a total of 180, 2.5- or 3.5-inch disk drives).
The 3U, 120 and 4U, 60 DAEs have separate power supplies and cooling modules (fans). In a 4U, 60 DAE, the primary functionality of an LCC is to be a SAS expander as well as to provide enclosure services to all the disk drives (60 in all).

EMC VNX5400 Disk Processor Enclosure (DPE) Spec Sheet

Manuals

EMC VNX5400 Disk Processor Enclosure (DPE) Spec Sheet

Manuals

Product Specs

Storage Array Specs

EMC VNX5400 Technical Specifications

EMC VNX5400 TECHNICAL SPECIFICATIONS
Storage Type Unified
Maximum Raw Capacity (per controller) 1000TB
Max FAST Cache 1TB
Number of Drives (Min/Max) 4/250
Array Enclosure 3U Disk Processor Enclosure - 25 x 2.5" SAS/Flash Drives
Drive Enclosure Options 25 x 2.5" NL-SAS/SAS/Flash Drives (2U)
15 x 3.5" NL-SAS/SAS/Flash (3U)
60 x 3.5" NL-SAS/SAS/Flash Drives (4U)
120 x 2.5" NL-SAS/SAS/Flash Drives (3U)
Drive Options 15 x 3.5" Drive Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
2TB 6Gbps 7.2K NL-SAS
3TB 6Gbps 7.2K NL-SAS
4TB 6Gbps 7.2K NL-SAS

25 x 2.5" Drive Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
1TB 6Gbps 7.2K NL-SAS

60 x 3.5" Drive Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
600GB 6Gbps 10K SAS
900GB 6Gbps 10K SAS
1.2TB 6Gbps 10K SAS
2TB 6Gbps 7.2K NL-SAS
3TB 6Gbps 7.2K NL-SAS
4TB 6Gbps 7.2K NL-SAS

120 x 2.5" Disk Enclosure:
100GB 6Gbps SAS SSD
200GB 6Gbps SAS SSD
400GB 6Gbps SAS SSD
800GB 6Gbps SAS SSD
1.6TB 6Gbps SAS SSD
300GB 6Gbps 15K SAS
1.2TB 6Gbps 10K SAS
Standby Power System Internal Batteries, one for each storage processor
CPU / Memory Per Controller 2x Intel Xeon E5-2600 Quad Core 1.8GHz / 32GB per Controller
Max Block UltraFlex IO Modules per Array 8
Embedded IO Ports per Array 2 x 4 Lane SAS ports (for BE Connection)
Base 6Gbps SAS BE Buses per Array 2x 4 Lane
Max 6Gbps SAS BE Buses per Array 2x 4 Lane
Max Total Ports per Array 36
2/4/8 Gbps FC Max Ports per Array 32
1 GBaseT iSCSI Max Total Ports per Array 32
10 GbE iSCSI Max Total Ports per Array 16
Max FCoE Total Ports per Array 16
File Components
# File Data Movers 1-4
# Control Stations 1 x 1U Server Standard, 2nd x 1U Server Optional
Data Mover CPU/Memory Intel Xeon 5600 / 6GB
Max File UltraFlex IO MOdules per Data Mover 3
Min/Max 2/4/8 Gbps FC Ports per Data Mover 4
Max IP Ports per Data Mover 8
Max 1 GBaseT Ports per Data Mover 8
Max 10GbE Ports per Data Mover 3
Management LAN 2x 10/100/1000 Copper GbE
Functional Limits
Max Raw Capacity 1000TB
Max SAN Hosts 1,024
Max Max Number of Pools 20
Max Number of LUNs (Pool) 1000
Max Number of LUNs (Classic) 2048
Max Pool Based LUN Size 256TB (Virtual Pool LUN)
Max File System Size 16TB
Maximum Usable File Capacity per Data Mover 256TB
Compatible Disk Array Expansions (DAEs) VNXB6GSDAE15
VNXB6GSDAE25
VNXB6GSDAE60
VNXB6GSDAE120
Protocols Supported CIFS, NFS, pNFS, FC, FCoE, ISCSI
Power - 25 x 2.5" DPE
AC Line Current (Operating Maximum) 4.3A max at 200 Vac
8.0A max at 100V
Power Consumption (Operating Maxium) 860 VA (835 W) max (200V)
798 VA (768W) max (100V)
Power Factor 0.97 min at 200V at full load, low voltage
0.96 min at 100V at full load, low voltage
In-rush Current 30 A max for 1/2 line cycle, per line cord at 240 Vac
Startup Surge Current 29 A rms max for 50 ms, at any line voltage
AC Protection 10 A fuse on each power supply
AC Inlet Type IEC320-C14 appliance coupler, per power zone
Dimensions
Height 5.25"
Width 17.5"
Depth 24"
Vertical Size 3 NEMA Units
Weight 90.395 lbs
ECS Warranty 1-Year Parts Replacement Warranty
