Per-system specifications (active-active dual controller) | |
---|---|
Controller form factor | 8U |
PCIe expansion slots | 20 |
FC target ports (32Gb autoranging) | 64 |
FC target ports (16Gb autoranging) | 64 |
FCoE target ports, UTA2 | 64 |
100GbE ports (40GbE autoranging) | 32 |
25GbE ports (10GbE autoranging) | 64 |
10GbE ports | 64 |
10Gbase-T (1GbE autoranging) | 64 |
12Gb/6Gb SAS ports | 64 |
Storage networking supported | NVMe/TCP, NVMe/FC, FC, iSCSI, NFS, pNFS, CIFS/SMB, Amazon S3 |
OS version | ONTAP 9.10.1 RC2 or later |
Shelves and media | NS224 (2U, 24 drives, SFF NVMe); DS224C (2U, 24 drives, 2.5" SFF); DS2246 (2U, 24 drives, 2.5", SFF) |
Host/client OS supported | Microsoft Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Linux, Oracle Solaris, AIX, HP-UX, macOS, VMware, ESX |
Max # of Drives (Total) | Max # of Internal Drives | Max # of MSATA Drives | Max # of NL-SAS Drives | Max # of SAS Drives | Max # of SATA Drives | Max # of NVMe SSD Drives | Max # of SSD Drives | Max # of DS212C Shelves | Max # of DS2246 Shelves | Max # of DS224C Shelves | Max # of DS4243 Shelves | Max # of DS4246 Shelves | Max # of DS4486 Shelves | Max # of DS460C Shelves | Max # of FS424C Shelves | Max # of NS224 Shelves |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
480 | N/A | - | - | - | - | 240 | 480 | - | 20 external | 20 external | - | - | - | - | - | 10 external |
Marketing Max Raw Capacity - Node | HA Pair | Cluster | Effective Capacity - Node | HA Pair | Cluster |
---|---|---|---|---|---|
14688000 | 14688000 | - | 65192688 | 65192688 | - |
Max SVM's - NAS | Max LIF's - NAS | Max Connections - NAS | Max Flexible Volumes - NAS | Max Flexible Volumes with DPO - NAS | Max Lock Manager Locked Objects | Max Intercluster LIFs - Node | Min Root Aggregate (MiB) - Node | Min Root Aggregate (with core dump device) (MiB) | Min Root Volume (GiB) - Node | Min Root Volume (with core dump device) (GiB) | Max IPsec Policies | Max # of IPspaces | Max Auditing-Enabled SVMs - Cluster |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Node:- HA Pair:- Cluster:1024 | Node:512 HA Pair:512 Cluster:3072 | Node:100000 HA Pair(Non-Scalable):100000 | Aggregate (Single data Agg. per Node):- Aggregate (Multiple data Agg. per Node):- Node:2500 HA Pair:5000 Cluster:15000 | Node:- HA Pair:- Cluster:- | Node:3000000 HA Pair:3000000 Cluster:12288000 | 8 | 191488 | - | 150 | - | SVM:256 Cluster:1500 | - | 50 |
Max Nodes per Cluster (NAS / SAN) | Max FabricPool Size | Max FlexGroup Data Constituent Size | Max Infinite Volume Data Constituent Size | Min Root Volume Size | NetApp Volume Encryption |
---|---|---|---|---|---|
24 / 12 | 16800 TiB | 100 TiB | Not Supported | 150 GiB | Supported |
Processor Model | Processor Architecture | Processor Speed | Processor Count (Per Node) | Processor Count (Per Config) | Processor Cores (Per CPU) | Processor Cores (Per Node) | Processor Cores (Per Config) |
---|---|---|---|---|---|---|---|
64-bit 32-core 2.2 Ghz | 64 bit | 2.20 Ghz | 2 | 4 | 32 | 64 | 128 |
NVRAM (Per Node) | NVRAM (Per Config) | NVME (Per Node) | NVME (Per Config) | NVMEM (Per Node) | NVMEM (Per Config) | RAM (Per Node) | RAM (Per Config) |
---|---|---|---|---|---|---|---|
64 GB | 128 GB | - | - | - | - | 1024 GB | 2048 GB |
Ethernet Ports | Fibre Channel | Ports UTA2 Ports | Expansion Slots | SAS Ports |
---|---|---|---|---|
- | - | - [1] | 24 x IO Module | - |
Rack Units | Chassis Height | Chassis Width with Mounting Flanges | Chassis Width without Mounting Flanges | Chassis Depth with Cable Mgmt | Chassis Depth without Cable Mgmt | Chassis Weight |
---|---|---|---|---|---|---|
8 | 14.02" (35.6 cm) | 19.02" (48.3 cm) | 17.72" (45 cm) | 36.81" (93.5 cm) | 28.82" (73.2 cm) | See Weights by configuration |
Front Clearance (Cooling) | Front Clearance (Maintenance) | Rear Clearance (Cooling) | Rear Clearance (Maintenance) |
---|---|---|---|
6.03" (15.3 cm) | 31.01" (78.7 cm) | 6.03" (15.3 cm) | 22.02" (55.9 cm) |
Operating | Storage | Transit | Acoustic Noise | Input Power Voltage |
---|---|---|---|---|
Tempature: 50 to 95 deg F - 10 to 35 deg C Humidity: 8 to 80 % Altitude: Up to 10000.0 ft - Up to 3048.0 m | Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 40000.0 ft - Up to 12192.0 m | Tempature: -40 to 158 deg F - -40 to 70 deg C Humidity: 10 to 95 % Altitude: Up to 39989.8 ft - Up to 12192 m | Sound Power: 7.4 bels Sound Pressure: 65 dBA | 200 to 240 |
Full OS Matrix | Recommended Version | Minimum OS | Maximum OS |
---|---|---|---|
View Full OS Report Below | 9.11.1, 9.11.1P1 | 9.11.1RC1 | 9.11.1P1 |
Full Firmware Matrix | BIOS | BMC |
---|---|---|
Full Firmware Report Below | 18.5* | 16.2* |
Full Compliance and Certificates Report | Cert. EMC/EMI | Cert. Safety | Cert. Safety/EMC/EMI | Cert. Safety/EMC/EMI/RoHS | Standard Safety/EMC/EMI | Standard Safety |
---|---|---|---|---|---|---|
Compliance and Certificates Report Below | AMCA, FCC, ICES, KC, Morocco, VCCI | BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS | EAC, UKRSEPRO | BSMI, CE DoC, UKCA DoC | BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC more... | ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1 more... |
Max Export Policies - Cluster | Max Export Rules - Cluster | Max NFSv4 Access Control Entries | Max Client Objects | Max pNFS objects |
---|---|---|---|---|
24000 | 200000 | 1024 | Node:100000 HA Pair:100000 | Node:1024000 HA Pair:1024000 Cluster:12288000 |
Size 64-bit Aggregate (TiB) | Size 64-bit Volume (TiB) | File size 64-bit Volume (TiB) | Volume Snapshot Copies | Character length for Snapshot copy names | Hard links - File | inodes/files - Volume | Number of qtrees | Concurrent DataMotion for Volumes ops |
---|---|---|---|---|---|---|---|---|
800 | 100 | 16 | Volume:1023 Node:1023000 HA Pair:2046000 | 255 | 100000 | 2000000000 | Volume:4995 Node:100000 HA Pair:200000 Cluster:2400000 | Node:16 HA Pair:16 |
Max Policy Groups - Cluster | Max QoS User Workloads - Cluster |
---|---|
12000 | 40000 |
# of storage virtual machines (SVMs) - SAN | # of flexible volumes - SAN | # of Flexible Vol with DPO - | # of LUNs | LUN mappings | LUN size (TiB) - LUN | FC queue depth available | # of SAN Hosts (ITNs) | # of LIFS - iSCSI | # of LIFS - FCP | # of igroups | # of Initiators | # of Portsets | # of iSCSI sessions |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Node:125 HA Pair:250 Cluster:1000 | Single data Aggregate:- Multiple data Aggregates:- Node:2500 HA Pair:5000 Cluster:15000 | Node:- HA Pair:- Cluster:- | Valume:1024 Node:12288 HA Pair:24576 Cluster:98304 | Node:12288 HA Pair:24576 Cluster:98304 | 16 | 2048 | Port:512 Node:8192 HA Pair:16384 Cluster:65536 | Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096 | Port:32 Portset:32 Node:512 HA Pair:1024 Cluster:4096 | Node:4096 HA Pair:8192 Cluster:32768 | igroup:256 Node:4096 HA Pair:8192 Cluster:32768 | Node:4096 HA Pair:8192 Cluster:32768 | Node:8192 HA Pair:16384 Cluster:65536 |
# of Connected Shares | # of Regular Shares | # of Open files | # of Local users - Cluster | # of Local groups - Cluster | # of Local group members - Cluster |
---|---|---|---|---|---|
Node:1000000 HA Pair:1000000 | Node:- HA Pair:- Cluster:300000 | Connection:65536 Node:1500000 HA Pair:1500000 | 35000 | 320000 | 640000 |
NDMP Sessions | Data Protection Mirrors | Load Sharing Mirrors - NAS SVM | Concurrent Snap Mirror / SnapVault transfers - Node | DP Mirror fan-out - Volume | LS Mirror fan-out - NAS SVM | # of Clusters that can be peered - Cluster | Volumes, SnapMirror relationship | SnapMirror Synchronous relationships | # of Consistency Groups in SM-BC relationships | # of Constituent Volumes in SM-BC relationships | Flexible Volumes in SVM DR | SVM Disaster recovery - Cluster | # of Concurrent SVM Migration - Cluster | # of Volumes with SVM Migration - SVM | # of Cluster for SVM Migration - Cluster |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Node:36 HA Pair (Non-Scalable):36 | Volume:1 Node:2500 HA Pair:5000 Cluster:15000 | 2 | 250 | 8 | 2 | 255 | FlexGroup:200 FlexGroup-Node:50 HA Pair:1000 Cluster:6000 | Volume:1 Node:400 HA Pair (Non-Scalable):400 | HA Pair (Non-Scalable):50 | Consistency group:16 HA Pair (Non-Scalable):400 | SVM:300 HA Pair:1000 | 128 | 1 | 100 | 6 |
# of Storage virtual machines (SVMs), NVMe/oF - Cluster | # of Flexible volumes, NVMe/oF | # of Flexible volumes with DPO, NVMe/oF | # of Namespaces | # of Subsystems | # of Namespace Mappings | Namespace Size | I/O queue depth available - NVMe/FC - Queue | I/O queue count available - NVMe/FC - Controller | Hosts - Subsystem | LIFS, NVMe/oF | # of Controllers - NVMe/FC - Port | I/O Queue Count, NVMe/TCP - Controller | I/O Queue Depth - NVMe/TCP | Controllers, NVMe/TCP - Node |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
32 | Node:2500 HA Pair:5000 Cluster:15000 | Node:- HA Pair:- Cluster:- | Volume:1024 Node:12288 HA Pair:24576 Cluster:98304 | Node:512 Node:512 | Subsystem:1024 Node:12288 HA Pair:24576 Cluster:98304 | 16 | 32 | 4 | 64 | Port:16 SVM:8 Node:32 HA Pair:32 Cluster:32 | 256 | 2 | 128 | 1024 |
Degree of fan-out - Origin | Origin Volumes | Constituent Volumes | Volumes | Origin ConstituentVolumes |
---|---|---|---|---|
100 | Node:100 HA Pair:200 | Node:800 HA Pair:1600 | Node:100 HA Pair:200 | Node:800 HA Pair:1600 |
Max # of Buckets | Max # of Objects - Bucket | Max # of Users | Max Size of the Bucket (PB) - Vserver |
---|---|---|---|
Vserver:12000 Cluster:12000 | 400000000000 | Vserver:4000 Cluster:96000 | 20 |
Number of Consistency Groups - Cluster | Consistency Groups and Parents Consistency Groups - Cluster | Number of Parent Consistency Groups - Cluster | Child Consistency Groups in a Parent Consistency Groups - Parent Group | Flexible Volumes in a Consistency Group | Flexible Volumes for Child Consistency Groups under a Parent Group | Flexible Volumes in a Child Consistency Group |
---|---|---|---|---|---|---|
15000 | 15000 | 15000 | 5 | 80 | 80 | 80 |
Third Party Array Compatibility | Array LUN Absolute Min Raw Capacity | Array LUN Block Size | Default Array LUN RAID Group Size | Array LUN Max RAID Groups Per Aggregate | Max Array LUN Size | Max Array LUN Raid Group Size | Min Array LUN Size | Min Array LUN Root Vol Size | Min Array LUN RAID Group Size | Min Array LUN Aggregate Size | Array LUN neighborhood Visible Assigned Devices | Array LUN Recommended Min RAW Capacity | Spare Core Array LUN Min Size |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | - | - | - | - | - | - | - | - | - | - | - | - | - |
Notes ID | Notes Description |
---|---|
[1] | The onboard UTA2 ports can be configured as FC Target/Initiator or CNA (FCoE target/Ethernet). The UTA2 ports are based on a dual port ASIC and both ports on each ASIC must be set to the same mode (enforced by Data ONTAP). Install X6599A-R6 10GbE SFP+ modules or approved copper twinax cables when using in CNA (FCoE target/Ethernet) mode. Install X6596-R6 16Gb FC SFP+ module when using in FC Target/Initiator mode. |

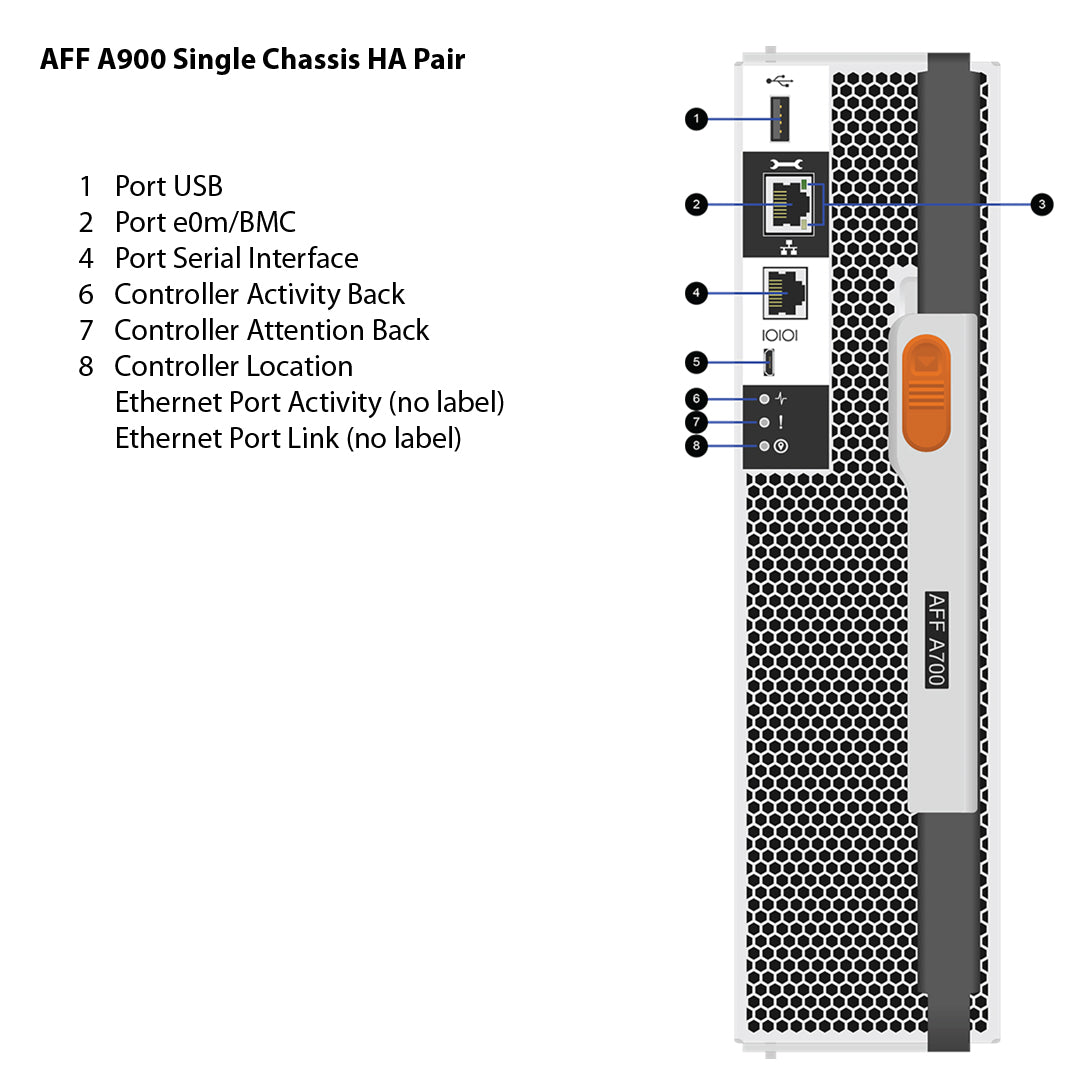

LED Label | LED Name | Type | Status Indicator | Description | |||||
---|---|---|---|---|---|---|---|---|---|

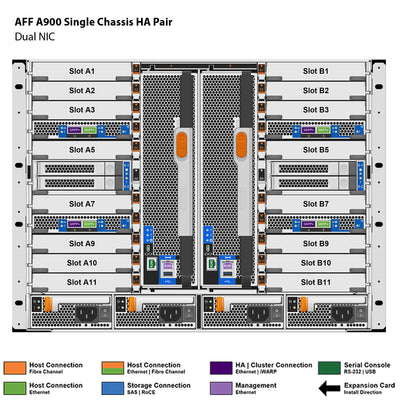

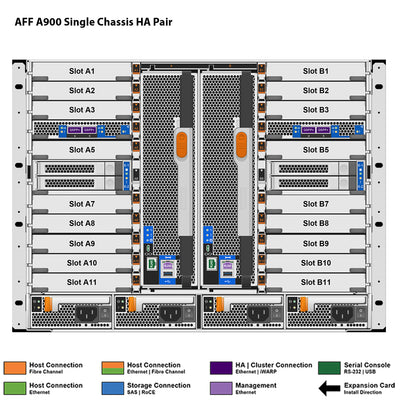

Back View | |||||||||
e0m/BMC | Port Ethernet Config | Port Activity | Blinking amber | Traffic is flowing over the connection | |||||
- | - | - | Off | No traffic is flowing over the connection. | |||||
- | - | Port Link | Green | A connection is established on the port | |||||
- | - | - | Off | No connection is established on the port. |
Part No. | Capacity | RPM | Drive Type | Encryption | Root-Data Partitioning | Root-Data-Data Partitioning | Storage Pool Partitioning | Max Drive Count | FlexArray |
---|---|---|---|---|---|---|---|---|---|
DS224C with IOM12B / IOM12 shelf modules | |||||||||
X319A | 7.6TB | N/A | SSD | No | No | Yes | No | 480 | No |
X356A-R6 | 3.84TB | N/A | SSD | No | No | Yes | No | 480 | No |
X357A | 3.84TB | N/A | SSD | No | No | Yes | No | 480 | No |
X358A [1] | 3.84TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X359A | 30.6TB | N/A | SSD | No | No | Yes | No | 480 | No |
X365A-R6 [1] | 1.6TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X371A | 960GB | N/A | SSD | No | No | Yes | No | 480 | No |
X386A [1] | 960GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X438A-R6 | 400GB | N/A | SSD | No | No | Yes | No | 480 | No |
X439A-R6 | 1.6TB | N/A | SSD | No | No | Yes | No | 480 | No |
X440A-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X440B-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X446A-R6 | 200GB | N/A | SSD | No | No | No | No | 480 | No |
X446B-R6 | 200GB | N/A | SSD | No | No | No | No | 480 | No |
X447A-R6 | 800GB | N/A | SSD | No | No | Yes | No | 480 | No |
X670A | 15.3TB | N/A | SSD | No | No | Yes | No | 480 | No |
NS224 with NSM100 shelf modules | |||||||||
X4010A | 1.92TB | N/A | NVMe SSD | AES-256 | No | Yes | No | 240 | No |
X4011A | 3.84TB | N/A | NVMe SSD | AES-256 | No | Yes | No | 240 | No |
X4012A [1] | 3.84TB | N/A | NVMe SSD | AES-256, FIPS 140-2 Level 2, NSE | No | Yes | No | 240 | No |
X4013A | 7.68TB | N/A | NVMe SSD | AES-256 | No | Yes | No | 240 | No |
X4014A | 15.3TB | N/A | NVMe SSD | AES-256 | No | Yes | No | 240 | No |
X4016A | 3.84TB | N/A | NVMe SSD | No | No | Yes | No | 240 | No |
X4018A | 1.92TB | N/A | NVMe SSD | No | No | Yes | No | 240 | No |
X4019A [1] | 15.3TB | N/A | NVMe SSD | AES-256, FIPS 140-2 Level 2, NSE | No | Yes | No | 240 | No |
DS2246 with IOM6 / IOM12 / IOM12B shelf modules | |||||||||
X356A-R6 | 3.84TB | N/A | SSD | No | No | Yes | No | 480 | No |
X357A | 3.84TB | N/A | SSD | No | No | Yes | No | 480 | No |
X358A [1] | 3.84TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X365A-R6 [1] | 1.6TB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X371A | 960GB | N/A | SSD | No | No | Yes | No | 480 | No |
X438A-R6 | 400GB | N/A | SSD | No | No | Yes | No | 480 | No |
X439A-R6 | 1.6TB | N/A | SSD | No | No | Yes | No | 480 | No |
X440A-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X440B-R6 [1] | 800GB | N/A | SSD | FIPS 140-2 Level 2, NSE | No | Yes | No | 480 | No |
X446A-R6 | 200GB | N/A | SSD | No | No | No | No | 480 | No |
X446B-R6 | 200GB | N/A | SSD | No | No | No | No | 480 | No |
X447A-R6 | 800GB | N/A | SSD | No | No | Yes | No | 480 | No |
Footnote: | |||||||||
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported. |
Drive Type | Drive Capacity Min | Drive Capacity Max | Minimum | Default | Maximum | ||||
---|---|---|---|---|---|---|---|---|---|
Data Aggregate | |||||||||
RAID4 | |||||||||
NVMe SSD | 0 TB | 15.3 TB | 3 | 8 | 14 | ||||
SSD | 0 TB | 30.6 TB | 3 | 8 | 14 | ||||
RAID-DP | |||||||||
NVMe SSD | 0 TB | 15.3 TB | 5 | 24 | 28 | ||||
SSD | 0 TB | 30.6 TB | 5 | 24 | 28 | ||||
RAID-TEC | |||||||||
NVMe SSD | 0 TB | 15.3 TB | 7 | 25 | 29 | ||||
SSD | 0 TB | 30.6 TB | 7 | 25 | 29 | ||||
Root Aggregate | |||||||||
RAID4 | |||||||||
NVMe SSD | 0 TB | 15.3 TB | 2 | - | 14 | ||||
SSD | 0 TB | 30.6 TB | 2 | - | 14 | ||||
RAID-DP | |||||||||
NVMe SSD | 0 TB | 15.3 TB | 3 | - | 28 | ||||
SSD | 0 TB | 30.6 TB | 3[1] | - | 28 | ||||
RAID-TEC | |||||||||
NVMe SSD | 0 TB | 15.3 TB | 7 | - | 29 | ||||
SSD | 0 TB | 30.6 TB | 7 | - | 29 | ||||
Footnote: | |||||||||
[1] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks). |
Priority | Category | Bus Type | Mktg Part No. | Mfg Part No | Description | Plug Type | Optical Module Included? | Cables | Supported Protocol(s) | Min ONTAP | Max Qty [1] | Priority Slot Assignment | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | NVRAM | IO Module | X93146A | 111-04738 | NV Base Module,64GB | 111-04738 | NV Base Module,64GB | None | View | None | 9.10.1RC2, 9.11.1RC1 | ||||||||
2 | NVMe Storage | IO Module | X91153A [2] | 111-04739 | 2p 100GbE RoCE QSFP28 | 111-04739 | 2p 100GbE RoCE QSFP28 | QSFP28 | Ethernet 40/100 Gb | View | Ethernet 40/100 Gb | 9.10.1RC2, 9.11.1RC1 | |||||||
3 | NVMe Storage | IO Module | X91148A [2] | 111-04761 | 2p 100GbE, QSFP28, gen3x16, RoCE | 111-04761 | 2p 100GbE, QSFP28, gen3x16, RoCE | QSFP28 | Ethernet 40/100 Gb | View | Ethernet 40/100 Gb | 9.10.1RC2, 9.11.1RC1 | |||||||
4 | Networking (high performance) | IO Module | X91153A | 111-04739 | 2p 100GbE RoCE QSFP28 | 111-04739 | 2p 100GbE RoCE QSFP28 | QSFP28 | Ethernet 40/100 Gb | View | Ethernet 40/100 Gb | 9.10.1RC2, 9.11.1RC1 | |||||||
5 | Networking (high performance) | IO Module | X91152A | 111-04740 | 4p 25GbE RoCE SFP28 | 111-04740 | 4p 25GbE RoCE SFP28 | SFP28 | Ethernet 10/25Gb | View | Ethernet 10/25Gb | 9.10.1RC2, 9.11.1RC1 | |||||||
6 | Networking | IO Module | X91148A | 111-04761 | 2p 100GbE, QSFP28, gen3x16, RoCE | 111-04761 | 2p 100GbE, QSFP28, gen3x16, RoCE | QSFP28 | Ethernet 40/100 Gb | View | Ethernet 40/100 Gb | 9.10.1RC2, 9.11.1RC1 | |||||||
7 | Networking | IO Module | X91440A [3] | 111-02590 | 2p 40GbE NIC Cu|Op | 111-02590 | 2p 40GbE NIC Cu|Op | QSFP | Ethernet 40Gb, Ethernet 40Gb w/4x10Gb breakout | View | Ethernet 40Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
8 | Networking | IO Module | X91122A | 111-04764 | 2p 25GbE, SFP28, gen3x8, RoCE | 111-04764 | 2p 25GbE, SFP28, gen3x8, RoCE | SFP28 | Ethernet 10/25Gb, Ethernet 25Gb | View | Ethernet 10/25Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
9 | Block Access (Target) | IO Module | X91135A | 111-03789 | 4p 32Gb FC SFP+ Op | 111-03789 | 4p 32Gb FC SFP+ Op | SFP+ | Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb | View | Fibre Channel 8/16/32 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
10 | Block Access (Target) | IO Module | X91134A | 111-03431 | 2p 32Gb FC Op | 111-03431 | 2p 32Gb FC Op | SFP+ | Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb | View | Fibre Channel 8/16/32 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
11 | Block Access | IO Module | X91143A | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | SFP+ | Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb | View | Ethernet 1/10 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
12 | Networking | IO Module | X91143A | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | SFP+ | Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb | View | Ethernet 1/10 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
13 | Networking | IO Module | X91120A | 111-02399 | 4p 10GBASE-T NIC | 111-02399 | 4p 10GBASE-T NIC | RJ45 | Ethernet 1/10 Gb | View | Ethernet 1/10 Gb | 9.10.1RC2, 9.11.1RC1 | |||||||
14 | Storage (Initiator) | IO Module | X91135A | 111-03789 | 4p 32Gb FC SFP+ Op | 111-03789 | 4p 32Gb FC SFP+ Op | SFP+ | Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb | View | Fibre Channel 8/16/32 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
15 | Storage | IO Module | X91143A | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | SFP+ | Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb | View | Ethernet 1/10 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
16 | Storage | IO Module | X92071A | 111-02396 | 4p 12Gb SAS Cu | 111-02396 | 4p 12Gb SAS Cu | MiniSAS HD | SAS 6/12 Gb | View | SAS 6/12 Gb | 9.10.1RC2, 9.11.1RC1 | |||||||
17 | Tape (Initiator) | IO Module | X91135A [4] | 111-03789 | 4p 32Gb FC SFP+ Op | 111-03789 | 4p 32Gb FC SFP+ Op | SFP+ | Fibre Channel 8/16/32 Gb, NVMe/FC 16/32 Gb | View | Fibre Channel 8/16/32 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
18 | Tape | IO Module | X91143A [4] | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | 111-02397 | 4p 16Gb|10Gb UTA2 Cu|Op | SFP+ | Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb | View | Ethernet 1/10 Gb, | 9.10.1RC2, 9.11.1RC1 | |||||||
Footnote: | |||||||||||||||||||
[1] Values shown for max quantity are per controller. HA configurations will support 2x the values shown. | |||||||||||||||||||
[2] NVMe Storage is restricted to 100GbE, only. | |||||||||||||||||||
[3] Optical breakout cable 4x10GbE configuration supported on both ports. | |||||||||||||||||||
[4] Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch. |
Configuration Type | Port Configuration | Image | Cluster Ports per Node | Switch Ports per Node | |||||
---|---|---|---|---|---|---|---|---|---|
Cluster Interconnect | |||||||||

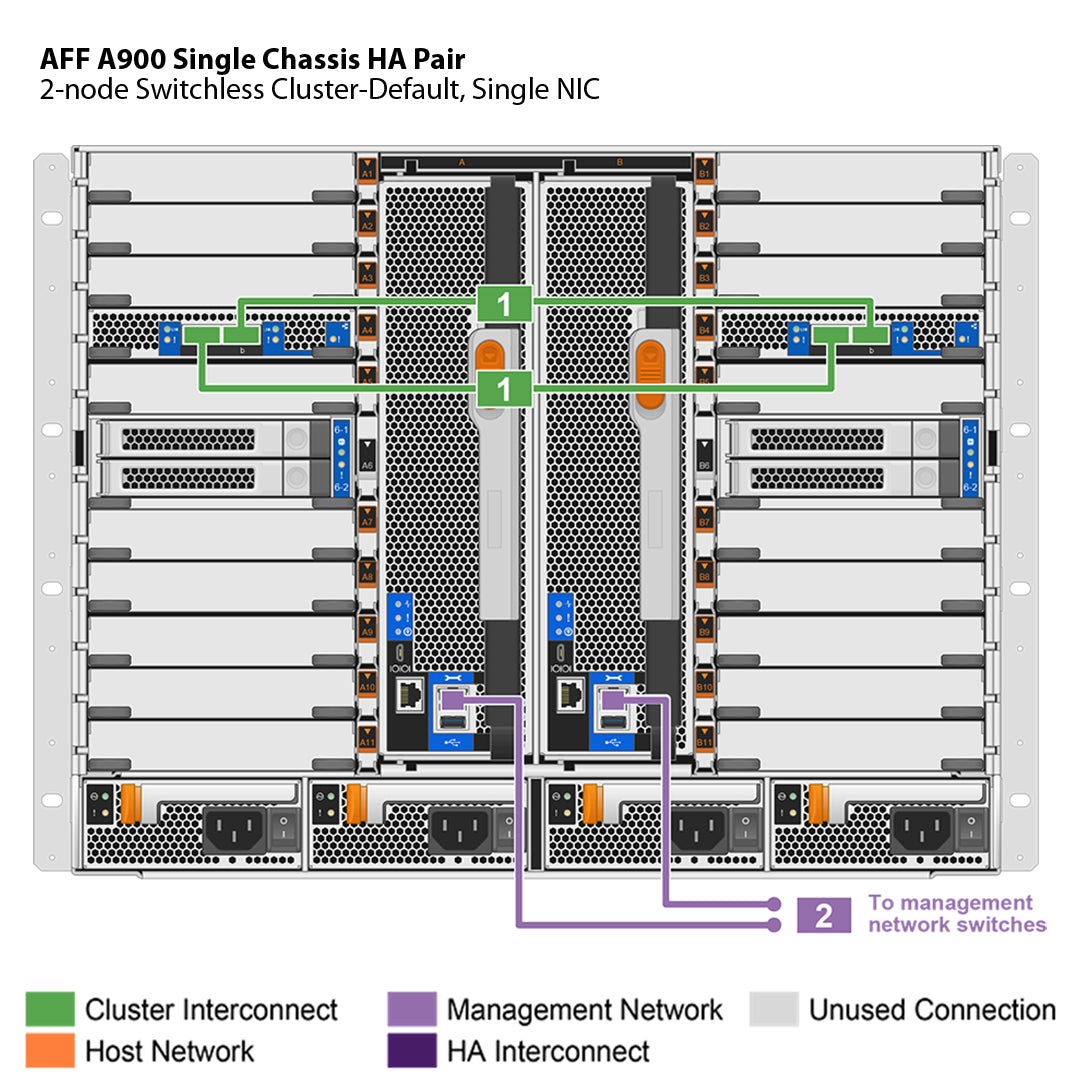

2-node Switchless Cluster | Default, Single NIC | View Image | 2 | None | |||||

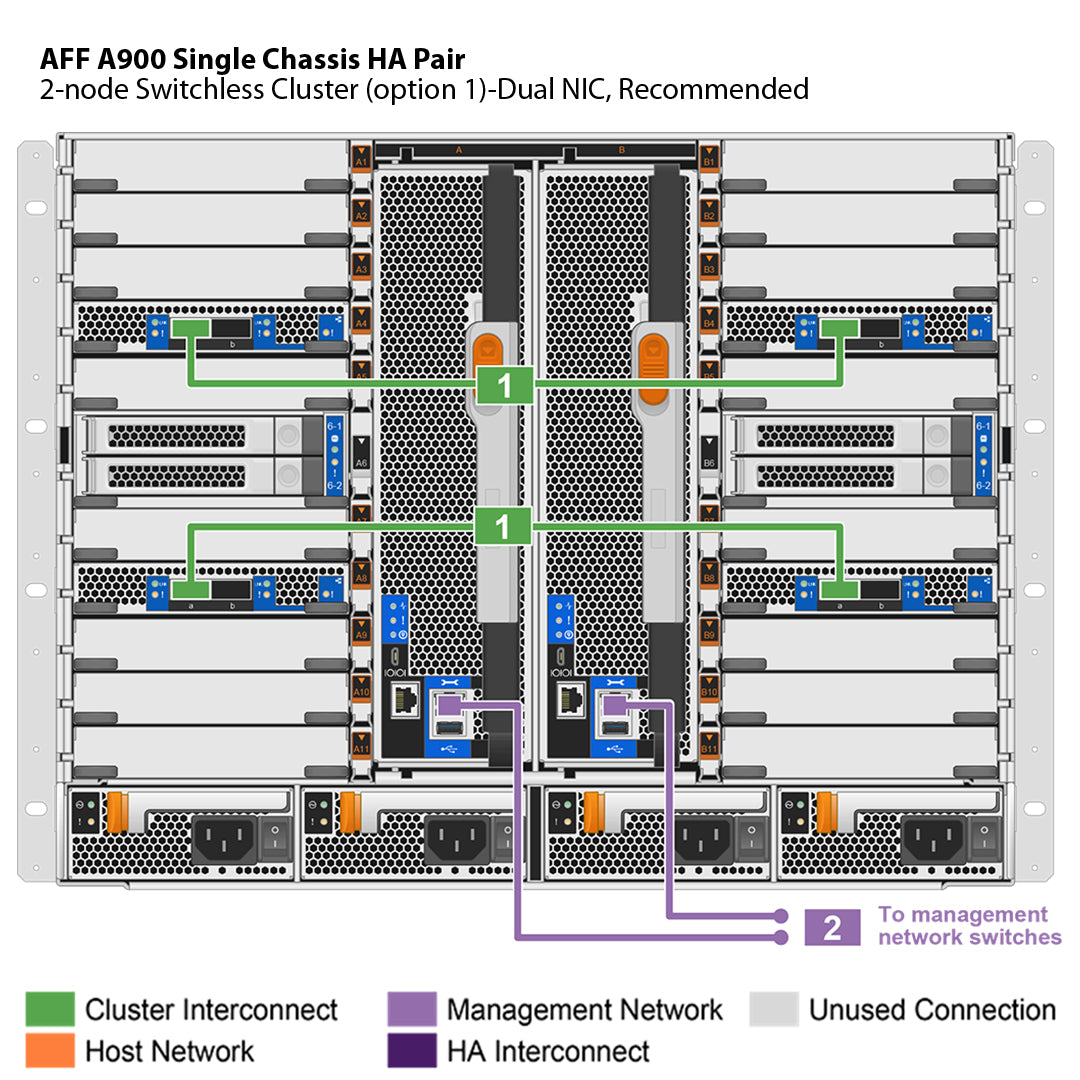

2-node Switchless Cluster (option 1) | Dual NIC, Recommended | View Image | 2 | None | |||||

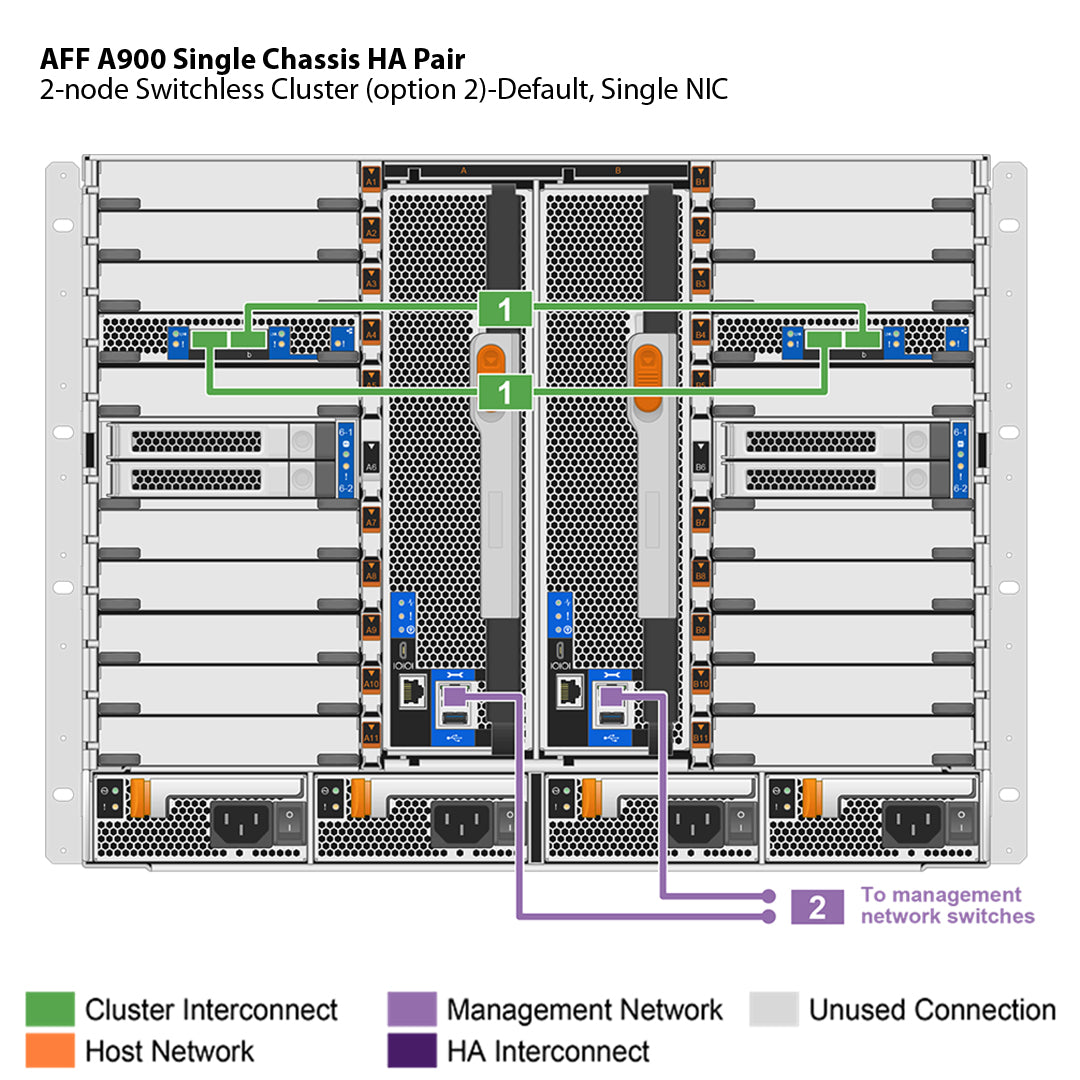

2-node Switchless Cluster (option 2) | Default, Single NIC | View Image | 2 | None | |||||

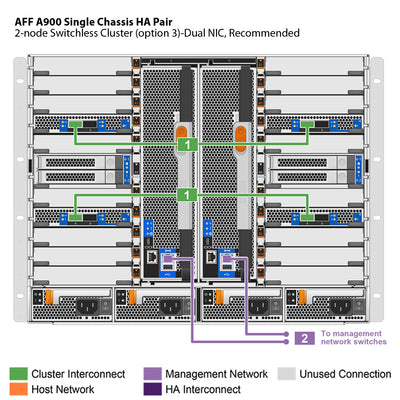

2-node Switchless Cluster (option 3) | Dual NIC, Recommended | View Image | 2 | None | |||||
2-node Switchless Cluster (option 4) | Dual NIC, Recommended | N/A | 8 | None | |||||
Switched 100GbE or 40GbE | Default, Single NIC | N/A | 2 | 2 | |||||
Switched 100GbE or 40GbE | Dual NIC, Recommended | N/A | 2 | 2 | |||||

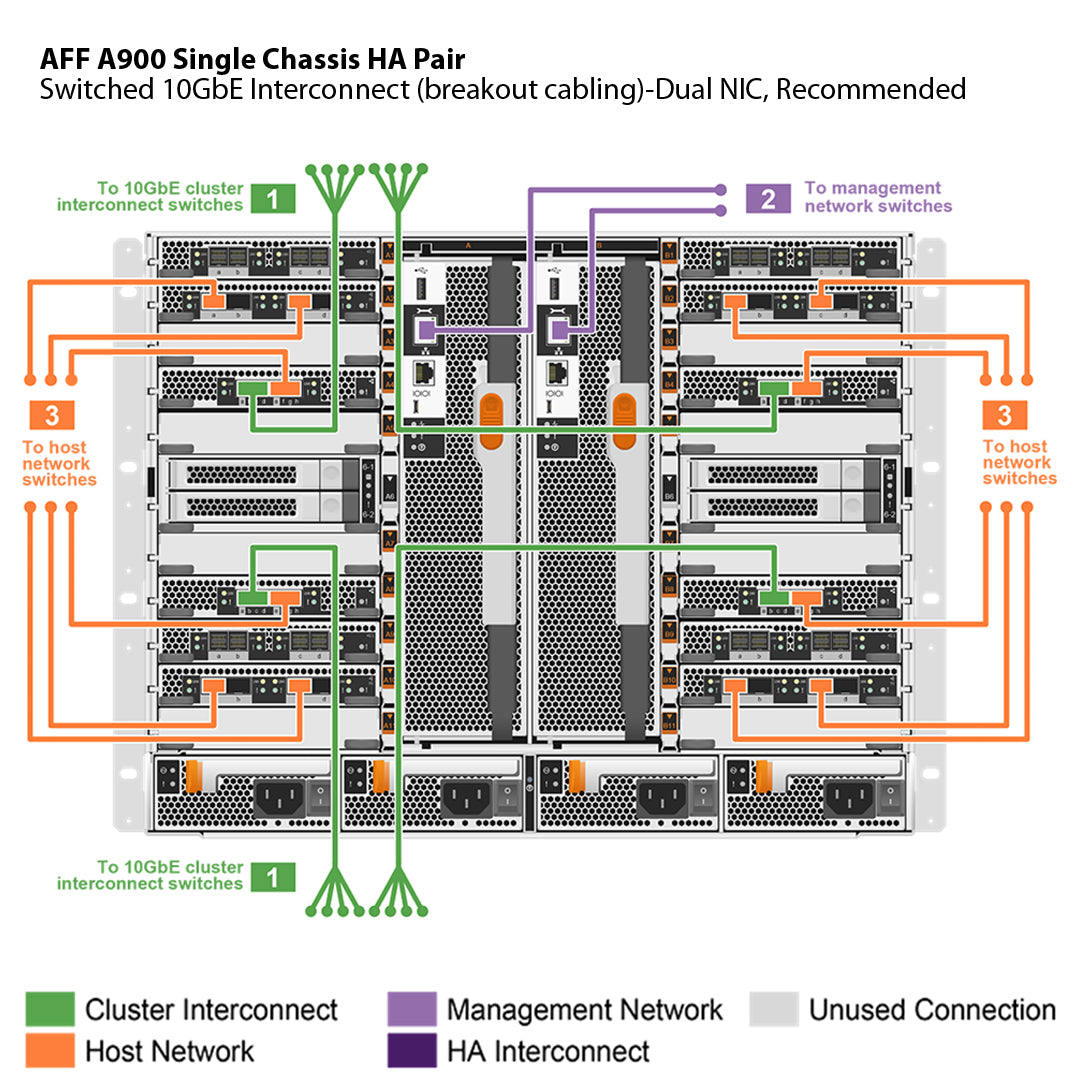

Switched 10GbE Interconnect (breakout cabling) | Dual NIC, Recommended | View Image | 8 | 8 | |||||

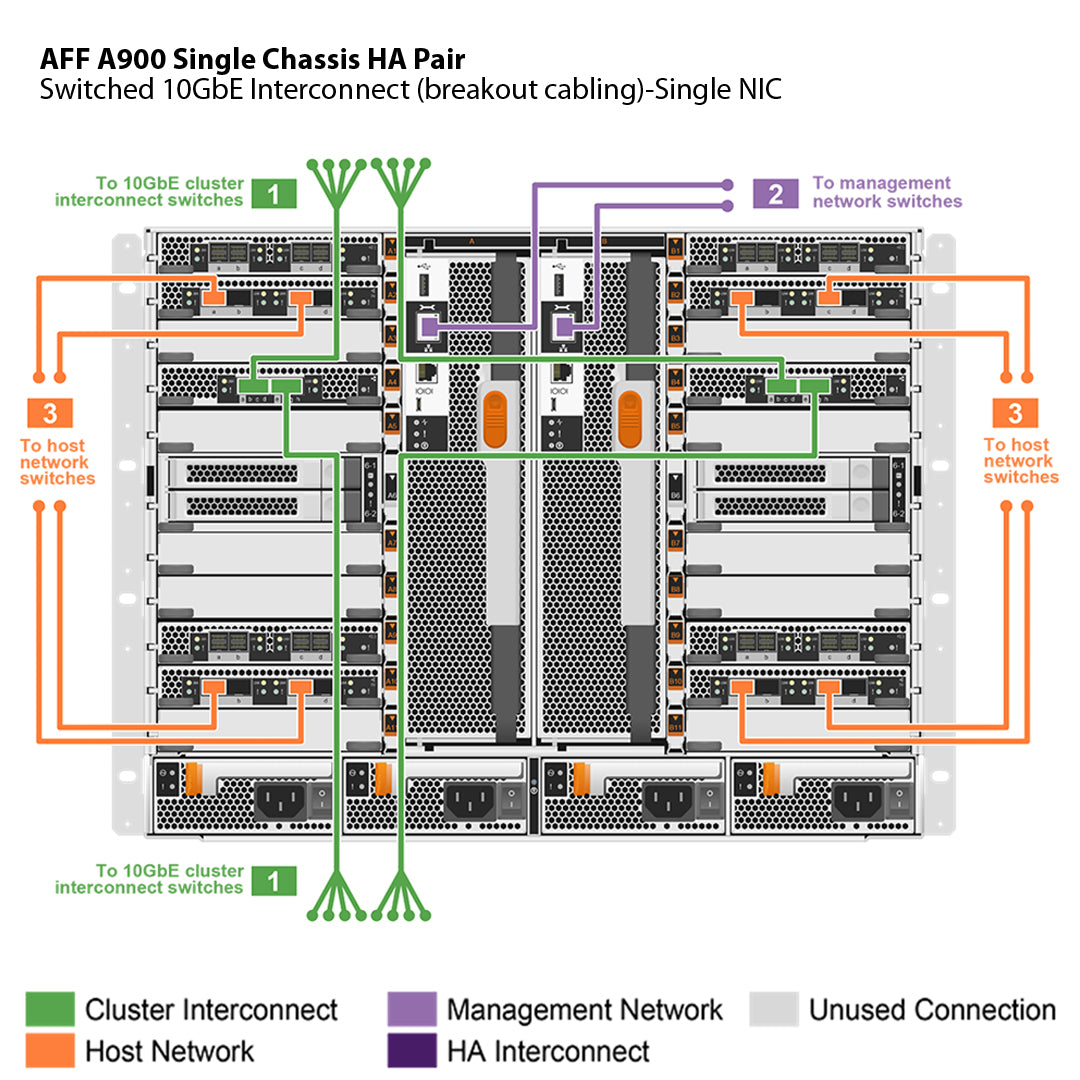

Switched 10GbE Interconnect (breakout cabling) | Single NIC | View Image | 8 | 8 | |||||
Switched 10/25GbE | Dual NIC, Recommended | N/A | 8 | 8 | |||||

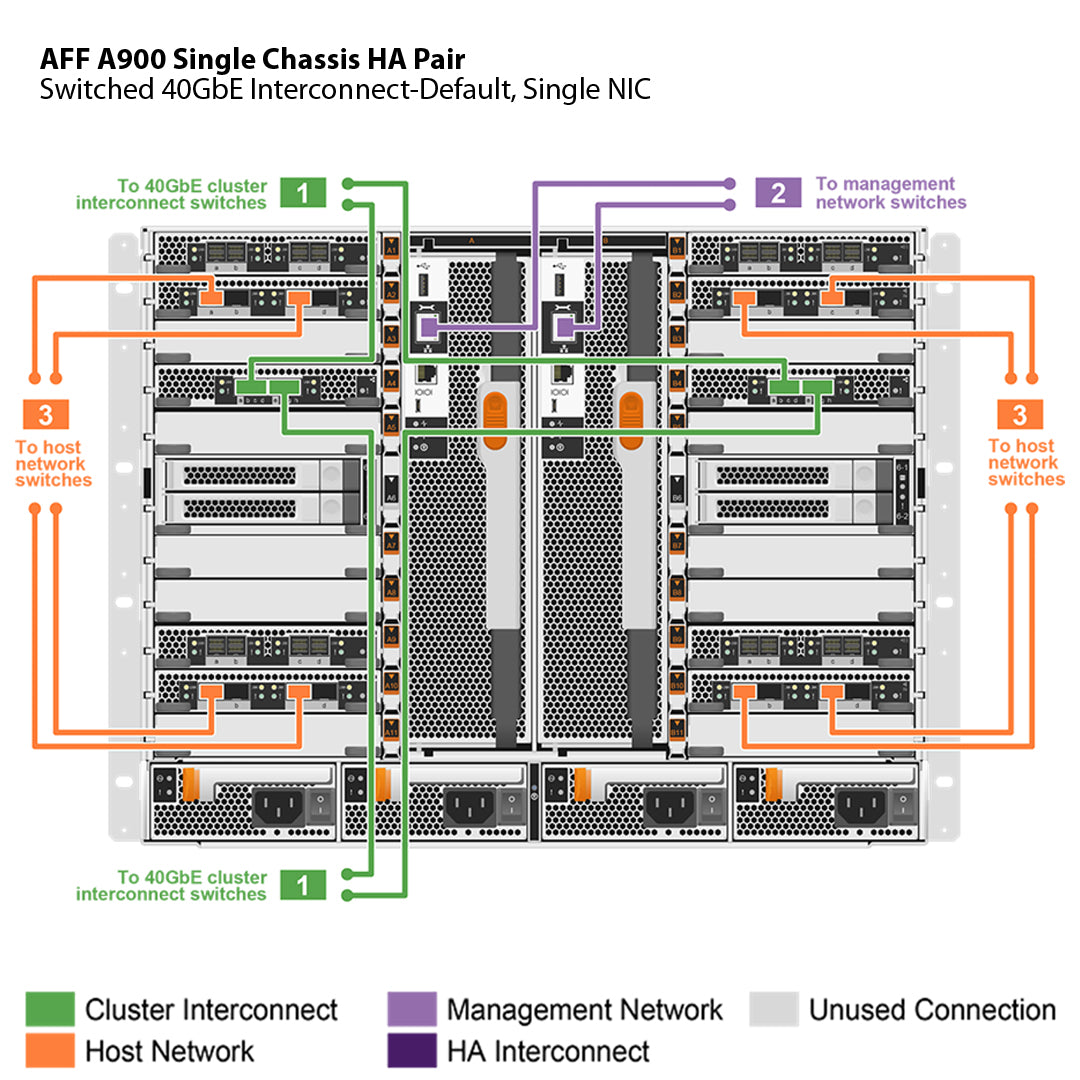

Switched 40GbE Interconnect | Default, Single NIC | View Image | 2 | 2 | |||||

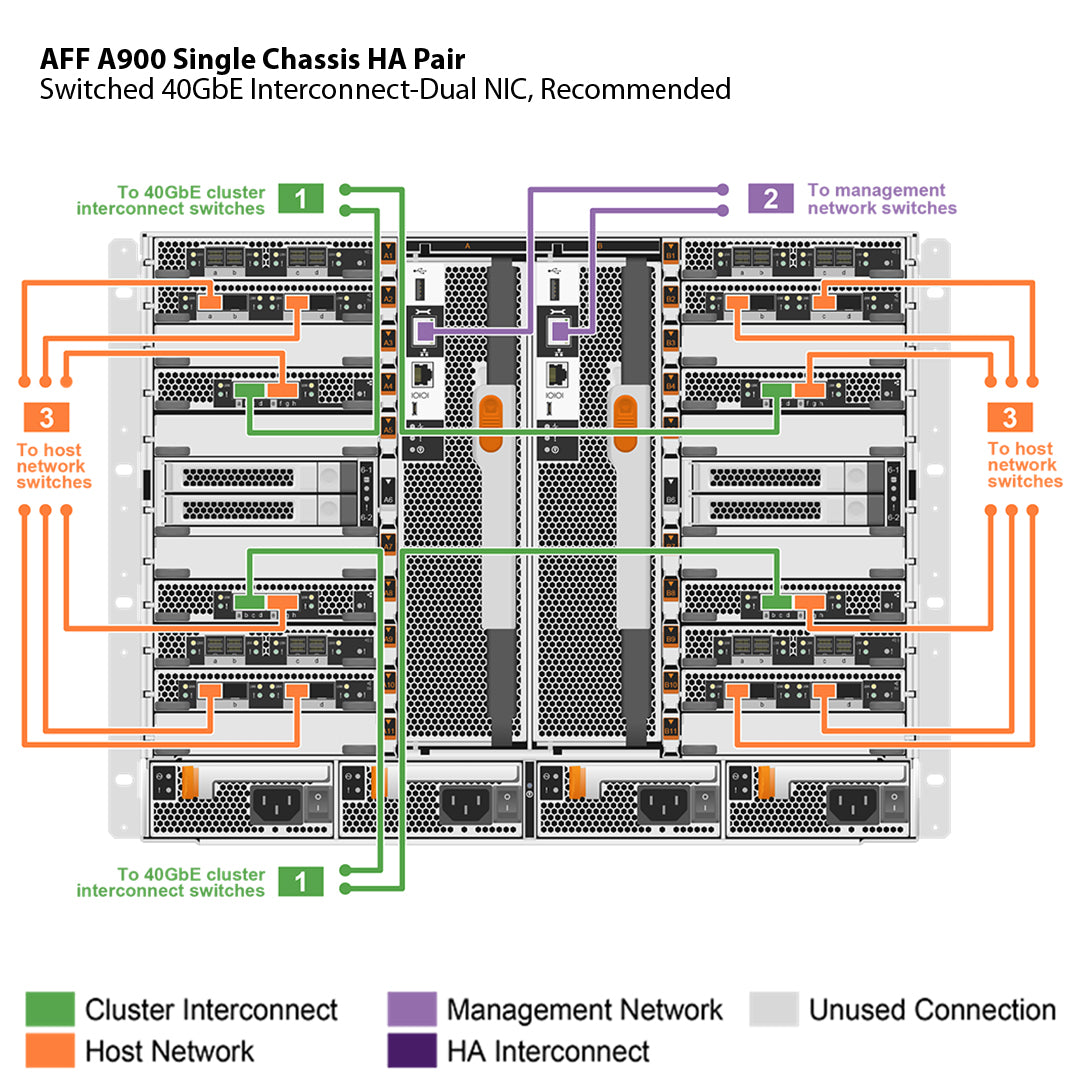

Switched 40GbE Interconnect | Dual NIC, Recommended | View Image | 2 | 2 | |||||
Storage Connection | |||||||||
Switched Storage InterConnect | Dual NIC | N/A | 2 | 2 | |||||
Switched Storage InterConnect | Dual NIC (Option 1) | N/A | 2 | 2 | |||||
Switched Storage InterConnect | Dual NIC (Option 2) | View Image | 2 | 2 | |||||
Switched Storage InterConnect | Dual NIC (Option 3) | N/A | 2 | 2 | |||||
Switched Storage InterConnect | Dual NIC (Option 4) | N/A | 2 | 2 | |||||
Switched Storage InterConnect | Single NIC (Option 1) | N/A | 2 | 2 | |||||
Switched Storage InterConnect | Single NIC (Option 2) | N/A | 2 | 2 | |||||
Switchless Storage InterConnect | 1 shelf configuration, Dual NIC | N/A | 2 | 2 | |||||

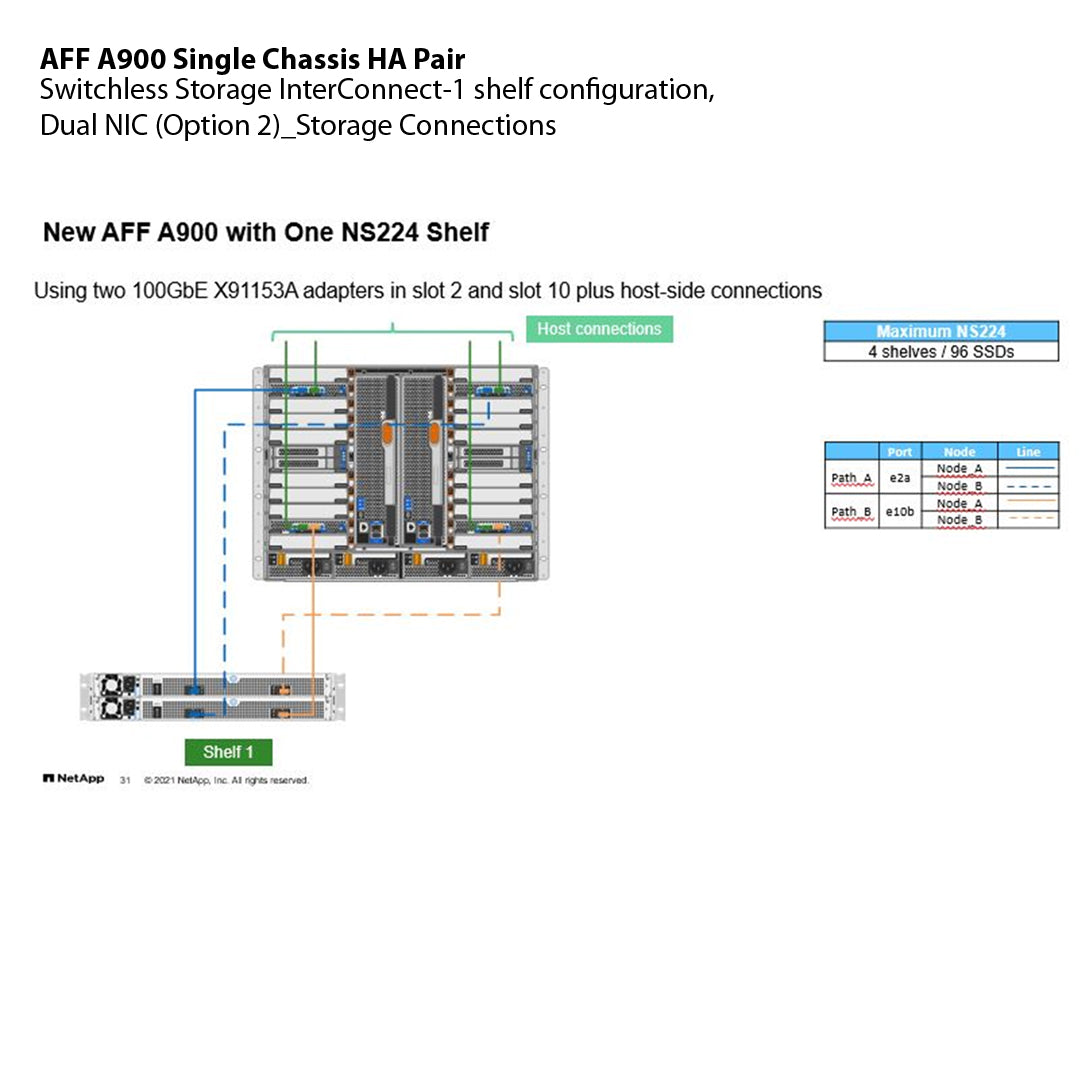

Switchless Storage InterConnect | 1 shelf configuration, Dual NIC (Option 2) | View Image | 2 | 2 | |||||

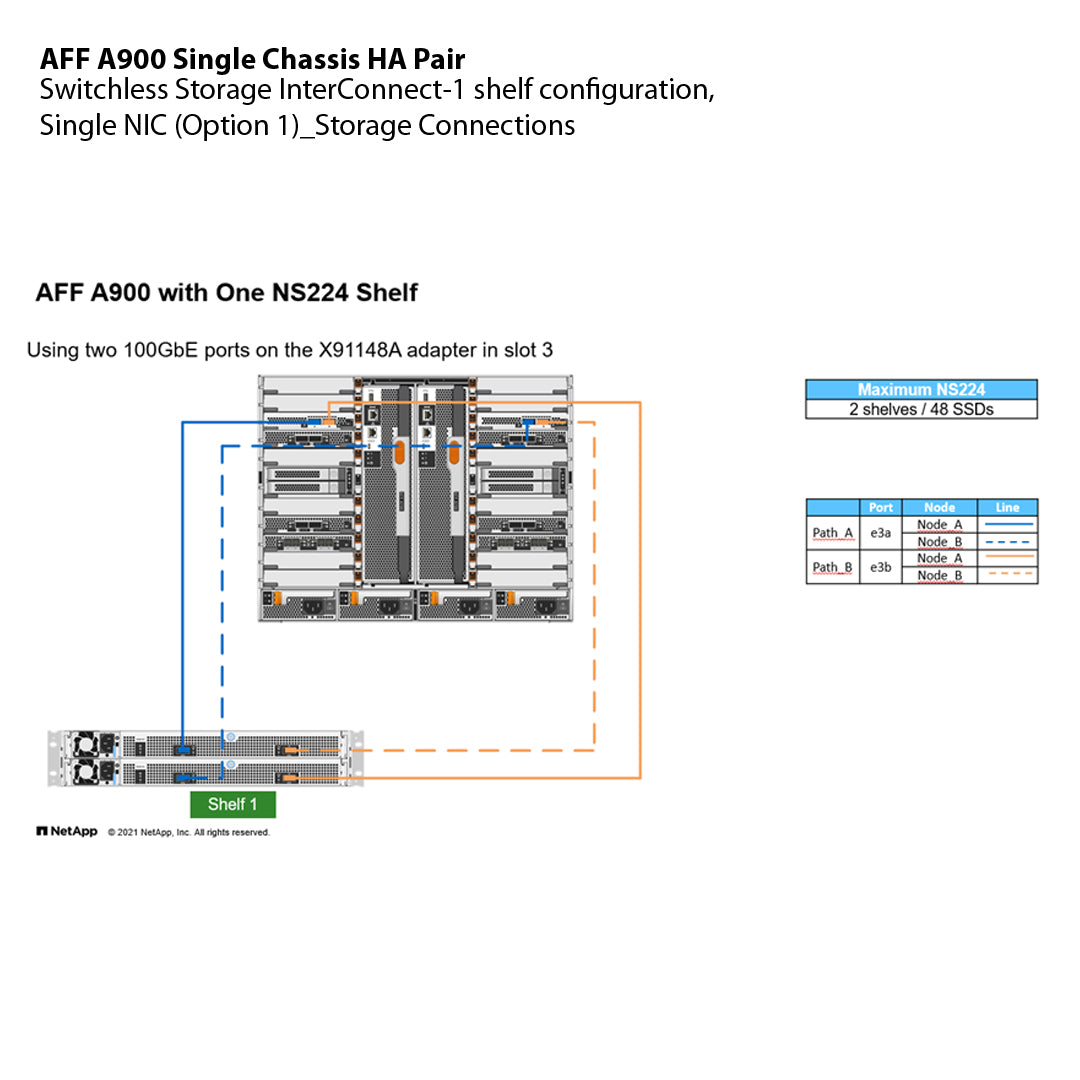

Switchless Storage InterConnect | 1 shelf configuration, Single NIC (Option 1) | View Image | 2 | 2 | |||||
Switchless Storage InterConnect | 1 shelf configuration, Single NIC (Option 2) | N/A | 2 | 2 | |||||

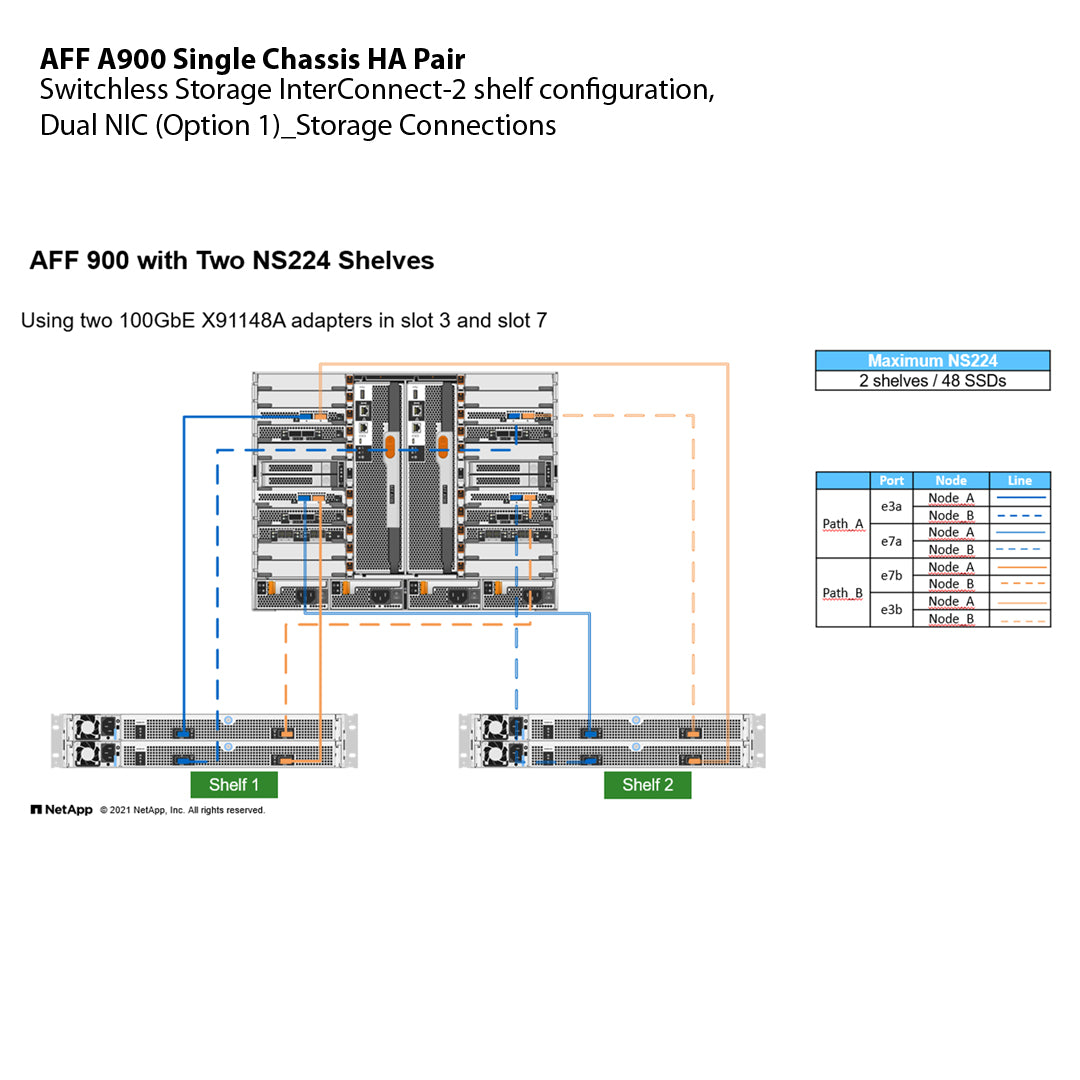

Switchless Storage InterConnect | 2 shelf configuration, Dual NIC (Option 1) | View Image | 4 | 4 | |||||

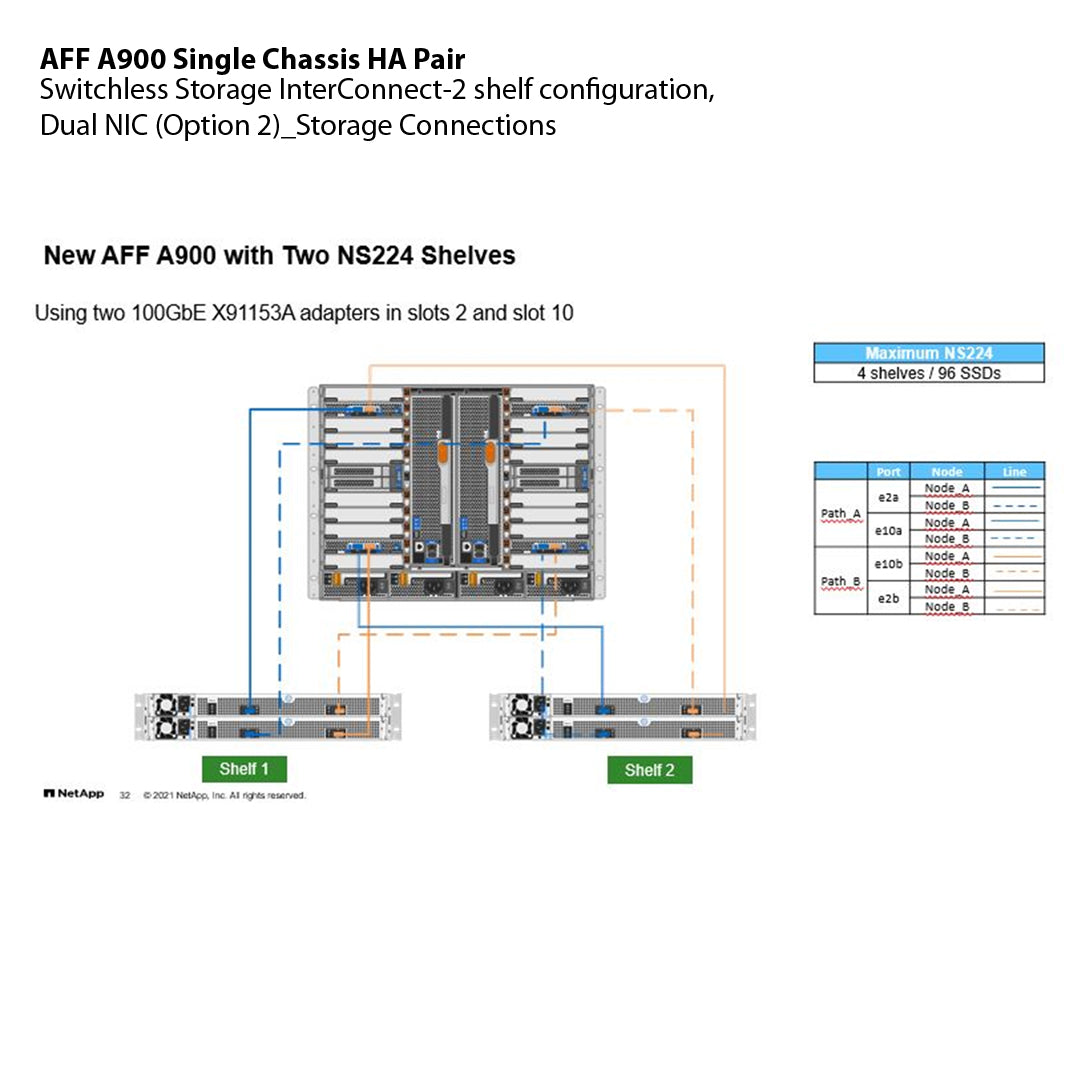

Switchless Storage InterConnect | 2 shelf configuration, Dual NIC (Option 2) | View Image | 4 | 4 | |||||
Switchless Storage InterConnect | 2 shelf configuration, Dual NIC (Option 3) | N/A | 4 | 4 | |||||
Switchless Storage InterConnect | 2 shelf configuration, Dual NIC (Option 4) | N/A | 4 | 4 | |||||
Switchless Storage InterConnect | 3 shelf configuration, 4 NIC | N/A | 6 | 6 | |||||
Switchless Storage InterConnect | 3 shelf configuration, 4 NIC (Option 1) | N/A | 6 | 6 | |||||
Switchless Storage InterConnect | 3 shelf configuration, 4 NIC (Option 2) | N/A | 6 | 6 | |||||
Switchless Storage InterConnect | 3 shelf configuration, 4 NIC (Option 3) | N/A | 6 | 6 | |||||

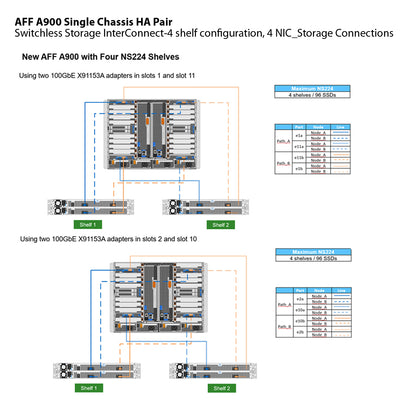

Switchless Storage InterConnect | 4 shelf configuration, 4 NIC | View Image | 8 | 8 | |||||
Switchless Storage InterConnect | 4 shelf configuration, 4 NIC (Option 1) | N/A | 8 | 8 | |||||
Switchless Storage InterConnect | 4 shelf configuration, 4 NIC (Option 2) | N/A | 8 | 8 | |||||
Switchless Storage InterConnect | 4 shelf configuration, 4 NIC (Option 3) | N/A | 8 | 8 |
Platform Configuration Type | Maximum Nodes (NAS) [1] | Maximum Nodes (SAN) [1] | Min ONTAP Version for Platform Mixing | ||||||
---|---|---|---|---|---|---|---|---|---|
FAS - Current Configuration(s) | |||||||||
FAS2720A 10GBASE-T | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS2720A UTA2 | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS2750A 10GBASE-T | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS2750A UTA2 | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS500fA | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS8300A Ethernet Bundle | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS8300A FC Bundle | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS8700A Ethernet Bundle | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS8700A FC Bundle | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS9000A | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS9500A | 24 Nodes | 12 Nodes | 9.10.1P3 | ||||||
AllFlashFAS - Current Configuration(s) | |||||||||
AFF A250A | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A250A 100V | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A400A Ethernet Bundle | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A400A FC Bundle | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A700A | 24 Nodes | 12 Nodes | 9.10.1RC2 | ||||||
AFF A800A | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A900A | 24 Nodes | 12 Nodes | 9.10.1RC2 | ||||||
AFF C190A 10GBASE-T | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF C190A UTA2 | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
FAS - Legacy EOA Configuration(s) | |||||||||
FAS8200A | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AllFlashFAS - Legacy EOA Configuration(s) | |||||||||
AFF A220A 10GBASE-T | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A220A UTA2 | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A300A | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A320A | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
AFF A700s | 24 Nodes | 12 Nodes | 9.10.1 | ||||||
Footnote: | |||||||||
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes |
Standard | Description | ||||||||
---|---|---|---|---|---|---|---|---|---|
Certifications EMC/EMI | |||||||||
AMCA | Australia and New Zealand (EMC covered by ACMA DoC) | ||||||||
FCC | Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada) | ||||||||
ICES | ICES | ||||||||
KC | Korea Communications Commission (EMC certificate for South Korea) | ||||||||
Morocco | Morocco Declaration of Conformity | ||||||||
VCCI | EMI Certificate for Japan | ||||||||
Certifications safety | |||||||||
BIS | Bureau of Indian Standard (Safety cert for India) | ||||||||
CB | Certificate Body issued safety certificate covering International | ||||||||
CSA | Canadian Standards Association issued Safety certificate covering North America | ||||||||
G_K_U-SoR | Safety certificate for Gabon, Kenya and Uganda | ||||||||
IRAM | Instituto Argentino de Normalización y Certificación (safety certificate for Argentina) | ||||||||
NOM | Norma Oficial Mexicana (Safety cert for Mexico) | ||||||||
NRCS | National Regulator for Compulsory Specifications (Safety cert for South Africa) | ||||||||
SONCAP | Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria) | ||||||||
TBS | Tanzanian Bureau of Standards (Safety certificate for Tanzania) | ||||||||
Certifications Safety/EMC/EMI | |||||||||
EAC | Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries) | ||||||||
UKRSEPRO | EMC/Safety certificate for Ukraine | ||||||||
Certifications Safety/EMC/EMI/RoHS | |||||||||
BSMI | Certificate for Taiwan | ||||||||
CE DoC | European Union Declaration of Conformity | ||||||||
UKCA DoC | UK Declaration of Conformity | ||||||||
Standards EMC/EMI | |||||||||
BS-EN-55024 | EMC standard for Great Britain | ||||||||
BS-EN55035 | EMC standard for Great Britain | ||||||||
CISPR 32 | EMI | ||||||||
EN55022 | EMC Standard fo European Union | ||||||||
EN55024 | EMC Standard fo European Union | ||||||||
EN55032 | EMI Standard fo European Union | ||||||||
EN55035 | EMC Standard for European Union | ||||||||
EN61000-3-2 | EMC Standard for European Union | ||||||||
EN61000-3-3 | EMC Standard for European Union | ||||||||
FCC Part 15 Class A | EMI standard for United States | ||||||||
ICES-003 | EMI Standard for Canada | ||||||||
KS C 9832 | EMI Standard for South Korea | ||||||||
KS C 9835 | EMC Standard for South Korea | ||||||||
Standards Safety | |||||||||
ANSI/UL60950-1 | Safety standard for United States | ||||||||
ANSI/UL62368-1 | Safety standard for United States | ||||||||
BS-EN62368-1 | Safety standard for Great Britain | ||||||||
CAN/CSA C22.2 No. 60950-1 | Safety Standard for Canada | ||||||||
CAN/CSA C22.2 No. 62368-1 | Safety Standard for Canada | ||||||||
CNS 14336 | Safety Standard for Taiwan | ||||||||
EN60825-1 | Laser Safety standard for European Union | ||||||||
EN62368-1 | Safety standard for European Union | ||||||||
IEC 62368-1 | Safety Standard for International | ||||||||
IEC60950-1 | Safety standard for International | ||||||||
IS 13252(part 1) | Safety Standard for India |
OS Major Version | Supported OS Version | Supported Milestones | Recommend Version | ||||||
---|---|---|---|---|---|---|---|---|---|
Currently Supported OS | |||||||||
ONTAP 9.11.1 | 9.11.1P1, 9.11.1, 9.11.1RC1 | End of Full Support: 31-Jul-2025 End of Limited Support: 31-Jul-2027 End of Self-Service Support: 31-Jul-2030 | 9.11.1P1, 9.11.1 | ||||||
Definitions: | |||||||||
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES. | |||||||||
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS. | |||||||||
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues. |
Marketing Part No. | End 1 / End 2 | Length | Description | |
---|---|---|---|---|
Non-Cabinet Power Cords | ||||
X-50617-00 | IEC60320-C20 / IEC60320-C13 | 2.00 m | Power Cords,In-Cabinet,2m,C20-C13,E-Series | |
X800B-R6 | CEE 7/7 (Schuko) / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V | |
X800C-R6 | BS1363 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V | |
X800F-R6 | AS/NZS 3112 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V | |
X800G-R6 | SEV 1011 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Switzerland,10A/250V | |
X800H-R6 | IRAM 2073 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Argentina,10A/250V | |
X800I-R6 | GB2099 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,China,10A/250V | |
X800J-R6 | DHCR107-2-D1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Demark,10A/250V | |
X800K-R6 | SANS 164-1 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V | |
X800L-R6 | SI32 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Israel,10A/250V | |
X800M-R6 | CEI 23-16 / IEC60320-C13 | 2.50 m | Pwr Cord,Non-Cabinet,Italy,10A/250V | |
X800P-R6 | NEMA 6-15P / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,North America,15A/250V | |
X800W-R6 | CNS10917/CNS690 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Taiwan,10A/250V | |
X800Y-R6 | JIS-C-830 / IEC60320-C13 | 1.83 m | Pwr Cord,Non-Cabinet,Japan,15A/250V | |
In-Cabinet Power Cords | ||||
X1558A-R6 | IEC60320-C14 / IEC60320-C13 | 1.20 m | Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V | |
X800-42U-35 | IEC60320-C14 / IEC60320-C13 | 0.89 m | Pwr Cord,In-Cabinet,C13-C14,35-inch | |
X800-42U-43 | IEC60320-C14 / IEC60320-C13 | 1.09 m | Pwr Cord,In-Cabinet,C13-C14,43-inch | |
X800-42U-64 | IEC60320-C14 / IEC60320-C13 | 1.63 m | Pwr Cord,In-Cabinet,C13-C14,64-inch | |
X800-42U-R6 | IEC60320-C14 / IEC60320-C13 | 0.68 m | Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V |

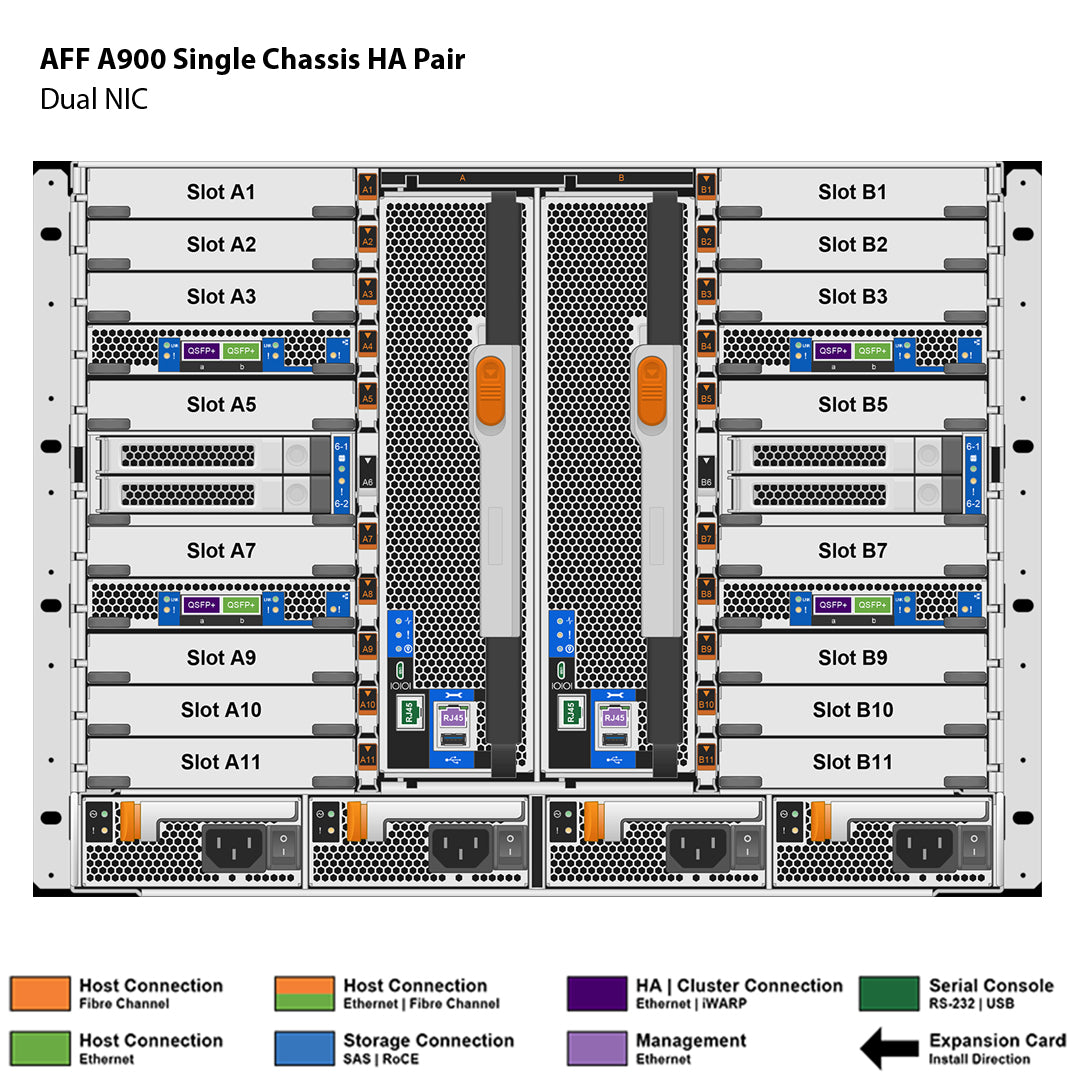

Port Address | Description | Supported Protocols | Port Icon | Port Type | |||||
---|---|---|---|---|---|---|---|---|---|
e0m/BMC | Management | Ethernet 10/100/1000 Mb | Wrench | RJ45 | |||||
Serial Interface | Serial Console | RS-232 115200bps | Serial Interface | RJ45 | |||||
Serial Interface | USB Serial Console | RS-232 115200bps | Serial Interface | USB 2.0 Micro-B | |||||
Serial Interface | USB Serial Console (front chassis) | RS-232 115200bps | Serial Interface | USB 2.0 Micro-B | |||||
USB | Storage Host Port | USB 2.0 | USB 2.0 | USB Type A | |||||
Footnote: | |||||||||
[1] Optical breakout cable 4x10GbE configuration supported on ports e0a and e0f only. |
Platform Configuration | Description | Chassis Configuration | Chassis Count | Controller Count (per chassis) | IOXM Count (per chassis) | Rack Units (Per System) | Weight (Per Chassis) | Min ONTAP | |
---|---|---|---|---|---|---|---|---|---|
HA Pair | |||||||||
AFF A900A | AFF A900 Single Chassis HA Pair | CC | 1 | 2 | 0 | 8 | 220.46 lb (100 kg) | 9.10.1RC2, 9.11.1RC1 | |
MetroCluster | |||||||||
AFF A900-4NFMC | AFF A900 4-Node Fabric MetroCluster | CC-CC | 2 | 2 | 0 | 16 | 220.46 lb (100 kg) | 9.10.1RC2, 9.11.1RC1 | |
AFF A900-4NMCIP | AFF A900 4-Node MetroCluster IP | CC-CC | 2 | 2 | 0 | 16 | 220.46 lb (100 kg) | 9.10.1RC2, 9.11.1RC1 | |
AFF A900-8NFMC | AFF A900 8-Node Fabric MetroCluster | 2x(CC-CC) | 4 | 2 | 0 | 32 | 220.46 lb (100 kg) | 9.10.1RC2, 9.11.1RC1 | |
AFF A900-8NMCIP | AFF A900 8-Node MetroCluster IP | 2x(CC-CC) | 4 | 2 | 0 | 32 | 220.46 lb (100 kg) | 9.10.1RC2, 9.11.1RC1 |
Part Number | Description | Mfg Part Number | Non-Volatile | Qty | Capacity (GB) | NVRAM/NVMEM Used Capacity (GB) | RAM Used Capacity (GB) |
---|---|---|---|---|---|---|---|
X93226A | DIMM,64GB | 107-00236 | no | 32 | 64 | - | 2048 |
X93225A | DIMM,32GB (NVS) | 107-00244 | yes | 4 | 32 | 128 | - |
Marketing Part No. | Manufacturing Part No. | Description | |
---|---|---|---|
Third-Party Cabinet Rail Kits | |||
X-02659-00 | 113-00232 | Kit,4-Post,Square or Round-Hole, 24"-32" Rail |
Marketing Part No. | Manufacturing Part No. | Description | |
---|---|---|---|
Adapter Card | |||
X91120A | 111-02399 | IO Module,4-PT 10GBASE-T | |
X91120A-C | 111-02399 | IO Module,4-PT 10GBASE-T,-C | |
X91120A-N-C | 111-02399 | IO Module,4-PT 10GBASE-T,-C | |
X91122A | 111-04764 | IO Module,2-Pt Bare Cage 25GbE RoCE SFP28 | |
X91122A-C | 111-04764 | IO Module,2-Pt Bare Cage 25GbE RoCE SFP28,-C | |
X91134A | 111-03431 | IO Module,2-Port FCP Target 32Gb PCIe w/SFP+ | |
X91134A-C | 111-03431 | IO Module,2-Port FCP Trgt 32Gb PCIe w/SFP+,-C | |
X91134A-N-C | 111-03431 | IO Module,2-Port FCP Trgt 32Gb PCIe w/SFP+,-C | |
X91135A [1] | 111-03789 | IO Module,4-pt 32Gb FC Trgt-Init, with SR SFP | |
X91135A-C [1] | 111-03789 | IO Module,4-pt 32Gb FC Trgt-Init, with SR SFP | |
X91135A-N-C [1] | 111-03789 | IO Module,4-pt 32Gb FC Trgt-Init, with SR SFP | |
X91143A [1] | 111-02397 | IO Module,4-PT CNA,10GbE,16GB FC | |
X91143A-C [1] | 111-02397 | IO Module,4-PT CNA,10GbE,16GB FC,-C | |
X91143A-N-C [1] | 111-02397 | IO Module,4-PT CNA,10GbE,16GB FC,-C | |
X91148A [2] | 111-04761 | IO Module,2-Pt BareCage 100GbE RoCE QSFP28 | |
X91148A-C [2] | 111-04761 | IO Module,2-Pt BareCage 100GbE RoCE QSFP28,-C | |
X91152A | 111-04740 | IO Module,4-Pt Bare Cage 25GbE RoCE SFP28 | |
X91152A-C | 111-04740 | IO Module,4-Pt BareCage 25GbE RoCE SFP28,-C | |
X91153A [2] | 111-04739 | IO Module,2-Pt Bare Cage 200GbE RoCE QSFP28 | |
X91153A-C [2] | 111-04739 | IO Module,2-Pt BareCage 200GbE RoCE QSFP28,-C | |
X91153A-I-C [2] | 111-04739 | IO Module,2-Pt BCG 200GbE RoCE QSFP28,INC,-C | |
X91440A [3] [4] | 111-02590 | IO Module,2-PT 40GbE | |
X91440A-C [3] [4] | 111-02590 | IO Module,2-PT 40GbE,-C | |
X91440A-N-C [3] [4] | 111-02590 | IO Module,2-PT 40GbE,-C | |
X92071A | 111-02396 | IO Module,4-PT SAS,12Gb | |
X92071A-C | 111-02396 | IO Module,4-PT SAS,12Gb,-C | |
X92071A-N-C | 111-02396 | IO Module,4-PT SAS,12Gb,-C | |
X93146A | 111-04738 | NV Base Module,64GB, A900 | |
Battery | |||
X1847 | 271-01847 | Lithium System Battery CR2032 | |
X1847-R6 | 271-01847 | Lithium System Battery CR2032,R6 | |
Bezel | |||
X98002A | 111-04728 | Bezel,AFF-A900 | |
Blank | |||
X93101A | 111-02416 | Blanking Panel,IO Module,A700,90XX | |
X93103A | 111-02418 | Blanking Panel,NVMe,A700,90XX | |
Cable Management Guide | |||
X98600A | 111-02878 | Cable Management Bracket,FAS90XX | |
Chassis | |||
X9000XA | 111-02392 | Chassis,no PSU, no PCM, no Fan, with MP | |
Data Cable | |||
X-QSFP-4SFP10G-CU3M | 112-00602 | Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m | |
X-QSFP-4SFP10G-CU3M-C | 112-00602 | Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C | |
X-QSFP-4SFP10G-CU3M-N-C | 112-00602 | Cable,Cisco,QSFP/4xSFP10G,CU Passive,3m,-C | |
X-QSFP-4SFP10G-CU5M | 112-00603 | Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m | |
X-QSFP-4SFP10G-CU5M-C | 112-00603 | Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C | |
X-QSFP-4SFP10G-CU5M-N-C | 112-00603 | Cable,Cisco,QSFP/4xSFP10G,CU Passive,5m,-C | |
X-QSFP-H40G-CU1M-R6 | 112-00307 | Cable,Cisco 40GB Twinax Copper QSFP+ 1M | |
X-QSFP-H40G-CU1M-R6-C | 112-00307 | Cable,Cisco 40GB Twinax Copper QSFP+ 1M,-C | |
X-QSFP-H40G-CU1M-R6-N-C | 112-00307 | Cable,Cisco 40GB Twinax Copper QSFP+ 1M,-C | |
X-QSFP-H40G-CU3M-R6 | 112-00604 | Cable,Cisco 40GB Twinax Copper QSFP+ 3M | |
X-QSFP-H40G-CU3M-R6-C | 112-00604 | Cable,Cisco 40GB Twinax Copper QSFP+ 3M,-C | |
X-QSFP-H40G-CU3M-R6-N-C | 112-00604 | Cable,Cisco 40GB Twinax Copper QSFP+ 3M,-C | |
X-QSFP-H40G-CU5M-R6 | 112-00604, 112-00605 | Cable,Cisco 40GB Twinax Copper QSFP+ 5M | |
X-QSFP-H40G-CU5M-R6-C | 112-00605 | Cable,Cisco 40GB Twinax Copper QSFP+ 5M,-C | |
X-QSFP-H40G-CU5M-R6-N-C | 112-00605 | Cable,Cisco 40GB Twinax Copper QSFP+ 5M,-C | |
X-SFP-H10GB-CU1M-R6 | 112-00210 | Cable,10GBase Copper SFP+ 1m | |
X-SFP-H10GB-CU1M-R6-C | 112-00210 | Cable,10GBase Copper SFP+ 1m,-C | |
X-SFP-H10GB-CU1M-R6-N-C | 112-00210 | Cable,10GBase Copper SFP+ 1m,-C | |
X-SFP-H10GB-CU3M-R6 | 112-00211 | Cable,10GBase Copper SFP+ 3m | |
X-SFP-H10GB-CU3M-R6-C | 112-00211 | Cable,10GBase Copper SFP+ 3m,-C | |
X-SFP-H10GB-CU3M-R6-N-C | 112-00211 | Cable,10GBase Copper SFP+ 3m,-C | |
X-SFP-H10GB-CU5M-R6 | 112-00212 | Cable,10GBase Copper SFP+ 5m | |
X-SFP-H10GB-CU5M-R6-C | 112-00212 | Cable,10GBase Copper SFP+ 5m,-C | |
X-SFP-H10GB-CU5M-R6-N-C | 112-00212 | Cable,10GBase Copper SFP+ 5m,-C | |
X6536-R6 | 112-00090 | Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op | |
X6536-R6-C | 112-00090 | Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C | |
X6536-R6-N-C | 112-00090 | Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C | |
X6537-R6 | 112-00091 | Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op | |
X6537-R6-C | 112-00091 | Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C | |
X6537-R6-N-C | 112-00091 | Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C | |
X65420 | 112-00508 | Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M | |
X6546-R6 | 112-00074 | Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op | |
X6547-R6 | 112-00073 | Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op | |
X6553-R6 | 112-00188 | Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op | |
X6553-R6-C | 112-00188 | Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C | |
X6553-R6-N-C | 112-00188 | Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C | |
X6554-R6 | 112-00189 | Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op | |
X6554-R6-C | 112-00189 | Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6 | |
X6554-R6-N-C | 112-00189 | Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C | |
X6560-R6 | 112-00194 | Cable,Ethernet,0.5m RJ45 CAT6 | |
X6560-R6-C | 112-00194 | Cable,Ethernet,0.5m RJ45 CAT6,-C | |
X6560-R6-N-C | 112-00194 | Cable,Ethernet,0.5m RJ45 CAT6 | |
X6561-R6 | 112-00195 | Cable,Ethernet,2m RJ45 CAT6 | |
X6561-R6-C | 112-00195 | Cable,Ethernet,2m RJ45 CAT6,-C | |
X6561-R6-N-C | 112-00195 | Cable,Ethernet,2m RJ45 CAT6,-C | |
X6562-R6 | 112-00196 | Cable,Ethernet,5m RJ45 CAT6 | |
X6562-R6-C | 112-00196 | Cable,Ethernet,5m RJ45 CAT6,-C | |
X6562-R6-N-C | 112-00196 | Cable,Ethernet,5m RJ45 CAT6,-C | |
X6566B-05-N-C | 112-00297 | Cable,Direct Attach CU SFP+ 10G,0.5M,-C | |
X6566B-05-R6 | 112-00297 | Cable,Direct Attach CU SFP+ 10G,0.5M | |
X6566B-05-R6-C | 112-00297 | Cable,Direct Attach CU SFP+ 10G,0.5M,-C | |
X6566B-2-N-C | 112-00299 | Cable,Direct Attach CU SFP+ 10G,2M,-C | |
X6566B-2-R6 | 112-00299 | Cable,Direct Attach CU SFP+ 10G,2M | |
X6566B-2-R6-C | 112-00299 | Cable,Direct Attach CU SFP+ 10G,2M,-C | |
X6566B-3-N-C | 112-00300 | Cable,Direct Attach CU SFP+ 10G,3M,-C | |
X6566B-3-R6 | 112-00300 | Cable,Direct Attach CU SFP+ 10G,3M | |
X6566B-3-R6-C | 112-00300 | Cable,Direct Attach CU SFP+ 10G,3M,-C | |
X6566B-5-N-C | 112-00301 | Cable,Direct Attach CU SFP+ 10G,5M,-C | |
X6566B-5-R6 | 112-00301 | Cable,Direct Attach CU SFP+ 10G,5M | |
X6566B-5-R6-C | 112-00301 | Cable,Direct Attach CU SFP+ 10G,5M,-C | |
X6577-R6 | 112-00238 | Cable,Ethernet,30m RJ45 CAT6 | |
X6577-R6-C | 112-00238 | Cable,Ethernet,30m RJ45 CAT6,-C | |
X6577-R6-N-C | 112-00238 | Cable,Ethernet,30m RJ45 CAT6,-C | |
X6585-R6 | 112-00291 | Cable,Ethernet,3m RJ45 CAT6 | |
X6585-R6-C | 112-00291 | Cable,Ethernet,3m RJ45 CAT6,-C | |
X6585-R6-N-C | 112-00291 | Cable,Ethernet,3m RJ45 CAT6,-C | |
X6592-R6 | 112-00246 | Cable,Ethernet,10m RJ45 CAT6 | |
X6592-R6-N-C | 112-00246 | Cable,Ethernet,10m RJ45 CAT6,-C | |
X6593-R6 | 112-00247 | Cable,Ethernet,20m RJ45 CAT6 | |
X6593-R6-C | 112-00247 | Cable,Ethernet,20m RJ45 CAT6,-C | |
X6593-R6-N-C | 112-00247 | Cable,Ethernet,20m RJ45 CAT6,-C | |
X66020A-R6 | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m | |
X66020A-R6-C | 112-00429 | Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C | |
X66021A-R6 | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m | |
X66021A-R6-C | 112-00430 | Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C | |
X66022A-R6 | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m | |
X66022A-R6-C | 112-00431 | Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C | |
X66030A | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
X66030A-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
X66030A-K-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
X66030A-N | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m | |
X66030A-N-C | 112-00435 | Cable,12Gb,Mini SAS HD,0.5m,-C | |
X66031A | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
X66031A-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
X66031A-K-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
X66031A-N | 112-00436 | Cable,12Gb,Mini SAS HD,1m | |
X66031A-N-C | 112-00436 | Cable,12Gb,Mini SAS HD,1m,-C | |
X66032A | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
X66032A-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
X66032A-K-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
X66032A-N | 112-00437 | Cable,12Gb,Mini SAS HD,2m | |
X66032A-N-C | 112-00437 | Cable,12Gb,Mini SAS HD,2m,-C | |
X66033A | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
X66033A-C | 112-00438 | Cable,12Gb,Mini SAS HD,3m,-C | |
X66033A-K-N | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
X66033A-N | 112-00438 | Cable,12Gb,Mini SAS HD,3m | |
X66033A-N-C | 112-00438 | Cable,12Gb,Mini SAS HD,3m,-C | |
X66034A | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
X66034A-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
X66034A-K-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
X66034A-N | 112-00439 | Cable,12Gb,Mini SAS HD,5m | |
X66034A-N-C | 112-00439 | Cable,12Gb,Mini SAS HD,5m,-C | |
X66040A | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
X66040A-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
X66040A-K-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
X66040A-N | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m | |
X66040A-N-C | 112-00449 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C | |
X66041A | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
X66041A-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
X66041A-K-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
X66041A-N | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m | |
X66041A-N-C | 112-00450 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C | |
X66042A | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
X66042A-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
X66042A-K-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
X66042A-N | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m | |
X66042A-N-C | 112-00451 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C | |
X66043A | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
X66043A-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
X66043A-K-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
X66043A-N | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m | |
X66043A-N-C | 112-00452 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C | |
X66044A | 112-00453 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m | |
X66045A | 112-00454 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m | |
X66046A | 112-00455 | Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m | |
X66047A | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m | |
X66047A-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
X66047A-N-C | 112-00456 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C | |
X66048A | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m | |
X66048A-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
X66048A-N-C | 112-00457 | Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C | |
X66100-1 | 112-00542 | Cable,Direct Attach CU QSFP,40Gb,1m | |
X66100-1-C | 112-00542 | Cable,Direct Attach CU QSFP,40Gb,1m,-C | |
X66100-1-K-N | 112-00542 | Cable,Direct Attach CU QSFP,40Gb,1m | |
X66100-1-N | 112-00542 | Cable,Direct Attach CU QSFP,40Gb,1m | |
X66100-1-N-C | 112-00542 | Cable,Direct Attach CU QSFP,40Gb,1m,-C | |
X66100-3 | 112-00543 | Cable,Direct Attach CU QSFP,40Gb,3m | |
X66100-3-C | 112-00543 | Cable,Direct Attach CU QSFP,40Gb,3m,-C | |
X66100-3-K-N | 112-00543 | Cable,Direct Attach CU QSFP,40Gb,3m | |
X66100-3-N | 112-00543 | Cable,Direct Attach CU QSFP,40Gb,3m | |
X66100-3-N-C | 112-00543 | Cable,Direct Attach CU QSFP,40Gb,3m,-C | |
X66100-5 | 112-00544 | Cable,Direct Attach CU QSFP,40Gb,5m | |
X66100-5-C | 112-00544 | Cable,Direct Attach CU QSFP,40Gb,5m,-C | |
X66100-5-K-N | 112-00544 | Cable,Direct Attach CU QSFP,40Gb,5m | |
X66100-5-N | 112-00544 | Cable,Direct Attach CU QSFP,40Gb,5m | |
X66100-5-N-C | 112-00544 | Cable,Direct Attach CU QSFP,40Gb,5m,-C | |
X66120-3 | 112-00545 | Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m | |
X66120-3-C | 112-00545 | Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C | |
X66120-3-N-C | 112-00545 | Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C | |
X66120-5 | 112-00546 | Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m | |
X66120-5-C | 112-00546 | Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C | |
X66120-5-N-C | 112-00546 | Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C | |
X66200-15 | 112-00330 | Cable,Cntlr-Switch OM4,MPO/MPO,15m | |
X66200-15-C | 112-00330 | Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C | |
X66200-15-N-C | 112-00330 | Cable,Cntlr-Switch OM4,MPO/MPO,15m,-C | |
X66200-2 | 112-00326 | Cable,Cntlr-Switch OM4,MPO/MPO,2m | |
X66200-2-C | 112-00326 | Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C | |
X66200-2-N-C | 112-00326 | Cable,Cntlr-Switch OM4,MPO/MPO,2m,-C | |
X66200-30 | 112-00331 | Cable,Cntlr-Switch OM4,MPO/MPO,30m | |
X66200-30-C | 112-00331 | Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C | |
X66200-30-N-C | 112-00331 | Cable,Cntlr-Switch OM4,MPO/MPO,30m,-C | |
X66200-5 | 112-00328 | Cable,Cntlr-Switch OM4,MPO/MPO,5m | |
X66200-5-C | 112-00328 | Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C | |
X66200-5-N-C | 112-00328 | Cable,Cntlr-Switch OM4,MPO/MPO,5m,-C | |
X66205-30 | 112-00261 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m | |
X66205-30-C | 112-00261 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C | |
X66205-30-N-C | 112-00261 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C | |
X66205-5 | 112-00260 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m | |
X66205-5-C | 112-00260 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C | |
X66205-5-N-C | 112-00260 | Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C | |
X66211A-05 | 112-00595 | Cable,100GbE,QSFP28-QSFP28,Cu,0.5m | |
X66211A-05-C | 112-00595 | Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C | |
X66211A-05-K-N | 112-00595 | Cable,100GbE,QSFP28-QSFP28,Cu,0.5m | |
X66211A-05-N | 112-00595 | Cable,100GbE,QSFP28-QSFP28,Cu,0.5m | |
X66211A-05-N-C | 112-00595 | Cable,100GbE,QSFP28-QSFP28,Cu,0.5m,-C | |
X66211A-1 | 112-00573 | Cable,100GbE,QSFP28-QSFP28,Cu,1m | |
X66211A-1-K-N | 112-00573 | Cable,100GbE,QSFP28-QSFP28,Cu,1m | |
X66211A-1-N | 112-00573 | Cable,100GbE,QSFP28-QSFP28,Cu,1m | |
X66211A-2 | 112-00574 | Cable,100GbE,QSFP28-QSFP28,Cu,2m | |
X66211A-2-K-N | 112-00574 | Cable,100GbE,QSFP28-QSFP28,Cu,2m | |
X66211A-2-N | 112-00574 | Cable,100GbE,QSFP28-QSFP28,Cu,2m | |
X66211A-5 | 112-00576 | Cable,100GbE,QSFP28-QSFP28,Cu,5m | |
X66211A-5-K-N | 112-00576 | Cable,100GbE,QSFP28-QSFP28,Cu,5m | |
X66211A-5-N | 112-00576 | Cable,100GbE,QSFP28-QSFP28,Cu,5m | |
X66211B-1-C | 112-00573 | Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C | |
X66211B-1-N-C | 112-00573 | Cable,100GbE,QSFP28-QSFP28,Cu,1m,-C | |
X66211B-2-C | 112-00574 | Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C | |
X66211B-2-N-C | 112-00574 | Cable,100GbE,QSFP28-QSFP28,Cu,2m,-C | |
X66211B-5-C | 112-00576 | Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C | |
X66211B-5-N-C | 112-00576 | Cable,100GbE,QSFP28-QSFP28,Cu,5m,-C | |
X66220A-15 | 112-00586 | Cable,100GbE,QSFP28-QSFP28,AOC,15m | |
X66220A-15-N-C | 112-00586 | Cable,100GbE,QSFP28-QSFP28,AOC,15m,-C | |
X66220A-30 | 112-00589 | Cable,100GbE,QSFP28-QSFP28,AOC,30m | |
X66220A-30-N-C | 112-00589 | Cable,100GbE,QSFP28-QSFP28,AOC,30m,-C | |
X66240A-05 | 1111455002, 112-00639, NDCCGF-0006 | Cable,25GbE,SFP28-SFP28,Cu,0.5m | |
X66240A-05-N-C | 1111455002, 112-00639, NDCCGF-0006 | Cable,25GbE,SFP28-SFP28,Cu,0.5m,-C | |
X66240A-2 | 1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102 | Cable,25GbE,SFP28-SFP28,Cu,2m | |
X66240A-2-N-C | 1111455000, 112-00598, NDCCGF-C102, NDCCGF-N102 | Cable,25GbE,SFP28-SFP28,Cu,2m,-C | |
X66240A-5 | 1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105 | Cable,25GbE,SFP28-SFP28,Cu,5m | |
X66240A-5-N-C | 1111455001, 112-00600, NDCCGJ-C102, NDCCGJ-N105 | Cable,25GbE,SFP28-SFP28,Cu,5m,-C | |
X66250-15 | 112-00346 | Cable,LC-LC,OM4,15m | |
X66250-15-C | 112-00346 | Cable,LC-LC,OM4,15m,-C | |
X66250-15-N-C | 112-00346 | Cable,LC-LC,OM4,15m,-C | |
X66250-2 | 112-00342 | Cable,LC-LC,OM4,2m | |
X66250-2-C | 112-00342 | Cable,LC-LC,OM4,2m,-C | |
X66250-2-N-C | 112-00342 | Cable,LC-LC,OM4,2m,-C | |
X66250-30 | 112-00347 | Cable,LC-LC,OM4,30m | |
X66250-30-C | 112-00347 | Cable,LC-LC,OM4,30m,-C | |
X66250-30-N-C | 112-00347 | Cable,LC-LC,OM4,30m,-C | |
X66250-5 | 112-00344 | Cable,LC-LC,OM4,5m | |
X66250-5-C | 112-00344 | Cable,LC-LC,OM4,5m,-C | |
X66250-5-N-C | 112-00344 | Cable,LC-LC,OM4,5m,-C | |
X66260-30 | 112-00354 | Cable,LC-LC,OPT,OS2,30M | |
X66260-30-C | 112-00354 | Cable,LC-LC,OPT,OS2,30M,-C | |
X66260-30-N-C | 112-00354 | Cable,LC-LC,OPT,OS2,30M,-C | |
X66260-5 | 112-00353 | Cable,LC-LC,OPT,OS2,5M | |
X66260-5-C | 112-00353 | Cable,LC-LC,OPT,OS2,5M,-C | |
X66260-5-N-C | 112-00353 | Cable,LC-LC,OPT,OS2,5M,-C | |
Destage Control Power Module | |||
X98100A | 111-02591 | DCPM Unit,90XX | |
Documentation | |||
DOC-AFF-A900-C | 310-00180 | Documents,AFF-A900,-C | |
Drive | |||
X319A | 108-00687 | SSD,7.6TB,12G,DS224C | |
X356A-R6 | 108-00468 | SSD,3.8TB,DS2246,FAS2552 | |
X357A | 108-00572 | SSD,3.8TB,12G,DS224C,W/MSW | |
X358A [5] | 108-00575 | SSD,3.8TB,12G,NSE,DS224C | |
X359A | 108-00736 | SSD,30.6TB,12G,DS224C | |
X365A-R6 [5] | 108-00477 | SSD,1.6TB,NSE,DS2246,FAS2552 | |
X371A | 108-00546 | SSD,960GB,12G,DS224C,W/MSW | |
X386A [5] | 108-00806 | SSD,960GB,12G,NSE,DS224C | |
X4010A | 108-00741 | SSD,1.92TB,NVMe,SED | |
X4011A | 108-00742 | SSD,3.8TB,NVMe,SED | |
X4012A [5] | 108-00743 | SSD,3.8TB,NVMe,SED,NSE | |
X4013A | 108-00745 | SSD,7.6TB,NVMe,SED | |
X4014A | 108-00892 | SSD,15.3TB,NVMe,SED | |
X4016A | 108-00744 | SSD,3.8TB,NVMe,Non-SED | |
X4018A | 108-00894 | SSD,1.92TB,NVMe,Non-SED | |
X4019A [5] | 108-00883 | SSD,15.3TB,NVMe,SED,NSE | |
X438A-R6 | 108-00369 | SSD,400GB,DS224x,FAS2552/2240-2 | |
X439A-R6 | 108-00372 | SSD,1.6TB,DS224x,FAS2552/2240-2 | |
X440A-R6 [5] | 108-00374 | SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552 | |
X440B-R6 [5] | 108-00460 | SSD,800GB,12G,NSE,DS224C | |
X446A-R6 | 108-00257 | SSD,200GB,DS224x,FAS2240-2 | |
X446B-R6 | 108-00323 | SSD,200GB,B,DS224x,FAS2240-2,FAS2552 | |
X447A-R6 | 108-00260 | SSD,800GB,DS224x,FAS2552/2240-2 | |
X670A | 108-00530 | SSD,15.3TB,12G,DS224C | |
Fan | |||
X98500A | 441-00058 | Fan Assembly,Module,90XX | |
Hardware Kit | |||
X90102A | 400-00725 | Hardware Kit,System De-pop Trays | |
LED USB | |||
X91400A | 111-02543 | LED Assembly,90XX | |
Memory Module | |||
X93225A | 107-00244 | RDIMM,32G,A900 | |
X93226A | 107-00236 | RDIMM,64G,A900 | |
Power Cord | |||
X-50617-00 | N/A | Jumper Crd,In-Cab,2m,C20-C13,E-Series | |
X-50617-00-0E-C | N/A | Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C | |
X1558A-R6 | N/A | Jumper Crd,In-Cab,48-IN,C13-C14 | |
X1558A-R6-C | N/A | Jumper Crd,In-Cab,48-IN,C13-C14-C | |
X800-42U-35 | N/A | Jumper Crd,In-Cab,C13-C14,35-inch | |
X800-42U-35-C | N/A | Jumper Crd,In-Cab,C13-C14,35-inch,-C | |
X800-42U-35-K-N | N/A | Jumper Crd,In-Cab,C13-C14,35-inch | |
X800-42U-35-N | N/A | Power Cable,In-Cabinet,C13-C14,35-inch | |
X800-42U-43 | N/A | Jumper Crd,In-Cab,C13-C14,43-inch | |
X800-42U-43-C | N/A | Jumper Crd,In-Cab,C13-C14,43-inch,-C | |
X800-42U-43-K-N | N/A | Jumper Crd,In-Cab,C13-C14,43-inch | |
X800-42U-43-N | N/A | Power Cable,In-Cabinet,C13-C14,43-inch | |
X800-42U-64 | N/A | Jumper Crd,In-Cab,C13-C14,64-inch | |
X800-42U-64-C | N/A | Jumper Crd,In-Cab,C13-C14,64-inch,-C | |
X800-42U-64-K-N | N/A | Jumper Crd,In-Cab,C13-C14,64-inch | |
X800-42U-64-N | N/A | Power Cable,In-Cabinet,C13-C14,64-inch | |
X800-42U-R6 | N/A | Jumper Crd,In-Cab,C13-C14 | |
X800-42U-R6-C | N/A | Jumper Crd,In-Cab,C13-C14,-C | |
X800B-R6 | N/A | Power Cable,Continental Europe,R6 | |
X800B-R6-C | N/A | Power Cable,Continental Europe,-C,R6 | |
X800C-R6 | N/A | Power Cable,UK and Ireland,R6 | |
X800C-R6-C | N/A | Power Cable,UK and Ireland,-C,R6 | |
X800F-R6 | N/A | Power Cable,Australia/New Zealand,R6 | |
X800F-R6-C | N/A | Power Cable,Australia/New Zealand,-C,R6 | |
X800G-R6 | N/A | Power Cable,Switzerland,R6 | |
X800G-R6-C | N/A | Power Cable,Switzerland,-C,R6 | |
X800H-R6 | N/A | Power Cable,Argentina,R6 | |
X800H-R6-C | N/A | Power Cable,Argentina,-C,R6 | |
X800I-R6 | N/A | Power Cable,China,R6 | |
X800I-R6-C | N/A | Power Cable,China,-C,R6 | |
X800J-R6 | N/A | Power Cable,Denmark,R6 | |
X800J-R6-C | N/A | Power Cable,Denmark,-C,R6 | |
X800K-R6 | N/A | Power Cable,India,South Africa,R6 | |
X800K-R6-C | N/A | Power Cable,India,South Africa,-C,R6 | |
X800L-R6 | N/A | Power Cable,Israel,R6 | |
X800L-R6-C | N/A | Power Cable,Israel,-C,R6 | |
X800M-R6 | N/A | Power Cable,Italy,R6 | |
X800M-R6-C | N/A | Power Cable,Italy,-C,R6 | |
X800P-R6 | N/A | Power Cable,North America,250V,R6 | |
X800P-R6-C | N/A | Power Cable,North America,250V,-C,R6 | |
X800W-R6 | N/A | Power Cable,Taiwan,250V,BSMI,R6 | |
X800W-R6-C | N/A | Power Cable,Taiwan,250V,BSMI,-C | |
X800Y-R6 | N/A | Power Cable,Japan,250V/15A | |
X800Y-R6-C | N/A | Power Cable,Japan,250V/15A,-C | |
Power Supply Unit | |||
X97600A | 114-00146 | Power Supply,1600W | |
X97600A-C | 114-00146 | Power Supply,1600W,-C | |
X97601A | 114-00146 | Power Supply,1600W | |
Processor Controller Module (PCM) | |||
X93403A | 111-04824 | PCM,Memory,A900 | |
Transceiver | |||
X65402 | 332-00389 | QSFP,Opt,40Gb,Shortwave | |
X65402-C | 332-00389 | QSFP,Opt,40Gb,Shortwave,-C | |
X65402-N-C | 332-00389 | QSFP,Opt,40Gb,Shortwave,-C | |
X65403 | 332-00376 | SFP+ Optical,UTA,16GbE LongReach | |
X65403-C | 332-00376 | SFP+ Optical,UTA,16GbE LongReach,C | |
X65403-N-C | 332-00376 | SFP+ Optical,UTA,16GbE LongReach,C | |
X65404 | 332-00436 | SFP28,25GbE,SR | |
X65404-C | 332-00436 | SFP28,25GbE,SR,-C | |
X65404-N-C | 332-00436 | SFP28,25GbE,SR,-C | |
X65405 | 332-00440 | QSFP28,100GbE,SR | |
X65405-C | 332-00440 | QSFP28,100GbE,SR,-C | |
X65405-N-C | 332-00440 | QSFP28,100GbE,SR,-C | |
X65406 | 332-00450 | QSFP28,CWDM4,2KM | |
X6567-R6 | 332-00378 | SFP Optical 1GB Shortwave Multimode | |
X6567-R6-C | 332-00378 | SFP Optical 1GB Shortwave Multimode,-C | |
X6567-R6-N-C | 332-00378 | SFP Optical 1GB Shortwave Multimode,-C | |
X6589-N-C | 332-00279R6 | SFP+Optical 10Gb Shortwave,-C | |
X6589-R6 | 332-00279R6 | SFP+Optical 10Gb Shortwave | |
X6589-R6-C | 332-00279R6 | SFP+ Optical 10Gb Shortwave,-C | |
X6596-R6 | 332-00331 | SFP+ FC Optical 16Gb | |
X6596-R6-C | 332-00331 | SFP+ FC Optical 16Gb,-C | |
X6596-R6-N-C | 332-00331 | SFP+ FC Optical 16Gb,-C | |
X6599A-N-C | 332-00363 | SFP+ Optical 10Gb Shortwave,-C | |
X6599A-R6 | 332-00363 | SFP+ Optical 10Gb Shortwave | |
X6599A-R6-C | 332-00363 | SFP+ Optical 10Gb Shortwave,-C | |
X6603A | 332-00400 | SFP+ Optical,32Gb FC Shortwave | |
X6603A-C | 332-00400 | SFP+ Optical,32Gb FC Shortwave,-C | |
X6603A-N-C | 332-00400 | SFP+ Optical,32Gb FC Shortwave,-C | |
X6604A | 332-00405 | SFP+ Optical,UTA,10GbE LongReach | |
X6604A-C | 332-00405 | SFP+ Optical,UTA,10GbE LongReach,-C | |
X6604A-N-C | 332-00405 | SFP+ Optical,UTA,10GbE LongReach,-C | |
Footnote: | |||
[1] Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch. | |||
[2] NVMe Storage is restricted to 100GbE, only. | |||
[3] Both ports on the X91440A I/O module can be configured as 40GbE or 4 x 10GbE. All combinations are supported. | |||
[4] Optical breakout cable 4x10GbE configuration supported on both ports. | |||
[5] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported. |
Major OS Version | OS Version | Firmeware | |||||||
---|---|---|---|---|---|---|---|---|---|
BIOS | |||||||||
ONTAP 9.11.1 | 9.11.1P1, 9.11.1, 9.11.1RC1 | 18.5* | |||||||
ONTAP 9.10.1 | 9.10.1P7, 9.10.1P5-P6, 9.10.1P3-P4 | 18.5* | |||||||
ONTAP 9.10.1 | 9.10.1P2 | 18.5, 18.4* | |||||||
ONTAP 9.10.1 | 9.10.1P1, 9.10.1, 9.10.1RC2 | 18.5, 18.4, 18.3* | |||||||
BMC | |||||||||
ONTAP 9.11.1 | 9.11.1P1, 9.11.1, 9.11.1RC1 | 16.2* | |||||||
ONTAP 9.10.1 | 9.10.1P7, 9.10.1P5-P6, 9.10.1P3-P4, 9.10.1P2 | 16.2* | |||||||
ONTAP 9.10.1 | 9.10.1P1, 9.10.1, 9.10.1RC2 | 16.2, 16.1* | |||||||
Footnote: | |||||||||
[1]* Indicates that firmware is bundled with Storage OS Version |
Certificate Name | Geo / Region / Country | Associated Products | |||||||
---|---|---|---|---|---|---|---|---|---|
EMI and Safety certificates | |||||||||
Declaraion of Similarity NAF-1602 | Global | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 G-K-U-SoR | Gabon,Kenya,SaudiArabia,Uganda | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 60950-CB | CB - International | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 62368-CB | CB - International | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 ACMA | ACMA - Australia, New Zealand | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 (Jabil Mexico) BIS | BIS - India | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 (Jabil Singapore) BIS | BIS - India | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 BSMI | BSMI - Taiwan | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 CE DoC | CE - European Union DoC | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 CSA | CSA - United States, Canada | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 EAC | EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 IRAM | IRAM - Argentina | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 KC | KC - South Korea | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 Morocco | Morocco | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 NOM | NOM - Mexico | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 NRCS | NRCS - South Africa (Safety) | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 SONCAP | SONCAP - Nigeria | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 TBS | TBS - Tanzania | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 UKRSep | UKRSepro - Ukraine | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 | |||||||
NAF-1602 VCCI | VCCI - Japan | Platforms : AFF A700, AFF A900, ASA AFF A700, FAS9000, FAS9500 |
Associated Part No. | Configuration | Rack Units | Weight | Sound Power | Sound Pressure | Line Voltage Actual (Min to Max) | Amps Typical | Amps Worst | Watts Typical | Watts Worst | BTU / Hr Typical | BTU / Hr Worst |
---|---|---|---|---|---|---|---|---|---|---|---|---|
AFF A900 | ||||||||||||
AFF A900A | AFF A900 2 PCM 8x200G, 4x25G, 2x10G Base-T | 8 | 220.5 lb (100.0 kg) | 7.4 Bels | 65 dBA | 200 (200 to 240) | 11.73 | 14.56 | 2345 | 2911 | 8004 | 9937 |
Category: 8u, aff-a900, aff-a900-series, chassis_amount_1, controller_amount_dual, dual, netapp, under-100
Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.
Custom configured orders ship within 2 business days after all required products are in stock.
Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.
Domestic Shipments
Standard Ground | Shipping time: 2-7 business days |
Order processing time: 0-3 business days |
|
Delivery time after order is placed: 2-10 business days | |
Excludes weekends, holidays or weather delays. |
3 Business Days | Shipping time: 3 business days |
Order processing time: 0-3 business days |
|
Delivery time after order is placed: 3-6 business days | |
Excludes weekends, holidays or weather delays. |
2 Business Days | Shipping time: 2 business days |
Order processing time: 0-3 business days |
|
Delivery time after order is placed: 2-5 business days | |
Excludes weekends, holidays or weather delays. |
Overnight / Next Business Day | Shipping time: 1 business day |
Order processing time: 0-3 business days |
|
Delivery time after order is placed: 1-4 business days | |
Excludes weekends, holidays or weather delays. |
International Shipments
International Economy | Shipping time: 4-6 business days |
Order processing time: 0-3 business days |
|
Delivery time after order is placed: 5-9 business days | |
Excludes weekends, holidays or weather delays. |
International Priority | Shipping time: 1-3 business days |
Order processing time: 0-3 business days |
|
Delivery time after order is placed: 2-6 business days | |
Excludes weekends, holidays or weather delays. |
For more information on shipping view our Shipping Information page or send us a message
Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.
What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.
What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:
Important notes:
Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.
We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.
Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.
Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.
In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.
