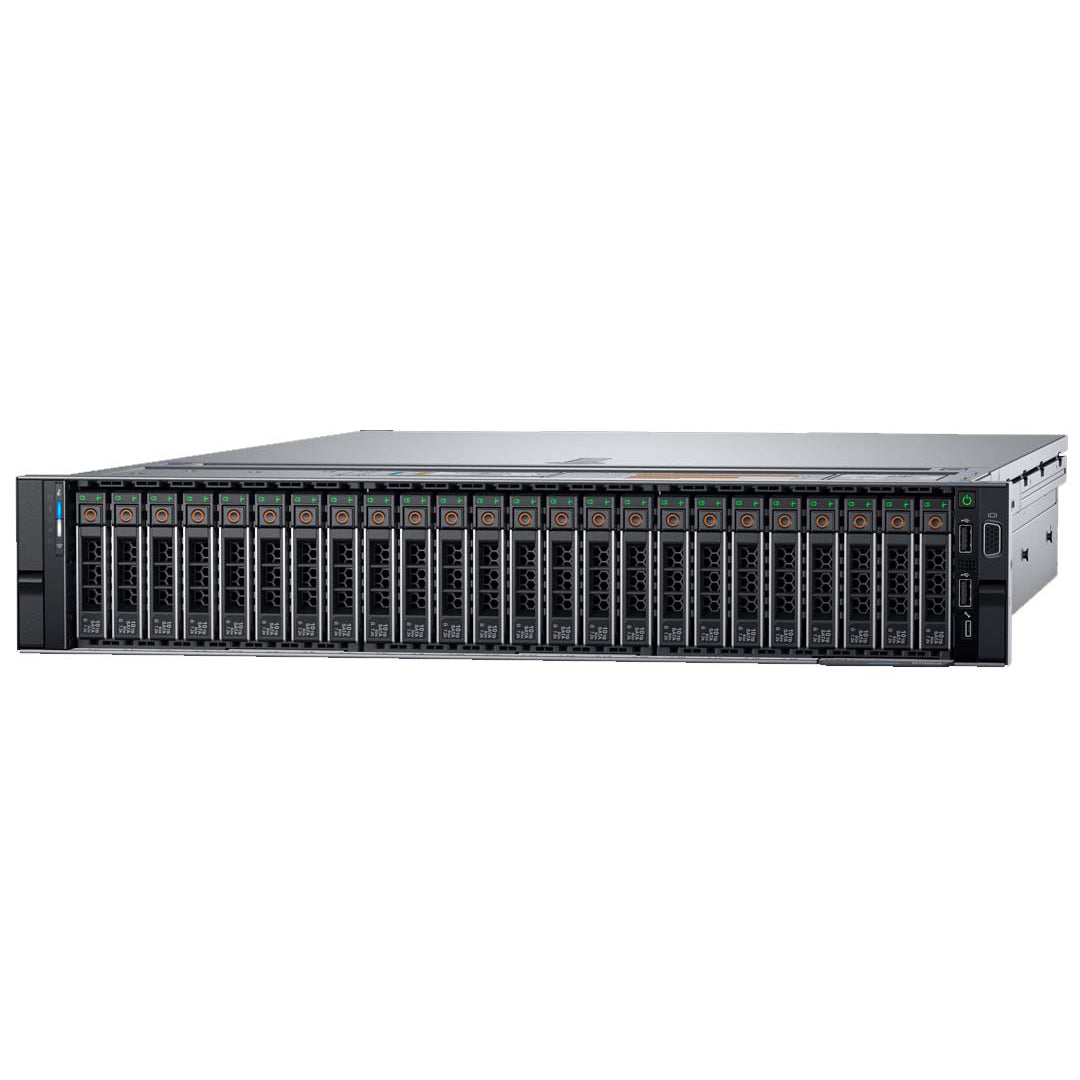

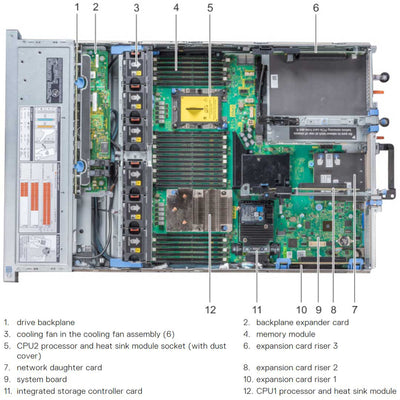

Dell PowerEdge R740xd Rack Server Chassis (24x2.5" SAS/SATA/NVMe)

ECS Refurbished & Tested

Total:- $1,121.25


Refurbished Dell PowerEdge R740XD Rack Server Chassis (24x2.5") Configure To Order (CTO)

The Dell PowerEdge EMC R740xd delivers a perfect balance between storage scalability and performance. The 2U two-socket platform is ideal for software defined storage, service providers or as virtual desktop infrastructure.

The R740XD has many configurations. Please read up on the manuals to make sure your configuration is going to work. Below are the Spec and Tech manuals.

The Dell PowerEdge R740xd has 3 Backplanes to choose from.

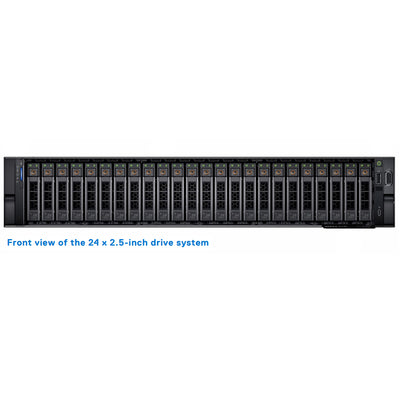

The 24 x 2.5" SAS/SATA/NVMe with a max of 12 NVMe drives allowed. Supports the mid and rear drive trays.
The 12 x 3.5" SAS/SATA (HDD/SDD) which supports the mid and rear drive trays.
The 24 x (NVMe) which does not support a mid or a rear drive tray.

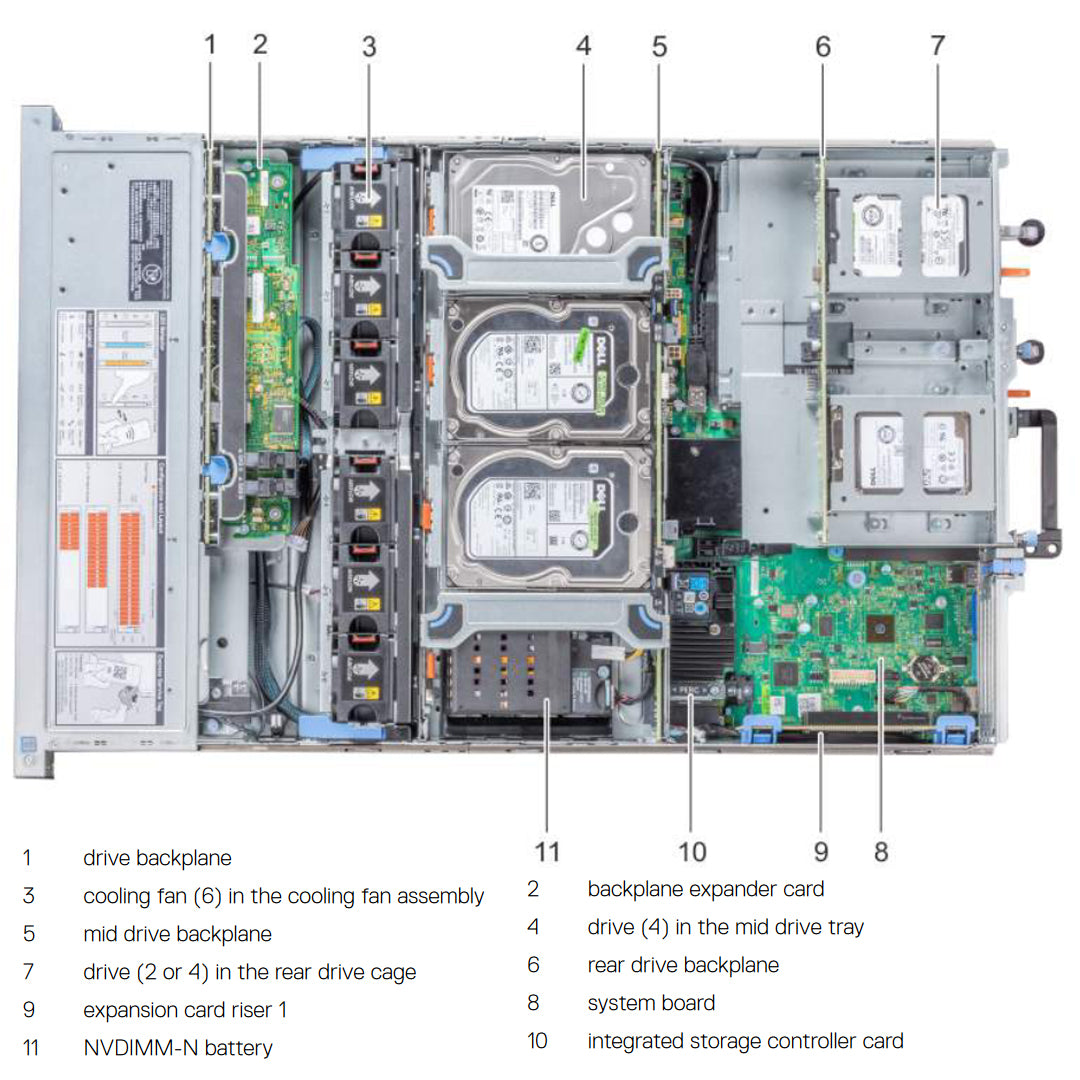

If you're thinking of having NVDIMM's with a battery. You can only install a 3.5" Mid drive tray or no mid drive tray. The Mid Drive Tray for the 2.5" does not support a NVDIMM battery.

Maximize performance and capacity

The scalable system architecture behind theDellR740xd Server with up to 24 NVMe drives creates the ideal balance between scalability and performance. The refurbished poweredge R740xd versatility is highlighted with the ability to mix any drive type to create the optimum configuration of NVMe, SSD and HDD for either performance, capacity or both. ThePowerEdgeR740xd server is the platform of choice for software defined storage and is the foundation for ScaleIO, VSAN or the PowerEdge XC.

  • Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet demands.
  • Free up storage space using internal M.2 SSDs optimized for boot.
  • Simplify and accelerate ScaleIO or VMware vSAN deployments with validated, pre-bundled and tailored Ready Nodes.
  • Accelerate workloads with up to 3 double-width 300W GPUs, up to 6 single-width 150W GPUs or up to 4 FPGAs.

Automate systems management with OpenManage

Dell EMC PowerEdge servers with OpenManage technology work at peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the R740xd is simply managed, freeing up time for high profile projects.

  • Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
  • Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.

Optimize flexibility and density

Benefit from scalable storage performance and data set processing with theDell PowerEdge EMCR740xd server. This 2U, 2-socket platform brings you scalability and performance to adapt to a variety of applications. Choose up to 24 NVMe drives, or a total of 32 x 2.5” or 18 x 3.5” drives. As you scale your deployments, scale your productivity with embedded intelligence and automation from iDRAC9 and the entire OpenManage portfolio designed to simplify the IT lifecycle from deployment to retirement.

Ideal workloads:

  • Software-defined storage
  • Big Data server
  • HPC
  • Service providers: data tier

Accomplish IT transformation with Dell EMC PowerEdge servers

Transform your data center for modern applications and operations with the help of the R740xd. Storage performance and flexibility create the perfect balance for software-defined storage or data set processing and analytics.

  • Simplify deployment and easily scale from 3 to 1000+ nodes for software-defined storage with Dell EMC Ready Node for ScaleIO.
  • Maximize storage performance with up to 24 NVMe drives and ensure application performance scales to meet demands.
  • Drive demanding workloads with 2nd Generation IntelXeonScalable processors and Intel Optane DC Persistent Memory.

      Product Specs for Dell R740XD-24x2.5

      Base Server Standard Capabilities

      FeaturesTechnical specification
      ProcessorUp to two Intel ® Xeon ® Scalable processors, up to 28 cores per processor
      Memory24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max
      Up to 12 NVDIMM, 192 GB Max
      Supports registered ECC DDR4 DIMMs only
      Storage controllersInternal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140
      External PERC (RAID): H840
      12Gbps SAS HBAs (non-RAID): External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID)
      Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB
      Drive baysFront bays:
      • Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB
      • Or up to 12 x 3.5” SAS/SATA HDD max 144TB
      Mid bays:
      • Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB
      • Or up to 4 x 3.5”, max 48TB

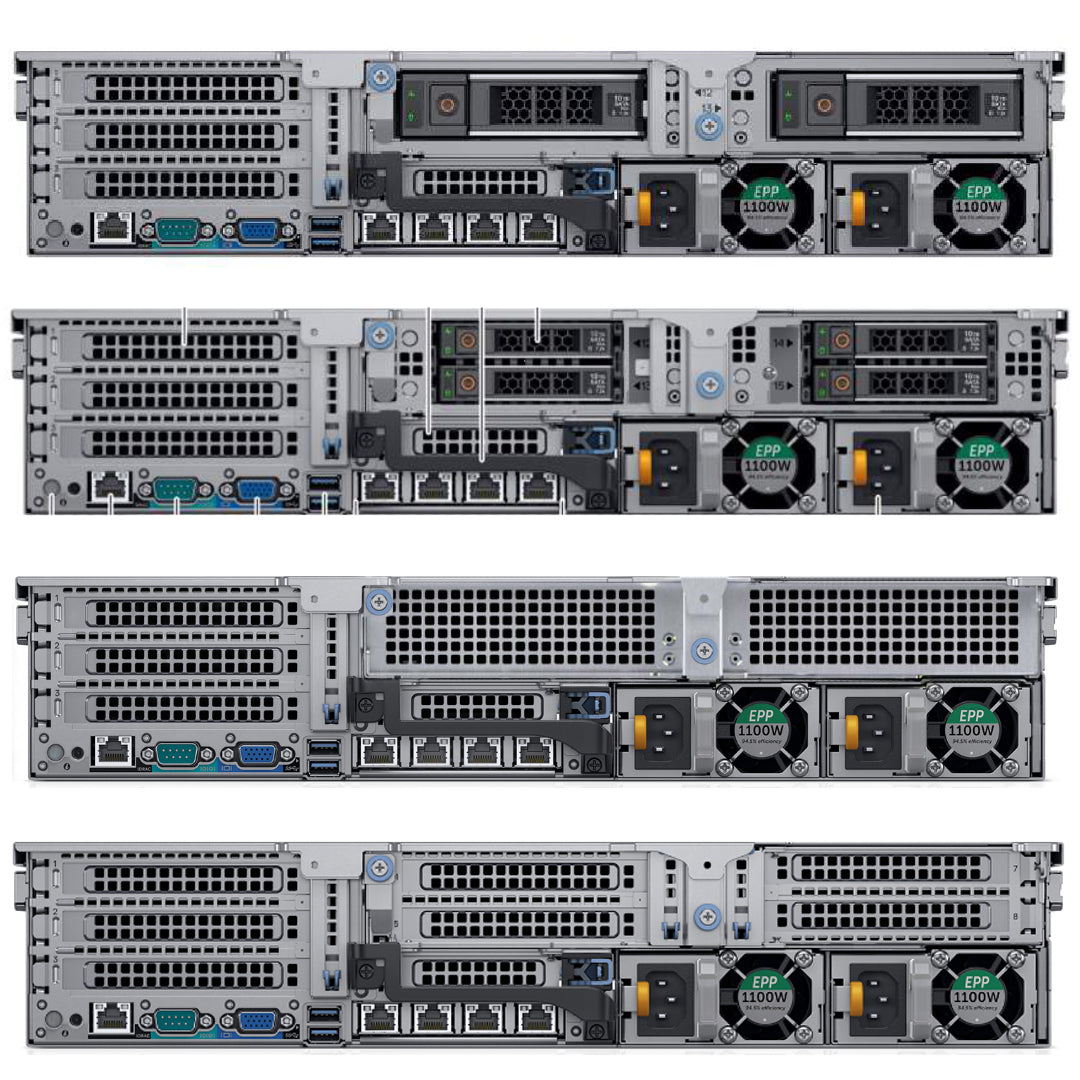

      Rear bays:
      • Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD
      • Or up to 2 x 3.5” max 24TB SAS/SATA HDD
      Power suppliesTitanium 750W,
      Platinum 495W, 750W, 1100W, 1600W, 2000W
      48VDC 1100W, 380HVDC 1100W, 240HVDC 750W
      Hot plug power supplies with full redundancy
      Up to 6 hot plugs fans with full redundancy
      DimensionsForm factor: Rack (2U)
      Max depth: 715.5 mm
      Embedded managementIPMI 2.0 compliant
      iDRAC9 with Lifecycle Controller (Express, Enterprise)
      Quick Sync 2 wireless module optional
      BezelOptional LCD bezel or security bezel
      OpenManage SoftwareOpenManage Enterprise
      OpenManage Mobile
      OpenManage Essentials
      OpenManage Power Manager
      Integrations and connectionsIntegrations:
      Microsoft System Center
      VMware vCenter
      BMC Software
      IBM Tivoli® Netcool/OMNIbus
      IBM Tivoli® Network Manager,
      HP Operations Manager,
      CA Network and Systems Management
      Oracle Enterprise Manager
      Nagios® Core
      Nagios® XI
      SecurityTPM 1.2/2.0 optional
      Cryptographically signed firmware
      Secure Boot
      Secure Erase
      System Lockdown
      I/O & PortsNetwork daughter card options:
      • 4 x 1GbE
      • 2 x 10GbE + 2 x 1GbE
      • 4 x 10GbE
      • 2 x 25GbE
      Front Ports:
      • 1 x Dedicated iDRAC direct USB
      • 2 x USB 2.0
      • 1 x VGA

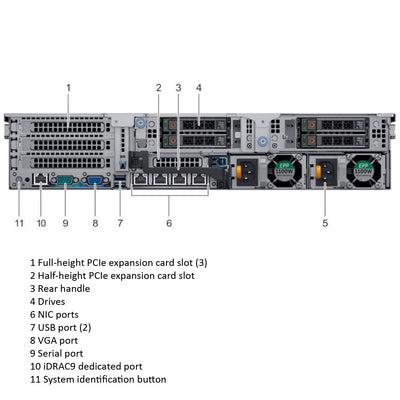

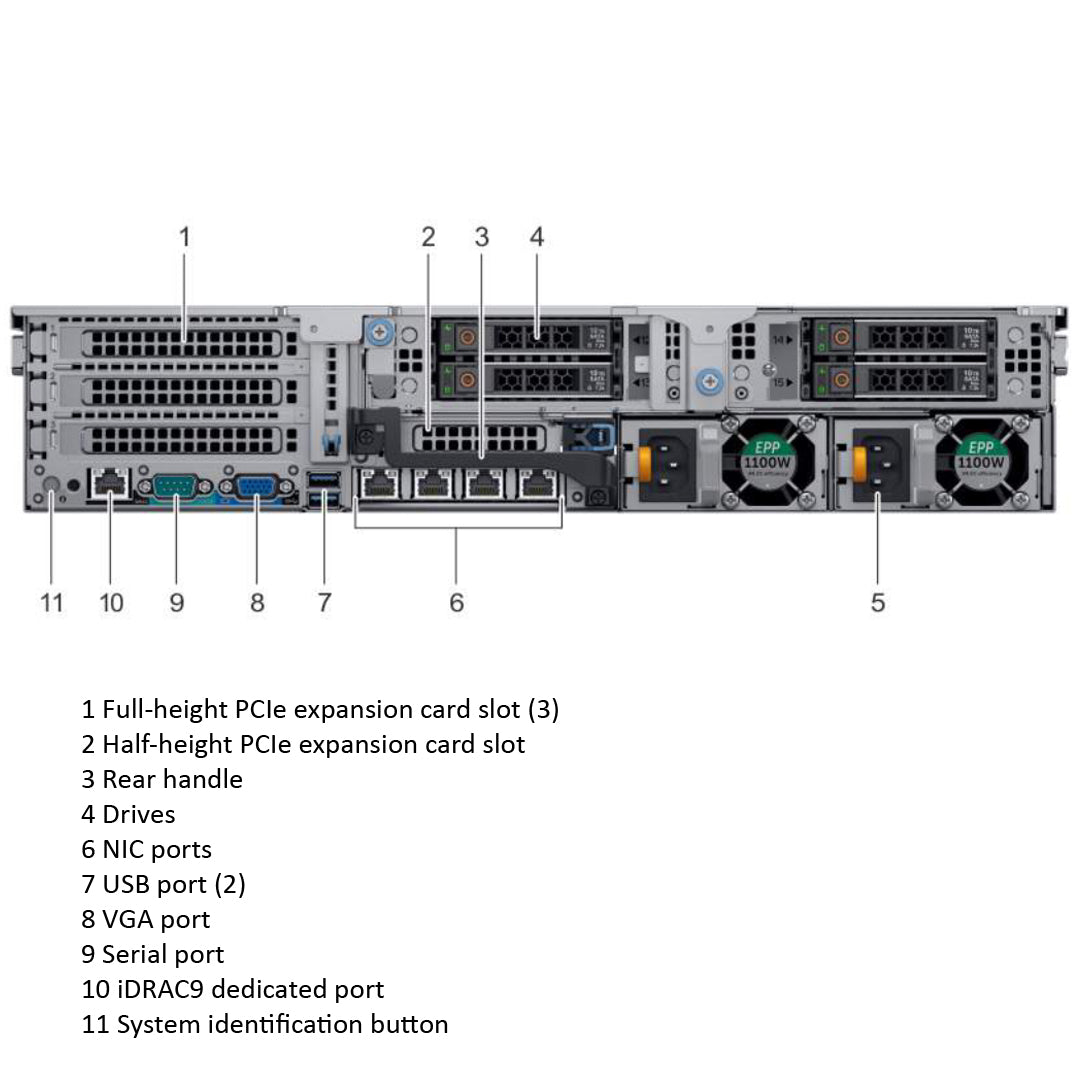

      Rear Ports:
      • 1 x Dedicated iDRAC network port
      • 1 x Serial
      • 2 x USB 3.0
      • 1 x VGA
      Video card:
      • 2 x VGA
      • Up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
      Accelerator optionsGPU and FPGA options are available only on 24 x 2.5” drive chassis
      • Nvidia Tesla P100
      • Nvidia Tesla K80
      • Nvidia Tesla K40
      • Nvidia Grid M60
      • Nvidia Tesla M10
      • Nvidia Tesla P4
      • Nvidia Quadro P4000
      • NVIDIA V100 Tensor Core
      • Intel Arria® 10 GX FPGA

      Supported operating systemsCanonical® Ubuntu® LTS
      Citrix® XenServer
      Microsoft Windows Server® with Hyper-V
      Red Hat® Enterprise Linux
      SUSE® Linux Enterprise Server
      VMware® ESXi
