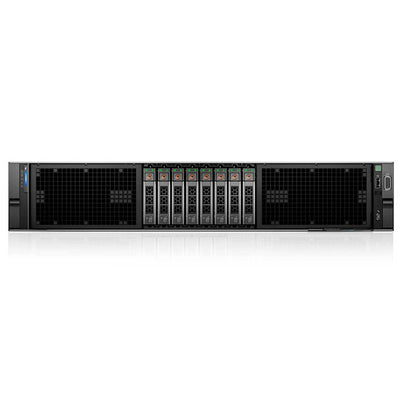

Dell PowerEdge R760XA CTO Rack Server

Price: Configure for Price

Brand:

Dell

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge R760XA CTO Rack Server

Quick Specs

Form Factor:

2U rack server

Processor | Max: 56 Cores

2x Gen 4 Intel Xeon Scalable

Memory | Max: 8TB

32 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 122.88TB

Front bays:
Up to 6 x E3.S Gen5 NVMe, Max: 46.08 TB
Up to 6 x 2.5-inch NVMe, Max: 92.16 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe, Max: 122.88 TB
Rear bays:
Not supported

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
USB

RAID Controller: (fPERC)

S160 (SATA/NVMe SW RAID)
H355i, H755, H755N, H965i, HBA355i, H355e, HBA355e, H965e

LOM

2 x 1GbE LOM card with BCM5720 LAN controller

Networking Options | Max Speed: 4x 25GbE Ports

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

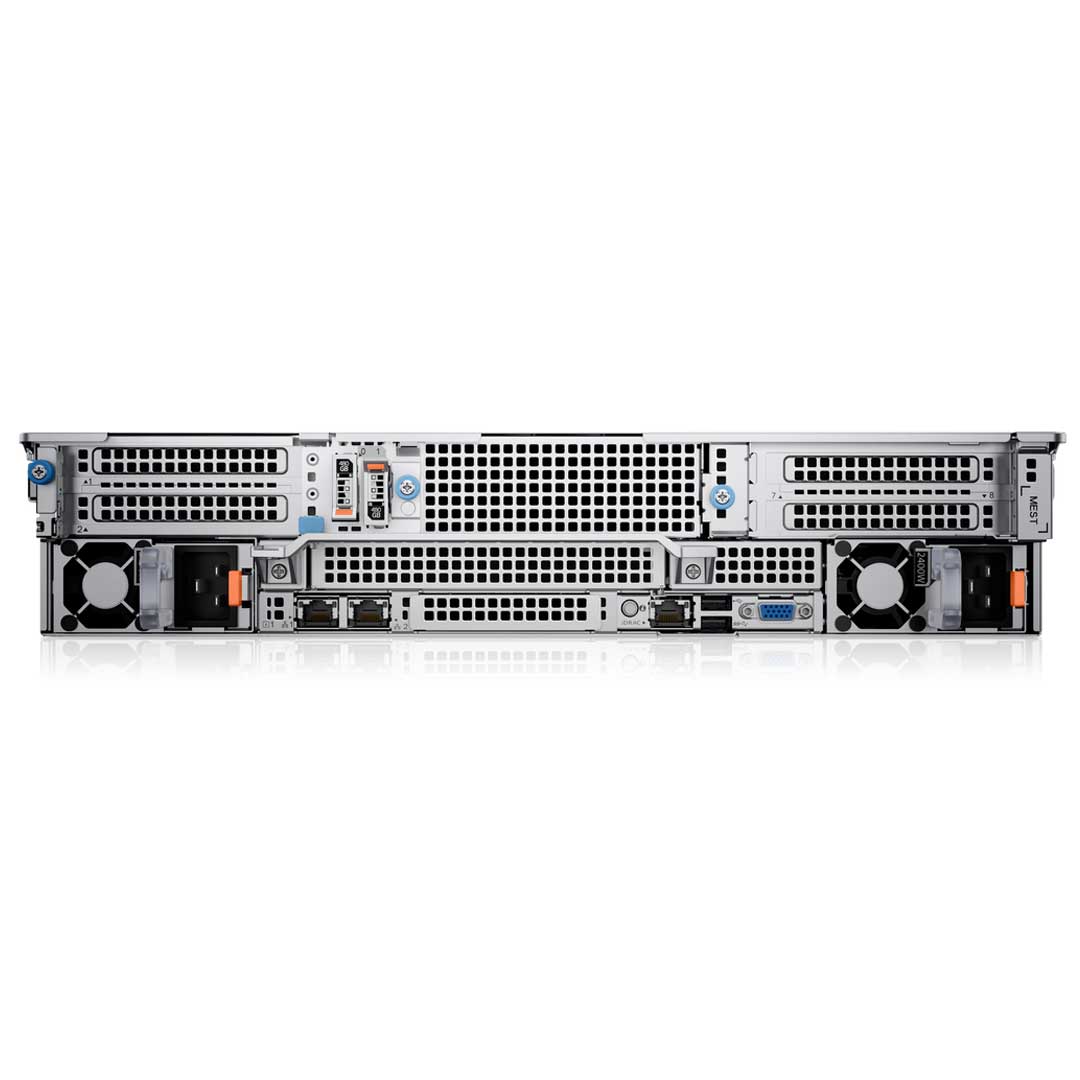

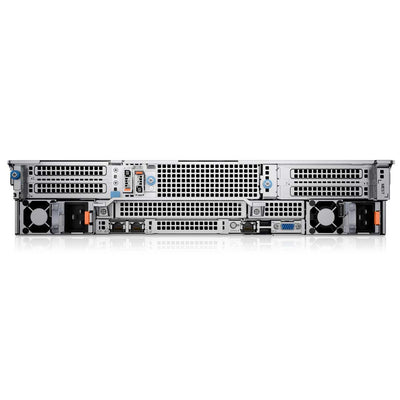

PCIe Slots:

Up to twelve PCIe slots (x16 connector)
4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW

GPU:

Up to 4 x 350 W DW PCIe x16 GPU cards
Up to 12 x 75 W SW PCIe x8 GPU cards

Ideal for:

Artificial Intelligence (AI)
Deep Learning
Machine Learning (ML)
Virtual Desktop Interface (VDI)
Virtualization

The Dell PowerEdge R760xa, is a purpose-built server designed to boost acceleration performance across the widest range of customer needs.

Innovate at scale with challenging and emerging workloads

Maximize your workload performance and boost outcomes with scale as you grow to compute, flexibly supporting a wide range of GPUs in a dual-socket/2U air-cooled server, accelerating applications from AI training and inferencing to Digital Twins to performance graphics and dense power-user collaboration environments.

Leverage a powerful architecture and the power of two 4th Generation Intel® Xeon® processors with high core count of up to 56 cores and the latest on-chip innovations to boost AI and ML operations
Up to four double-width PCIe Gen5 accelerators or up to 12 single-width* PCIe accelerators to break through the density boundaries of today and tomorrow’s computing
Support for PCIe GPU adapters from NVIDIA, AMD, and Intel**, delivering superior outcomes with one platform

Accelerated I/O throughput

Deploy latest generation technologies including DDR5, Gen4 NVLink, PCIe Gen 5, and E3.S NVMe SSDs to push the boundaries of data flow and computing possibilities.
Alleviate the worry about expensive liquid cooling retrofitting to your data center
Scale up your needs by supporting up to 32 DDR5 memory DIMM slots, up to eight drives, and PCIe Gen 5 expansion slots
Air-cooled design with front-facing accelerators enables better cooling and supports higher TDP accelerators (up to 350 W)

Increase efficiency and accelerate operations with autonomous collaboration

The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.

Cyber Resilient Architecture for Zero Trust IT environment & operations

Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

Dell PowerEdge R760XA Configuration Options

Configuration Options:

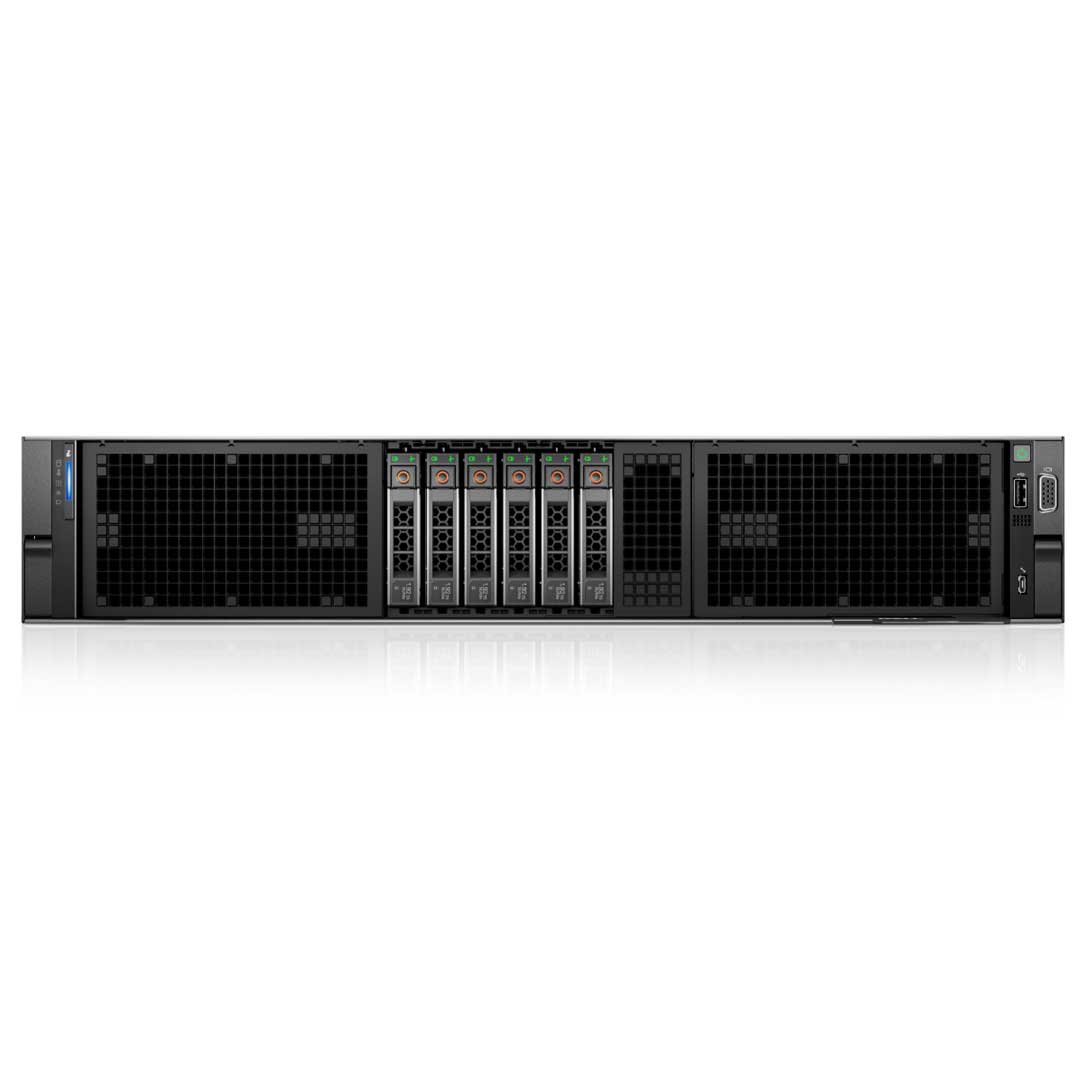

6 x 2.5" NVMe direct attached (S160)

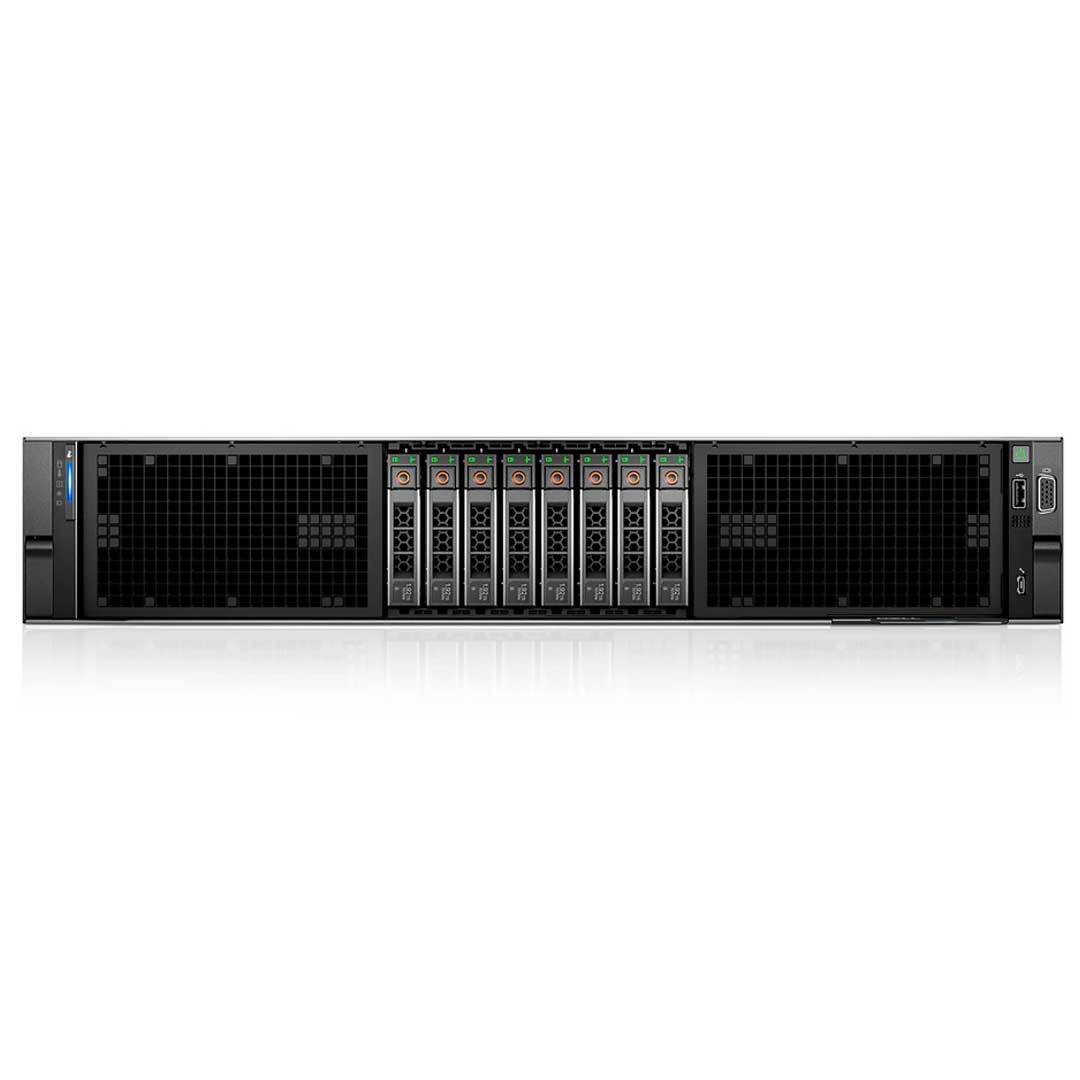

8 x 2.5" NVMe RAID
8 x 2.5" SAS/SATA

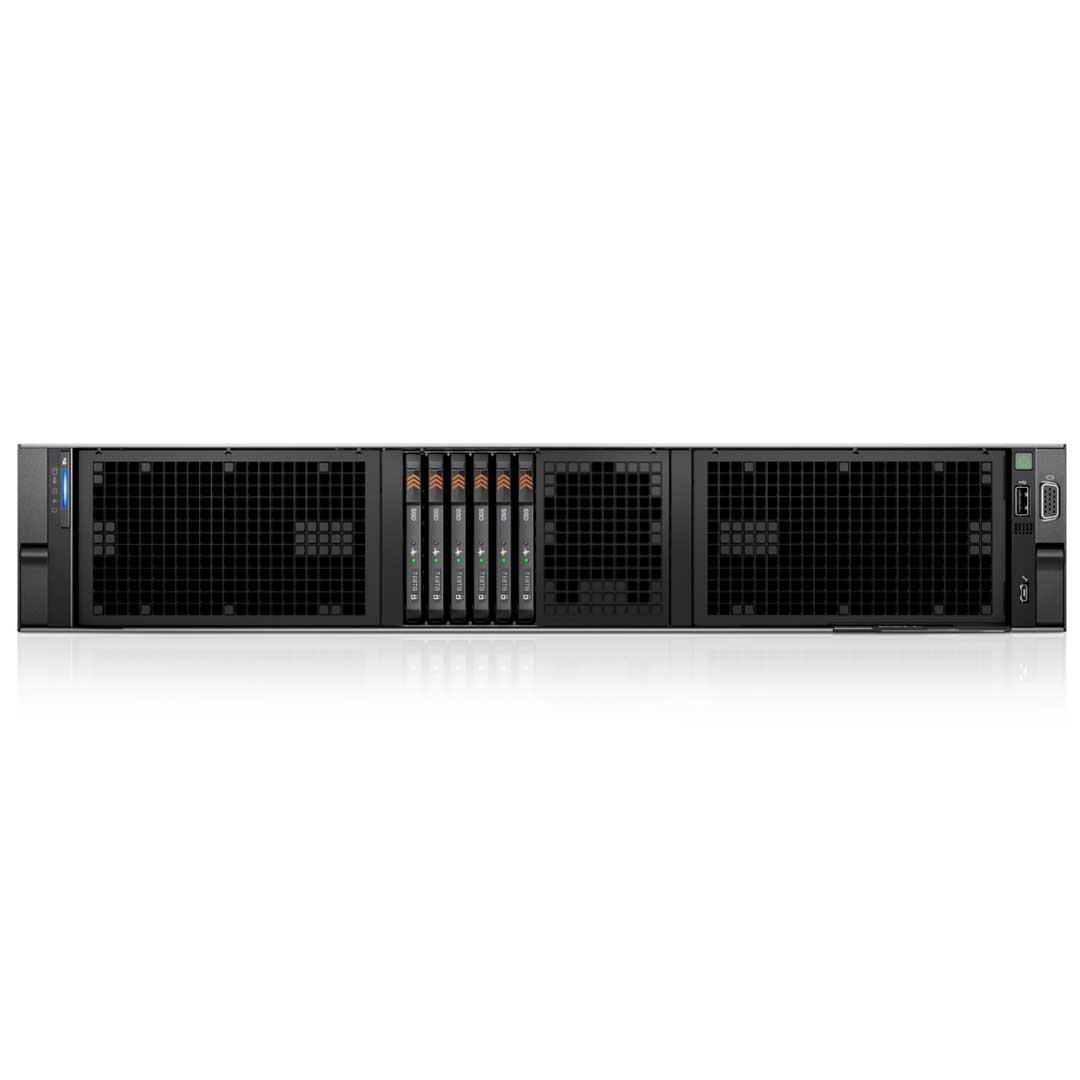

6 x E3.S Gen5 NVMe direct attached (S160)

Processor

The following lists the features and functions that are in the upcoming 4th Generation Intel® Xeon Scalable Processor offering:

Faster UPI with up to four Intel Ultra Path Interconnect (Intel UPI) at up to 16 GT/s, increasing multi-socket bandwidth.
More, faster I/O with PCI Express 5 and up to 80 lanes (per socket)
Enhanced Memory Performance with DDR5 support and memory speed up to 4800 MT/s in one DIMM per channel (1DPC) and 4400 MT/s in two DIMM per channel (2DPC)
New built-in accelerators for data analytics, networking, storage, crypto, and data compression
8470Q and 6458Q 350 W CPUs that require liquid cooling support.

Heatsink & Fans

The PowerEdge R760xa offers two types of cooling options:

Air cooling
Direct Liquid Cooling (DLC) (optional)

Fans

There is only one type of fan supported in R760xa. Six fans are required to be installed for all R760xa system configurations.

Liquid Cooling

8470Q and 6458Q 350 W CPUs require liquid cooling support. Liquid Cooling is only for the CPUs. When installed the VGA port in the rear will be replaced. There is a kit to re-ad the VGA port in the rear, but it takes up a PCIe slot.

Since the VGA port is removed that means you will have a different I/O board with a connector to the liquid cooling Leak Detector.

Memory

The Dell PowerEdge R760XA supports up to 32 DDR5 DIMMs on a two-socket configuration. The System also supports RDIMM 8 TB max, with speeds up to 4800 MT/s and registered ECC DDR5 DIMMs only. Enhanced Memory Performance with DDR5 support and memory speed up to 4800 MT/s in one DIMM per channel (1DPC) and 4400 MT/s in two DIMM per channel (2DPC).

DIMM type	Rank	Capacity	DIMM rated voltage and speed	Operating Speed
DIMM type	Rank	Capacity	DIMM rated voltage and speed	1 DIMM per channel (DPC)	2 DIMMs per channel (DPC)
RDIMM	1R	16GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s	4400 MT/s
	2R	32GB, 64GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s	4400 MT/s
	4R	128GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s	4400 MT/s
	8R	256GB	DDR5 (1.1 V), 4800 MT/s	4800 MT/s	4400 MT/s

Networking Adapters Options

The Dell Gen16 R760xa Rack Server has 2 options for NIC support. You have the LOM card or the OCP 3.0 slot that can be filled no matter if the LOM is selected.

One thing to note about the OCP 3.0 slot, if you install an x16 card it will be downgraded to an x8 due to the OCP limitations on this system board. Another major difference between the LOM and the OCP is the number of ports each can handle. The LOM only supports two ports while the OCP 3.0 can support a 4 Port card.

Image of the R760 System board LOM, MIC, and OCP Slots

LAN on Motherboard (LOM)

1 GbE x 2 BCM5720 LAN controller

Open Compute Project (OCP) 3.0

1GbE x 4
10 GbE x 2
10 GbE x 4
25 GbE x 2
25 GbE x 4

Storage Controllers Options

Storage Controllers

Most of the Gen 16 Dell PowerEdge servers use the same Controllers. The Software RAID S160 comes standard on the motherboard. For the NVMe RAID controllers, the PERC 12 H965i or the PERC 11 H755N will do the trick. If you’re having some trouble with choosing the right controller for your desired configuration. Please don’t hesitate to give us a call or write us a chat.

Dell RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar.

Image of the R760 with an fPERC being installed.

Performance Level	Controller and Description
Entry	S160
Value	PERC H355
Value Performance	PERC H755, PERC H755N
Premium Performance	H965i Avenger 1 Memory: 8GB DDR4 NV cache 72-bit memory 2133 MHz Low profile form factors Dual A15 1.2 GHz CPU X8PCIe 3.0, x8 12Gb SAS

BOSS-N1 Hot-Swap Boot Options

Like most Dell systems, this server has a Boot option with 2x M.2 NVMe drives in the optional BOSS-N1 card.

Installing the BOSS-N1 card carrier does not require the system to be powered off. System shutdown is only required when installing the BOSS-N1 controller card module.

HWRAID 2 x M.2 NVMe SSDs, or USB

Image of the BOSS-N1 Boot option for Dells R760 Rack Server

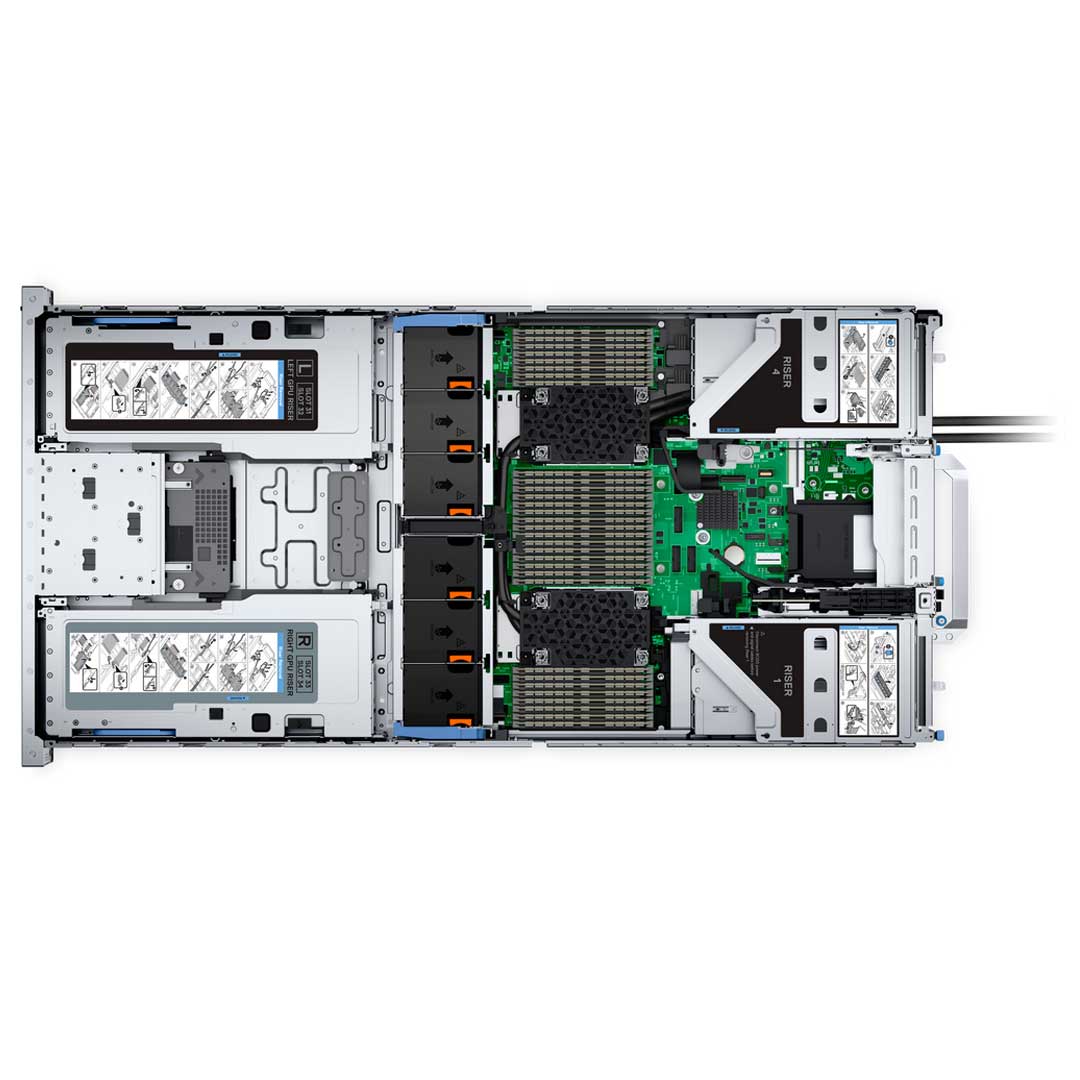

Expansion Slots

Although the system is a 2U with plenty of room in the back for many risers, this R760XA Dell Rack Server only has 3 Riser Configurations. Each Riser Config holds 4 Riser kits. This system is built for AI and Machine learning. So this rack server can support many GPUs or DPNs. Take a close look at the Riser Configs, if you need more details please click on each item. It will give you a more thorough break down of each.
With the ability to install stacked DW GPUs, a lot of them can be bridged together to make the computing power even greater.

Up to twelve PCIe slots (x16 connector)

4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW

Configurations	Expansion Card Risers	PCIe Slots	Controlling Processor	Height	Length	Slot Width
Config 0-1. Without GPU bridge 4 x16 Rear FH + 4 x16 Front FH DW	R1V	1 and 2	Processor 1	Full height	Half length	x16 + x16
	RF1A	36 and 38	Processor 1	Full Height, double width	Full length	x16 + x16
	R4T	7 and 8	Processor 2	Full height	Half length	x16 + x16
	RF2A	31 and 33	Processor 2	Full Height, double width	Full length	x16 + x16
Config 0-1. With GPU bridge 4 x16 Rear FH + 4 x16 Front FH DW	R1V	1 and 2	Processor 1	Full height	Half length	x16 + x16
	RF1A	36 and 38	Processor 1	Full Height, double width	Full length	x16 + x16
	R4T	7 and 8	Processor 2	Full height	Half length	x16 + x16
	RF2A	31 and 33	Processor 2	Full Height, double width	Full length	x16 + x16
Config1. 4 x16 Rear FH + 8 x8 Front FH SW	R1V	1 and 2	Processor 1	Full height	Half length	x16 + x16
	R4T	7 and 8	Processor 2	Full height	Half length	x16 + x16
	RF1B	35, 36, 37 and 38	Processor 1	Full Height, single width	Full length	x8 + x8 + x8 + x8
	RF2B	31, 32, 33 and 34	Processor 2	Full Height, single width	Full length	x8 + x8 + x8 + x8

GPU Options

The Dell PowerEdge R760XA can hold:

Up to 4 x 350 W DW PCIe x16 GPU cards
Up to 12 x 75 W SW PCIe x8 GPU cards

Power, Dimensions & Weight

Power Options

With the ability to hold so many GPUs, the power has to match. That is why this Dell R760XA Rack Server holds two 86MM Power Supply units. You only have two choices of PSUs. The 2400 W or the 2800 W Power supplies. Please read the manual below for more details of each PSU.

2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant
2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant

Dimensions & Weight:

Width: 482 mm (18.97 inches)
Height: 86.8 mm (3.41 inches)
Length: 946.73 mm (37.27 inches) - without bezel
Length: 932.89 mm (36.73 inches) - with bezel
Weight: 27.5 kg (60.63 lbs) A server with fully populated drives
Weight: 25.1 kg (55.33 lbs) A server without drives and PSU installed

Feature	Technical Specifications
Processor	Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology
Memory	• 32 DDR5 DIMM slot, supports RDIMM 8 TB max, speeds up to 4800 MT/s • Supports registered ECC DDR5 DIMMs only
Storage controllers	• Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB • External HBA (non-RAID): HBA355e, H965e • Software RAID: S160
Drive Bays	Front bays: • Up to 6 x E3.S Gen5 NVMe, max 46.08 TB • Up to 6 x 2.5-inch NVMe, max 92.16 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB
Power Supplies	• 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant
Cooling Options	• Air cooling • Optional Direct Liquid Cooling (DLC) Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.
Fans	• Standard (STD) fan • Up to six hot plug fans
Dimensions	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 946.73 mm (37.27 inches) - without bezel • Depth – 932.89 mm (36.73 inches) - with bezel
Form Factor	2U rack server
Embedded Management	• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel
OpenManage Software	• OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage Service plugin • OpenManage Update Manager plugin • CloudIQ for PowerEdge plug in • OpenManage Enterprise Integration for VMware vCenter • OpenManage Integration for Microsoft System Center • OpenManage Integration with Windows Admin Center
Mobility	OpenManage Mobile
OpenManage Integrations	• BMC Truesight • Microsoft System Center • OpenManage Integration with ServiceNow • Red Hat Ansible Modules • Terraform Providers • VMware vCenter and vRealize Operations Manager
Security	• Cryptographically signed firmware • Data at Rest Encryption (SEDs with local or external key mgmt) • Secure Boot • Secured Component Verification (Hardware integrity check) • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1GbE LOM card (optional)
Network Options	1 x OCP card 3.0 (optional) NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.
GPU Options	Up to 4 x 350 W DW PCIe x16 GPU cards Up to 12 x 75 W SW PCIe x8 GPU cards
Ports	Front Ports • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA	Rear Ports • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports • 1 x USB 3.0 (optional)
PCIe	Up to twelve PCIe slots (x16 connector) • 4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW • 4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW
Operating System and Hypervisors	• Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi

Feature

Technical Specifications

Processor

Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist Technology

Memory

• 32 DDR5 DIMM slot, supports RDIMM 8 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only

Storage controllers

• Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB
• External HBA (non-RAID): HBA355e, H965e
• Software RAID: S160

Drive Bays

Front bays:
• Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
• Up to 6 x 2.5-inch NVMe, max 92.16 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB

Power Supplies

• 2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant

Cooling Options

• Air cooling
• Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Fans

• Standard (STD) fan
• Up to six hot plug fans

Dimensions

• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 946.73 mm (37.27 inches) - without bezel
• Depth – 932.89 mm (36.73 inches) - with bezel

Form Factor

2U rack server

Embedded Management

• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center

Mobility

OpenManage Mobile

OpenManage Integrations

• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security

• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secured Component Verification (Hardware integrity check)
• Secure Erase
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC

2 x 1GbE LOM card (optional)

Network Options

1 x OCP card 3.0 (optional)
NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.

GPU Options

Up to 4 x 350 W DW PCIe x16 GPU cards
Up to 12 x 75 W SW PCIe x8 GPU cards

Ports

Front Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

Rear Ports
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x Serial (optional)
• 1 x VGA (optional for Direct Liquid Cooling configuration)

Internal Ports
• 1 x USB 3.0 (optional)

PCIe

Up to twelve PCIe slots (x16 connector)
• 4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
• 4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW

Operating System and Hypervisors

• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Features	PowerEdge R760xa	PowerEdge R750xa
Processors	Two 4th Gen Intel® Xeon® Scalable Processors	Two 3 rd Generation Intel Xeon Scalable processors
CPU interconnect	Intel Ultra Path Interconnect (UPI)	Intel Ultra Path Interconnect (UPI)
Memory	● 32 x DDR5 RDIMM ● Up to 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC)	● 32 x DDR4 RDIMM, LRDIMM ● 16 x PMem ( Intel Optane Persistent Memory 200 Series)
Storage Controllers	● PERC 11: H755, H755N, H355 ● PERC 12: H965i, H965e ● HBA 11: HBA355i, HBA355e ● BOSS-N1 ● Software RAID: S160	Adapters: HBA355I, HBA355E, H345, H355, H745, H755, H755N, H840 BOSS S2 BOSS S1 Software RAID: S150
Drive Bays	Front bays: ● Up to 8 x 2.5-inch NVMe or SAS/SATA SSD max 122.88 TB ● Up to 6 x E3.S Gen5 NVMe max 46.08 TB	Front bays: ● Up to 8 x 2.5 inches SAS/SATA SSD or NVMe
Power Supplies	● AC (Platinum): 2400 W ● AC (Titanium): 2800 W ● DC (Mixed Mode): 2400 W, 2800 W	● AC (Platinum): 1400 W, 2400 W ● AC (Titanium): 1800 W, 2800 W ● DC (Mixed Mode): 1400 W, 1800 W, 2400 W, 2800 W
Cooling Options	● Air Cooling ● Optional Direct Liquid Cooling (DLC) for CPUs only NOTE: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.	● Air Cooling
Fans	Standard (STD) fan	Up to eight hot plug fans
Up to six hot swap fans
Dimension	Height: 86.8 mm (3.41 inches)	Height: 86.8 mm (3.41 inches)
Width: 482 mm (18.97 inches)	Width: 482.0 mm (18.97 inches)
Depth: 946.73 mm (37.27 inches) with bezel	Depth: 908.64 mm (35.77 inches) with bezel
932.89 mm (36.73 inches) without bezel	894.8 mm (35.22 inches) without bezel
Form Factor	2U rack server	2U rack server
Embedded Management	● iDRAC9 ● iDRAC Direct ● iDRAC RESTful with Redfish ● iDRAC Service Manual ● Quick Sync 2 wireless module	● iDRAC9 ● iDRAC Direct ● iDRAC Service Module ● Quick Sync 2 wireless module
Bezel	Optional LCD bezel or security bezel	Optional LCD bezel or security bezel
OpenManage Software	● CloudIQ for PowerEdge plug in ● OpenManage Enterprise ● OpenManage Enterprise Integration for VMware vCenter ● OpenManage Integration for Microsoft System Center ● OpenManage Integration with Windows Admin Center ● OpenManage Power Manager plugin ● OpenManage Service plugin ● OpenManage Update Manager plugin	● OpenManage Enterprise ● OpenManage Power Center
Mobility	OpenManage Mobile	OpenManage Mobile
Integrations and Connections	OpenManage Integrations ● BMC TrueSight ● Microsoft System Center ● OpenManage Integration with ServiceNow ● Red Hat Ansible Modules ● Terraform Providers ● VMware vCenter and vRealize Operations Manager	OpenManage Integrations ● BMC TrueSight ● Microsoft System Center ● Red Hat Ansible Modules ● VMware vCenter	● IBM Tivoli Netcool/ OMNIbus ● IBM Tivoli Network Manager IP Edition ● Micro Focus Operations Manager ● Nagios Core ● Nagios XI
Security	● Cryptographically signed firmware ● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ ● Secured Component Verification (Hardware integrity check) ● Data at Rest Encryption (SEDs with local or external key mgmt)	● Cryptographically signed firmware ● Secure Boot ● Secure Erase ● Silicon Root of Trust ● System Lockdown (requires iDRAC9 Enterprise or Datacenter) ● TPM 1.2/2.0 (optional)
Embedded NIC	2 x 1 GbE LOM (optional)	2 x 10 GbE
Networking Options	OCP x8 (optional) Mezz 3.0 NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.	-
GPU Options	Up to 4 x double wide 350 W, or 12 x single wide 75 W accelerators	Up to 4 x double wide 300 W or 8 x single wide 150 W accelerators
Ports	Front Ports ● 1 x USB 2.0 ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x VGA	Rear Ports ● 1 x USB 2.0 ● 1 x iDRAC Direct ethernet port ● 1 x USB 3.0 ● 1 x Serial port (optional) ● 1 x VGA	Front Ports ● 1 x USB 2.0 ● 1 x iDRAC Direct (Micro-AB USB) port ● 1 x VGA	Rear Ports ● 1 x USB 2.0 ● 1 x USB 3.0
Internal Port (optional): 1 x USB 3.0	Internal Port (optional): 1 x USB 3.0
PCIe	Up to 4 x PCIe SW Gen5 slots (Rear)+ Up to 8 x PCIe SW Gen5 slots (Front), Or Up to 4 x PCIe DW Gen5 slots (Front)	8 x PCIe Gen 3 slots (4 x 8) 8 x Gen 3 slots (4 x 16)
Operating System and Hypervisors	● Canonical Ubuntu Server LTS ● Windows Server with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi	● Canonical Ubuntu Server LTS ● Citrix Hypervisor ● Windows Server LTSC with Hyper-V ● Red Hat Enterprise Linux ● SUSE Linux Enterprise Server ● VMware ESXi

Features

PowerEdge R760xa

PowerEdge R750xa

Processors

Two 4th Gen Intel® Xeon® Scalable Processors

Two 3 rd Generation Intel Xeon Scalable processors

CPU interconnect

Intel Ultra Path Interconnect (UPI)

Memory

● 32 x DDR5 RDIMM
● Up to 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC)

● 32 x DDR4 RDIMM, LRDIMM
● 16 x PMem ( Intel Optane Persistent Memory 200 Series)

Storage Controllers

● PERC 11: H755, H755N, H355
● PERC 12: H965i, H965e
● HBA 11: HBA355i, HBA355e
● BOSS-N1
● Software RAID: S160

Adapters: HBA355I, HBA355E, H345, H355, H745,
H755, H755N, H840
BOSS S2
BOSS S1
Software RAID: S150

Drive Bays

Front bays:
● Up to 8 x 2.5-inch NVMe or SAS/SATA SSD max 122.88 TB
● Up to 6 x E3.S Gen5 NVMe max 46.08 TB

Front bays:
● Up to 8 x 2.5 inches SAS/SATA SSD or NVMe

Power Supplies

● AC (Platinum): 2400 W
● AC (Titanium): 2800 W
● DC (Mixed Mode): 2400 W, 2800 W

● AC (Platinum): 1400 W, 2400 W
● AC (Titanium): 1800 W, 2800 W
● DC (Mixed Mode): 1400 W, 1800 W, 2400 W, 2800 W

Cooling Options

● Air Cooling
● Optional Direct Liquid Cooling (DLC) for CPUs only
NOTE: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

● Air Cooling

Fans

Standard (STD) fan

Up to eight hot plug fans

Up to six hot swap fans

Dimension

Height: 86.8 mm (3.41 inches)

Width: 482 mm (18.97 inches)

Width: 482.0 mm (18.97 inches)

Depth: 946.73 mm (37.27 inches) with bezel

Depth: 908.64 mm (35.77 inches) with bezel

932.89 mm (36.73 inches) without bezel

894.8 mm (35.22 inches) without bezel

Form Factor

2U rack server

Embedded Management

● iDRAC9
● iDRAC Direct
● iDRAC RESTful with Redfish
● iDRAC Service Manual
● Quick Sync 2 wireless module

● iDRAC9
● iDRAC Direct
● iDRAC Service Module
● Quick Sync 2 wireless module

Bezel

Optional LCD bezel or security bezel

OpenManage Software

● CloudIQ for PowerEdge plug in
● OpenManage Enterprise
● OpenManage Enterprise Integration for VMware vCenter
● OpenManage Integration for Microsoft System Center
● OpenManage Integration with Windows Admin Center
● OpenManage Power Manager plugin
● OpenManage Service plugin
● OpenManage Update Manager plugin

● OpenManage Enterprise
● OpenManage Power Center

Mobility

OpenManage Mobile

Integrations and Connections

OpenManage Integrations
● BMC TrueSight
● Microsoft System Center
● OpenManage Integration with ServiceNow
● Red Hat Ansible Modules
● Terraform Providers
● VMware vCenter and vRealize Operations Manager

OpenManage Integrations
● BMC TrueSight
● Microsoft System Center
● Red Hat Ansible Modules
● VMware vCenter

● IBM Tivoli Netcool/ OMNIbus
● IBM Tivoli Network Manager IP Edition
● Micro Focus Operations Manager
● Nagios Core
● Nagios XI

Security

● Cryptographically signed firmware
● Secure Boot
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
● Secured Component Verification (Hardware integrity check)
● Data at Rest Encryption (SEDs with local or external key mgmt)

● Cryptographically signed firmware
● Secure Boot
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 1.2/2.0 (optional)

Embedded NIC

2 x 1 GbE LOM (optional)

2 x 10 GbE

Networking Options

OCP x8 (optional) Mezz 3.0
NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.

GPU Options

Up to 4 x double wide 350 W, or 12 x single wide 75 W accelerators

Up to 4 x double wide 300 W or 8 x single wide 150 W accelerators

Ports

Front Ports
● 1 x USB 2.0
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x VGA

Rear Ports
● 1 x USB 2.0
● 1 x iDRAC Direct ethernet port
● 1 x USB 3.0
● 1 x Serial port (optional)
● 1 x VGA

Front Ports
● 1 x USB 2.0
● 1 x iDRAC Direct (Micro-AB USB) port
● 1 x VGA

Rear Ports
● 1 x USB 2.0
● 1 x USB 3.0

Internal Port (optional): 1 x USB 3.0

PCIe

Up to 4 x PCIe SW Gen5 slots (Rear)+ Up to 8 x PCIe SW Gen5 slots (Front),
Or Up to 4 x PCIe DW Gen5 slots (Front)

8 x PCIe Gen 3 slots (4 x 8)
8 x Gen 3 slots (4 x 16)

Operating System and Hypervisors

● Canonical Ubuntu Server LTS
● Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi

● Canonical Ubuntu Server LTS
● Citrix Hypervisor
● Windows Server LTSC with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi

Dell PowerEdge R760XA CTO Rack Server

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

Select Chassis

Select Processor

4th Generation Xeon® Scalable Processors

Memory

Storage Devices (Optional)

SFF SAS Drives (Optional)

SFF SATA Drives (Optional)

NVMe Drives (Optional)

EDSFF E3.S Drives (Optional)

Riser Card (Optional)

Networking PCI (Optional)

OCP NIC (Optional)

GPU (Optional)

Security (Optional)

Rail Kit (Optional)

Power Supply Units

ECS Warranty

Dell PowerEdge R760XA CTO Rack Server

Quick Specs

Ideal for:

Current Configuration

Select Chassis

Select Processor

Memory

Storage Devices (Optional)

SFF SAS Drives (Optional)

SFF SATA Drives (Optional)

NVMe Drives (Optional)

EDSFF E3.S Drives (Optional)

Riser Card (Optional)

Networking PCI (Optional)

OCP NIC (Optional)

GPU (Optional)

Security (Optional)

Rail Kit (Optional)

Power Supply Units

ECS Warranty

Manuals

Manuals

Product Specs

Base Standard Capabilities

Compare Servers

Shipping Information

ECS Warranty Information

About Express Computer Systems

Related Items

Your Recently Viewed Items

Subscribe

Shop with Confidence
