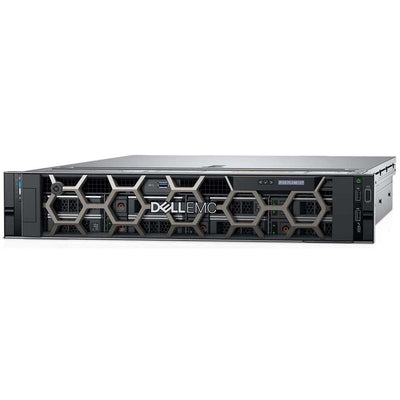

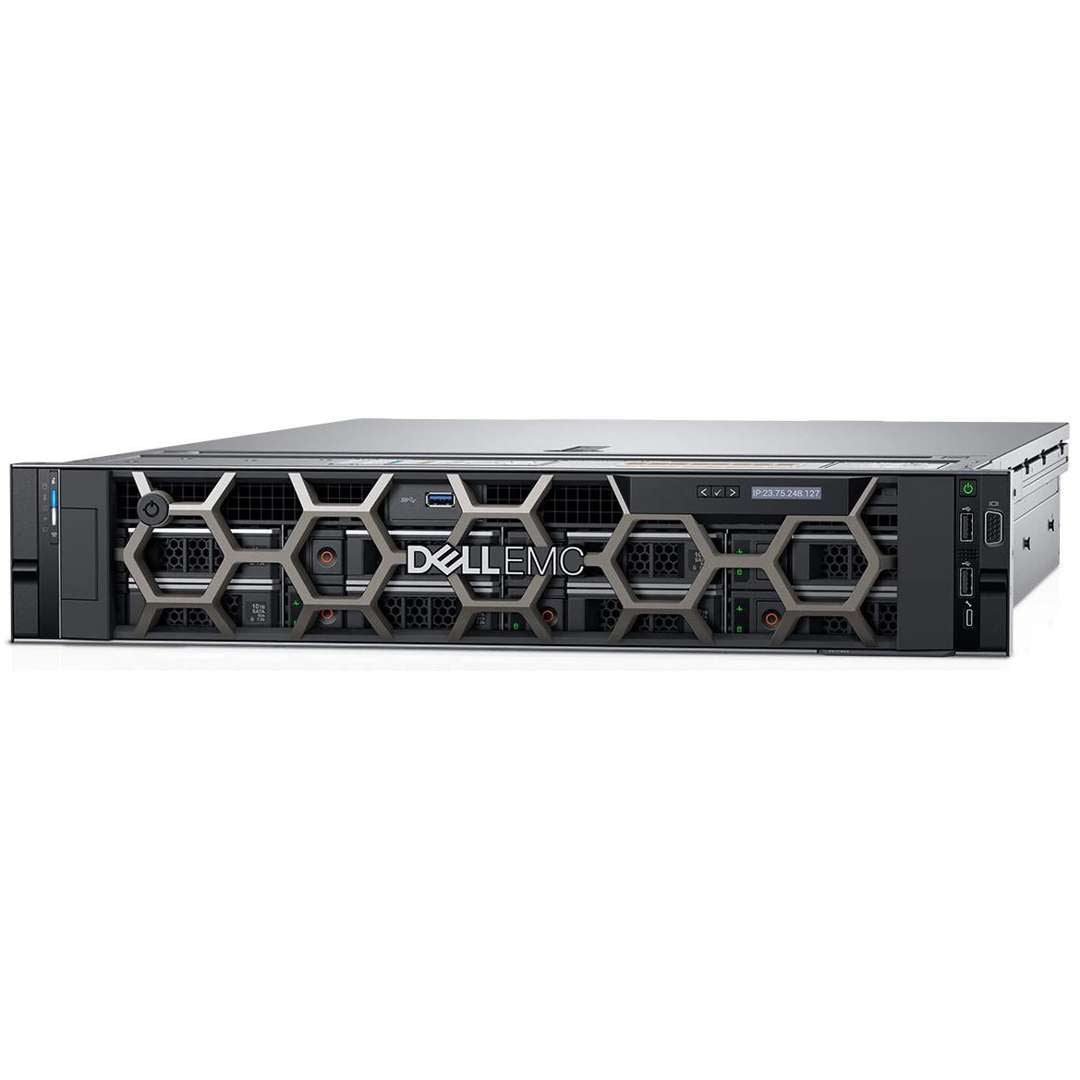

-*Image may differ from actaul product

Dell PowerEdge R740 CTO Rack Server

Contact for Pricing Price: Configure for Price

Brand:

Dell

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Quick Specs

Form Factor:

2U rack server

Processor | Max: 28 Cores

2 x Intel Xeon Scalable

Memory | Max: 3TB, Pmem 6.14TB, 7.68TB Pmem + LRDIMM

24 ECC DDR4 RDIMM/LRDIMM 2933Mhz
Up to 12 NVDIMM, 192 GB Max
Up to 12 Intel® Optane™ DC persistent memory PMem

Storage | Max: 122.88TB, 128TB

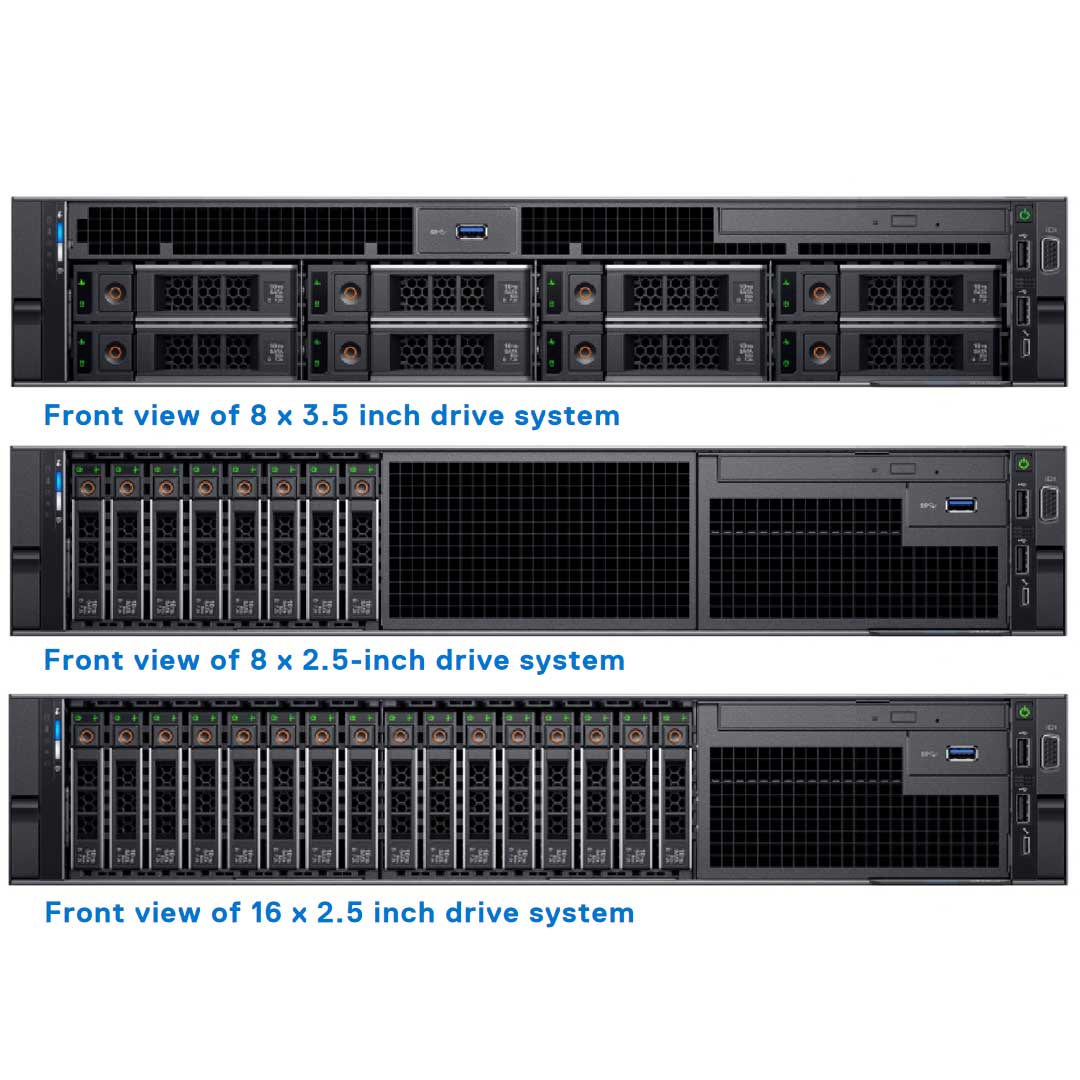

8x LFF SFF SAS/SATA (HDD/SSD)
8x or 16x SFF SAS/SATA (HDD/SSD)

Boot Options

Boot Optimized Server Storage (BOSS-S1)
Internal Dual SD module (IDSDM)
(16/32/64 GB) and vFlash card (16 GB)

RAID Controller:

S140 (software RAID)
H330, H730P, H740P, HBA330, H840, 12Gbps SAS HBA

NIC/LOM:

4x 1GbE, 2x 10GbE + 2x 1GbE, 4x 10GbE, 2x 25GbE NDC
(Many Options to choose from)

Remote Management:

iDRAC9 Express (default) with Lifecycle Controller

PCIe Slots:

Up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots

GPU:

Up to (3) 300W GPUs
Up to (6) 150W GPUs
Up to (3) double-width FPGAs
Up to (4) single-width FPGAs

Ideal for:

Database
High-Performance Computing (HPC)
Virtual Desktop Interface (VDI)

Expand and optimize application performance

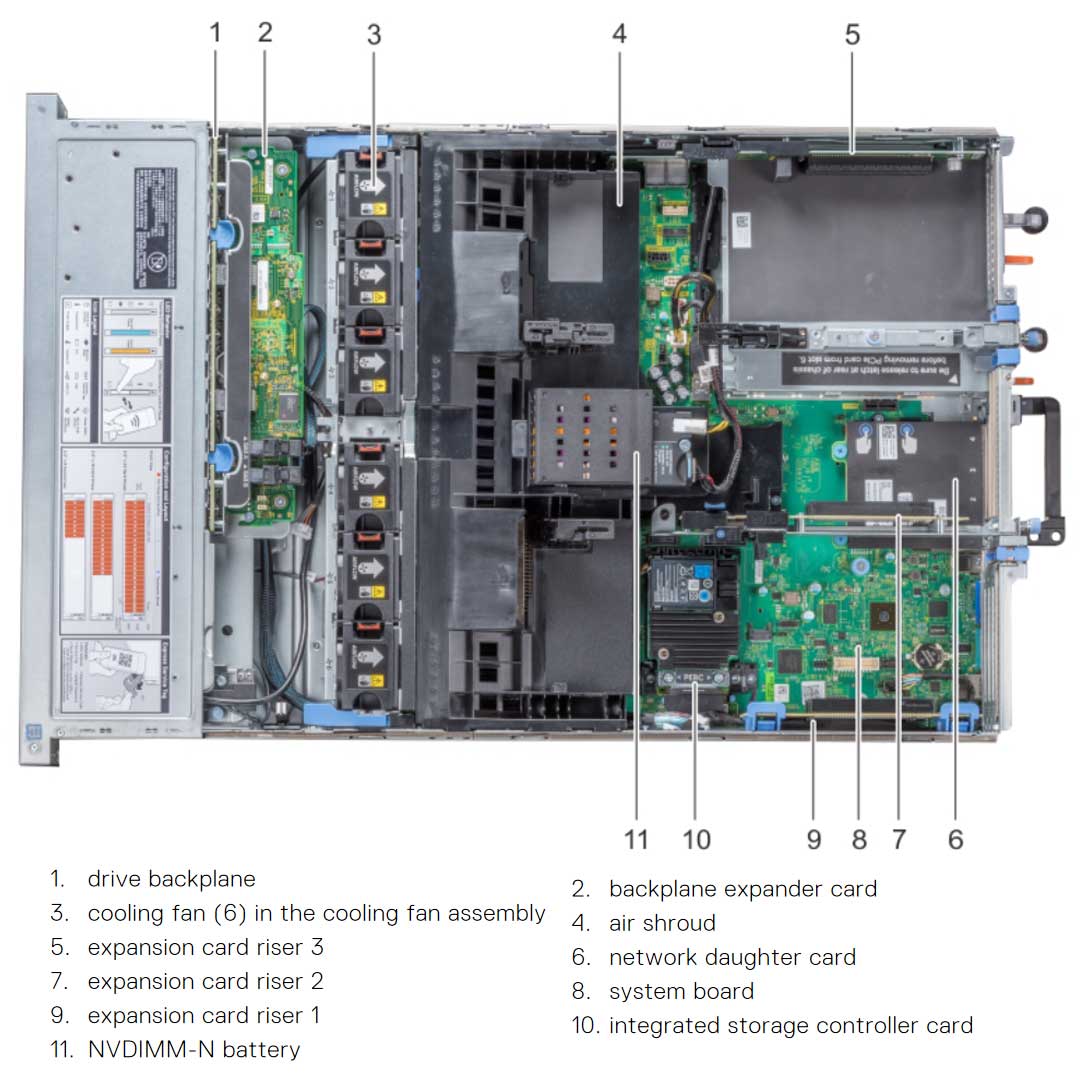

PowerEdge R740 Persistent Memory NVDIMM-N can increase database performance by 10x

The scalable business architecture of the Dell EMC PowerEdge R740 can scale up to three 300W or six 150W GPUs, or up to four FPGAs. With up to 16 2.5” drives or 8 3.5” drives the Dell EMC PowerEdge R740 provides the versatility to adapt to virtually any application and provides the perfect platform for VDI deployments.

Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to Dell EMC PowerEdge R730.
Free up storage space using internal M.2 SSDs optimized for boot.
Scale compute resources with Intel Xeon Scalable delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors

Automate systems management with OpenManage

The Dell EMC OpenManage portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities, the Dell EMC PowerEdge R740 is simply managed, freeing up time for high profile projects.

Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.

Rely on PowerEdge with built-in security

Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server lifecycle. The R740 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are. By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.

Rely on a secure component supply chain to ensure protection from factory to the data center.
Maintain data safety with cryptographically signed firmware packages and Secure Boot.
Protect your server from malicious malware with iDRAC9 Server Lockdown mode (requires Enterprise or Datacenter license)
Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.

General-purpose workhorse optimized for workload acceleration

Maximize your application performance with the Dell EMC PowerEdge R740 server, which brings you the perfect balance of accelerator cards, storage and compute resources in a 2U, 2-socket platform. With a wide range of GPU and FPGA options, the R740 has the versatility to adapt to virtually any application and provides the optimum platform for VDI deployments. The Dell EMC PowerEdge R740 offers up to 16 x 2.5” or 8 x 3.5” drives and iDRAC9, so you can scale to meet demands and simplify the entire IT lifecycle.

Achieve IT transformation with the Dell EMC PowerEdge portfolio

The Dell EMC PowerEdge R740 is a general-purpose workhorse optimized for workload acceleration. With its versatility, the Dell EMC PowerEdge R740 can help you transform your data center for VDI, artificial intelligence and software-defined storage (SDS).

Simplify and accelerate VMware vSAN deployments with validated, pre-bundled and tailored Ready Nodes.
Drive demanding workloads with 2nd Generation Intel Xeon Scalable processors and Intel Optane DC Persistent Memory.
Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to Dell EMC PowerEdge R730.
Free up storage space using internal M.2 SSDs optimized for boot.

Memory Options

DIMM type	DIMM rank	DIMM capacity	Single processor		Dual processors
DIMM type	DIMM rank	DIMM capacity	Min RAM	Max RAM	Min RAM	Max RAM
lRDIMM	Quad rank	64 GB	64 GB	768 GB	128 GB	1536 GB
RDIMM	Single rank	8 GB	8 GB	96 GB	16 GB	192 GB
RDIMM	Dual rank /td>	16 GB	16 GB	192 GB	32 GB	384 GB
RDIMM	Dual rank	32 GB	32 GB	384 GB	64 GB	768 GB
NV-DIMM	Single rank	16GB	Not supported with single processor	Not supported with single processor	RDIMM: 192 GB NVDIMM-N: 16 GB	RDIMM: 384 GB NVDIMM-N: 192 GB

Networking Options

The PowerEdge R740 system supports up to four Network Interface Controller (NIC) ports that are integrated on the network daughter card (NDC), and are available in the following congurations:

Four RJ-45 ports that support 10, 100 and 1000 Mbps
Four RJ-45 ports that support 100 M, 1 G and 10 Gbps
Four RJ-45 ports, where two ports support maximum of 10 G and the other two ports maximum of 1 G
Two RJ-45 ports that support up to 1 Gbps and 2 SFP+ ports that support up to 10 Gbps
Four SFP+ ports that support up to 10 Gbps
Two SFP28 ports that support up to 25 Gbps
NOTE: You can install up to eight PCIe add-on NIC cards.

Image of the Network mezzanine card slot for the Dell R730xd Rack Server from Dell.

Storage Controller Options

Class	PERC
Internal	S140 (SW RAID) PERC H330, H730P, H740P, HBA330
External	PERC H840 12Gbps SAS HBA

Image of the Storage Controller Mini-PERC on the Dell R740 Rack Server.

GPU Kit Options

The GPU R740 Rules:

Ensure that both the processors are installed.
The processor must use a GPU kit low-profile heat sink module
All GPUs must be of the same type and model.
You can install up to three double-wide or six single-wide GPUs.
The filler bracket on the GPU air shroud must be removed before installing the GPU.
Ensure that high-performance fans, and GPU air shroud are installed.
When using systems with GPU, ensure that you install PSUs with 1100 W or higher, and set the PSU configuration to non-redundant mode.
Generally, any GPU that is greater than 75 W requires a power cable. GPUs with 75 W or less does not require a power cable.

The GPU enablement kit includes:

GPU air shroud
Mylar
Riser 3A or 3B
GPU cable for riser 3A or 3B
GPU cable for riser 2A or 2E
Riser 2A or 2E
Riser 1A or 1D
GPU cable for riser 1A or 1D
Two 1U processor and heat sink modules and two CPU clips
Six high performance cooling fans

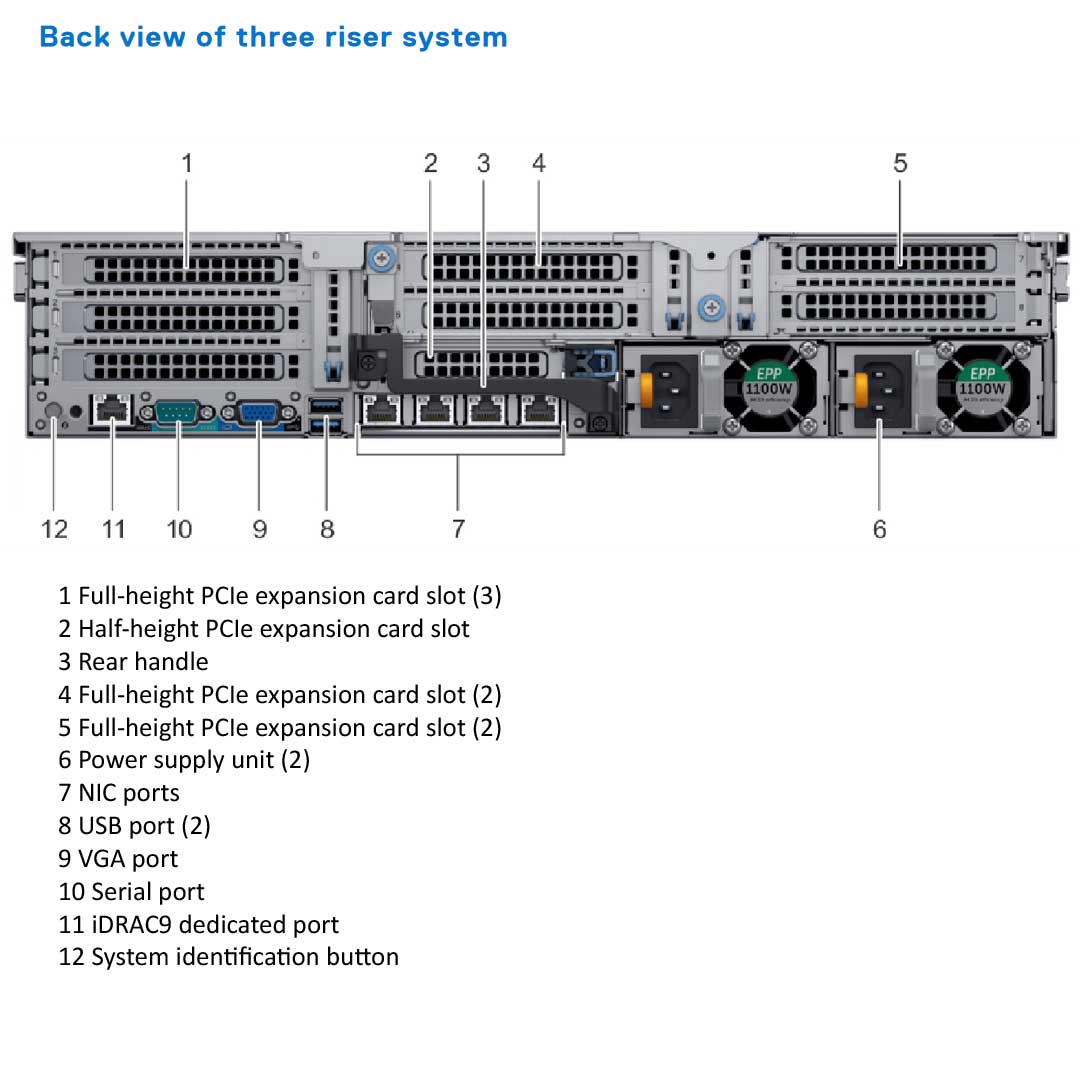

PCI Expansion Options

Riser configuration and supported risers	Slot description	PCIe slots on riser 1 (Height and length)	Processor connection	PCIe slots on riser 2 (Height and length)	Processor connection	PCIe slots on riser 3 (Height and length)	Processor connection
Riser configuration 0 (No riser)	No PCIe slots (only rear storage)	N/A	N/A	N/A	N/A	N/A	N/A
Riser configuration 1 (1B+2 B)	Four x8 slots	Slot 1: x8 full-height, full length	Processor 1	Slot 4: x8 low profile, half length	Processor 1	N/A	N/A
		Slot 2: x8 full-height, full length	Processor 1
		Slot 3: x8 full-height, half length	Processor 1
Riser configuration 2 (1B+2C)	Three x8 and one x16 slots	Slot 1: x8 full-height, full length	Processor 1	Slot 4: x16 low profile, half length	Processor 2	N/A	N/A
		Slot 2: x8 full-height, full length	Processor 1
		Slot 3: x8 full-height, half length	Processor 1
Riser configuration 3 (1A+2A)	Two x8 and three x16 slots	Slot 1: x16 full-height, full length	Processor 1	Slot 4: x16 full-height, full length	Processor 2	N/A	N/A
		N/A	N/A	Slot 5: x8 full-height, full length	Processor 2
		Slot 3: x16 full-height, half length	Processor 1	Slot 6: x8 low profile, half length	Processor 1
Riser configuration 4 (1A+2A+3A)	Three x8 and four x16 slots	Slot 1: x16 full-height, full length	Processor 1	Slot 4: x16 full-height, full length	Processor 2	Slot 7: x8 full-height, full length	Processor 2
		N/A	N/A	Slot 5: x8 full-height, full length	Processor 2	Slot 8: x16 full-height, full length	Processor 2
		Slot 3: x16 full-height, half length	Processor 1	Slot 6: x8 low profile, half length	Processor 1	Slot 8: x16 full-height, full length	Processor 2
Riser configuration 15 (1A+2E+3B)	Three x8 and four x16 slots	Slot 1: x16 full-height, full length	Processor 1	Slot 4: x16 full-height, full length	Processor 2	Slot 7: x8 full-height, full length	Processor 2
		N/A	N/A	Slot 5: x8 full-height, full length	Processor 2	Slot 8: x16 full-height, full length	Processor 2
		Slot 3: x16 full-height, half length	Processor 1	Slot 6: x8 low profile, half length	Processor 1	Slot 8: x16 full-height, full length	Processor 2
Riser configuration 5 (1B+2A+3A)	Six x8 and two x16 slots	Slot 1: x8 full-height, full length	Processor 1	Slot 4: x16 full-height, full length	Processor 2	Slot 7: x8 full-height, full length	Processor 2
		Slot 2: x8 full-height, full length	Processor 1	Slot 5: x8 full-height, full length	Processor 2	Slot 8: x16 full-height, full length	Processor 2
		Slot 3: x8 full-height, half length	Processor 1	Slot 6: x8 low profile, half length	Processor 1	Slot 8: x16 full-height, full length	Processor 2
Riser configuration 6 (1D+2A+3A)	Five x8 and three x16 slots	Slot1: x16 full-height, full length	Processor 1	Slot 4: x16 full-height, full length	Processor 2	Slot 7: x8 full-height, full length	Processor 2
		Slot 2: x8 full-height, full length	Processor 1	Slot 5: x8 full-height, full length	Processor 2	Slot 8: x16 full-height, full length	Processor 2
		Slot 3: x8 full-height, half length	Processor 1	Slot 6: x8 low profile, half length	Processor 1	Slot 8: x16 full-height, full length	Processor 2
Riser configuration 16 (1D+2E+3B)	Five x8 and three x16 slots	Slot1: x16 full-height, full length	Processor 1	Slot 4: x16 full-height, full length	Processor 2	Slot 7: x8 full-height, full length	Processor 2
		Slot 2: x8 full-height, full length	Processor 1	Slot 5: x8 full-height, full length	Processor 2	Slot 8: x16 full-height, full length	Processor 2
		Slot 3: x8 full-height, half length	Processor 1	Slot 6: x8 low profile, half length	Processor 1	Slot 8: x16 full-height, full length	Processor 2

Boot Options

The BOSS is recommended for non-virtualized operating systems. Virtualized operating systems are best supported by the IDSDM

Image of the Dell PowerEdge R440 IDSDM Card

IDSDM or vFlash card

The IDSDM with vFlash module has a dedicated slot at the back of the system chassis. This is a Dell EMC-proprietary PCIe x1 slot that uses a USB 3.0 interface to host. In the PowerEdge R440 systems, the IDSDM and vFlash card size changes from SD to microSD and the supported capacity for IDSDM microSD cards are 16 GB, 32 GB, or 64 GB, while for vFlash the capacity is 16 GB only. The write-protect switch is built onboard on the IDSDM module.

Image of the Dell PowerEdge R440 BOSS Card

Boot Optimized Storage Subsystem (BOSS)

The Boot Optimized Storage Subsystem (BOSS) is an alternative, high speed location to install the operating system. This ensures that the drive based storage is not used by the operating system. BOSS is a simple RAID solution card designed specifically for booting the system's operating system, which supports up to two 6 Gbps M.2 SATA drives. This card has a x8 connector using PCIe gen 2.0 x2 lanes, available only in the low-profile and half-height form factor

Power & Dimensions

Power

PSU	Class	Frequency
495 W AC	Platinum	50/60 Hz
750 W AC	Platinum	50/60 Hz
750 W AC	Titanium	50/60 Hz
1100 W AC	Platinum	50/60 Hz
1100 W DC	N/A	N/A
1600 W AC	Platinum	50/60 Hz
2000 W AC	Platinum	50/60 Hz
2400 W AC	Platinum	50/60 Hz

Dimensions & Weight

Length: 741.34 mm (29.58")
Width: 482.0 mm (18.98")
Height: 86.8 mm (3.42")
Weight:
- 2.5" | 26.3 kg (57.98 lb)
- 3.5" | 28.6 kg (63.05 lb)

Features	Technical specification
Processor	Up to two 2nd Generation Intel® Xeon® Scalable processors, up to 28 cores per processor
Memory	24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ DC persistent memory PMem, 6.14TB max (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only
Storage controllers	Internal Controllers: PERC H330, H730P, H740P, HBA330 External Controllers: H840, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module
Drive bays	Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 122.88TB or up to 8 x 3.5” SAS/SATA HDD max 128TB Optional DVD-ROM, DVD+RW
Power supplies	Titanium 750W, Platinum 495W, 750W, 750W 240VDC, 1100W, 1100W 380VDC 1600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancy Up to 6 hot plugs fans with full redundancy
Dimensions	Form factor: Rack (2U) Height: 86.8mm (3.4”) Width3: 434.0mm (17.08”) Depth3: 737.5mm (29.03”) Weight: 28.6kg (63lbs.)
Embedded management	iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish Quick Sync 2 wireless module (optional)
Bezel	Optional LCD bezel or security bezel
OpenManage Software	OpenManage Enterprise OpenManage Mobile OpenManage Power Manager
Integrations and connections	Integrations: Microsoft System Center VMware vCenter BMC Software Red Hat Ansible Modules	Connections: IBM Tivoli® Netcool/OMNIbus Micro Focus Operations Manager I Nagios® Core Nagios® XI
Security	TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot Silicon Root of Trust Secure erase System Lockdown (requires iDRAC Enterprise or Datacenter)
I/O & Ports	Network Options: 4 x 1GbE 2 x 10GbE + 2 x 1GbE 4 x 10GbE 2 x 25GbE Front Ports: 1 x Dedicated iDRAC direct USB 2 x USB 2.0 1 x USB 3.0 (optional) 1 x VGA	Rear Ports: 1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x VGA Video card: 2 x VGA PCIe: up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
Accelerator options	Up to (3) 300W GPUs Up to (6) 150W GPUs Up to (3) double-width FPGAs Up to (4) single-width FPGAs
Supported operating systems	Canonical® Ubuntu® LTS Citrix® XenServer Microsoft Windows Server® LTSC with Hyper-V Oracle® Linux Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi

Feature	PowerEdge R740/R740xd	PowerEdge R730/R730xd
Processor	2 x 2nd Generation Intel® Xeon® Scalable processor family	Intel® Xeon® processor E5-2600 product family
CPU interconnect	Intel Ultra Path Interconnect (UPI)	Intel QuickPath Interconnect (QPI)
Memory	● 24 x DDR4 RDIMM, LRDIMM ● 12 x NVDIMM ● 12 x DCPMM (Intel® Optane™ DC persistent memory)	24 x DDR4 RDIMM, LRDIMM
Disk Drives	● 3.5 -inch or 2.5 -inch 12Gb/s SAS, 6Gb/s SATA ● Up to 24 x NVMe	● 3.5 -inch, 2.5 -inch or 1.8 -inch 12Gb/s SAS, 6Gb/s SATA ● 4 x PCIe SSD with common slot
Storage Controllers	Adapters: HBA330, HBA350i, H330(R740 only), H350(R740 only), H730P, H740P, H840, 12G SAS HBA, HBA355e, H750 Mini Mono: HBA330, H330(R740 only), H730P, H740P, H350 (R740 only), HBA350i (R740xd only) SW RAID: S140	Adapters: HBA330, H330, H730, H730P, H830 (ext) Mini Mono: HBA330, H330, H730, H730P SW RAID: S130
PCIe Slots	Max 8 x PCIe 3.0	Max 7 x PCIe 3.0 or 6 x PCIe 3.0
rNDC	4x 1GbE, 4x 10GbE, 2x 10GbE + 2x 1GbE, or 2x 25GbE	4x 1GbE, 4x 10GbE, or 2x 10GbE + 2x 1GbE
USB Ports	Front: ● 1 x Dedicated iDRAC direct USB ● 2 x USB 2.0 ● 1 x USB 3.0 (optional only for R740) ● 1 x Video Rear: ● 1 x Dedicated iDRAC network port ● 1 x Serial ● 2 x USB 3.0 ● 1 x Video	Front: two ports (USB 2.0), one managed port Rear: two ports (USB 3.0) Internal: one port (USB 3.0)
Rack Height	2U	2U
Power Supplies	● AC (Platinum): 495W, 750W, 1100W, 1600W, 2000W, 2400W ● AC (Titanium): 750W, 1600W, 2600W ● DC: 1100W ● DC: 750 W Mixed Mode Platinum (for China only) ● AC: 750 W Mixed Mode Platinum ● Mixed mode/HVDC: 750W, 1100W	● AC: 495W, 750W, 1100W ● DC: 750W, 1100W
System Management	Lifecycle Controller 3.x, OpenManage, QuickSync2.0, OMPC3, Digital License Key, iDRAC Direct(dedicated micro-USB port), Easy Restore, vFlash	Lifecycle Controller 3.x, OpenManage, QuickSync1.0, PM3, Digital License Key, iDRAC8, iDRAC Direct( dedicated micro-USB port), Easy Restore, vFlash
Internal GPU	● 3 x 300W (double-width) or 6 x 150W (single-width) NOTE: Only supports up to 2 x NVIDIA M10 GPUs.	● 2 x 300W (double-wide) or 4 x 150W (single-wide) ● Not supported on R730xd ● FPGAs not supported on the R730/xd.
Availability	Hot-plug Redundant Cooling Hot-plug Drives Hot-plug Redundant Power Supplies Boot Optimized Storage Subsystem (BOSS) IDSDM	Hot-plug Drives Hot-plug Redundant Cooling Hot-plug Redundant Power Supplies IDSDM
