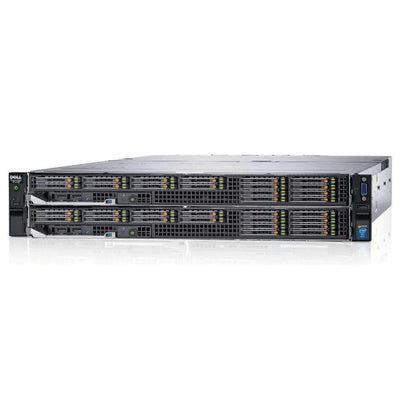

Dell PowerEdge FX2s 2-Bay Enclosure Chassis


Price: Request a Quote

Brand:
MPN:
DPE-FX2s-2BAY-Chassis
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PowerEdge FX2s 2-Bay Enclosure Chassis

Quick Specs

Form Factor:

2U rack server

Processor:

(PER BLADE)

Memory:

(PER BLADE)

Storage:

(PER BLADE)

Rear Storage:

None

PCIe Slots:

8 PCIe 3.0 FX2s Only

PowerEdge FC830:

Full-width: up to 2 FC830 per FX2s chassis

PowerEdge FC640:

Half-width: up to 4 FC640 per FX2s chassis

PowerEdge FC630:

Half-width: up to 4 FC630 per FX2s chassis

PowerEdge FC430:

Quarter-width: up to 8 FC430 per FX2s chassis

PowerEdge FD332:

Half-width: up to 4 FD332 per FX2s chassis

This is the enclosure, each Blade is a separate CTO you must configure.

Dell PowerEdge FX2s Architecture Server Node Options

The Dell FX2s is a new 2U rack-based hybrid computing platform that provides a greater dimension of functional flexibility along with a higher density of processing power. It combines the density of blades with the advantages of rack-based systems.

The FX2 chassis has two versions:
  • PowerEdge FX2s: “switched” configuration supporting up to eight low-profile PCIe 3.0 expansion slots
  • PowerEdge FX2: lower-cost “unswitched” configuration that does not offer expansion slots.
    PowerEdge FX2 does not support storage sleds.
    PowerEdge FX2 does not support PCIe slots.
Supported Chassis Configurations
PCIe slot mapping
PCIe slot reassignment feature

The PCIe slot reassignment feature enables you to reassign the PCIe slots from compute sleds in the lower bays to the compute sleds in the upper bays. The PCIe slot reassignment feature applies to enclosure configurations with or without storage sleds. You can enable or disable the PCIe reassignment option by using the CMC web interface, CMC WSMAN, or RACADM.

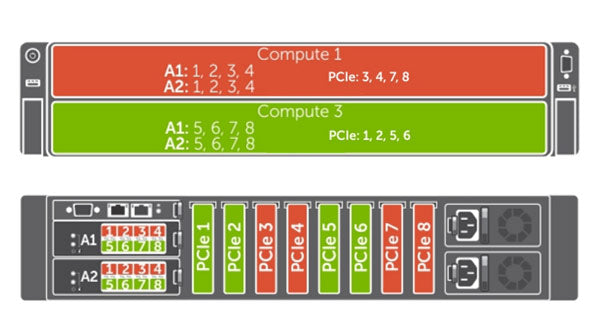

  • Two-bay chassis

    Each full-width compute sled is mapped to four PCIe slots.

  • Four-bay chassis

    Each half-width compute sled is mapped to two PCIe slots.

  • Six-bay chassis

    Each quarter-width compute sled is mapped to one PCIe slot. Each half-width compute sled is mapped to two PCIe slots.

  • Eight-bay chassis

    Each quarter-width compute sled is mapped to one PCIe slot.

FD332 Storage Sled PCIe Mapping

In PowerEdge FX2s enclosure configurations that support storage sleds mapped to compute sleds, the PCIe slots map only to the compute sleds. When storage sleds are installed in the enclosure, the PCIe slots mapped to these bays are automatically reassigned to the compute sleds installed in the upper bays of the enclosure.

Supported PowerEdge FN I/O Aggregators Options
1GE Pass-Through

IOA - Eth Version
Flex Network I/O Aggregator 1GE, 8 port, RJ45
Name: Dell PowerEdge FX2 8 Port 1GbE Pass-through Module

View Module


10GE Pass-Through

IOA - SFP+ Version
Flex Network I/O Aggregator 10GE, 8 port, SFP+
Name: Dell PowerEdge FX2 8 Port 10GbE Pass-through Module

View Module

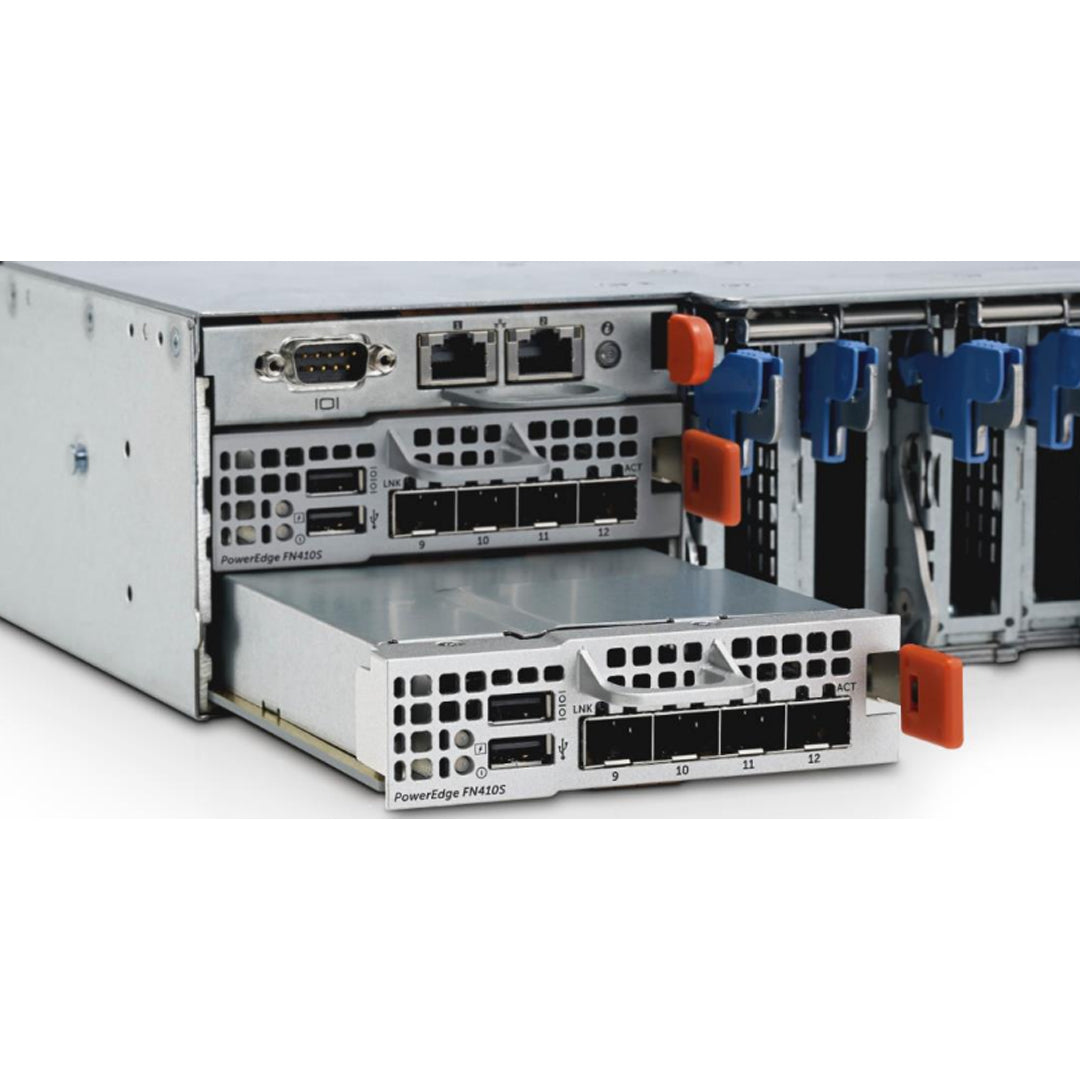

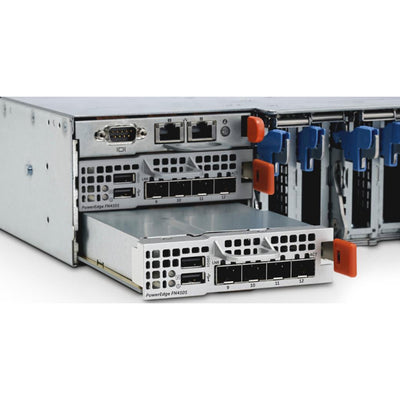

FN 410S

IOA - SFP+ Version
Flex Network I/O Aggregator 10GE, 4 port, SFP+
Official Name: Dell PowerEdge FN 410S I/O Aggregator

View Module


FN 410T

IOA - 10G Base-T Version
Flex Network I/O Aggregator 10GE, 4 port, 10GE Base-T
Official Name: Dell PowerEdge FN 410T I/O Aggregator

View Module


FN 2210s 4-port

IOA - Combo (2 Ethernet + 2 FC) Version
Flex Network I/O Aggregator 10GE, 2 Eth+2FC port, SFP+
Official Name: Dell PowerEdge FN 2210S I/O Aggregator

View Module


FX2s Overview

Enterprise computing needs are dynamically changing as business and technology leaders embrace strategic computing innovations to create opportunities and gain competitive advantage. The increasing demand for cloud computing, the expansion of mobile use, the widespread adoption of big data techniques, and the rise of software-defined infrastructures are driving IT decision-makers to evaluate fresh approaches in the data center.

IT organizations are looking to adopt the latest application workload paradigms that industry leaders are pioneering. Wherever possible, they want to gain the economic advantages that scale-out technologies have achieved for public cloud providers.

Unfortunately, most enterprises lack the agility to rapidly support IT transformation, which hampers their ability to increase agility, scale for improved business results and simplify operations.


Scalable Architecture

To address the challenges introduced by the latest computing trends as well as to reduce reliance on legacy, siloed equipment and operations, the PowerEdge FX converged architecture is designed to give enterprises the flexibility to tailor their IT infrastructure to specific workloads — and the ability to scale and adapt that infrastructure as needs change over time with zero-growth form-factor options. PowerEdge FX helps deliver the agility, flexibility and secure foundation that businesses need to simplify their operations and increase their business results.


Innovative modular design

The PowerEdge FX architecture is based on a modular, concept that makes it easy for enterprises to focus processing resources precisely where they are needed. This concept is realized through the PowerEdge FX2 chassis, the foundation of the FX architecture. The FX2 is a 2U platform that combines the density and efficiencies of blades with the simplicity and cost advantages of rack-based systems. The FX2 hosts flexible blocks of server and storage resources while providing outstanding efficiencies through shared power, networking, I/O and management within the chassis itself. Although each server block has some local storage, the FX architecture allows servers to access multiple types of storage, such as a centralized storage area network (SAN) or direct-attached storage (DAS) in FX storage blocks. Software-defined storage environments including VMware vSAN can readily benefit with the FX2 high-density storage elements.

The PowerEdge FX architecture lets data centers easily support an IT-as-a-service approach because it is specifically designed to fit the scale-out model that this approach embraces. In data centers of all sizes, deployments incorporating the FX architecture are designed to be right-sized, efficient and cost effective.


Easy workload optimization

The ultimate power of the FX architecture lies in the flexibility it gives IT professionals when they are designing and constructing their infrastructure. A key tenet of the PowerEdge FX architecture is ease of workload optimization. By providing a wide
