Price: Configure for Price

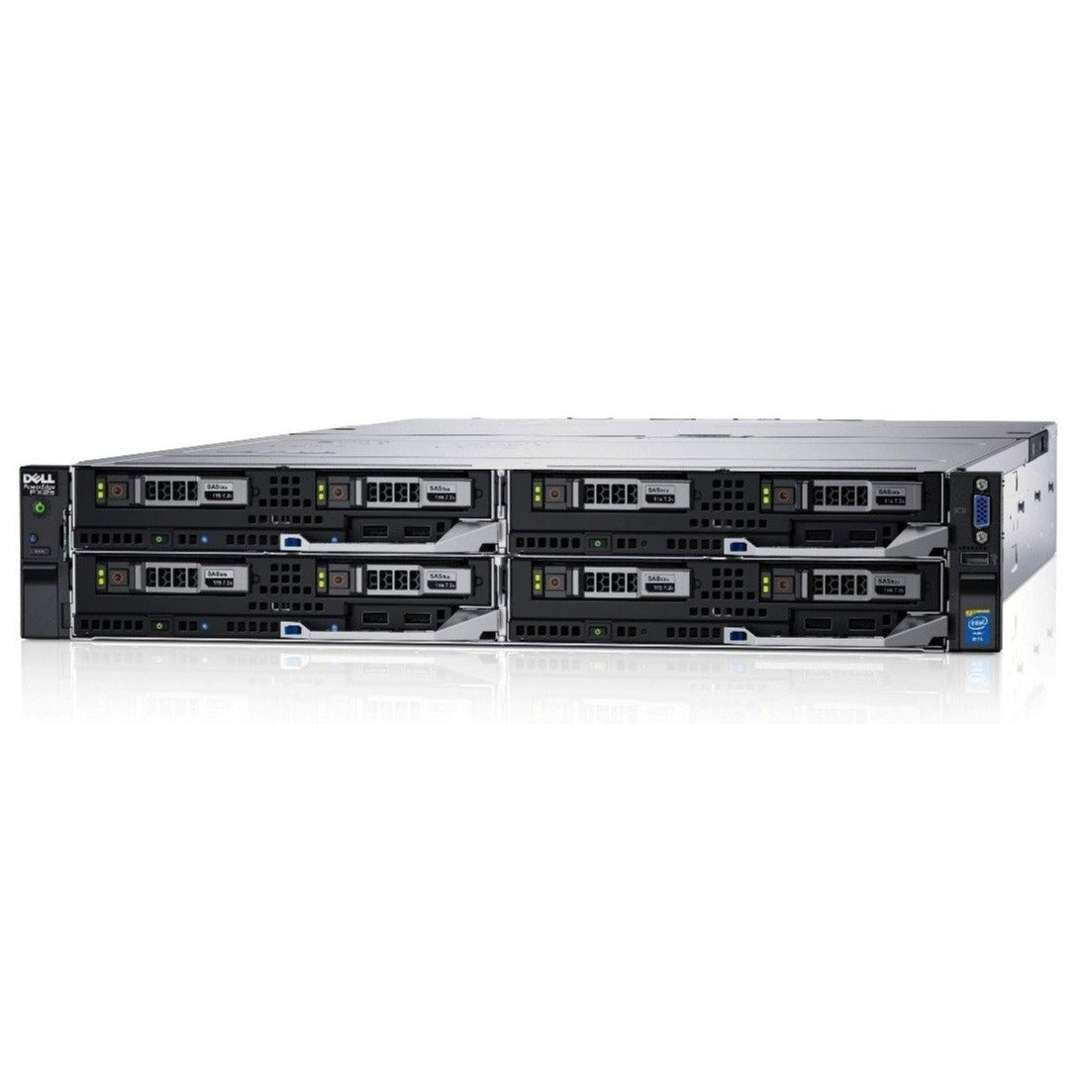

The Dell PowerEdge FX2s enclosure is the uniquely small modular foundation for the PowerEdge FX architecture, an extremely flexible and efficient platform for building an IT infrastructure that precisely fits your computing needs.
The PowerEdge FX2s is a 2U hybrid rack-based computing platform that combines the density and efficiencies of blades with the simplicity and cost benefits of rack-based systems.
The FX architecture’s innovative modular design supports IT resource building blocks of varying sizes (compute, storage, networking and management) so data centers have greater flexibility to construct their infrastructures.

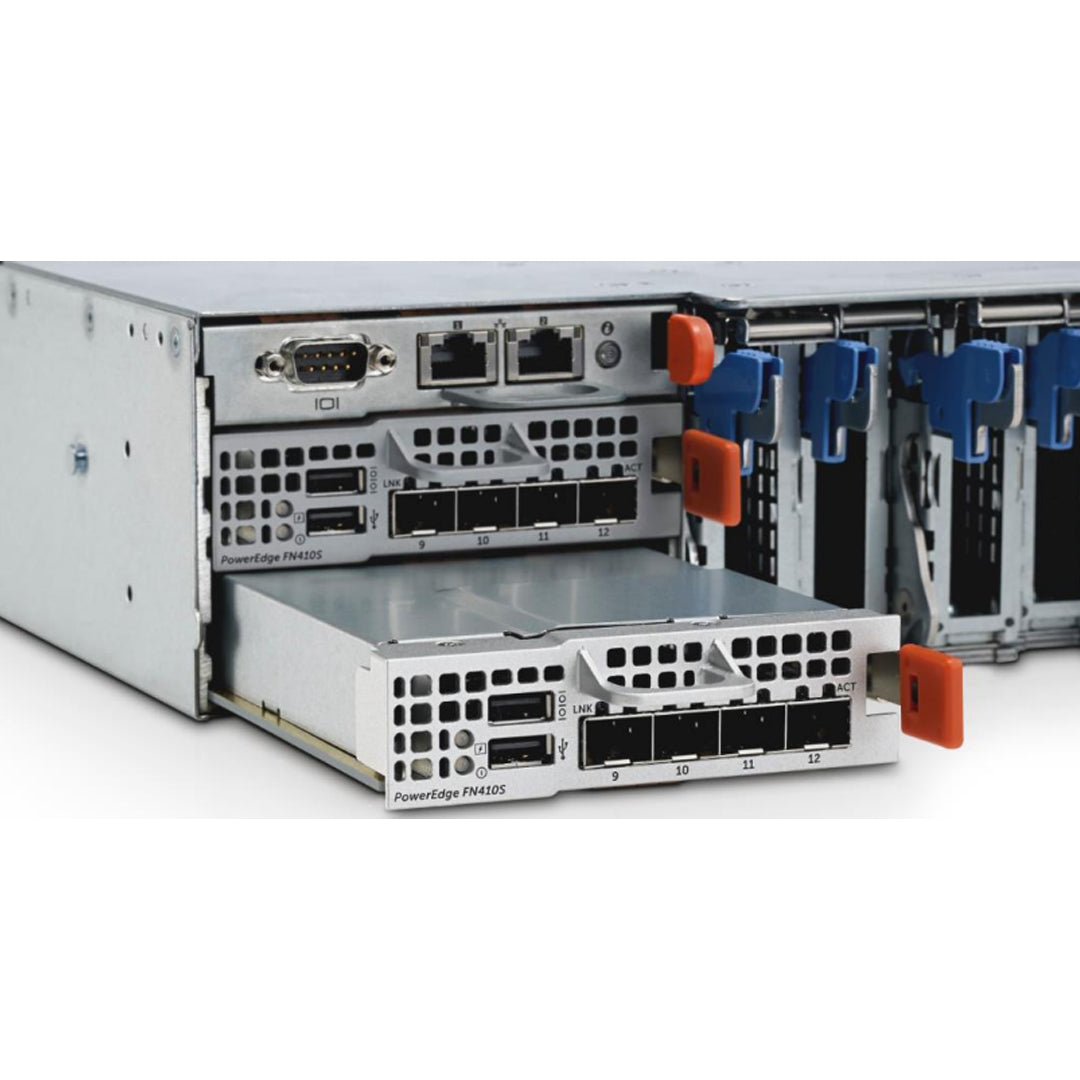

The FN I/O Module — purpose built for the FX2s — delivers choice for simplified network deployment and management, optimizing FX2s performance and enabling plug-and-play LAN/SAN convergence.
FX2s 2 bay

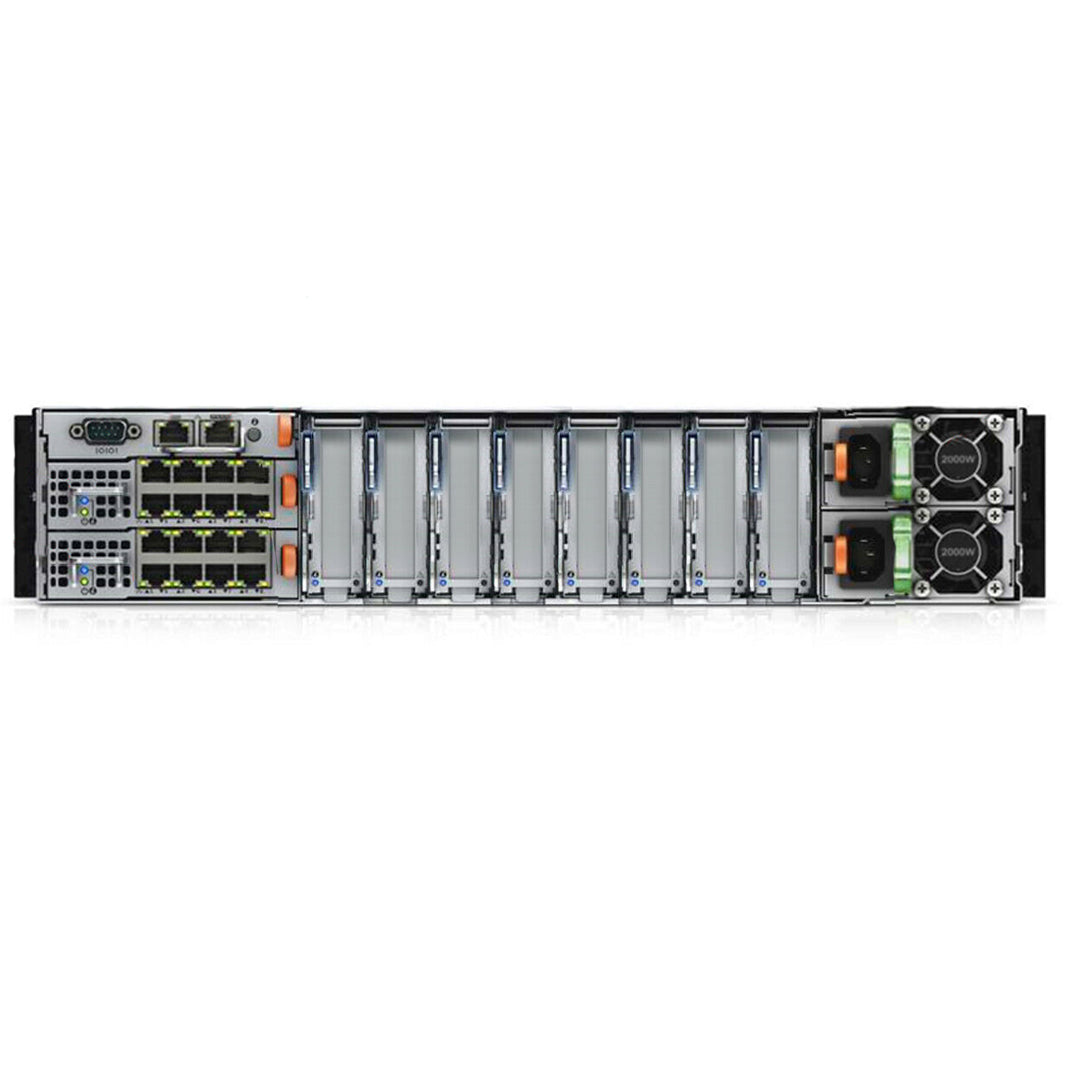

The FX2s enclosure allows servers and storage to share power, cooling, management and networking. It houses redundant power supply units (2000W, 1600W or 1100W) and eight cooling fans. The FX2s’s compact flexible design, the FX2s lets you simply and efficiently add resources when and where you need them, so you can let demand and budget determine your level of investment.
The Dell OpenManage systems management portfolio simplifies and automates server lifecycle management — making IT operations more efficient and Dell servers the most productive, reliable and cost effective. Dell’s agent-free integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller makes server deployment, configuration and updates automated and efficient. Using Chassis Management Controller (CMC), an embedded component that is part of every FX2s chassis, you’ll have the choice of managing server nodes individually or collectively via a browser-based interface.
| Feature | Technical specification |
|---|---|
| Form factor | 2U |
| Dimensions | H: 8.68 cm (3.41 in) W: 43.35 cm (17.06 in) without rack ears; 48.19 cm (18.97 in) with rack ears D: 85.16 cm (33.52 in) |
| Server node options | PowerEdge FC830: Full-width: up to 2 FC830 per FX2 chassis PowerEdge FC630: Half-width: up to 4 FC630 per FX2 chassis PowerEdge FC430: Quarter-width: up to 8 FC430 per FX2 chassis PowerEdge FM120x4: Half-width: up to 4 FM120 per FX2 chassis PowerEdge FD332 storage block: Half-width: up to 3 FD332 per FX2 chassis for support of up to 16 x SFF 2.5" storage devices |
| Power supplies | Hot-plug PSUs: 2000W, 1600W or 1100W AC in 1+1 redundant or 2+0 non-redundant configurations |
| Cooling | 8 hot-swappable fans provide cooling to the I/O components in the system |
| Communications | 2 pass-through module or choice of 3 FN I/O Modules • Dell PowerEdge FN410s 4-ports SFP+ provides 4 ports of SFP+ 10GbE connectivity. Supports optical and DAC cable media. • Dell PowerEdge FN410t 4-port 10Gb Base-T provides 4 ports of 10GBASE-T connectivity. Supports cost effective copper media up to 100 meters. • Dell PowerEdge FN2210s 4-port Combination Fibre Channel/Ethernet delivers up to 2 ports of 2/4/8Gbps Fibre Channel bandwidth (NPG mode and full fabric services and 2 ports of SFP+10GbE.) Also delivers up to 4 ports SFP+ 10GbE (with reboot). |
| I/O slots | FX2s configuration: Up to 8 x PCIe 3.0 I/O expansion slots (low profile/half-length) |
| Systems management | FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console • OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products • CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs • Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management |
 Spec Sheet | Technical Guide |
