Dell PERC HBA330 12Gb SAS HBA (NON-RAID)x8 PCI-e Low Profile | J7TNV

Brand:
MPN:
J7TNV
Type:
RAID Controllers
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Included

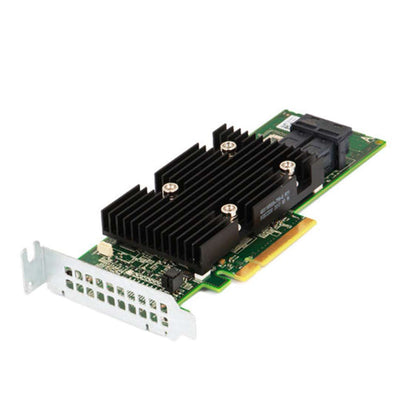

  • 1 x Dell HBA330+ 12Gb/s LP PCI-E x8 RAID Controller Host Bus Adapter Card J7TNV

Dell PowerEdge RAID Controller H330
Eight-port 12Gbps PCI Express RAID controller supporting 3Gbps, 6Gbps and 12Gbps SAS, and 3Gbps and 6Gb/s SATA hard-disk or solid-state drives

Small to medium business owners can enjoy the latest RAID technology at affordable prices and low power consumption with the Dell PowerEdge RAID Controller (PERC) H330. Ideal for file, web, database and email servers, the PERC H330 delivers trusted Dell PERC reliability with minimal maintenance effort.

The PERC H330 entry-level controller card offers a straight forward solution that includes essential RAID levels and support for non-RAID (pass-through) configuration options. In addition, the card connects to SATA and SAS hard disk drives, and solid state drives, allowing for tiered storage that optimizes cost and performance. Physical disk power management (Dimmer Switch) technology provides additional cost savings by managing power consumption for idle, unconfigured and configured drives. Dell's entry-level RAID controllers cover the spectrum of tiered storage requirements for cost-sensitive applications that require robust data protection.

12Gbps SAS performance advantage
12Gbps SAS is designed for backward compatibility with 6Gbps SAS and 6Gbps SATA hard drives. Regardless of drive speed, 12Gbps PowerEdge RAID controllers deliver significant performance improvements in both read and write applications compared to their 6Gbps predecessors.

Intuitive RAID management Managing the PERC H330 is easy using the integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller. Without having to deploy an agent, IT admins can configure, deploy, update and monitor the PERC H330 via the GUI or through Dell's CLI (known as RACADM). Additionally, Dell's one-to-many OpenManage Essentials console allows a user to perform storage operations across multiple servers, including RAID controllers as well as physical disks in the PowerEdge system and external enclosures.

Benefits include:
  • iDRAC automatically creates and executes jobs for each storage configuration operation
  • Customer can reboot the host OS automatically or schedule reboot for a later date.
  • PERC H330 supports real-time RAID monitoring and hardware inventory.
iDRAC incorporates Dell Open Manage Storage Services to provide the tools to efficiently manage PERC products, including a pre-boot setup utility and a full spectrum of online RAID management utilities. This suite of applications allows administrators to adjust SAS or SATA topology views from the system host down to the logical and physical drive level. Extending to enterprise deployments, these tools can scale to easily configure, monitor and manage RAID and JBOD volumes locally or over the LAN network.

Specification
Solution Provided
  • Low cost, entry RAID and non-RAID (passthrough) solution for high-density servers (1U or 2U) and workstations with the flexibility to use both SATA and SAS HDDs, SSDs, and pass-through drive configurations
Physical dimensions
  • 167.6 mm (6.6 in) x 64.4 mm (2.5 in) (low profile)
Connectors
  • Two x4 internal mini-SAS HD SFF8644
Maximum number of physical devices
  • Non-RAID: up to 128
  • RAID 0: 32 per volume
  • RAID 1: 2 per volume plus hot spare
  • RAID 5: 32 per volume
  • RAID 10: 32 per volume
  • RAID 50: 32 per volume
Host bus type
  • 8-lane, PCI Express 3.0 compliant
Data transfer rates
  • Up to 12Gb/s per port
SAS controller
  • LSI SAS3008
Key RAID and data protection features
  • RAID levels 0, 1, 5
  • RAID spans 10, 50
  • Selectable logical drive as boot drive
  • Consistency check
  • Support for TRIM/UNMAP commands for SAS/SATA SSDs
  • Native command queuing
  • Staggered spin-up for SATA drives
  • Hot-plug support
  • Global hot-spare support
  • Online Capacity Expansion (OCE)
  • Online RAID Level Migration (RLM)
  • Automatic rebuild of hot-spare drives; Auto resume during array rebuild; Greater than 2TB logical drive support
  • Soft bad block management
  • Error recovery support
  • S.M.A.R.T. support
  • Physical disk power management (Dimmer Switch)
  • 4K Native Sector Support
RAID management
  • CTRL-R
  • Dell OpenManage Storage Services
  • PERC CLI
  • Additional management:
    • UEFI (HII)
    • CEM
Environments
  • Operating:
    • 0°C to 65°C
    • 5 to 90% non-condensing
  • Storage:
    • -45°C to 105°C
    • 5 to 90% non-condensing
PCI card type
  • 3.3V add-in card
PCI voltage
  • +12V ±10%
LED indicators
  • Internal
  • Activity/Fault per x4 port: Heartbeat
Operating systems
  • Microsoft Windows Server 2008 R2 SP1
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R1 & R2
  • Red Hat Enterprise Linux 5.8
  • Red Hat Enterprise Linux 6.5
  • SUSE Linux Enterprise Server 10 SP4
  • SUSE Linux Enterprise Server 11 SP3
  • Virtualization options:
  • VMware ESXi 5.1
  • VMware 6.0
