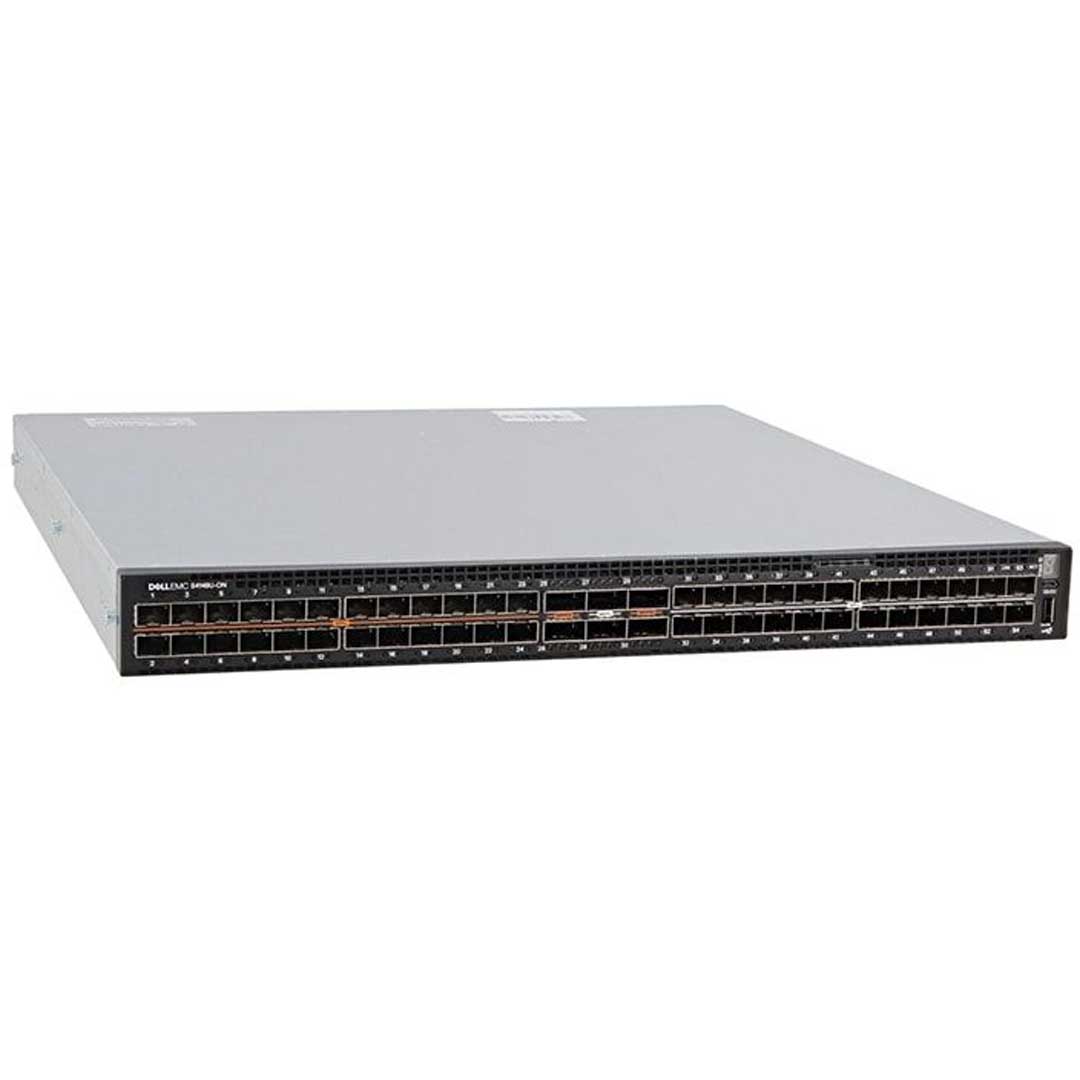

Dell EMC PowerSwitch S4148U-ON 48-Port 460W (ONIE) Switch

Dell EMC PowerSwitch S4148U-ON Switch

The Dell EMC PowerSwitch S4148U-ON Switch is a versatile and high-performance network switch that provides reliable and efficient connectivity for modern data center environments. With 24 10G unified Fibre Channel and Ethernet SFP+ ports, 24 10G Ethernet SFP+ ports, two 40G Ethernet QSFP+ ports, and four 100G unified Fibre Channel and Ethernet QSFP28 ports, this switch offers exceptional flexibility and scalability for your network needs.

One of the key features of the PowerSwitch S4148U-ON is its high bandwidth capabilities. The switch is capable of delivering up to 1.92 Tbps of throughput, ensuring that your network is capable of handling high traffic loads with ease. It is designed to support the latest network protocols, including 25GbE and 100GbE, ensuring that your network is ready for the future.

The PowerSwitch S4148U-ON is also built to provide superior reliability and uptime. It features advanced power management capabilities that allow you to monitor and control your power usage, ensuring that your network is always operating at peak efficiency. The switch is also designed to operate with a low power consumption, which can help to reduce your overall energy costs.

Another key feature of the PowerSwitch S4148U-ON is its support for both Fibre Channel and Ethernet protocols. The switch features both unified Fibre Channel and Ethernet ports, making it a great choice for organizations that require both protocols for their storage and networking needs.

S4148U-ON:

Open Network Install Environment (ONIE)

24 fixed unified Fibre channel or Ethernet SFP+ optical ports

24 fixed Ethernet SFP+ optical ports

2 fixed Ethernet QSFP+ optical ports

4 fixed unified Fibre channel or Ethernet QSFP28 optical ports

460W Max Power Consumption

300W Typical Operating Power

4 Hot-Swappable Fans

S4148U-ON Configurations:

24 x 10G + 24 x FC8 + 4 x 100G

24 x 10G + 24 x FC16 + 4 x 100GAll FC16 are oversubscribed

24 x 10G + 12 x FC16 + 4 x 100GAll FC16 linerate

24 x 10G + 40 x FC8 + 2 x 40G

24 x 10G + 40 x FC1624 out of 40 FC16 are oversubscribed

24 x 10G + 28 x FC16All FC16 linerate

24 x 10G + 12 x FC16 + 16 x FC32All FC32 are oversubscribed

48 x 10G + 4 X 100G

48 x 10G + 6 x 40G

48 x 10G + 8 x 50G

48 x 10G + 16 x 25G

72 x 10G

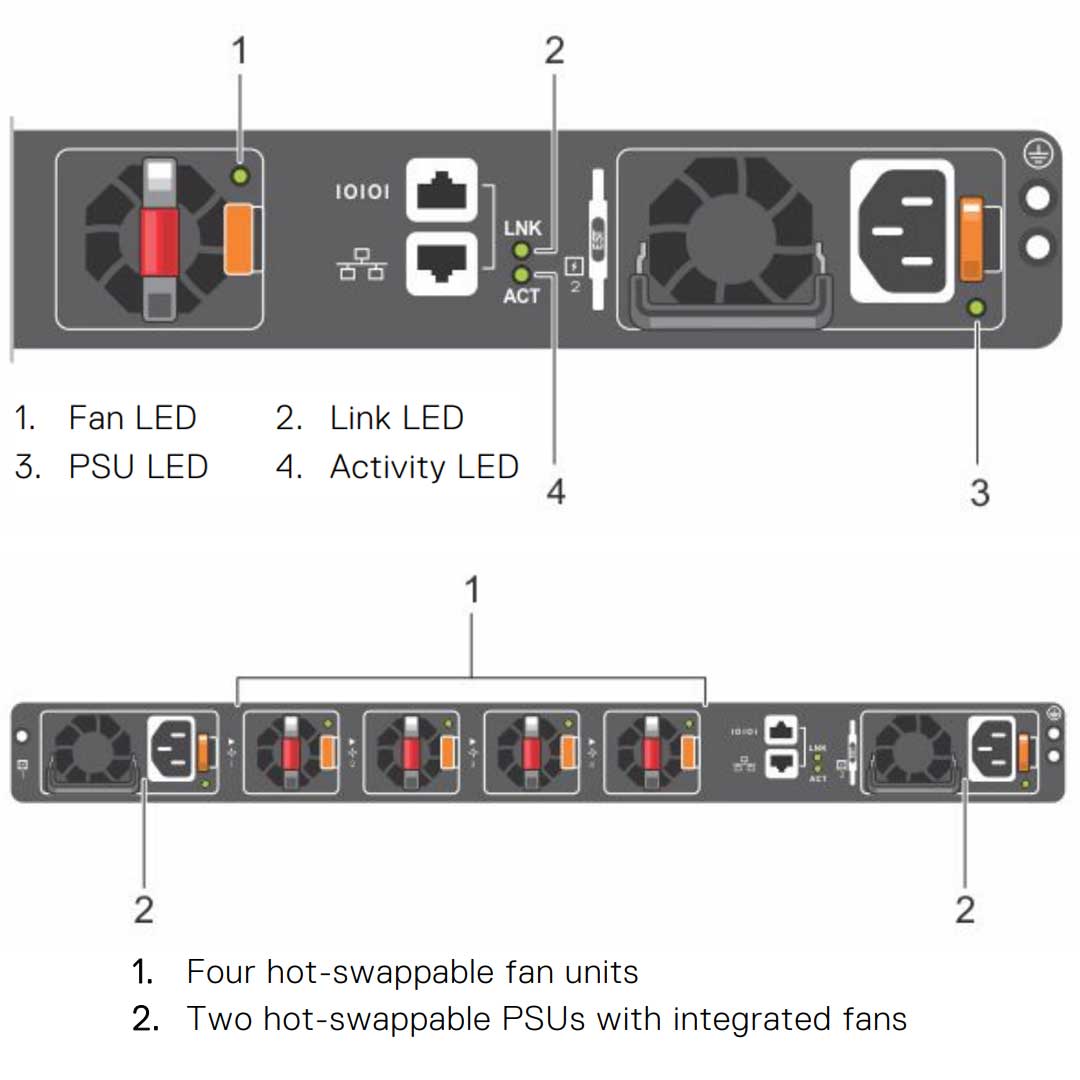

S4148U-ON AC or DC Normal airflow

4 Hot-Swappable Fans with airflow from the I/O side to the PSU side—normal

AC power supply with airflow from the I/O side to the PSU side—normal

DC power supply with airflow from the I/O side to the PSU side—normal

S4148U-ON AC or DC Reverse airflow

4 Hot-Swappable Fan with airflow from the PSU side to the I/O side—reverse

AC power supply with airflow from the PSU side to the I/O side—reverse

DC power supply with airflow from the PSU side to the I/O side—reverse

Key Features with Dell EMC SmartFabric OS10

Consistent DevOps framework across compute, storage and networking elements

Standard networking features, interfaces and scripting functions for legacy network operations integration

Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)

Pervasive, unrestricted developer environment via Control Plane Services (CPS)

OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features

OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.

Leverage common open source tools and best practices (data models, commit rollbacks)

Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities

Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR

Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)

Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)

Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV

	S4112F-ON	S4112T-ON	S4128F-ON	S4128T-ON	S4148F-ON	S4148FE	S4148T-ON	S4148U
Ports	12xSFP+ 3xQSFP28	12x10GbT 3xQSFP28	28xSFP+ 2xQSFP28	28x10GbT 2x QSFP28	48xSFP+ 2xQSFP+ 4xQSFP28	48xSFP+ 2xQSFP+ 4xQSFP28	48x10GbT 2xQSFP+ 4xQSFP28	48xSFP+ 2xQSFP+ 4xQSFP28
Unified port	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Support
Max 10GbE density	24 (12 SFP+ and 12 via QSFP28 breakout)	24 (12 10GbT and 12 via QSFP28 breakout)	36 (28 SFP+ and 8 via QSFP28 breakout)	36 (28 10GbT and 8 via QSFP28 breakout)	72 (48 SFP+ and 24 via QSFP28 breakout)	72 (48 SFP+ and 24 via QSFP28 breakout)	72 (48 10GbT and 24 via QSFP28 breakout)	72 (48 SFP+ and 24 via QSFP28 breakout)
Max 25GbE density	12 via QSFP28 breakout	12 via QSFP28 breakout	8 via QSFP28 breakout	8 via QSFP28 breakout	16 via QSFP28 breakout	16 via QSFP28 breakout	16 via QSFP28 breakout	16 via QSFP28 breakout
Max 40GbE density	3	3	2	2	6	6	6	6
Max 50GbE density	6	6	4	4	8	8	8	8
Max 100GbE density	3	3	2	2	4	4	4	4
Max FC 8G/16G ports (oversubscribed)	0	0	0	0	0	0	0	40
Max FC 16G line rate	0	0	0	0	0	0	0	28
Max FC 32G ports (oversubscribed)	0	0	0	0	0	0	0	16
Max FC 32G line rate	0	0	0	0	0	0	0	8
Switching capacity	840Gbps	840Gbps	960Gbps	960Gbps	1.76Tbps	1.76Tbps	1.76Tbps	1.76Tbps
Throughput	630Mpps	630Mpps	720Mpps	720Mpps	1320Mpps	1320Mpps	1320Mpps	1320Mpps
LRM optics support	No	No	No	No	No	Yes	No	No
1588v2 PTP timing	No	No	No	No	Yes	Yes	Yes	Yes
Max power consumption	180W	200W	260W	300W	370W	400W	440W	460W
Typical operating power	90W	120W	160W	250W	200W	240W	320W	300W
Number of fan trays	Fixed	Fixed	4	4	4	4	4	4
Fans per fan tray	3	3	1	1	1	1	2	2
Weight	8.30lbs	8.45lbs	19.66 lbs (8.92 kg)	20.67 lbs (9.38 kg)	20.15 lbs (9.14 kg)	20.85 lbs (9.46 kg)	22.37 lbs (10.15 kg)	20.52 lbs (9.31 kg)
Max thermal output	614 BTU/h	682 BTU/h	886 BTU/h	1,023 BTU/h	1261 BTU/h	1,364 BTU/h	1,500 BTU/h	1,568 BTU/h

S4112F-ON

S4112T-ON

S4128F-ON

S4128T-ON

S4148F-ON

S4148FE

S4148T-ON

S4148U

Ports

12xSFP+
3xQSFP28

12x10GbT
3xQSFP28

28xSFP+
2xQSFP28

28x10GbT
2x QSFP28

48xSFP+
2xQSFP+
4xQSFP28

48x10GbT
2xQSFP+
4xQSFP28

48xSFP+
2xQSFP+
4xQSFP28

Unified port

N/A

Support

Max 10GbE density

24 (12 SFP+ and 12 via QSFP28 breakout)

24 (12 10GbT and 12 via QSFP28 breakout)

36 (28 SFP+ and 8 via QSFP28 breakout)

36 (28 10GbT and 8 via QSFP28 breakout)

72 (48 SFP+ and 24 via QSFP28 breakout)

72 (48 10GbT and 24 via QSFP28 breakout)

72 (48 SFP+ and 24 via QSFP28 breakout)

Max 25GbE density

12 via QSFP28 breakout

8 via QSFP28 breakout

16 via QSFP28 breakout

Max 40GbE density

Max 50GbE density

Max 100GbE density

Max FC 8G/16G ports (oversubscribed)

Max FC 16G line rate

Max FC 32G ports (oversubscribed)

Max FC 32G line rate

Switching capacity

840Gbps

960Gbps

1.76Tbps

Throughput

630Mpps

720Mpps

1320Mpps

LRM optics support

Yes

1588v2 PTP timing

Yes

Max power consumption

180W

200W

260W

300W

370W

400W

440W

460W

Typical operating power

90W

120W

160W

250W

200W

240W

320W

300W

Number of fan trays

Fixed

Fans per fan tray

Weight

8.30lbs

8.45lbs

19.66 lbs
(8.92 kg)

20.67 lbs
(9.38 kg)

20.15 lbs
(9.14 kg)

20.85 lbs
(9.46 kg)

22.37 lbs
(10.15 kg)

20.52 lbs
(9.31 kg)

Max thermal output

614 BTU/h

682 BTU/h

886 BTU/h

1,023 BTU/h

1261 BTU/h

1,364 BTU/h

1,500 BTU/h

1,568 BTU/h
