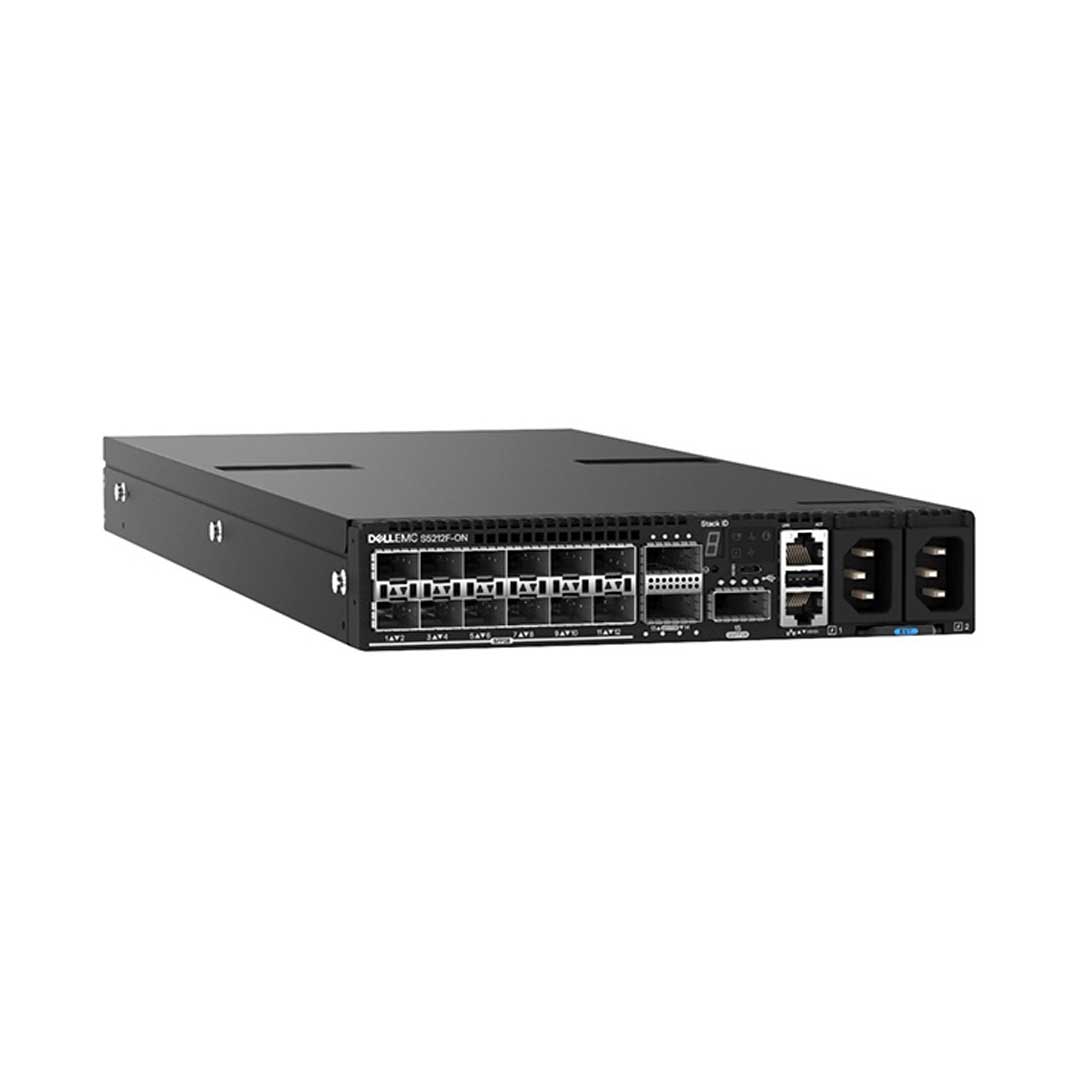

Dell EMC PowerSwitch S5212F-ON 12-Port 304W (ONIE) Switch

Dell EMC PowerSwitch S5212F-ON Switch

The S5212F-ON is a powerful and versatile network switch that is designed to meet the needs of modern data centers and enterprise networks. With its Open Network Install Environment (ONIE), the S5212F-ON can be easily integrated into your existing network infrastructure, providing a seamless and efficient experience for network administrators.

Featuring 12 small form-factor pluggable (SFP) ports that support 25 Gigabit Ethernet (GbE) connections, and 3 quad small form-factor pluggable (QSFP) ports that support 100 Gigabit Ethernet (GbE) connections, the S5212F-ON delivers lightning-fast network speeds and low latency, ensuring that your critical applications and services run smoothly and efficiently.

In addition to its powerful networking capabilities, the S5212F-ON also includes a seven-segment stacking indicator that provides clear and concise feedback on the status of switch stacking. The switch also includes a micro-USB-B console port and a USB type-A port, allowing for easy configuration and management of the switch.

With a maximum power consumption of 304W and a typical operating power of 140W, the S5212F-ON is both efficient and environmentally friendly. And with its fixed power supply and fans, the switch provides reliable and consistent performance, even under heavy workloads.

Low-density 10/25GbE server and storage aggregationwith the S5212F-ON and S5224F-ON

Line-rate performance via non-blocking switch fabrics: 1.08Tbps (2.16Tbps full-duplex) onS5212F-ON

S5212F-ON will utilize a tandem trayfor mounting

1RU (half-width)

S5212F-ON:

Open Network Install Environment (ONIE)

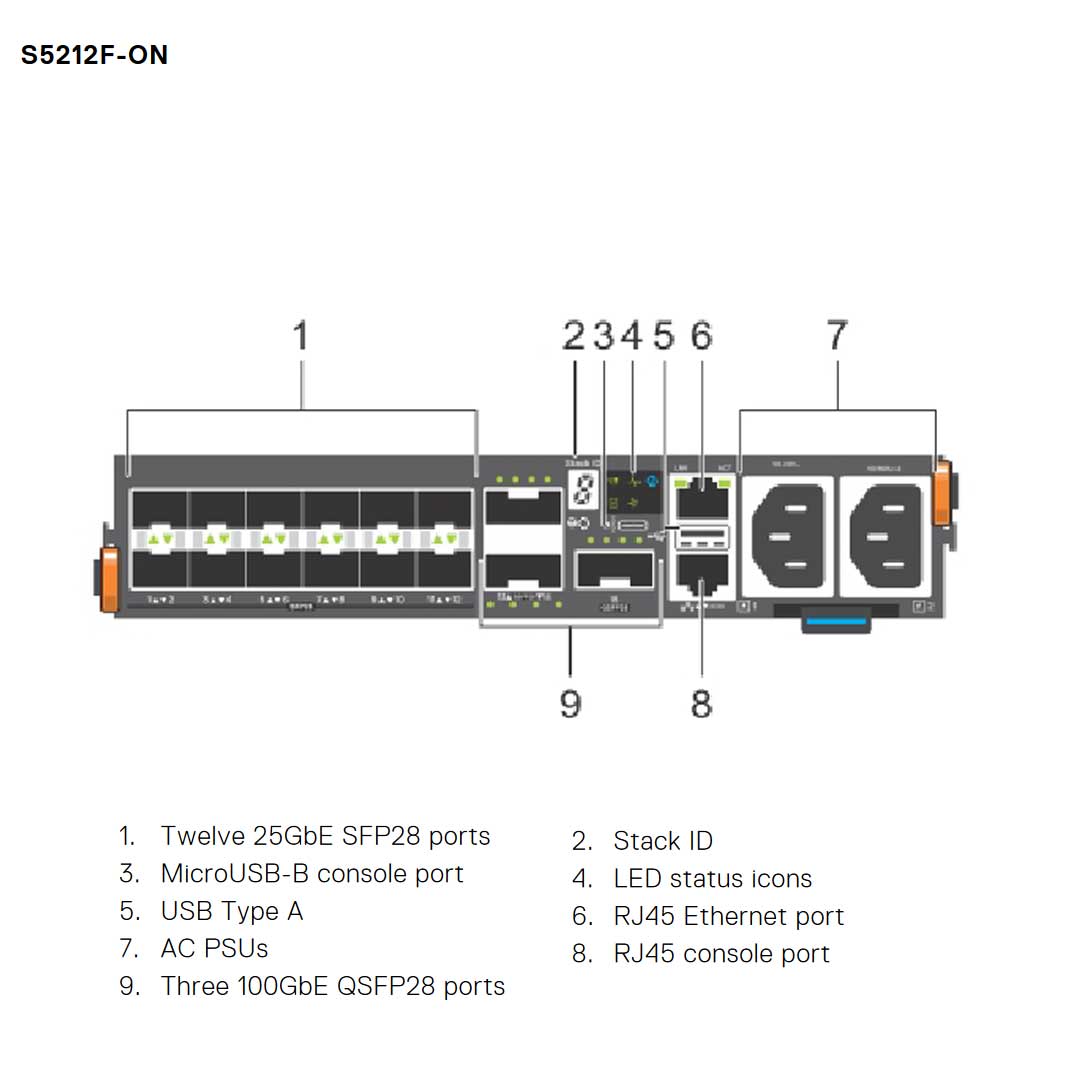

12 x 25GbE SFP28

3 x 100GbE QSFP28

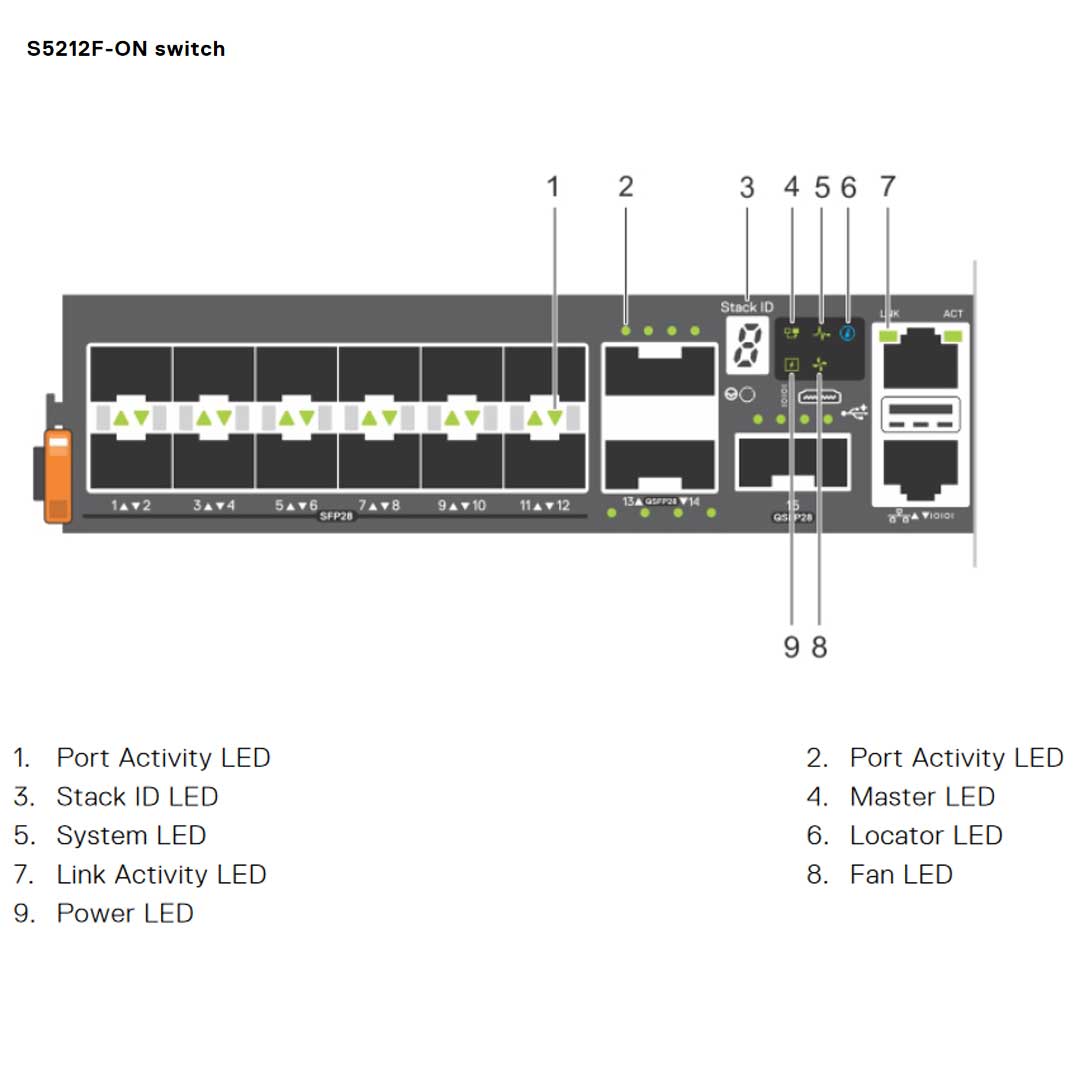

Seven-segment stacking indicator

1 micro-USB-B console port

1 USB type-A port

304WMax Power Consumption

140WTypical Operating Power

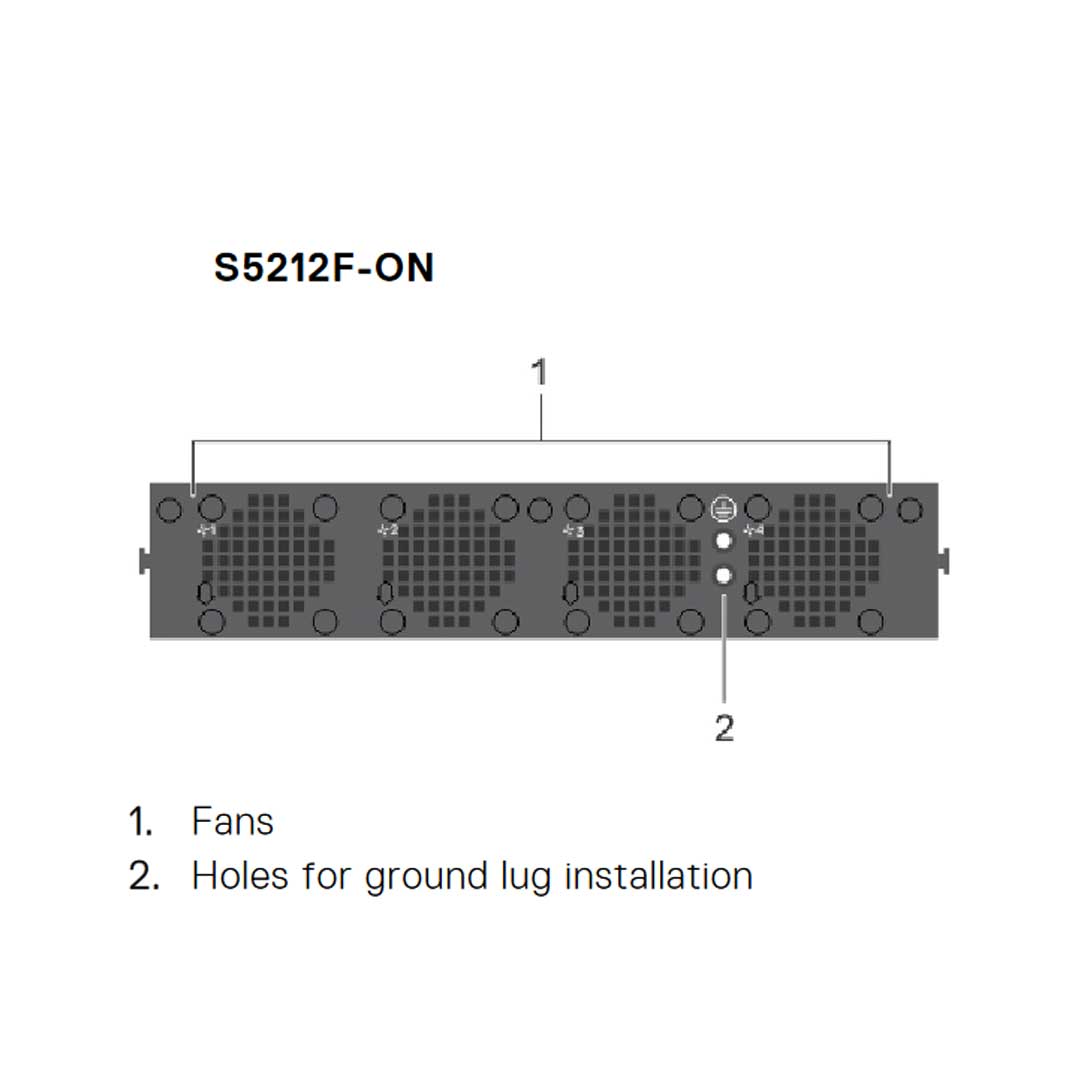

Fixed powersupply and fans on S5212F-ON

S5212F-ON Configurations:

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x AC PSU,I/O Panel to PSU Airflow, Dell EMCSmartFabric OS10

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x AC PSU,PSU to I/O Panel Airflow, Dell EMCSmartFabric OS10

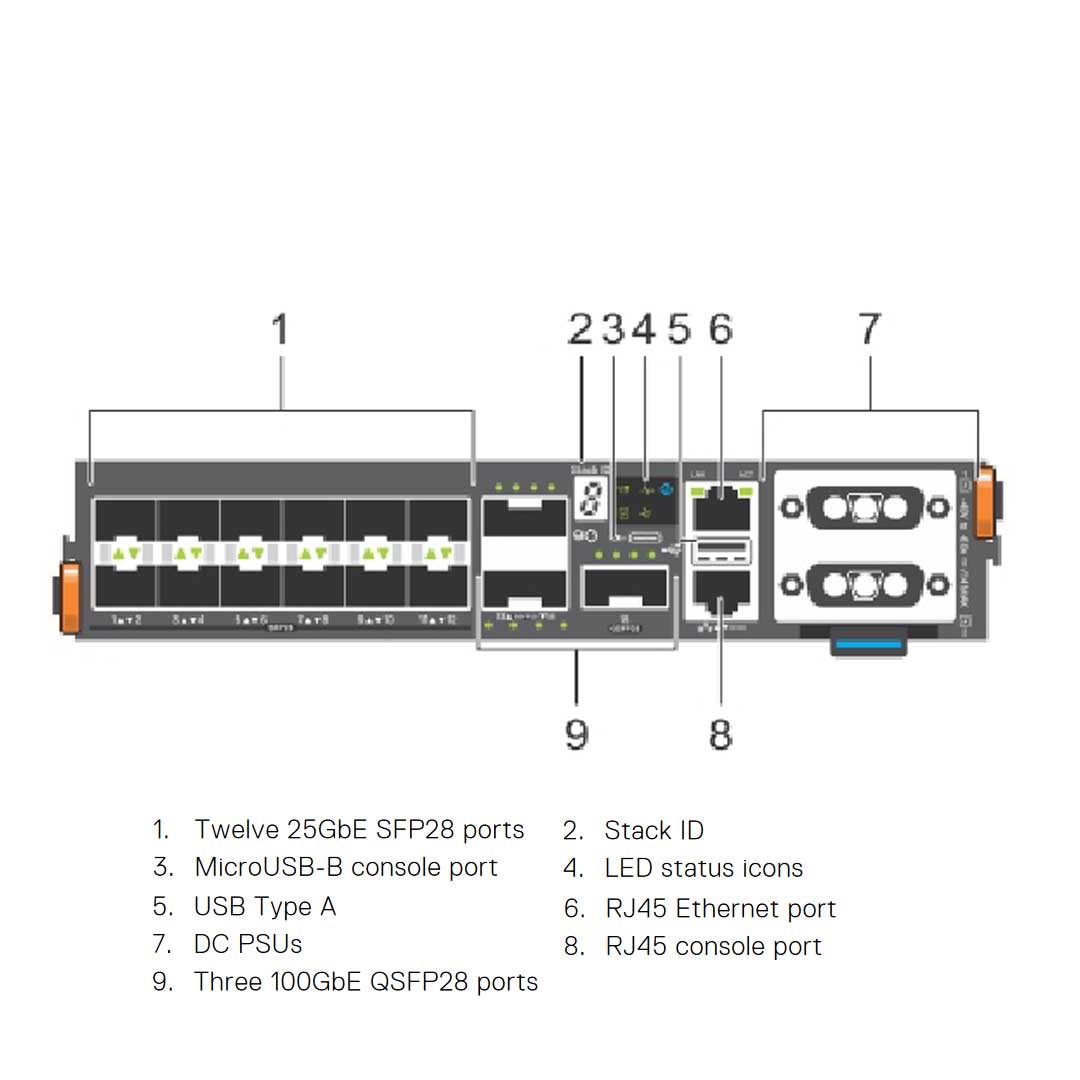

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x DC PSU,I/O Panel to PSU Airflow, Dell EMCSmartFabric OS10

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x DC PSU,PSU to I/O Panel Airflow, Dell EMCSmartFabric OS10

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x AC PSU,I/O Panel to PSU Airflow, NO-OS

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x AC PSU,PSU to I/O Panel Airflow, NO-OS

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x AC PSU,I/O Panel to PSU Airflow, Dell EMCSmartFabric OS10, TAA

S5212F, 12x 25GbE SFP28 + 3x 100GbE QSFP28, 2x AC PSU,PSU to I/O Panel Airflow, Dell EMCSmartFabric OS10, TAA

Key Features with Dell EMC SmartFabric OS10

Consistent DevOps framework across compute, storage and networking elements

Standard networking features, interfaces and scripting functions for legacy network operations integration

Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)

Pervasive, unrestricted developer environment via Control Plane Services (CPS)

OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features

OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.

Leverage common open source tools and best practices (data models, commit rollbacks)

Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities

Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR

Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)

Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)

Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV

	S5212F-ON	S5224F-ON	S5248F-ON	S5296F-ON	S5232F-ON
Ports	12xSFP28 3xQSFP28	24xSFP28 4xQSFP28	48xSFP28 2xQSFP28-DD 4xQSFP28	96xSFP28 8xQSFP28	32xQSFP28 2xSFP+
Max 10GbE density	12 (SFP28) 12 (QSFP28 Breakout)	24 (SFP28) 16 (QSFP28 breakout)	48 (SFP28) 16 (QSFP28-DD breakout) 16 (QSFP28 breakout)	96 (SFP28) 32 (QSFP28 breakout)	124 (QSFP28 breakout) 2 (SFP+)
Max 25GbE density	12 (SFP28) 12 (QSFP28 Breakout)	24 (SFP28) 16 (QSFP28 breakout)	48 (SFP28) 16 (QSFP28-DD breakout) 16 (QSFP28 breakout)	96 (SFP28) 32 (QSFP28 breakout)	124 (QSFP28 breakout)
Max 40GbE density	3 (QSFP28)	4 (QSFP28)	6 (QSFP28) 4 (QSFP28-DD breakout)	8 (QSFP28)	32 (QSFP28)
Max 50GbE density	6 (QSFP28 breakout)	8 (QSFP28 breakout)	16 (QSFP28 breakout)	16 (QSFP28 breakout)	64 (QSFP28 breakout)
Max 100GbE density	3 (QSFP28)	4 (QSFP28)	4 (QSFP28) 4 (QSFP28-DD breakout)	8 (QSFP28)	32 (QSFP28)
Switching capacity	1.08 Tbps (2.16 Tbps full duplex)	1.08 Tbps (2.16 Tbps full duplex)	2.0 Tbps (4.0 Tbps full duplex)	3.2 Tbps (6.4 Tbps full duplex)	3.2 Tbps (6.4 Tbps full duplex)
Throughput	440 Mpps (880 Mpps full duplex)	720 Mpps (1.42 Bpps full duplex)	1.5 Bpps (3.0 Bpps full duplex)	2.4 Bpps (4.8 Bpps full duplex)	2.4 Bpps (4.8 Bpps full duplex)
Latency (nano sec)	906	881	847	850	877
1588v2 PTP timing (hardware)	No	Yes	Yes	Yes	Yes
CPU Memory	16GB	16GB	16GB	16GB	16GB
SSD	64GB	64GB	64GB	64GB	64GB
Packet Buffer	32MB	32MB	32MB	32MB	32MB
Maximum power	304W	455W	647W	893W	635W
Typical power	140W	200W	310W	457W	360W
Maximum current	2.8A@110VAC / 1.4A@220VAC	4.2A@110VAC / 2.1A@220VAC	5.8A@110VAC / 2.9A@220VAC	8.2A@110VAC / 4.1A@220VAC	5.8A@110VAC / 2.9A@220VAC
Fan modules	Fixed	4	4	4	4
Form Factor	1RU (half-width)	1RU	1RU	2RU	1RU
Dimensions	8.2”Wx19.3”D x1.6”H 20.9Wx49.0D x4.1H (cm)	17.1”Wx18.1”D x1.7”H 43.4Wx46.0D x4.4H (cm)	17.1”Wx18.1”D x1.7”H 43.4Wx46.0D x4.4H (cm)	17.4”Wx20.1”D x3.4”H 44.2Wx51.1D x8.7H (cm)	17.1”Wx18.1”D x1.7”H 43.4Wx46.0D x4.4H (cm)
Weight	4.5kg (10.05lbs)	9.7kg (21.4lbs)	9.7kg (21.4lbs)	15.1kg (33.2lbs)	9.8kg (21.6lbs)
Max thermal output	1037 BTU/h	1552 BTU/h	2208 BTU/h	3047 BTU/h	2167 BTU/h

S5212F-ON

S5224F-ON

S5248F-ON

S5296F-ON

S5232F-ON

Ports

12xSFP28
3xQSFP28

24xSFP28
4xQSFP28

48xSFP28
2xQSFP28-DD
4xQSFP28

96xSFP28
8xQSFP28

32xQSFP28
2xSFP+

Max 10GbE density

12 (SFP28)
12 (QSFP28 Breakout)

24 (SFP28)
16 (QSFP28 breakout)

48 (SFP28)
16 (QSFP28-DD breakout)
16 (QSFP28 breakout)

96 (SFP28)
32 (QSFP28 breakout)

124 (QSFP28 breakout)
2 (SFP+)

Max 25GbE density

12 (SFP28)
12 (QSFP28 Breakout)

24 (SFP28)
16 (QSFP28 breakout)

48 (SFP28)
16 (QSFP28-DD breakout)
16 (QSFP28 breakout)

96 (SFP28)
32 (QSFP28 breakout)

124 (QSFP28 breakout)

Max 40GbE density

3 (QSFP28)

4 (QSFP28)

6 (QSFP28)
4 (QSFP28-DD breakout)

8 (QSFP28)

32 (QSFP28)

Max 50GbE density

6 (QSFP28 breakout)

8 (QSFP28 breakout)

16 (QSFP28 breakout)

64 (QSFP28 breakout)

Max 100GbE density

3 (QSFP28)

4 (QSFP28)

4 (QSFP28)
4 (QSFP28-DD breakout)

8 (QSFP28)

32 (QSFP28)

Switching capacity

1.08 Tbps (2.16 Tbps full duplex)

2.0 Tbps (4.0 Tbps full duplex)

3.2 Tbps (6.4 Tbps full duplex)

Throughput

440 Mpps (880 Mpps full duplex)

720 Mpps (1.42 Bpps full duplex)

1.5 Bpps (3.0 Bpps full duplex)

2.4 Bpps (4.8 Bpps full duplex)

Latency (nano sec)

906

881

847

850

877

1588v2 PTP timing (hardware)

Yes

CPU Memory

16GB

SSD

64GB

Packet Buffer

32MB

Maximum power

304W

455W

647W

893W

635W

Typical power

140W

200W

310W

457W

360W

Maximum current

2.8A@110VAC /
1.4A@220VAC

4.2A@110VAC /
2.1A@220VAC

5.8A@110VAC /
2.9A@220VAC

8.2A@110VAC /
4.1A@220VAC

5.8A@110VAC /
2.9A@220VAC

Fan modules

Fixed

Form Factor

1RU (half-width)

1RU

2RU

1RU

Dimensions

8.2”Wx19.3”D x1.6”H
20.9Wx49.0D x4.1H (cm)

17.1”Wx18.1”D x1.7”H
43.4Wx46.0D x4.4H (cm)

17.4”Wx20.1”D x3.4”H
44.2Wx51.1D x8.7H (cm)

17.1”Wx18.1”D x1.7”H
43.4Wx46.0D x4.4H (cm)

Weight

4.5kg (10.05lbs)

9.7kg (21.4lbs)

15.1kg (33.2lbs)

9.8kg (21.6lbs)

Max thermal output

1037 BTU/h

1552 BTU/h

2208 BTU/h

3047 BTU/h

2167 BTU/h
