-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

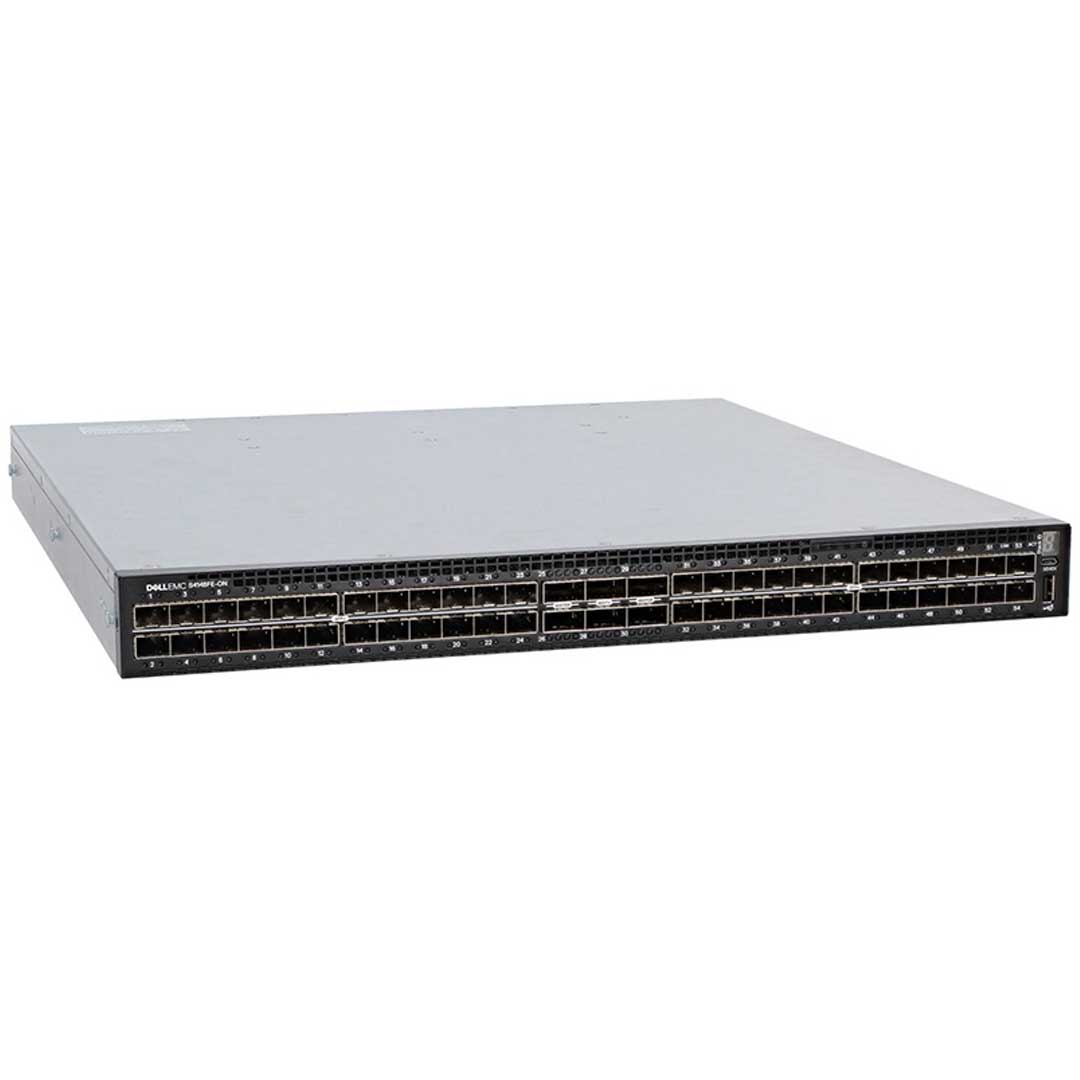

Dell EMC PowerSwitch S4148FE-ON Switch
The Dell EMC PowerSwitch S4148FE-ON 48-Port 400W (ONIE) Switch is a high-performance network switch designed to provide reliable and efficient connectivity for modern data center environments. With 48 ports, this switch is ideal for businesses of all sizes that require a high degree of network flexibility and scalability.
One of the key features of the PowerSwitch S4148FE-ON is its high bandwidth capabilities. The switch is capable of delivering up to 1.92 Tbps of throughput, ensuring that your network is capable of handling high traffic loads with ease. The switch is also designed to support the latest network protocols, including 25GbE and 100GbE, ensuring that your network is ready for the future.
Another key feature of the PowerSwitch S4148FE-ON is its power efficiency. The switch is designed to operate with a low power consumption, which can help to reduce your overall energy costs. It also features advanced power management capabilities that allow you to monitor and control your power usage, ensuring that your network is always operating at peak efficiency.
Open Network Install Environment (ONIE)

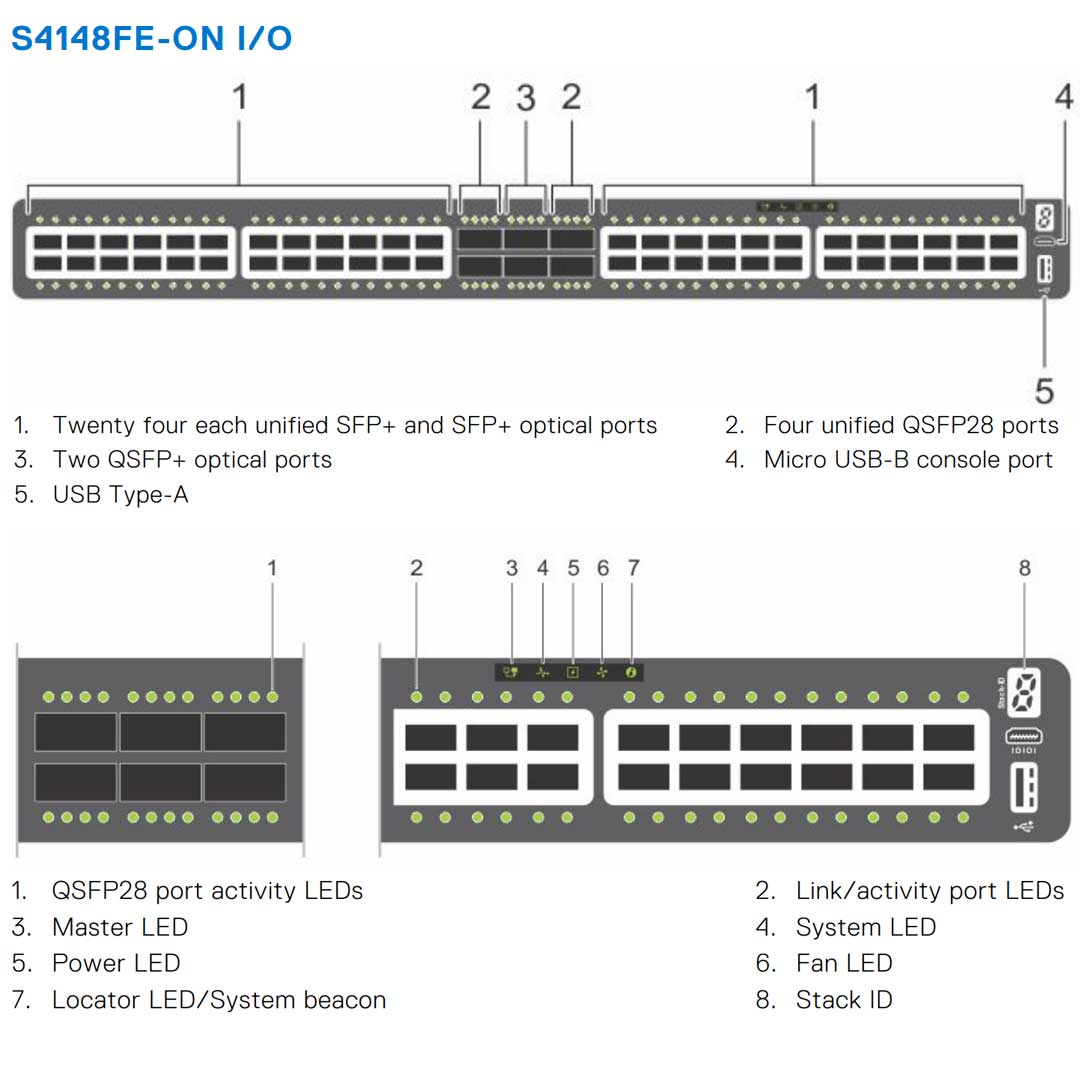

48 fixed SFP+ optical ports
2 fixed QSFP+ optical ports
4 fixed QSFP28 optical ports
400W Max Power Consumption
240W Typical Operating Power
4 Hot-Swappable Fans
48 x 10G + 2 x 100G
48 x 10G + 6 x 40G
48 x 10G + 8 x 50G
48 x 10G + 16 x 25G
72 x 10G
S4148FE-ON AC or DC Normal airflow
4 Hot-Swappable Fans with airflow from the I/O side to the PSU side—normal
AC power supply with airflow from the I/O side to the PSU side—normal
DC power supply with airflow from the I/O side to the PSU side—normal
S4148FE-ON AC or DC Reverse airflow
4 Hot-Swappable Fan with airflow from the PSU side to the I/O side—reverse
AC power supply with airflow from the PSU side to the I/O side—reverse
DC power supply with airflow from the PSU side to the I/O side—reverse
Key Features with Dell EMC SmartFabric OS10
Consistent DevOps framework across compute, storage and networking elements
Standard networking features, interfaces and scripting functions for legacy network operations integration
Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
Pervasive, unrestricted developer environment via Control Plane Services (CPS)
OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
Leverage common open source tools and best practices (data models, commit rollbacks)
Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV
