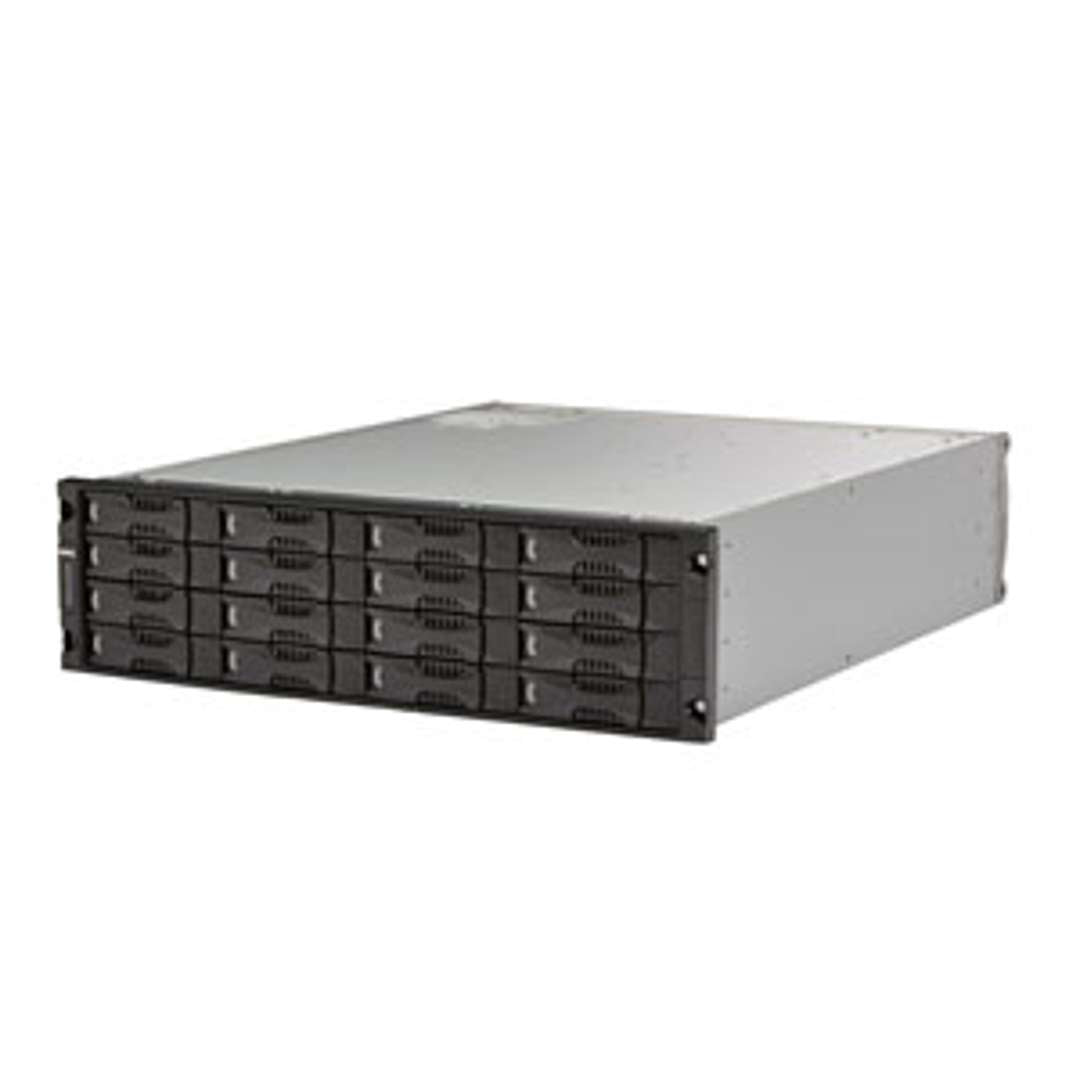

EqualLogic PS3900XV 3U Storage Array (16 x 3.5" 15K 300GB SAS)

Part#:
PS3900XV-16-X-3-5-300GB-15K-SAS
Brand:
EqualLogic
Type:
Storage Array
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EqualLogic PS3900XV Description

The PS3900XV storage array is equipped with sixteen 15K SAS drives to deliver maximum IOPS providing high performance storage suitable for the intense I/O work-loads of enterprise transactional databases.

The PS3900XV provides up to 4.8TB of storage in a 3U/3.5 form factor. PS3900XV offers multiple data services including: Auto-Replication, Automatic Load Balancing, Auto-Snapshot Manager, Auto-Stat Disk Monitoring System (ADMS), Volume Consistency Sets, Multi-Path I/O, Pooled and Tiered Storage, RAID Load Balancing, Volume Cloning, Volume Management, Volume Snapshot and much more.

PS3900XV TECHNICAL FEATURES

PS3900 SERIES FEATURES PS3900XV TECHNICAL FEATURES
Product Configurations High-capacity storage for your demanding applications
Storage Controllers Dual SAS controllers with a total of 2GB battery-backed memory which provides up to 72 hours of data protection
Network Interfaces 3x 1GbE Copper per controller
Hard Disk Drives 16x 3.5" 15K SAS HDDs
Drive Capacities 300GB 15K SAS 3.5" HDDs
System Capacities Up to 4.8TB
Host Protocol Any standards-compliant iSCSI initiator
Volumes Up to 1,024
Snapshots 512 per volume/up to 10,000 total per group
Volume Connections per PS Series Group Up to 512
OS and Hypervisors Supported Windows 2000, Windows Server 2003, Windows XP, NetWare, Linux, Solaris, AIX, HP-UX, Mac OS X, VMware ESX
RAID Supported Automatic RAID 5, RAID 10, RAID 50
Reliability Redundant, hot-swappable controllers, power supplies, cooling fans, and disks.
Individual disk drive slow power control
Mirrored write-back cache with 72-hour battery backup
Enclosure Monitoring System Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces Serial Console. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support.
Security CHAP Authentication; Access control for iSCSI
Notification Methods SNMP traps, e-mail, syslog
Physical Height: 3U (5.12") Width: 19.00" Depth: 21.70" Weight: 77.60 lbs
Power Dual 450W Power Supplies
AC Voltage: 100-240 VAC.
Frequency: 47-63 Hz
Power Consumption: 530VA
Environmental Temperature Range: 5 to 35°C / 41 to 95°F
Storage temperature: -30 to 60°C / -22 to 140°F
