Refurbished Dell PowerEdge C6320 Node Server CTO

CTO Servers
ECS Refurbished & Tested


  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis


Intel Xeon E5-2600v4

Supports up to (2) processors


8 DIMMs per processor (up to 16 DIMMs in a dual-processor configuration)
Memory modules of different speeds and capacities cannot be mixed.

RAID Controller (Optional)

Mezzanine Cards (Optional)

1 x8 Mezzanine slot 3, Must have both CPU's installed.

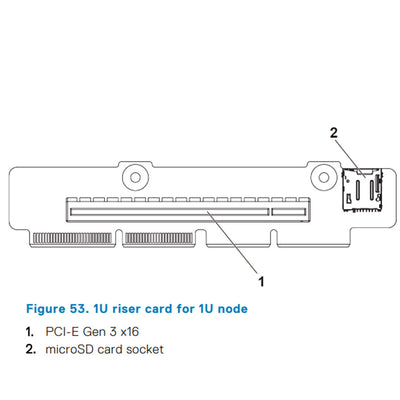

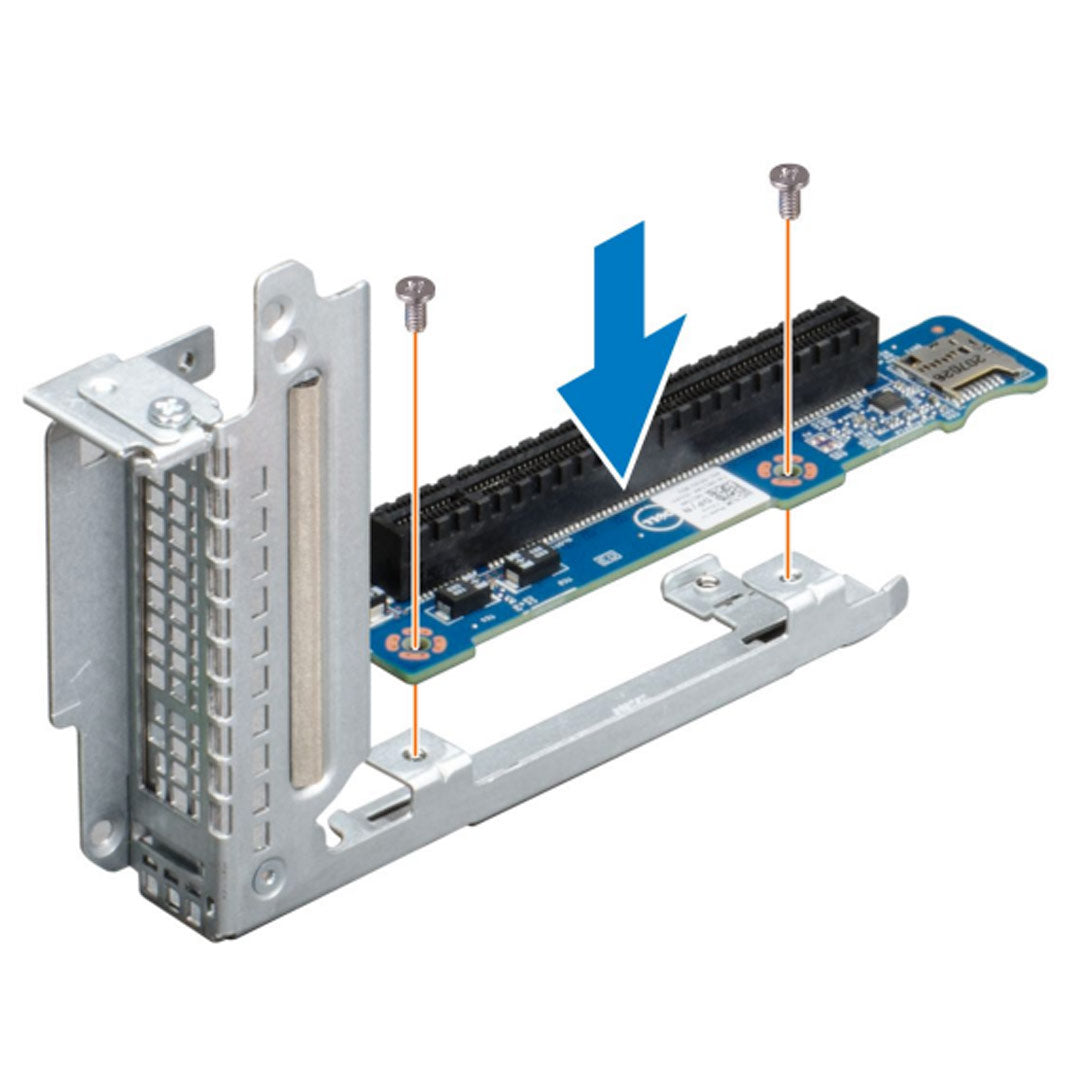

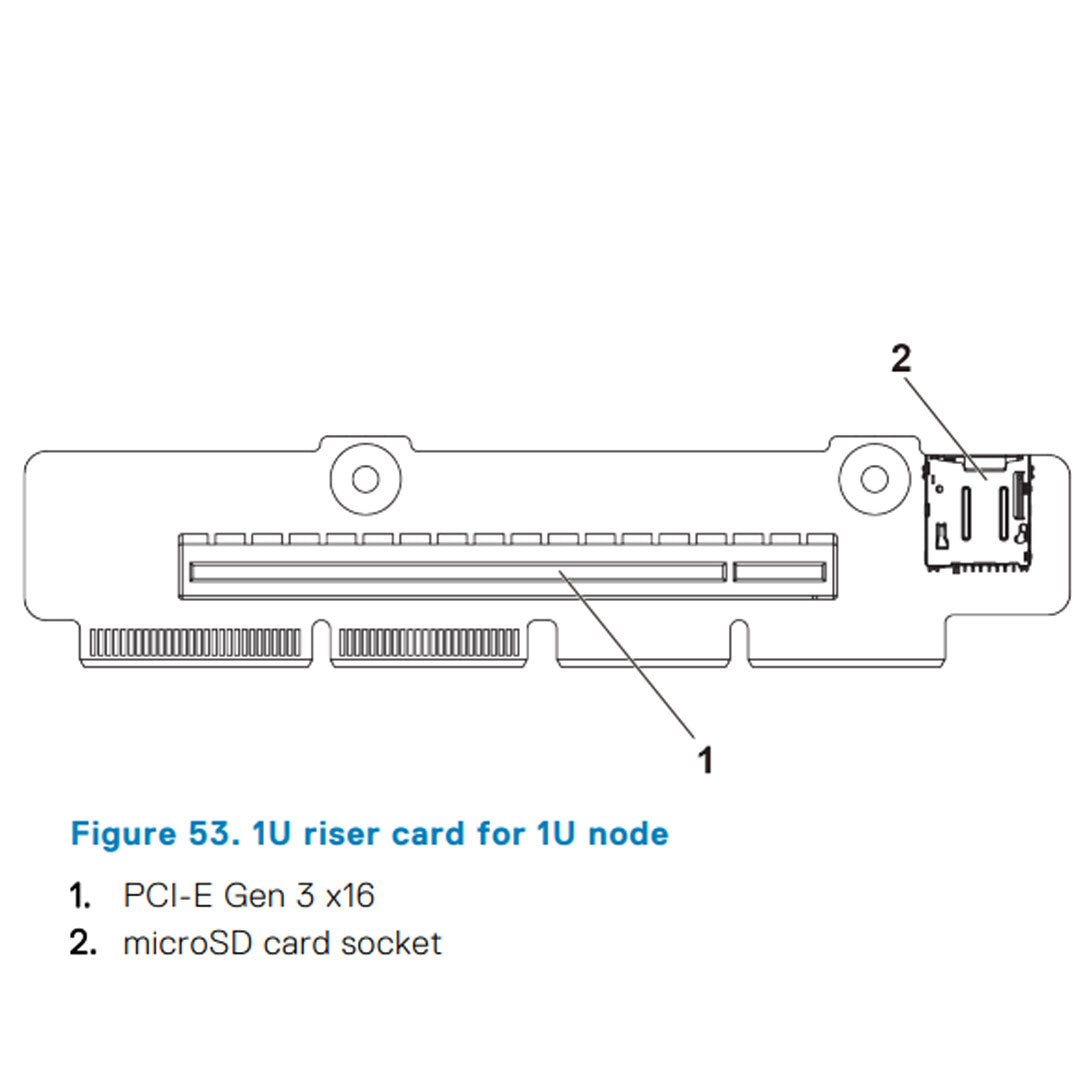

PCIe Riser Low Profile (Optional)

1 x16 PCIe 3.0 half-height, half-length

Trusted Platform Module

iDRAC8 Lifecycle Controller (Optional)

iDRAC8 Express (default)

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Dell PowerEdge C6320 CTO Node Server

Greater performance and improved energy efficiency with optimized compute, processors and memory for the most demanding high-performance computing and scale-out workloads. Features the Intel Xeon processor E5-2600 v4 product family and iDRAC8 with Lifecycle Controller.

Optimized for HPC

High-performance computing workloads such as scientific simulations, seismic processing and data analytics rely on compute performance, memory bandwidth and overall server efficiency to reduce processing time and data center costs. The next-generation Dell PowerEdge C6320 provides an optimized compute and storage platform for HPC and scale-out workloads with up to four independent two-socket servers with flexible 24 x 2.5" or 12 x 3.5" high-capacity storage in a compact 2U shared infrastructure platform.

With up to 44 cores per node, dynamic drive assignment, dual-port Intel 82559ES 10GbE LOM, and embedded systems management automation with the iDRAC8 with Lifecycle Controller, the C6320 is a scale-out modular compute workhorse.

Ideal balance of compute, memory, local storage and management automation

Computationally intense workloads demand performance, from processors to memory to connected devices. In addition to a leap in processor performance with the next-generation Intel® Xeon® processor E5-2600 v4 product family, the C6320 has increased core counts over prior E5-2600 v3 models. C6320 supports up to 512GB of memory per server node, for a total of 2TB of memory in a highly dense and modular 2U solution.

The C6320 leverages the scale and cost efficiencies of the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller, proven by operation in millions of servers worldwide. iDRAC8 with Lifecycle Controller delivers intelligent management and configuration automation for hyper-converged solutions and appliances, and enables you to select the management functions you need, to streamline operations by reducing the time and number of steps to deploy, monitor, and update C6320 servers throughout their entire lifecycle.

Product Information for Dell PEC6320-CTO-NODE

Base Server Standard Capabilities

FeatureTechnical specification
Form factor2U rack mount
Dimensions and weightH: 8.68 cm (3.42 in), W: 44.8 cm (17.6 in)
D: 79.0 cm (31.1 in)
Weight (maximum configuration): 41 kg (90.4 lbs)
Weight (empty): 15.1 kg (33.3 lbs)
ProcessorIntel® Xeon® processor E5-2600 v4 product family
Up to 4 x 2-socket servers: 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 cores per processor
Intel C612 chipset
Memory16 DIMM slots for up to 512GB per node: 8GB/16GB/32G DDR4 DIMM (up to 2400MT/s)
Primary storageMaximum internal storage: 72TB SATA or nearline 48TB SAS
Drive bays/hard drives24 x 2.5" or 12 x 3.5" hard drive options
24 x 2.5" hard drive option with variable drive allocation Supports 7.2K, 10K, 15K RPM 2.5"/3.5" SAS
Supports 7.2K RPM 2.5"/3.5" SATA
2.5" SATA (7.2K): 250/500GB, 1TB/2TB
2.5" SAS (7.2K): 1TB/2TB
2.5" SAS (10K): 600GB/1.2TB
2.5" SAS (SAS12): 200/400/800GB
2.5" SATA SSD: 120/160/200/400/800/960/1200/1600/1920/3840GB
2.5" SAS SSD: 200/400/480/800/960/1600/3840GB
3.5" SATA (7.2K): 1TB/4TB/6TB
Embedded network connectivityIntel 82599ES 10GbE dual-port SFP+
USB ports2 external USB 2.0 ports
I/O slots1 x16 PCIe 3.0 half-height, half-length
1 x8 PCIe 3.0 mezzanine
I/O adapter options1GbE:
Intel Powerville I350 dual-port 1GbE (PCIe adapter)
Intel Powerville I350 dual-port 1GbE PCIe (mezzanine)
Intel X540 Dual Port 10GbE 10Base-T (mezzanine and PCIe adapter)
Mellanox ConnectX®-3 Pro dual-port 10GbE SFP+
Chelsio Dual Port T520-CR 10Gb SFP+ (PCIe adapter)Mellanox ConnectX-4 Dual port 25Gb DA (PCIe adapter) QLogic FastLinQ QL45212-DE Dual Port 25Gb SFP28 (PCIe adapter)
10GbE/25GbE/40GbE (continued):
Broadcom 57404 25Gb SFP28 Dual Port PCIe adapter
Mellanox ConnectX-3 Pro dual port 40Gb (PCIe adapter)
Mellanox ConnectX-4 Dual Port 100GbE (PCIe adapter)
Mellanox ConnectX-3 VPI single and dual port FDR/40GbE QSFP+(PCIe adapter)
Mellanox ConnectX-3 dual port, VPI FDR (mezzanine)
Mellanox ConnectX-4 single and dual port EDR (PCIe adapter)
Intel Omni-path HBA 100 Series Single Port (PCIe adapter)
Drive and RAID controllersIntel C612 chipset SATA: AHCI SATA drives RAID: 0, 1,5,10
PERC H330: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1,5,10, 50 (optional)
PERC H730: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1,5,10, 50, 60 (optional)
LSI SAS 2008 Controller 6Gbs: mezzanine (optional)
RAID: 0, 1, 10, JBOD (optional)
SATA DOM boot device (64GB)
SAS SSD boot device (120GB)
Power suppliesDual hot-plug redundant high-efficiency 1400W or 1600W power supplies (200–220 VAC, 240VDC)
FansShared cooling with quick-disconnect 4x60mm speed fans
Operating systemsMicrosoft® Windows Server® 2012 Microsoft Windows Server 2012 R2Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux®
HypervisorsMicrosoft Windows Server 2012 (with Hyper-V® enabled) VMware® vSphere® ESXi®
Systems managementRemote management:
iDRAC8 with Lifecycle
Controller iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade option)
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage
(Availability varies by region. Please contact representative for details.)
Data Center Consulting Services Rack Integration
(U.S. only, not available in China)
Rack Design Verification Configuration Services/CFI Onsite Online Self Dispatch
Basic Support
ProSupport Plus
ProSupport Flex for Data Center
4-Hour Support
Keep Your Hard Drive
Support Assist: Proactive Automated Support Enterprise Wide Contract IT
Remote Advisory Service
Certified Data Destruction
Specialized Onsite Services

Spec Sheet

Technical Guide
