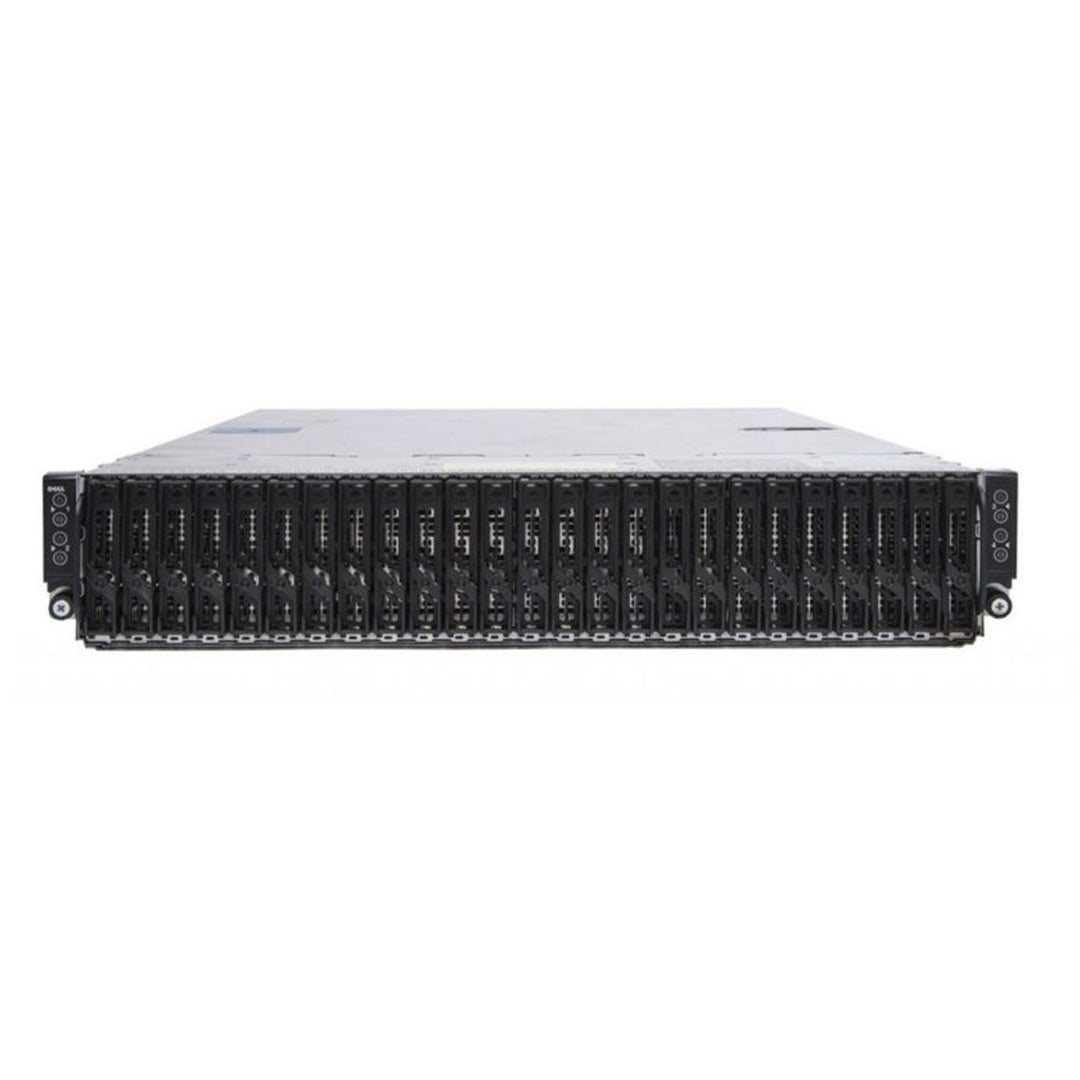

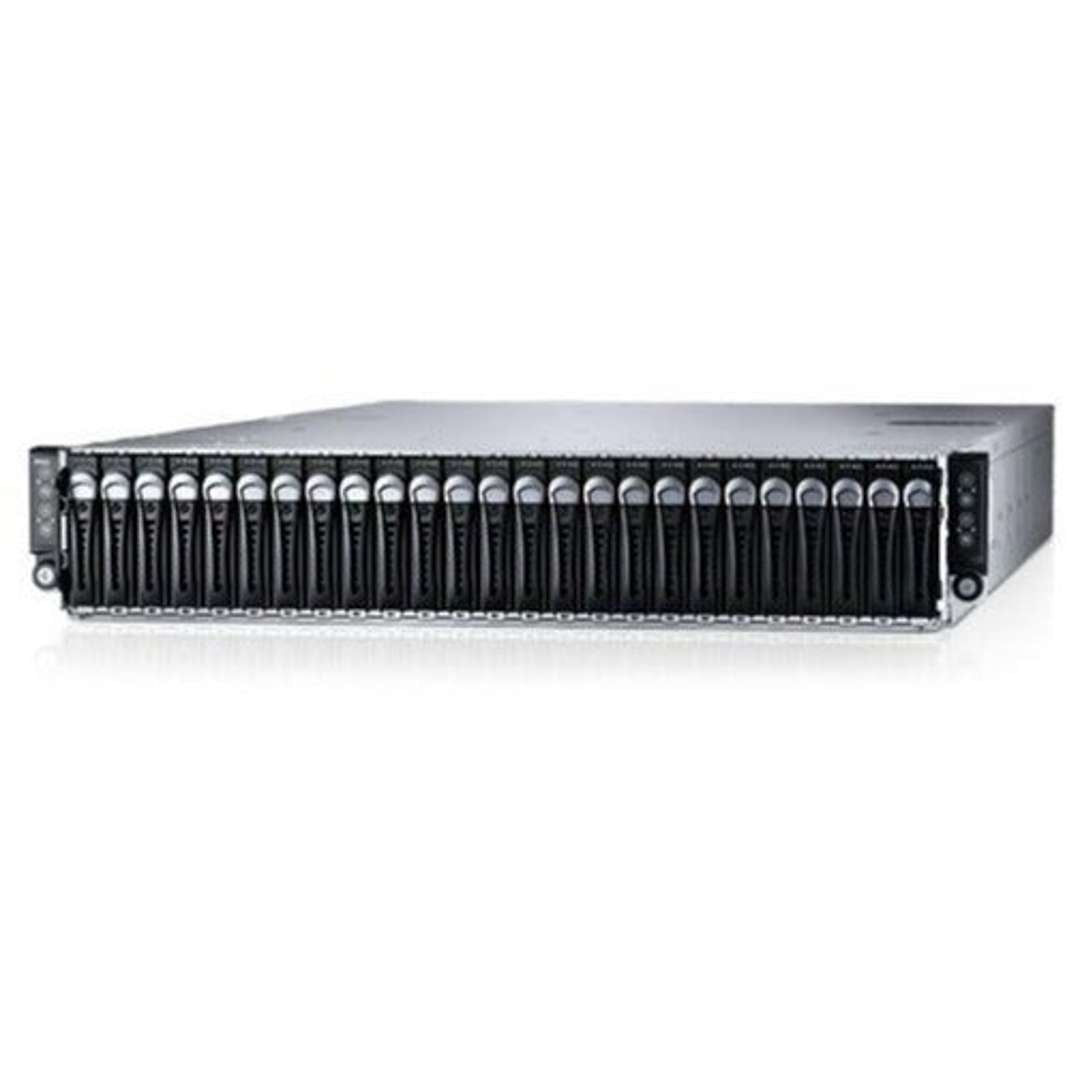

Dell PowerEdge C6300 CTO Chassis

Part#:
C6320
Brand:
Dell
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Chassis

Power Supplies

Supports up to (2) PSU's

Rail Kits

ECS Warranty

Dell PowerEdge C6300 CTO Chassis Product Description

Greater performance and improved energy efficiency with optimized compute, processors and memory for the most demanding high-performance computing and scale-out workloads. Features the Intel Xeon processor E5-2600 v4 product family and iDRAC8 with Lifecycle Controller.

Optimized for HPC

High-performance computing workloads such as scientific simulations, seismic processing and data analytics rely on compute performance, memory bandwidth and overall server efficiency to reduce processing time and data center costs. The next-generation Dell PowerEdge C6320 provides an optimized compute and storage platform for HPC and scale-out workloads with up to four independent two-socket servers with flexible 24 x 2.5" or 12 x 3.5" high-capacity storage in a compact 2U shared infrastructure platform.

With up to 44 cores per node, dynamic drive assignment, dual-port Intel 82559ES 10GbE LOM, and embedded systems management automation with the iDRAC8 with Lifecycle Controller, the C6320 is a scale-out modular compute workhorse.

Ideal balance of compute, memory, local storage and management automation

Computationally intense workloads demand performance, from processors to memory to connected devices. In addition to a leap in processor performance with the next-generation Intel Xeon processor E5-2600 v4 product family, the C6320 has increased core counts over prior E5-2600 v3 models. C6320 supports up to 512GB of memory per server node, for a total of 2TB of memory in a highly dense and modular 2U solution.

The C6320 leverages the scale and cost efficiencies of the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller, proven by operation in millions of servers worldwide. iDRAC8 with Lifecycle Controller delivers intelligent management and configuration automation for hyper-converged solutions and appliances, and enables you to select the management functions you need, to streamline operations by reducing the time and number of steps to deploy, monitor, and update C6320 servers throughout their entire lifecycle.

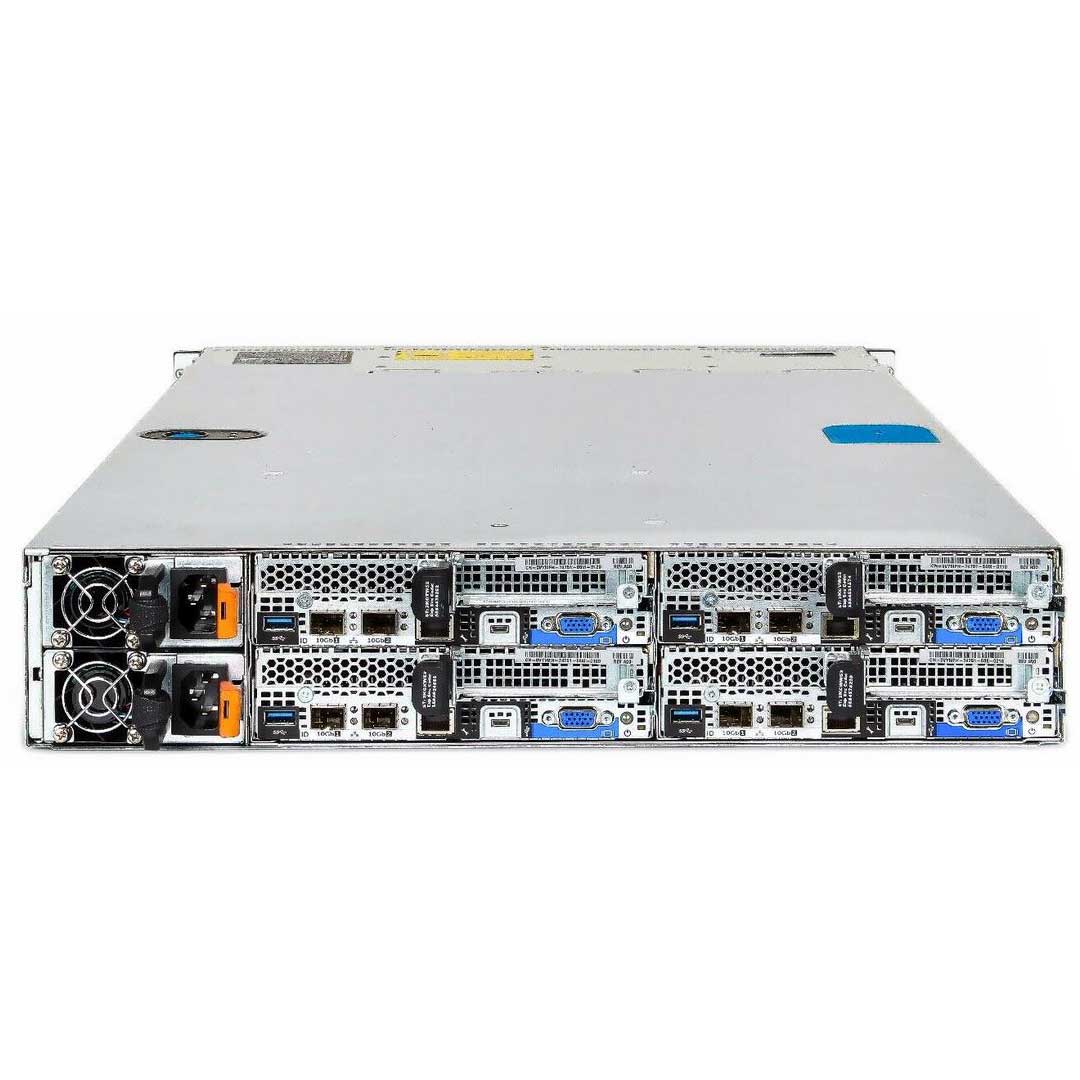

C6320 rear

Flexibly mix workloads in one chassis

With numerous options for compute, storage and connectivity in one advanced shared infrastructure 2U chassis, the C6320 provides flexibility to configure servers for your specific workloads. Tailor the C6320 for your scale-out workload requirements with up to 44 cores per node, memory bandwidth up to 2400MHz and dynamic drive assignment.

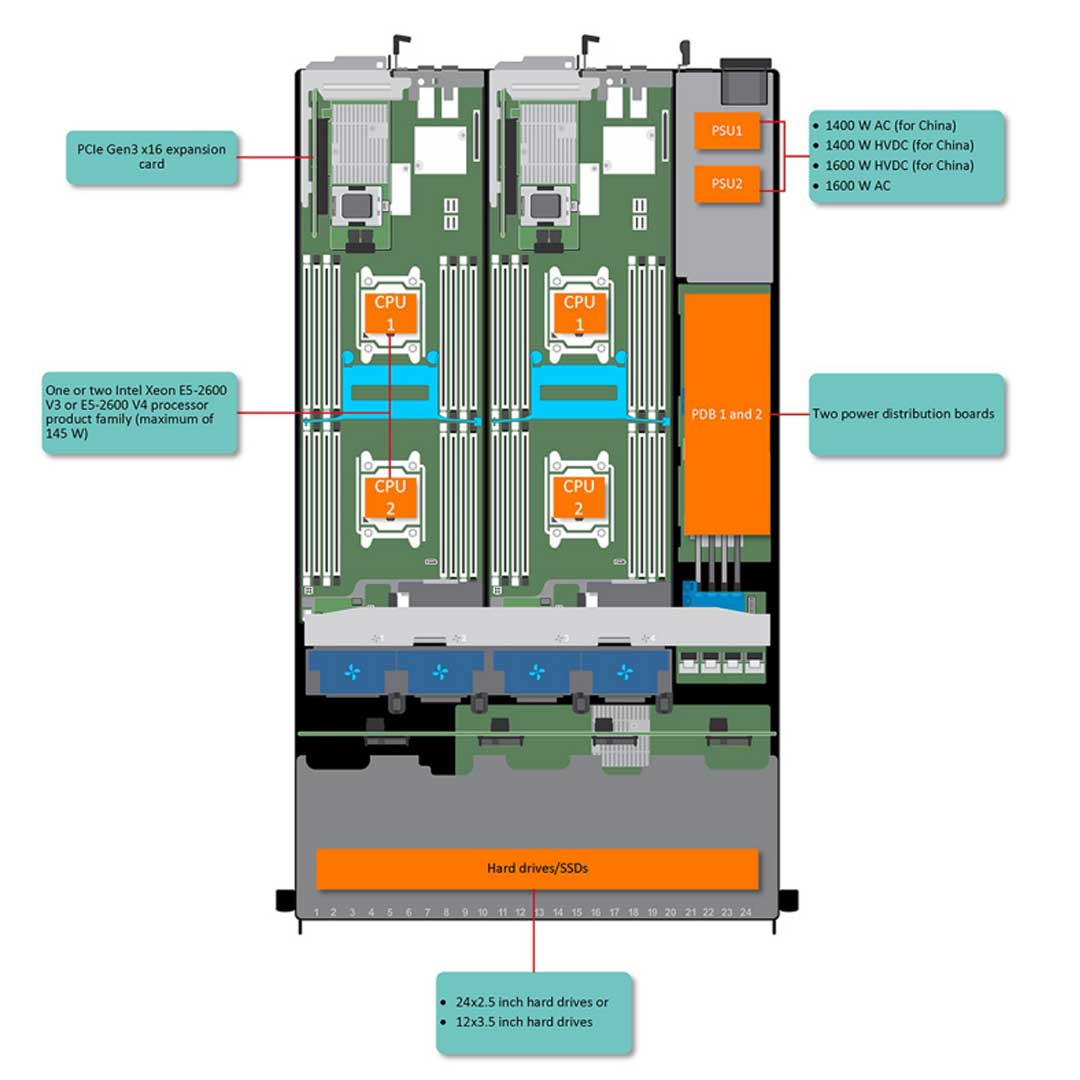

The C6300 enclosure supports up to 24 x 2.5" or 12 x 3.5" drives with multiple SATA, SAS and SSD options. With the expander backplane option, dynamic drive assignment for 2.5" drives provides even more flexibility by zoning any number of drives to each node, giving nodes additional or fewer storage resources as workloads demand. The x8 PCIe 3.0 mezzanine slot in each node supports a variety of options for 1Gb and 10GbE, Mellanox InfiniBand, or additional drive controllers while the x16 PCIe 3.0 slot adds even more flexibility.

The PowerEdge C6320 server joins Dell’s award-winning and groundbreaking PowerEdge C server line. The C6320 is designed to bring the most compute power in the least amount of space with the least energy draw to lower operational costs. These performanceoptimized servers are purpose-designed for the most demanding HPC, Web 2.0, hosting, data analytics and cloud building use cases.

Performance and efficiency

Build your high-performance clusters and scale-out solutions with PowerEdge C6320 servers, featuring:

  • Next-generation Intel Xeon E5-2600 v4 processors with increased core counts over prior E5-2600 v3 models, supporting up to 512GB of memory per server node for a total of 2TB of memory in a highly dense and modular 2U solution.
  • Integrated Dell Remote Access Controller (iDRAC8) with Lifecycle Controller, cost optimized in C6320, to provide stable, efficient server management in physical, virtual, local and remote environments
  • Flexible 2.5" and 3.5" high-capacity drive configurations
  • 16 DIMM slots to tailor memory capacity (up to 512GB1) to meet your needs
  • DDR4 memory providing as much as 15 percent greater memory bandwidth and drawing up to 30 percent less power than DDR3 RAM

Maximum flexibility

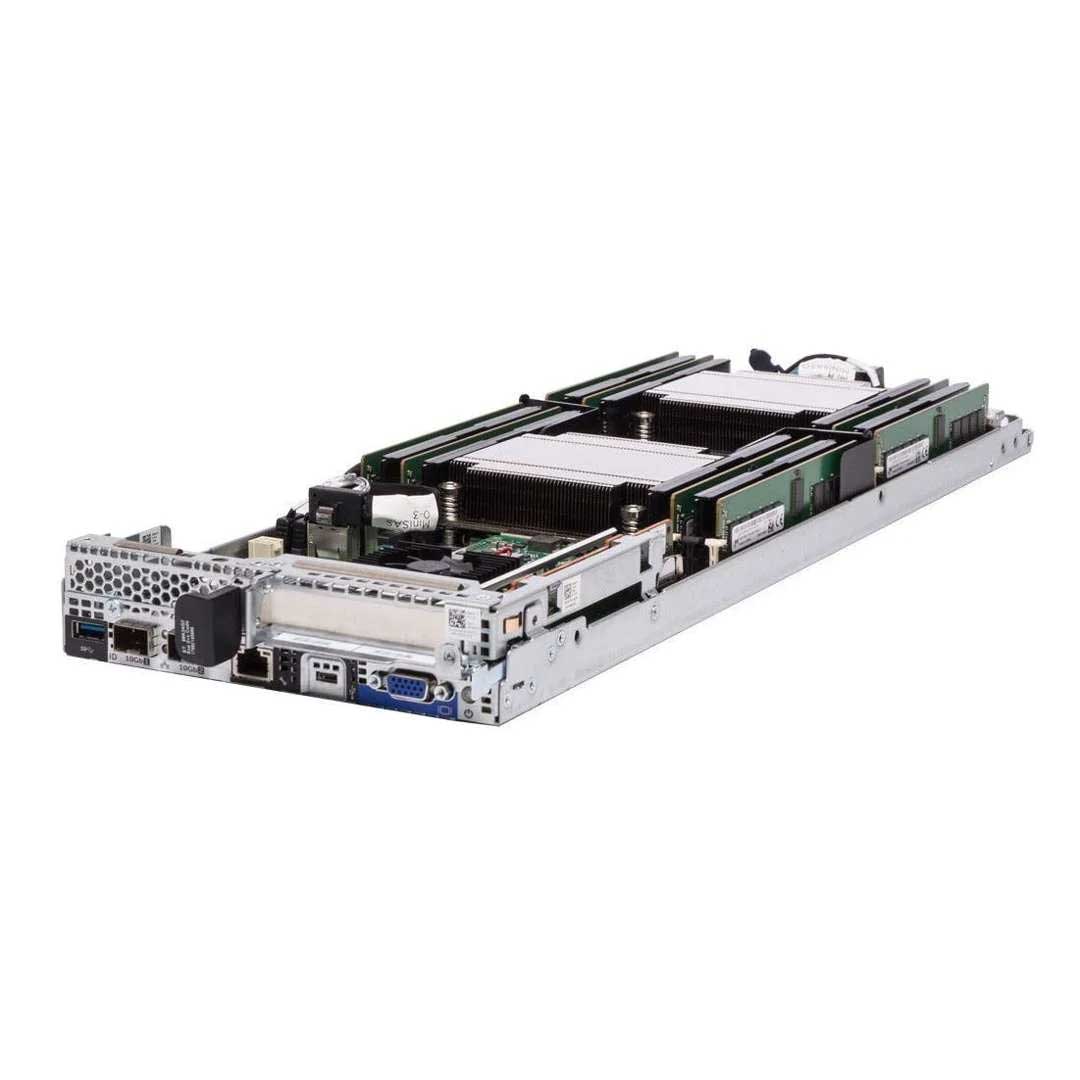

Save space and meet changing workloads by providing the right mix of processor performance, node options and energy efficiency with up to four independent sleds (server nodes) and flexible HDD assignments in one 2U chassis.

  • Up to 44 cores per node, 176 core per chassis

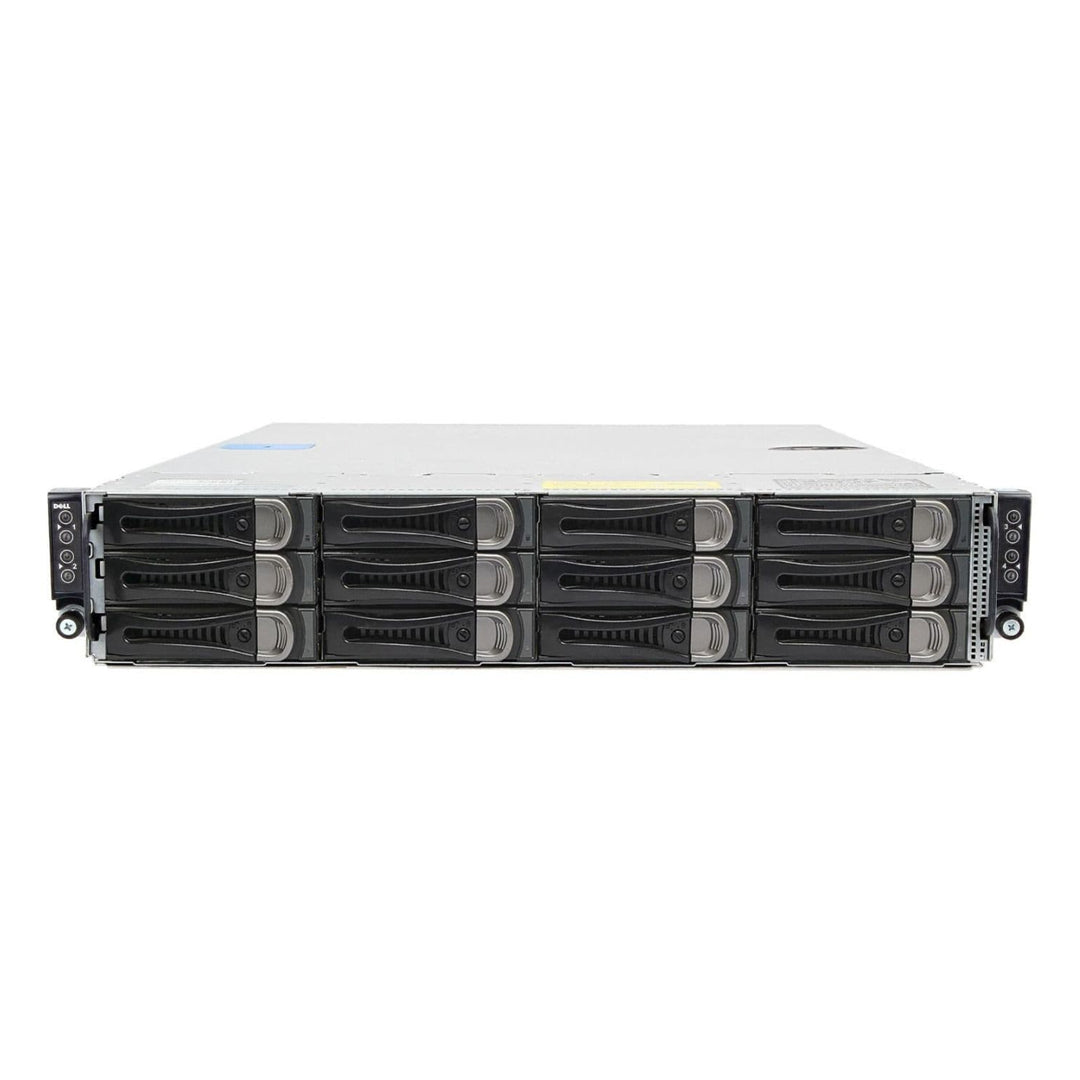

  • Up to 24 x 2.5" or 12 x 3.5" SAS, SATA or SSD hot-plug drives per chassis
  • Dual hot-plug, high-efficiency 1400W and 1600W power supplies
  • Optional Integrated SATA DOM (64GB) boot device frees up valuable hard drive space for your data
  • One x16 PCIe 3.0 slot and one x8 PCIe 3.0 mezzanine slot per 1U sled
  • Integrated LOM: 2x 10GbE (SFP+)



FeatureTechnical specification
Form factor2U rack mount
Dimensions and weightH: 8.68 cm (3.42 in), W: 44.8 cm (17.6 in)
D: 79.0 cm (31.1 in)
Weight (maximum configuration): 41 kg (90.4 lbs)
Weight (empty): 15.1 kg (33.3 lbs)
ProcessorIntel® Xeon® processor E5-2600 v4 product family
Up to 4 x 2-socket servers: 4, 6, 8, 10, 12, 14, 16, 18, 20, 22 cores per processor
Intel C612 chipset
Memory16 DIMM slots for up to 512GB per node: 8GB/16GB/32G DDR4 DIMM (up to 2400MT/s)
Primary storageMaximum internal storage: 72TB SATA or nearline 48TB SAS
Drive bays/hard drives24 x 2.5" or 12 x 3.5" hard drive options
24 x 2.5" hard drive option with variable drive allocation Supports 7.2K, 10K, 15K RPM 2.5"/3.5" SAS
Supports 7.2K RPM 2.5"/3.5" SATA
2.5" SATA (7.2K): 250/500GB, 1TB/2TB
2.5" SAS (7.2K): 1TB/2TB
2.5" SAS (10K): 600GB/1.2TB
2.5" SAS (SAS12): 200/400/800GB
2.5" SATA SSD: 120/160/200/400/800/960/1200/1600/1920/3840GB
2.5" SAS SSD: 200/400/480/800/960/1600/3840GB
3.5" SATA (7.2K): 1TB/4TB/6TB
Embedded network connectivityIntel 82599ES 10GbE dual-port SFP+
USB ports2 external USB 2.0 ports
I/O slots1 x16 PCIe 3.0 half-height, half-length
1 x8 PCIe 3.0 mezzanine
I/O adapter options1GbE:
Intel Powerville I350 dual-port 1GbE (PCIe adapter)
Intel Powerville I350 dual-port 1GbE PCIe (mezzanine)
10GbE/25GbE/40GbE:
Intel X540 Dual Port 10GbE 10Base-T (mezzanine and PCIe adapter)
Mellanox ConnectX®-3 Pro dual-port 10GbE SFP+
(mezzanine)
Chelsio Dual Port T520-CR 10Gb SFP+ (PCIe adapter)Mellanox ConnectX-4 Dual port 25Gb DA (PCIe adapter) QLogic FastLinQ QL45212-DE Dual Port 25Gb SFP28 (PCIe adapter)
10GbE/25GbE/40GbE (continued):
Broadcom 57404 25Gb SFP28 Dual Port PCIe adapter
Mellanox ConnectX-3 Pro dual port 40Gb (PCIe adapter)
Mellanox ConnectX-4 Dual Port 100GbE (PCIe adapter)
InfiniBand:
Mellanox ConnectX-3 VPI single and dual port FDR/40GbE QSFP+(PCIe adapter)
Mellanox ConnectX-3 dual port, VPI FDR (mezzanine)
Mellanox ConnectX-4 single and dual port EDR (PCIe adapter)
Omni-Path:
Intel Omni-path HBA 100 Series Single Port (PCIe adapter)
Drive and RAID controllersIntel C612 chipset SATA: AHCI SATA drives RAID: 0, 1,5,10
PERC H330: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1,5,10, 50 (optional)
PERC H730: SATA and SAS drives, x8 PCIe 3,0 RAID: 0, 1,5,10, 50, 60 (optional)
LSI SAS 2008 Controller 6Gbs: mezzanine (optional)
RAID: 0, 1, 10, JBOD (optional)
SATA DOM boot device (64GB)
SAS SSD boot device (120GB)
Power suppliesDual hot-plug redundant high-efficiency 1400W or 1600W power supplies (200–220 VAC, 240VDC)
FansShared cooling with quick-disconnect 4x60mm speed fans
Operating systemsMicrosoft® Windows Server® 2012 Microsoft Windows Server 2012 R2Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux®
HypervisorsMicrosoft Windows Server 2012 (with Hyper-V® enabled) VMware® vSphere® ESXi®
Systems managementRemote management:
iDRAC8 with Lifecycle
Controller iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade option)
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage
Services
(Availability varies by region. Please contact representative for details.)
Data Center Consulting Services Rack Integration
(U.S. only, not available in China)
Rack Design Verification Configuration Services/CFI Onsite Online Self Dispatch
Basic Support
ProSupport Plus
ProSupport Flex for Data Center
4-Hour Support
Keep Your Hard Drive
Support Assist: Proactive Automated Support Enterprise Wide Contract IT
Remote Advisory Service
Certified Data Destruction
Specialized Onsite Services
