Comes with:

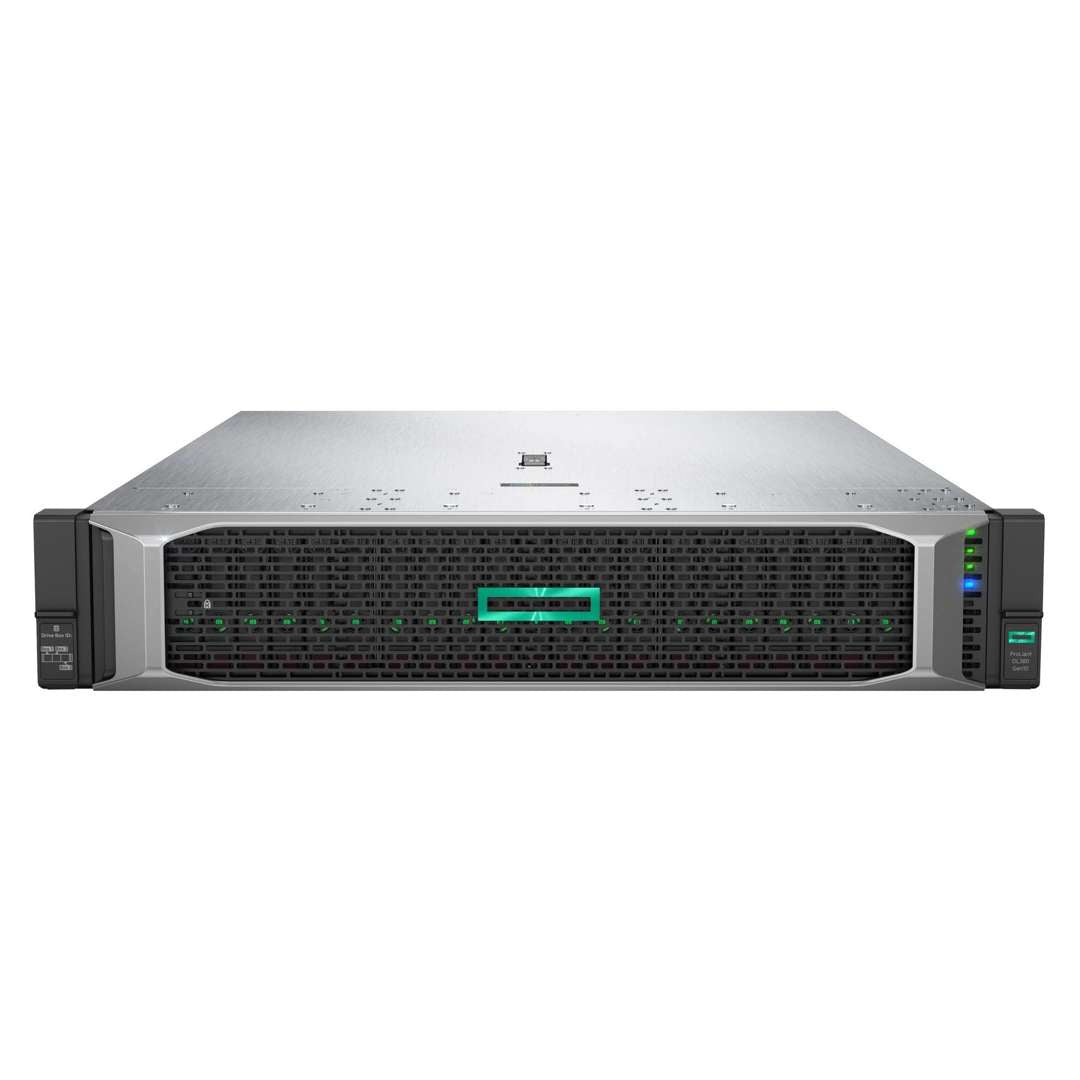

The refurbished HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain and 27% increase in cores, plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB.
It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. HPE Persistent Memory offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.
The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including new Hewlett Packard Enterprise modular drive bay configuration options with up to 30 SFF, up to 19 LFF or up to 20 NVMe drive options along with support for up to three double wide GPU options.
HPE Persistent Memory works with DRAM to provide fast, high capacity, cost effective memory and storage to transform big data workloads and analytics by enabling data to be stored, moved, and processed quickly.
In conjunction with the embedded SATA HPE Dynamic Smart Array S100i Controller for boot, data and media needs, the redesigned HPE Smart Array Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment, and operate in both SAS and HBA mode.

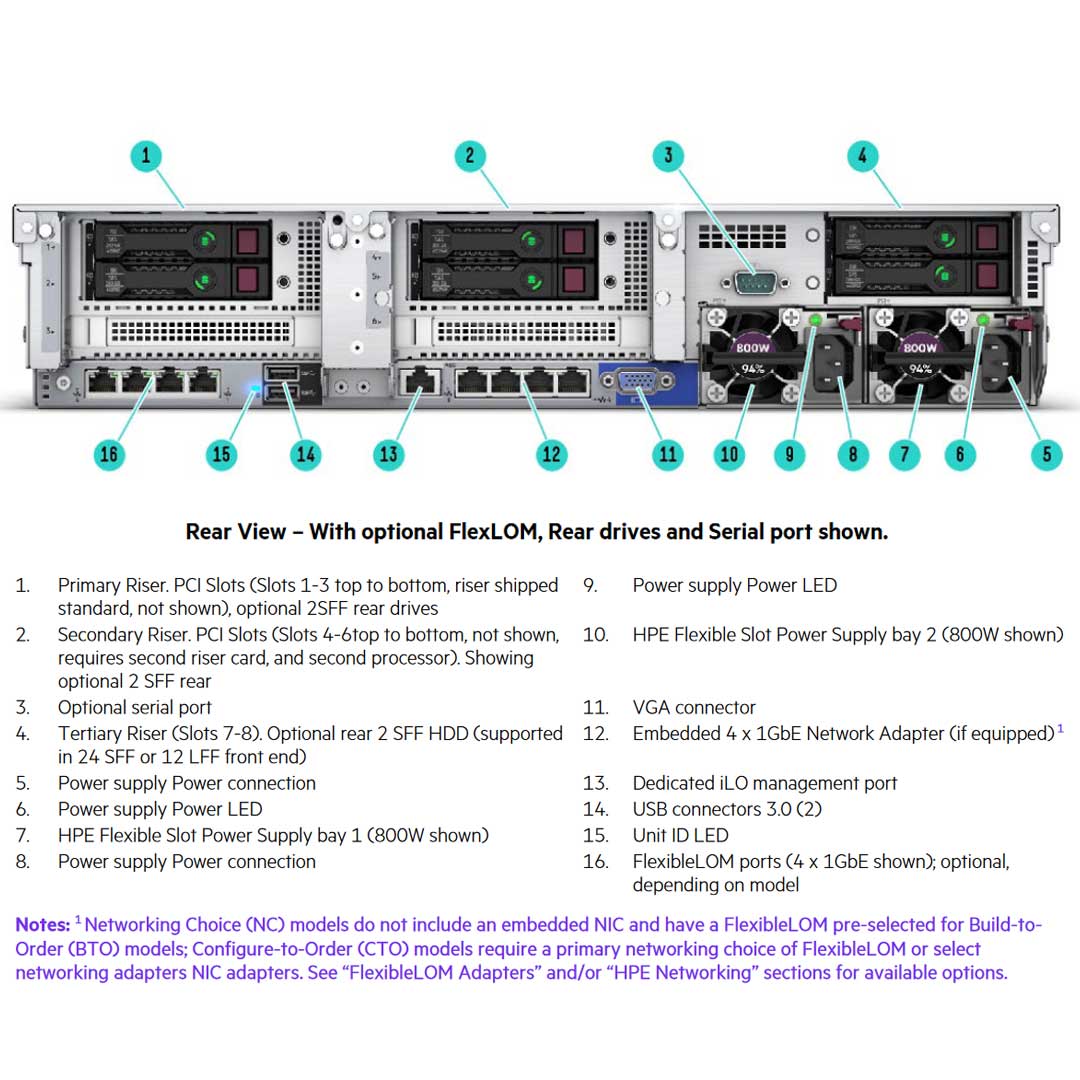

Along with an embedded 4x1GbE, you have a choice of HPE FlexibleLOM or PCIe standup adapters which offer a choice of networking bandwidth (1GbE to 40GbE) and fabric so you can adapt and grow to changing business needs.
HPE DL380 Gen10 Base Knowledge.
| CTO Server [Chassis] | HPE ProLiant DL380 Gen10 8LFF CTO Server | HPE ProLiant DL380 Gen10 12LFF CTO Server | HPE ProLiant DL380 Gen10 8SFF CTO Server | HPE ProLiant DL380 Gen10 24SFF CTO Server | HPE DL380 Gen10 8SFF BC CTO Server |
|---|---|---|---|---|---|
| SKU Number | 868706-B21 | 868705-B21 | 868703-B21 | 868704-B21 | P56970-B21 |
| Processor | Not included as standard | ||||
| DIMM Slots | 24-DIMM slots | ||||
| Storage Controller | Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller | ||||
| PCIe | Three standard in primary riser (with dual M.2 support) | ||||
| Drive Cage - included | 8 LFF | 12 LFF | 8 SFF | 24 SFF | 8 SFF |
| Network Controller | HPE 1Gb Ethernet 4 - Port 331i Adapter plus optional HPE FlexibleLOM or stand up card | ||||
| Fans | 6-Standard | 6-Performance | 4-Standard | 6-Performance | 4-Standard |
| USB | 1x 3.0 standard plus iLo front service port | None as standard | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLO front service port |
| CTO Server [Chassis] | HPE ProLiant DL380 Gen10 8LFF NC CTO Server | HPE ProLiant DL380 Gen10 12LFF NC CTO Server | HPE ProLiant DL380 Gen10 8SFF NC CTO Server | HPE ProLiant DL380 Gen10 24SFF NC CTO Server | HPE ProLiant DL380 Gen10 8SFF NC BC CTO Server |
|---|---|---|---|---|---|
| SKU Number | P19717-B21 | P19718-B21 | P19720-B21 | P19719-B21 | P56969-B21 |
| Processor | Not included as standard | ||||
| DIMM Slots | 24-DIMM slots | ||||
| Storage Controller | Embedded SW RAID with 14 SATA ports (12-ports accessible), choice of HPE modular Smart Array and PCIe plug-in controller | ||||
| PCIe | Three standard in primary riser (with dual M.2 support) | ||||
| Drive Cage - included | 8 LFF | 12 LFF | 8 SFF | 24 SFF | 8 SFF |
| Network Controller |
Choice of either HPE FlexibleLOM or select stand-up network adapters for primary networking selection plus additional/optional stand-up network adapters Note: No embedded networking, requires selection of a FlexibleLOM adapter |
||||
| Fans | 6-Standard | 6-Performance | 4-Standard | 6-Performance | 4-Standard |
| USB | 1x 3.0 standard plus iLo front service port | None as standard | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLo front service port | 1x 3.0 standard plus iLO front service port |
The DL380 Gen10 Rack Server from HPE has two different versions. One versions is to choose a chassis without the embedded HPE 1Gb Ethernet 4-Port 331i Adapter. These Chassis are called the Network Choice (NC) Rack Server Chassis . Both the NC and non-NC chassis have the option of a FlexibleLOM or Stand-up cards for network capabilities. This is the only difference between the NC and non-NC chassis. The last thing to touch on is the Basic Carrier (BC) Rack Server. All this means is that the server only supports Drives in a BC, Basic Carrier. If you find yourself getting confused and not sure how to configure this server. Please contact us via chat or email.
The DL380 Gen10 supports Intel Xeon Scalable Gen2 processors. Only the 2nd Gen can support the Intel Optane Persistent Memory which has a Max of 12 DIMMs per server. This DL380 Gen10 Rack Server has 24 DIMM Slots Available, 12 DIMM slots per processor, 6 channels per processor, and 2 DIMMs per channel. Intel Optane Persistent Memory can only be mixed with either RDIMMs or LRDIMMs. The mixing of RDIMM and LRDIMM memory is not supported.
Max Memory Capacity:
The DL380 Gen10 is a bit complex with all the configurations it provides. The best way to break this down is to focus on the LFF version before we get into the SFF version.
The Large Form Factor version of the DL380 comes with two different chassis, the 8LFF and the 12LFF chassis. The following is each storage upgrade broken down by chassis.
8 LFF Chassis-----
The 8LFF Chassis has the top drive bay open. This open bay allows for 2 additional drives, either SAS/SATA or NVMe as well as the ODD.
Both kits above come with the Universal Media bay included. For NVMe support, you can either install the NVMe SlimSAS Riser (867806-B21) that has 1 NVMe port on the riser card. Or install the 2-port 4 NVMe SlimSAS Riser (867808-B21) which can support up to 4 NVMe Drives. The 867808-B21 takes over a PCI slot while the first option does not. Remember that the NVMe drives require the addition of the High-Performance Fan kit (867810-B21).
The next option for the 8LFF Chassis is the option for the additional rear drives.
The 2SFF Rear Riser kit can go into Riser locations 1 or 2. The 3LFF rear drives kit can go into Riser location 2 and both are supported by the 8LFF and the 12LFF chassis. Both upgrade kits can be installed at the same time. 826688-B21 kit supports uFF drives. The 3LFF rear upgrade takes up Riser locations 2 and 3, this is why it can only be installed in Riser location 2.

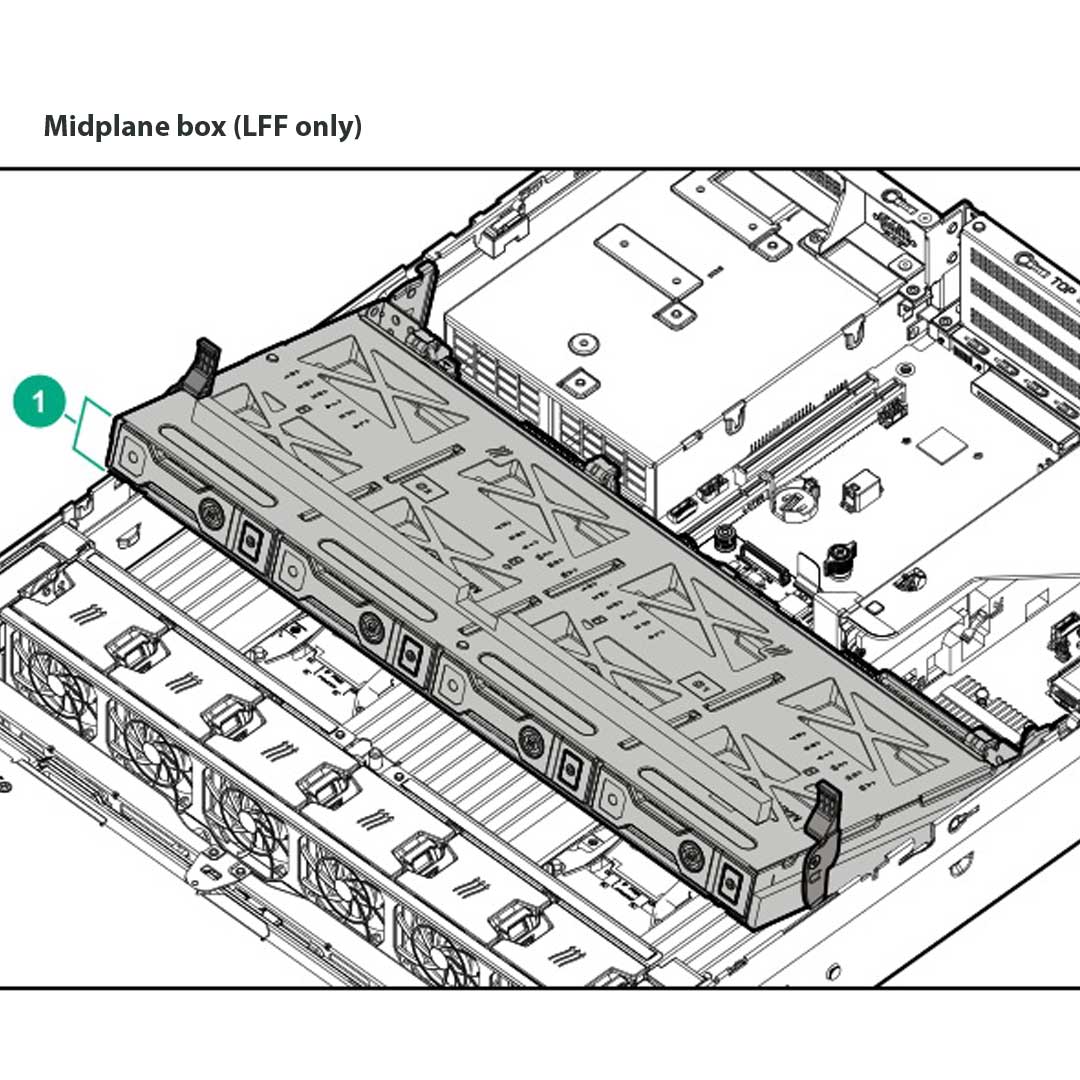

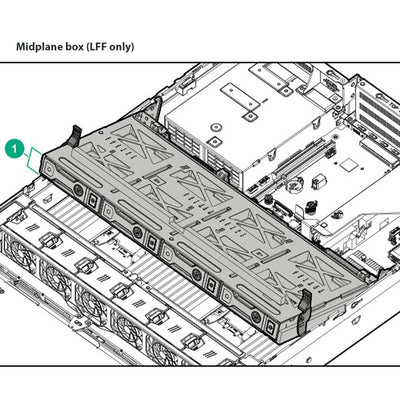

The last upgrade for the 8LFF Chassis is the 4LFF Midplane SAS/SATA HDD Kit (826686-B21). This kit is also supported by both the 8LFF and the 12LFF chassis. This Midplane Drive Tray sits on top of the DIMMS and CPUs. This tray does support hot-swap drives and requires High-Performance Fans (867810-B21).

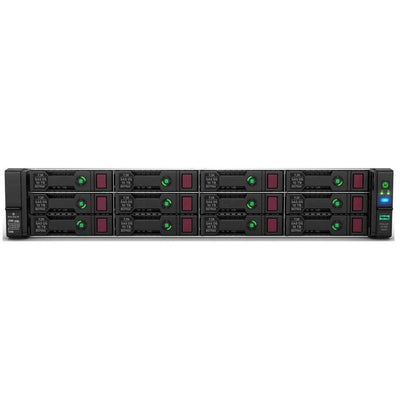

12 LFF Chassis-----
With the 12LFF chassis, the only options for upgrade are the Rear and Internal drives which we discussed above.
8SFF Chassis-----
The 8SFF Chassis comes with all 8 Drives in Box 3. Box 1 and 2 are empty by default which means we have quite a number of configurations to choose from with just the front drives. Box 1 and 2 have some limitations and we will go over them now.
Box 1 is the only box that can support the Universal Media Bay (826708-B21) that holds the ODD. This Bay has the option of supporting 2 NVMe (878189-B21) or 4 NVMe (878186-B21) front drives with the correct NVMe risers installed.
Box 2 can have either 8SFF SAS/SATA drives (826691-B21), 8 NVMe Drives (826689-B21), or 6SFF SAS/SATA and 2 NVMe drives (826690-B21).
Please note: Max of 20 NVMe drives is supported on this server.
The 2SFF Premium HDD Front NVMe or Front/Rear SAS/SATA Kit (826687-B21) has a drive cage that can be installed in the front or the back. If installed in the back it will not support NVMe drives only SAS/SATA.
24SFF Chassis------
With the 24SFF Chassis, all the front drives are filled, so the only option for upgrades is in the rear drive section. The HPE DL38X Gen10 2SFF Rear HDD SAS/SATA Riser Kit (826688-B21) is only available in the 24SFF and 12LFF Models. This Riser has 2 SFF Drives on top with 1x16 PCIe slot on the bottom.
HPE DL380 Gen10 Maximum Internal Storage
| CTO Server | 8 SFF | 24 SFF | 8 LFF | 12 LFF |
|---|---|---|---|---|
| Included Drive Cage | 8 SFF SAS/SATA | 3X 8 SFF SAS/SATA | 8 LFF + UMB | 12 LFF Chassis |
| Universal Media Bay | 1 Optional | Not available | 1 Included | Not available |
| ODD | 1 Optional with UMB | Not available | 1 Optional | Not available |
| 8 SFF Drive Cage | Up to 2 Optional | Not available | Not available | Not available |
| 8 NVMe/SAS Bay | Up to 3 Optional | Not available | Not available | Not available |
| 8 NVMe Cage | Up to 3 Optional | Not available | Not available | Not available |
| 2 SFF SAS/SATA (Front) | 1 Optional with UMB | Not available | 1 Optional | Not available |
| 2 SFF SAS/SATA (Rear) | 1 Optional | 1 Optional | 1 Optional | 1 Optional |
| 2 NVMe (FRONT) | 1 Optional with UMB | Not available | 1 Optional | Not available |
| 4 LFF Mid-plane | Not available | Not available | 1 Optional | 1 Optional |
| 3 LFF Rear | Not available | Not available | 1 Optional | 1 Optional |
HPE Smart Storage Controllers
The DL380 supports the Type-A AROC Controllers, by installing a Type-A controller you will save a PCI slot on the risers. This is a great way to keep flexibility without compromising an expansion slot. Please view the Spec manual for more details on the cabling of these controllers.
HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser. If more than 8 SATA devices are being supported on this controller, then 1 of the SAS 3POS Cable Kit (826709-B21) is required. Performance RAID Controllers require the HPE Smart Hybrid Capacitor (P02377-B21) or the HPE Smart Storage Battery (P01366-B21) which are sold separately.
Tri-Mode MegaRAID Controllers are only supported by Basic Carrier BC Drives on HPE DL380 Gen10 NC 8SFF BC CTO Server (P56969-B21) and HPE DL380 Gen10 8SFF BC CTO Server (P56970-B21). The following drive cages are supported with Broadcom controllers:
The Tri-Mode Controllers also have their own Cables that are needed. The cables below are only supported with the 8SFF BC Models.
HPE DL380 Gen10 M.2 Drives.
The M.2 Drive support Software RAID only and it must be enabled by selecting the SW RAID (784308-B21). The Primary Riser support 3 PCI slots 1 GPU Power Connector and Dual M.2 drives. This is the only riser that supports the M.2 on the riser card without taking up a PCIe slot.
Some other ways to install M.2 Drives is with the uFF drive bays. The rear Premium 2SFF HDD Kit (826687-B21) and 2SFF HDD Riser Kit (826688-B21) both support the use of uFF drives. The last way to install M.2 drives is for a Boot Option only. The HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device (P12965-B21) comes with 2x480GB M.2 Drives.
HPE DL380 Gen10 PCI Risers
There are quite a few selections for riser options on this DL380 Gen10 Rack Server. Please look over the list below carefully to find the correct one for your configuration.
| Part Number | Description | Riser Position | Bus Width (Gen3 Lanes) | NVMe Direct Connect | |||||
|---|---|---|---|---|---|---|---|---|---|
| Primary | Secondary | Tertiary | Top Slot | Middle Slot | Bottom Slot | Ports | Drive Count | ||
| N/A | This is the default riser in the chassis | D | N | N | x8 | x16 | x8 | - | - |
| 870548-B21 | HPE DL Gen10 x8/x16/x8 Riser Kit | N | O | N | x8 | x16 | x8 | - | - |
| 826704-B21 | HPE DL Gen10 x16/x16 GPU Riser Kit | O | O | N | 0 | x16 | x16 | - | - |
| 826694-B21 | HPE DL38X Gen10 x16/x16 Riser Kit | O | O | N | x16 | x16 | 0 | - | - |
| 867807-B21 | HPE DL38X Gen10 4-port 8 NVMe Primary SlimSAS Riser | O | N | N | 0 | 0 | 0 | 4 | 8 |
| 867808-B21 | HPE DL38X Gen10 2-port 4 NVMe SlimSAS Riser | N | N | O | 0 | 0 | 0 | 2 | 4 |
| 873732-B21 | HPE DL38X Gen10 4-port 8 NVMe Secondary SlimSAS Riser | N | O | N | 0 | 0 | 0 | 4 | 8 |
| 867806-B21 | HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS Riser | N | O | N | x8 | x8 | x8 | 1 | 2 |
| 871673-B21 | HPE DL38X Gen10 x8/x8/x8 1-port 2 NVMe SlimSAS FIO Riser Kit | O | N | N | x8 | x8 | x8 | 1 | 2 |
| 826688-B21 | HPE DL38X Gen10 2SFF HDD SAS/SATA Riser Kit | O | O | N | 0 | 0 | x16 | - | - |
| 826700-B21 | HPE DL38X Gen10 x16 Tertiary Riser Kit | N | N | O | x16 | 0 | 0 | - | - |
| 875780-B21 | HPE DL38X Gen10 2 x8 PCIe Tertiary Riser Kit | N | N | O | x8 | x8 | 0 | - | - |
| 871674-B21 | HPE DL38X Gen10 Slot 1/2 x16/x16 FIO Riser Kit | O | N | N | x16 | x16 | 0 | - | - |
| 871676-B21 | HPE DL38X Gen10 x16/x16 GPU Slot2/3 FIO Riser Kit | O | N | N | 0 | x16 | x16 | - | - |
| P14374-B21 | HPE DL38X Gen10 x16/x16/x16 Primary GPU FIO Kit | O | N | N | x8 | x16 | x8 | - | - |
| P14373-B21 | HPE DL38X Gen10 x16/x16/x16 Secondary GPU FIO Kit | N | O | N | x8 | x16 | x8 | - | - |
P14374-B21 and P14373-B21 each support up to (3) full-height, half-length, single-width Accelerators/GPUs, totaling (6) Accelerators in the primary riser and secondary riser.
HPE DL380 Gen10 GPU / Workload Accelerator
The Table below will let you know how many of each GPU can be installed at one time. Please take a look at power consumption as GPU’s tend to take a bit of power to run. Performance fans (867810-B21) are required for all GPU installations (Note these ship as standard with the 24SFF and 12LFF models). Performance Heatsinks (826706-B21) are required for Double Wide GPU installations (Note these ship as standard on Processors over 130W processors). Mixing of GPUs is not supported. With the Standard Primary Riser the top x8 PCIe Slot connector will not be accessible with the installation of a doublewide GPU. The installation of the 4 LFF mid-tray will not support any GPU cards. There are even more rules and limitations with certain GPU configurations. Please read the Spec Manual at the bottom of the page for more detailed information.
| Part Number | Description | QTY | Processor Supported |
|---|---|---|---|
| Q9B37C | Intel Arria 10 GX FPGA Accelerator | 5 | 205W or below |
| R0X82C | Intel FPGA PAC D5005 (Stratix 10 SX) FPGA Accelerator | 3 | 205W or below |
| Q7G75C | NEC Vector Engine Accelerator Module | 3 | 165W or below |
| R6B53C | HPE NVIDIA A100 40GB GPU | 2 | 205W or below |
| R9S37C | NVIDIA A40 48GB GPU NonCEC Accelerator | 2 | 205W or below |
| R7E31C | NVIDIA A40 PCIe 48GB GPU for HPE | 2 | 205W or below |
| R7G39C | NVIDIA A30 24GB PCIe GPU Module | 2 | 205W or below |
| R9H23C | NVIDIA A2 16GB PCIe NonCEC Accelerator | 8 | 205W or below |
| R9H23C | NVIDIA A2 GPU Accelerator | 8 | 205W or below |
| R2U55C | HPE NVIDIA Quadro P2200 GPU Module | 5 | 205W or below |
| R1F95C | HPE NVIDIA Quadro RTX4000 GPU Module | 5 | 205W or below |
| R0Z45C | HPE NVIDIA Quadro RTX 6000 | 3 | 205W or below |
| R1F97C | HPE NVIDIA Quadro RTX8000 GPU Module | 2 | 205W or below |
| Q0J62C | NVIDIA Tesla M10 32GB Module | 2 | 165W or below |
| Q0V80C | NVIDIA Tesla P40 24GB Module | 3 | 165w or below |
| R0W29C | NVIDIA Tesla T4 16GB Computational Accelerator | 7 | 205W or below |
| Q9U36C | HPE NVIDIA Tesla V100 PCIe 32GB Module | 3 | 165W or below |
| R4D73C | HPE NVIDIA Tesla V100S PCIe 32GB Module | 3 | 165W or below |
| R4B02C | HPE Xilinx Alveo U50 Accelerator | 7 | 205W or below |
| R4B03C | HPE Xilinx Alveo U250 Accelerator | 3 | 205W or below |
Networking Abilities | FlexibleLOM, Stand-up card
The DL380 Gen10 embedded LOM chassis ships standard with 4x 1 Gb embedded. When you have an NC Chassis selected, you are required to install either a FlexibleLOM or a Stand-up card. Not all networking options can be selected as the primary networking choice when having a Networking Choice (NC) chassis. Please read the Spec Manual for more details on which card can and cannot be used as the primary networking option for the NC Chassis.
A minimum of two Gigabytes (2 GB) of server memory is required per adapter.
Pensando Distributed Services Cards (DSC)
The Pensando Distributed Services Card (DSC) is a hardware accelerator card designed to enhance network and security services in data centers. By offloading and accelerating various network functions and services to the DSC, it aims to improve network performance, reduce latency, increase security, and provide better visibility into network traffic. If you install the iLO Sideband Management Adaptive LOM Module you will are also required to install the Pensando Distributed Services Platform DSC-25 Enterprise 10/25Gb 2-port SFP28 Card (P26966-B21).
HPE DL380 Gen10 Cooling
The High-Performance Heat Sink Kit (826706-B21) is required for GPU installation and processors with a TDP above 130W. Another cooling kit that is needed with certain installations is the High-Performance Fan Kit (867810-B21). This Fan kit is required to support GPU, NVMe Drives, Rear drives, and when all three front-drive boxes are filled.
The 8SFF CTO 1P models ship with 4 standard fans. The second processor option kit contains 2 additional fans. 12 LFF and 24 SFF CTO Servers ship with 6 High-performance fans included.
Please read the Spec Manual for more detailed information on what items require upgraded cooling.
HPE DL380 Gen10 Flex Slot your power!
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
More Info
The Default Primary Riser supports 2 M.2 drives on the riser card.
High-performance fan kits are required for rear drives, Graphics (GPU) cards, or NVMe configurations.
The 3 LFF rear drive box will consume space for the secondary and tertiary rise
