N3V6G - Dell PERC H710P 1GB SAS/SATA RAID Controller, Mini

Brand:
MPN:
N3V6G
Type:
RAID Controllers
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Description:

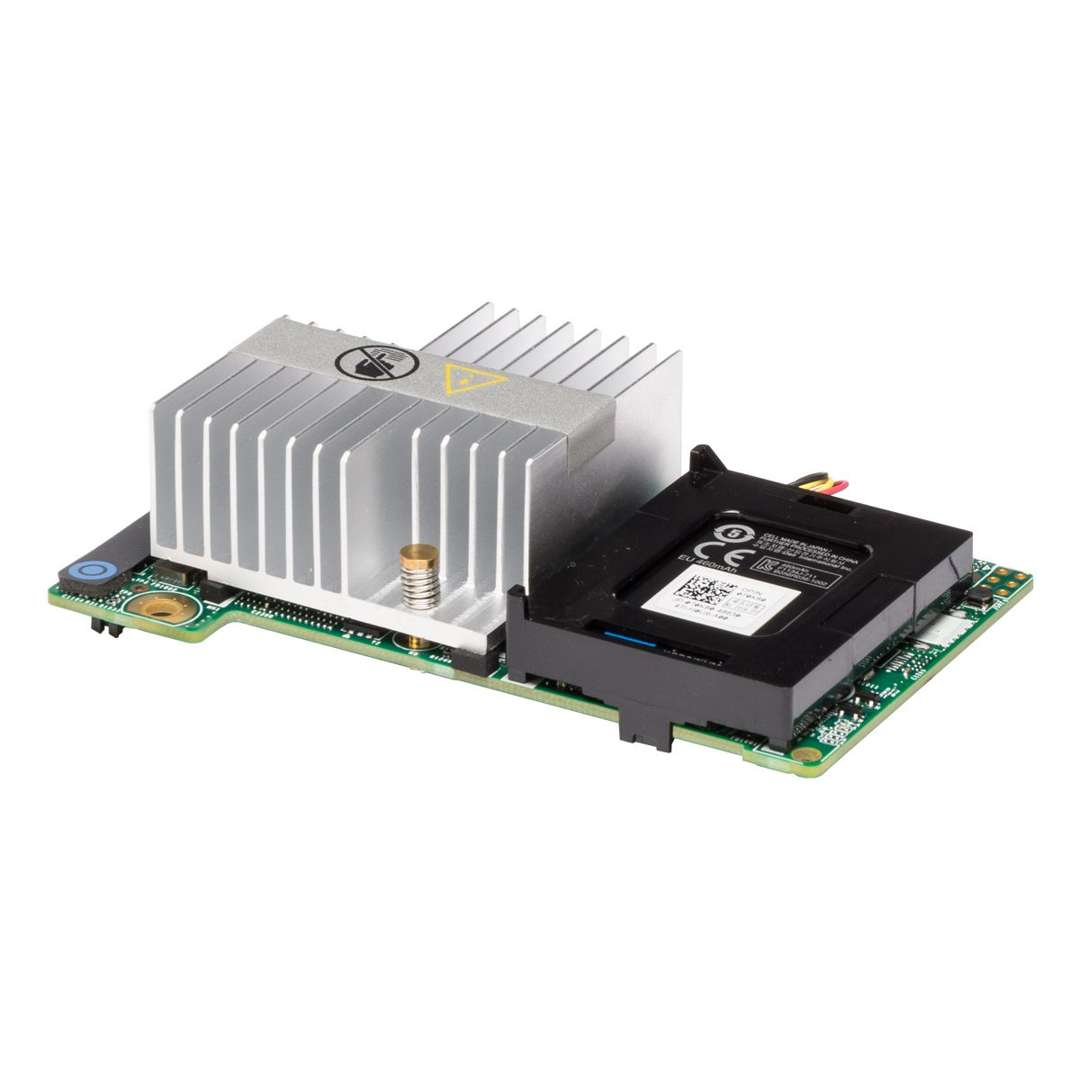

Dell PE PERC H710 1GB Non-Volatile
SAS/SATA 6Gb/s Mini Mono RAID Controller

For Dell PowerEdge R520 R620 R720 R720XD Servers

Part Number(s)
Dell Part# N3V6G
Dell Part# 0N3V6G
Dell Part# TY8F9
Dell Part# TTVVV

Overview:
The Dell™ PowerEdge™ PERC H710 RAID Controller is for select 12th Generation Dell Servers. The PowerEdge RAID Controller (PERC) H710, with eight internal ports, delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 512 MB cache memory. This controller is designed to work in the dedicated proprietary expansion slot on PowerEdge Servers and does not fit the standard PCIe expansion slot. It has Dual Core PowerPC CPU which significantly increases IOPS performance with Cut-Through IO and Fastpath.

Specifications:
Category Dell Controller
Sub-Category RAID Controller
Generation PCI-Express
Part Number N3V6G
Products ID 474602
Device Type Serial Attached SCSI
Interface Type PCI Express 2.0 x8
Data Transfer Rate Up to 6Gb/s per Port
Cache 1GB Non-Volatile
Battery Backup Yes
Connectors 2 x Internal mini-SAS SFF8088
Max Hard Drives Supported Up to 32 Drives
SAS Controller LSISAS2008 Dual Core PowerPC ROC
RAID Controller RAID 0 1 5 10 50 60
Operating Voltage +3.3v
