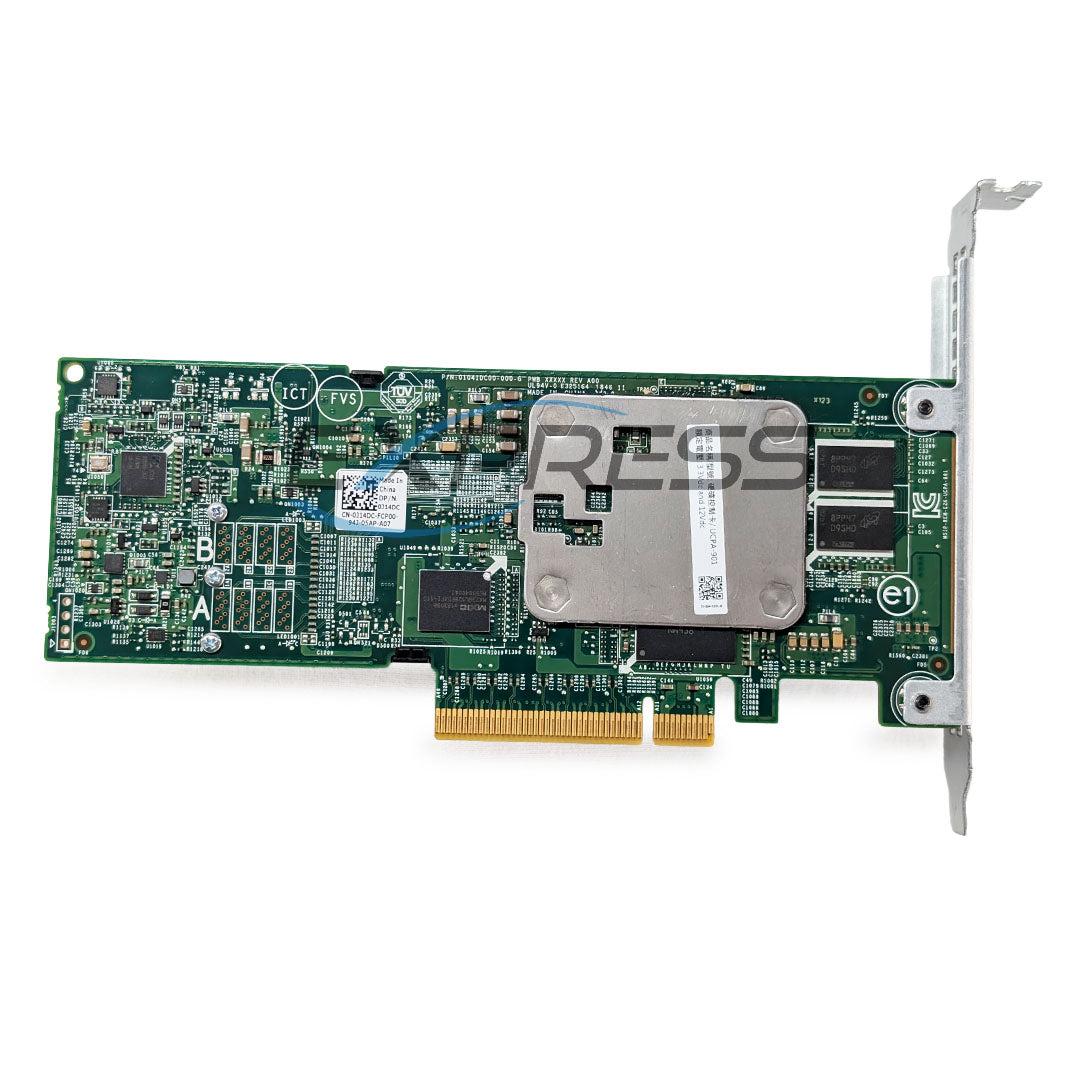

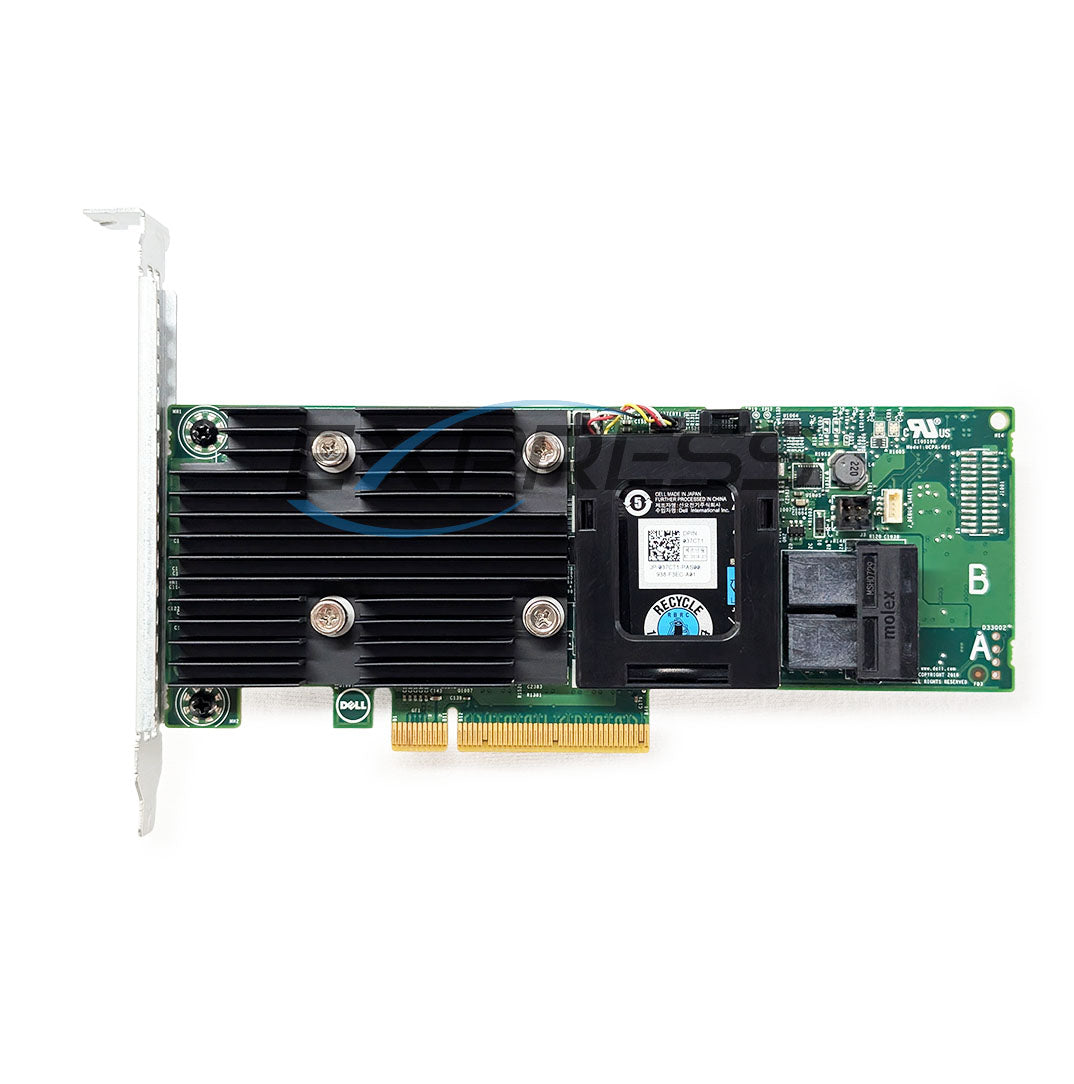

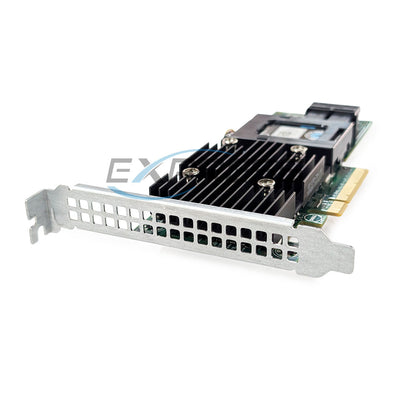

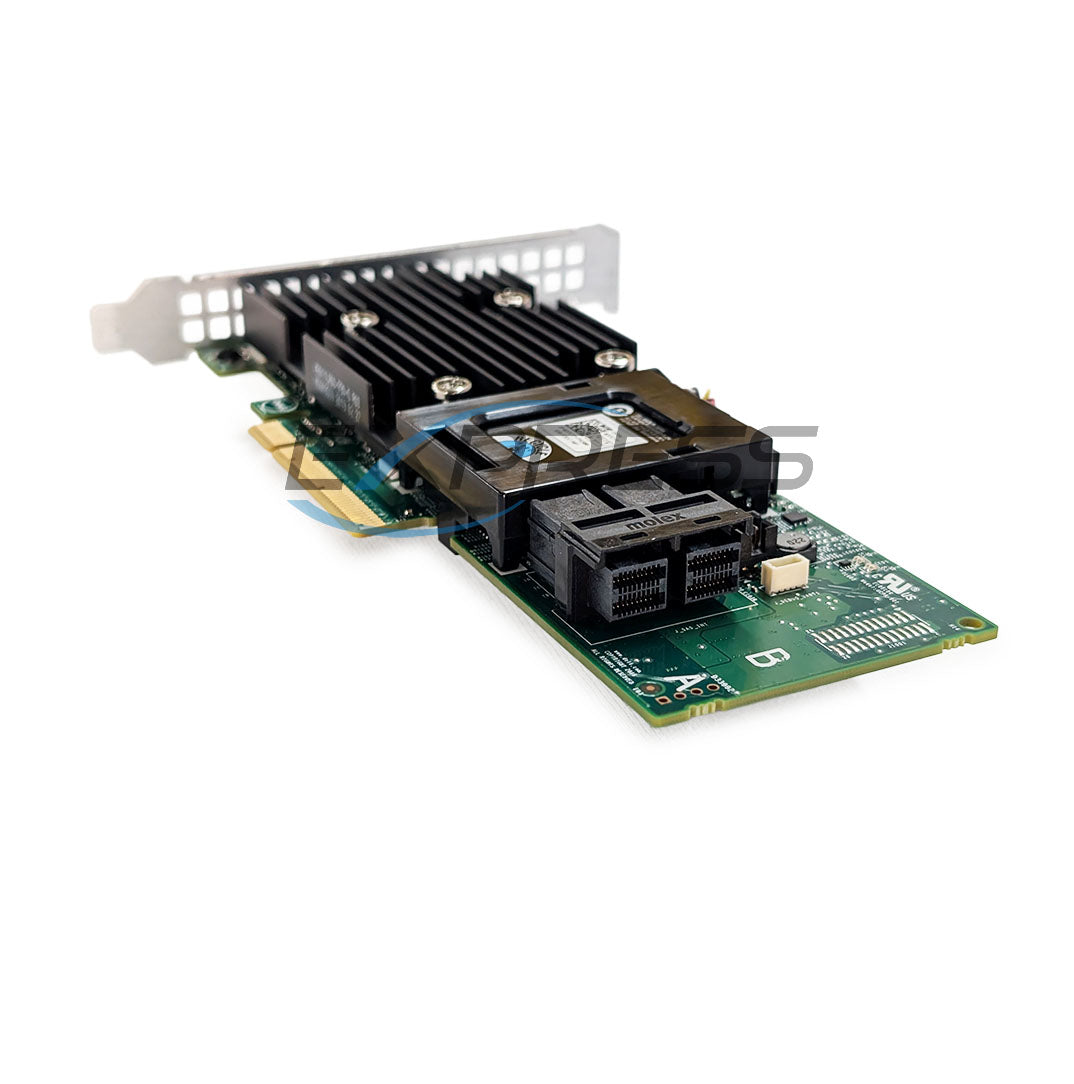

Dell PERC 9 H730P 12Gb SAS 2GB x8 PCI-e Low Profile RAID Controller | J14DC

Brand:
MPN:
J14DC
Type:
Storage Controllers
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell PERC H730P 12Gb SAS 2GB x8 PCI-e Low Profile RAID Controller | J14DC

Interface Support

  • 12 Gb/s SAS
  • 6 Gb/s SATA

PCI Support :PCIe Gen 3
SAS Connection : 2 x 4 Internal
Cache Memory Size : 2GB NV
Write Back Cache : Flash Backed Cache
Raid Level : 0,1,5,6,10,50,60
Max Drive Support : 32
RAID Support : Hardware RAID


Product Specs

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H830
Adapter
12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 255 Hardware
H730P Adapter 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P MX 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA
PCIe 3 2x4 Internal 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 - Hardware
H730P Mini Mono 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P Mini Blade 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730 Adapter 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730 Mini Mono 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730 Mini Blade 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 1x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H330 Adapter 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal No Cache No Cache 0,1,5,10,50 16 RAID,
32 Non-RAID
Hardware
H330 Mini Mono 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal No Cache No Cache 0,1,5,10,50 16 RAID,
32 Non-RAID
Hardware
H330 Mini Blade 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 Internal No Cache No Cache 0,1,5,10,50 8 Hardware
S130 Software
RAID
6 Gb/s SATA N/A N/A No Cache No Cache 0,1,5,10 10 Software -
Windows and Linux
12 Gbps SAS Ext. HBA 12 Gb/s SAS PCI-e 3.0 2x4 External No Cache No Cache No RAID
Pass-Thru Only
255 No RAID
Pass-Thru Only
Table 1.PERC cardsThe table below lists and describes the different PERC cards that comprise the PERC 9 series and their specifications.
Feature PERC H330 PERC H730 PERC H730P PERC H730P MX PERC H830 PERC FD33xD/FD33xS
RAID Levels 0, 1, 5, 10, 50 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60 0, 1, 5, 6, 10, 50, 60
Enclosures per port Not applicable Not applicable Not applicable Not applicable 8 (4 per port) Not applicable
Processor Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3008 chipset Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset Dell Adapter SAS RAID-on-Chip, 8- port with LSI 3108 chipset Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset
Battery Backup Unit No Yes Yes Yes Yes Yes
Non-Volatile cache None Yes Yes Yes Yes Yes
Cache policy No 1 GB DDR3 1333 Mhz cache 2 GB DDR3 1866 Mhz cache 2 GB DDR3 1866 Mhz cache 2 GB DDR3 1866 Mhz cache 2 GB DDR3 1866 Mhz cache
NOTE:H330 does not support caching, which affects performance in RAID 5 and RAID 50 arrays. For performance sensitive solutions, caching is recommended.
Cache function

Write Through and No Read Ahead

Write Back, Write Through, No Read Ahead, and Read Ahead Write Back, Write Through, No Read Ahead, and Read Ahead Write Back, Write Through, No Read Ahead, and Read Ahead Write Back, Write Through, No Read Ahead, and Read Ahead Write Back, Write Through, No Read Ahead, and Read Ahead
Maximum number of virtual disks 16 64 64 64 240 64
Maximum number of virtual disks per disk group 16 16 16 16 16 16
Hot swap devices supported Yes Yes Yes Yes Yes Yes
Hardware XOR Engine No Yes Yes Yes Yes Yes
Online capacity expansion Yes Yes Yes Yes Yes Yes
Dedicated and global hot spare Yes Yes Yes Yes Yes Yes
Drives Types 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS 6 Gbps SAS, and 12 Gbps SAS 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS
PCIe Support Gen 3 Gen 3 Gen 3 Gen 3 Gen 3 Gen 3
Non-RAID or pass through mode Yes Yes Yes Yes Yes Yes
Queue Depth 895 928 928 928 928 928
