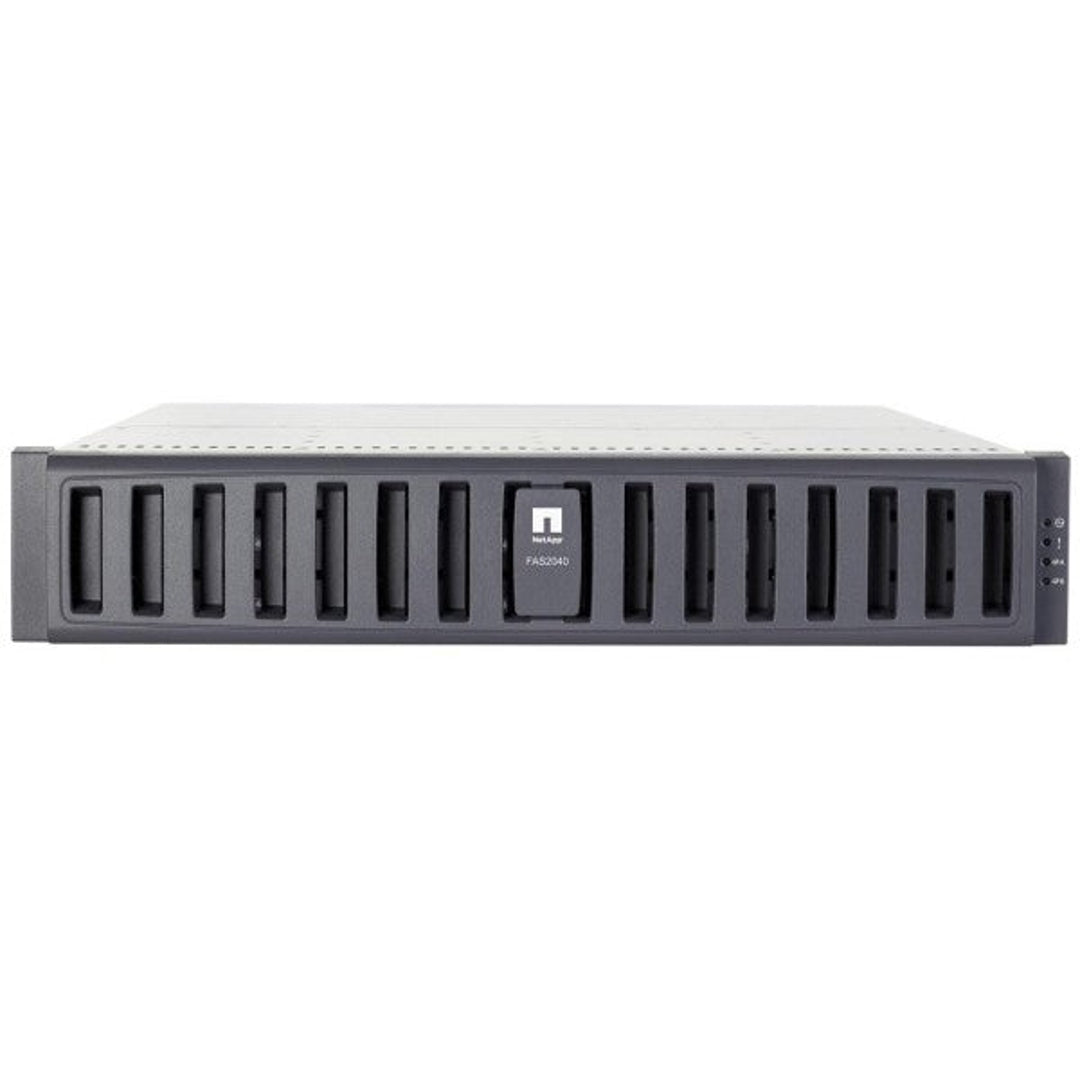

NetApp FAS2040 Single Controller 12x 3.5”

Part#:
FAS2040
Brand:
NetApp
Type:
Filer Head
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp FAS2040 Enterprise Storage System

Maximum Raw Capacity (HA): 136TB
Maximum Disk Drives: 136
Maximum Internal Drives: 12
Controller Form Factor: 2U
Max Memory: 8GB
Disk Type: Fibre Channel, SAS, SATA
Disk Form Factor: 3.5"
Host Connectivity: 1Gb Fibre Channel (FC), 2Gb Fibre Channel (FC), 4Gb Fibre Channel (FC), 1GbE
Storage Protocols Supported: CIFS (NAS), NFS (NAS), iSCSI (IP SAN), HTTP, Fibre Channel (FC)
Supported RAID: RAID 4, RAID 6 (RAID-DP)

*Available in Single or Dual Controller ('C' Cluster / 'A' Active-Active / 'HA' High-Availability). Ask for pricing with disks. Call for Details and Pricing

The NetApp FAS2000 series provides a powerful range of technologies to help increase the efficiency of your storage administrators. FAS2000 series rapidly deploys within minutes and also helps to cut storage costs by up to 50% with features such as deduplication and thin provisioning.

The FAS2040 is geared towards midsize businesses, remote offices, and local storage at an affordable price. FAS2040 is excellent for consolidating virtualized environments with one to three Windows applications or lighter file-serving workloads.

The FAS2040 utilizes up to 136 drives and can support up to 408TB of max storage in a 2U/12 drive configuration.



FAS2040 Technical Specifications

FAS2040 OVERVIEW
Form Factor 2U/12 Drive
Dual Controllers Yes
Maximum Disk Drives 136
Maximum Raw Capacity 408TB
Maximum Ethernet Ports 8
Onbaord SAS Ports 2
8Gb FC Support No
10GbE Support No
Remote Management Yes
Storage Protocols FCP, iSCSI, NFS, CIFS
TECHNICAL SPECIFICATIONS FOR SINGLE AND HA CONFIGURATIONS
Maximum Raw Capacity (HA) 408TB
Recommended Min Raw Capacity Array LUNs (GB) N/A
Absolute Min Raw Capacity Array LUNs (GB) N/A
Maximum Storage Devices (HA) 136 Disks
Max DS2246 Shelves (HA) 4
Max DS4243 Shelves (HA) 4
Max DS4246 Shelves (HA) 4
Max DS4486 Shelves (HA) N/A
Max DS14-Class Shelves (HA) 8
Max Nodes per Cluster (NAS) Not Supported
Max Nodes per Cluster (SAN) Not Supported
Aggregate Size 32 bit (TiB) 16
Aggregate Size 64 bit (TiB) N/A
Min Size for an Array LUN Aggregate (GB) N/A
Flex Volume Size 32 bit (TiB) 16
Flex Volume Size 64 bit (TiB) N/A
Max Infinite Volume Data Constituent Size (TiB) Not Supported
Max Volume Count (Single) 200
Max Array LUN Size (GB) N/A
Min Array LUN Size (GB) N/A
Min Array LUN Size - Root Volume (GB) N/A
Min Root Volume Size (Single/HA) 13GB / 13GB
Spare Core Array LUN Min Size (GB) N/A
Max RAID Groups in an Aggregate N/A
Block Size (Bytes) N/A
Chassis Height 3.50"
Chassis Width 17.60"
Chassis Depth 22.52"
Rack Units (Single/HA) 2U/2U
Operating Temperature Range 50°F to 104°F
Storage Temperature Range -40° to 140°F
Input Power Voltage 100v to 120v, 200v to 240v
Processor (Single) 1x 32-bit 1.67Ghz
Memory (Single/HA) 4GB/8GB
NVRAM (Single) 512MB (NVMEM)
Ethernet Ports (Single) 4x RJ45 (1Gbps)
Fibre Channel Ports (Single) 2x SFP (4Gbps)
UTA2 Ports (Single) N/A
Expansion Slots (Single) N/A
SAS Ports (Single) 1x QSFP (3Gbps)
Max Back-End FC Loops (HA) 2
Min Version of Data ONTAP 7 7.3.2
Min Version of Data ONTAP 8 (both modes) 8.0, 8.1
Max Version of Data ONTAP 8 (both modes) 8.0.5, 8.1.4

Ask about our NetApp Disk Shelves! We can create custom Turn-Key configurations based on your needs!
