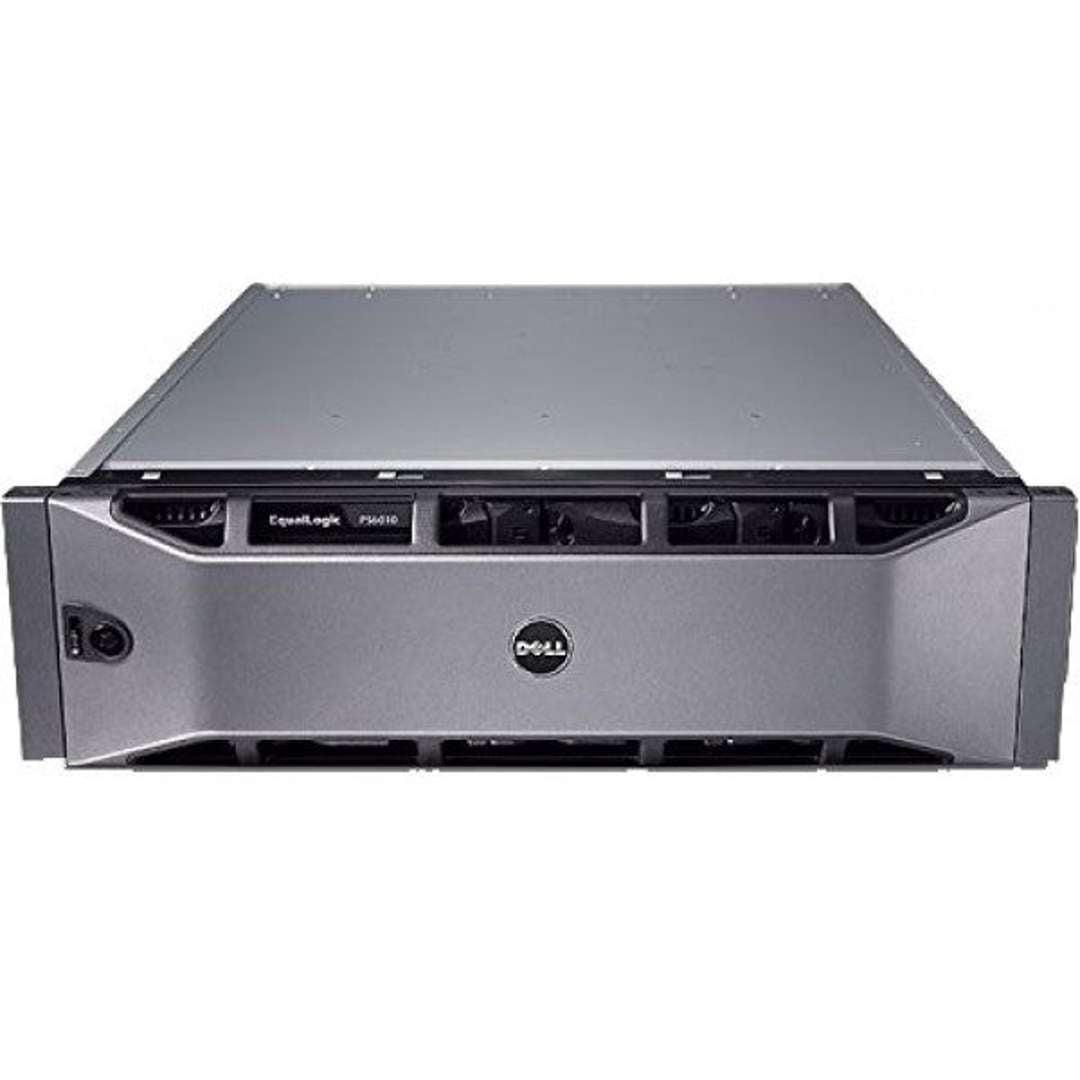

The Dell EqualLogic PS6000E is a virtualized iSCSI SAN that combines intelligence and automation with fault tolerance to provide simplified administration, rapid deployment, seamless scalability as well as enterprise performance and reliability. The PS6000E delivers up to 16TB of high-capacity storage. The PS6000E array is an intelligent storage solution that is designed to provide rapid installation, simple management and seamless expansion. The PS6000E includes SAN configuration features and capabilities that sense network connections, automatically build RAID sets, and conduct system health checks to help ensure that all components are fully functional.
The EqualLogic PS6000E series array is based on a virtualized modular storage architecture that enables IT managers to purchase only the storage they need, when they need it to help prevent both under-utilization and over-provisioning. Using innovative data movement technology, all EqualLogic PS Series arrays in a SAN work together to automatically manage data, load balance across all resources and expand to meet growing storage needs.
The PS6000E includes fault tolerance capabilities through fully redundant and hot swappable components – optional dual controllers, standard dual fan trays, dual power supplies and disk drives with hot spares. The PS6000E controllers can provide up to 4GB of battery-backed memory with up to 72 hours of data protection.
|PS6000 SERIES FEATURES||PS6000E ISCSI SAN TECHNICAL FEATURES|
|Product Configurations||Capacity for your data-hungry applications|
|Storage Controllers||Dual 1GbE iSCSI controllers with a total of 4GB battery-backed memory which provides up to 72 hours of data protection|
|Network Interfaces||4x RJ45 1GbE copper per controller|
|Hard Disk Drives||16x Hot-Pluggable 3.5" 7.2K SATA/NL-SAS HDDs|
|Drive Capacities||250GB, 500GB, 1TB, 2TB 7.2K SATA 3.5" HDDs and 3TB 7.2K NL-SAS|
|System Capacities||Up to 48TB|
|Host Protocol||Any standards-compliant iSCSI initiator|
|Volumes||Up to 1,024|
|Snapshots||512 per volume/up to 10,000 total per group|
|Volume Connections per PS Series Group||Up to 1,024 per pool/4,096 per group|
|OS and Hypervisors Supported||Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix XenServer, Novell NetWare|
|RAID Supported||RAID 5, RAID 6, RAID 10 and RAID 50|
|TCP Network Support||IPv4, IPv6 Core Support|
|Expansion Option||Can be combined with other EqualLogic PS Series arrays in the same SAN group online. Up to 16 total members per group.|
|Reliability||Redundant, hot-swappable controllers; power supplies/cooling fans, and hot-swappable disks.
Individual disk drive slot power control
|Enclosure Monitoring System||Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives|
|Management Interfaces||EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support.|
|Security||CHAP Authentication; Access control for iSCSI; Access control for management interfaces including RADIUS support|
|Notification Methods||SNMP traps, e-mail, syslog|
|Physical||Height: 3U (5.12") Width: 19.00" Depth: 21.70" Weight: 78.60 lbs|
|Power||Dual 440W DC Power Supplies. AC Voltage: 100-240 VAC. Frequency: 47-63 Hz|
|Environmental||Temperature Range: 5 to 35°C/ 41 to 95°F
Storage temperature: -20 to 60°C / -22 to 140°F
