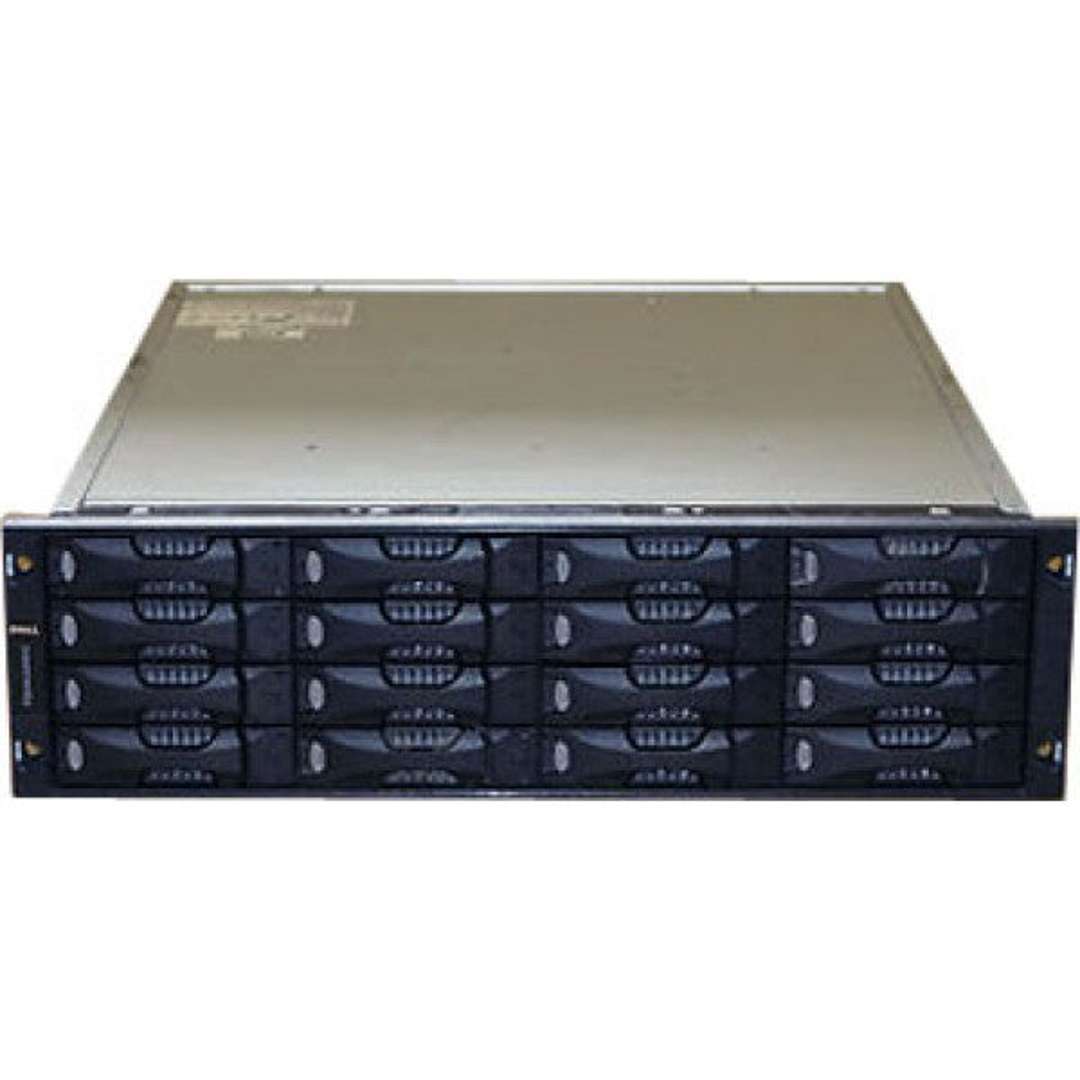

EqualLogic PS5000XV 3U Storage Array (16 x 3.5" 15K sas)

MPN:
PS5000XV-3U-16-BAY-SAS
Brand:
EqualLogic
Type:
Storage Array
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EqualLogic PS5000XV Description

Dell EqualLogic PS5000XV is a virtualized iSCSI SAN that combines intelligence and automation with fault tolerance to provide simplified administration, rapid deployment, seamless scalability, enterprise performance and reliability. When loaded with 15K SAS drives, the PS5000XV array provides high transactional performance with up to 4.8TB of storage capacity. All PS Series storage arrays include SAN configuration features and capabilities that sense network topology, automatically build RAID sets, and conduct system health checks to help ensure that all components are fully functional.

The PS5000XV array is based on virtualized modular storage architecture that enables IT mangers to purchase only the storage they need, when they need it – helping to prevent both underutilization and over-provisioning. All PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and expand to meet growing storage needs. The PS5000XV includes fault tolerance capabilities through fully redundant and hot-swappable components – dual controllers, standard dual fan trays, dual power supplies, and disk drives with hot spares. The PS5000XV’s dual controllers provide a total of 2GB of battery-backed memory with up to 72 hours of data protection.

PS5000XV ISCSI SAN TECHNICAL FEATURES

PS5000 SERIES FEATURES PS5000XV ISCSI SAN TECHNICAL FEATURES
Product Configurations High-performance storage array for your demanding applications
Storage Controllers Dual 1GbE iSCSI controllers with a total of 2GB battery-backed memory which provides up to 72 hours of data protection
Network Interfaces 3x 1GbE Copper per controller
Hard Disk Drives 16x 3.5" 15K SAS HDDs
Drive Capacities 146GB, 300GB, 450GB and 600GB 15K SAS 3.5" HDDs
System Capacities Up to 9.6TB
Host Protocol Any standards-compliant iSCSI initiator
Volumes Up to 1,024
Snapshots 512 per volume/up to 10,000 total per group
Volume Connections per PS Series Group Up to 512
OS and Hypervisors Supported Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5, ESXi 3.5, Citrix XenServer, Novell NetWare, Virtual Iron
RAID Supported Automatic RAID 5, RAID 10, RAID 50
Expansion Option Can be combined with other EqualLogic PS Series online
Reliability Redundant, hot-swappable controllers, power supplies, cooling fans, and disks.
Individual disk drive slow power control
Enclosure Monitoring System Automatic spare configuration and utilization; SMART; Automatic bad block replacement; Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support.
Security CHAP Authentication; Access control for iSCSI; Access control for management interfaces including RADIUS support
Notification Methods SNMP traps, e-mail, syslog
Physical Height: 3U (5.12") Width: 19.00" Depth: 21.70" Weight: 77.60 lbs
Power Dual 440W DC Power Supplies. AC Voltage: 100-240 VAC. Frequency: 47-63 Hz
Environmental Temperature Range: 5 to 35°C / 41 to 95°F
Storage temperature: -20 to 60°C / -22 to 140°F
