Dell PowerEdge R520 Rack Server Chassis (8x3.5")

Price: Ask for Quote

ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

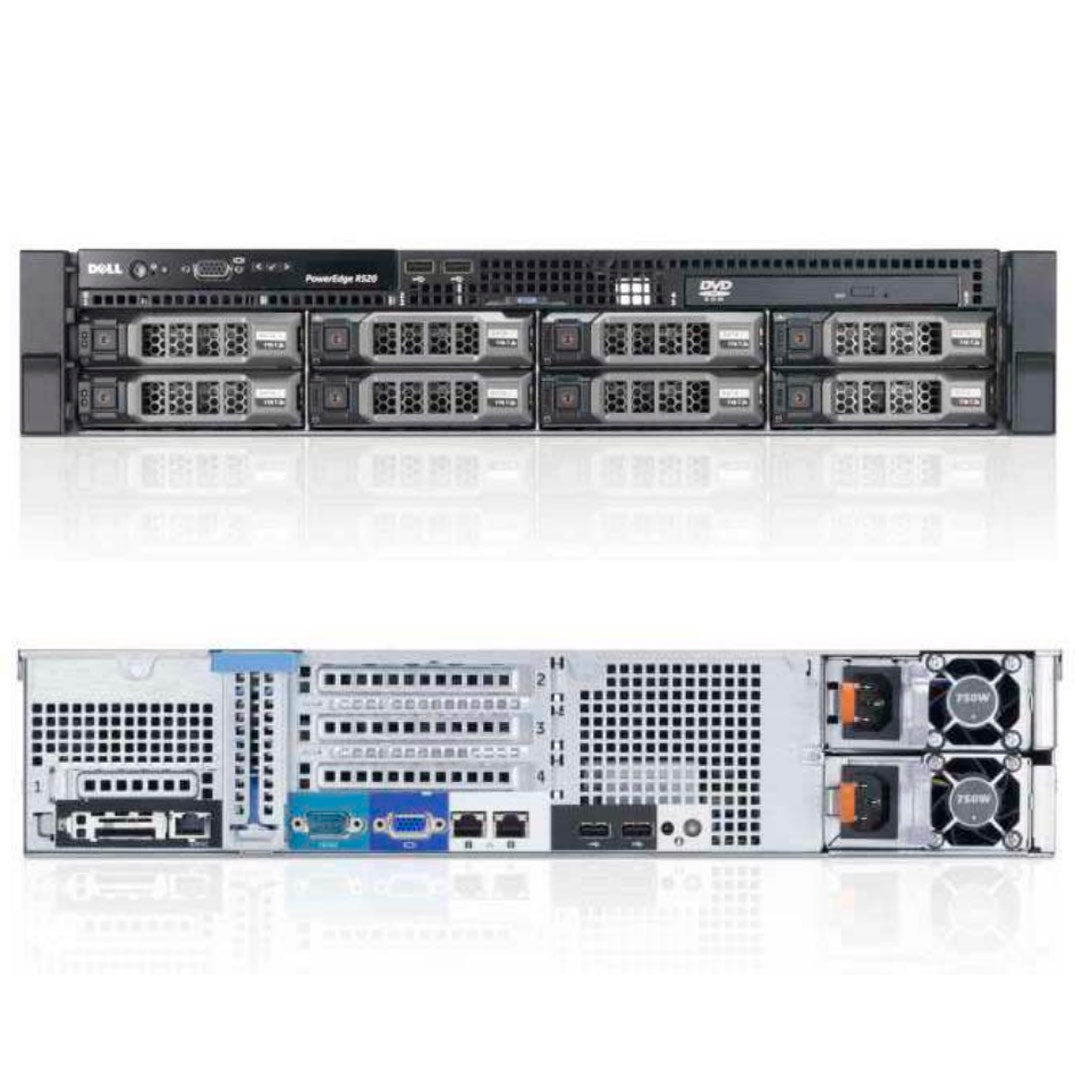

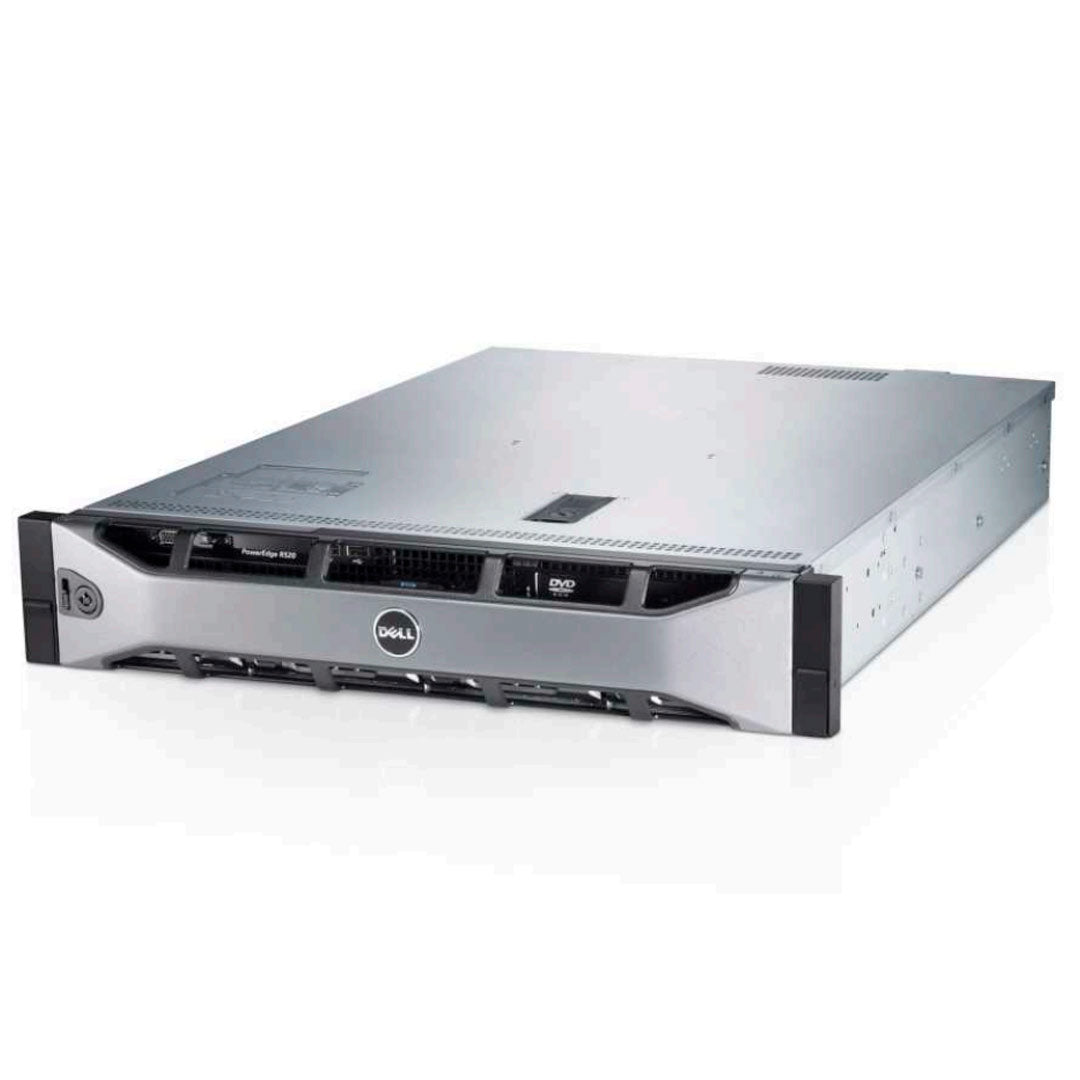

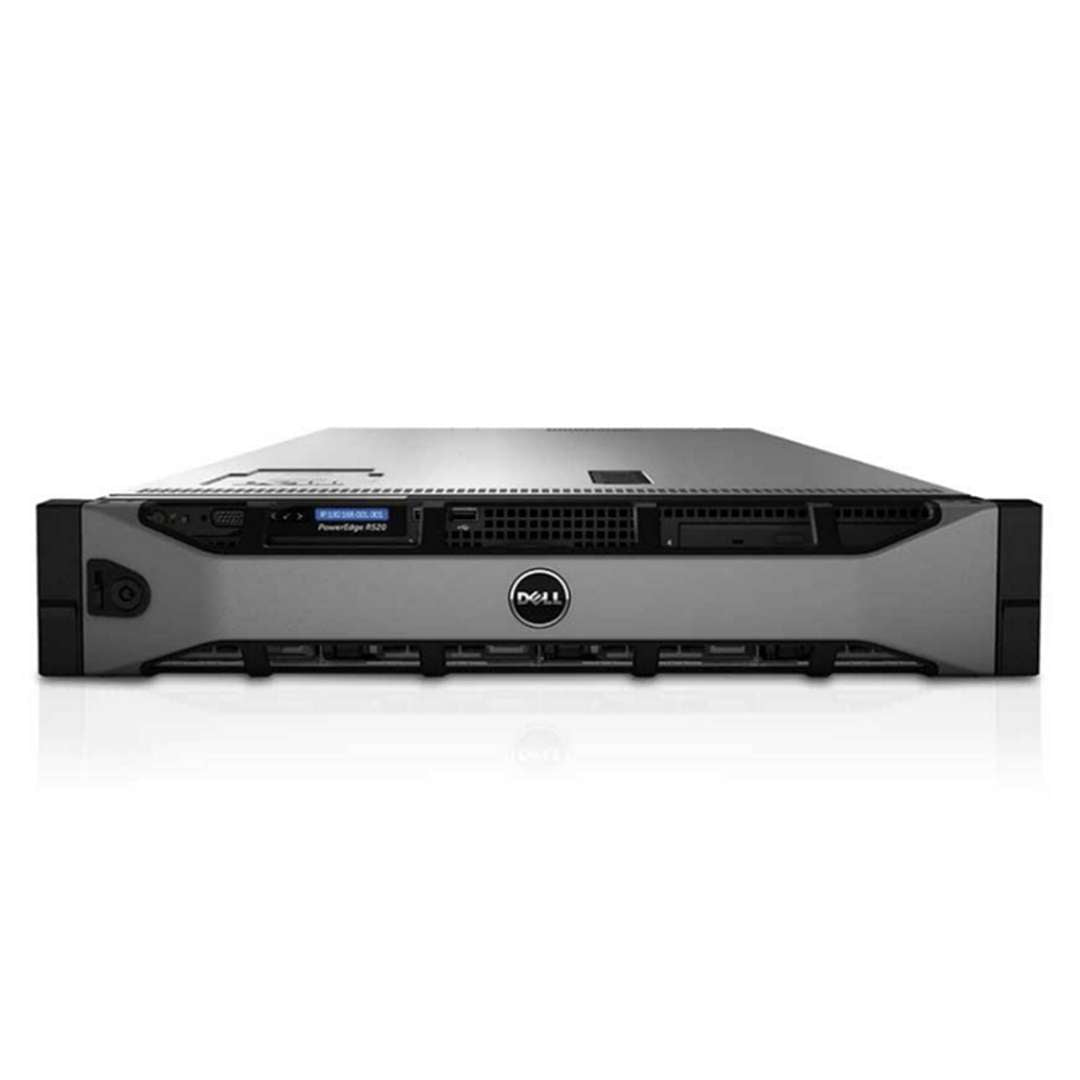

Dell PowerEdge R520 Rack Server Chassis (8x3.5")

Quick Specs

Form Factor:

2U rack server

Processor | Max: 4 or 8 Cores

2 x Intel Xeon E5-2400

Memory | Max: 384GB

12 DDR3 UDIMM or RDIMM 1600Mhz

Storage | Max: 32TB


RAID Controller:

S110 (SW RAID)
H310, H710, H710P, H810, 6Gb/s SAS HBA

Remote Management:

iDRAC7 with Lifecycle Controller

Embedded NIC:

Broadcom 5720 Dual Port 1Gb LOM

PCIe Slots:

4 PCIe 2.0 & 3.0



A powerful, 2-socket rack server, the Dell PowerEdge R520 delivers balanced performance and storage expandability for data-intensive applications.

The Dell PowerEdge R520 is a 2-socket, 2U rack-mount server offering an excellent balance of processing power, storage capacity, and redundancy. The R520’s price per performance, configuration flexibility, and headroom for growth make it highly appealing for consolidation and virtualization, web hosting, for use as a medium size mail server, or as a general-purpose server. The R520 is optimized for running a wide range of core applications, such as small-medium mail server, web server, small-scale hosting, and database server. Consistent worldwide support makes it highly appealing to larger businesses and organizations with distributed offices.

Designed for demanding workloads

The extensive memory, storage, and I/O capacities of the R520 make it ideal for consolidation and virtualization. Delivering the performance of two Intel Xeon E5-2400 processors and complemented by up to twelve DIMMs, up to four PCIe 3.0-enabled slots and up to eight internal hard drives, the R520 delivers balanced performance. With built-in redundancy, the R520 is a trustworthy platform for your business-critical databases and applications. The dense form factor and innovative systems management of the R520 allow you to save space and to use your IT administrator’s time efficiently.

Manage and secure your data

Features that protect your business data and keep the server running are essential. The extensive storage capacity of the R520 can be protected with both hardware RAID controllers and software solutions to protect your data and ensure that it is readily available. Built-in reliability, availability, and serviceability (RAS) features such as hot-pluggable hard drives and power supplies minimize the need to disrupt production work to take a server offline in the event of a component failure. Redundant, failsafe hypervisors also add an additional layer of protection for virtualized environments.

Processor Features
Flexible computing platform

Tackle your core business applications and virtualization requirements with the power and versatility of the PowerEdge R520. With the Intel Xeon processor E5-2400 and E5-2400 v2 product families and up to 12 DIMMs of memory, the R520 is designed to deliver the best combination of performance, built-in capabilities and optional features for your growing business.

Reliability, Availability and Serviceability (RAS) features

Reliability, availability, and serviceability (RAS) features help keep the system online and operational without significant impact to performance, and can decrease data loss and crashing due to errors. RAS aids in rapid, accurate diagnosis of faults that require service. Table 10 describes the RAS features supported on the R520

Security Features
Cover latch

A tooled latch is integrated on the top cover with a coin key lock to secure the system.


An optional metal bezel is mounted to the chassis front to provide the Dell ID. A lock on the bezel is used to protect un-authorized access to hard drives. System status is viewable on the LCD screen when the bezel is installed.


The Trusted Platform Module (TPM) is used to generate/store keys, protect/authenticate passwords, and create/store digital certificates. It also supports the Intel Xeon TXT functionality. TPM can also be used to enable the BitLocker™ hard drive encryption feature in Windows Server 2008. TPM 1.2 is supported. No TPM version is available for China or Russia.

Power-off security

BIOS has the ability to disable the power button function

Intrusion alert

An internal switch is used to detect chassis intrusion.

Secure mode

BIOS has the ability to enter a secure boot mode through system setup. This mode includes the option to lock out the power and NMI switches on the control panel or set up a system password.

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeaturesPowerEdge R520 technical specification
Form factor2U rack
ProcessorsIntel Xeon processor E5-2400 product family
Processor sockets2
Internal interconnectIntel QuickPath Interconnect (QPI) link: 6.4GT/s; 7.2GT/s; 8.0GT/s
Cache2.5MB per core; core options: 4, 6, 8
ChipsetIntel C600 series
MemoryUp to 384GB (12 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
I/O slots4 PCIe slots:
With two processors:
One x16 PCIe slot with x16 bandwidth, 3.0,
half-length, half-height
One x16 PCIe slot with x8 bandwidth, 3.0,
full-length, full-height
Two x16 PCIe slots with x8 bandwidth, 3.0,
half-length, full-height
With one processor:
One x8 PCIe slot with x4 bandwidth, 2.0, half-length,
One x16 PCIe slot with x8 bandwidth, 3.0, full-length,
Two x8 PCIe slots with x4 bandwidth, 3.0, half-length,
RAID controllerInternal controllers:
External HBAs (RAID):
External HBAs (non-RAID):
Drive baysUp to eight 3.5 or 2.5 hot-plug SAS, SATA or SSD
Maximum internal storageUp to 32TB
Hard drivesHot-plug hard drive options:
2.5 SAS SSD, SATA SSD, SAS (15K, 10K) or 3.5 SAS (15K), nearline SAS (7.2K), SATA (7.2K)
Self-encrypting drives available
Embedded NICBroadcom 5720 Dual Port 1Gb LOM
I/O adapter options1Gb Ethernet:
Broadcom 5720 Dual Port 1Gb NIC
Broadcom 5720 Quad Port 1Gb NIC
Intel I350 Dual Port 1Gb stand-up adapter
Intel I350 Quad Port 1Gb stand-up adapter
10Gb Converged Ethernet:
Brocade BR1020 Dual Port 10Gb CNA
QLogic QLE8262 Dual Port 10Gb DA/SFP+
Broadcom 57810S Dual Port 10Gb Base-T CNA
Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA
10Gb Ethernet:
Intel X520 Dual Port 10Gb DA/SFP+ server adapter
Intel X540 Dual Port 10Gb Base-T adapter
QLogic QLE2460 4Gb Single Port FC HBA
QLogic QLE2462 4Gb Dual Port FC HBA
QLogic QLE2560 8Gb Single Port FC HBA
QLogic QLE2562 8Gb Dual Port FC HBA
QLogic QLE2660 16Gb Single Port FC HBA
QLogic QLE2662 16Gb Dual Port FC HBA
Emulex LPe-12000-E 8Gb Single Port FC HBA
Emulex LPe-12002-E 8Gb Dual Port FC HBA
Brocade 815 8Gb Single Port FC HBA
Brocade 825 8Gb Dual Port FC HBA
PowerAuto-ranging Titanium efficiency, hot-plug redundant 750W AC power supply; Auto-ranging Platinum efficiency, hotplug
redundant 750W or 495W AC power supply; Auto-ranging Silver efficiency, cabled 550W power supply; 1100W DC
power supply
AvailabilityHigh-efficiency, hot-plug, redundant power supplies; DC power supply; hot-plug hard drives; TPM; dual internal SD
support; fan fault tolerance; optional bezel; information tag; ECC memory, interactive LCD screen; ENERGY STAR
compliant; extended power range; switch independent partitioning
Remote managementBasic management (default), iDRAC7 with Lifecycle Controller, iDRAC7 Express (upgrade), iDRAC7 Enterprise (upgrade), 8GB vFlash (upgrade), 16GB vFlash (upgrade)
Systems managementIPMI 2.0 compliant
OpenManage Essentials and Dell Management Console
OpenManage Power Center
Dell OpenManage Connections:
OpenManage Integration Suite for Microsoft System Center
Dell plug-in for VMware vCenter
HP Operations Manager, IBM Tivoli Netcool , and CA Network and Systems Management (NSM)
Rack supportReadyRails II sliding rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled
mounting in 4-post threaded hole racks, with support for optional toolless cable management arm
ReadyRails static rails for toolless mounting in 4-post racks with square or unthreaded round holes or tooled
mounting in 4-post threaded and 2-post (Telco) racks
Operating systemsMicrosoft Windows Server 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes
Hyper-V v2)
Microsoft Windows Small Business Server 2011
Novell SUSE Linux Enterprise Server
Red Hat Enterprise Linux
Virtualization options:
Citrix XenServer
VMware vSphere including ESX and ESXi
Red Hat Enterprise Virtualization
For more information on the specific versions and
additions, visit

Compare Servers

Feature PowerEdge R510 PowerEdge R520
Chassis 2U rack 2U rack
Processors IntelXeonprocessors 5500 and 5600 series Intel Xeon processor E5-2400 product family
Internal interconnect Intel QuickPath Interconnect Intel QuickPath Interconnect
Memory 8 x DDR3 RDIMM and UDIMM
Up to 128GB
Up to 384GB
Hard drive bays (hot-plug) Up to 12 x 3.5” or 2.5” SAS/SATA SSD Up to 8 x 3.5” or 2.5” SAS/SATA SSD
RAID controller PERC H200, H700, H800 PERC H310, H710, H710P, H810
PCI slots 3 PCIe 2.0 slots 4 PCIe 3.0 slots (with two processors)
Embedded NIC 1 x 1GbE Dual Port LOM 1 x 1GbE Dual Port LOM
Power supplies Non-redundant 480W AC
Hot-plug, redundant and
non-redundant 750W AC
Cabled 550W AC
Hot-plug, redundant 495W AC, 750W AC,
1100W AC, 1100W DC
Dell OpenManage Systems Management Dell OpenManage
Dell Management Console (DMC)
Lifecycle Controller 1.x
iDRAC6 (Express or Enterprise) with Lifecycle Controller
OpenManage Essentials
Dell Management Console
IT Assistant
OMSA Agent
OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller)
OpenManage Integrations and Connections
Basic management (standard option)
Power efficiency Gold Titanium
Availability Hot-plug drives
Hot-plug redundant cooling on
12-hard drive configuration
Hot-plug redundant power supply units
Hot-plug drives
Fan fault tolerance
Hot-plug redundant power supply units
Internal dual SD module
