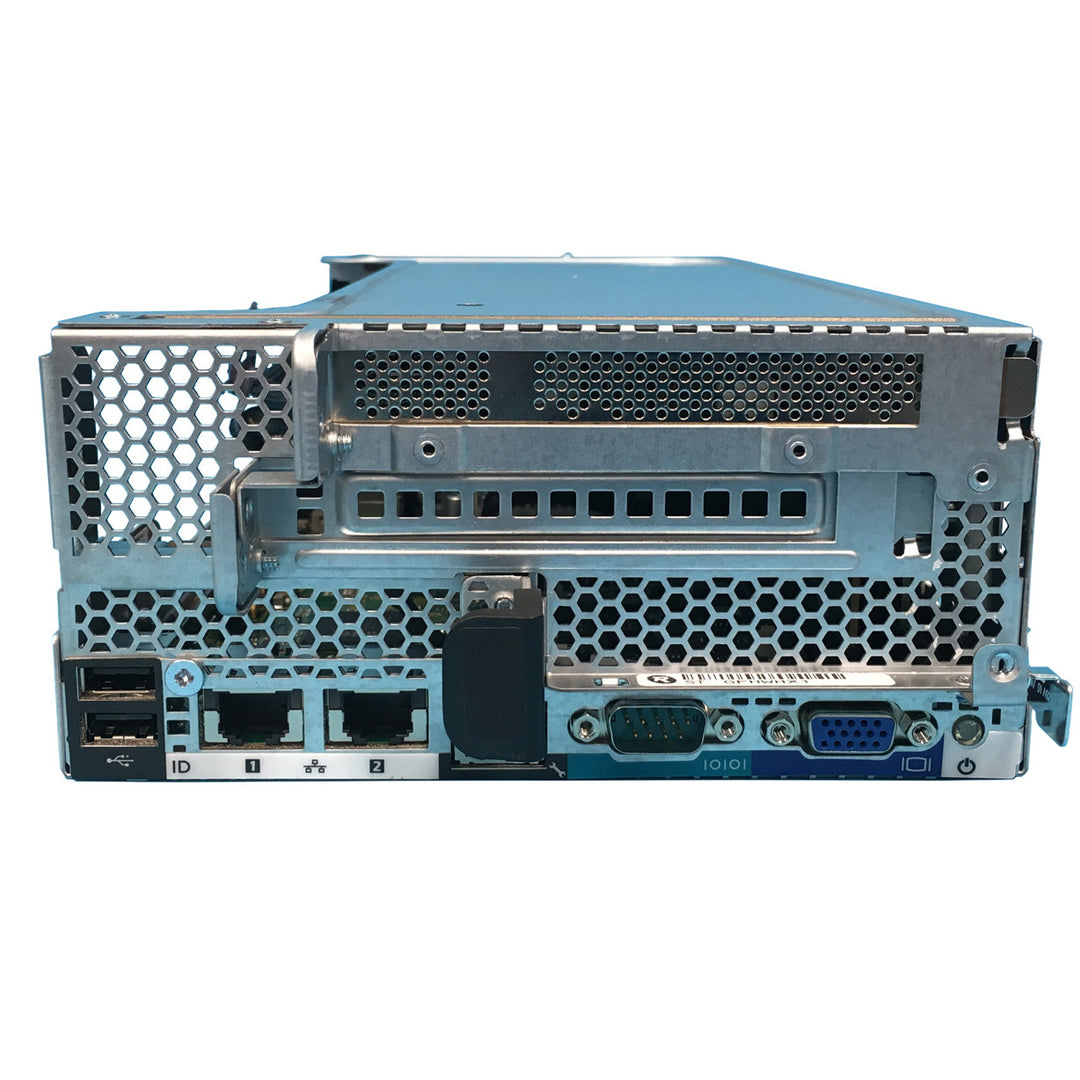

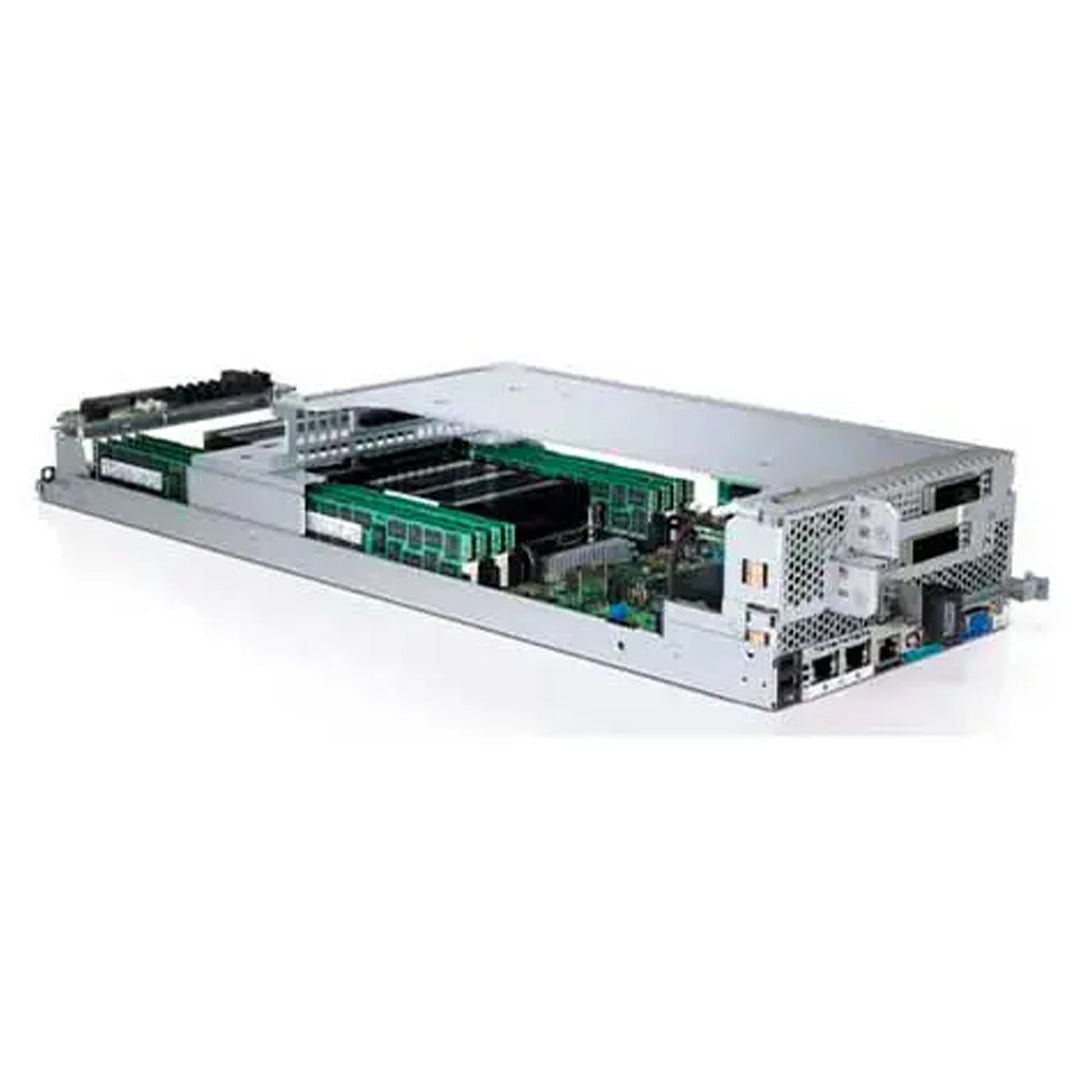

Dell PowerEdge C6220 2U Barebone Node

Price: Ask for Quote

ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


Dell PowerEdge C6220 2U Barebone Node

Quick Specs

Form Factor:

2U Node Server

Processor | Max: 8 Cores

2x Intel Xeon e5-2600

Memory | Max: 512GB

16 DDR3 RDIMM 1600Mhz

Storage | Max: N/A

Drives are in the C6220 Enclosure

Rear Storage:


PCIe Slots:

3x PCIe 3.0


GPUs are supported in the PowerEdge C6220 only through the PowerEdge C410x expansion chassis.

Ideal for:

  • Virtualization

Get >80% more performance with up to four 2-socket Intel Xeon E5-2600 processor-based servers in a smart 2U shared infrastructure chassis that saves more than 100 watts over previous designs.

  • Intel Xeon E5-2600 processors boost performance by > 80%
  • 135W processors deliver ~20% more performance over 95W
  • Memory bandwidth with support for 16 DIMM 1600MT/s DDR3 DIMMs
  • Smart chassis improvements save more than 100W per chassis
  • 1 x8 Mezzanine card. (Both socket/processors must be used to access the mezzanine)
  • Intel Ethernet Controller i350, 2 x 1Gb Ethernet;
    --1 x 100Mb Ethernet dedicated management port

Designed with your needs in mind

Whether you’re seismic processing, video rendering or running scientific simulations, server performance, bandwidth and efficiency can impact time and cost to results.

The ability to run high-frequency processors can increase performance. Servers that can run at higher ambient temperatures can help reduce cooling costs. Simplified serviceability can save time while helping increase uptime, and the flexibility to run multiple configurations in the same chassis means the ability to do more with less.

We incorporated that customer feedback into the next‑generation Dell PowerEdge C6220 server. This scale‑out building block is a workhorse with up to four 2‑socket Intel Xeon E5-2600 processor-based servers in a streamlined 2U shared infrastructure chassis.

Deliver results faster

The high volume of computations requires performance, from the processor to the memory to the interconnect. Intel Xeon processor E5-2600 product family features Turbo Boost Technology 2.0 to deliver more than 80% more performance than the Intel Xeon 5600 processors.

In addition to this generational leap in processor performance, the PowerEdge C6220 server supports up to 135 watt processors, adding ~20% in performance over the 95 watt processor.

When it comes to memory, 16 DIMM DDR3 (32GB Max) slots provide up to 512GB of memory per server node — up to four nodes with 1U (Total RAM 2TB) and two nodes with a 2U (Total RAM 1TB) — and 1600MT/s memory speed to help improve bandwidth per processor.

The Intel Xeon processor E5-2600 product family has 2.3x the memory bandwidth of the previous generation, with four memory channels, and the integrated I/O helps reduce latency up to 30%.

Accomplish more with less

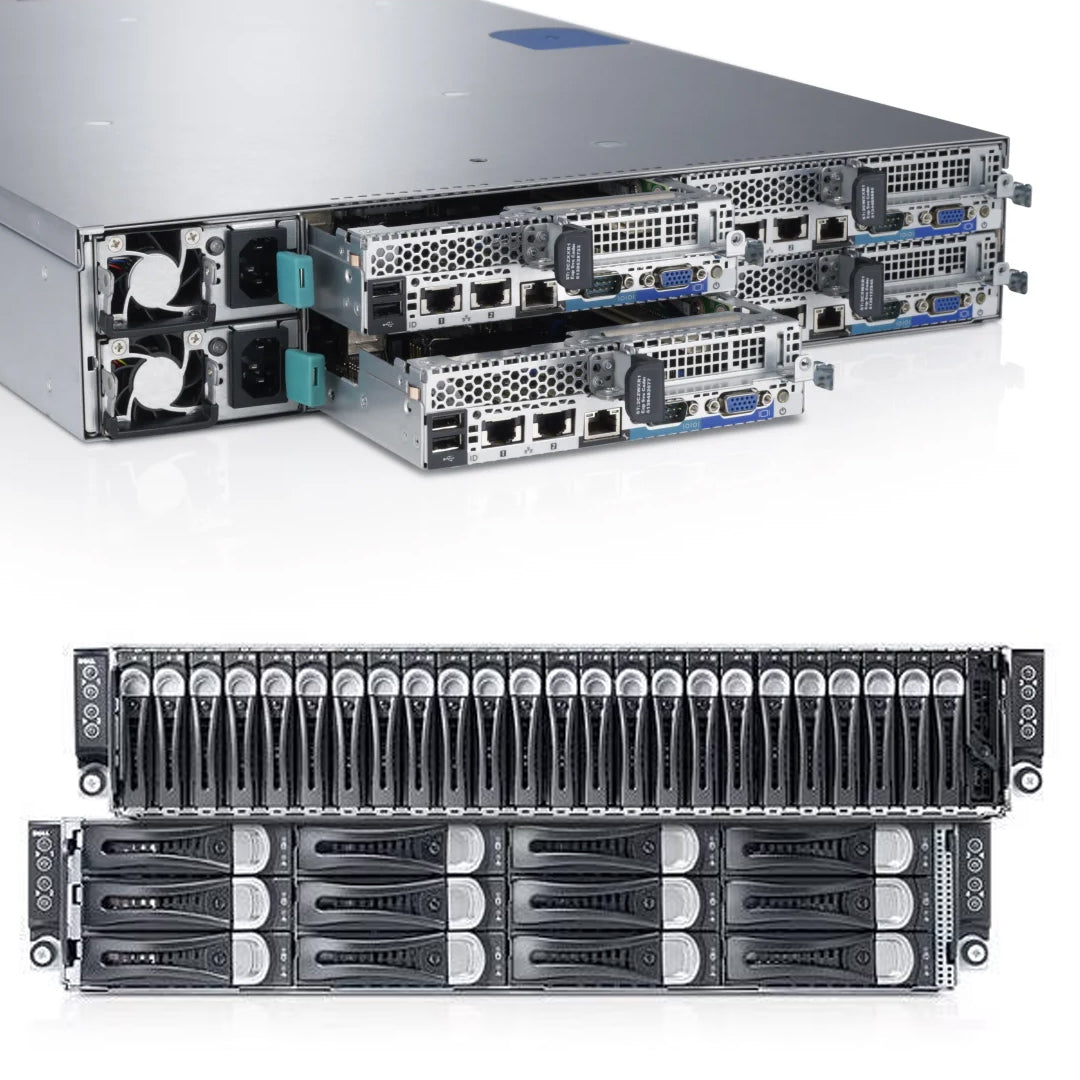

The space-conscious PowerEdge C6220 server comes in 1U and 2U-node versions, with a streamlined shared infrastructure chassis. The server nodes share Platinum certified power supplies, high-efficiency fans, and enhanced power routing at the midplane to help improve power distribution, saving more than 100 watts.

This server has fewer boards and connecting cables than the previous version, while providing easier access to components to help simplify and speed maintenance.

Mix workloads in the same chassis

Choose processors, memory, cards and connectivity per server node to mix workloads in the same chassis. The PowerEdge C6220 comes with 12 x 3.5” or 24 x 2.5” hard drives.

Feel free to use the x8 PCIe mezzanine slot for 10Gb Ethernet, InfiniBand, or SAS HBAs, and the standard x16 PCIe slot to connect to the PowerEdge C410x PCIe expansion chassis. The 2U-node version has twice the PCIe slots for more bandwidth, and room for a full-height, full-length card to increase expandability options.

This Product Is Compatible With The Following Systems:

Product Specs

Base Standard Capabilities

FeaturePowerEdge C6220 technical specifications
Chassis2U rack mount
ProcessorsUp to four 2-socket servers, 2, 4, 6, or 8 cores per processor
Intel Xeon processor E5-2600 product family, with L3 cache: up to 20MB
Memory16 DIMM slots for up to 512GB per node:
4GB/8GB/16GB/32GB LV DDR3 RDIMM (1333MT/s); 4GB/8GB/16GB (1600MT/s 1.5v/1.35v) DDR3 RDIMM
ChipsetIntel C602 chipset
VideoIntegrated AST2300 with up to 16MB video RAM
Primary storageMaximum internal storage: 48TB SATA or NL 48TB SAS
Drive bays and hard drives24 x 2.5” or 12 x 3.5” hard drive options
2.5” SAS (15K): 146GB, 300GB
2.5” SAS (10K): 300GB, 600GB, 900GB, 1.2TB
2.5” SATA and NL SAS (7.2K): 500GB, 1TB
2.5” SATA SSD (eMLC): 100GB, 200GB, 400GB, 800GB
2.5” SATA SSD (MLC): 160GB, 300GB, 600GB
3.5” SATA (7.2K): 500GB, 1TB, 2TB, 3TB, 4TB
3.5” SAS (15K): 300GB, 600GB
3.5” NL SAS (7.2K): 1TB, 2TB, 3TB, 4TB
ConnectivityIntel Ethernet Controller i350, 2 x 1Gb Ethernet; 1 x 100Mb Ethernet dedicated management port
USB ports2 external ports (back)
I/O slots1U-node version: 1 x8 mezzanine, 1 x 16 half-height (low profile), half-length slot
2U-node version: 1 x8 mezzanine slot; 1 x16 full-height, half-length slot; 1 x16 full-height, full-length slot
I/O adapter options1Gb Ethernet
Intel i350 quad-port 1Gb adapter
Intel 82580 ET quad-port 1Gb mezz
10Gb Ethernet
Intel 82599 dual-port 10Gb DA/SFP+ mezz
Intel X520 dual-port 10Gb DA/SFP+ mezz
QLogic® QLE7340 QDR single-port adapter
Mellanox® ConnectX®-2 QDR dual-port mezz
Mellanox ConnectX-3 FDR single-port mezz
Dell X410 host interface card (HIC) for connection to
the C410x
Drive controllerIntel C602: SATA or SSD drives only; LSI® 2008 3Gbs SAS mezzanine or LSI 9265-8i 3Gbs (optional)
RAID controllerLSI 2008 SAS mezzanine (optional)
LSI 9210-8i SAS add-in controller (optional)
LSI 9265-8i SAS add-in controller (optional)
Power suppliesDual hot-plug redundant high-efficiency 1200W/1400W power supplies
FansShared cooling with quick-disconnect 4 x 60mm speed fans detectable with PWM control
Operating systemsNovell® SUSE® Linux Enterprise Server 11 SP2
Red Hat® Enterprise Linux®
Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 Enterprise x64 SP1
Microsoft Windows® HPC Server 2008 R2 x64 SP1
Server managementEmbedded BMC with IPMI 2.0 support with 1 x 10/100 Mbps RJ45 connector
Intel Node Manager 2.0 compliant
Hypervisors (optional)Citrix® XenServer®
VMware® vSphere® ESXi™
Microsoft Hyper-V® Server 2008 R2 SP1
Services (Availability varies by region.
Please contact your sales representative for details.)
Data Center Consulting Services
Rack Integration (U.S. only, not available in China)
Rack Design Verification
Configuration Services/CFI
Onsite Deployment
Online Self Dispatch
Basic Support
ProSupport for IT
ProSupport for Data Center
4-Hour Support
Keep Your Hard Drive
Enterprise Wide Contract
IT Advisory Service
Remote Advisory Service
Certified Data Destruction
Specialized Onsite Services

Compare Servers

Specification PowerEdge C6100 PowerEdge C6220 PowerEdge R620
Chassis 2U rack 2U rack 1U rack
Processors Intel Xeon processors 5500 and 5600 product families Intel Xeon processor E5-2600 product family Intel Xeon processor E5-2600 product family
Front side bus (FSB) Intel QuickPath® Interconnect (QPI) Intel QPI Intel QPI
Memory (1) 12 x DDR3 RDIMM and UDIMM; up to 192GB 16 x DDR3 RDIMM and UDIMM; up to 512GB 24 x DDR3 RDIMM, UDIMM, and LRDIMM; up to 768GB
Hard drive bays (hot plug) 4-node: up to 6 x 2.5” or
3 x 3.5” hard drives
2-node: up to 12 x 2.5” or
6 x 3.5” hard drives
4-node: up to 6 x 2.5” or
3 x 3.5” hard drives
2-node: up to 12 x 2.5” or
6 x 3.5” hard drives
10 x 2.5” hard drives or
8 x 2.5” hard drives + 2x PCIe SSDs
4 x 2.5” hard drives + 2x PCIe SSDs
External drive bay None None Slimline optical disk drive (8 x 2.5” only)
Embedded hard drive controller Chipset-based SATA Chipset-based SATA Chipset-based SATA
RAID controller See optional storage controller See optional storage controller PERC S110, H310, H710, H810
Optional storage controller Non-RAID: ICH10R
RAID:LSI 1068e Mezzanine,
LSI; 2008 Mezzanine,
LSI 9260-8i
Non-RAID: Intel C602
RAID: LSI 2008
Mezzanine at 3Gbps,
LSI 9210-8i at 3Gbps
LSI 9265-8i at 3Gbps
PERC H310, PERC H710,
Express flash drives N/A N/A Up to two PCIe SSDs
PCIe slots 1 x PCIe x16 2.0 + 1 x PCIe x8 2.0 (mezzanine) 1U sled: 1 x16 PCIe 2.0 (half-height, half-length) + 1 x8 PCIe 3.0 (mezzanine)
2U sled: 2 x16 PCIe 2.0 (full height, full length) + 1 x8 PCIe 3.0 (mezzanine)
3 x PCIe 3.0: 2 PCIe x16 3.0 (half height, half length) + PCIe x8 3.0 (half height, half length), or
2 x PCIe 3.0: 1 PCIe x16 3.0 (full height, 3/4 length) + PCIe V x 16 3.0 (half height, half length)
Embedded NIC 2x Intel 82576 GbE 2x Intel i350 GbE Network daughter card, minimum configuration 4x 1Gb Broadcom® 5720
Power supplies Hot-plug, redundant power supply units: 470W/750W/1100W (80+ Gold) Hot-plug, redundant power supply 495W, 1200W (80+ Platinum); autoranging (100V-240V) Redundant, 1400W (80+ Platinum) (240V) Hot-plug, redundant, 495W, 750W, 1100W, or 1100W DC (80+ Platinum), (80+ Titanium) Auto Ranging
Fans 4 x 80mm, non-redundant, not hot-pluggable 4 x 60mm, non-redundant, not hot-pluggable 4 x 40mm, redundant, hot-pluggable
Systems management BMC, IPMI 2,0 compliant; iKVM, virtual media, Intel Node Manager 2.0 compliant BMC, IPMI 2,0 compliant; iKVM, virtual media, Intel Node Manager 2.0 compliant Dell OpenManage™ Essentials, OMSA Agent,
OpenManage Power Center (requires iDRAC7 Enterprise with Lifecycle Controller),
OpenManage Integrations and Connections,
iDRAC7 Express with Lifecycle Controller (standard option)
Support for internal GPU No No Yes (available through CFI or field upgrade only)
Power efficiency Gold Platinum Titanium
1 - GB means 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less
