HPE ProLiant DL120 Gen9 Non-hot Plug 4LFF Server Chassis | 777428-B21


Price: Request a Quote

Brand:
MPN:
777428-B21
Type:
Chassis
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

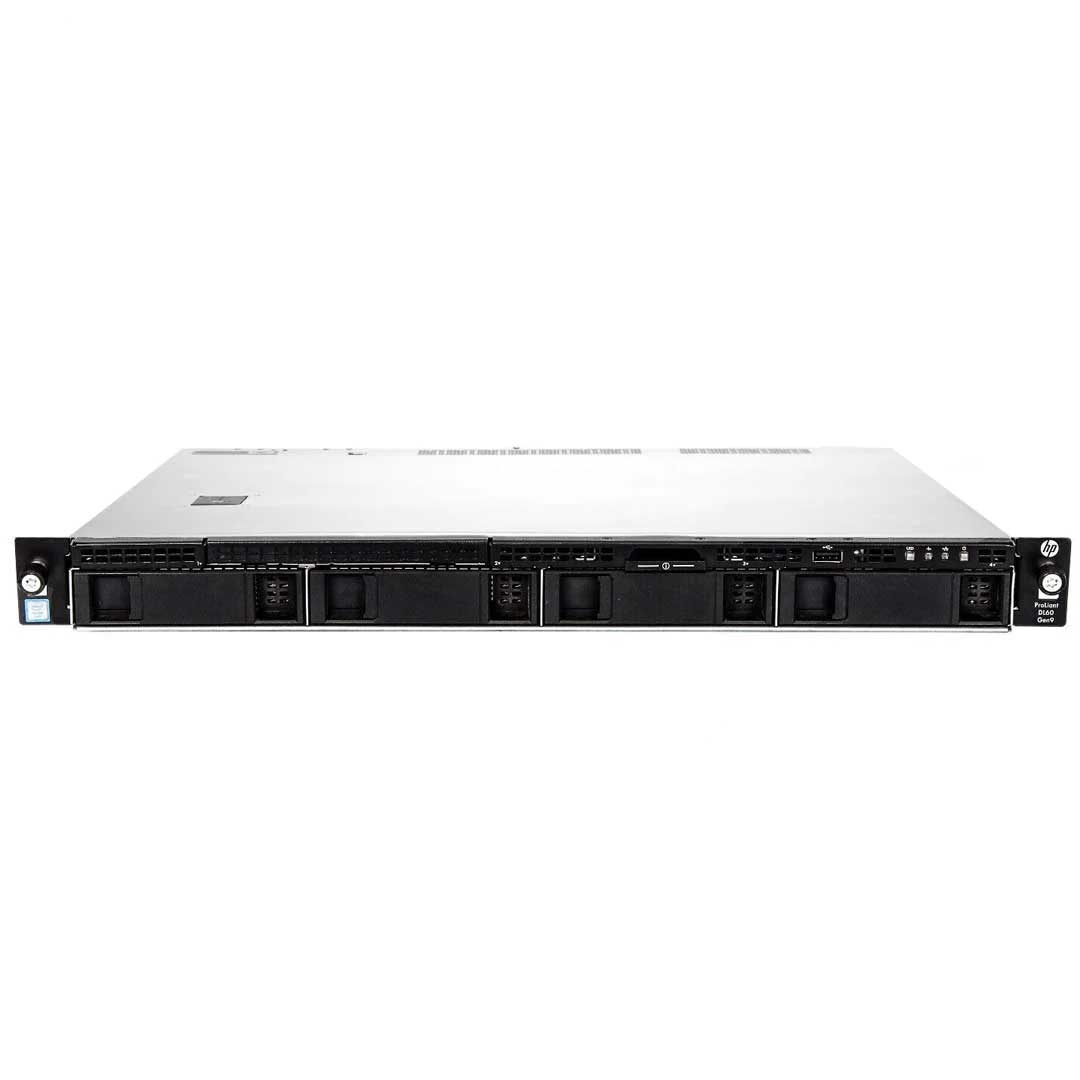

HPE ProLiant DL120 Gen9 Non-hot Plug 4LFF Server Chassis | 777428-B21

CTO Server [Chassis] HPE ProLiant DL120 Gen9 8SFF
Configure-to-order Server
HPE ProLiant DL120 Gen9
4LFF Configure-to-order Server
HPE ProLiant DL120 Gen9
Non-hot Plug 4LFF Configure-to-
order Server
SKU Number 777426-B21 777427-B21 777428-B21
Processor 1 1 1
DIMM Slots 8 DIMM slots for RDIMM, LRDIMM DDR4 Memory
Storage Controller HPE Dynamic Smart Array B140i
PCIe 1 PCIe LP standard/up to 3 PCIe slots (optional)
Drive Cage - included 8SFF Hot Plug 4LFF Hot Plug 4LFF Non Hot Plug
Network Controller HPE Embedded Dual Port 361i Adapter Network Interface
Fans 3 hot swap fans, non-redundant
USB 1 front, 1 internal, 2 rear
Ears HPE Thumbscrew Ears

HPE ProLiant DL120 Gen9 Non-hot Plug 4LFF Server Chassis | 777428-B21

Powered by the Intel Xeon E5-2600 v3 series processor, the refurbished HP ProLiant DL120 Gen9 packs an enterprise-class design in a dense 1U/1-socket form factor. The server offers a superior combination of performance, redundancy, and expandability compared with traditional 1P servers, making it ideal for the growing needs of virtualization and general-purpose workloads.

What's New for DL120 Gen9

  • Introducing new 14-cores, 2.6 GHz, E5-2690v4 processor support on DL120 Gen9
  • Support for ClearOS – An easy to use Operating Systems (OS) with an application market place

Combination of Performance and Expandability in a Dense Form Factor

The HPE ProLiant DL120 Gen9 Server supports (1) Intel Xeon E5-2600 v3/v4 or E5-1600 v3/v4 processor offering improved performance and efficiency in a dense 1U chassis.

HPE DDR4 SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 256 GB max capacity with speeds up to 2400 MHz.

HPE SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.

Supports up to (4) LFF and (8) SFF 12 Gb/s HDD/SSD options with maximum capacity of up to 40 TB.

Up to (3) PCIe 3.0 riser slots to support more IO with networking cards offering increased IO bandwidth and seamless expandability.


Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

This Product Is Compatible With The Following Systems:

Product Specs

Spec Sheet 4

Technical specifications HPE ProLiant DL120 Gen9 Server
Compute One Intel Xeon E5-2600 v3/v4 or E5-1600 v3/v4 Series, 4/6/8/10/12/14/16/18/20/22 cores PCIe 3.0, up to three available slots
Memory HPE SmartMemory (8) DDR4; up to 2400 MHz (256 GB max.)
Storage HPE Dynamic Smart Array B140i, optional HPE Smart Array Controllers, and HPE Smart HBAs via PCIe stand-up cards
HPE SmartDrives 8 SFF/4 LFF max. HDD/SSD, M.2 enabled
Networking 2 x 1GbE embedded Ethernet Adapter with optional FlexibleLOM slot on riser
VGA/serial/USB ports/SD One rear VGA, three USB 3.0, one USB 2.0, one microSD, Dual microSD optional
System ROM UEFI and Legacy BIOS
Converged management HPE OneView with HPE iLO Advanced
Support management HPE Insight Online with enhanced mobile application
Embedded management HPE iLO 4, Intelligent Provisioning, System Update Manager (SUM), RESTful Interface Tool, Scripting Tools for Microsoft® Windows Server® PowerShell
Power and cooling Up to 92% efficient (Gold). 550 W multi-output, 900 W RPS
Industry compliance ASHRAE A3
Form factor/chassis depth Rack (1U) 23.9" (SFF), 23.9" (LFF)
Serviceability–Easy Install rails Standard
