HPE ProLiant DL120 Gen9 CTO Server

Part#:
DL120G9
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Intel Processors

Intel Xeon E5-2600v3

Supports (1) processor

Intel Xeon E5-2600v4

Supports (1) processor

HPE Memory

Supports up to 8 DIMMs

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE M.2 Drives

M.2 drives go in PCIe slot and 805283-B21 cable kit is a mandatory option required to support M.2 SSDs

HPE Network Adapters

3 PCIe Slots (1 Full Height and 2 Low Profile) - A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

HPE Host Bus Adapter

3 PCIe Slots (1 Full Height and 2 Low Profile)

HPE FlexibleLOM Adapter

FlexibleLOM riser kit (P/N: 765509-B21) is required when any FlexibleLOM is selected.

HPE InfiniBand Adapter

3 PCIe Slots (1 Full Height and 2 Low Profile)

HPE Power Supplies

Supports (1) PSU

HPE Options

HPE Rail Kits

HPE Optical Drives

HPE Security

ECS Warranty

HPE DL120 Gen9 CTO Rack Server Product Description

Powered by the Intel Xeon E5-2600 v3 series processor, the HP ProLiant DL120 Gen9 packs an enterprise-class design in a dense 1U/1-socket form factor. The server offers a superior combination of performance, redundancy, and expandability compared with traditional 1P servers, making it ideal for the growing needs of virtualization and general-purpose workloads.

What's New for DL120 Gen9

  • Introducing new 14-cores, 2.6 GHz, E5-2690v4 processor support on DL120 Gen9
  • Support for ClearOS – An easy to use Operating Systems (OS) with an application market place

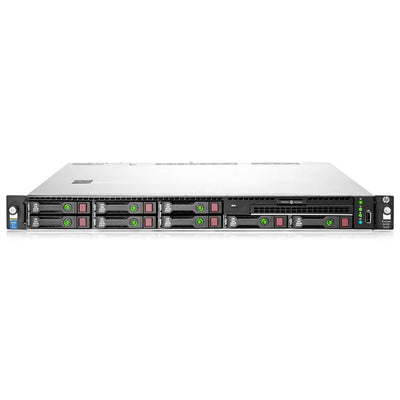

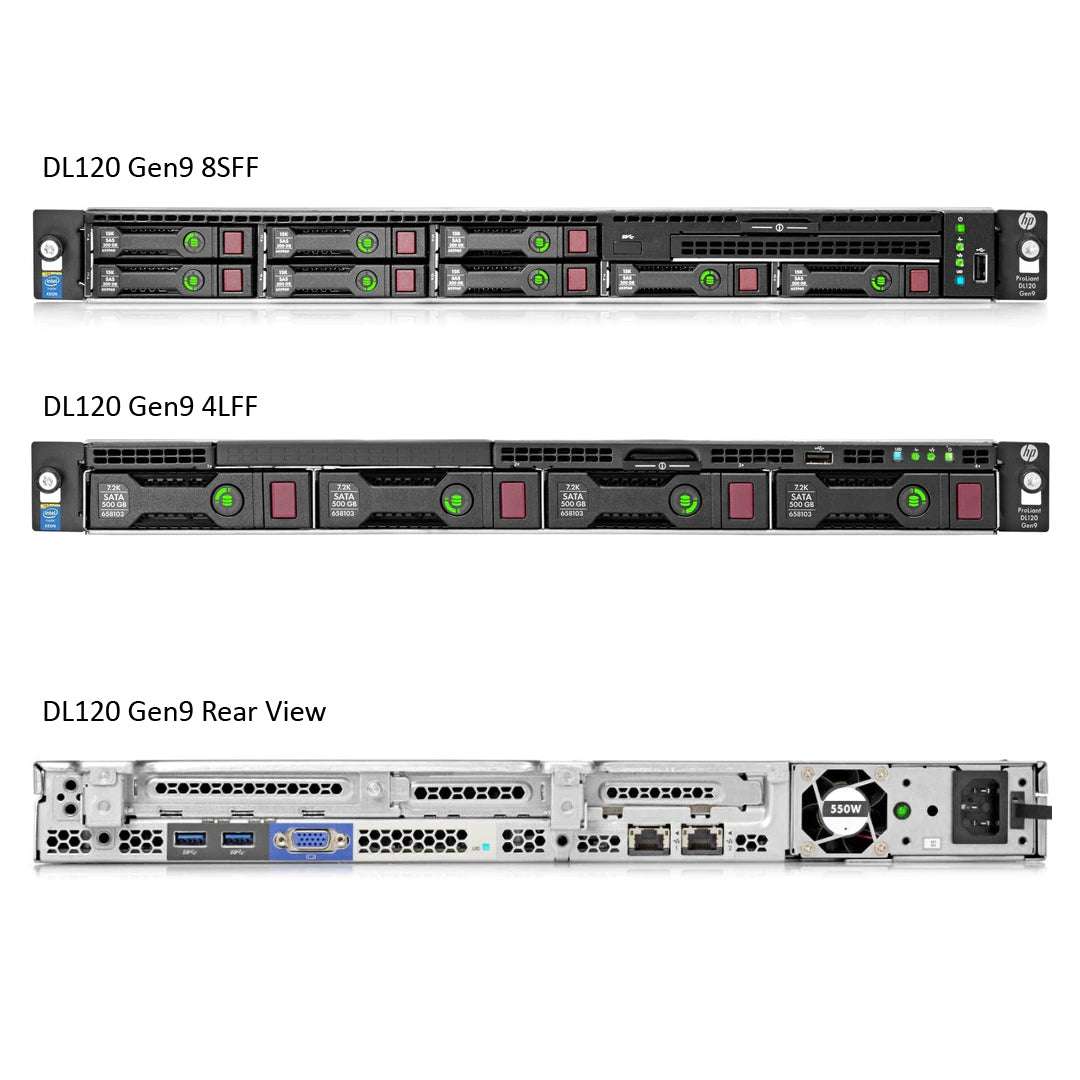

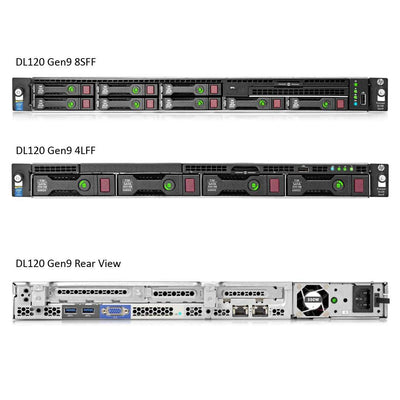

DL120 Gen9 8SFF

DL120 Gen9 8SFF

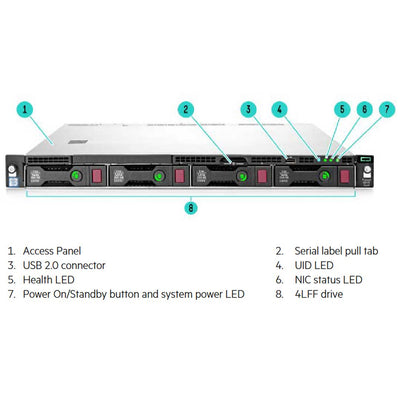

DL120 Gen9 4LFF

DL120 Gen9 4LFF

Combination of Performance and Expandability in a Dense Form Factor

The HPE ProLiant DL120 Gen9 Server supports (1) Intel Xeon E5-2600 v3/v4 or E5-1600 v3/v4 processor offering improved performance and efficiency in a dense 1U chassis.

HPE DDR4 SmartMemory prevents data loss and downtime with enhanced error handling. Support of up to 256 GB max capacity with speeds up to 2400 MHz.

HPE SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.

Supports up to (4) LFF and (8) SFF 12 Gb/s HDD/SSD options with maximum capacity of up to 40 TB.

Up to (3) PCIe 3.0 riser slots to support more IO with networking cards offering increased IO bandwidth and seamless expandability.

Cost Optimized 1-Socket Solution for Enterprise Class Workloads

The HPE ProLiant DL120 Gen9 Server helps reduce virtualization licensing costs with its 1U/1-socket cost optimized design for SMBs and service providers.

Embedded with 2x1GbE, up to (3) PCIe slots and choice of HPE FlexibleLOM provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.

80 PLUS gold certified entry-level redundant HPE Power Supplies provide up to 92% efficiency which combined with HPE power management features leads to reduction of power consumption and expense.

Improved ambient temperature standard with ASHRAE A3 support helps customers reduce cooling expense.

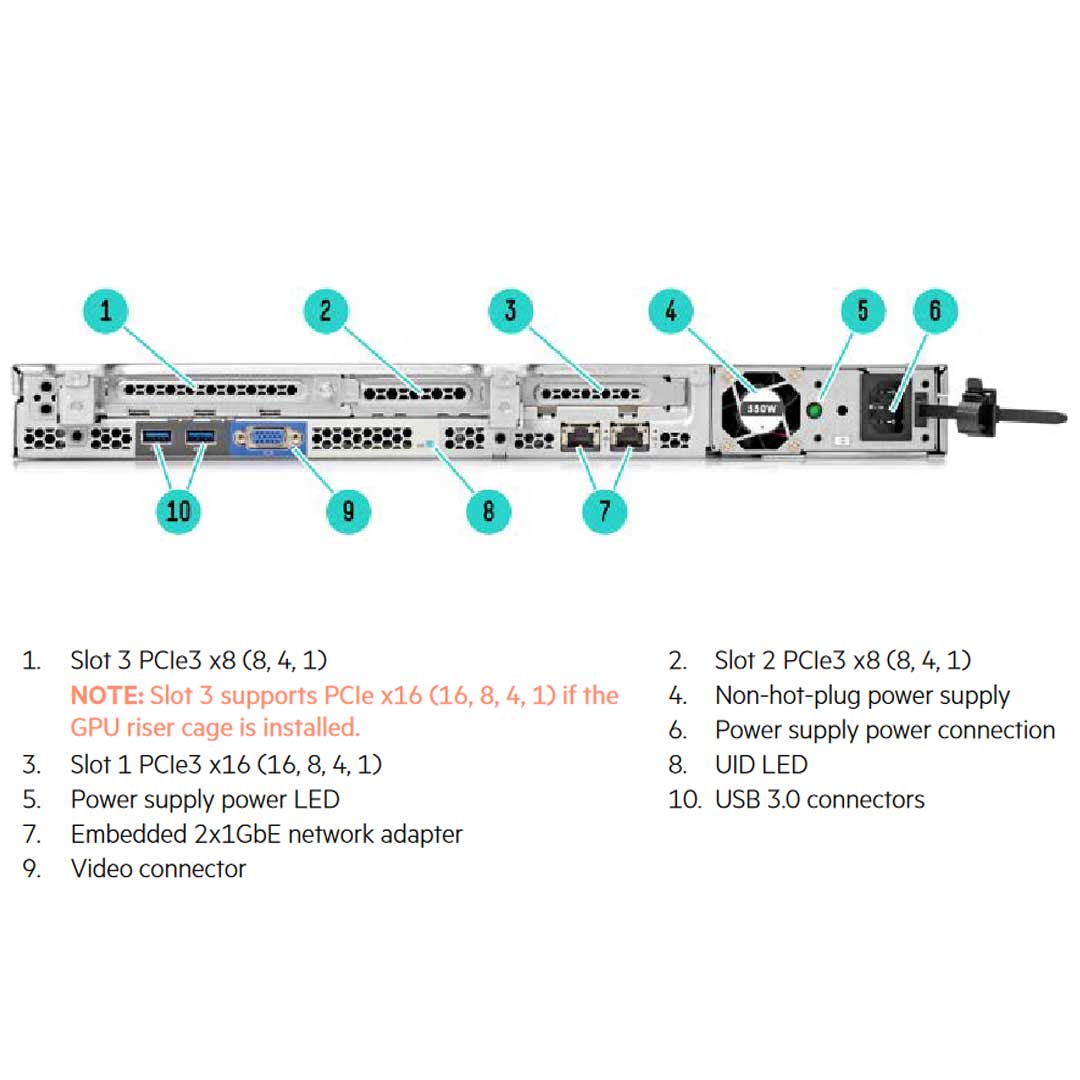

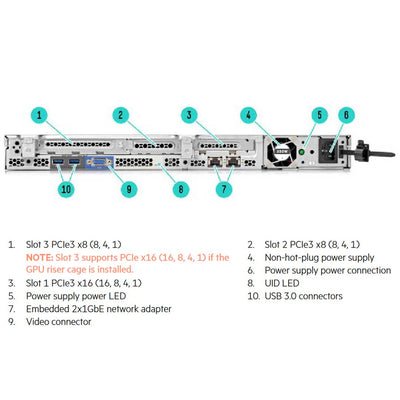

DL120 Gen9 rear

DL120 Gen9 rear

Product features

FeatureDescription
ProcessorOne of the following depending on model
ModelCPU FrequencyCoresL3 CachePowerQPIDDR4 Hz
E5-2699v32.3 GHz1845MB145 W9.6 GT/s2133
E5-2698v32.3 GHz1640MB135 W9.6 GT/s2133
E5-2695v32.3 GHz1435MB120 W9.6 GT/s2133
E5-2660v32.6 GHz1025MB105 W9.6 GT/s2133
E5-2650v32.3 GHz1025MB105 W9.6 GT/s2133
E5-2650Lv31.8 GHz1230MB65 W9.6 GT/s2133
E5-2640v32.6 GHz820MB90 W8.0 GT/s1866
E5-2630v32.4 GHz820MB85 W8.0 GT/s1866
E5-2630Lv31.8 GHz820MB55 W8.0 GT/s1866
E5-2623v33.0 GHz410MB105 W8.0 GT/s1866
E5-2620v32.4 GHz615MB85 W8.0 GT/s1866
E5-2609v31.9 GHz615MB85 W6.4 GT/s1600
E5-2603v31.6 GHz615MB85 W6.4 GT/s1600
E5-1650v33.5 GHz615MB140 W0.0 GT/s2133
E5-1620v33.5 GHz410MB140 W0.0 GT/s2133
E5-2699v42.2 GHz2255MB145 W9.6 GT/s2400
E5-2698v42.2 GHz2050MB135 W9.6 GT/s2400
E5-2695v42.1 GHz1845MB120 W9.6 GT/s2400
E5-2690v42.6 GHz1435MB135 W9.6 GT/s2400
E5-2660v42.0 GHz1435MB105 W9.6 GT/s2400
E5-2650v42.2 GHz1230MB105 W9.6 GT/s2400
E5-2650Lv41.7 GHz1435MB65 W9.6 GT/s2400
E5-2640v42.4 GHz1025MB90 W8.0 GT/s2133
E5-2630v42.2 GHz1025MB85 W8.0 GT/s2133
E5-2630Lv41.8 GHz1025MB55 W8.0 GT/s2133
E5-2623v42.6 GHz410MB85 W8.0 GT/s2133
E5-2620v42.1 GHz820MB85 W8.0 GT/s2133
E5-2609v41.7 GHz820MB85 W6.4 GT/s1866
E5-2603v41.7 GHz615MB85 W6.4 GT/s1866
E5-1650v43.6 GHz615MB140 W0.0 GT/s2400
E5-1620v43.5 GHz410MB140 W0.0 GT/s2400
ChipsetOne of the following depending on model
  • Intel C610 series chipset


  • Intel E5-2600v3 processor family


  • Intel E5-2600v4 processor family


Click here to view more information on Intel server chipsets Non-HPE site
On system management chipsetHPE iLO (Firmware HPE iLO4 2.0 or later) 2GB NAND
Memory
TypeHPE SmartMemoryDDR4 Registered DIMM (RDIMM) or Load Reduced DIMM (LRDIMM)
Dual In-Line Memory Module (DIMM) Slots available8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)
Maximum capacity (LRDIMM)256GB (8 x 32GB LRDIMM - 2400 MHz)
Maximum capacity (RDIMM)256GB(8 x 32GB RDIMM - 2133 MHz)
Memory protectionAdvanced ECC: Advanced Error-Correcting Code (ECC) uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip Online spare: Memory online spare mode detects a rank that is degrading and switches operation to the spare rank
Network controllerHPE Ethernet 1Gb 2-port Adapter
Expansion slots
SlotsExpansion slots #TechnologyBus widthConnector widthBus numberDevice numberForm factorNotes
CPU PCIe Riser slots1PCIe 3.0x16x16--Low profile-
FlexibleLOM Riser slots(Option 1)2 3PCIe 3.0 FlexibleLOMx8 x8x8 x8- -- -Low profile Flexible LOMCan only be used for flexibleLOMs
CPU Riser PCIe slots (Option 2)2 3PCIe 3.0 PCIe 3.0x8 x8x8 x8- -- -Low profile Full-height, half-length slot-
GPU Riser (Option 3)3PCIe 3.0x16x16--Full-height, full-length slotGPU
Storage controllerOne of the following depending on model
Entry modelsHPE Dynamic Smart Array B140i controller
Base modelsHPE H240 Factory Installed Option (FIO) smart host bus adapter
Internal storage devicesOne of the following depending on model
Optical drivesOptional: DVD-ROM, DVD-RW
Hard drivesNone ship standard
Hard drive bays
  • 8-Small Form Factor (SFF) drive bays total with optical bay


  • 4-Large Form Factor (LFF) drive bays total with optical bay


Maximum internal storageOne of the following depending on model
DrivesCapacityConfiguration
Hot-Plug SFF SAS16.0TB8 x 2TB
Hot-Plug SFF SATA16.0TB8 x 2TB
Hot-Plug LFF SAS40.0TB40 x 10TB
Hot-Plug LFF SATA40TB4 x 10TB
Hot-Plug SFF SAS SSD30.72TB8 x 3.84TB
Hot-Plug SFF SATA SSD30.72TB8 x 3.84TB
Hot-Plug LFF SATA SSD15.36TB4 x 3.84TB
Power supply
  • HPE 550 W FIO power supply


  • HPE 900 W Redundant power supply


System fansOne of the following depending on model 1P Model
  • Non-Redundant:3 fans


  • Redundant:5 fans


Interfaces
Video1 (Vaux support)
USB4 USB Ports standard Front: 1 x USB 2.0 (Standard) Rear: 2 x USB 3.0 Internal: 1 x USB 3.0
Micro SD slot1 Micro SD
NOTE: The SD slot is not a hot-pluggable device. Users should not attempt to plug an SD card into the SD slot while the server is powered
Upgradeability
  • Up to 8 DIMM slots


  • FlexibleLOM slot for 1 GbE or 10 GbE or QDR/FDR InfiniBand networking options


  • Up to 8 SFF or 4 LFF hard drive bays


  • Redundant power supply


  • Optical drive bay (8 SFF/4 LFF)


Industry standard compliance
  • ACPI 2.0b Compliant


  • PCIe 3.0 Compliant


  • PXE Support


  • WOL Support


  • Microsoft logo certifications


  • USB 3.0 Support


  • ASHRAE A3


GraphicsIntegrated Matrox G200eH2 video standard
  • 1280 x 1024 (32b/p)


  • 1920 x 1200 (16b/p)


HPE Server UEFI/Legacy ROMUEFI Enables numerous new capabilities specific to HPE ProLiant servers such as:
  • Secure boot


  • Operating system specific functionality


  • Support for > 2.2TB (Using GPT) boot drives


  • USB 3.0 Stack


  • Embedded UEFI shell


  • Mass configuration deployment Tool using RESTful API for iLO 4


  • PXE Boot support for IPv6 networks


  • Boot support for option cards that only support a UEFI option ROM


  • Network stack configurations


Security
  • Power-On password


  • Serial interface control


  • Administrator's password


  • TPM 2.0


  • UEFI


Form factor
  • 1U Rack


  • 8SFF and 4LFF Version: 4.29 cm (1.69 in) Height x 43.46 cm (17.11 in) Width x 60.7 cm (23.9 in) Length


Embedded management
  • HPE Integrated Lights-Out (HPE iLO)


  • Unified Extensible Firmware Interface (UEFI)


  • Intelligent provisioning


  • RESTful API


  • Embedded remote support


Server utilities
  • Smart update


  • HPE Systems Insight Manager (HPE SIM)


  • Scripting tool kit and Windows PowerShell


  • RESTful Interface tool


  • HPE iLO Mobile application


  • HPE Insight online


top

Software overview

Feature
Description
Operating Systems
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Linux

  • VMware

  • ClearOS

top

Physical specifications

Specification
Description
Dimensions (H x W x D):
8 Small Form Factor (SFF): 4.29 x 43.46 x 60.76 cm (1.69 x 17.11 x 23.90 in)
4 Large Form Factor (LFF): 4.29 x 43.46 x 60.76 cm (1.69 x 17.11 x 23.90 in)
Weight (Approximate):
  • Maximum: 17 kg (37.44 Ib)

  • Minimum: 9 kg (19.82 lb)

top

Electrical specifications

Specification
Description
Rated line voltage
100 to 240 V ac
Rated input current
For 550 W power supply:
  • 6.7 A (At 100 V ac)

  • 3.3 A (At 100 V ac)

Rated input frequency
47 to 63 Hz
Rated input power
For 550 W power supply:
  • < 670 W (At 100 V ac)

  • < 660 W (At 200 V ac)

Maximum BTU rating
For 550 W power supply:
  • 2201 BTU/hr (At 100 V ac)

  • 2153 BTU/hr (At 200 V ac)

Rated steady-state power
For 550 W power supply:
  • 550 W (At 100 V ac)

  • 550 W (At 200 V ac)

Maximum peakpower
For 550 W power supply:
  • 550 W (At 100 V ac)

  • 550 W (At 200 V ac)

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Extneding ambient operating temperature
Minimum: 5° to 10° C (41° to 50° F)
Maximum: 35° to 40° C (95° to104° F)
Non-operating temperature
-30° to 60° C (-22° to 140° F)
Operating relative humidity
8% to 90% Non-Condensing
Non-Operating relative humidity
5% to 95% Non-Condensing
Operating altitude
3048 m (10,000 ft)
Non-Operating altitude
9144 m (30,000 ft)
Acoustic noise
Listed are the declared A-Weighted sound power levels (LWAd) anddeclared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment

Idle
Operating
LWAd
  • Entry 4.9 B

  • Base 5.4 B

  • Entry 33.0 dBA

  • Base 35.0 dBA

LpAm
  • Entry 5.7 B

  • Base 5.8 B

  • Entry 38.0 dBA

  • Base 39.0 dBA

top

Safety certifications

Specification
Description
FCC rating
Class A
Normativestandards
CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE:
  • Product conformance to cited product specifications is based onsample (Type) testing, evaluation, or assessment.

  • This product or family of products is eligible to bear the appropriate compliance logos and statements.
