NetApp FAS8020 Single Chassis HA Pair Expansion Storage Array Filer Head (FAS8020A)

NetApp FAS8020 Filer Head Storage Array
FAS8000 hybrid storage systems are engineered specifically to address these needs.Powered by NetApp® ONTAP® data management software, the FAS8000 series unifiesyour SAN and NAS storage infrastructure. When FAS8000 systems are clusteredwith NetApp AFF all-flash arrays and integrated with the cloud, you have the controlto easily move your data to where it’s needed for your business and place it in thestorage environment that delivers the best combination of flash performance, storagecapacity, and cost efficiency. With proven agility and data management capabilities, theFAS8000 has the flexibility to keep up with changing business needs while deliveringon core IT requirements.

NetApp Expansion Storage Array Technical Specifications:
Scale-Out FAS8020
NAS scale-out 1–24 nodes (12 HA pairs)
Maximum drives (HDD/SSD) 5,760/2,880
Maximum raw capacity 57PB
Maximum Flash Cache™ 36TB
Maximum Flash Pool™ 288TB
Maximum memory 576GB
SAN scale-out 1–12 nodes (6 HA pairs)
Maximum drives (HDD/SSD) 2,880/1,440
Maximum raw capacity 28PB
Maximum Flash Cache 18TB
Maximum Flash Pool 144TB
Maximum memory 288GB
Cluster interconnect 2 10GbE
Per HA Pair Specifications (Active-Active Dual Controller) FAS8020
Maximum drives (HDD/SSD) 480/240
Maximum raw capacity 4.8PB
Maximum Flash Cache 3TB
Maximum Flash Pool 24TB
Controller form factor 3U
ECC memory 48GB
NVRAM 8GB
PCIe expansion slots 4
Onboard I/O: UTA 2 (16Gb FC/FCoE/10GbE) 4
Onboard I/O: GbE 4
Onboard I/O: 10GbE 4
Onboard I/O: 6Gb SAS 4
OS version ONTAP 8.2.1 and later
Storage protocols supported FC, FCoE, iSCSI, NFS, pNFS, CIFS/SMB
Host/client operating systems supported Windows 2000, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows XP, Linux, Sun Solaris, AIX, HP-UX, Mac OS, VMware, ESX

Ask about our NetApp Disk Shelves! We can create custom Turn-Key configurations based on your needs!

Product Specs

Storage Limits

Max # of Drives (Total) Max # of Internal Drives Max # of MSATA Drives Max # of NL-SAS Drives Max # of SAS Drives Max # of SATA Drives Max # of NVMe SSD Drives Max # of SSD Drives Max # of DS212C Shelves Max # of DS2246 Shelves Max # of DS224C Shelves Max # of DS4243 Shelves Max # of DS4246 Shelves Max # of DS4486 Shelves Max # of DS460C Shelves Max # of FS424C Shelves Max # of NS224 Shelves
480 N/A 480 480 480 480 - 240 20 external 20 external 20 external 20 external 20 external 10 external 8 external - -

Capacity Limits

Marketing Max Raw Capacity - Node HA Pair Cluster Effective Capacity - Node HA Pair Cluster
7680000 7680000 - 34087680 34087680 -

Core Cluster Limits

Max SVM's - NAS Max LIF's - NAS Max Connections - NAS Max Flexible Volumes - NAS Max Flexible Volumes with DPO - NAS Max Lock Manager Locked Objects Max Intercluster LIFs - Node Min Root Aggregate (MiB) - Node Min Root Aggregate (with core dump device) (MiB) Min Root Volume (GiB) - Node Min Root Volume (with core dump device) (GiB) Max IPsec Policies Max # of IPspaces Max Auditing-Enabled SVMs - Cluster
Node:-
HA Pair:-
Cluster:1024
Node:512
HA Pair:512
Cluster:3072
Node:100000
HA Pair(Non-Scalable):100000
Aggregate (Single data Agg. per Node):-
Aggregate (Multiple data Agg. per Node):-
Node:1000
HA Pair:2000
Cluster:12000
Node:-
HA Pair:-
Cluster:-
Node:900000
HA Pair:900000
Cluster:10800000
8 441245.29 - 350 - SVM:256
Cluster:1500
- 50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN) Max FabricPool Size Max FlexGroup Data Constituent Size Max Infinite Volume Data Constituent Size Min Root Volume Size NetApp Volume Encryption
24 / 12 Not Supported 70 TiB Not Supported 350 GiB Supported

Processor

Processor Model Processor Architecture Processor Speed Processor Count (Per Node) Processor Count (Per Config) Processor Cores (Per CPU) Processor Cores (Per Node) Processor Cores (Per Config)
64-bit 6-core 2.00 Ghz 64 bit 2.00 Ghz 1 2 6 6 12

Memory

NVRAM (Per Node) NVRAM (Per Config) NVME (Per Node) NVME (Per Config) NVMEM (Per Node) NVMEM (Per Config) RAM (Per Node) RAM (Per Config)
4 GB 8 GB - - - - 24 GB 48 GB

Onboard Ports

Ethernet Ports Fibre Channel Ports UTA2 Ports Expansion Slots SAS Ports
4 x RJ45 (1Gb) + 4 x SFP+ (10Gb) - 4 x SFP+ (10Gb/16Gb)  [1] 4 x PCIe3 4 x QSFP (6Gb)

Physical Characteristics

Rack Units Chassis Height Chassis Width with Mounting Flanges Chassis Width without Mounting Flanges Chassis Depth with Cable Mgmt Chassis Depth without Cable Mgmt Chassis Weight
3 5.12" (13 cm) - 17.6" (44.7 cm) 26.5" (67.3 cm) 23.92" (60.75 cm) See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling) Front Clearance (Maintenance) Rear Clearance (Cooling) Rear Clearance (Maintenance)
10.01" (25.4 cm) 30.02" (76.2 cm) 12.02" (30.5 cm) 30.02" (76.2 cm)

Environmental Requirements

Operating Storage Transit Acoustic Noise Input Power Voltage
Tempature:
50 to 104 deg F - 10 to 40 deg C

Humidity:
20 to 80 %

Altitude:
0.0 to 10000.0 ft - 0.0 to 3048.0 m
Tempature:
-40 to 158 deg F - -40 to 70 deg C

Humidity:
5 to 95 %

Altitude:
0.0 to 40000.0 ft - 0.0 to 12192.0 m
Tempature:
-40 to 158 deg F - -40 to 70 deg C

Humidity:
5 to 95 %

Altitude:
0 to 39989.8 ft - 0 to 12192 m
Sound Power:
7.8 bels

Sound Pressure:
61.3 dBA
100 to 120 200 to 240

Storage OS Requirements

Full OS Matrix Recommended Version Minimum OS Maximum OS
View Full OS Report Below 9.8P12, 9.8P13 9.8RC1 9.8P13

Storage and Firmware

Full Firmware Matrix BIOS BMC
Full Firmware Report Below 9.8* -

Product Standards Compliance

Full Compliance and Certificates Report Cert. EMC/EMI Cert. Safety Cert. Safety/EMC/EMI Cert. Safety/EMC/EMI/RoHS Standard Safety/EMC/EMI Standard Safety
Compliance and Certificates Report Below AMCA, FCC, ICES, KC, Morocco, VCCI BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS EAC, UKRSEPRO BSMI, CE DoC CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, ICES-3 ANSI/UL 60950-1, CNS 14336, CSA 60950, EN60825-1, EN60950-1, IEC60825-1

NFS Cluster Limits

Max Export Policies - Cluster Max Export Rules - Cluster Max NFSv4 Access Control Entries Max Client Objects Max pNFS objects
24000 200000 1024 Node:100000
HA Pair:100000
Node:1024000
HA Pair:1024000
Cluster:12288000

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB) Size 64-bit Volume (TiB) File size 64-bit Volume (TiB) Volume Snapshot Copies Character length for Snapshot copy names Hard links - File inodes/files - Volume Number of qtrees Concurrent DataMotion for Volumes ops
324 70 16 Volume:1023
Node:1023000
HA Pair:2046000
255 100000 2000000000 Volume:4995
Node:100000
HA Pair:200000
Cluster:800000
Node:8
HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster Max QoS User Workloads - Cluster
12000 12000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN # of flexible volumes - SAN # of Flexible Vol with DPO - # of LUNs LUN mappings LUN size (TiB) - LUN FC queue depth available # of SAN Hosts (ITNs) # of LIFS - iSCSI # of LIFS - FCP # of igroups # of Initiators # of Portsets # of iSCSI sessions
Node:125
HA Pair:250
Cluster:1000
Single data Aggregate:-
Multiple data Aggregates:-
Node:1000
HA Pair:2000
Cluster:8000
Node:-
HA Pair:-
Cluster:-
Valume:1024
Node:8192
HA Pair:16384
Cluster:65536
Node:8192
HA Pair:16384
Cluster:65536
16 2048 Port:512
Node:4096
HA Pair:8192
Cluster:32768
Port:32
Portset:32
Node:512
HA Pair:1024
Cluster:4096
Port:32
Portset:32
Node:512
HA Pair:1024
Cluster:4096
Node:2048
HA Pair:4096
Cluster:16384
igroup:256
Node:2048
HA Pair:4096
Cluster:16384
Node:2048
HA Pair:4096
Cluster:16384
Node:4096
HA Pair:8192
Cluster:32768

CIFS Cluster Limits - All Maximums

# of Connected Shares # of Regular Shares # of Open files # of Local users - Cluster # of Local groups - Cluster # of Local group members - Cluster
Node:650000
HA Pair:650000
Node:-
HA Pair:-
Cluster:60000
Connection:65536
Node:450000
HA Pair:450000
5000 10000 30000

Data Protection Cluster Limits - All Maximums

NDMP Sessions Data Protection Mirrors Load Sharing Mirrors - NAS SVM Concurrent Snap Mirror / SnapVault transfers - Node DP Mirror fan-out - Volume LS Mirror fan-out - NAS SVM # of Clusters that can be peered - Cluster Volumes, SnapMirror relationship SnapMirror Synchronous relationships # of Consistency Groups in SM-BC relationships # of Constituent Volumes in SM-BC relationships Flexible Volumes in SVM DR SVM Disaster recovery - Cluster # of Concurrent SVM Migration - Cluster # of Volumes with SVM Migration - SVM # of Cluster for SVM Migration - Cluster
Node:36
HA Pair (Non-Scalable):36
Volume:1
Node:1000
HA Pair:2000
Cluster:12000
2 100 8 2 255 FlexGroup:200
FlexGroup-Node:50
Node:500
HA Pair:1000
Cluster:6000
Volume:1
Node:40
HA Pair (Non-Scalable):40
HA Pair (Non-Scalable):- Consistency group:-
HA Pair (Non-Scalable):-
SVM:300
HA Pair:1000
32 - - -

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin Origin Volumes Constituent Volumes Volumes Origin ConstituentVolumes
100 Node:100
HA Pair:200
Node:800
HA Pair:1600
Node:100
HA Pair:200
Node:800
HA Pair:1600

S3 Cluster Limits -

Max # of Buckets Max # of Objects - Bucket Max # of Users Max Size of the Bucket (PB) - Vserver
Vserver:12000
Cluster:12000
400000000000 Vserver:4000
Cluster:96000
20

Flex Array Specifications

Third Party Array Compatibility Array LUN Absolute Min Raw Capacity Array LUN Block Size Default Array LUN RAID Group Size Array LUN Max RAID Groups Per Aggregate Max Array LUN Size Max Array LUN Raid Group Size Min Array LUN Size Min Array LUN Root Vol Size Min Array LUN RAID Group Size Min Array LUN Aggregate Size Array LUN neighborhood Visible Assigned Devices Array LUN Recommended Min RAW Capacity Spare Core Array LUN Min Size
Click here to go to IMT 1,890 GiB 512 bytes 8 150 15,625 GiB 26 1.05 GiB 634 GiB 1 40 GiB 0 3,150 GiB 37 GiB

Footnotes -

Notes ID Notes Description
[1] The onboard UTA2 ports can be configured as FC Target/Initiator or CNA (FCoE target/Ethernet). The UTA2 ports are based on a dual port ASIC and both ports on each ASIC must be set to the same mode (enforced by Data ONTAP). Install X6599A-R6 10GbE SFP+ modules or approved copper twinax cables when using in CNA (FCoE target/Ethernet) mode. Install X6596-R6 16Gb FC SFP+ module when using in FC Target/Initiator mode.

Platform LED for FAS8020 Single Chassis HA Pair

LED Label LED Name Type Status Indicator Description
1 Chassis Attention LED, front - On Amber The system halted or a fault occurred in the chassis.
- - - Off The system is operating normally.
2 Chassis Power Config - On Green At least one of the two PSUs is delivering power to the system.
- - - Off Neither PSU is delivering power to the system.
3 Controller A & B activity piped through to the chassis front - Blinking green Data ONTAP is running on the controller.

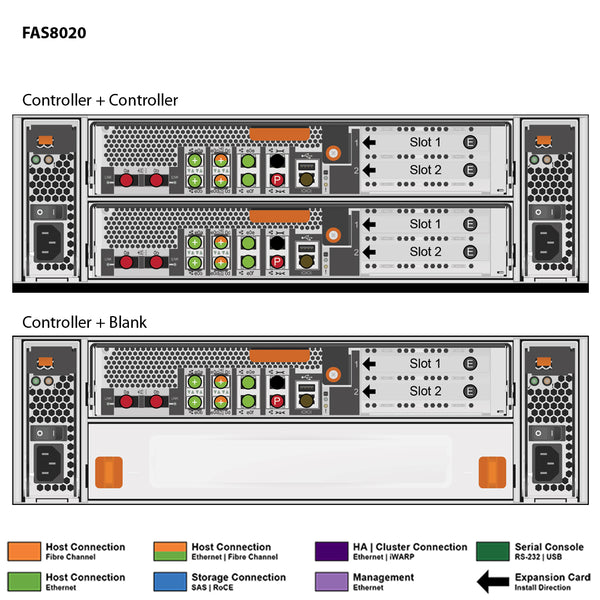

Back View
0a Port SAS Onboard Config Link Green Link is established on at least one external SAS lane
- - - Off No link is established on any external SAS lane
0b Port SAS Onboard Config Link Green Link is established on at least one external SAS lane
- - - Off No link is established on any external SAS lane
e0e Port Ethernet Config Port Activity Blinking amber Traffic is flowing over the connection
- - - Off No traffic is flowing over the connection.
- - Port Link Green A connection is established on the port
- - - Off No connection is established on the port.
e0f Port Ethernet Config Port Activity Blinking amber Traffic is flowing over the connection
- - - Off No traffic is flowing over the connection.
- - Port Link Green A connection is established on the port
- - - Off No connection is established on the port.
e0M/SP Port Remote Management Config - Blinking amber Traffic is flowing over the connection.
- - - Green A link is established between the port and some upstream device.
- - - Off No link is established.
- - - Off No traffic is flowing over the connection.
e0P Port Private management Config - Blinking amber Traffic is flowing over the connection.
- - - Green A link is established between the port and a downstream disk shelf.
- - - Off No link is established.

Supported Shelves Drives for FAS8020 Single Chassis HA Pair

Part No.Capacity RPM Drive Type Encryption Root-Data Partitioning Root-Data-Data Partitioning Storage Pool Partitioning Max Drive Count FlexArray
DS212C with IOM12 / IOM12 / IOM12B / IOM12B shelf modules
X302A-R5 1TB 7.2K SATA No Yes No No 240 Yes
X306A-R5 2TB 7.2K SATA No Yes No No 240 Yes
X308A-R5 3TB 7.2K SATA No Yes No No 240 Yes
X315A-R6 [1] 4TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 240 Yes
X317A [1] [2] 6TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 240 Yes
X318A-R6 8TB 7.2K NL-SAS No Yes No No 240 Yes
X322A [1] 10TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 240 Yes
X336A-R6 4TB 7.2K NL-SAS No Yes No No 240 Yes
X339A 2TB 7.2K NL-SAS No Yes No No 240 Yes
X380A 10TB 7.2K NL-SAS No Yes No No 240 Yes
X388A 16TB 7.2K NL-SAS No Yes No No 240 Yes
X477A-R6 4TB 7.2K NL-SAS No Yes No No 240 Yes
X488A-R5 900GB 10K SAS No Yes No No 240 Yes
X489A-R6 1.2TB 10K SAS No Yes No No 240 Yes
X490A-R6 1.8TB 10K SAS No Yes No No 240 Yes
X363A-R6 3.84TB N/A SSD No No No Yes 240 Yes
X364A 3.84TB N/A SSD No No No Yes 240 Yes
X366A-R6 [1] 1.6TB N/A SSD FIPS 140-2 Level 2, NSE No No Yes 240 Yes
X374A 960GB N/A SSD No No No Yes 240 Yes
X448A-R6 200GB N/A SSD No No No Yes 240 Yes
X449A-R6 800GB N/A SSD No No No Yes 240 Yes
X575A-R6 400GB N/A SSD No No No Yes 240 Yes
X576A-R6 1.6TB N/A SSD No No No Yes 240 Yes
X577A-R6 [1] [3] 800GB N/A SSD FIPS 140-2 Level 2, NSE No No Yes 240 Yes
DS224C with IOM12 / IOM12 / IOM12B / IOM12B shelf modules
X341A-R6 900GB 10K SAS No Yes No No 480 Yes
X342A-R6 1.2TB 10K SAS No Yes No No 480 Yes
X343A-R6 1.8TB 10K SAS No Yes No No 480 Yes
X416A-R5 [1] 600GB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X417A-R6 [1] 900GB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X421A-R5 450GB 10K SAS No Yes No No 480 Yes
X422A-R5 600GB 10K SAS No Yes No No 480 Yes
X423A-R5 900GB 10K SAS No Yes No No 480 Yes
X425A-R6 1.2TB 10K SAS No Yes No No 480 Yes
X426A-R6 1.8TB 10K SAS No Yes No No 480 Yes
X427A [1] 1.8TB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X427B-R6 [1] 1.8TB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X319A 7.6TB N/A SSD No No Yes No 240 Yes
X356A-R6 3.84TB N/A SSD No No Yes Yes 240 Yes
X357A 3.84TB N/A SSD No No Yes Yes 240 Yes
X358A [1] 3.84TB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X359A 30.6TB N/A SSD No No Yes No 240 Yes
X365A-R6 [1] 1.6TB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X371A 960GB N/A SSD No No Yes Yes 240 Yes
X386A [1] 960GB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X438A-R6 400GB N/A SSD No No Yes Yes 240 Yes
X439A-R6 1.6TB N/A SSD No No Yes Yes 240 Yes
X440A-R6 [1] [3] 800GB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X440B-R6 [1] 800GB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X446A-R6 200GB N/A SSD No No No Yes 240 Yes
X446B-R6 200GB N/A SSD No No No Yes 240 Yes
X447A-R6 800GB N/A SSD No No Yes Yes 240 Yes
X670A 15.3TB N/A SSD No No Yes No 240 Yes
DS460C with IOM12 / IOM12 / IOM12B / IOM12B shelf modules
X375A 4TB 7.2K NL-SAS No Yes No No 480 Yes
X376A 8TB 7.2K NL-SAS No Yes No No 480 Yes
X377A 10TB 7.2K NL-SAS No Yes No No 480 Yes
X378A [1] 10TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X379A 960GB N/A SSD No No No Yes 80 Yes
X387A 16TB 7.2K NL-SAS No Yes No No 480 Yes
DS2246 with IOM12 / IOM6 / IOM6 / IOM12 / IOM12B / IOM12B shelf modules
X341A-R6 900GB 10K SAS No Yes No No 480 Yes
X342A-R6 1.2TB 10K SAS No Yes No No 480 Yes
X343A-R6 1.8TB 10K SAS No Yes No No 480 Yes
X416A-R5 [1] 600GB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X417A-R6 [1] 900GB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X421A-R5 450GB 10K SAS No Yes No No 480 Yes
X422A-R5 600GB 10K SAS No Yes No No 480 Yes
X423A-R5 900GB 10K SAS No Yes No No 480 Yes
X425A-R6 1.2TB 10K SAS No Yes No No 480 Yes
X426A-R6 1.8TB 10K SAS No Yes No No 480 Yes
X427A [1] 1.8TB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X427B-R6 [1] 1.8TB 10K SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X356A-R6 3.84TB N/A SSD No No Yes Yes 240 Yes
X357A 3.84TB N/A SSD No No Yes Yes 240 Yes
X358A [1] 3.84TB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X365A-R6 [1] 1.6TB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X371A 960GB N/A SSD No No Yes Yes 240 Yes
X438A-R6 400GB N/A SSD No No Yes Yes 240 Yes
X439A-R6 1.6TB N/A SSD No No Yes Yes 240 Yes
X440A-R6 [1] [3] 800GB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X440B-R6 [1] 800GB N/A SSD FIPS 140-2 Level 2, NSE No Yes Yes 240 Yes
X446A-R6 200GB N/A SSD No No No Yes 240 Yes
X446B-R6 200GB N/A SSD No No No Yes 240 Yes
X447A-R6 800GB N/A SSD No No Yes Yes 240 Yes
DS4246 with IOM12 / IOM6 / IOM12 / IOM6 / IOM12B / IOM12B shelf modules
X302A-R5 1TB 7.2K SATA No Yes No No 480 Yes
X306A-R5 2TB 7.2K SATA No Yes No No 480 Yes
X308A-R5 3TB 7.2K SATA No Yes No No 480 Yes
X309A-R6 [1] [3] 3TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X315A-R6 [1] 4TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X316A-R6 6TB 7.2K NL-SAS No Yes No No 480 Yes
X317A [1] [2] 6TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X318A-R6 8TB 7.2K NL-SAS No Yes No No 480 Yes
X322A [1] 10TB 7.2K NL-SAS FIPS 140-2 Level 2, NSE Yes No No 480 Yes
X336A-R6 4TB 7.2K NL-SAS No Yes No No 480 Yes
X380A 10TB 7.2K NL-SAS No Yes No No 480 Yes
X477A-R6 4TB 7.2K NL-SAS No Yes No No 480 Yes
X488A-R5 900GB 10K SAS No Yes No No 480 Yes
X489A-R6 1.2TB 10K SAS No Yes No No 480 Yes
X490A-R6 1.8TB 10K SAS No Yes No No 480 Yes
X363A-R6 3.84TB N/A SSD No No No Yes 240 Yes
X366A-R6 [1] 1.6TB N/A SSD FIPS 140-2 Level 2, NSE No No Yes 240 Yes
X374A 960GB N/A SSD No No No Yes 240 Yes
X441A-R5 100GB N/A SSD No No No No 240 Yes
X442A-R5 [4] 100GB N/A SSD No No No No 240 Yes
X448A-R6 200GB N/A SSD No No No Yes 240 Yes
X449A-R6 800GB N/A SSD No No No Yes 240 Yes
X575A-R6 400GB N/A SSD No No No Yes 240 Yes
X576A-R6 1.6TB N/A SSD No No No Yes 240 Yes
X577A-R6 [1] [3] 800GB N/A SSD FIPS 140-2 Level 2, NSE No No Yes 240 Yes
DS4486 with IOM6 shelf modules
X381A 10TB 7.2K MSATA No No No No 480 Yes
X478A-R5 [5] 3TB 7.2K MSATA No No No No 480 Yes
X480A-R6 [5] 4TB 7.2K MSATA No No No No 480 Yes
X481A-R6 [5] 6TB 7.2K MSATA No No No No 480 Yes
X483A-R6 8TB 7.2K MSATA No No No No 480 Yes
DS4243 with IOM12 / IOM6 shelf modules
X302A-R5 1TB 7.2K SATA No No No No 480 Yes
X306A-R5 2TB 7.2K SATA No No No No 480 Yes
X308A-R5 3TB 7.2K SATA No No No No 480 Yes
Footnote:
[1] Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[2] Mixing encrypted with unencrypted drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[3] In Flash Pool NSE SSD drives can only be used with NSE HDD drives.
[4] This drive does not support the sanitization feature.
[5] SSD drives used for cache in a Flash Pool with DS4486 MSATA HDDs must be configured in a DS2246 shelf.

Supported RAID Configurations - FAS8020 Single Chassis HA Pair

Drive Type Drive Capacity Min Drive Capacity Max Minimum Default Maximum
Data Aggregate
RAID4
NL-SAS 0 TB 8 TB 3 7 7
SAS 0 TB 5.999 TB 3 8 14
SATA 0 TB 5.999 TB 3 7 7
SSD 0 TB 30.6 TB 3 8 14
RAID-DP
MSATA 0 TB 5.999 TB 5 14 20
MSATA 6 TB 8 TB 5 14 14
NL-SAS 0 TB 5.999 TB 5 14 20
NL-SAS 6 TB 8 TB 5 14 14
SAS 0 TB 5.999 TB 5 16 28
SATA 0 TB 5.999 TB 5 14 20
SSD 0 TB 30.6 TB 5 24 28
RAID-TEC
MSATA 0 TB 10 TB 7 21 29
NL-SAS 0 TB 16 TB 7 21 29
SAS 0 TB 8 TB 7 24 29
SATA 0 TB 8 TB 7 21 29
SSD 0 TB 30.6 TB 7 25 29
Root Aggregate
RAID4
NL-SAS 0 TB 8 TB 2 - 7
SAS 0 TB 5.999 TB 2 - 14
SATA 0 TB 5.999 TB 2 - 7
SSD 0 TB 30.6 TB 2 - 14
RAID-DP
MSATA 0 TB 5.999 TB 3 - 20
MSATA 6 TB 8 TB 3 - 14
NL-SAS 0 TB 5.999 TB 3 - 20
NL-SAS 6 TB 16 TB 3[1] - 14
SAS 0 TB 5.999 TB 3[2] - 28
SATA 0 TB 5.999 TB 3[2] - 20
SSD 0 TB 30.6 TB 3[2] - 28
RAID-TEC
MSATA 0 TB 10 TB 7 - 29
NL-SAS 0 TB 16 TB 7 - 29
SAS 0 TB 8 TB 7 - 29
SATA 0 TB 8 TB 7 - 29
SSD 0 TB 30.6 TB 7 - 29
Footnote:
[1] RAID-DP is supported with 10TB NL-SAS drives only if HA pair has 10-14 drives
[2] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - FAS8020 Single Chassis HA Pair 4-Node

Priority Category Bus Type Mktg Part No. Mfg Part No Description Plug Type Optical Module Included? Cables Supported Protocol(s) Min ONTAP Max Qty [1] Priority Slot Assignment
1 Networking PCIe X1117A-R6 [2] 111-01232, 111-00754 2p 10GbE NIC Cu|Op 111-01232, 2p 10GbE NIC Cu|Op SFP+ Ethernet 10Gb View Ethernet 10Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
2 Networking (Target) PCIe X1143A-R6 [3] 111-00910 2p 16Gb|10Gb UTA2 Cu|Op 111-00910 2p 16Gb|10Gb UTA2 Cu|Op SFP+ Ethernet 10Gb, Fibre Channel 4/8/16 Gb View Ethernet 10Gb, 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
3 Networking PCIe X1120A-R6 [4] 111-01688 2p 10GBASE-T NIC Cu 111-01688 2p 10GBASE-T NIC Cu RJ45 Ethernet 1/10 Gb View Ethernet 1/10 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
4 Block Access (Target) PCIe3 X1134A [5] 111-03249 2p 32Gb FC SFP+ Op (Target Only) 111-03249 2p 32Gb FC SFP+ Op (Target Only) SFP+ Fibre Channel 8/16/32 Gb View Fibre Channel 8/16/32 Gb 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
5 Block Access (Target) PCIe X1143A-R6 [3] 111-00910 2p 16Gb|10Gb UTA2 Cu|Op 111-00910 2p 16Gb|10Gb UTA2 Cu|Op SFP+ Ethernet 10Gb, Fibre Channel 4/8/16 Gb View Ethernet 10Gb, 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
6 Block Access (Target) PCIe3 X1133A-R6 111-02451 4p 16Gb FC SFP+ Op 111-02451 4p 16Gb FC SFP+ Op SFP+ Fibre Channel 4/8/16 Gb View Fibre Channel 4/8/16 Gb 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 8.3, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
7 Block Access (Target) PCIe X1132A-R6 [6] 111-00481 4p 8Gb FC Op 111-00481 4p 8Gb FC Op SFP Fibre Channel 2/4/8 Gb View Fibre Channel 2/4/8 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
8 Performance Acceleration PCIe X1973A-R6 [7] 111-00902 Flash Cache 2 (512GB) 111-00902 Flash Cache 2 (512GB) N/A 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
9 Performance Acceleration PCIe X1974A-R6 [7] 111-00903 Flash Cache 2 (1.0TB) 111-00903 Flash Cache 2 (1.0TB) N/A 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
10 Block Access (Target) PCIe X1130A-R6 111-00416 4p 4Gb FC Op 111-00416 4p 4Gb FC Op LC Fibre Channel 1/2/4 Gb View Fibre Channel 1/2/4 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
11 Networking PCIe X1049C-R6 111-01034 4p 1GbE NIC Cu 111-01034 4p 1GbE NIC Cu RJ45 Ethernet 10/100/1000 Mb View Ethernet 10/100/1000 Mb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
12 Networking PCIe X1048A-R6 111-00909 4p 1GbE NIC Op 111-00909 4p 1GbE NIC Op LC Ethernet 10/100/1000 Mb View Ethernet 10/100/1000 Mb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
13 Storage (Initiator) PCIe X1143A-R6 [3] 111-00910 2p 16Gb|10Gb UTA2 Cu|Op 111-00910 2p 16Gb|10Gb UTA2 Cu|Op SFP+ Ethernet 10Gb, Fibre Channel 4/8/16 Gb View Ethernet 10Gb, 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
14 Storage (Initiator) PCIe3 X1133A-R6 111-02451 4p 16Gb FC SFP+ Op 111-02451 4p 16Gb FC SFP+ Op SFP+ Fibre Channel 4/8/16 Gb View Fibre Channel 4/8/16 Gb 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
15 Storage (Initiator) PCIe X1132A-R6 111-00481 4p 8Gb FC Op 111-00481 4p 8Gb FC Op SFP Fibre Channel 2/4/8 Gb View Fibre Channel 2/4/8 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
16 Storage (Initiator) PCIe3 X2071A 111-03801 4p 12Gb SAS miniSAS HD Cu|Op 111-03801 4p 12Gb SAS miniSAS HD Cu|Op MiniSAS HD SAS 6/12 Gb View SAS 6/12 Gb 9.1P10, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
17 Storage (Initiator) PCIe X2069-R6 111-02026 4p 12Gb SAS Cu|Op 111-02026 4p 12Gb SAS Cu|Op QSFP SAS 3/6/12 Gb View SAS 3/6/12 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.3, 8.3.1RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
18 Storage (Initiator) PCIe X2065A-R6 [8] 111-00341 4p 6Gb SAS Cu|Op 111-00341 4p 6Gb SAS Cu|Op QSFP SAS 3/6 Gb View SAS 3/6 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
19 Storage (Initiator) PCIe X2054A-R6 111-00285 4p 4Gb FC Op 111-00285 4p 4Gb FC Op LC Fibre Channel 1/2/4 Gb View Fibre Channel 1/2/4 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
20 Tape (Initiator) PCIe X1143A-R6 [9] 111-00910 2p 16Gb|10Gb UTA2 Cu|Op 111-00910 2p 16Gb|10Gb UTA2 Cu|Op SFP+ Ethernet 10Gb, Fibre Channel 4/8/16 Gb View Ethernet 10Gb, 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
21 Tape (Initiator) PCIe3 X1133A-R6 [10] 111-02451 4p 16Gb FC SFP+ Op 111-02451 4p 16Gb FC SFP+ Op SFP+ Fibre Channel 4/8/16 Gb View Fibre Channel 4/8/16 Gb 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
22 Tape (Initiator) PCIe X1132A-R6 111-00481 4p 8Gb FC Op 111-00481 4p 8Gb FC Op SFP Fibre Channel 2/4/8 Gb View Fibre Channel 2/4/8 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
23 Tape (Initiator) PCIe3 X2071A 111-03801 4p 12Gb SAS miniSAS HD Cu|Op 111-03801 4p 12Gb SAS miniSAS HD Cu|Op MiniSAS HD SAS 6/12 Gb View SAS 6/12 Gb 9.1P10, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
24 Tape (Initiator) PCIe X2069-R6 111-02026 4p 12Gb SAS Cu|Op 111-02026 4p 12Gb SAS Cu|Op QSFP SAS 3/6/12 Gb View SAS 3/6/12 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.3, 8.3.1RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
25 Tape (Initiator) PCIe X2065A-R6 [8] 111-00341 4p 6Gb SAS Cu|Op 111-00341 4p 6Gb SAS Cu|Op QSFP SAS 3/6 Gb View SAS 3/6 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
26 Tape (Initiator) PCIe X2054A-R6 111-00285 4p 4Gb FC Op 111-00285 4p 4Gb FC Op LC Fibre Channel 1/2/4 Gb View Fibre Channel 1/2/4 Gb 9.0RC1, 9.1RC1, 9.2RC1, 8.2.1RC2, 8.3RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
Footnote:
[1] Values shown for max quantity are per controller.  HA configurations will support 2x the values shown.
[2] Install X6569-R6 SFP+ or twinax cable.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.
[3] UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode
[4] X1120A cannot be used for cluster interconnect on this platform
[5] Target mode adapter only. Foreign LUN import (FLI) requires initiator mode.
[6] Ports configurable for target mode
[7] Max qty of Flash Cache adapters is limited by the system cache capacity limit. Please refer to the System Cache Limits in the Controller section for more information.
[8] SAS X2065A-R6 versions 111-00341+Ax through 111-00341+D0 are not supported on FAS8000 systems and need to be replaced with newer SAS HBA cards.
[9] UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters. UTA2 ports are not supported with IBM tape devices. Direct connection to tape drives with UTA2 ports are supported on HP, Quantum, and Tandberg tape devices, other non-IBM tape devices require a FC switch between the UTA2 port and tape drive.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M

Supported Connections for FAS8020 Single Chassis HA Pair

Configuration Type Port Configuration Image Cluster Ports per Node Switch Ports per Node
Cluster Interconnect

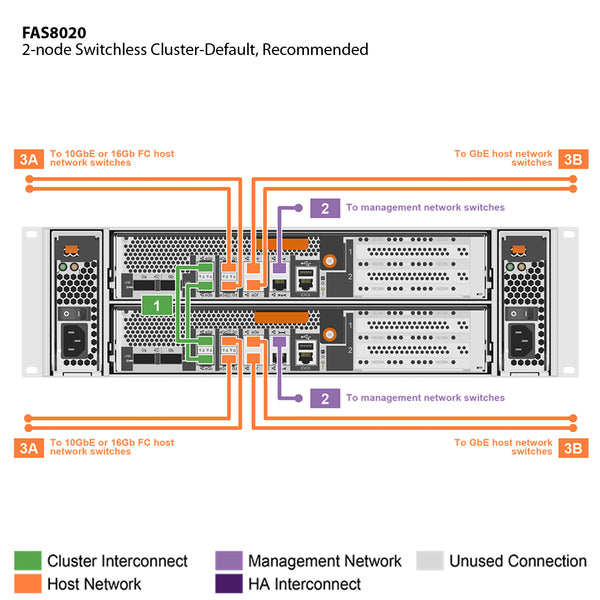

2-node Switchless Cluster Default, Recommended View Image 2 None

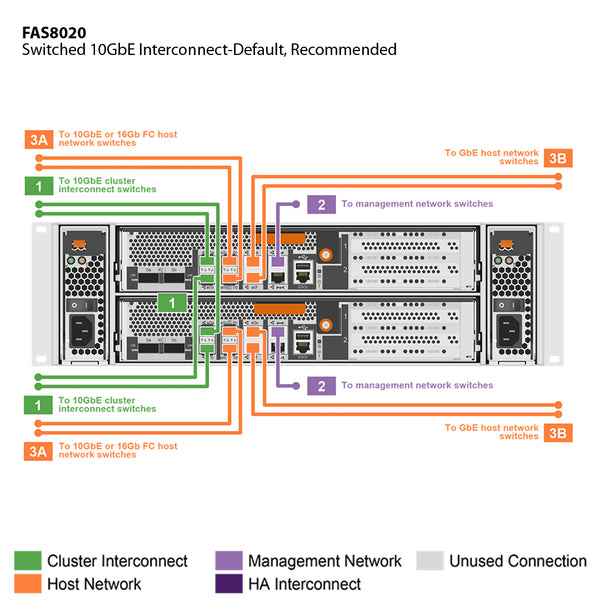

Switched 10GbE Interconnect Default, Recommended View Image 2 2

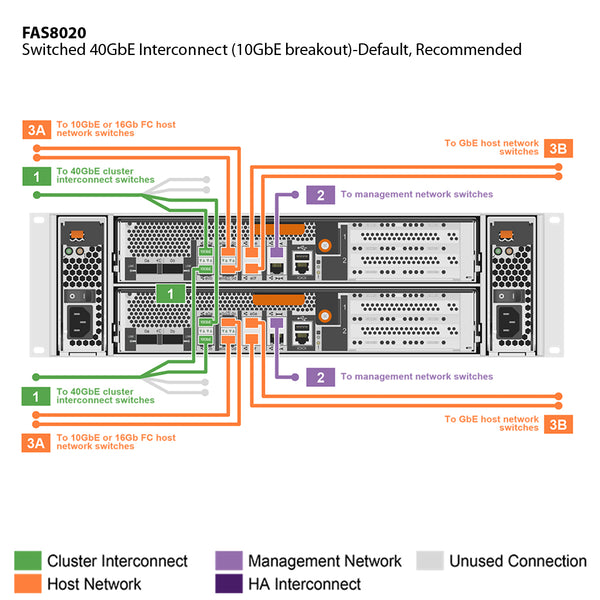

Switched 40GbE Interconnect (10GbE breakout) Default, Recommended View Image 2 1

Platform Mixing Rules: FAS8020 Single Chassis HA Pair

Platform Configuration Type Maximum Nodes (NAS) [1] Maximum Nodes (SAN) [1] Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T 24 Nodes 12 Nodes 9.4RC1
FAS2720A UTA2 24 Nodes 12 Nodes 9.4RC1
FAS2750A 10GBASE-T 24 Nodes 12 Nodes 9.4RC1
FAS2750A UTA2 24 Nodes 12 Nodes 9.4RC1
FAS8020 Single Chassis HA PairA 24 Nodes 12 Nodes 9.8RC1
FAS8300A Ethernet Bundle 24 Nodes 12 Nodes 9.7RC1
FAS8300A FC Bundle 24 Nodes 12 Nodes 9.7RC1
FAS8700A Ethernet Bundle 24 Nodes 12 Nodes 9.7RC1
FAS8700A FC Bundle 24 Nodes 12 Nodes 9.7RC1
FAS9000A 24 Nodes 12 Nodes 9.1RC2
AllFlashFAS - Current Configuration(s)
AFF A250A 24 Nodes 12 Nodes 9.8RC1
AFF A400A Ethernet Bundle 24 Nodes 12 Nodes 9.7RC1
AFF A400A FC Bundle 24 Nodes 12 Nodes 9.7RC1
AFF A700A 24 Nodes 12 Nodes 9.1RC2
AFF A800A 24 Nodes 12 Nodes 9.4RC1
AFF C190A 10GBASE-T 24 Nodes 12 Nodes 9.6RC2
AFF C190A UTA2 24 Nodes 12 Nodes 9.6RC2
FAS - Legacy EOA Configuration(s)
FAS2520HA 8 Nodes 8 Nodes 9.0RC1
FAS2552HA 8 Nodes 8 Nodes 9.0RC1
FAS2554HA 8 Nodes 8 Nodes 9.0RC1
FAS2620A 24 Nodes 12 Nodes 9.1
FAS2650A 24 Nodes 12 Nodes 9.1RC1
FAS8020A 24 Nodes 12 Nodes 9.0RC1
FAS8040A 24 Nodes 12 Nodes 9.0RC1
FAS8060A 24 Nodes 12 Nodes 9.0RC1
FAS8060AE 24 Nodes 12 Nodes 9.0RC1
FAS8080AE EX 24 Nodes 12 Nodes 9.0RC1
FAS8200A 24 Nodes 12 Nodes 9.1RC1
AllFlashFAS - Legacy EOA Configuration(s)
AFF A200A 24 Nodes 12 Nodes 9.1RC2
AFF A220A 10GBASE-T 24 Nodes 12 Nodes 9.4RC1
AFF A220A UTA2 24 Nodes 12 Nodes 9.4RC1
AFF A300A 24 Nodes 12 Nodes 9.1RC1
AFF A320A 24 Nodes 12 Nodes 9.6RC2
AFF A700s 24 Nodes 12 Nodes 9.1
AFF8020A 24 Nodes 12 Nodes 9.0RC1
AFF8040A 24 Nodes 12 Nodes 9.0RC1
AFF8060A 24 Nodes 12 Nodes 9.0RC1
AFF8060AE 24 Nodes 12 Nodes 9.0RC1
AFF8080A EX 24 Nodes 12 Nodes 9.0RC1
AFF8080AE EX 24 Nodes 12 Nodes 9.0RC1
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - FAS8020 Single Chassis HA Pair

Standard Description
Certifications EMC/EMI
AMCA Australia and New Zealand (EMC covered by ACMA DoC)
FCC Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES ICES
KC Korea Communications Commission (EMC certificate for South Korea)
Morocco Morocco Declaration of Conformity
VCCI EMI Certificate for Japan
Certifications safety
BIS Bureau of Indian Standard (Safety cert for India)
CB Certificate Body issued safety certificate covering International
CSA Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR Safety certificate for Gabon, Kenya and Uganda
IRAM Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM Norma Oficial Mexicana (Safety cert for Mexico)
NRCS National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI Certificate for Taiwan
CE DoC European Union Declaration of Conformity
Standards EMC/EMI
CISPR 22 EMI
EN55022 EMC Standard fo European Union
EN55024 EMC Standard fo European Union
EN61000-3-2 EMC Standard for European Union
EN61000-3-3 EMC Standard for European Union
FCC Part 15 Class A EMI standard for United States
ICES-3 EMI Stardard for Canada
Standards Safety
ANSI/UL 60950-1 ANSI/UL 60950-1
CNS 14336 Safety Standard for Taiwan
CSA 60950 CSA 60950
EN60825-1 Laser Safety standard for European Union
EN60950-1 EN60950-1
IEC60825-1 Laser Safety Standard for International
Certifications EMC/EMI
AMCA Australia and New Zealand (EMC covered by ACMA DoC)
FCC Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES ICES
KC Korea Communications Commission (EMC certificate for South Korea)
Morocco Morocco Declaration of Conformity
VCCI EMI Certificate for Japan
Certifications safety
BIS Bureau of Indian Standard (Safety cert for India)
CB Certificate Body issued safety certificate covering International
CSA Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR Safety certificate for Gabon, Kenya and Uganda
IRAM Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM Norma Oficial Mexicana (Safety cert for Mexico)
NRCS National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI Certificate for Taiwan
CE DoC European Union Declaration of Conformity
Standards EMC/EMI
CISPR 22 EMI
EN55022 EMC Standard fo European Union
EN55024 EMC Standard fo European Union
EN61000-3-2 EMC Standard for European Union
EN61000-3-3 EMC Standard for European Union
FCC Part 15 Class A EMI standard for United States
ICES-3 EMI Stardard for Canada
Standards Safety
ANSI/UL 60950-1 ANSI/UL 60950-1
CNS 14336 Safety Standard for Taiwan
CSA 60950 CSA 60950
EN60825-1 Laser Safety standard for European Union
EN60950-1 EN60950-1
IEC60825-1 Laser Safety Standard for International

Supported OS Version - FAS8020 Single Chassis HA Pair

OS Major Version Supported OS Version Supported Milestones Recommend Version
Currently Supported OS
ONTAP 9.8 9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1 End of Full Support: 31-Dec-2023
End of Limited Support: 31-Dec-2025
End of Self-Service Support: 31-Dec-2028
9.8P13, 9.8P12
ONTAP 9.7 9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 End of Full Support: 31-Jan-2023
End of Limited Support: 31-Jan-2025
End of Self-Service Support: 31-Jan-2028
9.7P19
EOS OS
ONTAP 9.7 9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 End of Full Support: 31-Jan-2023
End of Limited Support: 31-Jan-2025
End of Self-Service Support: 31-Jan-2028
9.7P19
ONTAP 9.6 9.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P14, 9.6P13, 9.6P12, 9.6P11, 9.6P10, 9.6P9, 9.6P8, 9.6P7, 9.6P6, 9.6P5, 9.6P4, 9.6P3, 9.6P2, 9.6P1, 9.6, 9.6RC2, 9.6RC1 End of Full Support: 30-Jun-2022
End of Limited Support: 30-Jun-2024
End of Self-Service Support: 30-Jun-2027
9.6P18
ONTAP 9.5 9.5P19, 9.5P18, 9.5P17, 9.5P16, 9.5P15, 9.5P14, 9.5P13, 9.5P12, 9.5P11, 9.5P10, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P3, 9.5P2, 9.5P1, 9.5, 9.5RC1 End of Full Support: 31-Jan-2022
End of Limited Support: 31-Jan-2024
End of Self-Service Support: 31-Jan-2027
9.5P19
ONTAP 9.4 9.4P8, 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3, 9.4P2, 9.4P1, 9.4, 9.4RC1 End of Full Support: 30-Jun-2019
End of Limited Support: 30-Jun-2021
End of Self-Service Support: 30-Jun-2024
9.4P8
Clustered Data ONTAP 8.3 8.3.2P12, 8.3.2P11, 8.3.2P10, 8.3.2P9, 8.3.2P8, 8.3.2P7, 8.3.2P6, 8.3.2P5, 8.3.2P4, 8.3.2P3, 8.3.2P2, 8.3.2P1, 8.3.2, 8.3.2RC2, 8.3.2RC1, 8.3.1P2, 8.3.1P1, 8.3.1, 8.3.1RC1, 8.3P2, 8.3P1, 8.3, 8.3RC2, 8.3RC1 End of Full Support: 31-Oct-2017
End of Limited Support: 30-Apr-2019
End of Self-Service Support: 30-Apr-2022
8.3.2P12
ONTAP 9.3 9.3P21, 9.3P20, 9.3P19, 9.3P18, 9.3P17, 9.3P16, 9.3P15, 9.3P14, 9.3P13, 9.3P12, 9.3P11, 9.3P10, 9.3P9, 9.3P8, 9.3P7, 9.3P6, 9.3P5, 9.3P4, 9.3P3, 9.3P2, 9.3P1, 9.3, 9.3RC1 End of Full Support: 31-Jan-2021
End of Limited Support: 31-Jan-2023
End of Self-Service Support: 31-Jan-2026
9.3P21
Clustered Data ONTAP 8.2 8.2.4P6, 8.2.4P5, 8.2.4P4, 8.2.4P3, 8.2.4P2, 8.2.4P1, 8.2.4, 8.2.3P6, 8.2.3P5, 8.2.3P4, 8.2.3P3, 8.2.3P2, 8.2.3P1, 8.2.3, 8.2.2P2, 8.2.2P1, 8.2.2, 8.2.2RC2, 8.2.2RC1, 8.2.1P3, 8.2.1P2, 8.2.1P1, 8.2.1, 8.2.1RC2 End of Full Support: 31-Jul-2017
End of Limited Support: 31-Jan-2019
End of Self-Service Support: 31-Jan-2022
8.2.4P6
7-Mode 8.2 8.2.5P5, 8.2.5P4, 8.2.5P3, 8.2.5P2, 8.2.5P1, 8.2.5, 8.2.4P6, 8.2.4P5, 8.2.4P4, 8.2.4P3, 8.2.4P2, 8.2.4P1, 8.2.4, 8.2.3P6, 8.2.3P5, 8.2.3P4, 8.2.3P3, 8.2.3P2, 8.2.3P1, 8.2.3, 8.2.2, 8.2.2RC2, 8.2.2RC1, 8.2.1, 8.2.1RC2 End of Full Support: 31-Dec-2020
End of Limited Support: 31-Dec-2022
End of Self-Service Support: 31-Dec-2025
8.2.5P5
ONTAP 9.2 9.2P4, 9.2P3, 9.2P2, 9.2P1, 9.2, 9.2RC1 End of Full Support: 31-Jul-2018
End of Limited Support: 31-Jul-2020
End of Self-Service Support: 31-Jul-2023
9.2P4
ONTAP 9.1 9.1P20, 9.1P19, 9.1P18, 9.1P17, 9.1P16, 9.1P15, 9.1P14, 9.1P13, 9.1P12, 9.1P11, 9.1P10, 9.1P9, 9.1P8, 9.1P7, 9.1P6, 9.1P5, 9.1P3, 9.1P2, 9.1P1, 9.1, 9.1RC2, 9.1RC1 End of Full Support: 31-Jan-2020
End of Limited Support: 31-Jan-2022
End of Self-Service Support: 31-Jan-2025
9.1P20
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for FAS8020 Single Chassis HA Pair

Marketing Part No.End 1 / End 2LengthDescription
Non-Cabinet Power Cords
X800B-R6 CEE 7/7 (Schuko) / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6 BS1363 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6 JIS-C-8303 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6 NEMA 5-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6 AS/NZS 3112 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6 SEV 1011 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6 IRAM 2073 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6 GB2099 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6 DHCR107-2-D1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6 SANS 164-1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6 SI32 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6 CEI 23-16 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Italy,10A/250V
X800P-R6 NEMA 6-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6 CNS 10917-3 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6 NBR14136 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6 CNS10917/CNS690 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6 JIS-C-830 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X1558A-R6 IEC60320-C14 / IEC60320-C13 1.20 m Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35 IEC60320-C14 / IEC60320-C13 0.89 m Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43 IEC60320-C14 / IEC60320-C13 1.09 m Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64 IEC60320-C14 / IEC60320-C13 1.63 m Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6 IEC60320-C14 / IEC60320-C13 0.68 m Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: FAS8020 Single Chassis HA Pair

Port Address Description Supported Protocols Port Icon Port Type
0a [1] Serial-Attached SCSI SAS 3/6 Gb SAS QSFP
0b [1] Serial-Attached SCSI SAS 3/6 Gb SAS QSFP
e0a [2] Ethernet Ethernet 10Gb Ethernet SFP+
e0b [2] Ethernet Ethernet 10Gb Ethernet SFP+
e0c/0c [3] [4] Unified Target Adapter 2 Ethernet 10Gb, Fibre Channel 4/8/16 Gb Ethernet/Fibre Channel SFP+
e0d/0d [3] [4] Unified Target Adapter 2 Ethernet 10Gb, Fibre Channel 4/8/16 Gb Ethernet/Fibre Channel SFP+
e0e Ethernet Ethernet 10/100/1000 Mb Ethernet RJ45
e0f Ethernet Ethernet 10/100/1000 Mb Ethernet RJ45
e0M/SP [5] Management Ethernet 10/100/1000 Mb Wrench RJ45
e0P [6] Private Management Ethernet 10/100 Mb Wrench w/Padlock RJ45
Serial Interface Serial Console RS-232 9600bps Serial Interface RJ45
Footnote:
[1] Supports SAS tape devices.Metrocluster Configuration Notes: Can be used for SAS optical storage connectivity in 7-mode Stretched MetroCluster. Not supported for storage connectivity in a 7-mode Fabric MetroCluster or MetroCluster C-mode (FS.0)
[2] See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements
[3] Connecting tape drives or tape libraries to the FC or UTA2 ports requires the use of a FC switch.
[4] CNA ports 0c, 0d can be configured as FC Target/Initiator, or FCoE target. CNA ports e0c, e0d can be used as Ethernet. Do not use e0c or e0d for cluster interconnect on this platform.Port pairs e0c/0c and e0d/0d have to have the same SFP+ type, 10GbE SFP+ (X6599A-R6) or 16Gb SFP+ (X6596-R6).
[5] e0M is default management port
[6] e0P is private management interconnect port

Supported Platform Configurations - FAS8020 Single Chassis HA Pair

Platform Configuration Description Chassis Configuration Chassis Count Controller Count (per chassis) IOXM Count (per chassis) Rack Units (Per System) Weight (Per Chassis) Min ONTAP
Stand Alone
FAS8020 FAS8020 Single Node Cb 1 1 0 3 63.05 lb (28.6 kg) 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
HA Pair
FAS8020A FAS8020 Single Chassis HA Pair CC 1 2 0 3 74.08 lb (33.6 kg) 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
MetroCluster
FAS8020-2NBSMC FAS8020 2-Node Stretch MetroCluster, Fiber Bridge Cb-HA 2 1 0 6 63.05 lb (28.6 kg) 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8020-2NDSMC FAS8020 2-Node Stretch MetroCluster, Optical SAS Cb-HA 2 1 0 6 63.05 lb (28.6 kg) 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8020-2NFMC FAS8020 2-Node Fabric MetroCluster Cb-HA 2 1 0 6 63.05 lb (28.6 kg) 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8020-4NFMC FAS8020 4-Node Fabric MetroCluster CC-CC 2 2 0 6 74.08 lb (33.6 kg) 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1
FAS8020-8NFMC FAS8020 8-Node Fabric MetroCluster 2x(CC-CC) 4 2 0 12 74.08 lb (33.6 kg) 9.0RC1, 9.1RC1, 9.2RC1, 9.3RC1, 9.4RC1, 9.5RC1, 9.6RC1, 9.7RC1, 9.8RC1

Platform Memory Specifications - FAS8020 Single Chassis HA Pair

Part Number Description Mfg Part Number Non-Volatile Qty Capacity (GB) NVRAM/NVMEM Used Capacity (GB) RAM Used Capacity (GB)
X3213-R6 8GB memory DIMM, DDR3-1333 111-01776 no 6 8 - 48
X3212-R6 DIMM,4GB 111-01841 yes 2 4 8 -

Supported Rail Kit for FAS8020 Single Chassis HA Pair

Marketing Part No.Manufacturing Part No.Description
NetApp System Cabinet Rail Kits
X877B-R6 111-00596 Rail Kit II, NetApp Cabinet, R6
X8783A-R6 111-01110 Rail Kit III, NetApp Cabinet, R6
X87880A 111-03887 Rail Kit 4,Cabinet
Third-Party Cabinet Rail Kits
X-02659-00 113-00232 Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5515A-R6 [1] 111-00232 Kit,2-Post (Round) or 4-Post (Square), 24"-32" Rail
X5525A-R6 [2] 111-00583 Kit,2-Post,Round-Hole
X5526A-R6 111-00593 Kit,4-Post.Square-Hole, 24"-32" Rail
X5529A-R6 111-00310 Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Field Replacement Unit Parts - FAS8020 Single Chassis HA Pair

Marketing Part No.Manufacturing Part No.Description
Adapter Card
X1048A-EN-R6-C 111-00909 NIC 4-Port Optical GbE PCIe,EN,-C
X1048A-R6 111-00909 NIC 4-Port Optical GbE PCIe
X1048A-R6-C 111-00909 NIC 4-Port Optical GbE PCIe,-C
X1049C-R6 111-01034 NIC 4-Port Copper GbE II PCIe
X1049C-R6-C 111-01034 NIC 4-Port Copper GbE II PCIe,-C
X1117A-EN-R6-C [1] 111-00754, 111-01232 NICII 2-Port Bare Cage SFP+ 10GbE PCIe,EN,-C
X1117A-N-C [1] 111-00754, 111-01232 NICII 2-Port Bare Cage SFP+ 10GbE PCIe,-C
X1117A-R6 [1] 111-00754, 111-01232 NICII 2-Port Bare Cage SFP+ 10GbE PCIe
X1117A-R6-C [1] 111-00754, 111-01232 NICII 2-Port Bare Cage SFP+ 10GbE PCIe,-C
X1120A-N-C [2] [3] 111-01688 NIC II 2-Port RJ45 10GBASE-T PCIe,-C
X1120A-R6 [2] [3] 111-01688 NIC II 2-Port RJ45 10GBASE-T PCIe
X1120A-R6-C [2] [3] 111-01688 NIC II 2-Port RJ45 10GBASE-T PCIe,-C
X1130A-EN-R6-C 111-00416 HBA 4-Port FCP Target 4Gb PCIe,EN,-C
X1130A-R6 111-00416 HBA 4-Port FCP Target 4Gb PCIe
X1132A-EN-R6-C [4] 111-00481 ADPT 4-Port FCP 8Gb Target Adapter PCIe,EN,-C
X1132A-R6 [4] 111-00481 ADPT 4-Pt FC 8Gb Target-Init PCIe
X1132A-R6-C [4] 111-00481 ADPT 4-Pt FC 8Gb Target-Init PCIe,-C
X1133A-N-C [5] [6] 111-02451 HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+,-C
X1133A-R6 [5] [6] 111-02451 HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+
X1133A-R6-C [5] [6] 111-02451 HBA,4-Port FCP Trgt/Init 16Gb PCIe w/SFP+,-C
X1134A [7] 111-03249 HBA,2-Port FCP Target 32Gb PCIe w/SFP+
X1134A-C [7] 111-03249 HBA,2-Port FCP Target 32Gb PCIe w/SFP+,-C
X1134A-N-C [7] 111-03249 HBA,2-Port FCP Target 32Gb PCIe w/SFP+,-C
X1143A-N-C [6] [8] [9] 111-00910 ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+,-C
X1143A-R6 [6] [8] [9] 111-00910 ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+
X1143A-R6-C [6] [8] [9] 111-00910 ADPT 2-Pt UTA2,10GbE,16Gb FC BareCage SFP+,-C
X1973A-R6 [10] 111-00902 Flash Cache 512GB PCIe Module 2
X1973A-R6-C [10] 111-00902 Flash Cache 512GB PCIe Module 2,-C
X1974A-R6 [10] 111-00903 Flash Cache 1TB PCIe Module 2
X1974A-R6-C [10] 111-00903 Flash Cache 1TB PCIe Module 2,-C
X2054A-EN-R6-C 111-00285 HBA 4-Port Optical 4Gb Disk PCIe,EN,-C
X2054A-R6 111-00285 HBA 4-Port Optical 4Gb Disk PCIe
X2065A-EN-R6-C [11] 111-00341 HBA SAS 4-Port Copper 3/6 Gb QSFP PCIe,EN,-C
X2065A-R6 [11] 111-00341 HBA SAS 4-Port Copper 3/6 Gb QSFP PCIe
X2069-R6 111-02026 HBA,4-Port SAS 3/6/12Gbps QSFP PCIe
X2069-R6-C 111-02026 HBA,4-Port SAS 3/6/12Gbps QSFP PCIe,-C
X2071A 111-03801 HBA,4-Port HD-miniSAS,12Gb,PCIe
X2071A-C 111-03801 HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
X2071A-N-C 111-03801 HBA,4-Port HD-miniSAS,12Gb,PCIe,-C
Battery
X1847 271-01847 Lithium System Battery CR2032
X1847-R6 271-01847 Lithium System Battery CR2032,R6
Bezel
X80084-R6 111-01240 Bezel,FAS8020
Boot Media
X1426A-R6 N/A USB Flash,8GB
Chassis
X6231-R6 N/A Chassis,Empty,FAS8020
Controller Blank
X3118-R6 111-00597 Blanking Panel,SYS CNTRL,32XX,8020,A300,8200
X3118-R6-C 111-00597 Blanking Panel,SYS CNTRL,32XX,-C,8020
Data Cable
X-SFP-H10GB-CU1M-R6 112-00210 Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C 112-00210 Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C 112-00210 Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6 112-00211 Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C 112-00211 Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C 112-00211 Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6 112-00212 Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C 112-00212 Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C 112-00212 Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6 112-00210 Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6 112-00211 Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6 112-00212 Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6 112-00090 Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C 112-00090 Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C 112-00090 Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6 112-00091 Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C 112-00091 Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C 112-00091 Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6546-R6 112-00074 Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6 112-00073 Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6 112-00188 Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C 112-00188 Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C 112-00188 Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6 112-00189 Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C 112-00189 Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C 112-00189 Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6557-EN-R6-C 112-00176 Cbl,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,EN,-C
X6557-R6 112-00176 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m
X6557-R6-C 112-00176 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,0.5m,-C
X6558-EN-R6-C 112-00177 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6558-R6 112-00177 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m
X6558-R6-C 112-00177 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,2m,-C
X6559-EN-R6-C 112-00178 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6559-R6 112-00178 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m
X6559-R6-C 112-00178 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,5m,-C
X6560-R6 112-00194 Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C 112-00194 Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C 112-00194 Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6 112-00195 Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C 112-00195 Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C 112-00195 Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6 112-00196 Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C 112-00196 Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C 112-00196 Cable,Ethernet,5m RJ45 CAT6,-C
X6566-05-R6 [12] 112-00202 Cable,Twinax Copper SFP+ 10G - 0.5M
X6566-05-R6-C [12] 112-00202 Twinax copper for CS1016 - 0.5M -C
X6566-2-R6 [12] 112-00203 Cable,Twinax Copper SFP+ 10G - 2M
X6566-2-R6-C [12] 112-00203 Twinax copper for CS1016 - 2M -C
X6566-3-R6 [12] 112-00204 Cable,Twinax Copper SFP+ 10G - 3M
X6566-3-R6-C [12] 112-00204 Twinax copper for CS1016 - 3M -C
X6566-5-R6 [12] 112-00225 Cable,Twinax Copper SFP+ 10G - 5M
X6566-5-R6-C [12] 112-00225 Twinax copper for CS1016 - 5M -C
X6566B-05-N-C 112-00297 Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6 112-00297 Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C 112-00297 Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C 112-00299 Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6 112-00299 Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C 112-00299 Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C 112-00300 Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6 112-00300 Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C 112-00300 Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C 112-00301 Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6 112-00301 Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C 112-00301 Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6 112-00238 Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C 112-00238 Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C 112-00238 Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6 112-00290 Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C 112-00290 Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C 112-00290 Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6 112-00291 Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C 112-00291 Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C 112-00291 Cable,Ethernet,3m RJ45 CAT6,-C
X6590-R6 112-00242 Cable,SAS Cntlr-Shelf/Shelf-Shelf,10m
X6591-R6 112-00243 Cable,SAS Cntlr-Shelf/Shelf-Shelf,20m
X6592-R6 112-00246 Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C 112-00246 Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6 112-00247 Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C 112-00247 Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C 112-00247 Cable,Ethernet,20m RJ45 CAT6,-C
X6594-R6 112-00256 Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m
X6594-R6-C 112-00256 Cable,SAS Cntlr-Shelf/Shelf-Shelf,HA,1m,-C
X6595-R6 112-00255 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m
X6595-R6-C 112-00255 Cable,SAS Cntlr-Shelf/Shelf-Shelf/HA,3m,-C
X66000A-R6 112-00265 Cable,Storage,SAS-OM4,6G,QSFP,1m
X66000A-R6-C 112-00265 Cable,Storage,SAS-OM4,6G,QSFP,1m,-C
X66001A-R6 112-00266 Cable,Storage,SAS-OM4,6G,QSFP,2m
X66001A-R6-C 112-00266 Cable,Storage,SAS-OM4,6G,QSFP,2m,-C
X66002A-R6 112-00267 Cable,Storage,SAS-OM4,6G,QSFP,3m
X66002A-R6-C 112-00267 Cable,Storage,SAS-OM4,6G,QSFP,3m,-C
X66003A-R6 112-00268 Cable,Storage,SAS-OM4,6G,QSFP,5m
X66003A-R6-C 112-00268 Cable,Storage,SAS-OM4,6G,QSFP,5m,-C
X66004A-R6 112-00269 Cable,Storage,SAS-OM4,6G,QSFP,7m
X66005A-R6 112-00270 Cable,Storage,SAS-OM4,6G,QSFP,15m
X66006A-R6 112-00271 Cable,Storage,SAS-OM4,6G,QSFP,30m
X66007A-R6 112-00280 Cable,Storage,SAS-OM4,6G,QSFP,50m
X66008A-R6 112-00260 Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,5m
X66008A-R6-C 112-00260 Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,5m,-C
X66009A-R6 112-00261 Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,30m
X66009A-R6-C 112-00261 Cable,LT 150m-PatchP,OM4,6G,QSFP,LC,30m,-C
X66010A-R6 112-00263 Cable,<150m-PatchP,OM4,6G,QSFP,SC,5m
X66011A-R6 112-00264 Cable,<150m-PatchP,OM4,6G,QSFP,SC,30m
X66012A-R6 112-00278 Cable,<150m-PatchP,OM4,6G,QSFP-MTRJ,5m
X66013A-R6 112-00279 Cable,<150m-PatchP,OM4,6G,QSFP-MTRJ,30m
X66014A-R6 112-00272 Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,5m
X66014A-R6-C 112-00272 Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,5m,-C
X66015A-R6 112-00273 Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,30m
X66015A-R6-C 112-00273 Cable,LT 500m-PatchP,OS1,6G,QSFP,LC,30m,-C
X66016A-R6 112-00274 Cable,<500m-PatchP,OS1,6G,QSFP,SC,5m
X66017A-R6 112-00276 Cable,<500m-PatchP,OS1,6G,QSFP,SC,30m
X66018A-R6 112-00281 Cable,<500m-PatchP,OS1,6G,QSFP-MTRJ,5m
X66019A-R6 112-00282 Cable,<500m-PatchP,OS1,6G,QSFP-MTRJ,30m
X66020A-R6 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m
X66020A-R6-C 112-00429 Cable,Storage,MiniSAS HD,QSFP,12G,1m,-C
X66021A-R6 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m
X66021A-R6-C 112-00430 Cable,Storage,MiniSAS HD,QSFP,12G,2m,-C
X66022A-R6 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m
X66022A-R6-C 112-00431 Cable,Storage,MiniSAS HD,QSFP,12G,5m,-C
X66030A 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66031A 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66031A-K-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N 112-00436 Cable,12Gb,Mini SAS HD,1m
X66031A-N-C 112-00436 Cable,12Gb,Mini SAS HD,1m,-C
X66032A 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66032A-K-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N 112-00437 Cable,12Gb,Mini SAS HD,2m
X66032A-N-C 112-00437 Cable,12Gb,Mini SAS HD,2m,-C
X66033A 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66033A-K-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N 112-00438 Cable,12Gb,Mini SAS HD,3m
X66033A-N-C 112-00438 Cable,12Gb,Mini SAS HD,3m,-C
X66034A 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66034A-K-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N 112-00439 Cable,12Gb,Mini SAS HD,5m
X66034A-N-C 112-00439 Cable,12Gb,Mini SAS HD,5m,-C
X66040A 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66040A-K-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m
X66040A-N-C 112-00449 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,1m,-C
X66041A 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66041A-K-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m
X66041A-N-C 112-00450 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,2m,-C
X66042A 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66042A-K-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m
X66042A-N-C 112-00451 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,3m,-C
X66043A 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66043A-K-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m
X66043A-N-C 112-00452 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,5m,-C
X66044A 112-00453 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,15m
X66045A 112-00454 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,30m
X66046A 112-00455 Cable,12Gb,SAS Opt,AOC,Mini SAS HD,50m
X66047A 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m
X66047A-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66047A-N-C 112-00456 Cable,12Gb,SAS Opt,Mini SAS HD to LC,5m,-C
X66048A 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m
X66048A-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66048A-N-C 112-00457 Cable,12Gb,SAS Opt,Mini SAS HD to LC,30m,-C
X66120-3 112-00545 Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m
X66120-3-C 112-00545 Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-3-N-C 112-00545 Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-5 112-00546 Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m
X66120-5-C 112-00546 Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X66120-5-N-C 112-00546 Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C
X66205-30 112-00261 Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C 112-00261 Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C 112-00261 Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5 112-00260 Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C 112-00260 Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C 112-00260 Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66250-15 112-00346 Cable,LC-LC,OM4,15m
X66250-15-C 112-00346 Cable,LC-LC,OM4,15m,-C
X66250-15-N-C 112-00346 Cable,LC-LC,OM4,15m,-C
X66250-2 112-00342 Cable,LC-LC,OM4,2m
X66250-2-C 112-00342 Cable,LC-LC,OM4,2m,-C
X66250-2-N-C 112-00342 Cable,LC-LC,OM4,2m,-C
X66250-30 112-00347 Cable,LC-LC,OM4,30m
X66250-30-C 112-00347 Cable,LC-LC,OM4,30m,-C
X66250-30-N-C 112-00347 Cable,LC-LC,OM4,30m,-C
X66250-5 112-00344 Cable,LC-LC,OM4,5m
X66250-5-C 112-00344 Cable,LC-LC,OM4,5m,-C
X66250-5-N-C 112-00344 Cable,LC-LC,OM4,5m,-C
X66260-30 112-00354 Cable,LC-LC,OPT,OS2,30M
X66260-30-C 112-00354 Cable,LC-LC,OPT,OS2,30M,-C
X66260-30-N-C 112-00354 Cable,LC-LC,OPT,OS2,30M,-C
X66260-5 112-00353 Cable,LC-LC,OPT,OS2,5M
X66260-5-C 112-00353 Cable,LC-LC,OPT,OS2,5M,-C
X302A-R5 108-00268 Disk Drive,1.0TB 7.2k,DS424x,FAS2240-4
X306A-R5 108-00270 Disk Drive,2.0TB 7.2k,DS424x,2554/2240-4
X308A-R5 108-00277 Disk Drive,3.0TB 7.2K,DS424x,2554/2240-4
X309A-R6 [13] 108-00301 DSK DRV,3TB 7.2k,NSE,DS424x,FAS2220/2240-4
X315A-R6 [13] 108-00368 DSK DRV,4TB 7.2k,NSE,DS424x,2554/2220/2240-4
X316A-R6 108-00389 Disk Drive,6TB 7.2k,DS4246,FAS2554
X317A [13] 108-00399 DSK DRV,6TB,7.2K,12G,NSE,DS212C
X318A-R6 108-00455 DSK DRV,8TB,7.2K,12G,DS212C
X319A 108-00687 SSD,7.6TB,12G,DS224C
X322A [13] 108-00551 DSK DRV,10TB,7.2K,12G,NSE,DS212C
X336A-R6 108-00427 DSK DRV,4TB,7.2K,12G,DS212C
X339A 108-00426 DSK DRV,2TB,7.2K,12Gb,DS212C,FAS2620
X341A-R6 108-00430 DSK DRV,900GB,10K,12G,DS224C
X342A-R6 108-00432 DSK DRV,1.2TB,10K,12G,DS224C
X343A-R6 108-00433 DSK DRV,1.8TB,10K,12G,DS224C
X356A-R6 108-00468 SSD,3.8TB,DS2246,FAS2552
X357A 108-00572 SSD,3.8TB,12G,DS224C,W/MSW
X358A [13] 108-00575 SSD,3.8TB,12G,NSE,DS224C
X359A 108-00736 SSD,30.6TB,12G,DS224C
X363A-R6 108-00467 SSD,3.8TB,FAS2520/2554
X364A 108-00650 SSD,3.8TB,DS212C,FAS2620,w/MSW
X365A-R6 [13] 108-00477 SSD,1.6TB,NSE,DS2246,FAS2552
X366A-R6 [13] 108-00470 SSD,1.6TB,NSE,DS4246,FAS2554
X371A 108-00546 SSD,960GB,12G,DS224C,W/MSW
X374A 108-00573 SSD,960GB,12G,DS212C,W/MSW
X375A 108-00590 DSK DRV,4TB,7.2K,12G,DS460C
X376A 108-00591 DSK DRV,8TB,7.2K,12G,DS460C
X377A 108-00592 DSK DRV,10TB,7.2K,12G,DS460C
X378A [13] 108-00597 DSK DRV,10TB,7.2K,12G,NSE,DS460C
X379A 108-00598 SSD,960GB,12G,DS460C,W/MSW
X380A 108-00549 DSK DRV,10TB,7.2K,12G,DS212C
X381A 108-00550 Disk Carrier,2x10TB 7.2k,DS4486
X386A [13] 108-00806 SSD,960GB,12G,NSE,DS224C
X387A 108-00886 DSK DRV,16TB,7.2K,12G,DS460C
X388A 108-00885 DSK DRV,16TB,7.2K,12G,DS212C
X416A-R5 [13] 108-00223 Disk Drive,600GB 10k,NSE,DS224x,FAS2240-2
X417A-R6 [13] 108-00246 DSK DRV,900GB,10K,NSE,DS2246,2552/2240-2
X421A-R5 108-00220 Disk Drive,450GB 10k,DS224x,FAS2240-2
X422A-R5 108-00221 Disk Drive,600GB 10k,DS224x,2552/2240-2
X423A-R5 108-00222 DSK DRV,900GB,10K,DS2246,2552/2240-2,R5
X425A-R6 108-00321 DSK DRV,1.2TB,10K,DS2246,2552/2240-2
X426A-R6 108-00424 DSK DRV,1.8TB,10K,DS2246,2552/2240-2
X427A [13] 108-00476 DSK DRV,1.8TB,10k,NSE,DS2246,FAS2552
X427B-R6 [13] 108-00438 DSK DRV,1.8TB,10K,12G,NSE,DS224C
X438A-R6 108-00369 SSD,400GB,DS224x,FAS2552/2240-2
X439A-R6 108-00372 SSD,1.6TB,DS224x,FAS2552/2240-2
X440A-R6 [13] 108-00374 SSD,800GB,NSE,DS224x,FAS2240-2,FAS2552
X440B-R6 [13] 108-00460 SSD,800GB,12G,NSE,DS224C
X441A-R5 108-00278 Solid State Drive,100GB,DS424x
X442A-R5 [14] 108-00249 Solid State Drive,100GB,3Gb,DS4243
X446A-R6 108-00257 SSD,200GB,DS224x,FAS2240-2
X446B-R6 108-00323 SSD,200GB,B,DS224x,FAS2240-2,FAS2552
X447A-R6 108-00260 SSD,800GB,DS224x,FAS2552/2240-2
X448A-R6 108-00253 SSD,200GB,DS4246,FAS2554/2240-4/2220
X449A-R6 108-00319 SSD,800GB,DS4246,FAS2554/2240-4/2220
X477A-R6 108-00315 DSK DRV,4TB 7.2k,DS4246,2554/2220/2240-4
X478A-R5 108-00250 Disk Carrier,2x3TB,DS448x
X480A-R6 108-00302 Disk Carrier,2x4TB 7.2k,DS4486
X481A-R6 108-00398 Disk Carrier,2x6TB 7.2k,DS4486
X483A-R6 108-00456 Disk Carrier,2x8TB 7.2k,DS4486
X488A-R5 108-00298 Disk Drive,900GB 10K,2520/2220
X489A-R6 108-00322 Disk Drive,1.2TB 10K,2520/2220
X490A-R6 108-00425 Disk Drive,1.8TB 10K,FAS2520
X575A-R6 108-00370 SSD,400GB,DS424x,FAS2554/2240-4/2220
X576A-R6 108-00373 SSD,1.6TB,DS424x,FAS2554/2240-4/2220
X577A-R6 [13] 108-00375 SSD,800GB,NSE,DS4246,FAS2554
X670A 108-00530 SSD,15.3TB,12G,DS224C
Fan
X8535-R6 441-00025 FAN ASSY,32XX,8020,A300,8200
Memory Module
X3212-R6 111-01841 DIMM,4GB For FAS80X0 Systems
X3213-R6 111-01776 DIMM,8GB For FAS80X0 Systems
Power Cord
X1558A-R6 N/A Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C N/A Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35 N/A Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C N/A Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N N/A Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N N/A Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43 N/A Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C N/A Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N N/A Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N N/A Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64 N/A Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C N/A Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N N/A Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N N/A Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6 N/A Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C N/A Jumper Crd,In-Cab,C13-C14,-C
X800B-R6 N/A Power Cable,Continental Europe,R6
X800B-R6-C N/A Power Cable,Continental Europe,-C,R6
X800C-R6 N/A Power Cable,UK and Ireland,R6
X800C-R6-C N/A Power Cable,UK and Ireland,-C,R6
X800D-R6 N/A Power Cable,Japan,R6
X800D-R6-C N/A Power Cable,Japan,-C,R6
X800E-R6 N/A Power Cable,North America,R6
X800E-R6-C N/A Power Cable,North America,-C,R6
X800F-R6 N/A Power Cable,Australia/New Zealand,R6
X800F-R6-C N/A Power Cable,Australia/New Zealand,-C,R6
X800G-R6 N/A Power Cable,Switzerland,R6
X800G-R6-C N/A Power Cable,Switzerland,-C,R6
X800H-R6 N/A Power Cable,Argentina,R6
X800H-R6-C N/A Power Cable,Argentina,-C,R6
X800I-R6 N/A Power Cable,China,R6
X800I-R6-C N/A Power Cable,China,-C,R6
X800J-R6 N/A Power Cable,Denmark,R6
X800J-R6-C N/A Power Cable,Denmark,-C,R6
X800K-R6 N/A Power Cable,India,South Africa,R6
X800K-R6-C N/A Power Cable,India,South Africa,-C,R6
X800L-R6 N/A Power Cable,Israel,R6
X800L-R6-C N/A Power Cable,Israel,-C,R6
X800M-R6 N/A Power Cable,Italy,R6
X800M-R6-C N/A Power Cable,Italy,-C,R6
X800P-R6 N/A Power Cable,North America,250V,R6
X800P-R6-C N/A Power Cable,North America,250V,-C,R6
X800T-R6 N/A Power Cable,Taiwan,BSMI,R6
X800T-R6-C N/A Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6 N/A Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6 N/A Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C N/A Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6 N/A Power Cable,Japan,250V/15A
X800Y-R6-C N/A Power Cable,Japan,250V/15A,-C
Power Supply Unit
X763-R6 114-00040 Power Supply,1300W AC For 62XX,SA620,80X0
Processor Controller Module (PCM)
X3567-R6 111-01243 PCM,FAS8020 No Memory
Transceiver
X65400A-R6 332-00335 QSFP,MPO,Optical Transceiver,6G,LT 150m,OM4
X6569-R6 332-00299R6 SFP+ for X1117A,Optical,10GbE,R6
X6569-R6-C 332-00299R6 SFP+ for X1117A,Optical,10GbE,R6,-C
X6569-R6-N-C 332-00299R6 SFP+ for X1117A,Optical,10GbE,R6,-C
X6589-N-C 332-00279R6 SFP+Optical 10Gb Shortwave,-C
X6589-R6 332-00279R6 SFP+Optical 10Gb Shortwave
X6589-R6-C 332-00279R6 SFP+ Optical 10Gb Shortwave,-C
X6596-R6 332-00331 SFP+ FC Optical 16Gb
X6596-R6-C 332-00331 SFP+ FC Optical 16Gb,-C
X6596-R6-N-C 332-00331 SFP+ FC Optical 16Gb,-C
X6599A-N-C 332-00363 SFP+ Optical 10Gb Shortwave,-C
X6599A-R6 332-00363 SFP+ Optical 10Gb Shortwave
X6599A-R6-C 332-00363 SFP+ Optical 10Gb Shortwave,-C
X6600A-R6 332-00350 SFP+ Optical,UTA,10GbE Shortwave
X6600A-R6-C 332-00350 SFP+ Optical, UTA, 10GbE Shortwave,-C
X6600A-R6-N-C 332-00350 SFP+ Optical, UTA, 10GbE Shortwave,-C
X6601A-R6 [15] 332-00343 SFP,16Gb FC Longwave SFP+ Optical
X6601A-R6-C [15] 332-00343 SFP,16Gb FC Longwave SFP+ Optical,-C
X6601A-R6-N-C [15] 332-00343 SFP,16Gb FC Longwave SFP+ Optical,-C
X6602A-R6 332-00351 SFP+ Optical,UTA,16Gb FC Shortwave
X6602A-R6-C 332-00351 SFP+ Optical, UTA, 16Gb FC Shortwave,-C
X6602A-R6-N-C 332-00351 SFP+ Optical, UTA, 16Gb FC Shortwave,-C
X6603A 332-00400 SFP+ Optical,32Gb FC Shortwave
X6603A-C 332-00400 SFP+ Optical,32Gb FC Shortwave,-C
X6603A-N-C 332-00400 SFP+ Optical,32Gb FC Shortwave,-C
Footnote:
[1]Install X6569-R6 SFP+ or twinax cable.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.,Not suported for cluster interconnect. See Cluster Interconnect Tab for Cluster-Specific Interconnect Requirements.
[2]The X1120A adapter card supports operation at 1Gb and 10Gb speeds. It is also possible to operate ports at different speeds.
[3]X1120A cannot be used for cluster interconnect on this platform
[4]Ports configurable for target mode
[5]By default, the X1133A is shipped with all ports configured in Fibre Channel Target mode. Once installed, X1133A ports can individually be configured as FC Target or FC Initiator mode (Initiator mode available in ONTAP 9.0 or later). If you need to configure ports for initiator mode, see “Configuring FC adapters for initiator mode” in the SAN Administration Guide for your version of Data ONTAP. If you need to configure ports for target mode, see “Configuring FC adapters for target mode” in the SAN Administration Guide for your version of Data ONTAP.
[6]Connecting tape drives or tape libraries to FC or UTA2 ports requires the use of an FC switch.
[7]Target mode adapter only. Foreign LUN import (FLI) requires initiator mode.
[8]UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters. UTA2 ports are not supported with IBM tape devices. Direct connection to tape drives with UTA2 ports are supported on HP, Quantum, and Tandberg tape devices, other non-IBM tape devices require a FC switch between the UTA2 port and tape drive.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode
[9]UTA2 ports can be configured as FC target/initiator or CNA (FCoE arget/Ethernet) mode. Both ports must be configured for the same mode and use same SFP+ type. Refer to the Cables link in this table to view supported SFP+ modules or copper twinax cables used in FC or CNA mode. X1143A cannot be used for cluster interconnect on this platform. UTA2 ports are not supported for connectivity to DS14 shelves. To connect to DS14 shelves, use the X1132A-R6 or X2054A-R6 FC adapters.,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode,- CNA ports can be configured to run in either FC mode or 10GbE/FCoE mode- Both ports on the X1143A (e0a and e0b) have to be configured for the same mode (FC or 10GbE/FCoE)- When configured in FC mode, each port can be further configured as either FC Target or FC Initiator. - Do not use X1143A for cluster interconnect on this platform.- SFP+ choice depends on mode and type of cable:--- Install X6600-R6 10GbE SFP+ modules when using fiber cables in 10GbE/FCoE mode--- Install approved 1/3/5M copper Twinax cables when using copper cables in 10GbE/FCoE mode--- Install X6602A-R6 4/8/16Gb Short Range SFP+ modules when configured in FC (target or initiator) mode
[10]Max qty of Flash Cache adapters is limited by the system cache capacity limit. Please refer to the System Cache Limits in the Controller section for more information.
[11]SAS X2065A-R6 versions 111-00341+Ax through 111-00341+D0 are not supported on FAS8000 systems and need to be replaced with newer SAS HBA cards.
[12]On FAS and AFF platforms, this cable is only supported with the NetApp CN1610 switch or in switchless Clustered Data ONTAP configurations.
[13]Mixing NSE drives or shelves with any other type of encrypting or non-encrypting drives or shelves across a stand-alone platform or high-availability (HA) pair is not supported.
[14]This drive does not support the sanitization feature.
[15]Longwave transceiver requires OS1/OS2 single-mode fiber cable with minimum length of 200m

Supported Firmware Matrix - FAS8020 Single Chassis HA Pair

Major OS Version OS Version Firmeware
BIOS
ONTAP 9.8 9.8P13, 9.8P11-P12, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1 9.8*
ONTAP 9.7 9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 9.8*
ONTAP 9.6 9.6P18, 9.6P17, 9.6P16, 9.6P15, 9.6P13-P14, 9.6P12, 9.6P10-P11, 9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4 9.8*
ONTAP 9.6 9.6P3 9.8, 9.7*
ONTAP 9.6 9.6P2, 9.6, 9.6P1, 9.6RC2, 9.6RC1 9.8, 9.7*
ONTAP 9.5 9.5P19, 9.5P18, 9.5P17, 9.5P16, 9.5P15, 9.5P14 9.8*
ONTAP 9.5 9.5P13, 9.5P12, 9.5P10-P11, 9.5P9, 9.5P8, 9.5P7, 9.5P6, 9.5P5, 9.5P4, 9.5P2-P3, 9.5P1, 9.5, 9.5RC1 9.8, 9.7, 9.6*
ONTAP 9.4 9.4P8, 9.4P7, 9.4P6, 9.4P5, 9.4P4, 9.4P3, 9.4P2, 9.4P1, 9.4, 9.4RC1 9.8, 9.7, 9.6*
ONTAP 9.3 9.3P21, 9.3P20, 9.3P18-P19 9.8*
ONTAP 9.3 9.3P16-P17, 9.3P15, 9.3P11-P14, 9.3P10, 9.3P7-P9, 9.3P1-P6, 9.3, 9.3RC1 9.8, 9.7, 9.6*
Clustered Data ONTAP 8.3 8.3.2, 8.3.1 9.4, 9.3*, 9.1.1*
Clustered Data ONTAP 8.3 8.3.2RC2, 8.3.2RC1, 8.3.1RC1, 8.3, 8.3RC2, 8.3RC1 9.4, 9.3, 9.1.1*
ONTAP 9.2 9.2P2-P4, 9.2P1, 9.2, 9.2RC1 9.8, 9.7, 9.6, 9.5*
Clustered Data ONTAP 8.2 8.2.4, 8.2.3 9.4 (7-Mode), 9.4, 9.3 (7-Mode)*, 9.3*
Clustered Data ONTAP 8.2 8.2.2 9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode)*, 9.1.1*
Clustered Data ONTAP 8.2 8.2.2RC2 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1
Clustered Data ONTAP 8.2 8.2.2RC1 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1
Clustered Data ONTAP 8.2 8.2.1 9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode)*, 9.0*
Clustered Data ONTAP 8.2 8.2.1RC2 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode), 9.0
7-Mode 8.2 8.2.5P5 9.3 (7-Mode)*
7-Mode 8.2 8.2.5 9.4 (7-Mode), 9.3 (7-Mode)*
7-Mode 8.2 8.2.4, 8.2.3 9.4 (7-Mode), 9.4, 9.3 (7-Mode)*, 9.3*
7-Mode 8.2 8.2.2 9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode)*, 9.1.1*
7-Mode 8.2 8.2.2RC2 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1
7-Mode 8.2 8.2.2RC1 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1
7-Mode 8.2 8.2.1 9.4 (7-Mode), 9.4, 9.3 (7-Mode), 9.3, 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode)*, 9.0*
7-Mode 8.2 8.2.1RC2 9.1.1 (7-Mode), 9.1.1, 9.1 (7-Mode), 9.1, 9.0 (7-Mode), 9.0
ONTAP 9.1 9.1P17-P20, 9.1P13-P16, 9.1P10-P12, 9.1P9, 9.1P8, 9.1P3-P7, 9.1P1-P2, 9.1, 9.1RC2, 9.1RC1 9.8, 9.7, 9.6, 9.5*
ONTAP 9.0 9.0P1-P4, 9.0, 9.0RC2, 9.0RC1 9.8, 9.7, 9.6, 9.5, 9.4*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - FAS8020 Single Chassis HA Pair

Certificate Name Geo / Region / Country Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc Section II#Section IB Shipments Inventus Power-Product Model#271-00042 Global Platforms : FAS8020
EMI and Safety certificates
Lithium Battery Safety Doc Section II#Section IB Shipments Inventus Power-Product Model#271-00042 Global Platforms : FAS8020
Declaraion of Similarity NAF-1301 Global Platforms : AFF8020, FAS8020
NAF-1301 G-K-U-SoR Gabon,Kenya,SaudiArabia,Uganda Platforms : AFF8020, FAS8020
NAF-1301 (Jabil Singapore) BIS BIS - India Platforms : AFF8020, FAS8020
NAF-1301 ACMA ACMA - Australia, New Zealand Platforms : AFF8020, FAS8020
NAF-1301 BSMI BSMI - Taiwan Platforms : AFF8020, FAS8020
NAF-1301 CB CB - International Platforms : AFF8020, FAS8020
NAF-1301 CE CE - European Union DoC Platforms : AFF8020, FAS8020
NAF-1301 CSA CSA - United States, Canada Platforms : AFF8020, FAS8020
NAF-1301 EAC EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia Platforms : AFF8020, FAS8020
NAF-1301 IRAM IRAM - Argentina Platforms : AFF8020, FAS8020
NAF-1301 KC KC - South Korea Platforms : AFF8020, FAS8020
NAF-1301 Morocco Morocco Platforms : AFF8020, FAS8020
NAF-1301 NOM NOM - Mexico Platforms : AFF8020, FAS8020
NAF-1301 NRCS NRCS - South Africa (Safety) Platforms : AFF8020, FAS8020
NAF-1301 VCCI VCCI - Japan Platforms : AFF8020, FAS8020
NAF-1301 SONCAP SONCAP - Nigeria Platforms : AFF8020, FAS8020
NAF-1301 TBS TBS - Tanzania Platforms : AFF8020, FAS8020
Voluntary Product Accessibility Template
NAF-1301 TBS TBS - Tanzania Platforms : AFF8020, FAS8020

Size, Weight, Acoustic, Power FAS8020 Single Chassis HA Pair

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU / Hr Typical BTU / Hr Worst
FAS8020
FAS8020 FAS8020 1 CNTRL 3 63.1 lb (28.6 kg) 7.8 Bels 61.3 dBA 100 (100 to 120) 2.78 3.84 278 384 948 1309
FAS8020 FAS8020 1 CNTRL 3 63.1 lb (28.6 kg) 7.8 Bels 61.3 dBA 200 (200 to 240) 1.4 1.87 276 374 941 1275
FAS8020A FAS8020 2 CNTRL 3 74.1 lb (33.6 kg) 7.8 Bels 61.3 dBA 100 (100 to 120) 4.44 5.96 444 596 1514 2032
FAS8020A FAS8020 2 CNTRL 3 74.1 lb (33.6 kg) 7.8 Bels 61.3 dBA 200 (200 to 240) 2.16 2.92 432 583 1473 1988



Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Subscribe
