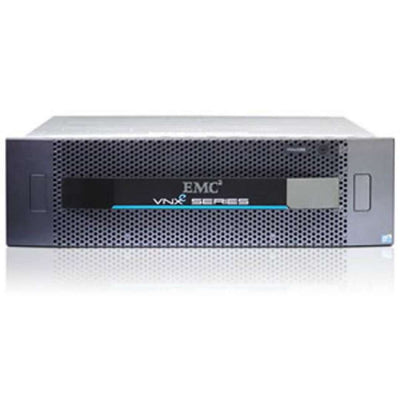

EMC VNXe3300 Storage Processor Enclosure (SPE)

Part#:
VNXe3300
Brand:
EMC
Type:
Storage Controllers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EMC VNXe3300 Description

VNXe3150 Storage Processor Enclosure (SPE) enables VNXe3150 customers to keep pace with their growing businesses by expanding their system storage capacity. The VNXe3150's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.

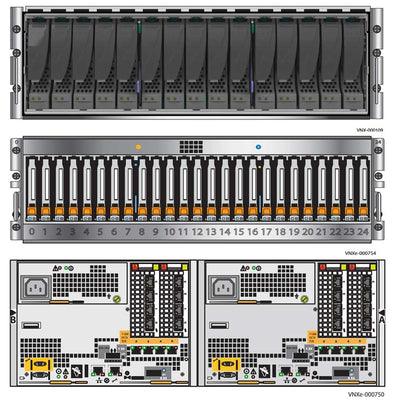

  • - 15-bay 3.5" or 25-bay 2.5"
  • - 3.5" & 2.5" SAS / NL-SAS / Flash
  • - RAID 5 / 6 / 10
  • - NAS / iSCSI
  • - Gigabit Ethernet

The VNXe3300 system with built-in disk storage can be used with two controllers and supports multi-protocol IP connectivity for concurrent NAS and iSCSI SANs. Great for small to medium sized businesses, the VNXe3300 can easily expand to fit your storage needs by adding any required mix of performance SAS, NL-SAS or Flash drives to meet capacity and performance enterprise needs. The VNXe3300 supports iSCSI, CIFS and NFS.

EMC VNXe3300 Technical Specifications

EMC VNXE3300 TECHNICAL SPECIFICATIONS
Form Factor 3U Rack
Storage Type Unified
Maximum Raw Capacity 135TB
Dual Controllers (SPs) Standard

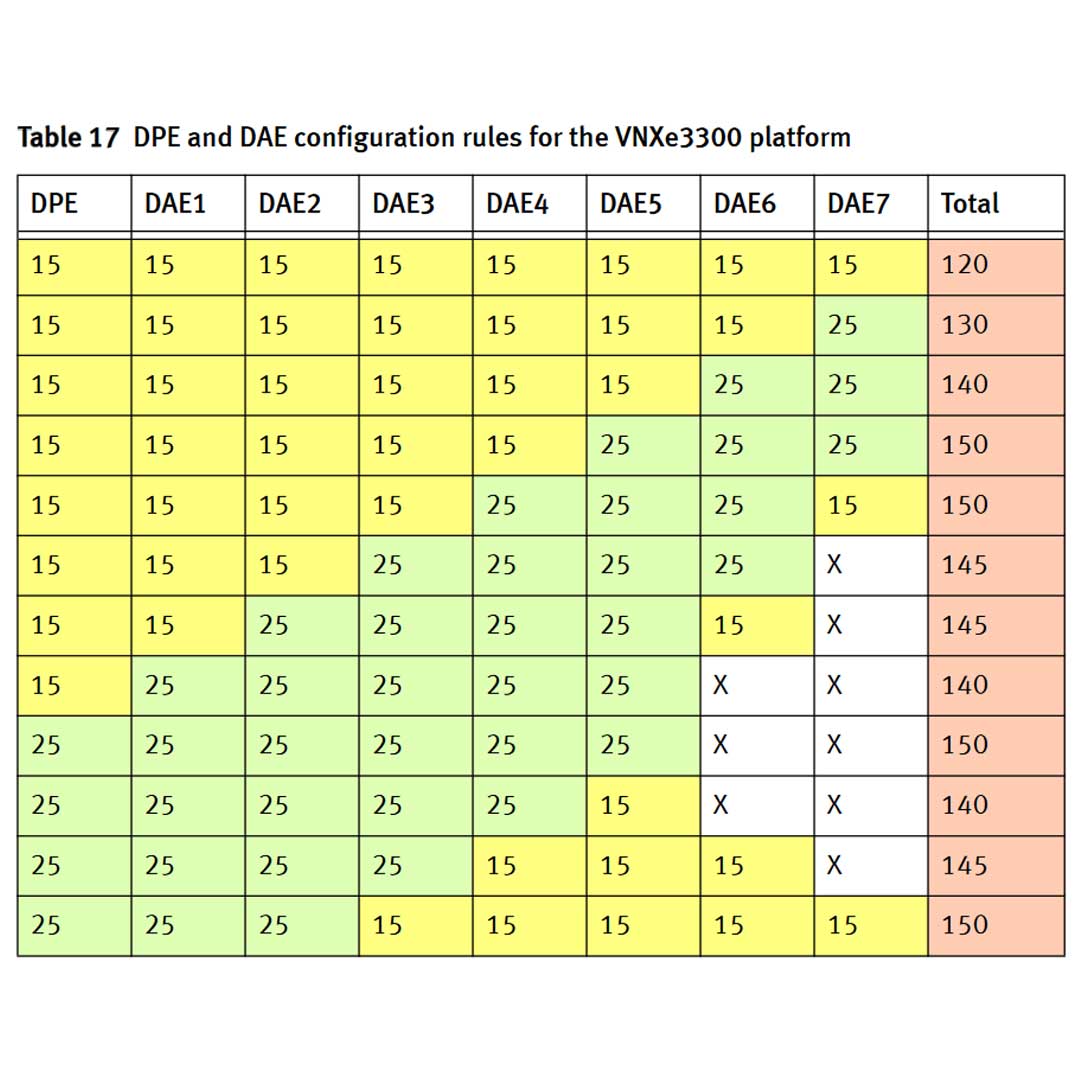

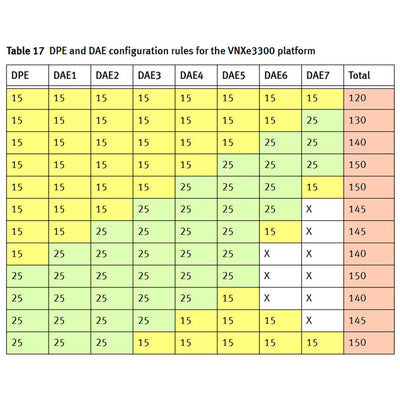

Number of Drives (Min/Max) 6/150
Drive Enclosure Options 12x 3.5" SAS/Flash (2U)
25x 2.5" Flash/SAS Drives (2U)
Drive Options 3.5" Drive Enclosure (12 x 3.5")
300GB 15K SAS (V2-PS15-300)
300GB 10K SAS
600GB 15K SAS (V2-PS15-600)
600GB 10K SAS
900GB 10K SAS (V2-PS10-900)
1TB 7.2K NL-SAS (V2-PS07-010)
2TB 7.2K NL-SAS (V2-PS07-020)
3TB 7.2K NL-SAS (V2-PS07-030)

2.5" Drive Enclosure (25 x 2.5")
300GB 10K SAS
600GB 10K SAS
900GB 10K SAS

SSD Enterprise Flash Drives (EFD)
100GB 6Gbps SAS 2.5" SSD
200GB 6Gbps SAS 2.5" SSD

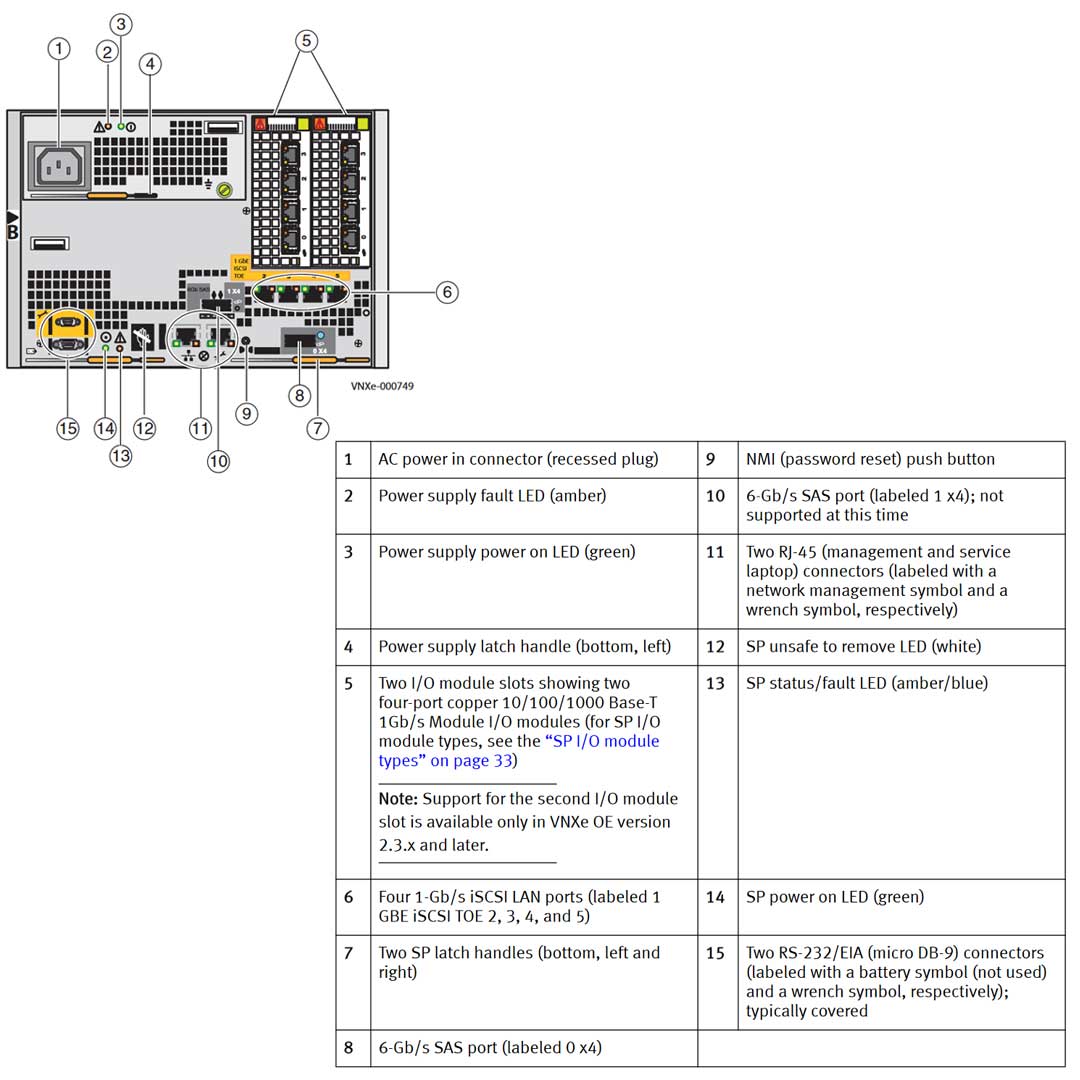

CPU / Memory Per Controller 1x Xeon Quad Core / 12GB
Base 1Gbps IP Ports per Controller 4
Max Flex IO Modules per Controller 2
Management Ports 2x 10/100/1000 GbE
Interconnect Four 6Gbps x 4 SAS Ports
RAID Options 1/0, 5, 6
System Limits and Support
Maximum Number of Supported LUNs Up to 512
Maximum LUN Size 2TB
Maximum File System Size 16TB
Total Raw Capacity 135TB
Maximum File Systems 512
Copper 10/100/1000 BASET 1Gbps Module NAS/iSCSI, 4 Ports per module
Optical 10Gbps Ethernet NAS/iSCSI, 2 Ports per Module
Copper 10G BaseT Ethernet NAS/iSCSI, 2 Ports per module
Compatible Disk Arrays V31-DAE-R-15
V31-DAE-N-15
25-Bay 2.5" DAE
Chassis Part Number 100-562-503 DPE Chassis VNX 33/51/53/5500 15 Slot Chassis and Midplane
Host Connections 1Gb iSCSI, 10Gb iSCSI, 1GbE, 10GbE
Protocols Supported Certified for Common Criteria EAL3+
CIFS (SMB 1 and SMB 2), NFSv2 and v3, iSCSI
Network Lock Manager (NLM) v3, v4
Routing Information Protocol (RIP) v1-v2
Simple Network Management Protocol (SNMP)
Network Data Management Protocol (NDMP) v1-v4
Address Resolution Protocol (ARP)
Internet Control Message Protocl (ICMP)
Simple Network Time PRotocol (SNTP)
Lightweight Directory Access Protocol (LDAP)
Server Operating System Support Microsoft Windows Server 2003
Microsoft Windows Server 2008 and Windows Server 2008 R2+
Microsoft Windows 7 and Vista
Microsoft Hyper-V
VMware® ESX®
RedHat Enterprise Linux
Novell Suse Enterprise Linux
Solaris 10 x86
Solaris 10 Sparc
HP-UX
IBM AIX
Citrix XenServer
ECS Warranty 1-Year Parts Replacement Warranty
