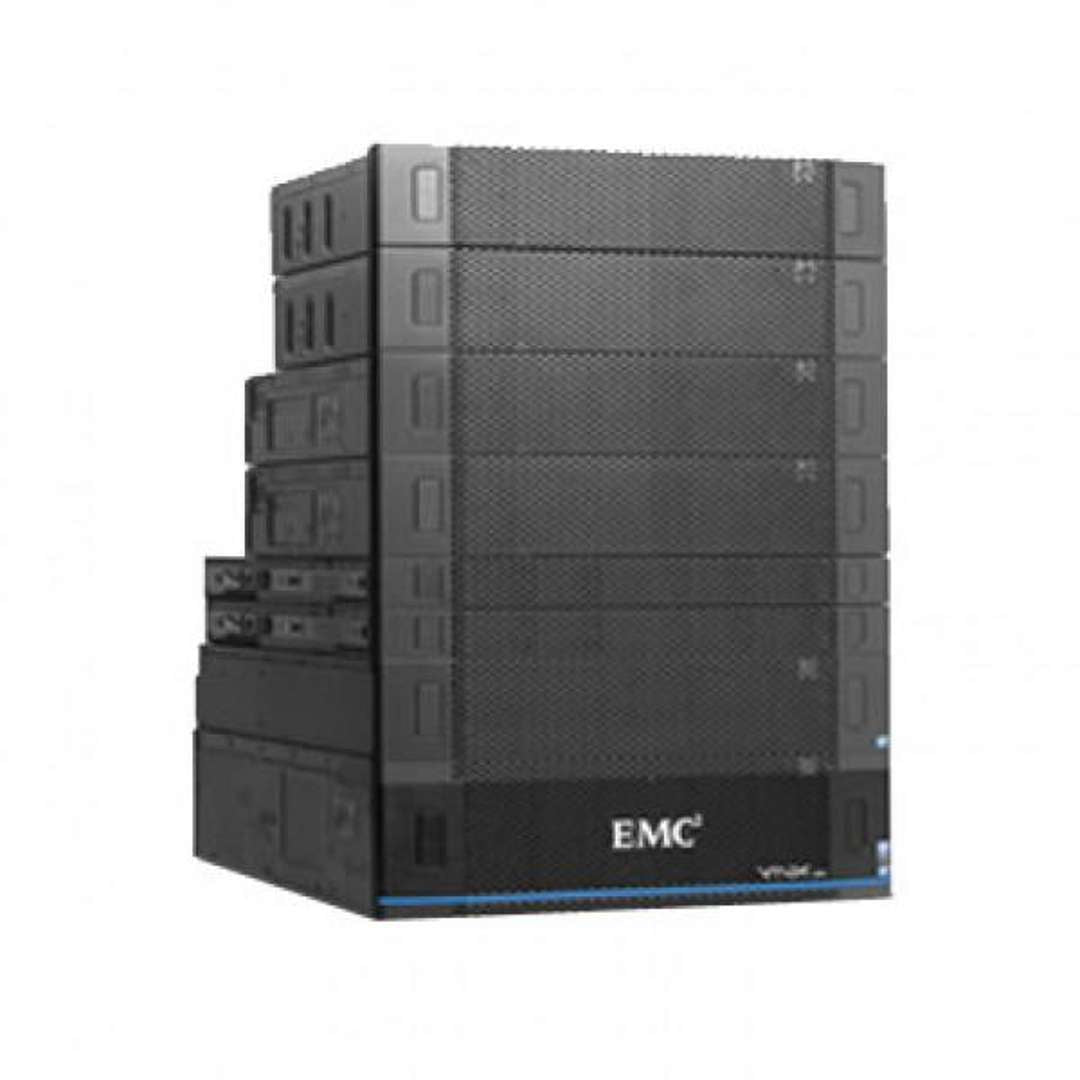

EMC VNX5600 Disk Processor Enclosure (DPE)

EMC VNX5600 Disk Processor Enclosure (DPE)

Price: Ask for Quote

Brand:

EMC

MPN:

VNX5600

Type:

Storage Array

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

*Adds to cart & you can request a quote from the cart page

Add to Cart

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

EMC VNX5600 Disk Processor Enclosure (DPE)

VNX5600 Disk Processor Enclosure helps customers to keep pace with their growing businesses by expanding their system storage capacity. The VNX5600's intuitive design easily allows you to add new disks that can be used to expand existing storage pools or create new pools.

15 x 3.5", 25 x 2.5", 60 x 3.5" and 120 x 2.5"
3.5" & 2.5" SAS / NL-SAS / Flash
RAID 0 / 1 / 3 / 5 / 6 / 10
Fibre Channel (FC)
500 Max Disk Drives

EMC VNX5600 series unified storage system delivers uncompromising scalability and flexibility for mid-tier applications while providing market-leading simplicity and efficiency to minimize total cost of ownership. Using a modular architecture, the VNX5600 integrates hardware components for block, file and object with concurrent support for native NAS, iSCSI, Fibre Channel and FCoE protocols. The VNX5600 delivers file (NAS) functionality via 1-4 Data Movers and block (iSCSI, FCoE, and FC) storage via dual Storage Processors leveraging full 6Gbps SAS disk drive topology.

DELL EMC VNX5600 Base Knowledge.
The DPE has One CPU module with an Intel Xeon 4-core 2.4-GHz processor facilitating Simultaneous Multi-Threading (SMT). Eight Double Data Rate Three (DDR3) synchronous dynamic RAM (SDRAM) slots support up to 24 GB of SDRAM per CPU module or SP using 4 or 8 GB DIMMs. The DPE can support Block, File, or Unified configurations.

Form Factor: 3U - 9U
Chassis: 3U 25 (2.5”)
Standby Power Supply:
Disk Array Enclosures (DAE): 4 Different DAE types
Max Drives: 500
Drives Supported: Serial attached-SCSI (SAS) and Flash
I/O Supported:
Support for File (CIFS and NFS), Block (FC, iSCSI & FCoE) and Object

Storage Processor I/O Supported:
The maximum number of I/O modules for the VNX5600 is 5 per SP. Any combination of the following I/O modules up to five per SP.

Four-port 8-Gb/s FC optical (running at 2, 4, or 8 Gb/s)
Four-port 1-Gb/s Base-T iSCSI I/O module
Four-port 16-Gb/s FC optical (running at 4, 8, or 16 Gb/s)
Two-port 10-Gb/s optical or active Twinax5
Two-port 10-Gb/s RJ45 Base-T iSCSI/IP
Two-port 10-Gb/s Fibre Channel over Ethernet (FCoE)
Four-port 6-Gb/s SAS

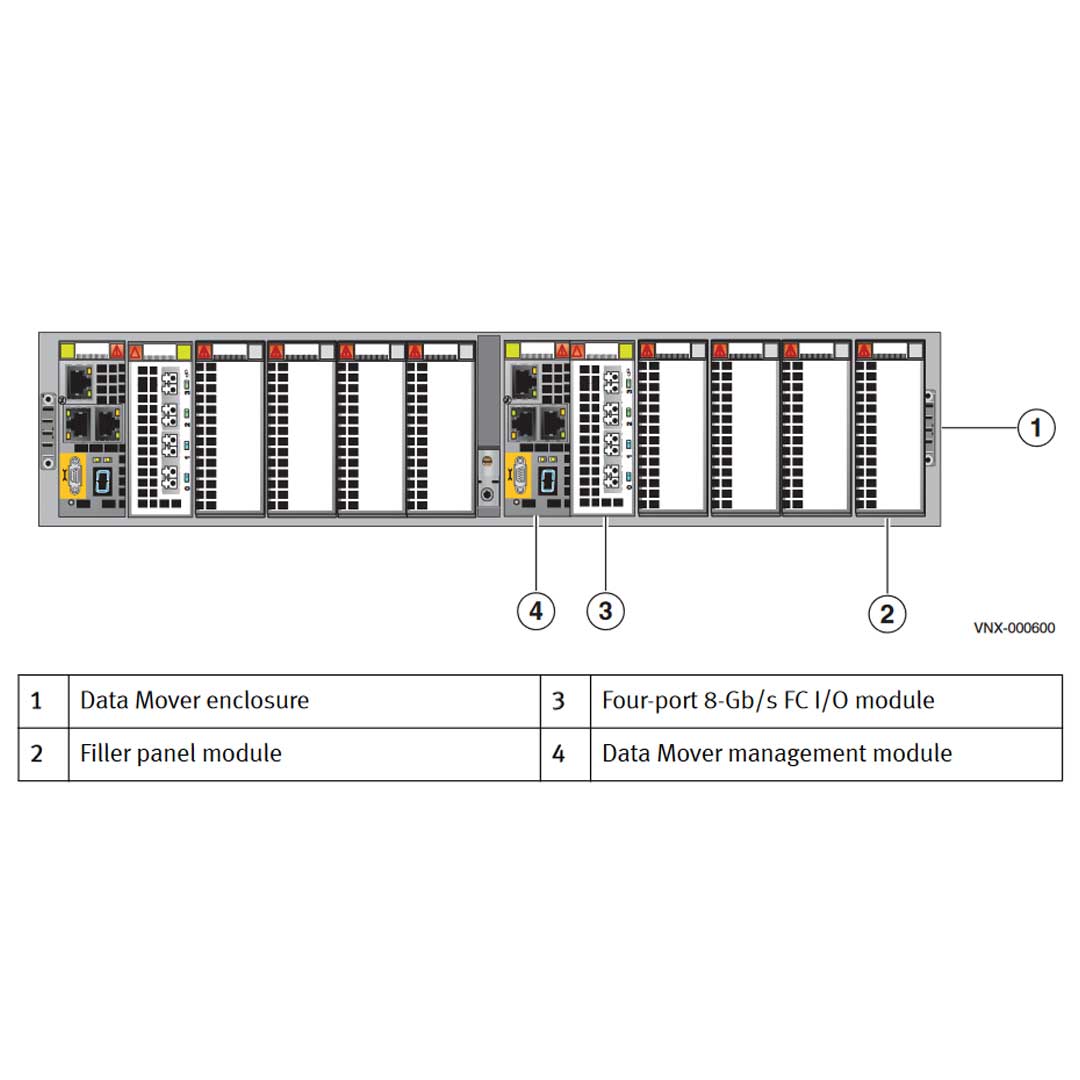

Data Movers Enclosure (DME):
One CPU module consisting of one Intel Xeon 4-core 2.13-GHz processor. Six DDR3 synchronous dynamic RAM (SDRAM) slots supporting up to 12 GB per CPU module using 2 or 4 GB DIMMs Three PCI Gen 2, 8x lane I/O module slots (0 – 2) available for use

Four-port 8-Gb/s optical (running at 2, 4, or 8 Gb/s); in slot 0 only;
Two-port 10-Gb/s optical or active Twinax;
Four-port 1-Gb/s copper;
Two-port 10-Gb/s RJ45 Base-T iSCSI/IP;

Control Station (CS):

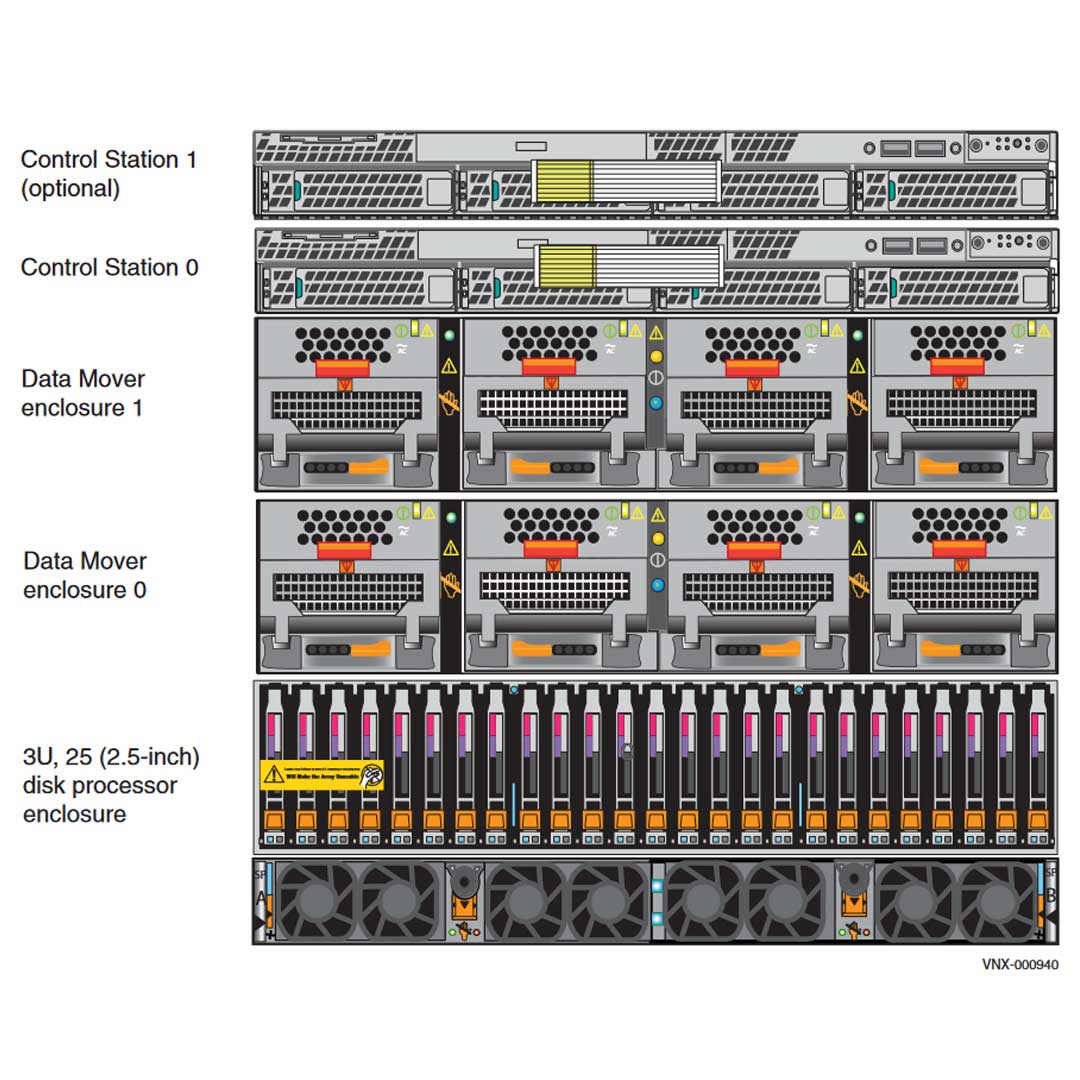

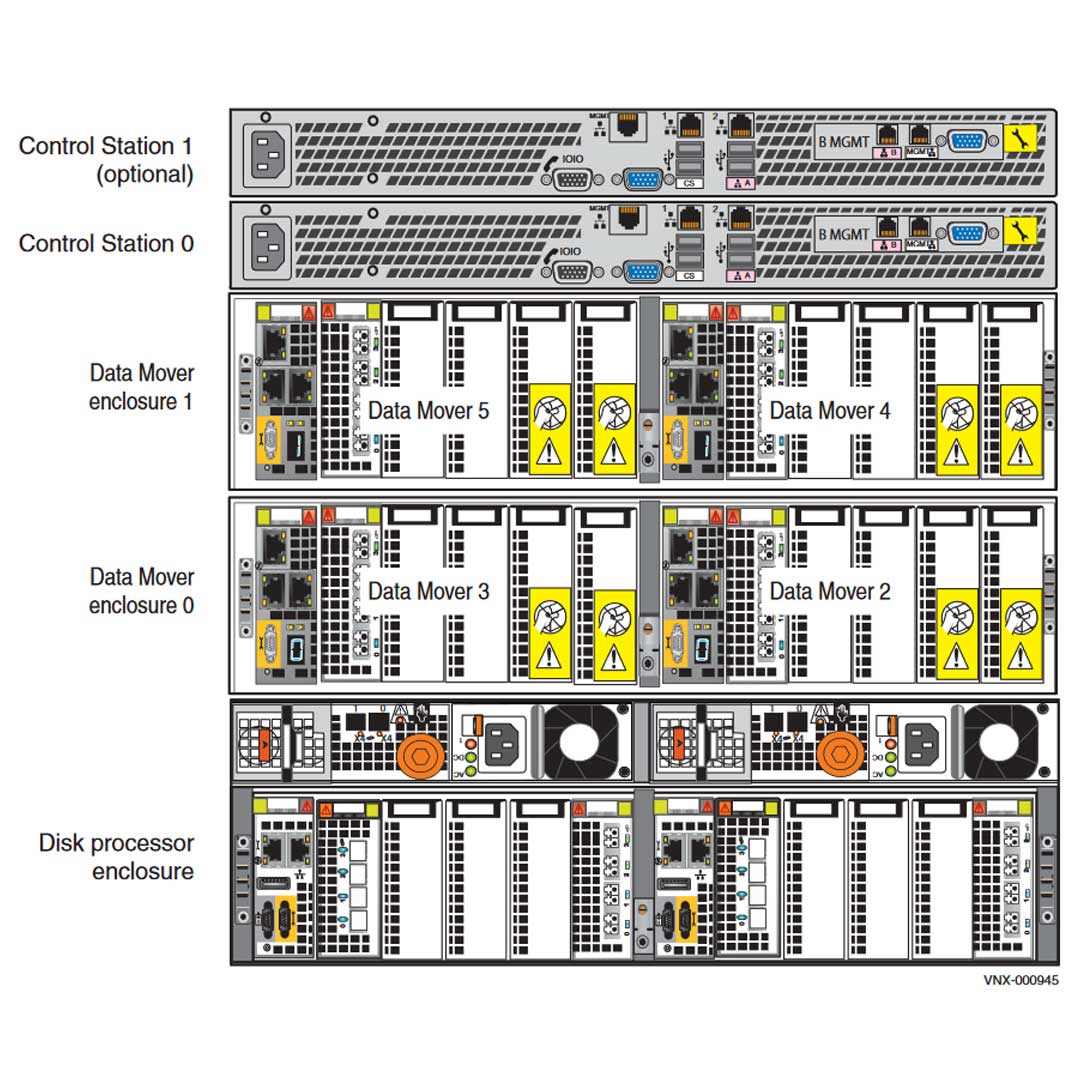

On the front, viewing from left to right, the File/Unified VNX5600 platform 1U Control Station includes the following hardware components:

One DVD-ROM drive
Two USB 2.0 connectors (not used)
Front control panel with various buttons and status LEDs
Four hot-swappable SATA hard drive bays

Disk Array Enclosure (DAE)
The DAEs supported are a 25 drive 2.5-inch disk 2U enclosure (or DAE5S), a 15 drive 2.5- or 3.5-inch disk 3U enclosure (or DAE6S), a 120 drive 2.5-inch disk 3U enclosure (or DAE8S), and a 60 drive 2.5- or 3.5-inch disk 4U enclosure (or DAE7S). Expansion of up to nineteen 2U, 25 DAEs (a maximum of 475, 2.5-inch disk drives), up to thirty-one 3U, 15 DAEs (a maximum of 465, 3.5-inch disk drives), up to three 3U, 120 DAE (a maximum of 360, 2.5-inch disk drives), or up to seven 4U, 60 DAEs (a maximum of 420, 2.5- or 3.5-inch disk drives) is supported.

Note: When the 4U DAEs are implemented in the VNX5600 platform, the 40U Dense rack is required because of the depth of the 4U DAE.

Product Specs for EMC VNX5600

Storage Array Specs

EMC VNX5600 Technical Specifications

EMC VNX5600 TECHNICAL SPECIFICATIONS
Storage Type	Unified
Maximum Raw Capacity (per controller)	2000TB
Max FAST Cache	2TB
Number of Drives (Min/Max)	4/500
Array Enclosure	3U Disk Processor Enclosure - 25 x 2.5" SAS/Flash Drives
Drive Enclosure Options	25 x 2.5" NL-SAS/SAS/Flash Drives (2U) 15 x 3.5" NL-SAS/SAS/Flash (3U) 60 x 3.5" NL-SAS/SAS/Flash Drives (4U) 120 x 2.5" NL-SAS/SAS/Flash Drives (3U)
Drive Options	15 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 25 x 2.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 1TB 6Gbps 7.2K NL-SAS 60 x 3.5" Drive Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 600GB 6Gbps 10K SAS 900GB 6Gbps 10K SAS 1.2TB 6Gbps 10K SAS 2TB 6Gbps 7.2K NL-SAS 3TB 6Gbps 7.2K NL-SAS 4TB 6Gbps 7.2K NL-SAS 120 x 2.5" Disk Enclosure: 100GB 6Gbps SAS SSD 200GB 6Gbps SAS SSD 400GB 6Gbps SAS SSD 800GB 6Gbps SAS SSD 1.6TB 6Gbps SAS SSD 300GB 6Gbps 15K SAS 1.2TB 6Gbps 10K SAS
Standby Power System	Internal Batteries, one for each storage processor
CPU / Memory Per Controller	2x Intel Xeon E5-2600 Quad Core 2.4GHz / 48GB per Controller
Max Block UltraFlex IO Modules per Array	10
Embedded IO Ports per Array	2 x 4 Lane SAS ports (for BE Connection)
Base 6Gbps SAS BE Buses per Array	2x 4 Lane
Max 6Gbps SAS BE Buses per Array	6 x 4 Lane or 2 x 4 Lane + 2 x 8 Lane
Max Total Ports per Array	44
2/4/8 Gbps FC Max Ports per Array	40
1 GBaseT iSCSI Max Total Ports per Array	32
10 GbE iSCSI Max Total Ports per Array	20
Max FCoE Total Ports per Array	20
File Components
# File Data Movers	1-4
# Control Stations	1 x 1U Server Standard, 2nd x 1U Server Optional
Data Mover CPU/Memory	Intel Xeon 5600 / 12GB
Max File UltraFlex IO MOdules per Data Mover	3
Min/Max 2/4/8 Gbps FC Ports per Data Mover	4
Max IP Ports per Data Mover	8
Max 1 GBaseT Ports per Data Mover	8
Max 10GbE Ports per Data Mover	4
Management	LAN 2x 10/100/1000 Copper GbE
Functional Limits
Max Raw Capacity	2000TB
Max SAN Hosts	1,024
Max Max Number of Pools	40
Max Number of LUNs (Pool)	1100
Max Number of LUNs (Classic)	4096
Max Pool Based LUN Size	256TB (Virtual Pool LUN)
Max File System Size	16TB
Maximum Usable File Capacity per Data Mover	256TB
Compatible Disk Array Expansions (DAEs)	VNXB6GSDAE15 VNXB6GSDAE25 VNXB6GSDAE60 VNXB6GSDAE120
Protocols Supported	CIFS, NFS, pNFS, FC, FCoE, ISCSI
Power - 25 x 2.5" DPE
AC Line Current (Operating Maximum)	4.4 A max at 200 Vac
Power Consumption (Operating Maxium)	870 VA (845 W) max
Power Factor	0.98 min at full load, low voltage
In-rush Current	30 A max for 1/2 line cycle, per line cord at 240 Vac
Startup Surge Current	29 A rms max for 50 ms, at any line voltage
AC Protection	10 A fuse on each power supply
AC Inlet Type	IEC320-C14 appliance coupler, per power zone
Dimensions
Height	5.25"
Width	17.5"
Depth	24"
Vertical Size	3 NEMA Units
Weight	90.395 lbs
ECS Warranty	1-Year Parts Replacement Warranty
