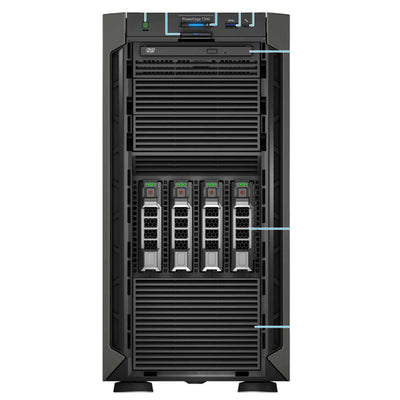

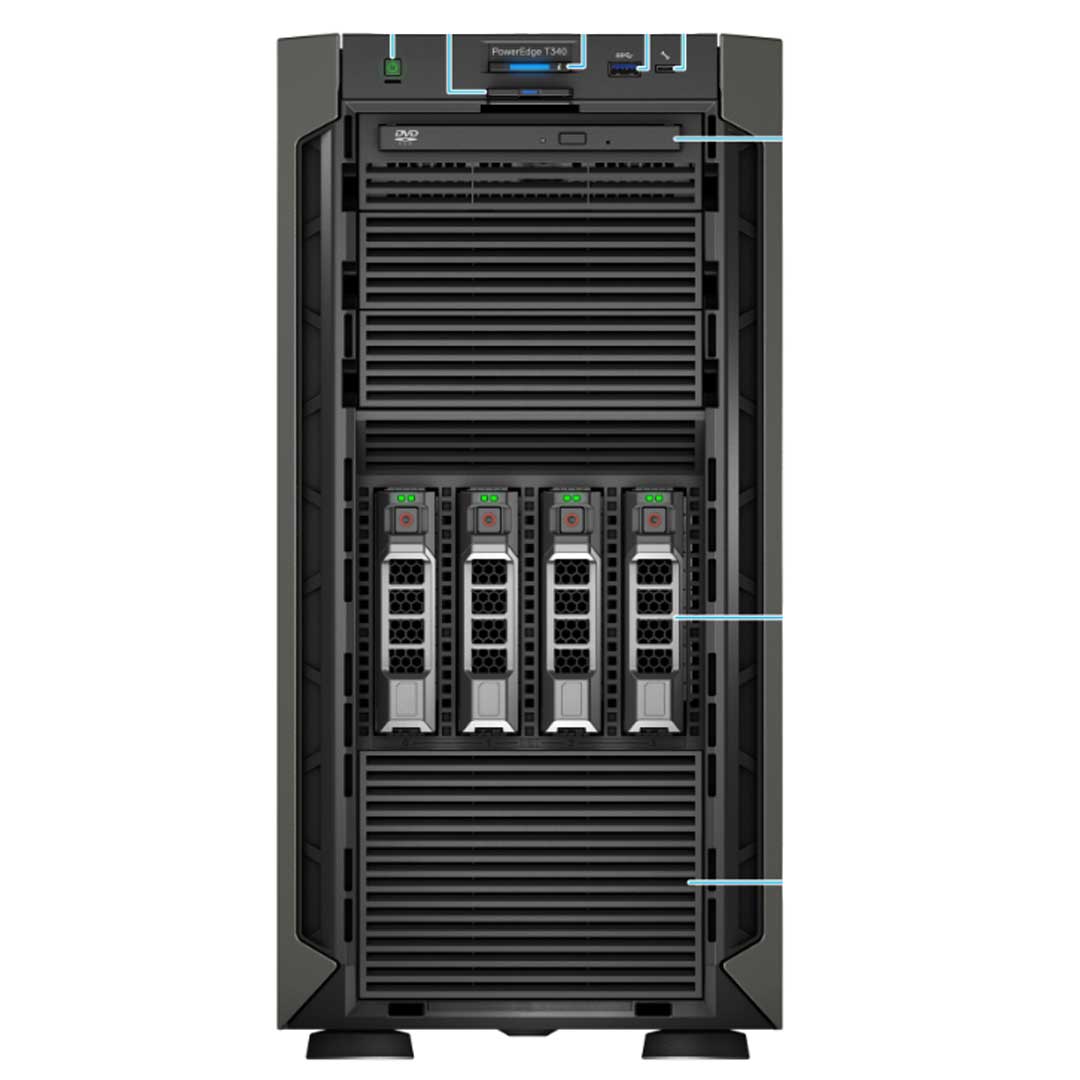

Dell PowerEdge T340 CTO Tower Server

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Intel® C246, Supports (1) processor up to 8 cores

Intel Xeon E-2100

Supports (1) processor up to 8 cores

Intel Xeon E-2200

Supports (1) processor up to 8 cores

Bezel (Optional)

Security Bezel

Memory

Supports up to 4 DIMMs

SSD (2.5") SAS Drives (Optional)

Supports up to (4 or 8) Drives based on the configuration desired
All 2.5" Drives will be installed in a 3.5" HD Carrier.
If only 4 Drives are selected. A Four-slot drive blank will be added to cover the other slots.

SSD (2.5") SATA Drives (Optional)

Supports up to (4 or 8) Drives based on the configuration desired
All 2.5" Drives will be installed in a 3.5" HD Carrier.
If only 4 Drives are selected. A Four-slot drive blank will be added to cover the other slots.

HDD (2.5") SAS Drives (Optional)

Supports up to (4 or 8) Drives based on the configuration desired
All 2.5" Drives will be installed in a 3.5" HD Carrier.
If only 4 Drives are selected. A Four-slot drive blank will be added to cover the other slots.

HDD (2.5") SATA Drives (Optional)

Supports up to (4 or 8) Drives based on the configuration desired
All 2.5" Drives will be installed in a 3.5" HD Carrier.
If only 4 Drives are selected. A Four-slot drive blank will be added to cover the other slots.

HDD (3.5") SAS Drives (Optional)

Supports up to (4 or 8) Drives based on the configuration desired
If only 4 Drives are selected. A Four-slot drive blank will be added to cover the other slots.

HDD (3.5") SATA Drives (Optional)

Supports up to (4 or 8) Drives based on the configuration desired
If only 4 Drives are selected. A Four-slot drive blank will be added to cover the other slots.

PCIe Riser Full Height (Optional)

4 PCIe Slots (Full Height)

Boot Optimized Storage Subsystem (BOSS): (Optional)

1x M.2 240GB (No RAID only)
2x M.2 240GB (RAID 1 or No RAID)

RAID Controllers (Optional)

Embedded S140 software RAID

Power Supplies

Supports up to (1) Cabled or (2) redundant PSU's

Internal Dual SD Module (IDSDM) (Optional)

Optical drive (Optional)

Trusted Platform Module (TPM) (Optional)

iDRAC9 (Optional)

Default iDRAC9 Express

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Dell PowerEdge T340 CTO Tower Server

Quick Specs

Form Factor:

Tower server

Processor | Max: N/A

1x Intel E-2200, Core i3, or Celeron

Memory | Max: 64GB

4 DDR4 UDIMM 2666Mhz

Storage | Max: N/A

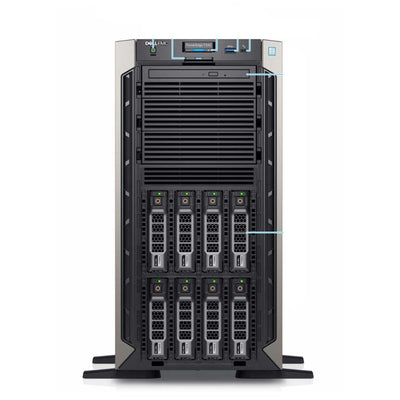

8 LFF Hot-Swap Drives
(also supports 2.5” HDD in 3.5” hybrid drive carrier)

Boot Options

Boot Optimized Server Storage (BOSS)
IDSDM
USB

RAID Controller:

S140 (SW RAID)
PERC H730P, H330, HBA330 (non-RAID), 12Gbps SAS HBA (non-RAID)

NIC/LOM

2 x 1GbE LOM

Remote Management:

iDRAC9

PCIe Slots: 4

1x8 Gen3 (x16 connector) FH/HL
1x8 Gen3 (x8 connector) FH/HL
1x4 Gen3 (x8 connector) FH/HL
1x1 Gen3 (x1 connector) FH/HL

GPU:

Not Supported

Ideal for:

  • Mail

Develop your business with the PowerEdge T340 tower server. It is a reliable, easy to manage, and scalable one-socket server. The PowerEdge T340 helps you share and connect quickly across your organization to drive business results.


Operate reliably and scale without limits

The PowerEdge T340 is your reliable server that allows you to collaborate and grow as you scale.

  • Drive your business forward with improved performance due to 100% more cores with Intel Xeon E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.
  • Scale with 17% more storage capacity.
  • Operate reliably with up to 8 hot-plug HDD’s or SSD’s and redundant power supplies.
  • Get set up as much as 66% faster with our ProDeploy suite of services.

Intuitive systems management with intelligent automation

PowerEdge servers with embedded iDRAC with Lifecycle Controller offer agent-free management right out of the box, delivering smart automation of routine tasks. The T340 is easily managed which frees up time for work priorities.

  • Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
  • Easily manage multiple remote servers via the intuitive general user interface with iDRAC9 Group Manager or upgrade to OpenManage Enterprise.
  • Conveniently receive data alert notifications and access hardware remotely anywhere with OpenManage Mobile.
  • Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.

Connect and manage your growing business

The Dell EMC PowerEdge T340 enables you to grow through collaboration. Grow without limits* with this reliable and easy to manage server.

The T340 enables you to address common business workloads in your office and across remote offices.


Operate reliably

The Dell EMC PowerEdge T340 operates reliably so you don’t have to slow down when connecting and managing your growing business.

  • Operate reliably with up to 8 hot-plug HDD’s or SSD’s and redundant power supplies.
  • Save time and IT effort resolving server hardware issues with ProSupport Plus and SupportAssist.
  • Help prevent downtime and protect your data from malicious changes with iDRAC9 Enterprise Server Lockdown mode.
  • Save your data automatically with reliable software RAID.

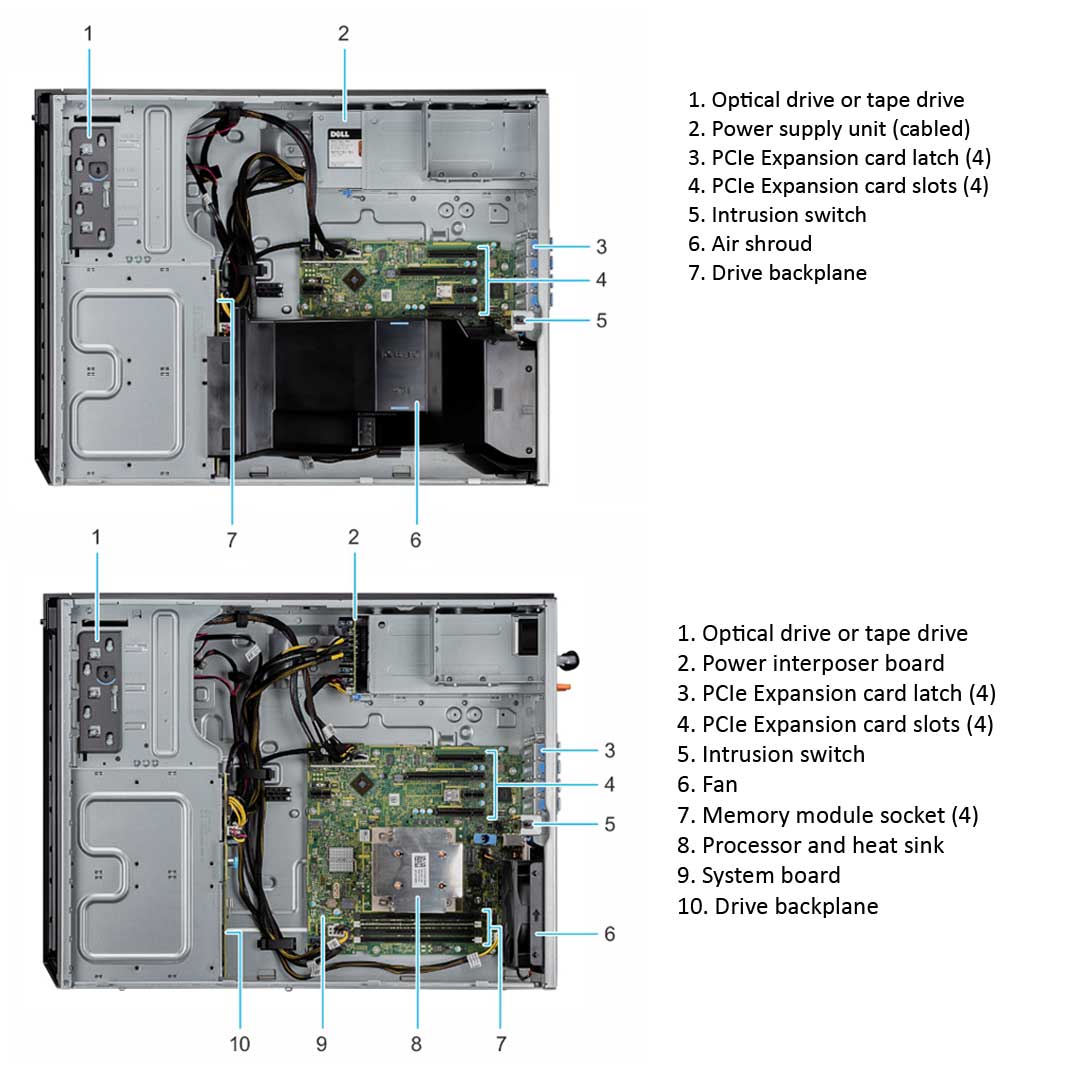

Cooling & Fans

With only 1 CPU there is not much as far as cooling. The CPU has a heat sink along with a large fan in the rear of the system. There are not other options of configurations for the heat-sink and fan assembly.

Memory

4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC

DIMM Type DIMM Ranking Capacity DIMM Rated voltage 1 DIMM per channel 2 DIMMs per channel
UDIMM 1R/2R 8GB, and 16GB DDR4 (1.2V) 2666 2666
PCIe Configurations
PCI Slot Mechanical Electrical Height Length
1 PCIe x 8 PCIe x 8 Gen 3 Full Height Half Length
2 PCIe x 16 PCIe x 8 Gen 3 Full Height Half Length
3 PCIe x 1 PCIe x 1 Gen 3 Full Height Half Length
4 PCIe x 8 PCIe x 4 Gen 3 Full Height Half Length
Networking Options

The Dell PowerEdge T340 has a networking LOM card installed on the system board that supports up to 2x 1GbE. You can install more networking adapters in the following PCIe slots above. Please look at the rear diagram image of the server to know where everything is located.

Storage Controllers

The Dell EMC PowerEdge T340 system supports S140 Software RAID, and H330, H730P RAID controllers.
The PowerEdgeT340 systems supports HBA330 for Non-RAID (passthrough) configuration.

Power & Dimensions
Power Supply Units (PSU)
  • 350W AC 2U Cable Bronze
  • 495W AC 1U Redundant Platinum
Dimensions
  • Chassis height: 430.3mm (16.94 in)
  • Chassis width: 218mm (8.58 in)
  • Chassis depth: 603 mm (23.7 in)
  • Note: These metrics do not include PSU handle, bezel, or tower foot
  • Chassis weight: 26 kg (55.67 lb.)


Current Configuration

Server Chassis

Processors

Bezel (Optional)

Memory

SSD (2.5") SAS Drives (Optional)

SSD (2.5") SATA Drives (Optional)

HDD (2.5") SAS Drives (Optional)

HDD (2.5") SATA Drives (Optional)

HDD (3.5") SAS Drives (Optional)

HDD (3.5") SATA Drives (Optional)

PCIe Riser Full Height (Optional)

Boot Optimized Storage Subsystem (BOSS): (Optional)

RAID Controllers (Optional)

Power Supplies

Internal Dual SD Module (IDSDM) (Optional)

Optical drive (Optional)

Trusted Platform Module (TPM) (Optional)

iDRAC9 (Optional)

Select Warranty

*list also serves as quick links to each section

Welcome to the Request Express Quoting Form!

for: Dell PowerEdge T340 CTO Tower Server


This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.

Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.


Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Processor(s)
Memory
Total Amount of Memory
Total Amount of Usable Storage

Storage Type


RAID

List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:


Price as Configured: 0

Add to Cart

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Product Specs

Base Standard Capabilities

FeaturePowerEdge T340 Technical specification
Processor1 processor from the following: Intel® Xeon® E-2200 product family, Intel Pentium®, Intel Core i3®, Intel Celeron®
Memory4x DDR4 DIMM slots, supports UDIMMs, speeds up to 2666MT/s, 64GB max. supports registered ECC.
Storage controllersInternal controllers: PERC H730P, H330, HBA330 (non-RAID)
Software RAID: PERC S140
External HBAs: 12Gbps SAS HBA (non-RAID)
Boot Optimized Storage Subsystem (BOSS): 2x M.2 240GB (RAID 1 or No RAID), 1x M.2 240GB (No RAID only)
Internal Dual SD Module
Drive baysUp to 8 x 3.5” hot-pluggable bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)
Power supplies2x Hot-Plug-Redundant 495W PSUs or Single Cabled 350W PSU
Dimensions and weightForm factor: Tower serverChassis height: 430.3mm (16.94 in)
Chassis width: 218mm (8.58 in)
Chassis depth: 603 mm (23.7 in)
Note: These metrics do not include PSU handle, bezel, or tower foot
Chassis weight: 26 kg (55.67 lb.)
Embedded managementiDRAC9
iDRAC Direct

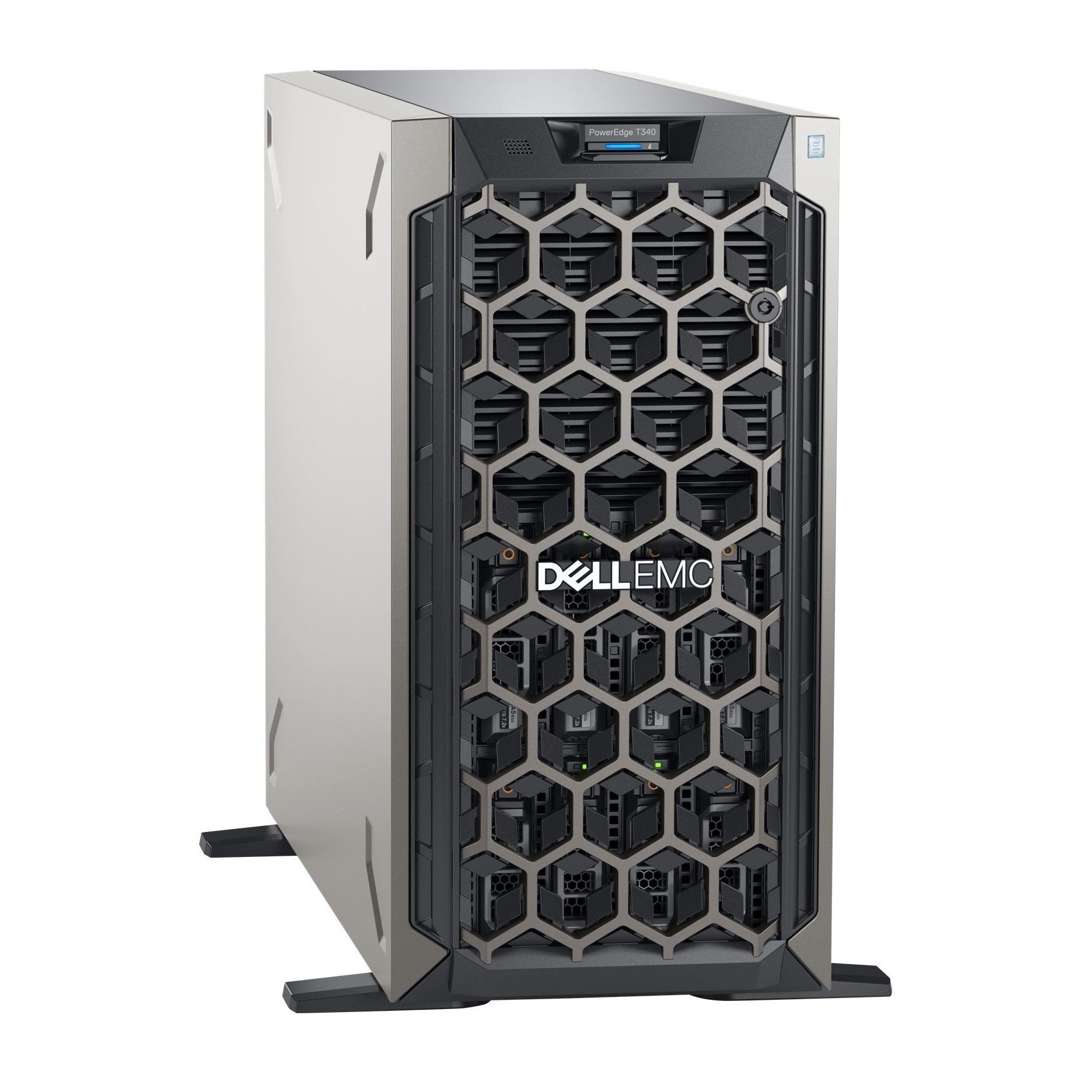

BezelOptional security bezel
OpenManage™ Software
  • OpenManage Enterprise
  • OpenManage Power Center
  • OpenManage Mobile (requires OM Enterprise)
Integrations and connectionsIntegrations:
  • Microsoft® System Center
  • VMware® vCenter™
  • BMC Truesight (available from BMC)
  • Red Hat Ansible
Connections:
  • Nagios Core & Nagios XI
  • Micro Focus
  • Operations Manager i (OMi)
  • IBM Tivoli Netcool/OMNIbus
Tools
  • iDRAC Service Module
  • iDRAC RESTful API with Redfish
  • OpenManage Server Administrator
  • Dell EMC Repository Manager
  • Dell EMC System Update
  • Dell EMC Server Update Utility
  • Dell EMC Update Catalogs
  • Dell EMC RACADM CLI
  • IPMI Tool
Security
  • TPM 1.2/2.0 optional
  • Cryptographically signed firmware
  • Silicon Root of Trust
  • Secure Boot
  • System Lockdown (requires iDRAC Enterprise or Datacenter)
  • Secure Erase
I/O & Ports
  • Networking Options: 2 X 1GbE LOM
  • Front Ports: 1x USB 3.0, 1x iDRAC micro USB 2.0 management port

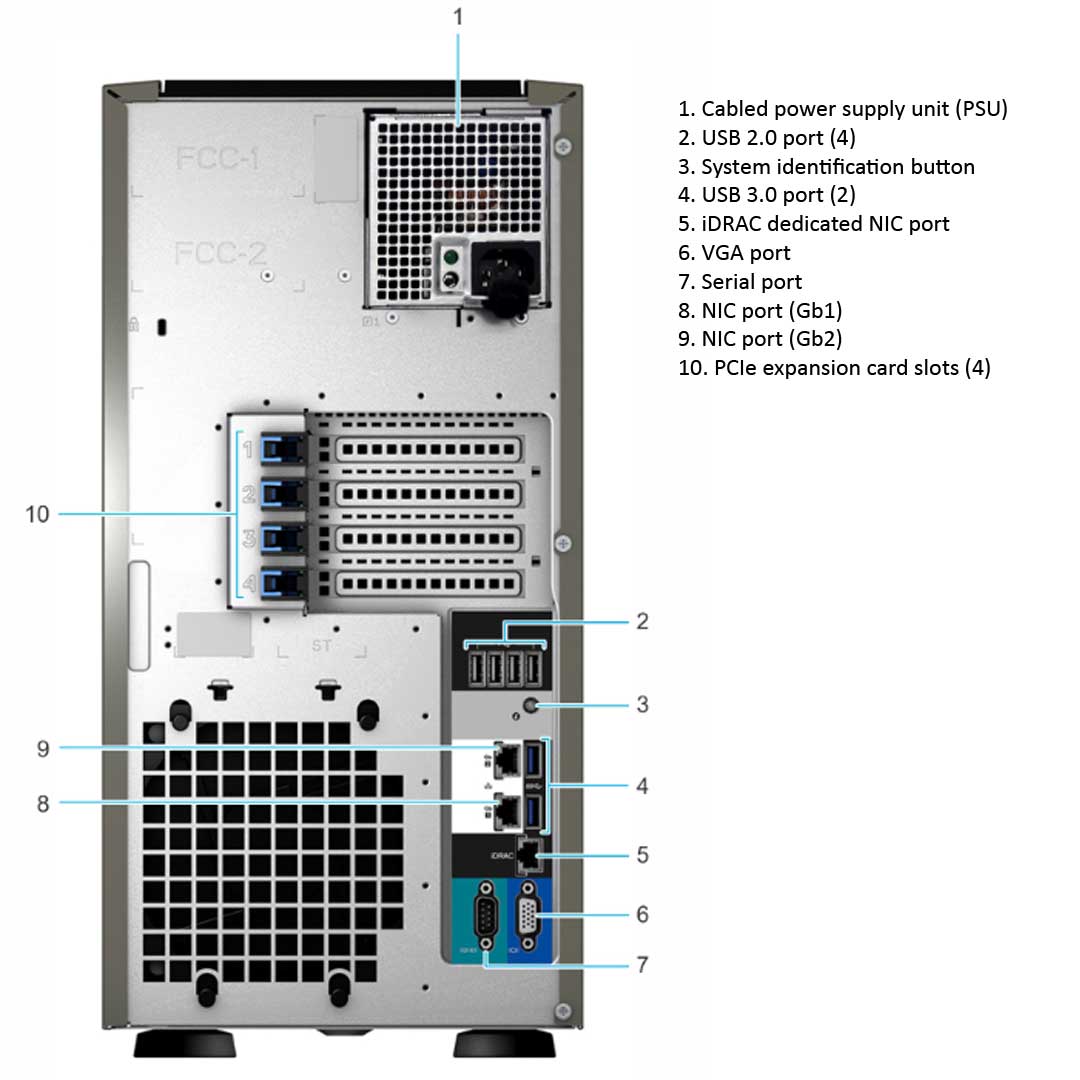

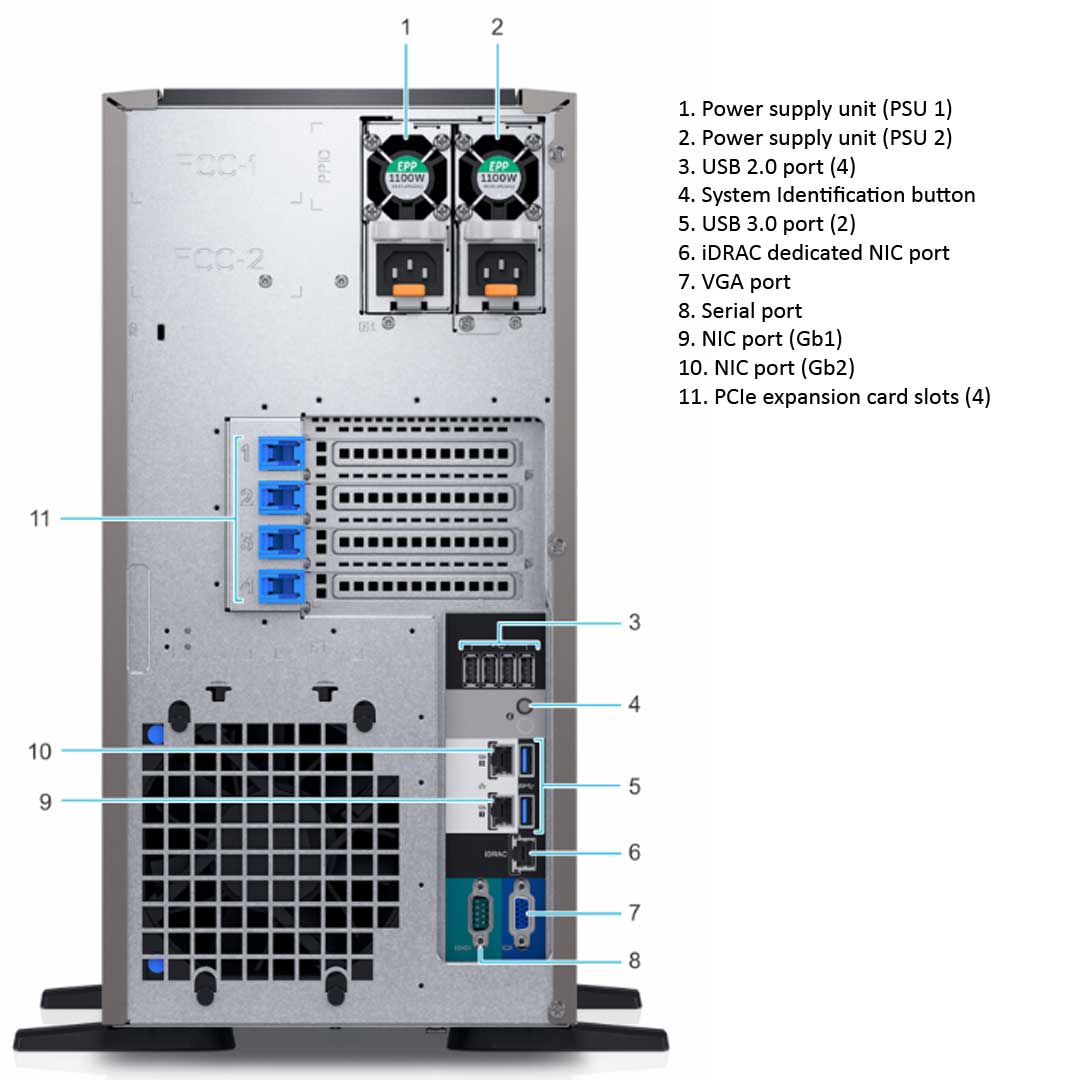

  • Rear Ports: 2x USB 3.0, 4x USB 2.0, VGA, serial connector
  • Internal USB: 1x internal USB 3.0
4 x PCIe Slots:
  • 1x8 Gen3 (x16 connector) FH/HL
  • 1x8 Gen3 (x8 connector) FH/HL
  • 1x4 Gen3 (x8 connector) FH/HL
  • 1x1 Gen3 (x1 connector) FH/HL
Supported Operating systemsCertify XenServer
Citrix® XenServer®

Microsoft Windows Server with Hyper-V
Red Hat® Enterprise Linux
Ubuntu Server

SUSE® Linux Enterprise Server
VMware® ESXi

Compare Servers

Feature PowerEdge T340 PowerEdge T330
Processor ● Intel® Xeon® E-2100 and E-2200 Processor family
● Intel® Pentium®
● Intel® Celeron®
● Intel® Core™ i3®
● Intel® Xeon® E3-1200 v6 Processor family
● Intel® Pentium®
● Intel® Celeron®
● Intel® Core™ i3®
Front Side Bus DMI 3.0 DMI 3.0
Number of processors 1 1
Number or cores Up to 8 cores Up to 4 cores
L2/L3 cache ● 2.0 MB per core
● 8 MB or 12 MB
● 2.0 MB per core
● 4 MB or 8 MB
Chipset Intel® C246 Intel® C236
Memory Module ● DDR4: 4 UDIMMs with ECC
● Speed: Up to 2666MT/s
● Min RAM: 8GB
● Max RAM: 64 GB
● DDR4: 4 UDIMMs with ECC
● Speed: Up to 2400MT/s
● Min RAM: 4 GB
● Max RAM: 64 GB
Hard drive bays ● 8 x 3.5-inch hot plug
● 8 x 2.5-inch hot plug (in 3.5-inch carrier)
● 8 x 3.5-inch hot plug
● 8 x 2.5-inch hot plug (in 3.5-inch carrier)
Hard drive types ● 2.5-inch SATA 7.2K HDDs
● 2.5-inch Near Line SAS 7.2K HDDs
● 2.5-inch SAS 10K HDDs
● 2.5-inch SAS 15K HDDs
● 3.5-inch Enterprise SATA 7.2K HDDs
● 3.5-inch Near Line SAS 7.2K HDDs
● 2.5-inch SATA SSDs
● 2.5-inch SATA 7.2K HDDs
● 2.5-inch Near Line SAS 7.2K HDDs
● 2.5-inch SAS 10K HDDs
● 2.5-inch SAS 15K HDDs
● 3.5-inch Enterprise SATA 7.2K HDDs
● 3.5-inch Near Line SAS 7.2K HDDs
● 2.5-inch SATA SSDs
External hard drive bays 3 x 5.25-inch bay 3 x 5.25-inch bay
RAID controllers ● Chipset based SATA, PERC S140
● Non RAID controller: 12GB SAS HBA, PERC HBA330
● PERC H330
● PERC H730P
● Chipset based SATA, PERC S130
● Non RAID controller: 12GB SAS HBA
● PERC H330
● PERC H730
● PERC H830
Boot optimized storage subsytem ● 2x M.2 240GB (RAID 1 or No RAID)
● 1x M.2 240GB (No RAID only)
Not supported
Server management ● Dell Open Manage featuring Dell Management Console
● Lifecycle Controller 3.0
● iDRAC9 Enterprise
● Dell Open Manage featuring Dell Management Console
● Lifecycle Controller 3.0
● iDRAC8 Enterprise
I/O slots ● 1 x 8 PCIe Gen3 (x16 connector) FH/HL
● 1 x 8 PCIe Gen3 (x8 connector) FH/HL
● 1 x 4 PCIe Gen3 (x8 connector) FH/HL
● 1 x 1 PCIe Gen3 (x1 connector) FH/HL
● 1 x 8 PCIe Gen3 (x16 connector) FH/HL
● 1 x 4 PCIe Gen3 (x8 connector) FH/HL
● 1 x 4 PCIe Gen3 (x8 connector) FH/HL
● 1 x 1 PCIe Gen3 (x1 connector) FH/HL
NIC/LOM 2 x 1GbE LOM 2 x 1GbE LOM
Power supplies Single or Dual Redundant 495W power supply or single 350W cabled power supply Single or Dual Redundant 495W power supply or single 350W cabled power supply
Fans No Fan fault tolerance No Fan fault tolerance
SD module IDSDM IDSDM
Dimensions (HxWxD) ● Height 16.94 inch / 43.0 cm
● Width 8.58 inch / 21.8 cm
● Height 23.8 inch / 60.5 cm
● Height 16.94 inch / 43.0 cm
● Width 8.58 inch / 21.8 cm
● Height 23.7 inch / 60.3 cm
Weight Max 26 Kg Max 26 Kg

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Subscribe
