Dell PowerEdge MX7000 Modular CTO Enclosure Chassis

CTO Servers
ECS Refurbished & Tested


  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Fabric A

Supports up to (2) redundant fabric A modules

Fabric B

Supports up to (2) redundant fabric B modules

Fabric C

Supports up to (2) redundant fabric C modules
Note: The MX7000 chassis requires redundant MXG610s in Fabric C. The operation of a single MXG610s switch is not supported.
Note: A MX5000s SAS module and a MXG610s are not supported in the same MX7000 chassis.
IF you plan to install a MX5016s Storage Sled. You MUST select 2 MX500s.

Power Cable (Optional)

MX7000 Options (Optional)

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

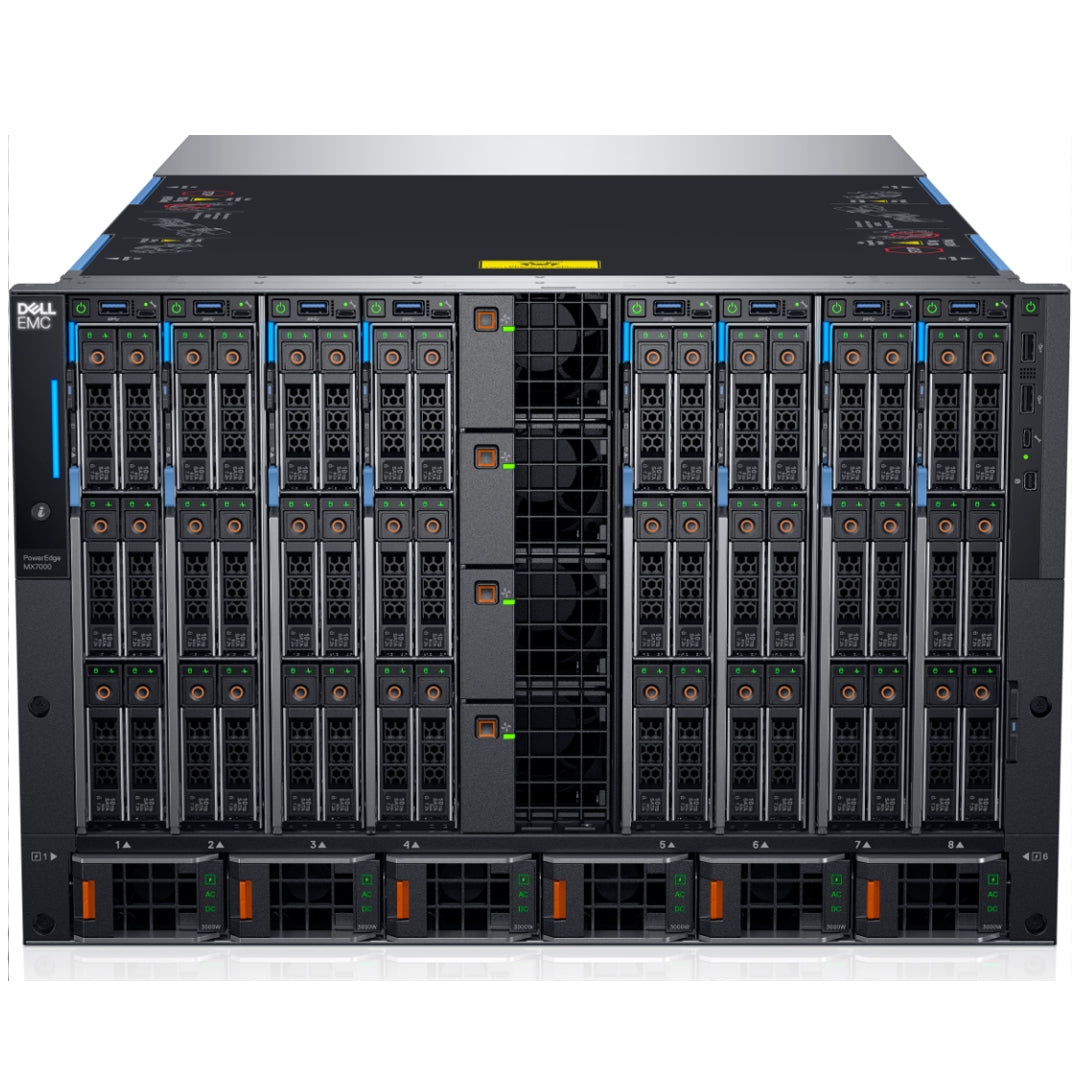

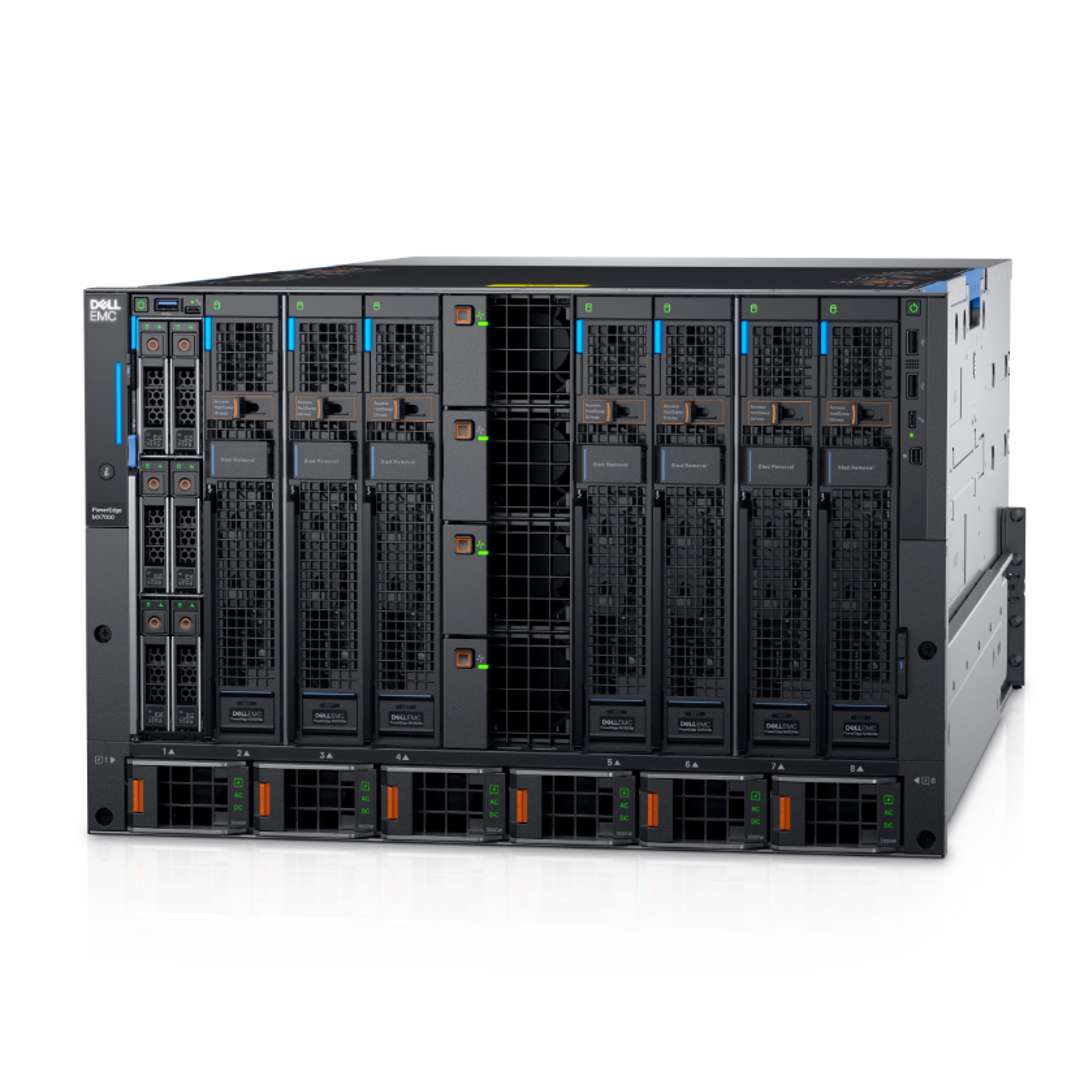

Dell PowerEdge MX7000 CTO Modular Enclosure

If you need help with the configuration, don't hesitate to get in touch with our IT Support today.

Quick Specs

Form Factor: 7U Modular Rack server
Power: Up to 6 front-loading power supply units

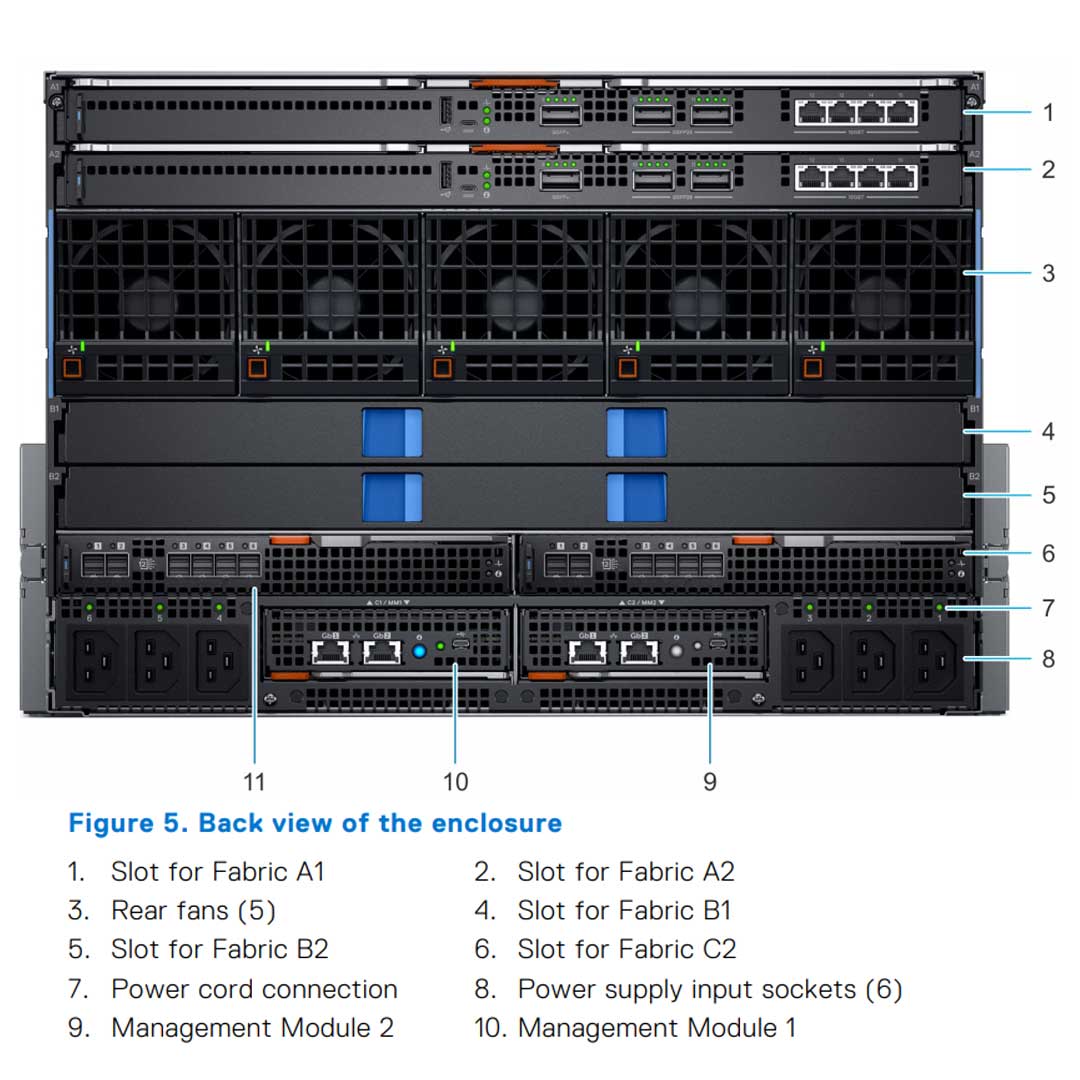

Fans: 4 x 60 mm front hot-swap fans modules and 5 x 80 mm rear fan modules
Expandability: Multi-chassis networking up to 10 chassis via the 1GbE Ports on the MX9002m.
Fabrics A,B: Up to 2 pairs of redundant general-purpose switch or pass-through modular bays.
Fabrics C: Up to 2 redundant pair of storage-specific switch bays
(The MX5016s connects to the servers via the MX5000s SAS switch.)

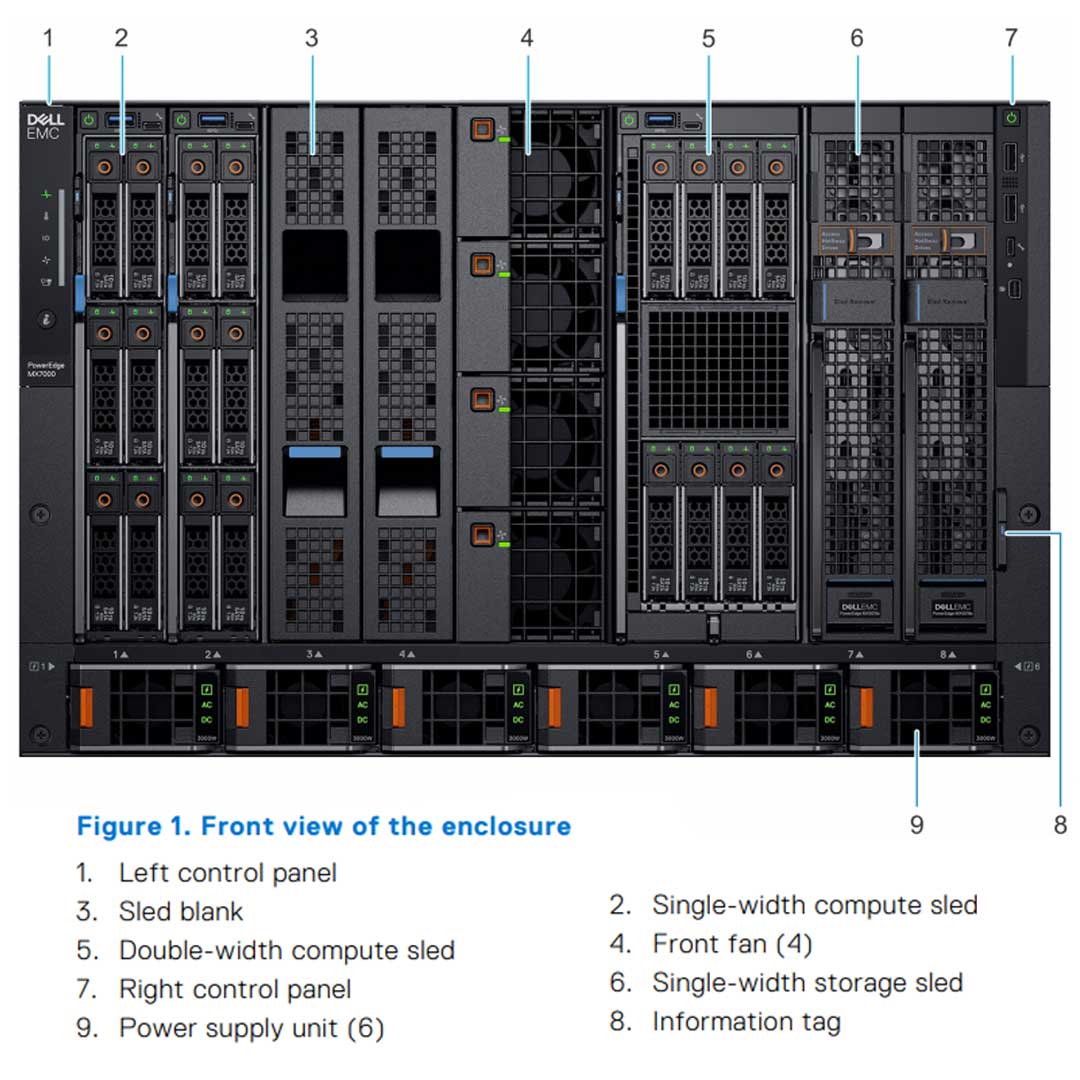

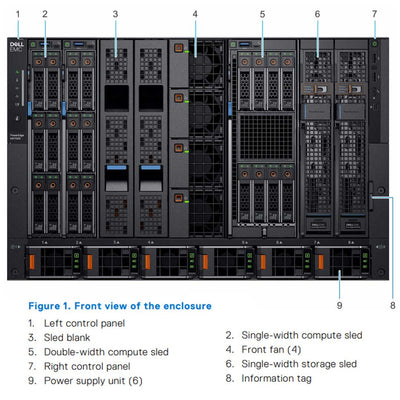

Sleds: 8 single-width or 4 double-width sleds

MX7000 Supported Sled Options

Each Node is a separate CTO you must configure.

The PowerEdge MX7000 chassis supports two PowerEdge MX9002m management modules for redundancy. The Dell EMC PowerEdge MX9002m management module controls the overall chassis power, and cooling, and hosts the OpenManage Enterprise-Modular (OME-M) console. Two external 1G-BaseT Ethernet ports are provided to enable management connectivity and to connect more PowerEdge MX7000 chassis into a single logical chassis.

Dynamically scale and respond to changing needs

PowerEdge MX7000 hosts elastic compute and storage resources connected by a smart I/O fabric. Featuring an innovative design to accommodate the streamlined transition to emerging technologies, the chassis delivers extensibility for evolving application requirements.

  • Flexible 7U modular enclosure, with eight front-accessible slots, holds 2-socket single-width or 4-socket double-width compute sled and 12Gbps single-width storage sled combinations
  • Low latency, cost-efficient 25Gb Ethernet, 12Gb SAS and 32Gb Fibre Channel I/O options
  • Three I/O networking fabrics, two general purpose and one storage specific, each with redundant modules
  • Scalable Fabric Architecture for multi-chassis networking up to 10 chassis
  • Assured support for multiple future generations of server processor microarchitectures

Increase team effectiveness and accelerate operations

PowerEdge MX7000 includes comprehensive embedded systems management, Dell EMC OpenManage Enterprise – Modular Edition, which delivers key functions of OpenManage Enterprise management within the chassis for the entire environment – a single management point for compute, storage and networking. Deploy and monitor multiple chassis at once, roll-out changes and templates faster and integrate with third-party tools.

  • Operational template methodology and comprehensive OpenManage RESTful API based on Redfish
  • Flexible at-the-box Touchscreen LCD, wireless and traditional crash cart management options
  • Remote server access with OpenManage Mobile application and the new Quick Sync 2 feature
  • As with every PowerEdge server, embedded agent-free Integrated Dell Remote Access Controller (iDRAC)9 with Lifecycle Controller (LC)
Protect infrastructure and deliver investment protection

PowerEdge MX infrastructure embeds hardware and system-level security features to protect with a deep layer of defense and quick detection in order to recover, if breached. A Cyber Resilient Architecture extends across every aspect, including embedded firmware, data stored, the operating system, peripheral devices and management operations within.

  • Security Development Lifecycle (SDL) model where security is an integral part of overall infrastructure design process and encompasses needs through the entire lifecycle
  • Robust iDRAC APIs, such as WS-Man or RESTful API (compliant with Redfish standards) for automated deployment of hardware security features
  • Aligns with key industry standards for cryptography and security such as NIST SP800-147B and UEFI Secure Boot

Sled Notes

The PowerEdge MX740c and MX750c compute sled is a unique design for the PowerEdge MX7000 chassis and is not compatible with other PowerEdge modular chassis.

MX5016s Configuration notes:

If you're trying to use the MX5016s Sled then you need to choose the MX5000s Management Module, NOT the MXG610s. This module along with HBA330 mini-mezz or the PERC H745P MX allows the compute sled(s) to utilize all the drives in the MX5016s Storage Sled. Please read the MX5016s Spec Manual for more detailed information.


Current Configuration

Server Chassis


Fabric A


Fabric B


Fabric C


Power Cable (Optional)


MX7000 Options (Optional)


ECS Warranty

*list also serves as quick links to each section

Price as Configured: $0.00

Welcome to the Request Express Quoting Form!

for: Dell PowerEdge MX7000 Modular CTO Enclosure Chassis

This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.

Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.

Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Total Amount of Memory
Total Amount of Usable Storage

Storage Type


List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:

Add to Cart

Please select at least 1 item from the configuration list before adding to cart

Product Specs

Base Standard Capabilities

FeatureTechnical Specification
ProcessorUp to 6 3000W; PSU and grid redundancy support
Fans5 rear- and 4 front-accessible hot-swap fans

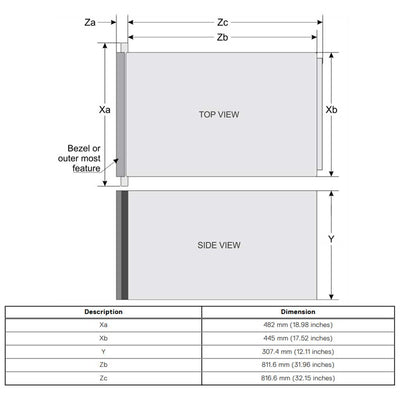

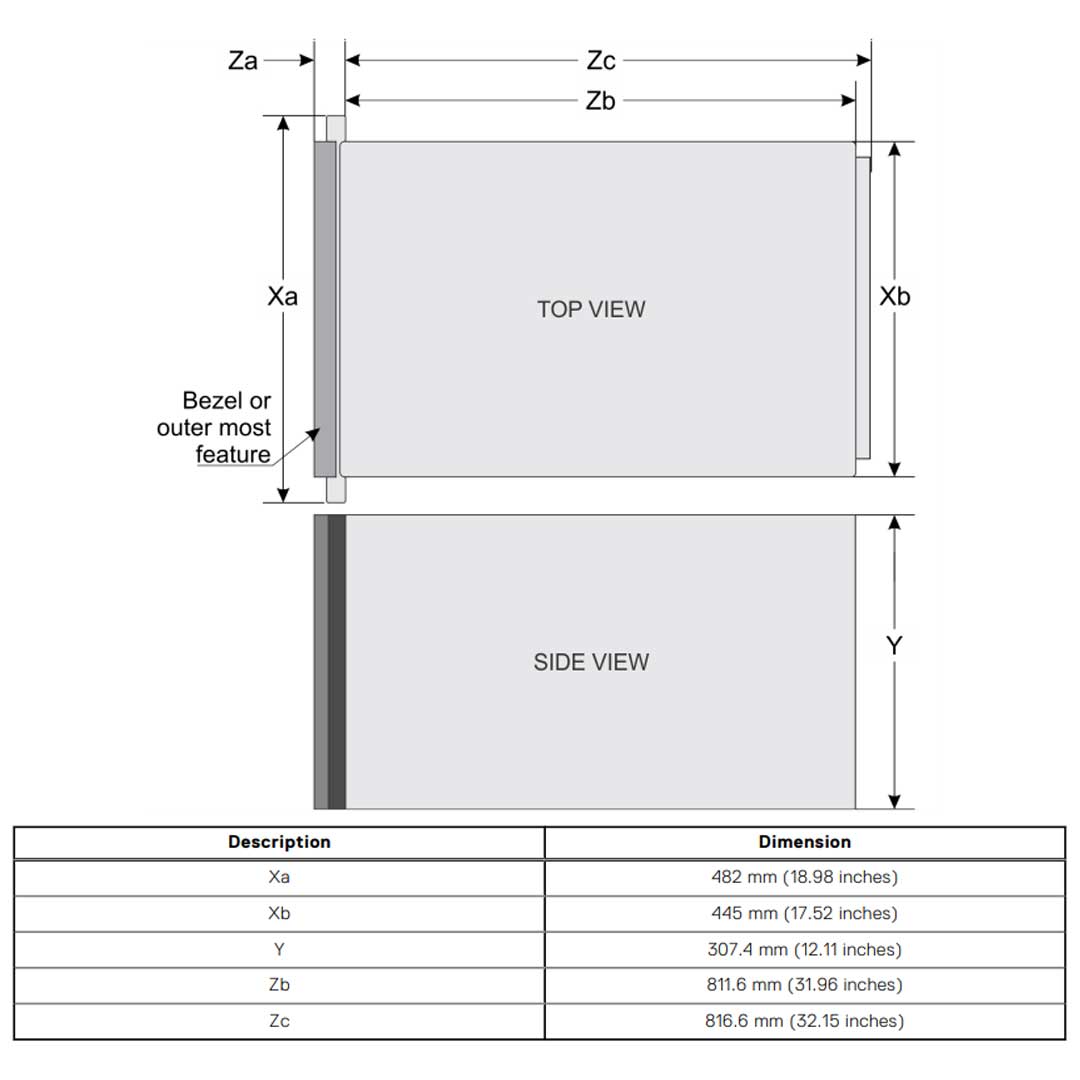

Dimensions (LxWxD)816.8mm (32.16 inches) x 482mm (18.98 inches) x 307.4mm (12.10 inches)
Rack Units7U
Embedded mgmtMX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular); running on up to 2 redundant MX9002m management modules Unified control: single management point for server, storage and networking Intelligent automation: Operational template methodology and comprehensive RESTful API Quick Sync 2 Bluetooth Low Energy (BLE)/wireless module option

On compute sled:
As every other PowerEdge server, the integrated Dell Remote Access Controller (iDRAC)9 with Lifecycle Controller (LC)
OpenManage™ SWOpenManage Enterprise
OpenManage Essentials
OpenManage Mobile (OMM)
OpenManage Power Center (OMPC)
Integrations & Connections
Microsoft® System Center
VMware® vCenter™
BMC Software (available from BMC)
Ansible by Red Hat
Nagios Core and Nagios XI
Oracle Enterprise Manager
Microfocus Operations Manager (OM) and Operations
Manager i (OMi)
IBM Tivoli Netcool/OMNIbus
TPM 1.2/2.0 (optional)
Cryptographically signed firmware
Silicon Root of Trust
Secure Boot
System Lockdown (requires OpenManage Enterprise)
System Erase
Embedded NIC
Networking Options (NDC)Fabric options: Up to 2 pairs of redundant general-purpose switch or pass-through modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C)
Up to 25GbE, 32Gbps Fibre Channel, 12Gbps SAS
GPU Options
Front Ports
2 USB 2.0 Type A or KVM control (keyboard and mouse only)
1 USB 2.0 Type Micro-AB
direct management port
1 Mini Display Port
connector for video
Front buttons/indicators:
Power button
System status LED
Health icon
Ambient temperature icon
IOM icon
Fan icon
Stack/group icon
ID button
