Price: Configure for Price

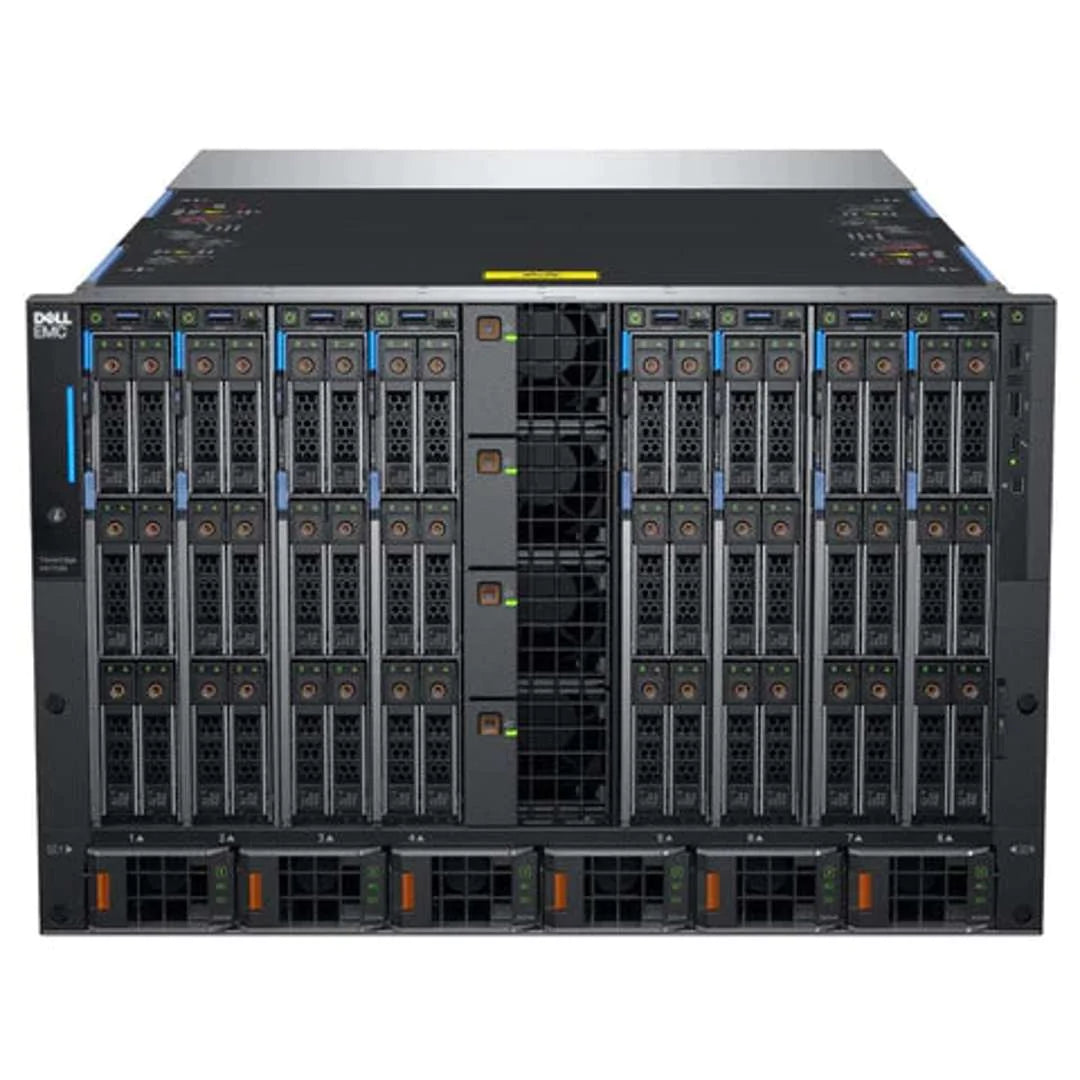

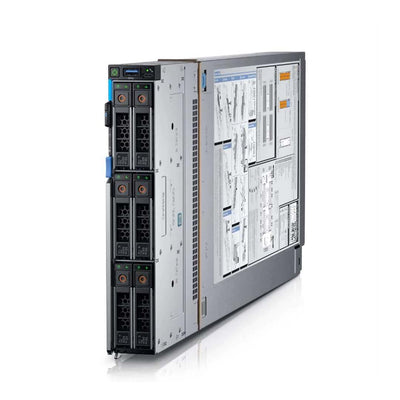

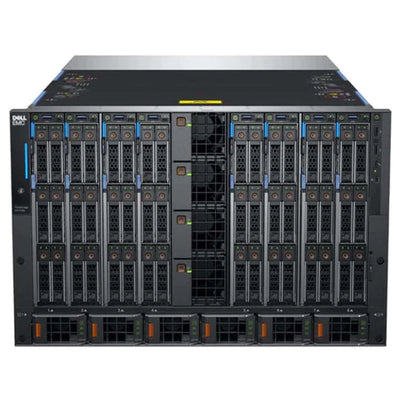

The PowerEdge MX740c and MX750c are two-socket, full-height, single-width compute sleds that offer impressive performance and scalability. The MX740c and MX750c are ideal for dense virtualization environments and can serve as a foundation for collaborative workloads. An MX7000 chassis can support up to eight MX740c and MX750c sleds. Mixing compute sleds of different generations is supported.
Key features include:
A fully configurable single-width compute sled powered by up to two-40 core 3rd Generation Intel®Xeon®Scalableprocessors. Each PowerEdge MX750c supports 32 DDR4 DIMM slots and up to six 2.5-inch SAS/SATA (HDD/SDD)or Express Flash NVMe PCIe SSDs drives. A maximum of eight MX750c servers can be installed in the PowerEdgeMX7000 chassis.
The Dell EMC OpenManage systems management portfolio tames the complexity of managing and securing ITinfrastructure. OpenManage Enterprise – Modular is specifically designed to enable customers that enjoy the benefitsof a multi-chassis management approach found uniquely in the MX solution. Using Dell Technologies’ intuitiveend-to-end tools, IT can deliver a secure, integrated experience by reducing process and information silos in order tofocus on growing the business. The Dell EMC OpenManage portfolio is the key to your innovation engine, unlockingthe tools and automation that help you scale, manage, and protect your technology environment.
| Feature | PowerEdge MX750c Technical Specifications | |
|---|---|---|
| Processor | Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor Intel C620 series chipset with optional Intel QuickAssist Technology | |
| Memory | 32 DDR4 DIMM slots, supports RDIMM max 2 TB or LRDIMM max 4 TB, speeds up to 3200 MT/s | |
| Persistent Memory | Supports up to 16 Intel Persistent Memory 200 series (BPS) slots with a maximum total capacity of 7.68 TB per sled | |
| Availability | Supports registered ECC DDR4 DIMMs only | |
| Controllers |
| |
| Drive Bays | Front bays:
| |
| Power Supplies | MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support | |
| Fans | MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy | |
| Dimensions | Height: 42.15 mm (1.65 inches) Width: 250.2 mm (9.85 inches)< Depth: 594.99 mm (23.42 inches) | |
| Form Factor | Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis | |
| Embedded Management | MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular);
| |
| OpenManage Software |
| |
| Integrations and Connections | OpenManage Integrations
| OpenManage Connections
|
| Integrated Security |
| |
| Networking_Options (NDC) | MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or passthrough modular bays (Fabrics A and B); redundant pair of storage specific switch bays (Fabric C) Up to 25 Gb CNA/NIC per port for Mezz A/B, 32 Gb Fibre Channel, 12 Gbps SAS for Mezz C | |
| Ports | Front ports
| Internal Port
|
| PCIe |
| |
| Operating Systems and Hypervisors |
| |
 Spec Sheet | Technical Guide |
