Price: Configure for Price

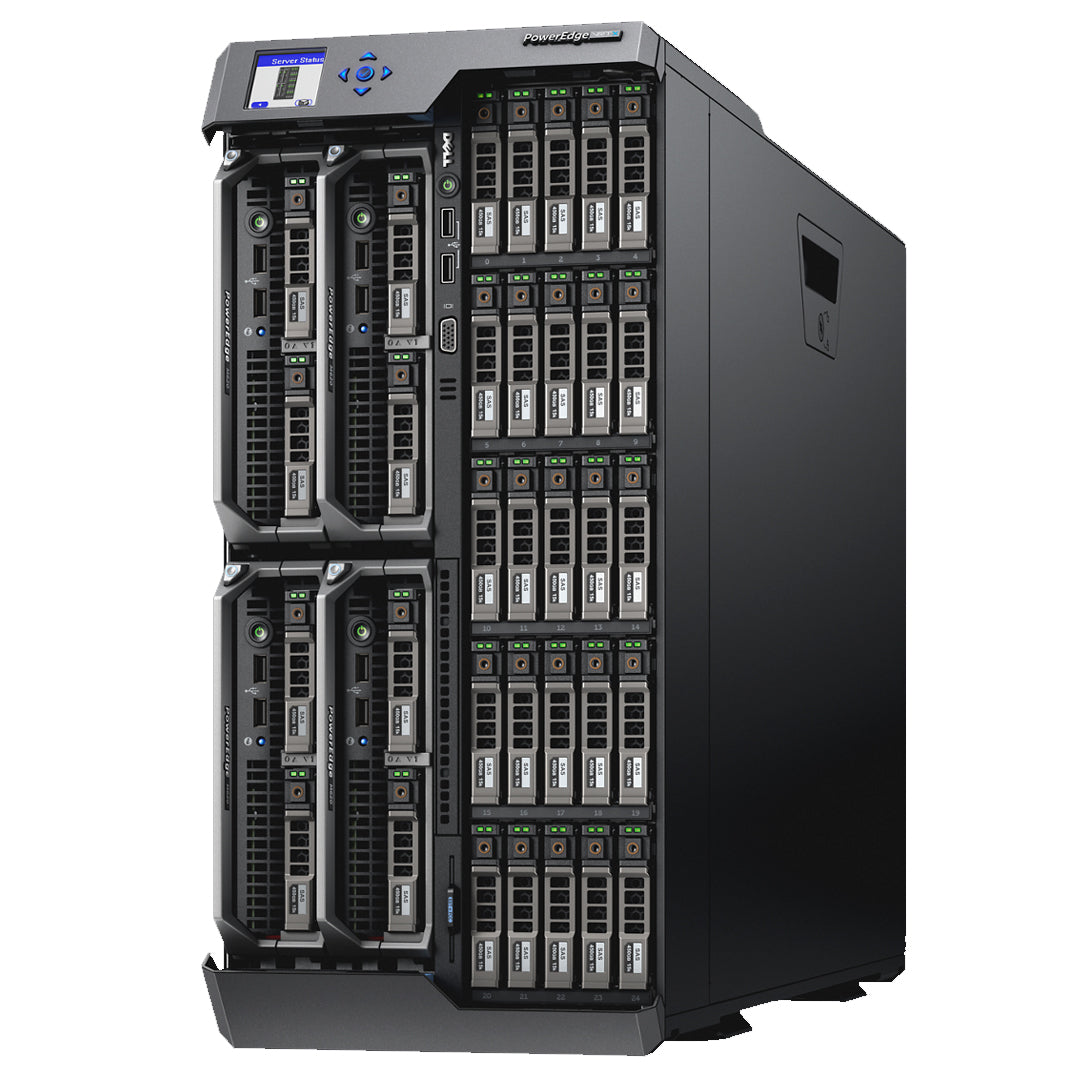

Dell EMC PowerEdge VRTX integrates servers, storage, networking and management into a single office-optimized chassis. Increase efficiency by eliminating disparate hardware and multiple management tools with the scalable and easy-tomanage VRTX platform.
The PowerEdge VRTX was designed for remote-office and small-office environments with ”under your desk” dimensions and quiet acoustics. The PowerEdge VRTX is built on a scalable business architecture so you can continually optimize your capacity and performance with future-proof compute, storage and networking options within a single chassis.
Every PowerEdge server is made with a cyber-resilient architecture, delivering security into all parts of a server’s life cycle. Dell EMC considers each part of system security, from design to end of life, to ensure trust and deliver worry-free systems.
Dell EMC Chassis Management Controller (CMC) lets you manage server nodes, shared storage, networking and power in a single console. Access CMC through an easy-to-use web interface that works with a variety of Dell EMC OpenManage tools including iDRAC with Lifecycle Controller. Choose to manage your VRTX with embedded agent-free management or inband.
| Feature | PowerEdge VRTX Technical Specifications |
|---|---|
| Chassis enclosure | Form factors:
Rack configuration:
|
| Server node options | PowerEdge M640, M630 and M830 server nodes |
| Power supplies | Redundant power supply units support 2+2 (AC redundancy) and 3+1 (power supply redundancy) modes
|
| Cooling | PowerEdge VRTX comes standard with 6 hot-pluggable, redundant fan modules and 4 blower modules based on Dell Energy Smart Technologies. The fans and blowers deliver low-power consumption, but also use next-generation fan technologies to ensure the lowest possible amount of fresh air is consumed to cool the enclosure. |
| Input devices | Front control panel with interactive graphical LCD that supports initial configuration wizard. It also supports local server blade, enclosure and module information and troubleshooting. Two USB keyboard/mouse connections and one video connection for local front “crash cart” console connections, optional DVD RW available. |
| RAID controller | Single shared PERC8 Optional second redundant shared PERC8 available |

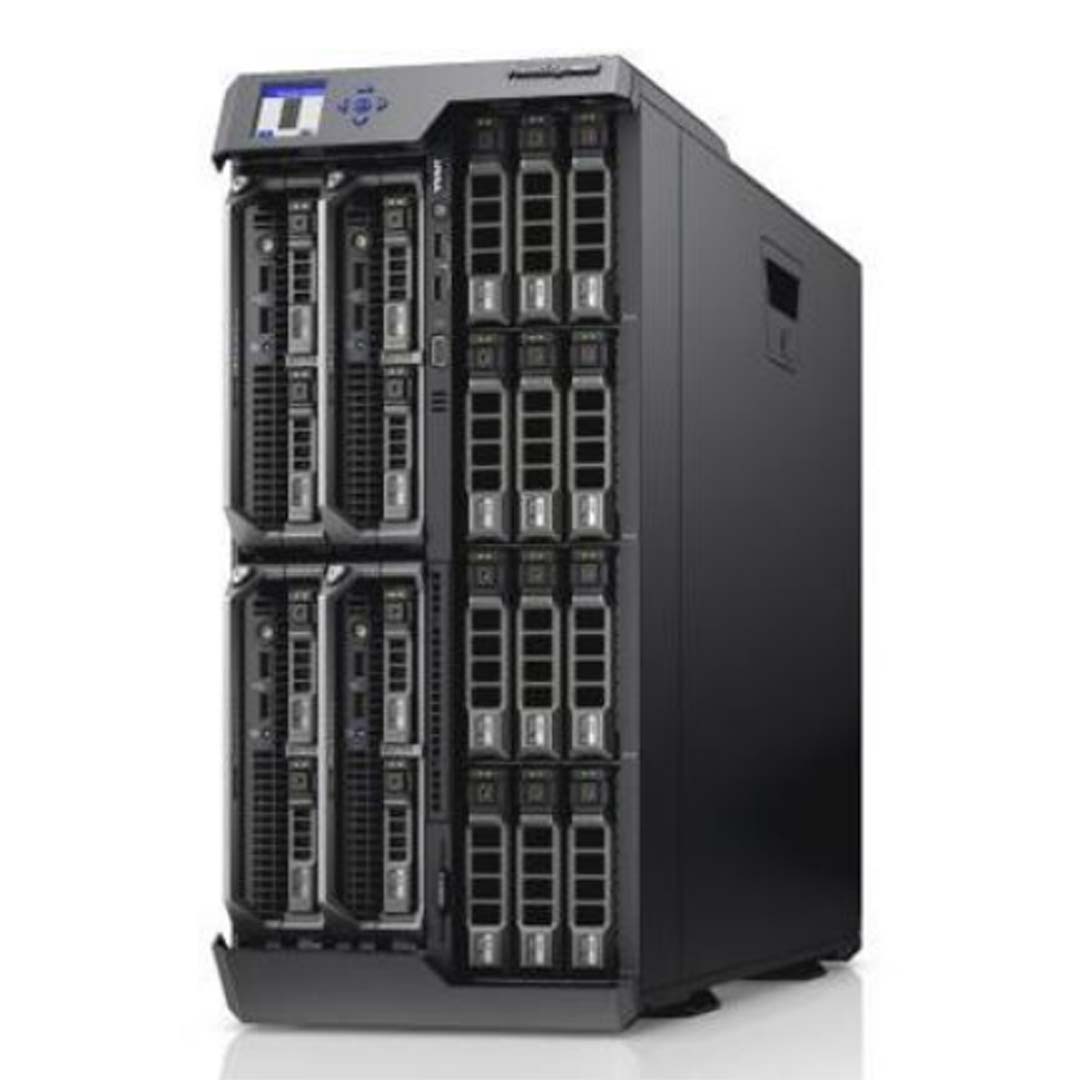

| Drive bays and hard drives | Up to 12 x 3.5” NLSAS, SAS or SAS SSD hot-plug drives Up to 25 x 2.5” NLSAS, SAS or SAS SSD hot-plug drives Optional FIPS 140-2 certified self-encrypting drives (SED), up to 25 x 2.5 NLSAS, SAS or SAS SSD |
| JBOD expansion options | Chassis storage can be expanded even further by connecting up to four MD1200 (12 x 3.5” drives) or MD1220 (24 x 2.5” drives) disk arrays |
| GPU | Up to 2 single-wide actively cooled GPU accelerators (NVIDIA Quadro P4000) |
| Integrated networking – ethernet |
|
| I/O slots | 8 flexible PCIe slots:
|
| Systems management |
|
| Rack support | ReadyRails™ II sliding rails for 4-post racks with square, round or threaded holes |
 Spec Sheet | Technical Guide |
