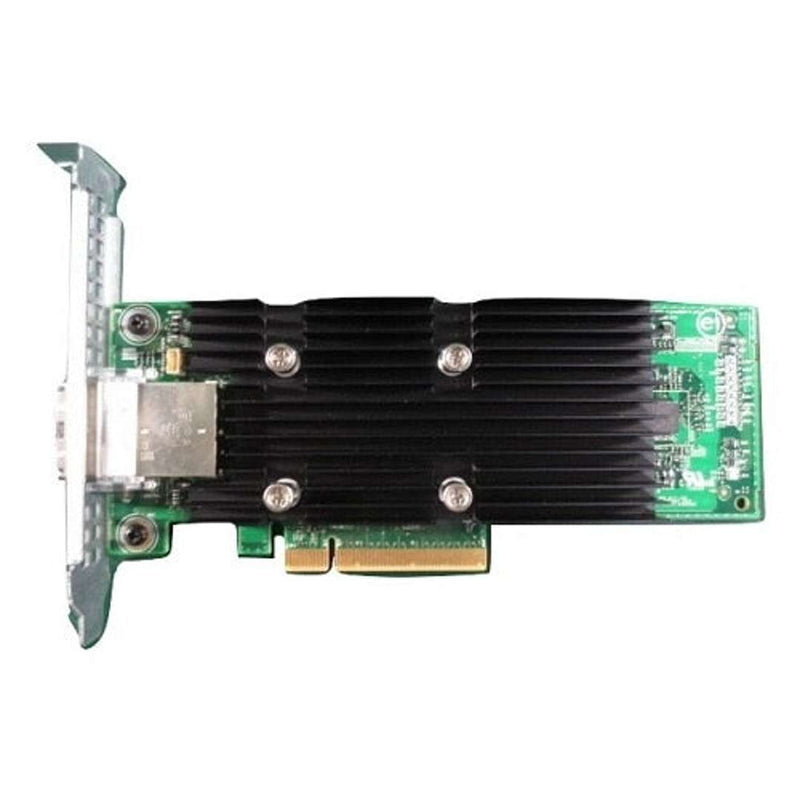

Dell 12Gb SAS HBA (Non-RAID) x8 PCIe FH External Controller | 6PDH5

Price: $375.00

Brand:
MPN:
6PDH5
Type:
Storage Controllers
Condition:
ECS Refurbished & Tested

Total:- $375.00


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Dell 12Gb SAS HBA (Non-RAID) x8 PCIe FH External Controller

Quick Specs

Models Drive Types

12 Gb/s SAS

PCI Support

PCI-e 3.0

SAS Connectors

2x4 External

Cache Memory

No Cache

Write Back Cache

No Cache

RAID Levels

No RAID Pass-Thru Only

Max Drive Support

255

RAID Support

No RAID Pass-Thru Only

Part Numbers:

  • 6PDH5

The 12Gbps Sas Host Bus Adapter offers exceptional Performance And Advanced Management Functionality That Can Shave Days Off Installing And Managing Adapters. It Is Coupled With Up To 3X Better Iops Performance Per Watt, Which Makes Dell 12Gbps Host Bus Adapters The Clear Choice For The Toughest Virtualized, Cloud And Mission Critical Deployments.

The Card provides the connection needed to add the Storage Array to a compute Server. This will give that Server a 12Gb/s connection to connect the Storage arrays to the Compute Server.
This does not get installed into the Storage Array or Storage Enclosure.

Product Specs

Compare Storage Controllers

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H830 Adapter 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 255 Hardware
H730P Adapter FH - X4TTX 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P Adapter LP - J14DC
H730P Adapter No Bracket - C9Y6K
H730P MX 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA
PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 - Hardware
H730P Mini Mono 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P Mini Blade - 3X31R 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External 2 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730P Mini Blade - GD07N
H730P Mini Blade - YRPP6
H730 Adapter FH 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730 Adapter LP
H730 Adapter No Bracket
H730 Mini Mono 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H730 Mini Blade 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 1x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H330 Adapter FH 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External No Cache No Cache 0,1,5,10,50 16 RAID, 32 Non-RAID Hardware
H330 Adapter LP
H330 Mini Mono 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External No Cache No Cache 0,1,5,10,50 16 RAID, 32 Non-RAID Hardware
H330 Mini Blade 12 Gb/s SAS
6 Gb/s SATA
PCI-e 3.0 2x4 External No Cache No Cache 0,1,5,10,50 8 Hardware
S130 Software RAID 6 Gb/s SATA N/A N/A No Cache No Cache 0,1,5,10 10 Software - Windows and Linux
12 Gbps SAS Ext. HBA FH 12 Gb/s SAS PCI-e 3.0 2x4 External No Cache No Cache No RAID Pass-Thru Only 255 No RAID Pass-Thru Only
12 Gbps SAS Ext. HBA LP
More HBA Gen 9 Controllers
  FD33XD
Dual HBA
(Split Host)
FD33XD
Dual HBA
(Dual Host)
FD33XD
Dual PERC
(Split Host)
FD33XD
Dual PERC
(Dual Host)
FD33XS
Single HBA
(Joined Mode)
FD33XS
Single PERC
(Joined Mode)
HBA330 + 12Gb SAS
HBA
HBA330 MX
12Gb SAS
Non-RAID
