NetApp All Flash Filer (AFF) C190 UTA2 Single Chassis HA Pair Filer Head (AFF-C190A-UTA2)

Brand:
MPN:
AFF-C190A-UTA2
Type:
Flash Filer Head
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

NetApp All Flash Filer (AFF) C190 Entry-Level Storage

Organizations large and small are navigating at a rapid pace of change in a data-driven economy. Delivering data simply, quickly, and cost-effectively is essential to driving business growth, and hybrid cloud has emerged as the most efficient way to meet changing business needs. Every IT organization is trying to determine how to modernize with hybrid cloud, and all-flash storage systems are critical on premises to speed up enterprise applications. However, small enterprises have continued to use hard disk storage systems because of the high cost of all-flash solutions.

All-flash storage systems are no longer out of reach. The NetApp® AFF C190 storage system powered by NetApp ONTAP® data management software, offers a simple, smart, and secure enterprise-class flash system for an affordable price. Designed for IT generalists, it helps you meet new business requirements with a modern all-flash array that provides comprehensive data services, integrated data protection, seamless scalability, new levels of performance, and cloud integration.

One system to rule every workload All-flash storage systems are critical for speeding up enterprise applications and creating a modern hybrid cloud infrastructure. They provide comprehensive data services, integrated data protection, seamless scalability, new levels of performance, and cloud integration. That said, the high cost of all-flash systems forces most small enterprises to stick with hard disk storage. Or at least it used to. With NetApp’s AFF C190 entry-level storage system, the benefits of all-flash are no longer out of reach. Not only is it easy to install and deploy, it provides the security you need with the flexibility to connect to cloud—all at a lovely little price.

Key benefits Simple
  • Provision storage in minutes.
  • Manage file and block data on a single system.
  • Effortlessly connect to any public cloud.

Smart
  • Lower TCO with data reduction.
  • Accelerate application performance and improve response time.
  • Optimize availability and performance.

Secure
  • Safeguard your data.
  • Protect your data at rest and in transit.
  • Never lose data with zero-data-loss protection.

NetApp All Flash Filer (AFF) C190 Entry-Level Storage Array Specifications
Controllers Active-Active Dual Controller
2U Chassis
Capacity Up to 24 960GB SSDs, 50TB Total
Connectivity 4 ports—12Gb/6Gb SAS
1GbE management port, USB port
8 ports—FC target (16Gb)
8 ports—FCoE target, UTA2
12 ports—10GbE ports, UTA2
12 ports—10GBASE-T
Operating System ONTAP 9.6 GA or later
Protocols FC, FCoE, iSCSI, NFS, pNFS, SMB

Product Information for NetApp AFF-C190A-UTA2

Storage Limits

Max # of Drives (Total) Max # of Internal Drives Max # of MSATA Drives Max # of NL-SAS Drives Max # of SAS Drives Max # of SATA Drives Max # of NVMe SSD Drives Max # of SSD Drives Max # of DS212C Shelves Max # of DS2246 Shelves Max # of DS224C Shelves Max # of DS4243 Shelves Max # of DS4246 Shelves Max # of DS4486 Shelves Max # of DS460C Shelves Max # of FS424C Shelves Max # of NS224 Shelves
24 24 - - - - - 24 - - 1 internal + 0 external - - - - - -

Capacity Limits

Marketing Max Raw Capacity - Node HA Pair Cluster Effective Capacity - Node HA Pair Cluster
23040 23040 - 102263.04 102263.04 -

Core Cluster Limits

Max SVM's - NAS Max LIF's - NAS Max Connections - NAS Max Flexible Volumes - NAS Max Flexible Volumes with DPO - NAS Max Lock Manager Locked Objects Max Intercluster LIFs - Node Min Root Aggregate (MiB) - Node Min Root Aggregate (with core dump device) (MiB) Min Root Volume (GiB) - Node Min Root Volume (with core dump device) (GiB) Max IPsec Policies Max # of IPspaces Max Auditing-Enabled SVMs - Cluster
Node:-
HA Pair:-
Cluster:512
Node:512
HA Pair:512
Cluster:3072
Node:100000
HA Pair(Non-Scalable):100000
Aggregate (Single data Agg. per Node):-
Aggregate (Multiple data Agg. per Node):-
Node:1000
HA Pair:2000
Cluster:15000
Node:1500
HA Pair:3000
Cluster:12000
Node:1200000
HA Pair:1200000
Cluster:12288000
8 191488 - 150 - SVM:256
Cluster:1500
- 50

System Maximums and Limits

Max Nodes per Cluster (NAS / SAN) Max FabricPool Size Max FlexGroup Data Constituent Size Max Infinite Volume Data Constituent Size Min Root Volume Size NetApp Volume Encryption
24 / 12 16800 TiB 100 TiB Not Supported 150 GiB [1] Supported

Processor

Processor Model Processor Architecture Processor Speed Processor Count (Per Node) Processor Count (Per Config) Processor Cores (Per CPU) Processor Cores (Per Node) Processor Cores (Per Config)
64-bit 8-core 1.50 Ghz 64 bit 1.50 Ghz 1 2 8 8 16

Memory

NVRAM (Per Node) NVRAM (Per Config) NVME (Per Node) NVME (Per Config) NVMEM (Per Node) NVMEM (Per Config) RAM (Per Node) RAM (Per Config)
- - - - 4 GB 8 GB 32 GB 64 GB

Onboard Ports

Ethernet Ports Fibre Channel Ports UTA2 Ports Expansion Slots SAS Ports
4 x SFP+ (10Gb) - 8 x SFP+ (16Gb) - 4 x MiniSAS HD (12Gb)

Physical Characteristics

Rack Units Chassis Height Chassis Width with Mounting Flanges Chassis Width without Mounting Flanges Chassis Depth with Cable Mgmt Chassis Depth without Cable Mgmt Chassis Weight
2 3.35" (8.5 cm) 18.9" (48 cm) 17.6" (44.7 cm) 24.13" (61.3 cm) 19.02" (48.3 cm) See Weights by configuration

System Clearance Dimensions

Front Clearance (Cooling) Front Clearance (Maintenance) Rear Clearance (Cooling) Rear Clearance (Maintenance)
6.03" (15.3 cm) 24.03" (61 cm) 6.03" (15.3 cm) 13" (33 cm)

Environmental Requirements

Operating Storage Transit Acoustic Noise Input Power Voltage
Tempature:
41 to 113 deg F - 5 to 45 deg C

Humidity:
8 to 90 %

Altitude:
Up to 10000.0 ft - Up to 3048.0 m
Tempature:
-40 to 158 deg F - -40 to 70 deg C

Humidity:
10 to 95 %

Altitude:
Up to 40000.0 ft - Up to 12192.0 m
Tempature:
-40 to 158 deg F - -40 to 70 deg C

Humidity:
10 to 95 %

Altitude:
Up to 39989.8 ft - Up to 12192 m
Sound Power:
6.9 bels

Sound Pressure:
51 dBA
100 to 120 200 to 240

Storage OS Requirements

Full OS Matrix Recommended Version Minimum OS Maximum OS
View Full OS Report Below 9.11.1, 9.11.1P1 9.11.1RC1 9.11.1P1

Storage and Firmware

Full Firmware Matrix BIOS BMC
Full Firmware Report Below 11.15* 11.8*

Product Standards Compliance

Full Compliance and Certificates Report Cert. EMC/EMI Cert. Safety Cert. Safety/EMC/EMI Cert. Safety/EMC/EMI/RoHS Standard Safety/EMC/EMI Standard Safety
Compliance and Certificates Report Below AMCA, FCC, ICES, KC, Morocco, VCCI BIS, CB, CSA, G_K_U-SoR, IRAM, NOM, NRCS, SONCAP, TBS EAC, UKRSEPRO BSMI, CE DoC, UKCA DoC BS-EN-55024, BS-EN55035, CISPR 32, EN55022, EN55024, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC Part 15 Class A, IC  more... ANSI/UL60950-1, ANSI/UL62368-1, BS-EN62368-1, CAN/CSA C22.2 No. 60950-1, CAN/CSA C22.2 No. 62368-1, CNS 14336, EN60825-1  more...

NFS Cluster Limits

Max Export Policies - Cluster Max Export Rules - Cluster Max NFSv4 Access Control Entries Max Client Objects Max pNFS objects
24000 200000 1024 Node:10000
HA Pair:10000
Node:524288
HA Pair:524288
Cluster:1048576

WAFL Cluster Limits - All Maximums

Size 64-bit Aggregate (TiB) Size 64-bit Volume (TiB) File size 64-bit Volume (TiB) Volume Snapshot Copies Character length for Snapshot copy names Hard links - File inodes/files - Volume Number of qtrees Concurrent DataMotion for Volumes ops
50 100 16 Volume:1023
Node:1023000
HA Pair:2046000
255 100000 2000000000 Volume:4995
Node:100000
HA Pair:200000
Cluster:400000
Node:16
HA Pair:16

Quality of Service Cluster Limits

Max Policy Groups - Cluster Max QoS User Workloads - Cluster
12000 40000

SAN Cluster Limits - All Maximums

# of storage virtual machines (SVMs) - SAN # of flexible volumes - SAN # of Flexible Vol with DPO - # of LUNs LUN mappings LUN size (TiB) - LUN FC queue depth available # of SAN Hosts (ITNs) # of LIFS - iSCSI # of LIFS - FCP # of igroups # of Initiators # of Portsets # of iSCSI sessions
Node:125
HA Pair:250
Cluster:1000
Single data Aggregate:-
Multiple data Aggregates:-
Node:1000
HA Pair:2000
Cluster:12000
Node:1500
HA Pair:3000
Cluster:12000
Valume:1024
Node:8192
HA Pair:16384
Cluster:65536
Node:8192
HA Pair:16384
Cluster:65536
16 2048 Port:512
Node:4096
HA Pair:8192
Cluster:32768
Port:32
Portset:32
Node:512
HA Pair:1024
Cluster:4096
Port:32
Portset:32
Node:512
HA Pair:1024
Cluster:4096
Node:2048
HA Pair:4096
Cluster:16384
igroup:256
Node:2048
HA Pair:4096
Cluster:16384
Node:2048
HA Pair:4096
Cluster:16384
Node:4096
HA Pair:8192
Cluster:32768

CIFS Cluster Limits - All Maximums

# of Connected Shares # of Regular Shares # of Open files # of Local users - Cluster # of Local groups - Cluster # of Local group members - Cluster
Node:800000
HA Pair:800000
Node:-
HA Pair:-
Cluster:60000
Connection:65536
Node:600000
HA Pair:600000
5000 10000 30000

Data Protection Cluster Limits - All Maximums

NDMP Sessions Data Protection Mirrors Load Sharing Mirrors - NAS SVM Concurrent Snap Mirror / SnapVault transfers - Node DP Mirror fan-out - Volume LS Mirror fan-out - NAS SVM # of Clusters that can be peered - Cluster Volumes, SnapMirror relationship SnapMirror Synchronous relationships # of Consistency Groups in SM-BC relationships # of Constituent Volumes in SM-BC relationships Flexible Volumes in SVM DR SVM Disaster recovery - Cluster # of Concurrent SVM Migration - Cluster # of Volumes with SVM Migration - SVM # of Cluster for SVM Migration - Cluster
Node:36
HA Pair (Non-Scalable):36
Volume:1
Node:1000
HA Pair:2000
Cluster:15000
2 100 8 2 255 FlexGroup:200
FlexGroup-Node:50
HA Pair:1000
Cluster:6000
Volume:1
Node:400
HA Pair (Non-Scalable):400
HA Pair (Non-Scalable):50 Consistency group:16
HA Pair (Non-Scalable):400
SVM:300
HA Pair:1000
128 1 100 6

NVMe/oF Cluster Limits - All Maximums

# of Storage virtual machines (SVMs), NVMe/oF - Cluster # of Flexible volumes, NVMe/oF # of Flexible volumes with DPO, NVMe/oF # of Namespaces # of Subsystems # of Namespace Mappings Namespace Size I/O queue depth available - NVMe/FC - Queue I/O queue count available - NVMe/FC - Controller Hosts - Subsystem LIFS, NVMe/oF # of Controllers - NVMe/FC - Port I/O Queue Count, NVMe/TCP - Controller I/O Queue Depth - NVMe/TCP Controllers, NVMe/TCP - Node
32 Node:1000
HA Pair:2000
Cluster:12000
Node:1500
HA Pair:3000
Cluster:12000
Volume:1024
Node:8192
HA Pair:16384
Cluster:65536
Node:512
Node:512
Subsystem:1024
Node:8192
HA Pair:16384
Cluster:65536
16 - - 64 Port:16
SVM:8
Node:32
HA Pair:32
Cluster:32
- 2 128 1024

FlexCache Cluster Limits - All Maximums Cache

Degree of fan-out - Origin Origin Volumes Constituent Volumes Volumes Origin ConstituentVolumes
100 Node:100
HA Pair:200
Node:800
HA Pair:1600
Node:100
HA Pair:200
Node:800
HA Pair:1600

S3 Cluster Limits -

Max # of Buckets Max # of Objects - Bucket Max # of Users Max Size of the Bucket (PB) - Vserver
Vserver:12000
Cluster:12000
400000000000 Vserver:4000
Cluster:96000
20

Consistency Groups - All Maximums

Number of Consistency Groups - Cluster Consistency Groups and Parents Consistency Groups - Cluster Number of Parent Consistency Groups - Cluster Child Consistency Groups in a Parent Consistency Groups - Parent Group Flexible Volumes in a Consistency Group Flexible Volumes for Child Consistency Groups under a Parent Group Flexible Volumes in a Child Consistency Group
15000 15000 15000 5 80 80 80

Flex Array Specifications

Third Party Array Compatibility Array LUN Absolute Min Raw Capacity Array LUN Block Size Default Array LUN RAID Group Size Array LUN Max RAID Groups Per Aggregate Max Array LUN Size Max Array LUN Raid Group Size Min Array LUN Size Min Array LUN Root Vol Size Min Array LUN RAID Group Size Min Array LUN Aggregate Size Array LUN neighborhood Visible Assigned Devices Array LUN Recommended Min RAW Capacity Spare Core Array LUN Min Size
- - - - - - - - - - - - - -

Footnotes -

Notes ID Notes Description
[1] The root volume and aggregate on this system are significantly smaller than on previous generation systems. Core dump files that used to be written to the root volume are now written to the controller’s boot media, instead.
Product Specs for NetApp AFF-C190A-UTA2

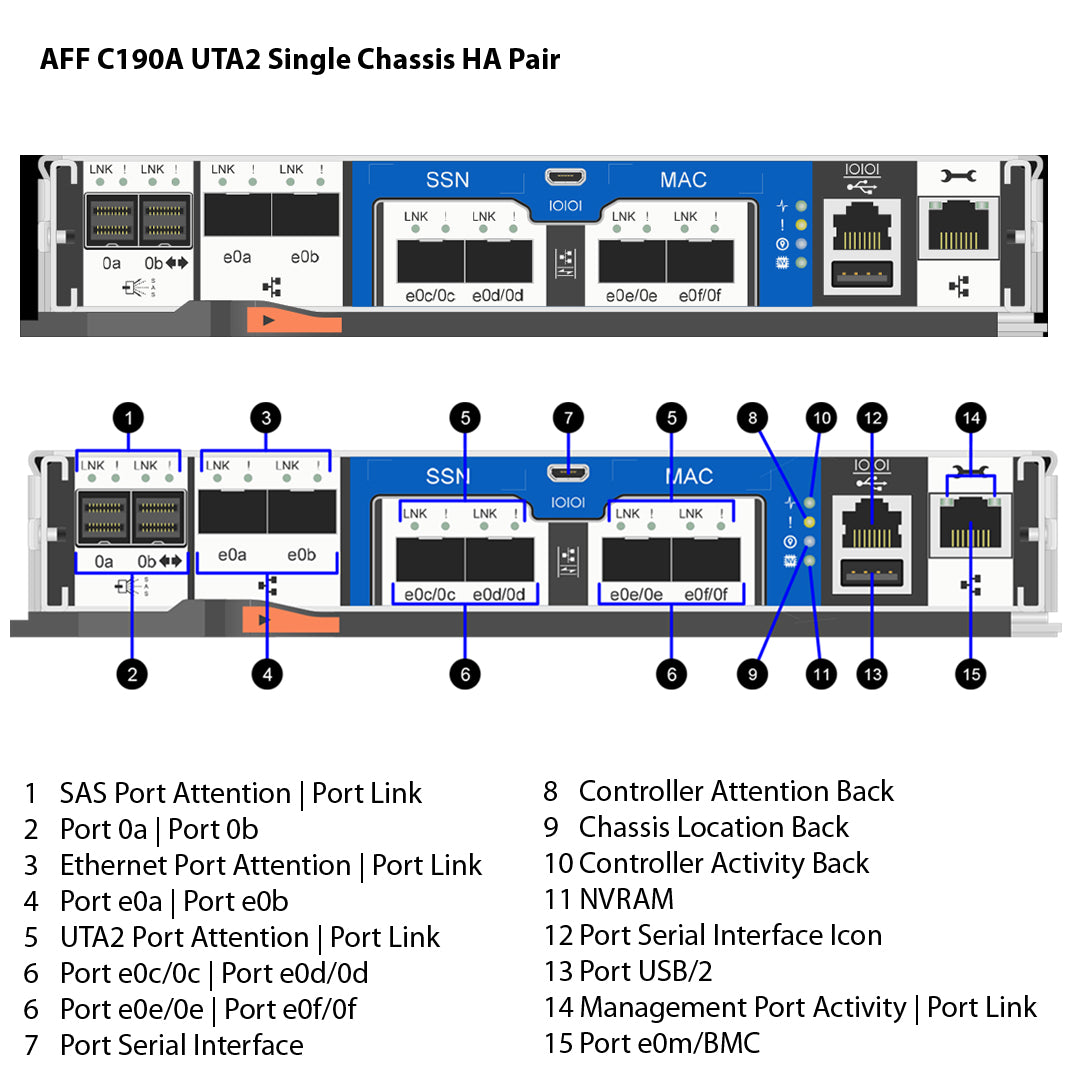

Platform LED for AFF C190 UTA2 Single Chassis HA Pair

LED Label LED Name Type Status Indicator Description
1 Chassis Power Config - On Green At least one of the two PSUs is delivering power to the system.
- - - Off Neither PSU is delivering power to the system.
2 Chassis Attention LED, front - On Amber The system halted or a fault occurred in the chassis.
- - - Off The system is operating normally.
3 Location LED on chassis front - On or flashing blue The LED has been manually activated to aid in physically locating equipment
- - - Off The LED has not been manually activated to aid in physically locating equipment

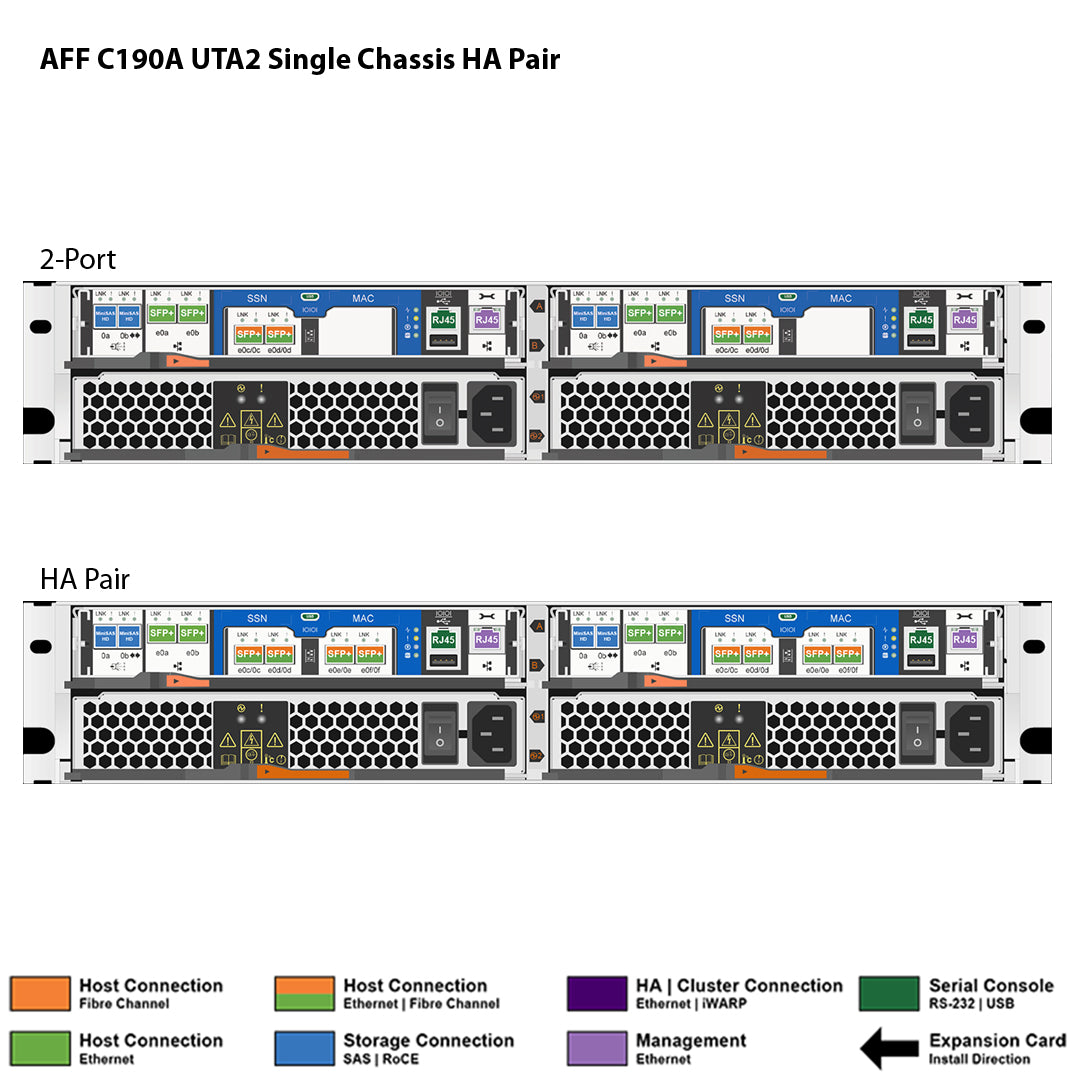

Back View
0a Port SAS 2 LED Onboard Config Attention Yellow SAS link requires attention
- - - Off SAS link operates as normal
- - Link Green Link is established on at least one external SAS lane
- - - Off No link is established on any external SAS lane
0a Port SAS Onboard Config Link Green Link is established on at least one external SAS lane
- - - Off No link is established on any external SAS lane
0b Port SAS 2 LED Onboard Config Attention Yellow SAS link requires attention
- - - Off SAS link operates as normal
- - Link Green Link is established on at least one external SAS lane
- - - Off No link is established on any external SAS lane
e0a Port Ethernet SFP Config Attention Yellow Ethernet Port requires attention.
- - - Off Ethernet port operates as normal
- - Link Green A connection is established to the port.
- - - Off No connection is established on the port.
e0b Port Ethernet SFP Config Attention Yellow Ethernet Port requires attention.
- - - Off Ethernet port operates as normal
- - Link Green A connection is established to the port.
- - - Off No connection is established on the port.
e0c/0c Port UTA2 Config (Ethernet personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0c/0c Port UTA2 Config (FC personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0d/0d Port UTA2 Config (Ethernet personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0d/0d Port UTA2 Config (FC personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0e/0e Port UTA2 Config (Ethernet personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0e/0e Port UTA2 Config (FC personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0f/0f Port UTA2 Config (Ethernet personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0f/0f Port UTA2 Config (FC personality) Attention Off Port is operating as normal
- - Link Green A connection is established to the port.
- - - Yellow Port requires attention
- - - Off No connection is established on the port.
e0m/BMC Port Remote Management Config - Blinking amber Traffic is flowing over the connection.
- - - Green A link is established between the port and some upstream device.
- - - Off No link is established.

Supported Shelves Drives for AFF C190 UTA2 Single Chassis HA Pair

Part No.Capacity RPM Drive Type Encryption Root-Data Partitioning Root-Data-Data Partitioning Storage Pool Partitioning Max Drive Count FlexArray
AFF C190A UTA2 Internal Drives
X371A 960GB 50K SSD No No Yes No 24 No
X382A 960GB 50K SSD No No Yes No 24 No

Supported RAID Configurations - AFF C190 UTA2 Single Chassis HA Pair

Drive Type Drive Capacity Min Drive Capacity Max Minimum Default Maximum
Data Aggregate
RAID4
SSD 0 TB 0.96 TB 3 8 14
RAID-DP
SSD 0 TB 0.96 TB 5 24 24
RAID-TEC
SSD 0 TB 0.96 TB 7 24 24
Root Aggregate
RAID-DP
SSD 0 TB 0.96 TB 3[1] - 24
RAID-TEC
SSD 0 TB 0.96 TB 7 - 24
Footnote:
[1] The minimum number of disks in a RAID-DP group is three: at least one data disk, one regular parity disk, and one double-parity (dParity) disk. However, for non-root aggregates with only one RAID group, you must have at least 5 disks (three data disks and two parity disks).

Supported Adapter Cards - AFF C190 UTA2 Single Chassis HA Pair

Priority Category Bus Type Mktg Part No. Mfg Part No Description Plug Type Optical Module Included? Cables Supported Protocol(s) Min ONTAP Max Qty [1] Priority Slot Assignment
1 No Supported Cards - - - - - - - - - -

Supported Connections for AFF C190 UTA2 Single Chassis HA Pair

Configuration Type Port Configuration Image Cluster Ports per Node Switch Ports per Node
Cluster Interconnect
2-node Switchless Cluster (option 1) Default View Image 2 None
2-node Switchless Cluster (option 2) UTA2 ports e0c/e0d View Image 2 None
2-node Switchless Cluster (option 3) UTA2 ports e0e/e0f View Image 2 None

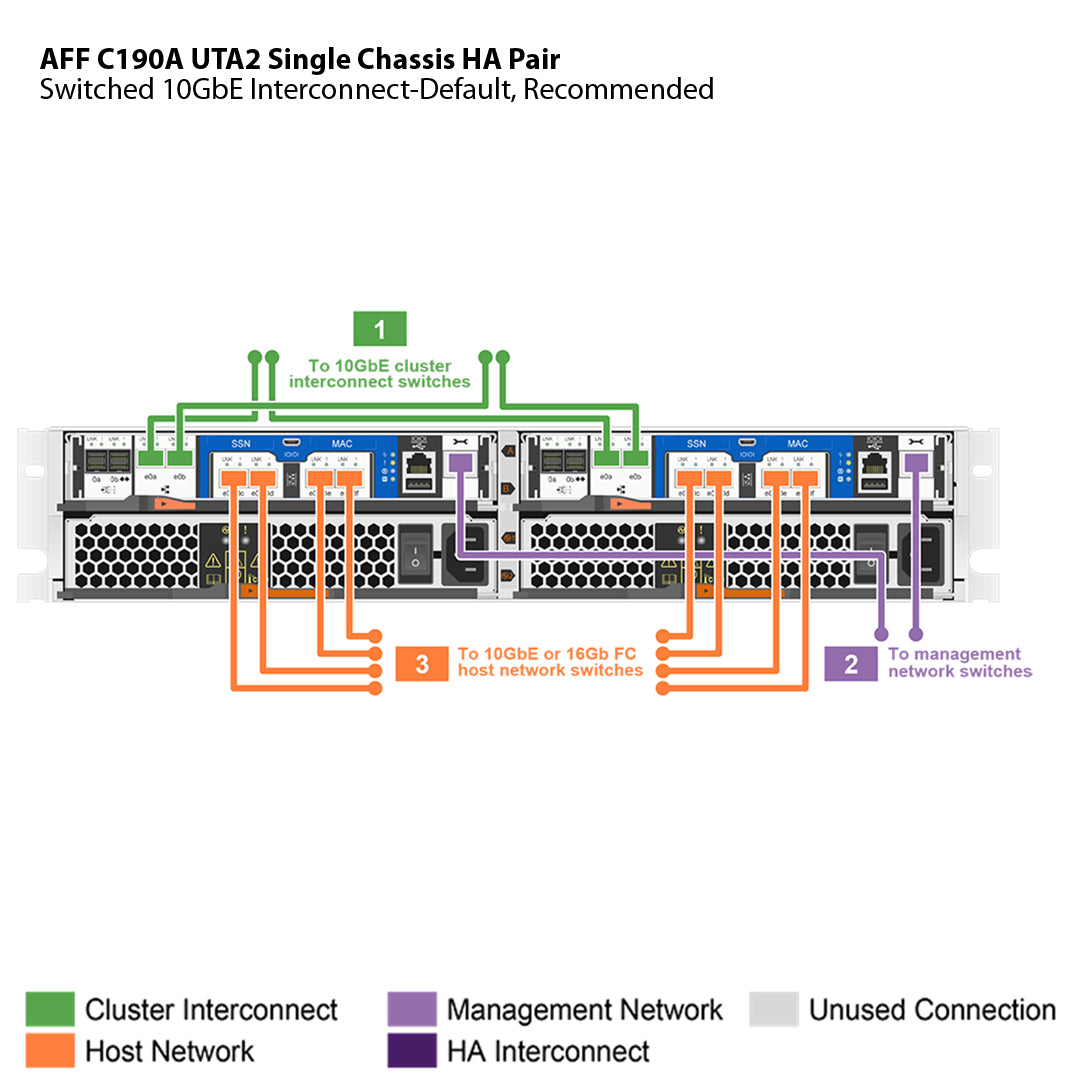

Switched 10GbE Interconnect Default, Recommended View Image 2 2

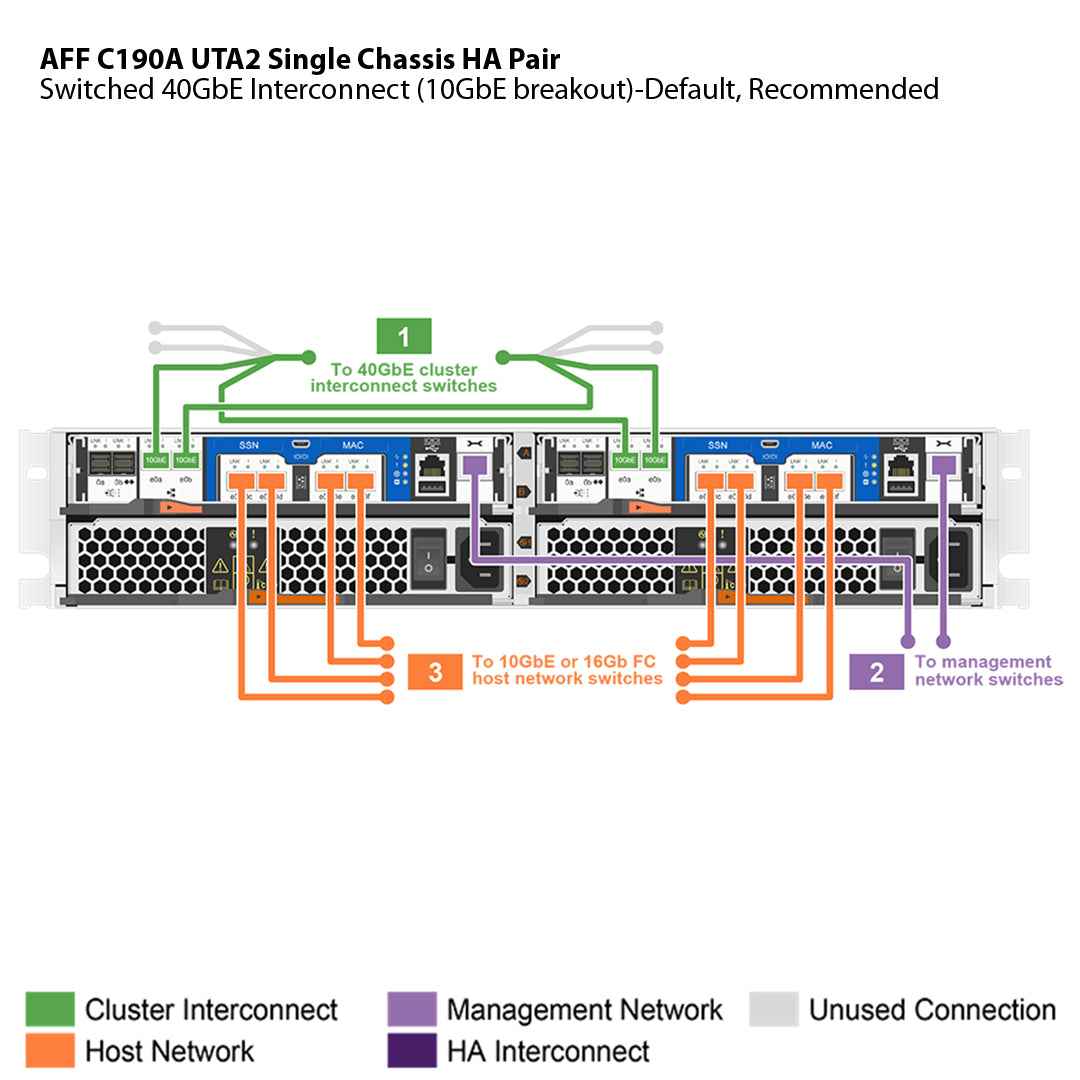

Switched 40GbE Interconnect (10GbE breakout) Default, Recommended View Image 2 1

Platform Mixing Rules: AFF C190 UTA2 Single Chassis HA Pair

Platform Configuration Type Maximum Nodes (NAS) [1] Maximum Nodes (SAN) [1] Min ONTAP Version for Platform Mixing
FAS - Current Configuration(s)
FAS2720A 10GBASE-T 24 Nodes 12 Nodes 9.6RC2
FAS2720A UTA2 24 Nodes 12 Nodes 9.6RC2
FAS2750A 10GBASE-T 24 Nodes 12 Nodes 9.6RC2
FAS2750A UTA2 24 Nodes 12 Nodes 9.6RC2
FAS500fA 24 Nodes 12 Nodes 9.8RC1
FAS8300A Ethernet Bundle 24 Nodes 12 Nodes 9.7RC1
FAS8300A FC Bundle 24 Nodes 12 Nodes 9.7RC1
FAS8700A Ethernet Bundle 24 Nodes 12 Nodes 9.7RC1
FAS8700A FC Bundle 24 Nodes 12 Nodes 9.7RC1
FAS9000A 24 Nodes 12 Nodes 9.6RC2
FAS9500A 24 Nodes 12 Nodes 9.10.1P3
AllFlashFAS - Current Configuration(s)
AFF A250A 24 Nodes 12 Nodes 9.8RC1
AFF A250A 100V 24 Nodes 12 Nodes 9.8P4
AFF A400A Ethernet Bundle 24 Nodes 12 Nodes 9.7RC1
AFF A400A FC Bundle 24 Nodes 12 Nodes 9.7RC1
AFF A700A 24 Nodes 12 Nodes 9.6RC2
AFF A800A 24 Nodes 12 Nodes 9.6RC2
AFF A900A 24 Nodes 12 Nodes 9.10.1
AFF C190A 10GBASE-T 24 Nodes 12 Nodes 9.6RC2
AFF C190A UTA2 24 Nodes 12 Nodes 9.6RC2
FAS - Legacy EOA Configuration(s)
FAS8200A 24 Nodes 12 Nodes 9.6RC2
AllFlashFAS - Legacy EOA Configuration(s)
AFF A220A UTA2 24 Nodes 12 Nodes 9.6RC2
AFF A300A 24 Nodes 12 Nodes 9.6RC2
AFF A320A 24 Nodes 12 Nodes 9.6RC2
AFF A700s 24 Nodes 12 Nodes 9.6RC2
Footnote:
[1] Maximum number of nodes within a cluster is determined by platform which supports the fewest number of nodes

Product Standard Compliance - AFF C190 UTA2 Single Chassis HA Pair

Standard Description
Certifications EMC/EMI
AMCA Australia and New Zealand (EMC covered by ACMA DoC)
FCC Federal Communications Commission (EMI Declaration of Conformity covering United States and Canada)
ICES ICES
KC Korea Communications Commission (EMC certificate for South Korea)
Morocco Morocco Declaration of Conformity
VCCI EMI Certificate for Japan
Certifications safety
BIS Bureau of Indian Standard (Safety cert for India)
CB Certificate Body issued safety certificate covering International
CSA Canadian Standards Association issued Safety certificate covering North America
G_K_U-SoR Safety certificate for Gabon, Kenya and Uganda
IRAM Instituto Argentino de Normalización y Certificación (safety certificate for Argentina)
NOM Norma Oficial Mexicana (Safety cert for Mexico)
NRCS National Regulator for Compulsory Specifications (Safety cert for South Africa)
SONCAP Standards Organisation of Nigeria Conformity Assessment Programme (Safety cert for Nigeria)
TBS Tanzanian Bureau of Standards (Safety certificate for Tanzania)
Certifications Safety/EMC/EMI
EAC Euro Asia Conformity (EMC and Safety Cert) covering (Russia, Kazakhstan, Belarus, Armenia, Kyrgyzstan Countries)
UKRSEPRO EMC/Safety certificate for Ukraine
Certifications Safety/EMC/EMI/RoHS
BSMI Certificate for Taiwan
CE DoC European Union Declaration of Conformity
UKCA DoC UK Declaration of Conformity
Standards EMC/EMI
BS-EN-55024 EMC standard for Great Britain
BS-EN55035 EMC standard for Great Britain
CISPR 32 EMI
EN55022 EMC Standard fo European Union
EN55024 EMC Standard fo European Union
EN55032 EMI Standard fo European Union
EN55035 EMC Standard for European Union
EN61000-3-2 EMC Standard for European Union
EN61000-3-3 EMC Standard for European Union
FCC Part 15 Class A EMI standard for United States
ICES-003 EMI Standard for Canada
KS C 9832 EMI Standard for South Korea
KS C 9835 EMC Standard for South Korea
Standards Safety
ANSI/UL60950-1 Safety standard for United States
ANSI/UL62368-1 Safety standard for United States
BS-EN62368-1 Safety standard for Great Britain
CAN/CSA C22.2 No. 60950-1 Safety Standard for Canada
CAN/CSA C22.2 No. 62368-1 Safety Standard for Canada
CNS 14336 Safety Standard for Taiwan
EN60825-1 Laser Safety standard for European Union
EN62368-1 Safety standard for European Union
IEC 62368-1 Safety Standard for International
IEC60950-1 Safety standard for International
IS 13252(part 1) Safety Standard for India

Supported OS Version - AFF C190 UTA2 Single Chassis HA Pair

OS Major Version Supported OS Version Supported Milestones Recommend Version
Currently Supported OS
ONTAP 9.11.1 9.11.1P1, 9.11.1, 9.11.1RC1 End of Full Support: 31-Jul-2025
End of Limited Support: 31-Jul-2027
End of Self-Service Support: 31-Jul-2030
9.11.1P1, 9.11.1
ONTAP 9.10.1 9.10.1P5, 9.10.1P7, 9.10.1P6, 9.10.1P4, 9.10.1P3, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1 End of Full Support: 31-Jan-2025
End of Limited Support: 31-Jan-2027
End of Self-Service Support: 31-Jan-2030
9.10.1P7, 9.10.1P6
ONTAP 9.9.1 9.9.1P11, 9.9.1P10, 9.9.1P9, 9.9.1P8, 9.9.1P7, 9.9.1P6, 9.9.1P5, 9.9.1P4, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1 End of Full Support: 30-Jun-2024
End of Limited Support: 30-Jun-2026
End of Self-Service Support: 30-Jun-2029
9.9.1P11, 9.9.1P10, 9.9.1P9
ONTAP 9.8 9.8P13, 9.8P12, 9.8P11, 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1 End of Full Support: 31-Dec-2023
End of Limited Support: 31-Dec-2025
End of Self-Service Support: 31-Dec-2028
9.8P13, 9.8P12
ONTAP 9.7 9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 End of Full Support: 31-Jan-2023
End of Limited Support: 31-Jan-2025
End of Self-Service Support: 31-Jan-2028
9.7P19
EOS OS
ONTAP 9.7 9.7P19, 9.7P18, 9.7P17, 9.7P16, 9.7P15, 9.7P14, 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 End of Full Support: 31-Jan-2023
End of Limited Support: 31-Jan-2025
End of Self-Service Support: 31-Jan-2028
9.7P19
Definitions:
[1]End of Full Support: The date marking the end of Full Support for a particular feature version of a NetApp system software and the beginning of Limited Support. Abbreviated as EOES.
[2]End of Limited Support: The date marking the end of Limited Support for a particular feature version of a product and transition to Self-Service Support. Abbreviated as EOVS.
[3]End of Self-Service Support: NetApp does not provide support for a version of a software product, but related documentation is still available on the NetApp Support Site. NetApp customers are expected to utilize documentation to resolve issues.

Supported Power Cords for AFF C190 UTA2 Single Chassis HA Pair

Marketing Part No.End 1 / End 2LengthDescription
Non-Cabinet Power Cords
X-50617-00 IEC60320-C20 / IEC60320-C13 2.00 m Power Cords,In-Cabinet,2m,C20-C13,E-Series
X800B-R6 CEE 7/7 (Schuko) / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Cont Europe/Korea,10A/250V
X800C-R6 BS1363 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,UK/Ireland,10A/250V
X800D-R6 JIS-C-8303 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/125V
X800E-R6 NEMA 5-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/125V
X800F-R6 AS/NZS 3112 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Aus/NZ,10A/250V
X800G-R6 SEV 1011 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Switzerland,10A/250V
X800H-R6 IRAM 2073 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Argentina,10A/250V
X800I-R6 GB2099 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,China,10A/250V
X800J-R6 DHCR107-2-D1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Demark,10A/250V
X800K-R6 SANS 164-1 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,India/S.Africa,10A/250V
X800L-R6 SI32 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Israel,10A/250V
X800M-R6 CEI 23-16 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Italy,10A/250V
X800N EL208 / IEC60320-C13 2.50 m Pwr Cord,10A,250V,2.5m,India
X800P-R6 NEMA 6-15P / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,North America,15A/250V
X800T-R6 CNS 10917-3 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Taiwan,BSMI,15A/125V
X800VB-R6 NBR14136 / IEC60320-C13 2.50 m Pwr Cord,Non-Cabinet,Brazil,10A/250V
X800W-R6 CNS10917/CNS690 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Taiwan,10A/250V
X800Y-R6 JIS-C-830 / IEC60320-C13 1.83 m Pwr Cord,Non-Cabinet,Japan,15A/250V
In-Cabinet Power Cords
X-50617-00-0E-C IEC60320-C13 / IEC60320-C20 1.83 m Power Cord,In-Cabinet,2m,C20-C13,E-Series,0E,-C
X1558A-R6 IEC60320-C14 / IEC60320-C13 1.20 m Pwr Cord,In-Cabinet,48-In,C13-C14,10A/250V
X800-42U-35 IEC60320-C14 / IEC60320-C13 0.89 m Pwr Cord,In-Cabinet,C13-C14,35-inch
X800-42U-43 IEC60320-C14 / IEC60320-C13 1.09 m Pwr Cord,In-Cabinet,C13-C14,43-inch
X800-42U-64 IEC60320-C14 / IEC60320-C13 1.63 m Pwr Cord,In-Cabinet,C13-C14,64-inch
X800-42U-R6 IEC60320-C14 / IEC60320-C13 0.68 m Pwr Cord,In-Cabinet,27-In,C13-C14,10A/250V

Onboard Ports Configuration: AFF C190 UTA2 Single Chassis HA Pair

Port Address Description Supported Protocols Port Icon Port Type
0a Serial-Attached SCSI SAS 6/12 Gb Circle MiniSAS HD
0b Serial-Attached SCSI SAS 6/12 Gb Square MiniSAS HD
e0a Ethernet Ethernet 10Gb Ethernet SFP+
e0b Ethernet Ethernet 10Gb Ethernet SFP+
e0c/0c [1] Unified Target Adapter 2 Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb Ethernet/Fibre Channel SFP+
e0d/0d [1] Unified Target Adapter 2 Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb Ethernet/Fibre Channel SFP+
e0e/0e [1] Unified Target Adapter 2 Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb Ethernet/Fibre Channel SFP+
e0f/0f [1] Unified Target Adapter 2 Ethernet 1/10 Gb, Fibre Channel 4/8/16 Gb Ethernet/Fibre Channel SFP+
e0m/BMC Management Ethernet 10/100/1000 Mb Wrench RJ45
Serial Interface USB Serial Console RS-232 115200bps USB 2.0 USB 2.0 Micro-B
Serial Interface Icon Serial Console RS-232 115200bps Serial Interface RJ45
USB/2 Storage Host Port USB 2.0 USB 2.0 USB Type A
Footnote:
[1] Connecting tape drives or tape libraries to the FC or UTA2 ports requires the use of a FC switch.

Supported Platform Configurations - AFF C190 UTA2 Single Chassis HA Pair

Platform Configuration Description Chassis Configuration Chassis Count Controller Count (per chassis) IOXM Count (per chassis) Rack Units (Per System) Weight (Per Chassis) Min ONTAP
HA Pair
AFF C190A 10GBASE-T AFF C190A 10GBASE-T Single Chassis HA Pair CC 1 2 0 2 42.77 lb (19.4 kg) 9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1
AFF C190A UTA2 AFF C190 UTA2 Single Chassis HA Pair CC 1 2 0 2 42.77 lb (19.4 kg) 9.6RC2, 9.7RC1, 9.8RC1, 9.9.1RC1, 9.10.1RC1, 9.11.1RC1

Platform Memory Specifications - AFF C190 UTA2 Single Chassis HA Pair

Part Number Description Mfg Part Number Non-Volatile Qty Capacity (GB) NVRAM/NVMEM Used Capacity (GB) RAM Used Capacity (GB)
X3222A R7,IC,SODIMM,16GB,x8,ECC,REG 107-00172 no 4 16 8 64

Supported Rail Kit for AFF C190 UTA2 Single Chassis HA Pair

Marketing Part No.Manufacturing Part No.Description
NetApp System Cabinet Rail Kits
X877B-R6 111-00596 Rail Kit II, NetApp Cabinet, R6
X8783A-R6 111-01110 Rail Kit III, NetApp Cabinet, R6
Third-Party Cabinet Rail Kits
X-02659-00 113-00232 Kit,4-Post,Square or Round-Hole, 24"-32" Rail
X5526A-R6 111-00593 Kit,4-Post.Square-Hole, 24"-32" Rail
X5527A-R6 111-00864 Kit,2-Post,Round-Hole
X5529A-R6 111-00310 Kit,4-Post,Swift,Square-Hole, 24"-32" Rail

Field Replacement Unit Parts - AFF C190 UTA2 Single Chassis HA Pair

Marketing Part No.Manufacturing Part No.Description
Battery
X1847 271-01847 Lithium System Battery CR2032
X1847-R6 271-01847 Lithium System Battery CR2032,R6
X3152A 111-02499 ASSY,BATT,2CELL,HLDR,NV,FAS2650
Boot Media
X3320A 501-01119 DRIVE,SSD,128GB,mSATA
Cable Management Guide
X3322A 111-02809 SUB ASSY,SM,BKT,CBL MGMNT SET,FAS2650
Chassis
X5721A 111-02889 SHELF,EMPTY,2 PSU,913W,MIDPLANE II,DS224C
Data Cable
X-SFP-H10GB-CU1M-R6 112-00210 Cable,10GBase Copper SFP+ 1m
X-SFP-H10GB-CU1M-R6-C 112-00210 Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU1M-R6-N-C 112-00210 Cable,10GBase Copper SFP+ 1m,-C
X-SFP-H10GB-CU3M-R6 112-00211 Cable,10GBase Copper SFP+ 3m
X-SFP-H10GB-CU3M-R6-C 112-00211 Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU3M-R6-N-C 112-00211 Cable,10GBase Copper SFP+ 3m,-C
X-SFP-H10GB-CU5M-R6 112-00212 Cable,10GBase Copper SFP+ 5m
X-SFP-H10GB-CU5M-R6-C 112-00212 Cable,10GBase Copper SFP+ 5m,-C
X-SFP-H10GB-CU5M-R6-N-C 112-00212 Cable,10GBase Copper SFP+ 5m,-C
X1983-1-R6 112-00210 Cable,Twinax CU,SFP+,1M,X1962/X1963/X1967
X1983-3-R6 112-00211 Cable,Twinax CU,SFP+,3M,X1962/X1963/X1967
X1983-5-R6 112-00212 Cable,Twinax CU,SFP+,5M,X1962/X1963/X1967
X6536-R6 112-00090 Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op
X6536-R6-C 112-00090 Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6536-R6-N-C 112-00090 Cable,Cntlr-Shelf/Switch,5m,LC/LC,Op,-C
X6537-R6 112-00091 Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op
X6537-R6-C 112-00091 Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X6537-R6-N-C 112-00091 Cable,Cntlr-Shelf/Switch,30m,LC/LC,Op,-C
X65420 112-00508 Cable,ASSY,USB 2.0 MICRO-B,USB-A,2M
X6546-R6 112-00074 Cable,Cntlr-Shelf/Switch,30m,LC/SC,Op
X6547-R6 112-00073 Cable,Cntlr-Shelf/Switch,5m,LC/SC,Op
X6553-R6 112-00188 Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op
X6553-R6-C 112-00188 Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6553-R6-N-C 112-00188 Cable,Cntlr-Shelf/Switch,2m,LC/LC,Op,-C
X6554-R6 112-00189 Cable,Cntlr-Shelf/Switch,15m,LC/LC,Op
X6554-R6-C 112-00189 Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6
X6554-R6-N-C 112-00189 Cable,OPT,50u,2GHz/KM,MM,LC/LC,15M,-C,R6,-C
X6560-R6 112-00194 Cable,Ethernet,0.5m RJ45 CAT6
X6560-R6-C 112-00194 Cable,Ethernet,0.5m RJ45 CAT6,-C
X6560-R6-N-C 112-00194 Cable,Ethernet,0.5m RJ45 CAT6
X6561-R6 112-00195 Cable,Ethernet,2m RJ45 CAT6
X6561-R6-C 112-00195 Cable,Ethernet,2m RJ45 CAT6,-C
X6561-R6-N-C 112-00195 Cable,Ethernet,2m RJ45 CAT6,-C
X6562-R6 112-00196 Cable,Ethernet,5m RJ45 CAT6
X6562-R6-C 112-00196 Cable,Ethernet,5m RJ45 CAT6,-C
X6562-R6-N-C 112-00196 Cable,Ethernet,5m RJ45 CAT6,-C
X6566B-05-N-C 112-00297 Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-05-R6 112-00297 Cable,Direct Attach CU SFP+ 10G,0.5M
X6566B-05-R6-C 112-00297 Cable,Direct Attach CU SFP+ 10G,0.5M,-C
X6566B-2-N-C 112-00299 Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-2-R6 112-00299 Cable,Direct Attach CU SFP+ 10G,2M
X6566B-2-R6-C 112-00299 Cable,Direct Attach CU SFP+ 10G,2M,-C
X6566B-3-N-C 112-00300 Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-3-R6 112-00300 Cable,Direct Attach CU SFP+ 10G,3M
X6566B-3-R6-C 112-00300 Cable,Direct Attach CU SFP+ 10G,3M,-C
X6566B-5-N-C 112-00301 Cable,Direct Attach CU SFP+ 10G,5M,-C
X6566B-5-R6 112-00301 Cable,Direct Attach CU SFP+ 10G,5M
X6566B-5-R6-C 112-00301 Cable,Direct Attach CU SFP+ 10G,5M,-C
X6577-R6 112-00238 Cable,Ethernet,30m RJ45 CAT6
X6577-R6-C 112-00238 Cable,Ethernet,30m RJ45 CAT6,-C
X6577-R6-N-C 112-00238 Cable,Ethernet,30m RJ45 CAT6,-C
X6584-R6 112-00290 Cable,Ethernet,1m RJ45 CAT6
X6584-R6-C 112-00290 Cable,Ethernet,1m RJ45 CAT6,-C
X6584-R6-N-C 112-00290 Cable,Ethernet,1m RJ45 CAT6,-C
X6585-R6 112-00291 Cable,Ethernet,3m RJ45 CAT6
X6585-R6-C 112-00291 Cable,Ethernet,3m RJ45 CAT6,-C
X6585-R6-N-C 112-00291 Cable,Ethernet,3m RJ45 CAT6,-C
X6592-R6 112-00246 Cable,Ethernet,10m RJ45 CAT6
X6592-R6-N-C 112-00246 Cable,Ethernet,10m RJ45 CAT6,-C
X6593-R6 112-00247 Cable,Ethernet,20m RJ45 CAT6
X6593-R6-C 112-00247 Cable,Ethernet,20m RJ45 CAT6,-C
X6593-R6-N-C 112-00247 Cable,Ethernet,20m RJ45 CAT6,-C
X66030A 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66030A-K-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N 112-00435 Cable,12Gb,Mini SAS HD,0.5m
X66030A-N-C 112-00435 Cable,12Gb,Mini SAS HD,0.5m,-C
X66120-3 112-00545 Cable,Direct Attach CU 40G QSFP/4x10G SFP,3m
X66120-3-C 112-00545 Cable,Dir. Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-3-N-C 112-00545 Cable,Dir Attach CU 40G QSFP/4x10G SFP,3m,-C
X66120-5 112-00546 Cable,Direct Attach CU 40G QSFP/4x10G SFP,5m
X66120-5-C 112-00546 Cable,Dir. Attach CU 40G QSFP/4x10G SFP,5m,-C
X66120-5-N-C 112-00546 Cable,Dir Attach CU 40G QSFP/4x10G SFP,5m,-C
X66205-30 112-00261 Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m
X66205-30-C 112-00261 Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-30-N-C 112-00261 Cable,Cntlr-Switch OM4,MPO/4x10G LC,30m,-C
X66205-5 112-00260 Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m
X66205-5-C 112-00260 Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66205-5-N-C 112-00260 Cable,Cntlr-Switch OM4,MPO/4x10G LC,5m,-C
X66250-15 112-00346 Cable,LC-LC,OM4,15m
X66250-15-C 112-00346 Cable,LC-LC,OM4,15m,-C
X66250-15-N-C 112-00346 Cable,LC-LC,OM4,15m,-C
X66250-2 112-00342 Cable,LC-LC,OM4,2m
X66250-2-C 112-00342 Cable,LC-LC,OM4,2m,-C
X66250-2-N-C 112-00342 Cable,LC-LC,OM4,2m,-C
X66250-30 112-00347 Cable,LC-LC,OM4,30m
X66250-30-C 112-00347 Cable,LC-LC,OM4,30m,-C
X66250-30-N-C 112-00347 Cable,LC-LC,OM4,30m,-C
X66250-5 112-00344 Cable,LC-LC,OM4,5m
X66250-5-C 112-00344 Cable,LC-LC,OM4,5m,-C
X66250-5-N-C 112-00344 Cable,LC-LC,OM4,5m,-C
Disk Drive Blank-Filler
X5054-R6 108-00224 BLANK,DSK DRV FILLER,DS2246,R6
Drive
X371A 108-00546 SSD,960GB,12G,DS224C,W/MSW
Memory Module
X3222A 107-00172 SODIMM,16GB,ECC,FAS2650
Power Cord
X-50617-00 N/A Jumper Crd,In-Cab,2m,C20-C13,E-Series
X-50617-00-0E-C N/A Jumper Crd,In-Cab,2m,C20-C13,E-Series,0E,-C
X1558A-R6 N/A Jumper Crd,In-Cab,48-IN,C13-C14
X1558A-R6-C N/A Jumper Crd,In-Cab,48-IN,C13-C14-C
X800-42U-35 N/A Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-C N/A Jumper Crd,In-Cab,C13-C14,35-inch,-C
X800-42U-35-K-N N/A Jumper Crd,In-Cab,C13-C14,35-inch
X800-42U-35-N N/A Power Cable,In-Cabinet,C13-C14,35-inch
X800-42U-43 N/A Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-C N/A Jumper Crd,In-Cab,C13-C14,43-inch,-C
X800-42U-43-K-N N/A Jumper Crd,In-Cab,C13-C14,43-inch
X800-42U-43-N N/A Power Cable,In-Cabinet,C13-C14,43-inch
X800-42U-64 N/A Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-C N/A Jumper Crd,In-Cab,C13-C14,64-inch,-C
X800-42U-64-K-N N/A Jumper Crd,In-Cab,C13-C14,64-inch
X800-42U-64-N N/A Power Cable,In-Cabinet,C13-C14,64-inch
X800-42U-R6 N/A Jumper Crd,In-Cab,C13-C14
X800-42U-R6-C N/A Jumper Crd,In-Cab,C13-C14,-C
X800B-R6 N/A Power Cable,Continental Europe,R6
X800B-R6-C N/A Power Cable,Continental Europe,-C,R6
X800C-R6 N/A Power Cable,UK and Ireland,R6
X800C-R6-C N/A Power Cable,UK and Ireland,-C,R6
X800D-R6 N/A Power Cable,Japan,R6
X800D-R6-C N/A Power Cable,Japan,-C,R6
X800E-R6 N/A Power Cable,North America,R6
X800E-R6-C N/A Power Cable,North America,-C,R6
X800F-R6 N/A Power Cable,Australia/New Zealand,R6
X800F-R6-C N/A Power Cable,Australia/New Zealand,-C,R6
X800G-R6 N/A Power Cable,Switzerland,R6
X800G-R6-C N/A Power Cable,Switzerland,-C,R6
X800H-R6 N/A Power Cable,Argentina,R6
X800H-R6-C N/A Power Cable,Argentina,-C,R6
X800I-R6 N/A Power Cable,China,R6
X800I-R6-C N/A Power Cable,China,-C,R6
X800J-R6 N/A Power Cable,Denmark,R6
X800J-R6-C N/A Power Cable,Denmark,-C,R6
X800K-R6 N/A Power Cable,India,South Africa,R6
X800K-R6-C N/A Power Cable,India,South Africa,-C,R6
X800L-R6 N/A Power Cable,Israel,R6
X800L-R6-C N/A Power Cable,Israel,-C,R6
X800M-R6 N/A Power Cable,Italy,R6
X800M-R6-C N/A Power Cable,Italy,-C,R6
X800N N/A POWER CABLE,INDIA BIS
X800N-C N/A Power Cable,India BIS,-C
X800P-R6 N/A Power Cable,North America,250V,R6
X800P-R6-C N/A Power Cable,North America,250V,-C,R6
X800T-R6 N/A Power Cable,Taiwan,BSMI,R6
X800T-R6-C N/A Power Cable,Taiwan,BSMI,-C,R6
X800VB-R6 N/A Power Cable,Brazil,IEC-60906-1-Plug
X800W-R6 N/A Power Cable,Taiwan,250V,BSMI,R6
X800W-R6-C N/A Power Cable,Taiwan,250V,BSMI,-C
X800Y-R6 N/A Power Cable,Japan,250V/15A
X800Y-R6-C N/A Power Cable,Japan,250V/15A,-C
Power Supply Unit
X5726A 114-00148 PSU,913W
Processor Controller Module (PCM)
X3218A 111-03965, 111-04373 Controller,No MEM,CNA,C190,FAS2700
X3219A 111-04043 Controller,No MEM,RJ45,FAS2700
PSU
X5726A 114-00148 PSU,913W
Transceiver
X6567-R6 332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQ SFP Optical 1GB Shortwave Multimode
X6567-R6-C 332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQ SFP Optical 1GB Shortwave Multimode,-C
X6567-R6-N-C 332-00378, AFBR-5710PZ-NA1, AFBR-5710PZ-NA2, AFBR-5718PZ, AFBR-5718PZ-NA1, AFBR-5718PZ-NA2, FTLF8519P3BTL-N1, FTLF8519P3BTL-NQ SFP Optical 1GB Shortwave Multimode,-C
X6568-R6 332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQ SFP Copper 1GB RJ-45
X6568-R6-C 332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQ SFP Copper 1GB RJ-45,-C
X6568-R6-N-C 332-00374, FCLF8522P2BTL-N1, FCLF8522P2BTL-NQ SFP Copper 1GB RJ-45,-C
X6588-R6 332-00278R6, AFBR-57D7AMZ-NA1, AFBR-57D7AMZ-NA2, AFBR-57D7APZ-NA1, AFBR-57D7APZ-NA2, AFBR-57D9AMZ-NA1, AFBR-57D9AMZ-NA2, FTLF8528P2BNV-(N1), FTLF8528P2BNV-(NQ), FTLF8528P3BNV-(N1), FTLF8528P3BNV-N1, FTLF8528P3BNV-NQ SFP+Optical 8Gb Shortwave
X6588-R6-C 332-00278R6, AFBR-57D7AMZ-NA1, AFBR-57D7AMZ-NA2, AFBR-57D7APZ-NA1, AFBR-57D7APZ-NA2, AFBR-57D9AMZ-NA1, AFBR-57D9AMZ-NA2, FTLF8528P2BNV-(N1), FTLF8528P2BNV-(NQ), FTLF8528P3BNV-(N1), FTLF8528P3BNV-N1, FTLF8528P3BNV-NQ SFP+Optical 8Gb Shortwave,-C
X6588-R6-N-C 332-00278R6, AFBR-57D7AMZ-NA1, AFBR-57D7AMZ-NA2, AFBR-57D7APZ-NA1, AFBR-57D7APZ-NA2, AFBR-57D9AMZ-NA1, AFBR-57D9AMZ-NA2, FTLF8528P2BNV-(N1), FTLF8528P2BNV-(NQ), FTLF8528P3BNV-(N1), FTLF8528P3BNV-N1, FTLF8528P3BNV-NQ SFP+Optical 8Gb Shortwave,-C
X6589-N-C 332-00279R6, AFBR-703SMZ-NA1, AFBR-703SMZ-NA2, AFBR-709SMZ-NA1, AFBR-709SMZ-NA2, AFBR-710SMZ, AFBR-710SMZ-NA1, AFBR-710SMZ-NA2, FTLX8571D3BCL-(NQ), FTLX8574D3BCL-N1, FTLX8574D3BCL-NQ, XP-8596-02D-NS SFP+Optical 10Gb Shortwave,-C
X6589-R6 332-00279R6, AFBR-703SMZ-NA1, AFBR-703SMZ-NA2, AFBR-709SMZ-NA1, AFBR-709SMZ-NA2, AFBR-710SMZ, AFBR-710SMZ-NA1, AFBR-710SMZ-NA2, FTLX8571D3BCL-(NQ), FTLX8574D3BCL-N1, FTLX8574D3BCL-NQ, XP-8596-02D-NS SFP+Optical 10Gb Shortwave
X6589-R6-C 332-00279R6, AFBR-703SMZ-NA1, AFBR-703SMZ-NA2, AFBR-709SMZ-NA1, AFBR-709SMZ-NA2, AFBR-710SMZ, AFBR-710SMZ-NA1, AFBR-710SMZ-NA2, FTLX8571D3BCL-(NQ), FTLX8574D3BCL-N1, FTLX8574D3BCL-NQ, XP-8596-02D-NS SFP+ Optical 10Gb Shortwave,-C
X6596-R6 332-00331, AFBR-57F5MZ-NA1, AFBR-57F5MZ-NA3, FTLF8529P3BCVAN1, FTLF8529P3BCVA-N1, FTLF8529P3BCVA-NQ, FTLF8529P4BCVAN1, FTLF8529P4BCVA-NQ SFP+ FC Optical 16Gb
X6596-R6-C 332-00331, AFBR-57F5MZ-NA1, AFBR-57F5MZ-NA3, FTLF8529P3BCVAN1, FTLF8529P3BCVA-N1, FTLF8529P3BCVA-NQ, FTLF8529P4BCVAN1, FTLF8529P4BCVA-NQ SFP+ FC Optical 16Gb,-C
X6596-R6-N-C 332-00331, AFBR-57F5MZ-NA1, AFBR-57F5MZ-NA3, FTLF8529P3BCVAN1, FTLF8529P3BCVA-N1, FTLF8529P3BCVA-NQ, FTLF8529P4BCVAN1, FTLF8529P4BCVA-NQ SFP+ FC Optical 16Gb,-C

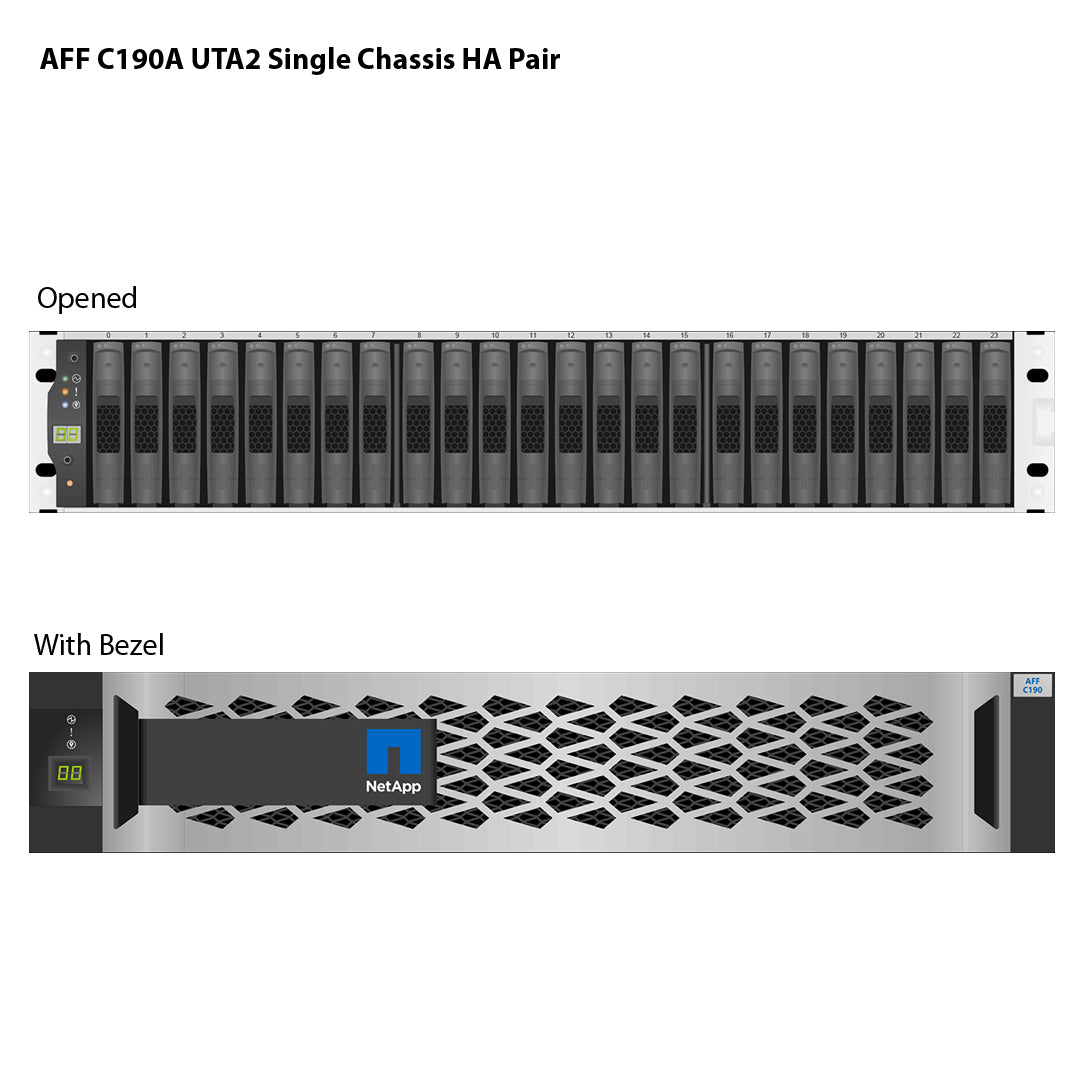

Supported Firmware Matrix - AFF C190 UTA2 Single Chassis HA Pair

Major OS Version OS Version Firmeware
BIOS
ONTAP 9.11.1 9.11.1P1, 9.11.1RC1 11.16, 11.15*
ONTAP 9.11.1 9.11.1 11.15*
ONTAP 9.10.1 9.10.1P7, 9.10.1P5-P6 11.16, 11.15*
ONTAP 9.10.1 9.10.1P3-P4, 9.10.1P2, 9.10.1P1 11.16, 11.15, 11.13*
ONTAP 9.10.1 9.10.1, 9.10.1RC1 11.16, 11.15, 11.13, 11.11*
ONTAP 9.9.1 9.9.1P11, 9.9.1P10 11.16, 11.15*
ONTAP 9.9.1 9.9.1P8-P9, 9.9.1P7 11.16, 11.15, 11.13*
ONTAP 9.9.1 9.9.1P4-P6, 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1 11.16, 11.15, 11.13, 11.11*
ONTAP 9.8 9.8P13 11.16, 11.15*
ONTAP 9.8 9.8P11-P12 11.16, 11.15, 11.13*
ONTAP 9.8 9.8P10, 9.8P9, 9.8P8, 9.8P7, 9.8P6, 9.8P5, 9.8P4 11.16, 11.15, 11.13, 11.11*
ONTAP 9.8 9.8P3, 9.8P2, 9.8P1, 9.8, 9.8RC1 11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7 9.7P19, 9.7P17-P18, 9.7P16, 9.7P15, 9.7P14 11.16, 11.15, 11.13, 11.11*
ONTAP 9.7 9.7P13, 9.7P12, 9.7P11, 9.7P10, 9.7P9, 9.7P8 11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.7 9.7P7, 9.7P6, 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6 9.6P18, 9.6P17, 9.6P16, 9.6P15 11.16, 11.15, 11.13, 11.11*
ONTAP 9.6 9.6P13-P14, 9.6P12 11.16, 11.15, 11.13, 11.11, 11.9*
ONTAP 9.6 9.6P10-P11 11.16, 11.15, 11.13, 11.11, 11.9, 11.7*
ONTAP 9.6 9.6P9, 9.6P7-P8, 9.6P5-P6, 9.6P4, 9.6P3 11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
ONTAP 9.6 9.6P2, 9.6, 9.6P1, 9.6RC2 11.16, 11.15, 11.13, 11.11, 11.9, 11.7, 11.5*
BMC
ONTAP 9.11.1 9.11.1P1, 9.11.1, 9.11.1RC1 11.8*
ONTAP 9.10.1 9.10.1P7, 9.10.1P5-P6 11.8*
ONTAP 9.10.1 9.10.1P3-P4, 9.10.1P2, 9.10.1P1, 9.10.1, 9.10.1RC1 11.8, 11.7*
ONTAP 9.9.1 9.9.1P11 11.8*
ONTAP 9.9.1 9.9.1P10, 9.9.1P8-P9, 9.9.1P7, 9.9.1P4-P6 11.8, 11.7*
ONTAP 9.9.1 9.9.1P3, 9.9.1P2, 9.9.1P1, 9.9.1, 9.9.1RC1 11.8, 11.7, 11.6*
ONTAP 9.8 9.8P13 11.8*
ONTAP 9.8 9.8P11-P12, 9.8P10, 9.8P9, 9.8P8 11.8, 11.7*
ONTAP 9.8 9.8P7, 9.8P6, 9.8P5, 9.8P4, 9.8P3 11.8, 11.7, 11.6*
ONTAP 9.8 9.8P2, 9.8P1 11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.8 9.8, 9.8RC1 11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.7 9.7P19, 9.7P17-P18 11.8, 11.7*
ONTAP 9.7 9.7P16, 9.7P15, 9.7P14, 9.7P13 11.8, 11.7, 11.6*
ONTAP 9.7 9.7P12, 9.7P11 11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.7 9.7P10, 9.7P9, 9.7P8, 9.7P7, 9.7P6 11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.7 9.7P5, 9.7P4, 9.7P3, 9.7P2, 9.7P1, 9.7, 9.7RC1 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.6 9.6P18, 9.6P17 11.8, 11.7*
ONTAP 9.6 9.6P16, 9.6P15 11.8, 11.7, 11.6*
ONTAP 9.6 9.6P13-P14 11.8, 11.7, 11.6, 11.5P1*
ONTAP 9.6 9.6P12, 9.6P10-P11 11.8, 11.7, 11.6, 11.5P1, 11.5*
ONTAP 9.6 9.6P9, 9.6P7-P8, 9.6P5-P6 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4*
ONTAP 9.6 9.6P4, 9.6P3 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2*
ONTAP 9.6 9.6P2 11.8, 11.7, 11.6, 11.5P1, 11.5, 11.4, 11.3P2, 11.3P1*
ONTAP 9.6 9.6, 9.6P1, 9.6RC2 11.8, 11.7, 11.6, 11.5P1, 11.5*, 11.4, 11.3P2, 11.3P1*
Footnote:
[1]* Indicates that firmware is bundled with Storage OS Version

Product Certificates - AFF C190 UTA2 Single Chassis HA Pair

Certificate Name Geo / Region / Country Associated Products
Battery Pack safety reports
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB Global Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
EMI and Safety certificates
Lithium Battery Safety Doc-Section II/Section IB Shipments,Inventus Power Product Model#271-00045AWB Global Platforms : AFF A220, AFF A320, AFF A400, AFF A700s, AFF A800, AFF C190, FAS2620, FAS2650, FAS2720, FAS2750, FAS8300, FAS8700
Declaraion of Similarity NAJ-1501 Global Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 G-K-U-SoR Gabon,Kenya,SaudiArabia,Uganda Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (FXN Mexico) BIS BIS - India Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (FXN Taiwan) BIS BIS - India Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (Jabil Mexico) BIS BIS - India Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 60950-CB CB - International Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 62368-CB CB - International Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 ACMA ACMA - Australia, New Zealand Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 BSMI BSMI - Taiwan Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 CSA CSA - United States, Canada Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 DoC CE CE - European Union DoC Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 EAC EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 FCC FCC - United States Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 IRAM IRAM - Argentina Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 KC KC - South Korea Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 Morocco Morocco Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 NOM NOM - Mexico Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 NRCS NRCS - South Africa (Safety) Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 SONCAP SONCAP - Nigeria Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 TBS TBS - Tanzania Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 UKRSep UKRSepro - Ukraine Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 VCCI VCCI - Japan Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 UKCA DOC VCCI - Japan Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
NAJ-1501 (Jabil Singapore) BIS TBS - Tanzania Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
PSU 80+ Platinum Certificates
NAJ-1501 (Jabil Singapore) BIS TBS - Tanzania Platforms : AFF A200, AFF A220, AFF C190, ASA AFF A220, E2824, E5724, EF280, EF570, FAS2650, FAS2750, SGF6024
DCJ9133-01 Energy Star Report Global
PSU : X5726A
TDPS-900AB A Energy Star Report Global
PSU : X5726A
Voluntary Product Accessibility Template
TDPS-900AB A Energy Star Report Global
PSU : X5726A

Size, Weight, Acoustic, Power AFF C190 UTA2 Single Chassis HA Pair

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU / Hr Typical BTU / Hr Worst
AFF C190
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 12x960GB SSD 2 51.8 lb (23.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.24 4.67 317 457 1082 1560
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 12x960GB SSD 2 51.8 lb (23.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.59 2.29 311 448 1062 1529
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 18x960GB SSD 2 56.4 lb (25.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.45 4.88 338 478 1152 1630
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 18x960GB SSD 2 56.4 lb (25.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.7 2.4 331 468 1130 1598
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 24x960GB SSD 2 60.8 lb (27.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.75 5.18 367 507 1253 1731
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 24x960GB SSD 2 60.8 lb (27.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.84 2.54 360 497 1229 1697
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 8x960GB SSD 2 46.7 lb (21.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.03 4.45 296 436 1011 1489
AFF C190A 10GBASE-T AFF C190 2 PCM 10GBASE-T 8x960GB SSD 2 46.7 lb (21.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 2.19 291 428 994 1461
AFF C190A UTA2 AFF C190 2 PCM UTA2 12x960GB SSD 2 51.8 lb (23.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.24 4.67 317 457 1082 1560
AFF C190A UTA2 AFF C190 2 PCM UTA2 12x960GB SSD 2 51.8 lb (23.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.59 2.29 311 448 1062 1529
AFF C190A UTA2 AFF C190 2 PCM UTA2 18x960GB SSD 2 56.4 lb (25.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.45 4.88 338 478 1152 1630
AFF C190A UTA2 AFF C190 2 PCM UTA2 18x960GB SSD 2 56.4 lb (25.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.7 2.4 331 468 1130 1598
AFF C190A UTA2 AFF C190 2 PCM UTA2 24x960GB SSD 2 60.8 lb (27.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.75 5.18 367 507 1253 1731
AFF C190A UTA2 AFF C190 2 PCM UTA2 24x960GB SSD 2 60.8 lb (27.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.84 2.54 360 497 1229 1697
AFF C190A UTA2 AFF C190 2 PCM UTA2 8x960GB SSD 2 46.7 lb (21.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.03 4.45 296 436 1011 1489
AFF C190A UTA2 AFF C190 2 PCM UTA2 8x960GB SSD 2 46.7 lb (21.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 2.19 291 428 994 1461




Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground Shipping time: 2-7 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-10 business days
Excludes weekends, holidays or weather delays.
3 Business Days Shipping time: 3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 3-6 business days
Excludes weekends, holidays or weather delays.
2 Business Days Shipping time: 2 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-5 business days
Excludes weekends, holidays or weather delays.
Overnight / Next Business Day Shipping time: 1 business day
Order processing time: 0-3 business days
Delivery time after order is placed: 1-4 business days
Excludes weekends, holidays or weather delays.


International Shipments

International Economy Shipping time: 4-6 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 5-9 business days
Excludes weekends, holidays or weather delays.
International Priority Shipping time: 1-3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-6 business days
Excludes weekends, holidays or weather delays.



For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Subscribe
