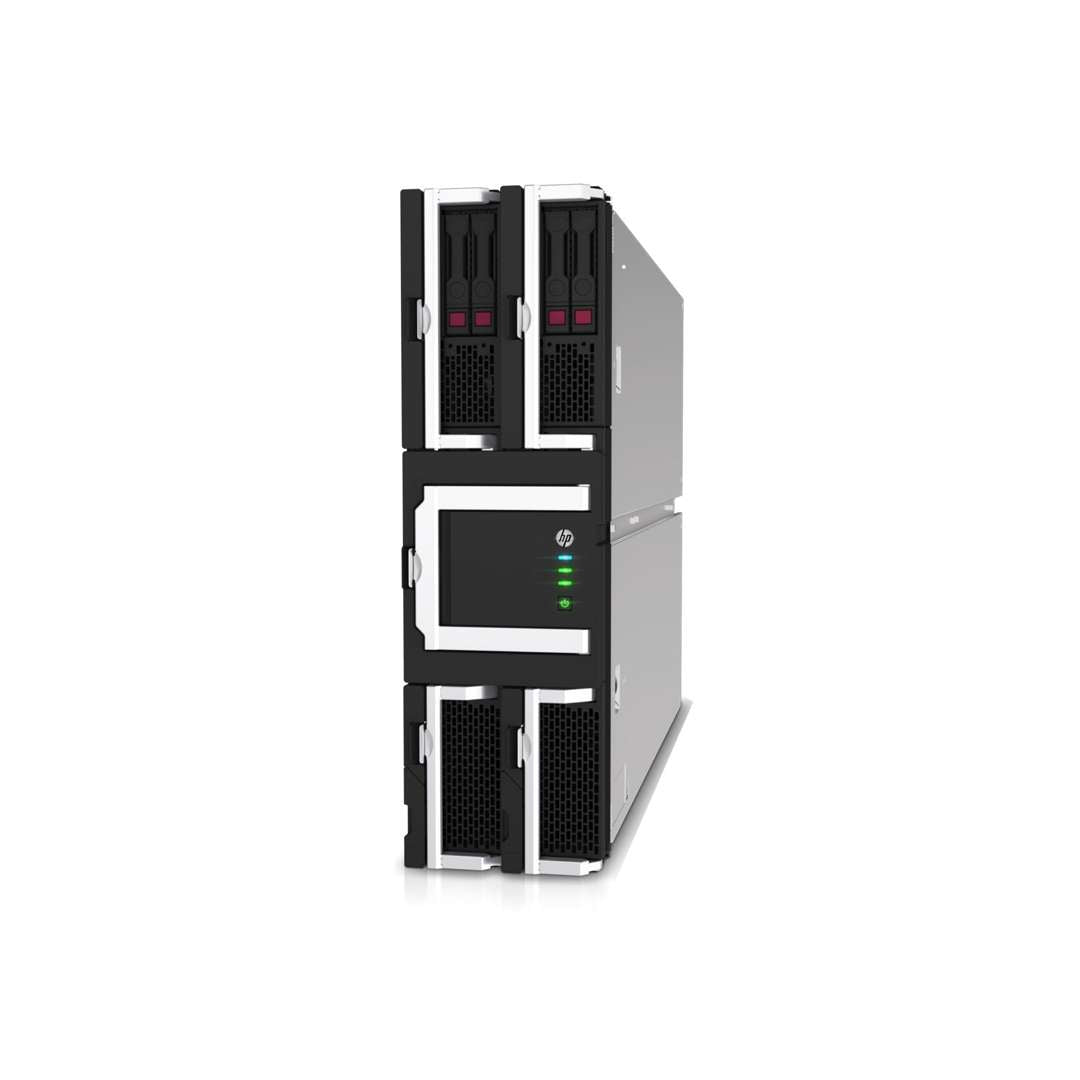

HPE Synergy 680 Gen9 CTO Compute Module

MPN:
680G9
Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON Spare Drives, Controllers, Power Supplies, NICs, HBAs, SFPs, Cables, etc.

Synergy 680 Gen9 Product Description

The HPE Synergy 680 Gen9 Compute Module is part of a Composable Infrastructure (CI) solution that is easily discovered and provisioned in minutes, and can be re-purposed just as simply. The HPE Synergy 680 Gen9 Compute Module delivers mission-critical availability and performance, as well as flexible memory, storage and fabric options in a full-height double-wide, 4-socket form factor.

Designed to support demanding enterprise data-intensive workloads, this module is powered by the Intel Xeon processors, supports up to 12 TB of DDR4 memory, HPE DDR4 memory, has flexible storage controller options, ten I/O connectors, and is part of a pool of flexible compute capacity within a Composable Infrastructure.

Run Anything

The HPE Synergy 680 Gen9 Compute Module supports up to 12 TB of DDR4 memory and Intel Xeon processors in a 4S full-height double-wide form factor for demanding workloads like business processing, decision support, IT infrastructure, and other mission-critical workloads with large memory demands.

The flexible design supports stateless configuration without drives, up to four SFF or eight uFF drives, NVMe workload acceleration, and direct attach composable storage to match demanding workload, data protection, and data security requirements.

Ten mezzanine connectors with simplified I/O architecture for expandability and a wide range of choice of storage and fabric choices.

Move Faster

The HPE Synergy 680 Gen9 Compute Module provides a composable compute resource that can be self-discovered, quickly provisioned, easily managed, and seamlessly redeployed to deliver the right compute capacity for changing workload needs.

HPE Synergy template-based provisioning enables fast time to service with a single point for defining compute module state, pooled storage, network connectivity, and boot image.

Product features

Feature
Description
Cache memory
See processor list above for cores, model number, and cache memory size
Chipset
Intel C602J series chipset
On systemmanagementchipset
HPE iLO (Firmware HPE iLO4 2.0), 4GB NAND with 1GB USB user space configurable VIA UEFI and accessiblevia iLO. Read and learn more
Memoryprotection
  • Advanced ECC

  • Memory mirroring

  • Memory online spare mode (Rank spare mode)

Memory
Type
HPE SmartMemory or DDR4 load reduced (LRDIMM), or registered (RDIMM)
DIMM slots available
98 (24 DIMM slots per processor, 8 channels per processor, 3 DIMMs per channel)
Maximum (LRDIMM)
6TB (96 x 64GB)
Maximum (RDIMM)
3TB (96 x 32GB)
Network controller
  • HPE Synergy 6810C 25/50Gb ethernet adapter

  • HPE Synergy 3830C 16Gb fibre channel host bus adapter

  • HPE Synergy 3530C 16Gb fibre channel host bus adapter

  • HPE Synergy 3820C 10/20Gb converged network adapter

  • HPE Synergy 2820C 10Gb converged network adapter

Standard iLO network controller:
  • One (1) 1 Gb/s port for the HPE iLO 4 to HPE Synergy composer link

Mezzanine connectors
Ten (10) I/O expansion mezzanine connectors (In PCIe discovery order):
  • Mezzanine connectors 4 and 10 are X8 PCIe 3.0 and support type C and D mezzanine cards for fabric1

  • Mezzanine connectors 6 and 12 are X16 PCIe 3.0 and support type C mezzanine card for fabric 3

  • Mezzanine connectors 3 and 9 are X8 PCIe 3.0 and support type C mezzanine cards for fabric 3

  • Mezzanine connectors 1 and 7 are X8 PCIe 3.0 and support type C and type D mezzanine cards forfabric 1

  • Mezzanine connectors 2 and 8 are X16 PCIe 3.0 and support type C and type D mezzanine cards forfabric 2

Mezzanine options include:
  • Dual-port 10/20Gb compute module mezzanine adapter options for additional network ports

  • Dual-port 16Gb fibre channel HBA for SAN connectivity

Storage controller
  • HPE smart array P240nr controller with 1GB Flash-Backed Write Cache (FBWC) supporting RAID 0, 1,10, 5, 6, and 1 ADM

  • HPE smart array P542D controller with 2GB FBWC supporting RAID 0, 1,10, 5, 50, 6, 60, 1 ADM, and 10 ADM

  • HPE H240nr smart HBA supporting RAID 0, 1, 10, 5

Maximum internal storage
Models
Capacity
Configuration
Hot plug SFF SAS
8.0TB
4 x 2.0TB
Hot plug SFF SATA
8.0TB
4 x 2.0TB
Hot plug SFF SAS SSD
15.28TB
4 x 3.84TB
Hot plug SFF SATASSD
6.4TB
4 x 1.6TB
Hot plug SFF NVMeSSD
8.0TB
4 x 2.0TB
Hot plug uFF SATA SSD
2.72TB
8 x 340GB
Interfaces
Micro SDHC slot
One (1) internal micro secure digital high capacity (Micro SDHC) card slot
USB 2.0 port
One (1) internal USB 2.0 connector for USB flash media drive keys
USB 2.0 port
One (1) external USB 2.0 connector for USB flash media drive keys
Industry standard compliance
  • ACPI 2.0

  • Microsoft logo certifications

  • USB 2.0 support

  • IPMI 2.0

  • Secure digital 2.0

  • TPM 1.2 and 2.0 support

  • IEEE (Specific IEEE standards depending on ethernet adapter card(s) installed)

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP

  • SSL 2.0

  • DMTF systems management architecture for server hardware command line protocol (SMASH CLP)

  • Active directory v1.0

  • PCIe 3.0

  • ASHRAE A3

Frames
HPE Synergy 12000 Frame is the base for all Synergy products and supports:
  • Up to 12 half-height, 6 full-height single-wide, or 3 full-height double-wide compute modules (Mixingallowed)

  • Up to 5 half-height double-wide HPE Synergy D3940 Storage modules (Mixing with compute modulesin any to any ratio allowed)

  • Up to three (3) HPE Synergy 680 Gen9 compute modules

Graphics
Integrated matrox G200eh video controller
  • 1600 x 1200 (32 bp)

  • 1920 x 1200 (16 bp)

HPE iLO management on system management memory
  • 16MB flash video memory

  • 256MB DDR 3 with ECC (112MB after ECC and video)

Form factor
HPE Synergy 680 Gen9 is a full-height double-wide compute module that plugs into the HPE Synergy frame12000 frame
Security
  • Power-on password

  • Administrator's password

  • Keyboard password (QuickLock)

  • HPE iLO management on system management chipset with:

    • SSL encryption

    • Secure shell version 2

    • AES and triple Data Encryption Standard (3DES) on browser,CLP and XML scripting interface

    • AES and RC4 encryption of video

  • External USB port enable/disable

  • Network server mode

  • Serial interface control

  • TPM (Trusted Platform Module) 1.2 and 2.0 options

  • AES

  • Intel AES-New Instructions (AES-NI)

Fibre channelsupport
Up to four (4) optional fibre channel mezzanine HBAs are supported on the HPE Synergy 680 Gen9
Compatible SAN
HPE Synergy 680 Gen9 compute modules are optimized for HPE MSA, EVA, 3PAR, XP, and LeftHand

top

Software overview

Feature
Description
Operating systemsand virtualizationsoftware supportfor computemodules
  • Microsoft Windows Server 2012 Datacenter and 2012 R2 Datacenter

  • Microsoft Windows Server 2012 Standard and 2012 R2 Standard

  • Microsoft Windows Server 2016 Standard Edition (Includes Nano Server)

  • Microsoft Windows Server 2016 Datacenter Edition (Includes Nano Server)

  • Microsoft Hyper-V 2016

  • Microsoft Hyper-V Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware ESXi

top

Physical specifications

Specification
Description
Height (H x W x D) with bezel
127 x 430.3 x 600 mm (5.06 x 16.94 x 23.62 in)
Weight
  • Maximum: 31.752 kg (69.85 lb)

  • Minimum: 27.15 kg (59.73 lb)

Power specifications
For power specifications including input requirements, BTU rating, and power supplyoutput, please see the HPE Synergy frame TechSpecs.To review typical system power ratings use the HPE power advisor which is availableVIA the online tool located
HPE smart arrayP542D controller
Storage interface
  • 12 Gb/s SAS (Serial attached SCSI)

  • 6 Gb/s SATA (Serial advanced technology attachment)

SAS connectors
  • Two (2) external ports supporting x4 SAS links each and two (2) internal portssupporting x4 SAS links each

SAS speed
  • x16 12 Gb/s per physical link

PCIe link rate
  • PCIe 3.0 x8 links

Memory bus speed
  • DDR3-1866 MHz, 72-bit wide bus at 14.92 Gb/s (2GB cache module)

Logical drivessupported
  • 64 logical drives

Max drivessupported
  • Up to 256 drives (Up to 128 drives per logical drive)

RAID support
  • RAID 6, 60 (Advanced data guarding)

  • RAID 5, 50 (Distributed data guarding)

  • RAID 1, 10 (Drive mirroring)

  • RAID 1 ADM, 10 ADM (Advanced data mirroring)

  • RAID 0 (Striping)

Upgradeablefirmware
  • Flashable ROM with redundant firmware images

HPE smart arrayP240nr/1GBcontroller
Disk drive interface
  • 12 Gb/s SAS (Serial attached SCSI)

  • 6 Gb/s SATA (Serial ATA)

Server interface
  • x8 5G PCIe 3.0 provides 8GB/s maximum bandwidth

Cache memory
  • 1GB flash backed write cache (FBWC) cache standard

Logical drivessupported
  • 64 (With included 1GB cache)

Host memoryaddressing
  • 64-bit, supporting servers memory space greater than 4GB

RAID support
  • RAID 1 (Mirroring), RAID 0 (Striping), RAID 5, RAID 10

Other
  • Upgradeable firmware with recovery ROMonline drive flash (With SAS drives)

HPE smart HBAH240nr smartHBA
Disk drive interface
  • 12 Gb/s SAS (Serial attached SCSI)

  • 6 Gb/s SATA (Serial ATA)

Compute moduleinterface
  • x8 5G PCIe 3.0 provides 8 GB/s maximum bandwidth

Cache memory
  • None

Logical drivessupported
  • 64

Host memoryaddressing
  • 64-bit, supporting compute modules memory space greater than 4GB

RAID support
  • RAID 1 (Mirroring) and RAID 0 (Striping), RAID 5, RAID 10

Other
  • Upgradeable firmware with recovery ROMonline drive flash (With SAS drives)

HPE Synergy2820C 10Gbconvergednetwork adapter
Type
  • Dual-port 10Gb mezzanine

Network processor
  • QLogic 57840S with integrated MAC/PHY

Data transfermethod
  • x8 PCI express 3.0

Network transferrate
  • Two ports, each at 20 Gb/s full duplex; 40 Gb/s aggregate full duplex theoreticalbandwidth

IEEE compliance
  • 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.3ap

Standard features
  • Delivers flexibility to compose multiple network flows including ethernet and FCoE oriSCSI within each connection

  • Full hardware offload of FCoE and iSCSI storage protocol processing for highestperformance converged ethernet data and storage networks

  • Flex-10 technology allows you to fine tune bandwidth for up to four partitionedflexNIC’s and FlexHBA’s to optimize connectivity for different application needs.From100 Mb/s to 10 Gb/s on up to four physical function NICs per port, in increments of100 Mb/s for NIC

HPESynergy 3820C10/20Gbconvergednetwork adapter
Type
  • Dual-port 10/20Gb mezzanine

Network processor
  • QLogic 57840S with integrated MAC/PHY

Data transfermethod
  • x8 PCI express 3.0

Network transferrate
  • Two ports, each at 40 Gb/s full duplex; 80 Gb/s aggregate full duplex theoreticalbandwidth

IEEE compliance
  • 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.3ap

Standard features
  • Delivers flexibility to compose multiple network flows including ethernet and FCoE oriSCSI within each connection

  • Full hardware offload of FCoE and iSCSI storage protocol processing for highestperformance converged ethernet data and storage networks

  • Flex-20 technology allows user to fine tune bandwidth for up to four partitionedFlexNIC’s and FlexHBA’s to optimize connectivity for different application needs. From100 Mb/s to 20 Gb/s on up to four physical function NICs per port, in increments of100 Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e.20Gb

top

Environmental specifications

Specification
Description
Operating temperature
10° to 35°C (50° to 95°F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Extended ambientoperating support
For approved hardware configurations, the supported system inlet range is extendedto be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with analtitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m(2953 ft) to a maximum of 3050 m (10,000 ft).
The approved hardware configurations for this system are listed at the URL:
Relative operating humidity
8% to 90%
Relative non-operating humidity
5% to 95%
Altitude operating
3050 m (10,000 ft)
Non-altitude operating
9144 m (30,000 ft)
Acoustic noise
For acoustic noise specifications, please see the HPE Synergy frame 12000TechSpecs located at: <placeholder

top


Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground Shipping time: 2-7 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-10 business days
Excludes weekends, holidays or weather delays.
3 Business Days Shipping time: 3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 3-6 business days
Excludes weekends, holidays or weather delays.
2 Business Days Shipping time: 2 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-5 business days
Excludes weekends, holidays or weather delays.
Overnight / Next Business Day Shipping time: 1 business day
Order processing time: 0-3 business days
Delivery time after order is placed: 1-4 business days
Excludes weekends, holidays or weather delays.


International Shipments

International Economy Shipping time: 4-6 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 5-9 business days
Excludes weekends, holidays or weather delays.
International Priority Shipping time: 1-3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-6 business days
Excludes weekends, holidays or weather delays.



For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Subscribe
