HPE BLc7000 CTO Blade Enclosure TAA-compliant Platinum Enclosure with 2x Onboard Admin 6x PS 10x Fans

HPE BLc7000 CTO Blade Enclosure Platinum

HPE BLc7000 CTO Blade Enclosure TAA-compliant Platinum Enclosure with 2x Onboard Admin 6x PS 10x Fans

Price: $1,395.00

Brand:

HPE

Type:

Enclosures

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE BLc7000 CTO Blade Enclosure TAA-compliant Platinum Enclosure with 2x Onboard Admin 6x PS 10x Fans | 681844-B22

The BladeSystem c7000 enclosure provides all the power, cooling, and I/O infrastructure needed to support modular server, interconnect, and storage components today and throughout the next several years.

What's New for BLc7000 Gen3 Enclosure

RoHS compliance
7Tb/s Midplane (40% increase), improved signal integrity; adds:
- 16Gb FC
- 4xFDR IB (>1 port/server)

1Phase intelligent input module
Location Discovery Services
2650W Platinum power supply options
High voltage power solution options

The enclosure is 10U high and holds up to 16 server and/or storage blades plus optional redundant network and storage interconnect modules. It includes a shared 7.1 Tbps high-speed NonStop mid-plane for wire-once connectivity of server blades to network and shared storage. Power is delivered through a pooled-power backplane, and power input flexibility is provided with choices of single-phase AC input, 3-phase AC input, -48V DC input, and high voltage DC input.

Each c7000 enclosure is built with the following functions:

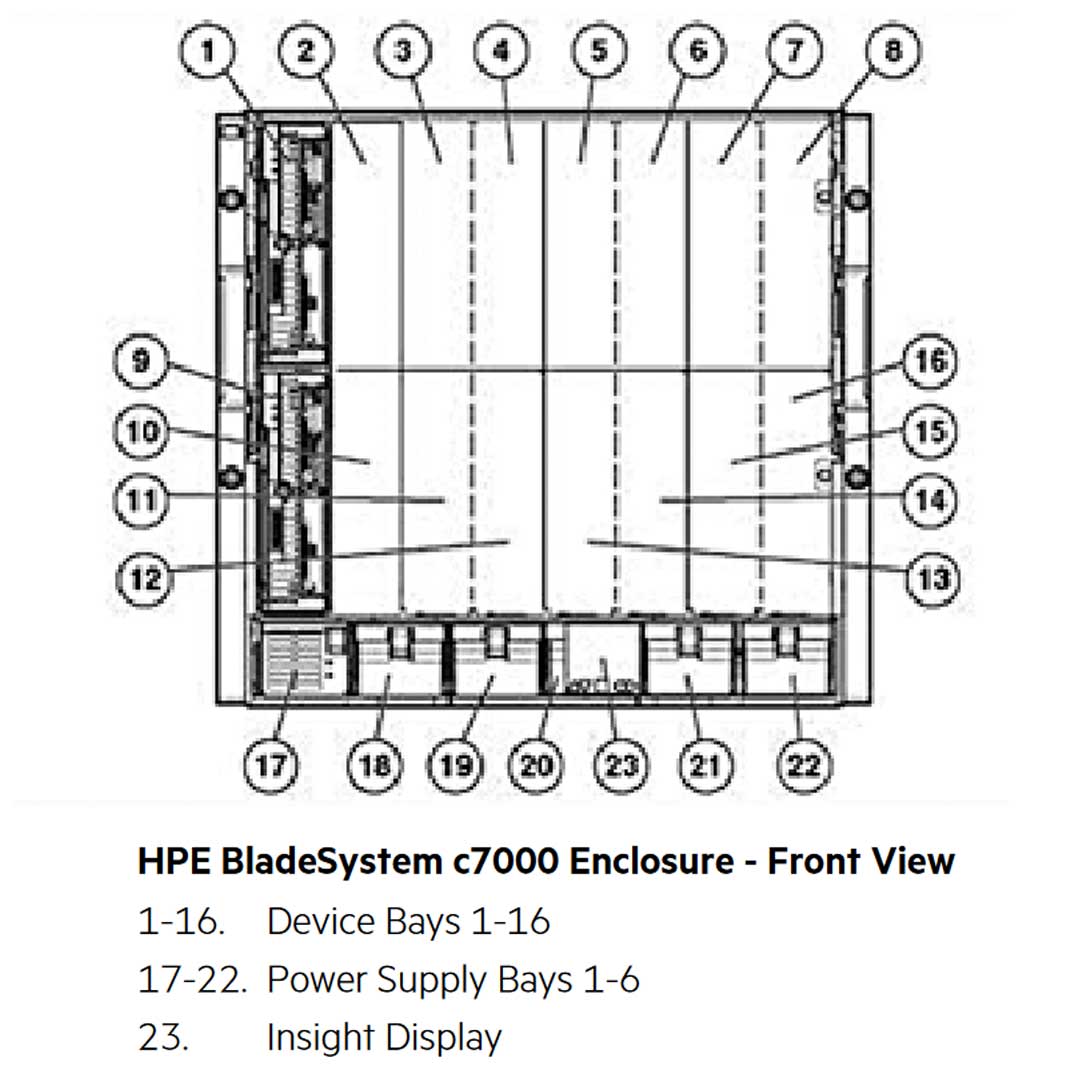

Up to 16 half-height server blades, 8 full-height server blades, and/or 8 expansion blades per enclosure (not exceeding 16 total blades).
Up to 4 redundant interconnect I/O fabrics (Ethernet, Fibre Channel, InfiniBand, iSCSI, SAS, etc.) supported simultaneously within the enclosure. • Choice of single-phase high-line AC, three-phase high-line AC, single-phase high voltage AC, -48V DC, or high voltage DC power options for flexibility in connecting to datacenter power.
HPE Thermal Logic technology to minimize power consumption and reduce cooling.
A minimum of four hot-plug HPE Active Cool 200 Fans. For additional capacity, redundancy, and improved power consumption and acoustics, Active Cool 200 Fan kits can be added for a maximum of 10 fans.
Redundant hot-plug cooling, redundant hot-plug power supplies, redundant connections, redundant interconnect modules, and optional redundant BladeSystem Onboard Administrator management module.

Extending the foundation for Converged Infrastructure

The HPE BladeSystem c7000 Enclosure goes beyond just Blade servers. It consolidates server, storage, networking and power management into a single solution that can be managed as a unified environment.
With demanding workloads, the increased power supply wattage and mid-plane bandwidth aligned with Intelligent Infrastructure technologies such as Platinum Power Supplies, Intelligent Power Module, and Location Discovery Services have enhanced the foundation for converged infrastructure.
HPE OneView combines server, storage, and networking with control of your data center environment into a single, integrated management platform architected to deliver lifecycle management for the complete Converged Infrastructure.
With Onboard Administrator, iLO remote management, and HPE OneView you can manage your servers and take complete control regardless of the state of the server operating system.

Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

HPE BladeSystem c7000 Base Knowledge.

The enclosures listed below include an Onboard Administrator with KVM and four (4) hot-plug Active Cool 200 Fans. The power module, power supply kits, power cables, interconnects, additional fans, etc. are added per the steps below.

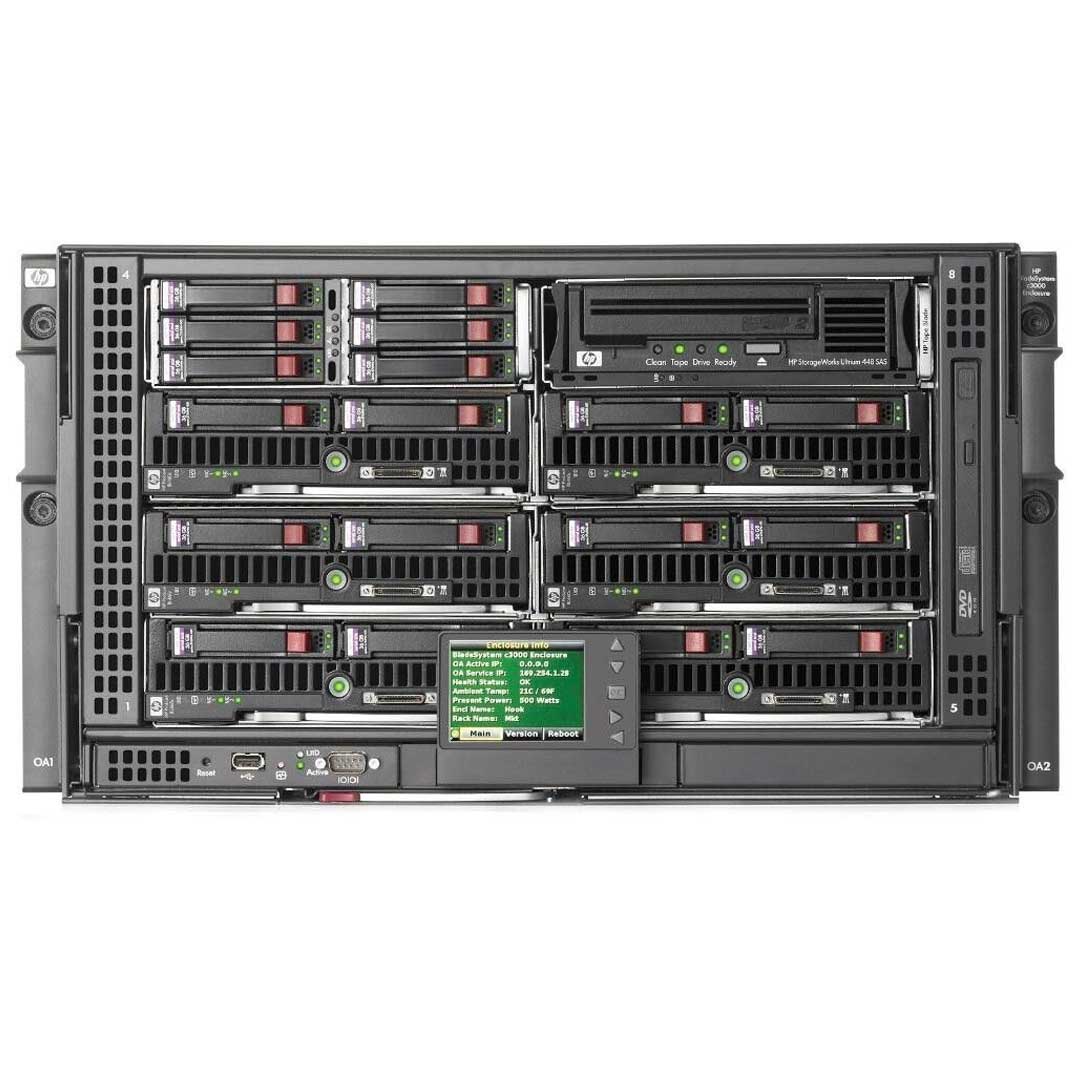

The HPE c7000 is like the big brother to the HPE c3000. Both can handle the same HPE Blade server with the main difference being the amount each can support. The c3000 can handle up to 8 Blade Servers while the c7000 can handle up to 16 Blade Servers.

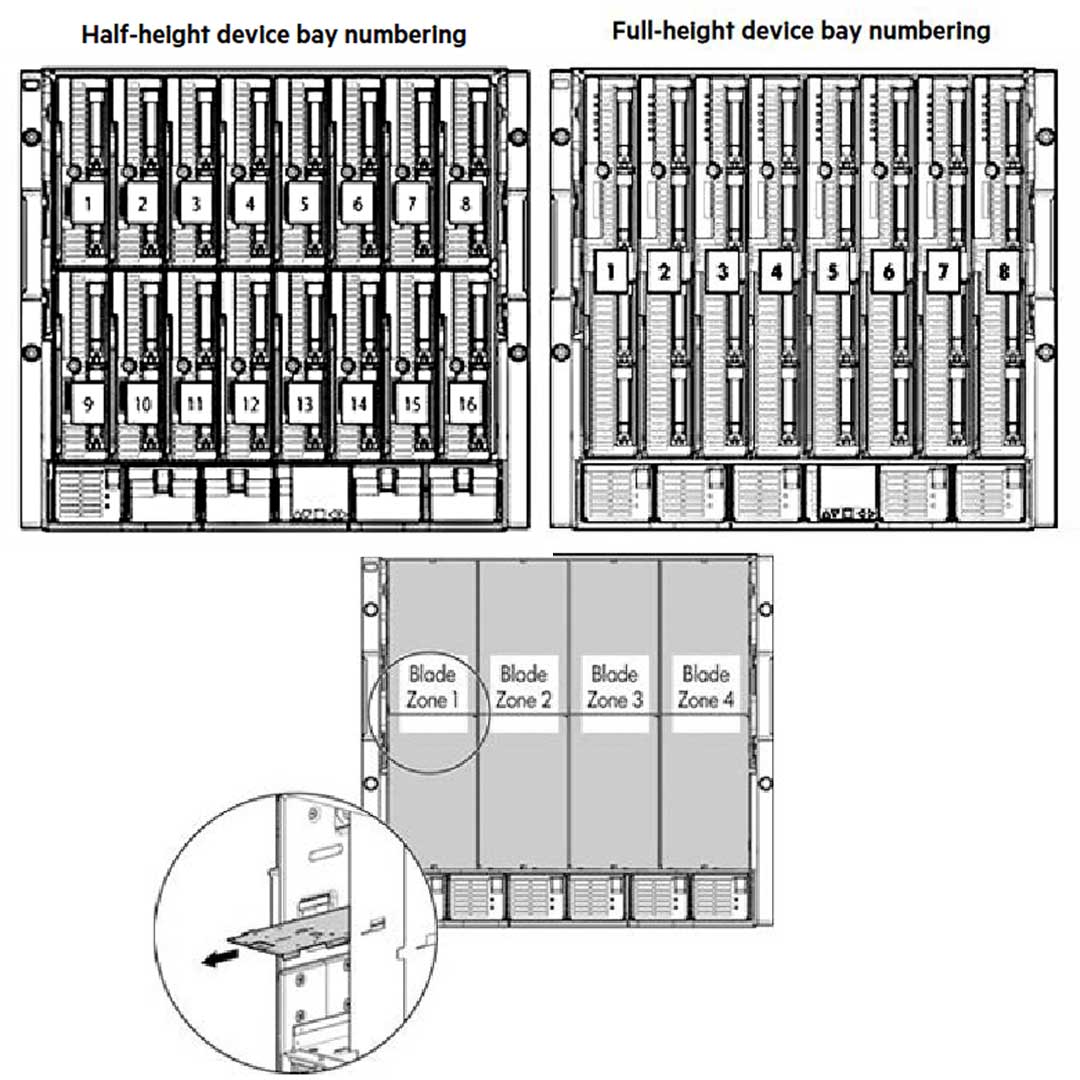

The c7000 enclosure is divided into 4 zones by the vertical support metalwork. Within each zone, a removable divider is used to support half-height devices. To install a full-height blade in any zone this divider must be removed. As a consequence, a zone can only contain either full-height server blades or half-height server blades.

An enclosure zone can only contain either full-height server blades or half-height server blades; mixing of the two form factors is not allowed except when connecting an expansion blade to a server partner blade.

NOTE: Insight Control is not supported with Gen10 server blades.

HPE BladeSystem c7000 Interconnect and Networking

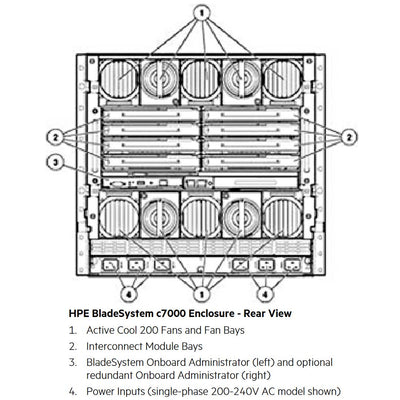

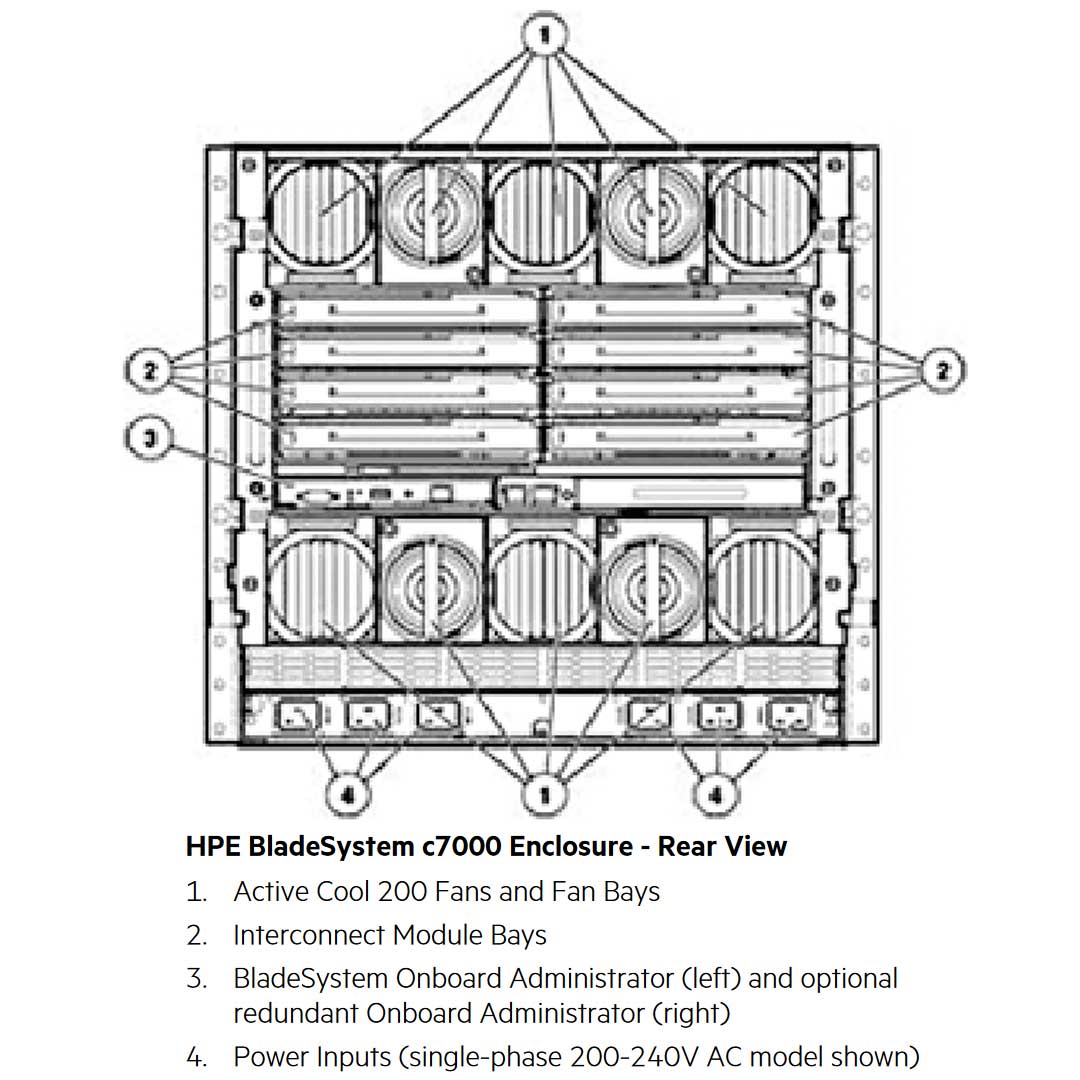

The HPE c7000 can handle up to 8 Interconnects and 2 Onboard Administrators. The Interconnect bays 1 and 2 support the network (i.e. Ethernet capable) interconnects. These bays connect to the included network adapter ports in the server blades. Interconnect bays 3 and 4 must contain the same type of interconnect (network, SAN, SAS, etc) as they connect to the same mezzanine slot. Likewise for interconnect bays 5, 6, 7, and 8.

HPE BladeSystem c7000 Cooling

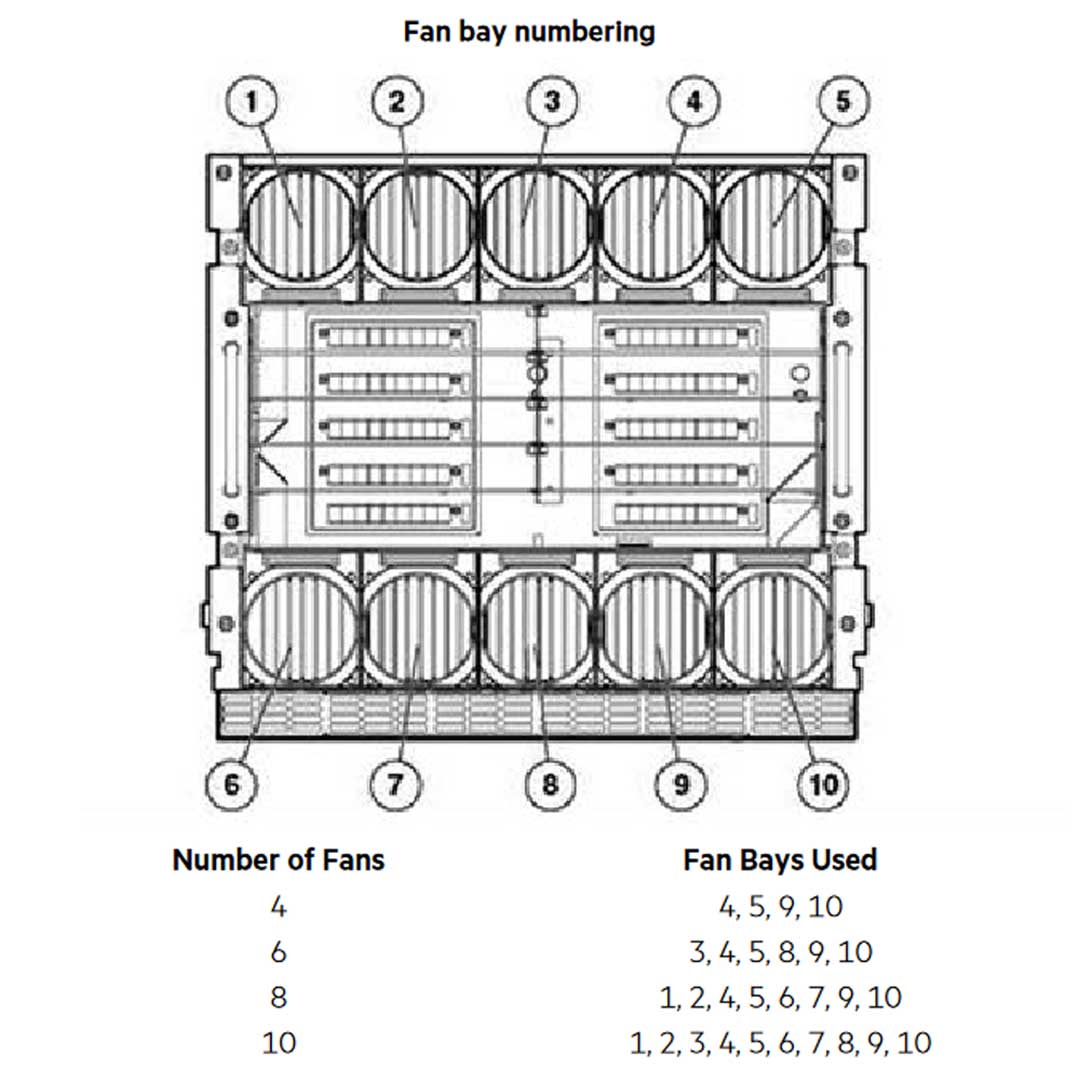

With a total of 10 fans this server can handle configurations with 4 or 6 fans. Ten fans are strongly recommended for maximum cooling efficiency and redundancy, reduced power consumption, and reduced noise. The enclosure supports a minimum of 4 Active Cool 200 Fans to a maximum of 10 Active Cool 200 Fans.

HPEBladeSystem c7000 PSU
Mixing of power supplies is not supported, except during hot swaps to different level or higher efficient power supplies.

Please Upgrade Server

*This Configure to Order has not been created.
*You can still Contact Us for a quote on this server.
*Thank you.

HPE BLc7000 CTO Blade Enclosure TAA-compliant Platinum Enclosure with 2x Onboard Admin 6x PS 10x Fans Spec Sheet

Manuals

Base Standard Capabilities

Product features

Feature	Description
Functions	Up to 16 Half-Height server blades, 8 Full-Height server blades, and/or 8 expansion blades per enclosure (Not exceeding 16 total blades). Up to 4 redundant interconnect I/O fabrics (Ethernet, Fibre Channel, InfiniBand, iSCSI, SAS, etc.) supported simultaneously within the enclosure. Choice of Single-Phase High-Line AC, Three-Phase High-Line AC, Single-Phase high voltage AC, -48 V dc, or high voltage DC power options for flexibility in connecting to datacenter power. HP Thermal Logic technology to minimize power consumption and reduce cooling. A minimum of four Hot-Plug HP active cool 200 fans. For additional capacity, redundancy, and improved power consumption and acoustics, Active Cool 200 Fan kits can be added for a maximum of 10 fans. Redundant hot-plug cooling, redundant Hot-Plug power supplies, redundant connections, redundant interconnect modules, and optional redundant BladeSystem onboard administrator management module.
Benefits	With local and remote hardware management integrated across the solution, one full enclosure can be managed as easily as one server. Management and network interconnects extend scalability beyond a single enclosure, allowing resources to be pooled and shared across multiple enclosures. Accommodates multiple server and network designs in one enclosure. Lower power consumption, in comparison to Rack-Mounted servers. Lower costs per server, in comparison to Rack-Mounted servers. Lower airflow requirements, in comparison to Rack-Mounted servers. Reduced and simplified cabling in comparison to Rack-Mounted servers. Investment protection supporting G1 through Gen9 server blades.
Blade system onboard administrator management	Robust, multiple enclosure setup and control. Reports asset and inventory information for the devices in the enclosure. Reports thermal and power information, including real-time actual power usage per server and perenclosure. Front-mounted Insight Display for easy management within the datacenter. Integrated access to all server blade Integrated Lights-Out (iLO) from a single cable. Provides integrated access to interconnect bay device management ports from the single BladeSystem onboard administrator cable. Single Sign-On capability for all devices in the enclosure. Role-Based security locally and/or with LDAP directory services. Provides a wizard-based initial setup process for easy configuration.
HPE blade systemc-Class c3000Enclosure	For users that need a smaller blade system, the HPE BladeSystem c-Class c3000 Enclosure is the perfect solution. Supporting up to 8 blades and 4 inter connects, the c3000 enclosure provides an ideal solution for small and medium businesses and remote sites.
HPE ProLiant andintegrity serverblades	Delivering Best-in-Class performance, choice and reliability on Intel Xeon and Intel Itanium processors for Windows, Linux, Solaris, OpenVMS or HP-UX based servers; the HPE portfolio of server blades supports avariety of application requirements for scale-out architectures. Hewlett Packard Enterprise offers one-, two-, four- , or eight processor server blades, with the widest range of performance, and form factors.
HPE D2200sb storage blade	The D2220sb Storage Blade delivers direct attached storage for c-Class Gen8 server blades with support for up to twelve hot plug Small Form Factor (SFF) SAS or SATA Midline hard disk drives or SAS/SATA SSDs. The enclosure backplane provides a PCI express connection to an adjacent c-Class server blade and enables high performance storage access without any additional cables. The D2220sb Storage Blade features an onboard Smart Array P420i controller with 2GB Flash-Backed Write Cache (FBWC) for increased performance and data protection. Up to eight D2220sb storage devices can be supported in a single BladeSystem c7000 Enclosure for up to 115.2TB of capacity.
HPE ultrium tape Blades¹	Tape blades are ideal for HP BladeSystem c-Class users who need a data protection solution but are not connected into a Storage Area Network (SAN). They provide direct attach data protection for the adjacent server and network backup protection for all other data within the enclosure. The HP tape blades are the industry's first bladed tape drives and are developed exclusively for the BladeSystem c-Class enclosures.
Dynamic power capping	HPE Dynamic power capping is the industry's first power capping solution that lets user reclaim trapped power and cooling capacity without putting electrical infrastructure or server performance at risk. The enclosure Dynamic power cap will be shared amongst all of the installed devices and individual server caps will be changed to match the server load. This will optimize the performance of the servers while ensuring that the enclosure stays below the cap value.
Rack airflow requirements	Rack 10000 G2 series cabinets The increasing power of new High-Performance processor technology requires increased cooling efficiency for rack-mounted servers. The G2 10000 Series racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
Factory express portfolio for servers and storage	HPE Factory express offers configuration, customization, integration and deployment services for HP servers and storage products. Users can choose how their factory solutions are built, tested, integrated, shipped and deployed.
HPE simple configurator	SCE is a guided Self-Service tool to help sales and non-technical people provide users with initial configurations in 3 to 5 minutes. Send the configuration on for configuration help, or use in the existing ordering processes. If user require custom rack configuration or configuration for products notavailable in SCE, please contact HPE's user Business center or an authorized partner for assistance.
HPE power advisor	The HPE power advisor is a tool provided by Hewlett-Packard Enterprise to assist in the estimation of power consumption and proper selection of components including power supplies at a system, rack, and multi-rack level. A variety of additional features are also provided including a condensed bill of materials, a cost of owner ship calculator, and a power report. The HPE Power advisor allows for the mixing of rack, tower, blade, and other products in a single environment.

top

Specs 1

Physical specifications

Specifications	Description
Dimensions (H x W x D):	442 x 447.04 x 813 mm (17.4 x 17.5 x 32.0 in)
Enclosure weight	Unboxed: 67 kg (148 lb) Shipping: 87 kg (191 lb)
Power input module weight	1.4 kg (3 lb)
Power supply weight	2.7 kg (6 lb)
HPE Active cool 200 fan weight	1.8 kg (4 lb)
Onboard administrator weight	1.4 kg (3 lb)
Maximum enclosure weight	Unboxed: 219 kg (482 lb) Shipping: 238 kg (525 lb)
Option kits	Power supply option shipping dimensions	223 x 219 x 892 mm (8.75 x 8.63 x 35.13 in)
	Weight	3.85 kg (8.5 lb)
	Fan option shipping dimensions	223 x 248 x 403 mm (8.75 x 9.75 x 15.88 in)
	Weight	1.8 kg (4.0 lb)
	BladeSystem onboard administrator option shipping dimensions	63.5 x 251 x 343 mm (2.50 x 9.88 x 13.50 in)
	Weight	1.8 kg (4.0 lb)

top

Specs 2

Environmental specifications

Specifications

Description

Operating temperature¹

10° to 35° C (50° to 95° F)

Non-operating temperature

-30°C to 60°C (-22°F to 140°F)

Operating relative humidity¹

10% to 90% non-condensing

Operating Non-operating humidity

5% to 95% non-condensing

Acoustic noise²

Listed are the declared A-Weighted sound power levels (LWAd) and declared averagebystander position A-Weighted sound pressure levels (LpAm) when the product isoPerating in a 23°C ambient environment. Noise emissions were measured inaccordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296(ECMA 109)

Idle
LWAd	7.1 Bels
LpAm	54 dBA
Operating
LWAd	7.2 Bels
LpAm	54 dBA

NOTE: 1.Operating temperature has an altitude derating of 1°C (1.8°F) per 304.8 m (1,000 ft). No direct sunlight. Upper operating limit is 3,048 m (10,000 ft) or 70Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 Kpa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage is 70 Kpa.

2. Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C (73.4°F) ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
