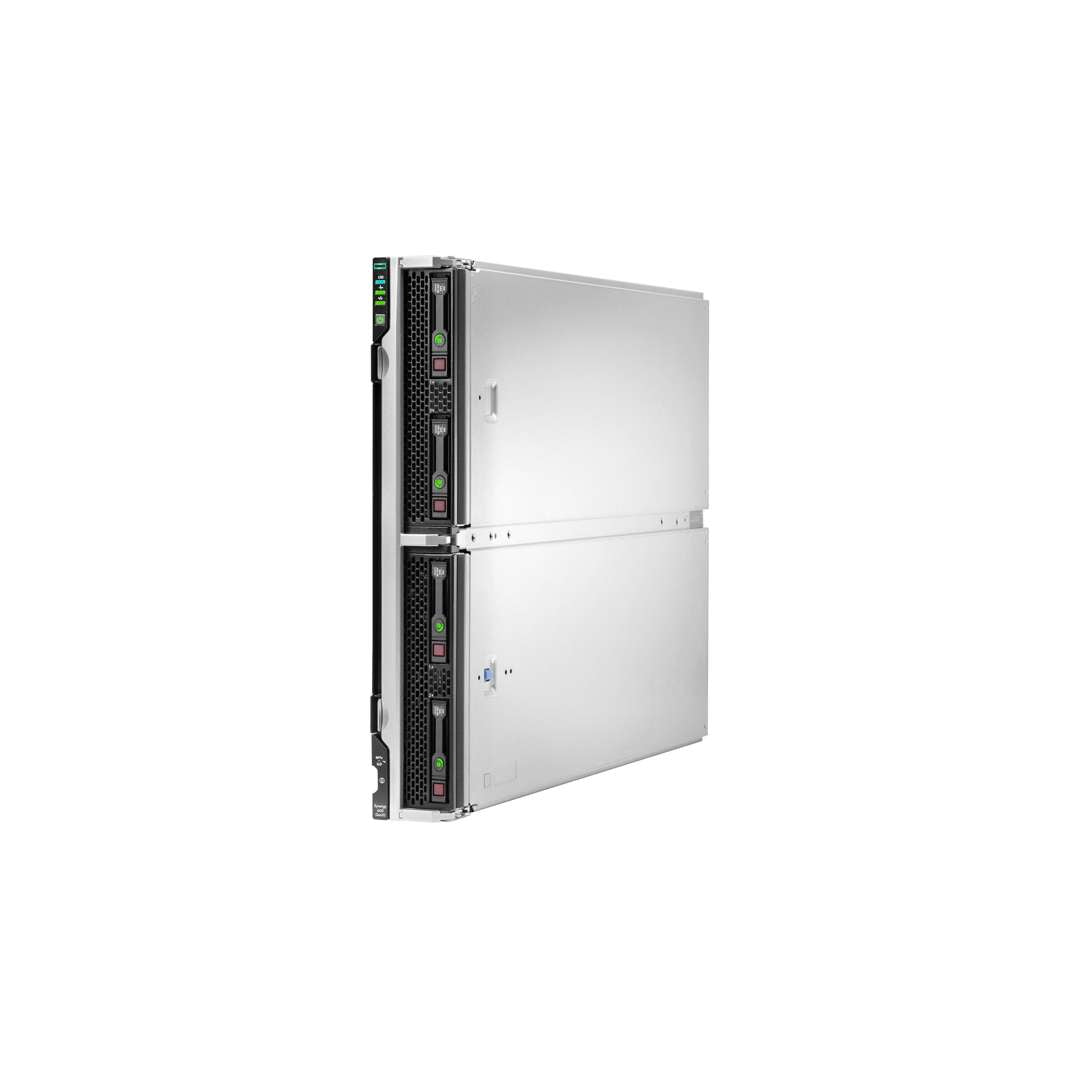

*Image may differ from actaul product

HPE Synergy 660 Gen10 CTO Compute Module

Part#:

660G10

Brand:

HPE

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Synergy 660 Gen10 Product Description

The HPE Synergy 660 Gen10 Compute Module delivers higher performance and scalability for your demanding, enterprise data-intensive workloads. The powerful Intel® Xeon® Scalable Family of processors (2 or 4 Socket), broad memory footprint (up to 6 TB of HPE DDR4 memory in 48 DIMM slots) and flexible I/O configuration give your large workloads, such as structured databases and business processing applications, the compute power and memory support they demand.

What’s New for Synergy 660 Gen10

Next generation of Intel Scalable family processors.
New 2933 MT/s memory for next generation Intel Scalable family processors.
New HPE Persistent memory optimized for Data-Intensive workloads featuring Intel Optane DC persistent memory.
Additionals drive systems and replacements.

Highly Flexible - Composable/Software Defined Infrastructure

The HPE Synergy 480 Gen10 Compute Module delivers more choice for performance, capacity, efficiency, and flexibility to power most workloads with support for the full range of 2 Generations of Intel Xeon Scalable Family processors.

Composable compute resource that is intelligently auto-discovered, provisioned easily and managed seamlessly. Synergy Composability simplifies IT operations and reduces overprovisioning costs.

Integrated OneView - RESTful API with an ecosystem of composable infrastructure partners provides broad options for 3rd party integration, protecting key existing investments.

Ideal Performance for Scale Up Workloads

The HPE Synergy Gen10 Compute Module provides a performance increase over previous generation with a choice of 2 generations of Intel Scalable Family processors.

Increase in memory speeds with a wide range of memory sizes for Registered and Load Reduced DDR4 DIMMs.

Faster compute to network connectivity speeds gets your data where it's needed faster.

Flexible and Secure

HPE Synergy 660 Gen10 Compute Module provides superior, enterprise-grade availability that allows IT to quickly and confidently implement changes through template-based operations.

Unmatched threat protection with HPE Silicon Root of Trust and unique chain of trust architecture to protect, detect and recover firmware.

System Tuning to create and smooth performance while matching customer workloads.

Up to 6 mezzanine options with enough I/O and redundancy for workloads requiring high availability.

160 Zoned drives per storage controller, in frame, and Hybrid RAID/HBA Smart Array to make your controller investment more effective.

Product features

Feature

Description

Processors ¹

Two or four of the following depending on model

Intel Xeon Models	CPU frequency (GHz)	Cores	Power (WATTs)	UPI	DDR4 MT/s	Memory per socket
Platinum processors
Platinum 8180M processor	2.5 GHz	28	205 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Platinum 8180 processor	2.5 GHz	28	205 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8176 processor	2.1 GHz	28	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8170 processor	2.1 GHz	26	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8168 processor	2.7 GHz	24	205 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8165 Processor	2.3 GHz	24	205 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8164 processor	2.0 GHz	26	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8160M processor	2.1 GHz	24	150 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Platinum 8160 processor	2.1 GHz	24	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8158 processor	3.0 GHz	12	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8156 processor	3.6 GHz	4	105 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Platinum 8153 processor	2.0 GHz	16	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold processors
Gold 6154 processor	3.0 GHz	18	200 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6152 processor	2.1 GHz	22	140 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6150 processor	2.7 GHz	18	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6148 processor	2.4 GHz	20	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6146 Processor	3.2 GHz	12	165 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6144 Processor	3.5 GHz	8	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6143 Processor	2.8 GHz	16	205 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6142M Processor	2.6 GHz	16	150 W	3 @ 10.4 GT/s	2666 MT/s	1.5TB
Gold 6142 Processor	2.6 GHz	16	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6140 Processor	2.3 GHz	18	140 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6138 Processor	2.0 GHz	20	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6136 Processor	3.0 GHz	12	150 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6134 processor	3.2 GHz	8	130 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6132 processor	2.6 GHz	14	140 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6130 processor	2.1 GHz	16	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6128 processor	3.4 GHz	6	115 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 6126 processor	2.6 GHz	12	125 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 5122 processor	3.6 GHz	4	105 W	3 @ 10.4 GT/s	2666 MT/s	768GB
Gold 5120 processor	2.2 GHz	14	105 W	3 @ 10.4 GT/s	2400 MT/s	768GB
Gold 5118 processor	2.3 GHz	12	105 W	3 @ 10.4 GT/s	2400 MT/s	768GB
Gold 5115 processor	2.4 GHz	10	85 W	3 @ 10.4 GT/s	2400 MT/s	768GB

Intel Xeon Scalable processor family - 2nd generation

Intel Xeon Models	CPU frequency (GHz)	Cores	Power (WATTs)	DDR4 MT/s	Max Memory per socket (TeraBytes)	Persistent Memory Support
Platinum processors
Platinum 8280L Processor	2.7 GHz	28 GHz	205 W	2933 MT/s	4.5TB	Yes
Platinum 8280M Processor	2.7 GHz	28 GHz	205 W	2933 MT/s	2TB	Yes
Platinum 8280 Processor	2.7 GHz	28 GHz	205 W	2933 MT/s	1TB	Yes
Platinum 8276L Processor	2.2 GHz	28 GHz	165 W	2933 MT/s	4.5TB	Yes
Platinum 8276M Processor	2.2 GHz	28 GHz	165 W	2933 MT/s	2TB	Yes
Platinum 8276 Processor	2.2 GHz	28 GHz	165 W	2933 MT/s	1TB	Yes
Platinum 8270 Processor	2.6 GHz	26 GHz	205 W	2933 MT/s	1TB	Yes
Platinum 8268 Processor	2.9 GHz	24 GHz	205 W	2933 MT/s	1TB	Yes
Platinum 8260Y Processor	2.4 GHz 2.5 GHz 2.8 GHz	24 GHz 20 GHz 16 GHz	165 W	2933 MT/s	1TB	Yes
Platinum 8260L Processor	2.4 GHz	24 GHz	165 W	2933 MT/s	4.5TB	Yes
Platinum 8260M Processor	2.4 GHz	24 GHz	165 W	2933 MT/s	2TB	Yes
Platinum 8260 Processor	2.4 GHz	24 GHz	165 W	2933 MT/s	1TB	Yes
Platinum 8256 Processor	3.4 GHz	4 GHz	105 W	2933 MT/s	1TB	Yes
Platinum 8253 Processor	2.2 GHz	16 GHz	125 W	2933 MT/s	1TB	Yes
Gold processors
Gold 6262V Processor	1.9 GHz	24 GHz	135 W	2933 MT/s	1TB	Yes
Gold 6252N Processor	2.3 GHz	24 GHz	150 W	2933 MT/s	1TB	Yes
Gold 6254 Processor	3.1 GHz	18	200 W	2933 MT/s	1TB	Yes
Gold 6252 Processor	2.1 GHz	24	150 W	2933 MT/s	1TB	Yes
Gold 6248 Processor	2.5 GHz	20	150 W	2933 MT/s	1TB	Yes
Gold 6246 Processor	3.3 GHz	12	165 W	2933 MT/s	1TB	Yes
Gold 6244 Processor	3.6 GHz	8	150 W	2933 MT/s	1TB	Yes
Gold 6242 Processor	2.8 GHz	16	150 W	2933 MT/s	1TB	Yes
Gold 6240Y Processor	2.6 GHz 2.8 GHz 3.1 GHz	18 14 8	150 W	2933 MT/s	1TB	Yes
Gold 6240L Processor	2.6 GHz	18	150 W	2933 MT/s	4.5TB	Yes
Gold 6240M Processor	2.6 GHz	18	150 W	2933 MT/s	2TB	Yes
Gold 6240 Processor	2.6 GHz	18	150 W	2933 MT/s	1TB	Yes
Gold 6238L Processor	2.1 GHz	22	140 W	2933 MT/s	4.5TB	Yes
Gold 6238M Processor	2.1 GHz	22	140 W	2933 MT/s	2TB	Yes
Gold 6238 Processor	2.1 GHz	22	140 W	2933 MT/s	1TB	Yes
Gold 6234 Processor	3.4 GHz	8	130 W	2933 MT/s	1TB	Yes
Gold 6230N Processor	2.3 GHz	20	125 W	2933 MT/s	1TB	Yes
Gold 6230 Processor	2.1 GHz	20	125 W	2933 MT/s	1TB	Yes
Gold 6226 Processor	2.7 GHz	12	125 W	2933 MT/s	1TB	Yes
Gold 6222V Processor	1.8 GHz	20	115 W	2933 MT/s	1TB	Yes
Gold 5222 Processor	3.8 GHz	4	105 W	2933 MT/s	1TB	Yes
Gold 5220S Processor	2.6 GHz	18	125 W	2666 MT/s	1TB	Yes
Gold 5220 Processor	2.2 GHz	18	125 W	2666 MT/s	1TB	Yes
Gold 5218N Processor	2.3 GHz	16	105 W	2666 MT/s	1TB	Yes
Gold 5218B Processor	2.3 GHz	16	125 W	2666 MT/s	1TB	Yes
Gold 5218 Processor	2.3 GHz	16	125 W	2666 MT/s	1TB	Yes
Gold 5217 Processor	3 GHz	8	125 W	2666 MT/s	1TB	Yes
Gold 5215L Processor	2.6 GHz	10	85 W	2666 MT/s	1TB	Yes
Gold 5215M Processor	2.6 GHz	10	85 W	2666 MT/s	1TB	Yes
Gold 5215 Processor	2.6 GHz	10	85 W	2666 MT/s	1TB	Yes

top

Chipset

Intel C621 series chipset

Synergy management ²

HPE composer powered by OneView

On compute management chipset ³

HPE iLO 5 ASIC

Memory ^{4, 5, 6, 7}

HPE Registered Dual in-line Memory Module (RDIMMs) and Load-Reduction Dual in-line Memory Module (LRDIMMs)

Two to Forty-Eight (48) of the following depending on model. The following memory supports Intel xeon scalable processor family 2nd generation:

HPE 8GB (1 x 8GB) single rank x8 DDR4-2933 CAS-21-21-21 registered memory kit
HPE 16GB (1 x16GB) single rank x4 DDR4-2933 CAS-21-21-21 registered memory kit
HPE 16GB (1 x 16GB) dual rank x8 DDR4-2933 CAS-21-21-21 registered memory kit
HPE 32GB (1 x 32GB) dual rank x4 DDR4-2933 CAS-21-21-21 registered memory kit
HPE 64GB (1 x 64GB) dual rank x4 DDR4-2933 CAS-21-21-21 RDIMM memory kit
HPE 64GB (1 x 64GB) quad rank x4 DDR4-2933 CAS-21-21-21 LRDIMM memory kit
HPE 128GB (1 x 128GB) octal rank x4 DDR4-2933 CAS-24-21-21 LRDIMM memory kit

Type	HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
Dual In-line Memory Module (DIMM) slots available	48	12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)	6TB	48 x 128GB LRDIMM - 2666 MT/s (Check on availability of 128GB DIMMs before ordering)
Maximum capacity (RDIMM)	3TB	48 x 64GB RDIMM - 2666 MT/s

The following memory supports Intel xeon scalable processor family 1st generation:

HPE 8GB (1 x 8GB) single rank x8 DDR4-2666 CAS-19-19-19 registered memory kit.
HPE 16GB (1 x 16GB) single rank x4 DDR4-2666 CAS-19-19-19 registered memory kit.
HPE 16GB (1 x 16GB) dual rank x8 DDR4-2666 CAS-19-19-19 registered memory kit.
HPE 32GB (1 x 32GB) dual rank x4 DDR4-2666 CAS-19-19-19 registered memory kit.
HPE 64GB (1 x 64GB) quad rank x4 DDR4-2666 CAS-19-19-19 LRDIMM memory kit.
HPE 128GB (1 x 128GB) octal rank x4 DDR4-2666 CAS-22-19-19 LRDIMM memory kit.

Type	HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available	48	12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)	6TB	48 x 128GB LRDIMM - 2666 MT/s (Check on availability of 128GB DIMMs before ordering)
Maximum capacity (RDIMM)	1.5TB	48 x 32GB RDIMM - 2666 MT/s
Maximum capacity Non-Volatile Dual in-line Memory Module (NVDIMM)	192GB	12 x 16GB NVDIMM - 2666 MT/s

Modes of operation

New class of memory which can be configured as either large server memory or fast storage.

Flexibility to deploy as dense memory or fast storage.
Single technology used as memory or storage reducing datacenter complexity.

Memory protection ⁸

Advanced ECC	Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.
Online spare	Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.
Online mode	Memory online spare mode (Rank spare mode).

Network adapters ¹¹

HPE Synergy 3820C 10/20 GbE Converged Network Adapter (CNA)
HPE Synergy 2820C 10 GbE CNA
HPE Synergy 4820C 10/20/25Gb CNA
HPE Synergy 4610C 10/25 GbE adapter
HPE Synergy 6810C 25/50 GbE adapter
HPE Synergy 6410C 25/50 GbE adapter
HPE Synergy 5330C 32G Fibre Channel (FC) Host Bus Adapters (HBA)
HPE Synergy 5830C 32G FC HBA
HPE Synergy 3530C 16G FC host bus network adapter
HPE Synergy 3830C 16G FC host bus network adapter

Mezzanine connectors

Six (6) I/O expansion mezzanine connectors:

Mezzanine connector 1 is x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards) for fabric 1.
Mezzanine connector 2 is x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards) for fabric 2.
Mezzanine connector 3 is x16 PCIe 3.0 type C (Supports type C mezzanine cards) for fabric 3.
Mezzanine connector 4 is x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards) for fabric 1.
Mezzanine connector 5 is x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards) for fabric 2.
Mezzanine connector 6 is x16 PCIe 3.0 type C (Supports type C mezzanine cards) for fabric 3.

Mezzanine options include

Dual-port 10/20Gb compute module mezzanine adapter options.
Dual-port 16Gb FC HBA for SAN connectivity.
2GB storage module smart array mezzanine controller for direct attach storage.
Dual-port 25/50 GbE network adapter.

HPE compute module Read Only Memory (ROM)

HPE ROM is now digitally signed using the HPE corporate signing service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
HPE Synergy compute ROM is used to configure the following:
- Processor and chipset status registers.
- System memory, memory map, and memory initialization.
- System hardware configuration (Integrated PCI devices and optional PCIe cards).
- End user specific BIOS configuration using the Unified Extensible Firmware Interface (UEFI) system utilities.

Storage controllers

Software RAID (Embedded): HPE Smart array S100i software RAID Gen10 (HPE FIO enable smart array SW RAID).
Essential RAID controllers: HPE Smart array E208i-c SR Gen10 12G SAS modular controller.
Performance RAID controllers: HPE Smart array P408i-c SR Gen10 12G SAS modular controller.
- HPE Smart array P416ie-m SR Gen10 12G SAS mezzanine controller (Mezzanine hybrid smart array controller for use with Synergy D3940 storage modules; up to 4 storage modules per frame with the HPE Synergy 660 Gen10 compute modules).
HPE Smart array P416ie-m SR Gen10 12G SAS mezzanine controller (Mezzanine hybrid smart array vontroller for use with Synergy D3940 storage modules; up to 4 storage modules per frame with the HPE Synergy 660 Gen10 compute modules).
Premium backplane compute module option for use with up to 4 NVMe drives in front drive cage.Also, supports P416ie-m with specific SAS cable connections allowing P416ie-m to manage SATA/SAS drives in both front drive cage and HPE SY D3940 DAS Storage module.

Maximum internal storage ⁹

Models

Capacity

Configuration

Hot plug SFF SAS SSD

61.2TB

4 x 15.3TB

Hot plug SFF SATA SSD

15.36TB

4 x 3.84TB

Hot plug SFF SAS HDD

9.6TB

4 x 2.4TB

Hot plug SFF SATA HDD

8.0TB

4 x 2.0TB

Hot plug SFF NVMe SSD

d16.0TB

8 x 4.0GB

Hot plug uFF SATA SSD

2.72TB

4 x 340GB

Hot plug internal M.2

7.68TB

4 x 1.92TB

Interfaces

Micro SDHC slot

One (1) internal micro secure digital high capacity (Micro SDHC) card slot.

USB 3.0 port

One (1) internal USB 3.0 connector for USB flash media drive keys.

USB 3.0 port

One (1) external USB 3.0 connector for USB flash media drive keys.

iLO USB 2.0 port

One (1) external USB 2.0 connector for iLO 5.

Form factor

HPE Synergy 660 Gen10 is a 10U Full-Height, Single-Wide, compute module that plugs into the HPE Synergy frame 12000.

Frames

HPE Synergy 12000 frame, is the base for all Synergy products and supports full redundancy in a single frame, while allowing for scalability and redundancy out to many frames (Up to 21 frames supported per single composer/OneView).

Up to 12 Half-Height, 6 Full-Height Single-Wide, or 3 Full-Height Double-Wide compute modules (Mixing allowed).
Up to 5 Half-Height Double-Wide HPE Synergy D3940 Storage modules (Mixing with compute modules in any to any ratio allowed).
One HPE Synergy 12000 frame will support up to six (6) HPE Synergy 660 Gen10 compute modules.

Industry standard compliance

Microsoft logo certifications.
USB 3.0 compliant; iLO USB is 2.0 compliant.
WOL enabled on specific adapters.
PXE support enabled.
Trusted Platform Module (TPM) 2.0 support (RBSU support of TPM 1.2).
IEEE (Specific IEEE standards depending on ethernet adapter card(s) installed).
Advanced Encryption Standard (AES).
Triple Data Encryption Standard (3DES).
SNMP
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP).
Active directory v1.0
PCIe 3.0
UEFI forum

Graphics

Integrated matrox G200eH2 video standard with 16MB of video RAM

1280 x 1024 (32 bp)
1920 x 1200 (16 bp)

HPE iLO 5 on system management memory

32MB flash
512MB with ECC (224MB after ECC and video).

HPE server UEFI/legacy ROM ¹⁰

UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with users server at boot time. HPE Gen10 servers have a UEFI Class 2 implementation and support both UEFI mode (Default) and legacy BIOS mode.

UEFI enables numerous new capabilities specific to HPE Synergy compute modules such as:

Secure boot and secure start enable for enhanced security.
Operating System (OS) specific functionality.
Support for > 2.2TB (Using GPT) boot drives.
USB 3.0 stack
Embedded UEFI shell
Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant.
PXE boot support for IPv6 networks.
Workload profiles for simple performance optimization.

UEFI boot mode only:

TPM 2.0 support
NVMe boot support
Platform Trust Technology (PTT) can be enabled.
iSCSI software initiator support.
HTTP/HTTPs boot support as a PXE alternative.
Boot support for option cards that only support a UEFI option ROM.

Embedded management

USB 3.0 Stack

HPE Synergy composer with HPE OneView.
HPE iLO
UEFI
Intelligent provisioning
iLO RESTful API

Security

Newest forms of security based on iLO 5 features.
Secure start, with hardware root of trust.
- HPE Hardware designed logic in iLO chip validates iLO firmware burned in chip.
- iLO then validates system/compute ROM firmware for digital signature.
- iLO completes the chain of trust.
- ROM validates option ROMs and OS bootloader VIA UEFI secure boot.

Standard security features

Power-On password
Administrator's password
Keyboard password (QuickLock)
HPE iLO management on system management chipset with SSL encryption, secure shell version 2, AES and 3DES on browser, CLP and XML scripting interface, AES and RC4 encryption of video.
External USB port enable/disable
Network server mode
Serial interface control
TPM 1.2 or 2.0 option
AES
Intel Advanced Encryption Standard-New Instructions (AES-NI).

NOTE:

For more information regarding Intel Xeon processors please check the below link:
Click here to access the page for Intel Xeon Processors .
Read and learn more about OneView from the below link:
Click here to access the page for HPE OneView .
Read and learn more in the iLO QuickSpecs from the below link:
Click here to access the quickspecs page for HPE Integrated Lights-Out (iLO) .
Maximum capacity with LRDIMM will increase to 6TB in 2H201.
The 128GB LRDIMM, when available, may not be mixed with other DIMM capacities/types.
LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a compute module.
HPE memory from previous generation servers (DDR3) is not compatible with this compute module. HPE DDR4 SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10.
For details on the HPE Server memory options RAS feature, check the below link:
Click here to access the page for How memory RAS technologies can enhance the uptime of HPE ProLiant servers .
The Synergy 660 Gen10 compute module includes the HPE Hot-Plug SFF SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers (Prior to Gen8) are not compatible with the Synergy 660 Gen9 or Gen10 drive bays.
- For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI.
- UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for users HPE Synergy Gen10 server.
- Supports full hardware offload of FCoE storage protocol processing for highest performance converged ethernet data and storage networks.
- Delivers flexibility to compose multiple network flows including ethernet and FCoE or iSCSI within each connection.
- Refer to the memory Quickspecs for more details.

top

Software overview

Feature	Description
OS and virtualization software support	Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2016 Standard Edition Microsoft Windows Server 2016 Datacenter Edition Microsoft Hyper-V Server 2012 Microsoft Hyper-V Server 2012 R2 Red Hat Enterprise Linux 6.9 (64-bit) (Includes KVM and RHEVH) Red Hat Enterprise Linux 7.4 GA (64-bit) (Includes KVM and RHEVH) SUSE Linux Enterprise Server 11 SP4 (64-bit) (Includes XEN and KVM) SUSE Linux Enterprise Server 12 SP2 (64-bit) (Includes XEN and KVM) SUSE Linux Enterprise Server 12 SP3 (64-bit) (Includes XEN and KVM) VMware ESXi 6.0 U3 (VMWare vSphere 2015 U3) VMware vSphere 2016 VMware vSphere 2017
NOTE:OS support may change. To get the most updated information, please go to the HPE OS support matrix page: Click here to access the page for Server OS and Virtualization Software .

Feature

Description

OS and virtualization software support

Microsoft Windows Server 2012 R2 Datacenter
Microsoft Windows Server 2012 R2 Standard
Microsoft Windows Server 2016 Standard Edition
Microsoft Windows Server 2016 Datacenter Edition
Microsoft Hyper-V Server 2012
Microsoft Hyper-V Server 2012 R2
Red Hat Enterprise Linux 6.9 (64-bit) (Includes KVM and RHEVH)
Red Hat Enterprise Linux 7.4 GA (64-bit) (Includes KVM and RHEVH)
SUSE Linux Enterprise Server 11 SP4 (64-bit) (Includes XEN and KVM)
SUSE Linux Enterprise Server 12 SP2 (64-bit) (Includes XEN and KVM)
SUSE Linux Enterprise Server 12 SP3 (64-bit) (Includes XEN and KVM)
VMware ESXi 6.0 U3 (VMWare vSphere 2015 U3)
VMware vSphere 2016
VMware vSphere 2017

NOTE:OS support may change. To get the most updated information, please go to the HPE OS support matrix page:

Click here to access the page for Server OS and Virtualization Software .

top

Physical specifications

Feature	Description
Dimensions (H x W x D) (With bezel)	6.35 x 43.03 x 59.92 cm (2.50 x 16.94 x 23.59 in)
Weight (Approximate)	Minimum: 13.75 kg (30.31 lb) - Two processor and 1 DIMM/processor installed Maximum: 17.41 kg (38.38 lb) - All processors, 48 DIMMs, drives, mezzanine cards, and one flash cache battery installed

top

Electrical specifications

Feature	Description
Power specifications	For power specifications including input requirements, BTU rating, and power supply output, please see the HPE Synergy frame TechSpecs. To review typical system power ratings use the HPE power advisor: Click here to access the HPE Power Advisor page .

top

Environmental specifications

Feature	Description
System inlet temperature
Operating temperature	10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F)
Non-operating temperature	-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr)
Extended ambient operating support	For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)
Relative humidity (Non-condensing)
Operating relative humidity	Minimum to be the higher (More moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (Less moisture) of 24°C (75.2°F) dew point or 90% relative humidity
Non-operating relative humidity	5% to 95% Relative Humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing
Altitude
Operating altitude	3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Non-operating altitude	9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min)
Acoustic noise	Please check the below link for acoustic noise specifications: Click here to access the page for Synergy Infrastructure .

top

Category: blade, gen10, hp, HP0115, hpe, HPE Blade Servers, HPE Servers

*Adds to cart & you can request a quote from the cart page

Add to Cart
