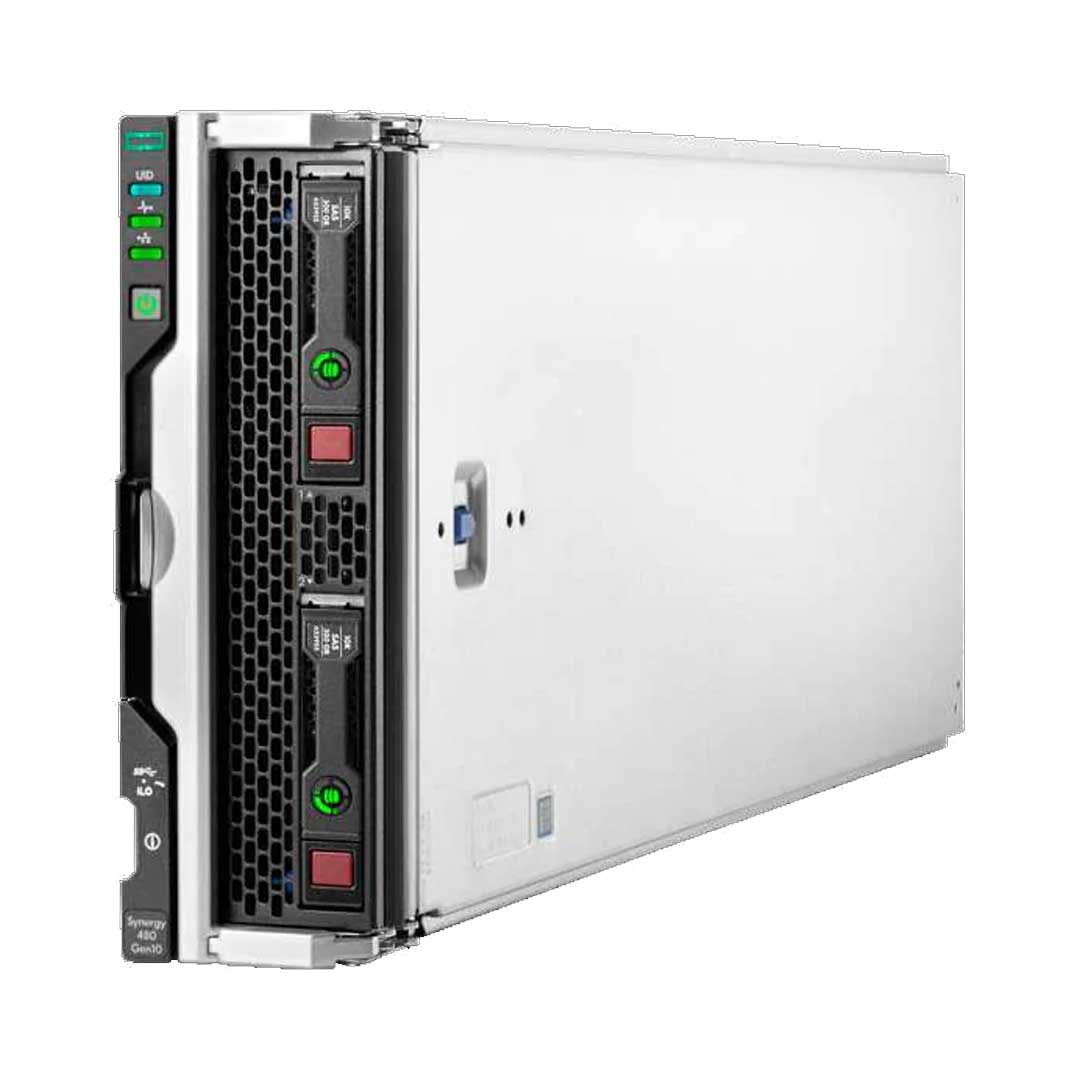

HPE Synergy 480 Gen10 CTO Compute Module

MPN:
480G10
Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON Spare Drives, Controllers, Power Supplies, NICs, HBAs, SFPs, Cables, etc.

Synergy 480 Gen10 Product Description

The HPE Synergy 480 Gen10 Compute Module delivers an efficient and flexible two-socket workhorse to support most demanding workloads. Powered by Intel Xeon Scalable Family of processors, up to 4.5 TB DDR4, more storage capacity and controllers and a variety of GPU options within a composable architecture. HPE Synergy 480 Gen10 Compute Module is the ideal platform for general-purpose enterprise workload performance now and in the future.

What’s New for Synergy 480 Gen10

  • Intel Xeon Scalable family generation 2 processors

  • New 2933 MT/s memory for next generation Intel Scalable family processors

  • New HPE Persistent memory optimized for data-intensive workloads featuring Intel optane DC persistent memory

  • Additional drive systems and replacements

  • Improve the user experience in engineering and analytical applications with GPU expansion supporting concurrent knowledge worker density in a 10 U rack space.

Highly Flexible - Composable/Software Defined Infrastructure

The HPE Synergy 480 Gen10 Compute Module delivers more choice for performance, capacity, efficiency, and flexibility to power most workloads with support for the full range of 2 Generations of Intel Xeon Scalable Family processors.

Composable compute resource that is intelligently auto-discovered, provisioned easily and managed seamlessly. Synergy Composability simplifies IT operations and reduces overprovisioning costs.

Integrated OneView - RESTful API with an ecosystem of composable infrastructure partners provides broad options for 3rd party integration, protecting key existing investments.

Ideal Performance for General Purpose Workloads

The HPE Synergy Gen10 Compute Module provides a performance increase over previous generation with a choice of 2 generations of Intel Scalable Family processors.

Increase in memory speeds with a wide range of memory sizes for Registered and Load Reduced DDR4 DIMMs.

Faster compute to network connectivity speeds gets your data where it's needed faster.

Continued support for more concurrent knowledge workers in a 10 U space with HPE GPU options and expansion modules to drive larger scale VDI workloads.

Flexible and Secure

HPE Synergy 480 Gen10 Compute Module provides flexible enterprise solutions that allow IT to quickly and confidently implement changes through intelligent template-based operations, reducing downtime and errors from manual operations.

Unmatched threat protection with HPE Silicon Root of Trust and unique chain of trust architecture to protect, detect and recover firmware.

System tuning to select cores, smooth performance and match customer workloads.

Up to 3 mezzanine options with I/O flexibility for redundancy in high availability use case requirements.

Up to 200 zoned drives per storage controller and Hybrid RAID/HBA Smart Array to make your controller investment more effective.

Product features

Feature
Description
Processors 1
Intel Xeon scalable processor family - 1st generation
Intel Xeon models
CPU Frequency
Cores
Power
DDR4
Memory per socket
Platinum processors
Platinum 8180M processor
2.5 GHz
28
205 W
2666 MT/s
1.5TB
Platinum 8180 processor
2.5 GHz
28
205 W
2666 MT/s
768GB
Platinum 8176 processor
2.1 GHz
28
165 W
2666 MT/s
768GB
Platinum 8170 processor
2.1 GHz
26
165 W
2666 MT/s
768GB
Platinum 8168 processor
2.7 GHz
24
205 W
2666 MT/s
768GB
Platinum 8164 processor
2.0 GHz
26
150 W
2666 MT/s
768GB
Platinum 8160M processor
2.1 GHz
24
150 W
2666 MT/s
1.5TB
Platinum 8160 processor
2.1 GHz
24
150 W
2666 MT/s
768GB
Platinum 8158 processor
3.0 GHz
12
150 W
2666 MT/s
768GB
Platinum 8156 processor
3.6 GHz
4
150 W
2666 MT/s
768GB
Platinum 8153 processor
2.0 GHz
16
125 W
2666 MT/s
768GB
Gold processors
Gold 6154 processor
3.0 GHz
18
200 W
2666 MT/s
768GB
Gold 6152 processor
2.1 GHz
22
140 W
2666 MT/s
768GB
Gold 6150 processor
2.7 GHz
18
165 W
2666 MT/s
768GB
Gold 6148 processor
2.4 GHz
20
150 W
2666 MT/s
768GB
Gold 6146 processor
3.2 GHz
12
165 W
2666 MT/s
768GB
Gold 6144 processor
3.5 GHz
8
150 W
2666 MT/s
768GB
Gold 6142M processor
2.6 GHz
16
150 W
2666 MT/s
1.5TB
Gold 6142 processor
2.6 GHz
16
150 W
2666 MT/s
768GB
Gold 6140 processor
2.3 GHz
18
140 W
2666 MT/s
768GB
Gold 6138 processor
2.0 GHz
20
125 W
2666 MT/s
768GB
Gold 6136 processor
3.0 GHz
12
150 W
2666 MT/s
768GB
Gold 6134 processor
3.2 GHz
8
130 W
2666 MT/s
768GB
Gold 6132 processor
2.6 GHz
14
140 W
2666 MT/s
768GB
Gold 6130 processor
2.1 GHz
16
125 W
2666 MT/s
768GB
Gold 6128 processor
3.4 GHz
6
115 W
2666 MT/s
768GB
Gold 6126 processor
2.6 GHz
12
125 W
2666 MT/s
768GB
Gold 5122 processor
3.6 GHz
4
105 W
2666 MT/s
768GB
Gold 5120 processor
2.2 GHz
14
105 W
2400 MT/s
768GB
Gold 5118 processor
2.3 GHz
12
105 W
2400 MT/s
768GB
Gold 5115 processor
2.4 GHz
10
85 W
2400 MT/s
768GB
Silver processors
Silver 4116 processor
2.1 GHz
12
85 W
2400 MT/s
768GB
Silver 4114 processor
2.2 GHz
10
85 W
2400 MT/s
768GB
Silver 4112 processor
2.6 GHz
4
85 W
2400 MT/s
768GB
Silver 4110 processor
2.1 GHz
8
85 W
2400 MT/s
768GB
Bronze processors
Bronze 3104 processor
1.7 GHz
6
85 W
2133 MT/s
768GB
Intel Xeon scalable processor family - 2nd generation
Intel Xeon models
CPU Frequency
Cores
Power
DDR4
Max memory per socket
Persistent memory support
Platinum processors
Platinum 8280L processor
2.7 GHz
28
205 W
2933 MT/s
4.5TB
Yes
Platinum 8280M processor
2.7 GHz
28
205 W
2933 MT/s
2TB
Yes
Platinum 8280 processor
2.7 GHz
28
205 W
2933 MT/s
1TB
Yes
Platinum 8276L processor
2.2 GHz
28
165 W
2933 MT/s
4.5TB
Yes
Platinum 8276M processor
2.2 GHz
28
165 W
2933 MT/s
2TB
Yes
Platinum 8276 processor
2.2 GHz
28
165 W
2933 MT/s
1TB
Yes
Platinum 8270 processor
2.6 GHz
26
205 W
2933 MT/s
1TB
Yes
Platinum 8268 processor
2.9 GHz
24
205 W
2933 MT/s
1TB
Yes
Platinum 8260Y processor
2.4 GHz
24
165 W
2933 MT/s
1TB
Yes
2.5 GHz
20
2.8 GHz
16
Platinum 8260L processor
2.4 GHz
24
165 W
2933 MT/s
4.5TB
Yes
Platinum 8260M processor
2.4 GHz
24
165 W
2933 MT/s
2TB
Yes
Platinum 8260 processor
2.4 GHz
24
165 W
2933 MT/s
1TB
Yes
Platinum 8256 processor
3.4 GHz
4
105 W
2933 MT/s
1TB
Yes
Platinum 8253 processor
2.2 GHz
16
125 W
2933 MT/s
1TB
Yes
Gold processors
Gold 6262V processor
1.9
24
135 W
2933
1TB
Yes
Gold 6254 processor
3.1 GHz
18
200 W
2933 MT/s
1TB
Yes
Gold 6252N processor
2.6 GHz
24
150 W
2933 MT/s
1TB
Yes
Gold 6252 processor
2.1 GHz
24
150 W
2933 MT/s
1TB
Yes
Gold 6248 processor
2.5 GHz
20
150 W
2933 MT/s
1TB
Yes
Gold 6246 processor
3.3 GHz
12
165 W
2933 MT/s
1TB
Yes
Gold 6244 processor
3.6 GHz
8
150 W
2933 MT/s
1TB
Yes
Gold 6242 processor
2.8 GHz
16
150 W
2933 MT/s
1TB
Yes
Gold 6240Y processor
2.6 GHz
18
150 W
2933 MT/s
1TB
Yes
2.8 GHz
14
3.1 GHz
8
Gold 6240L processor
2.6 GHz
18
150 W
2933 MT/s
4.5TB
Yes
Gold 6240M processor
2.6 GHz
18
150 W
2933 MT/s
2TB
Yes
Gold 6240 processor
2.6 GHz
18
150 W
2933 MT/s
1TB
Yes
Gold 6238L processor
2.1 GHz
22
140 W
2933 MT/s
4.5TB
Yes
Gold 6238M processor
2.1 GHz
22
140 W
2933 MT/s
2TB
Yes
Gold 6238 processor
2.1 GHz
22
140 W
2933 MT/s
1TB
Yes
Gold 6234 processor
3.3 GHz
8
130 W
2933 MT/s
1TB
Yes
Gold 6230N processor
2.3 GHz
20
125 W
2933 MT/s
1TB
Yes
Gold 6230 processor
2.1 GHz
20
125 W
2933 MT/s
1TB
Yes
Gold 6226 processor
2.8 GHz
12
125 W
2933 MT/s
1TB
Yes
Gold 6222V
1.8 GHz
20
115 W
2933 MT/s
1TB
Yes
Gold 5222 processor
3.8 GHz
4
105 W
2933 MT/s
1TB
Yes
Gold 5220S processor
2.6 GHz
18
125 W
2933 MT/s
1TB
Yes
Gold 5220 processor
2.2 GHz
18
125 W
2666 MT/s
1TB
Yes
Gold 5218B processor
2.3 GHz
16
125 W
2666 MT/s
1TB
Yes
Gold 5218N processor
2.3 GHz
16
105 W
2666 MT/s
1TB
Yes
Gold 5218 processor
2.3 GHz
16
125 W
2666 MT/s
1TB
Yes
Gold 5217 processor
3 GHz
8
125 W
2666 MT/s
1TB
Yes
Gold 5215L processor
2.6 GHz
10
85 W
2666 MT/s
1TB
Yes
Gold 5215M processor
2.6 GHz
10
85 W
2666 MT/s
1TB
Yes
Gold 5215 processor
2.6 GHz
10
85 W
2666 MT/s
1TB
Yes
Silver processors
Silver 4216 processor
2.1 GHz
16
85 W
2400 MT/s
1TB
No
Silver 4215 processor
2.5 GHz
8
85 W
2400 MT/s
1TB
Yes
Silver 4214Y processor
2.2 GHz
12
85 W
2400 MT/s
1TB
No
2.3 GHz
10
2.4 GHz
8
Silver 4214 processor
2.2 GHz
12
85 W
2400 MT/s
1TB
No
Silver 4210 processor
2.2 GHz
10
85 W
2400 MT/s
1TB
No
Silver 4208 processor
2.1 GHz
8
85 W
2400 MT/s
1TB
No
Bronze processors
Bronze 3204 processor
1.9 GHz
6
85 W
2133 MT/s
1TB
No

top

Chipset
Intel C621 series chipset2
Synergy management
HPE Composer powered by OneView
Modes of operation
New class of memory which can be configured as either large server memory or fast storage
  • Flexibility to deploy as dense memory or fast storage.

  • Single technology used as memory or storage reducing datacenter complexity.

On compute management chipset
HPE iLO 5 ASIC
Memory 3
One of the following depending on model
The following memory supports Intel Xeon scalable family processors 2nd generation (Models x2xx)
  • HPE 8GB (1 x 8GB) single rank x8 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 16GB (1 x 16GB) single rank x4 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 16GB (1 x 16GB) dual rank x8 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 32GB (1 x 32GB) dual rank x4 DDR4-2933 CAS-21-21-21 registered memory kit

  • HPE 64GB (1 x 64GB) dual rank x4 DDR4-2933 CAS-21-21-21 RDIMM memory kit

  • HPE 64GB (1 x 64GB) quad rank x4 DDR4-2933 CAS-21-21-21 LRDIMM memory kit

  • HPE 128GB (1 x 128GB) octal rank x4 DDR4-2933 CAS-24-21-21 LRDIMM memory kit

The following memory supports Intel Xeon scalable family processors 1st generation (Models x1xx)
  • HPE 8GB (1 x 8GB) single rank x8 DDR4-2666 CAS-4-19-19-19 registered memory kit

  • HPE 16GB (1 x 16GB) single rank x4 DDR4-2666 CAS-19-19-19 registered memory kit

  • HPE 16GB (1 x 16GB) dual rank x8 DDR4-2666 CAS-19-19-19 registered memory kit

  • HPE 32GB (1 x 32GB) dual rank x4 DDR4-2666 CAS-19-19-19 registered memory kit

  • HPE 64GB (1 x 64GB) quad rank x4 DDR4-2666 CAS-19-19-19 LRDIMM memory kit

  • HPE 128GB (1 x 128GB) octal rank x4 DDR4-2666 CAS-22-19-19 LRDIMM memory kit

HPE Persistent memory featuring Intel optane DC persistent memory
  • HPE 128GB 2666 persistent memory kit featuring Intel optane DC persistent memory

  • HPE 256GB 2666 persistent memory kit featuring Intel optane DC persistent memory

  • HPE 512GB 2666 persistent memory kit featuring Intel optane DC persistent memory

Type
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
DIMM Slots available
24 (12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel)
Maximum capacity (LRDIMM)
3TB (24 x 128GB LRDIMM)
Maximum capacity (RDIMM)
1.5TB (24 x 64GB RDIMM)
Memory protection
Advanced ECC
Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip
Online spare
Memory online spare mode detects a rank that is degrading and switches operation to the spare rank
Online mode
Memory online spare mode (Rank spare mode)
For details on the HPE Server memory options RAS feature, please check the link below:
Mezzanine connectors
Three (3) I/O expansion mezzanine connectors:
  • x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards) (Mezzanine connector 1)4

  • x16 PCIe 3.0 type D (Supports type C and type D mezzanine cards (Mezzanine connector 2)5

  • x16 PCIe 3.0 type C (Supports type C mezzanine cards) (Mezzanine connector 3)6

Interfaces
Micro SDHC slot
One (1) internal micro Secure Digital High Capacity (Micro SDHC) card slot7
USB 3.0 Port
  • One (1) internal USB 3.0 connector for USB flash media drive keys9

  • One (1) external USB 3.0 connector for USB flash media drive keys

iLO port
One (1) external USB port for direct iLO access to compute
Network adapters
  • HPE Synergy 3820C 10/20Gb Converged Network Adapter (CNA)

  • HPE Synergy 2820C 10 GbE CNA

  • HPE Synergy 4820C 10/20/25Gb CNA

  • HPE Synergy 4610C 10/25Gb ethernet adapter

  • HPE Synergy 6810C 25/50Gb ethernet

  • HPE Synergy 6410C 25/50Gb ethernet

  • HPE Synergy 5330C 32G Fibre Channel (FC) Host Bus Adapters (HBA)

  • HPE Synergy 5830C 32G FC HBA

  • HPE Synergy 3530C 16G FC host bus network adapter

  • HPE Synergy 3830C 16G FC host bus network adapter

HPE Compute module ROM
HPE Synergy Compute ROM is used to configure the following:
  • Processor and chipset status registers

  • System memory, memory map, and memory initialization

  • System hardware configuration (Integrated PCI devices and optional PCIe cards)

  • End-User specific BIOS configuration using the Unified Extensible Firmware Interface (UEFI) system utilities

Storage controllers
One of the following depending on model:
  • Software RAID

  • Essential RAID controller

  • Performance RAID controller

  • Premium backplane CTO compute module

Maximum internal storage
Storage
Capacity
Configuration
Hot Plug SFF SAS SSD
30.6TB
2 x 15.3TB (With standard front SFF drive cage)
Hot Plug SFF SATA SSD
7.68TB
2 x 3.84TB (With standard front SFF drive cage)
Hot Plug SFF SATA/SAS HDD
4.0TB
2 x 2.0TB (With standard front SFF drive cage)
Hot Plug SFF NVMe SSD
15.6TB
2 x 7.8TB (With Premium front SFF drive cage)
Hot Plug uFF SATA SSD
1.3TB
2 x 340GB (With standard front SFF drive cage)
M.2 SATA SSD Option Drives
1.9TB
2 x 960GB ATA M.2 Drives (Internal with adaptor)
Frames
HPE Synergy 12000 frame, is the base for all Synergy products and supports:
  • Up to 12 Half-Height, 6 Full-Height single-wide, or 3 Full-Height Double-Wide compute modules (Mixing allowed)

  • Up to 5 Half-Height Double-Wide HPE Synergy D3940 Storage modules (Mixing with compute modules in any to any ratio allowed)

  • One HPE Synergy 12000 frame will support up to twelve (12) HPE Synergy 480 Gen9 compute modules

Industry standard compliance
  • Microsoft logo certifications

  • WOL enabled on some adaptors

  • PXE support enabled

  • USB 3.0 compliant

  • iLO USB 2.0 compliant

  • Trusted Platform Module (TPM) 2.0 support (ROM-Based Setup Utility (RBSU) support for TPM 1.2)

  • IEEE (Specific IEEE standards depending on Ethernet adapter card(s) installed)

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP v3

  • SSL 2.0

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active directory v1.0

  • PCIe 3.0 compliant

  • UEFI forum

  • Redfish API (iLO5)

Graphics (iLo)
  • Integrated matrix G200eH2 video standard with 16MB of video RAM

    • 1280 x 1024 (32 bp)

    • 1920 x 1200 (16 bp)

  • HPE iLO 5 on system management memory

    • 32MB flash

    • 512MB with ECC (224MB after ECC and video)

HPE Server UEFI/legacy ROM 8
  • UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with the server at boot time. HPE ProLiant Gen10 servers have a UEFI class 2 implementation and support both UEFI mode (Default) and Legacy BIOS mode.

  • UEFI Enables numerous new capabilities specific to HPE Synery Compute Modules such as

    • Secure boot and secure start enable for enhanced security

    • Operating System (OS) specific functionality

    • Support for > 2.2TB (Using GPT) boot drives

    • USB 3.0 stack

    • Embedded UEFI shell

    • Mass configuration deployment tool using iLO RESTful API that is redfish API conformant

    • PXE boot support for IPv6 networks

    • Workload profiles for simple performance optimization

  • UEFI Boot mode only:

    • TPM 2.0 Support

    • NVMe Boot support

    • Platform Trust Technology (PTT) can be enabled

    • iSCSI Software initiator support

    • HTTP/HTTPs boot support as a PXE alternative

    • Boot support for option cards that only support a UEFI option ROM

Embedded management
  • HPE Synergy Composer powered by HPE OneView

  • HPE Integrated Lights-Out (HPE iLO)

  • UEFI

  • Intelligent provisioning

  • iLO RESTful API

Security
Newest forms of security based on iLO 5 features
  • Secure start, with hardware root of trust

  • HPE Hardware designed logic in iLO chip validates iLO firmware burned in chip

  • iLO Then validates system/compute ROM firmware for digital signature

  • iLO Completes the chain of trust

  • ROM Validates option ROMs and OS Bootloader VIA UEFI secure boot

Standard security features
  • Power-ON password

  • Administrator's password

  • Keyboard password (QuickLock)

  • HPE iLO management On system management chipset with SSL encryption, secure shell version 2, AES and 3DES on browser, CLP and XML scripting interface, AES and RC4 encryption of video

  • External USB port enable/disable

  • Network server mode

  • Serial interface control

  • TPM 1.2 or 2.0 option

  • AES

  • Intel Advanced Encryption Standard-New Instructions (AES-NI)

Graphics accelerators
Mezzanine graphics adapter options for 480 compute modules 9
  • HPE Synergy NVIDIA Quadro M3000SE Mezzanine Card

High-Density multi MXM expansion module GPU options
  • HPE Synergy 480 Gen10 Multi MXM FIO expansion module

  • HPE SY 480 NVIDIA Tesla P6 Multi MXM option

Standard PCIe expansion module GPU options 10
  • HPE Synergy 480 Gen10 PCIe FIO expansion module

  • HPE NVIDIA Tesla P40 24GB module

  • HPE NVIDIA Quadro P6000 GPU module

  • NVIDIA Tesla M10 Quad GPU module

FC support
Up to two (2) optional FC mezzanine HBAs are supported on the HPE Synergy 480 Gen10
  • HPE Synergy 3530C 16G FC HBA

  • HPE Synergy 3830C 16G FC HBA

  • HPE Synergy 5330C 32G FC HBA

  • HPE Synergy 5830C 32G FC HBA

Compatible SAN
HPE Synergy 480 Gen10 compute modules are optimized for HPE MSA, EVA, 3PAR, XP, and Storevirtual VSA
HPE virtual connect
The HPE Virtual Connect SE 40Gb F8 module, master module, based on composable fabric is designed for composable infrastructure. Its disaggregated, Rack-Scale design uses a master/satellite architecture to consolidate data center network connections, reduce hardware and scales network bandwidth across multiple HPE Synergy frames.
One config simple (SCE)
SCE is a guided Self-Service tool to help sales and Non-Technical people provide end users with initial configurations in 3 to 5 minutes.
NOTE:

    • Platinum - 8100 series - Supports 2 socket (Synergy 480 Gen10) or up to 4 socket (Synergy 660 Gen10) compute modules, 2 socket supports 2UPI and 4 socket supports 3UPI - 10.4 GT/s, supports 6-Channel DDR4 - 2666 MT/s providing up to 768GB memory capacity (1.5TB On select processor skus). Intel turbo boost technology, Intel Hyper-Threading technology supported. Intel AVX-512 (2 x 512-Bit FMA), 48 lanes PCIe 3.0, advanced RAS.
    • Gold - 5100, 6100 series - Supports 2 socket (Synergy 480 Gen10) or up to 4 socket (Synergy 660 Gen10) compute modules, 2 socket supports 2UPI and 4 socket supports 3UPI - 10.4 GT/s, supports 6-Channel DDR4 - 2400 (51xx)/2666(61xx) MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5TB On select skus). Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-Bit FMA) (SKU 5122 supports 2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.
    • Silver - 4100 series - Supports 2 socket (Synergy 480 Gen10) compute module, 2 socket supports 2UPI - 9.6 GT/s, 6- Channel DDR4 - 2400 MHz providing up to 768GB memory capacity. Intel turbo boost technology, Intel Hyper-Threading technology, Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
    • Bronze - 3100 series - Supports 2 socket (Synergy 480 Gen10) compute module, 2 socket supports 2UPI - 9.6 GT/s, supports 6-Channel DDR4 - 2133 MHz providing up to 768GB memory capacity. Intel AVX-512 (1 x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.
    • Silver and bronze level processors are primarily designed for 2 socket compute modules and will have Synergy 480 Gen10 only in the processor names.
  1. For more information regarding Intel chipsets, please check the below link:

    Click here to access the page for Intel Server Chipsets Non-HPE site .


    • HPE memory from previous generation servers (DDR3) is not compatible with this compute module. HPE DDR4 SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10.
    • LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a compute module.
  2. This mezzanine connector supports Dual-Port mezzanine cards: one port is routed to interconnect module bay 1 and the other to bay 4.

    • This mezzanine connector supports dual-port mezzanine cards: one port is routed to interconnect module bay 2 and the other to bay 5.
    • A second processor must be installed (In processor slot 2) to have access to mezzanine connector 2.
  3. This mezzanine connector supports Dual-Port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 6.
  4. The above options are intended for integrated hypervisor virtualization environments.

    • The UEFI system utilities tool is analogous to the HPE RBSU of legacy BIOS. For more information please check the below link:

      Click here to access the page for Unified Extensible Firmware Interface (UEFI) .

    • For UEFI boot mode, boot environment and OS image installations should be configured properly to support UEFI.
    • UEFI FIO setting (758959-B22) can be selected to configure the system in legacy mode in the factory for the HPE Synergy Gen10 Server.
  5. All MXM graphics card options are sold in pairs of GPUs. If there are GPU slots available in the Module, it can be field upgraded with additional GPUs. Note mixing GPUs is not supported.
  6. GRID license for use with NVIDIA Tesla M6 must be purchased separately through an NVIDIA verified virtualization partner at "NVIDIA design and visualization".

    Click here to access the NVIDIA design and visualization Non-HPE site .

top

Software overview

Feature
Description
Operating Systems (OS) and virtulization software support 1
  • Microsoft Windows Server

  • Microsoft Hyper-V Server

  • Red Hat Enterprise Linux

  • SUSE Linux Enterprise Server

  • VMware ESVi

  • VMware vSphere

  • Citrix Xenserver 7.0, 7.1 (Primary use for HPE GPU options/XENDesktop)

Client OS (With GPU options only)
  • Windows and Enterprise client OS

  • Red Hat Enterprise Linux desktop/workstation

  • SLES Desktop (64 bit - Includes XEN and KVM)

NOTE:
  1. OS Support may change. To get the most updated information, please go to the HPE OS support matrix:

    Click here to access the page for Server Operating Systems and Virtualization Software .

top

Physical specifications

specification
Description
Dimensions (H x W x D)
6.35 x 21.4 x 60.0 cm (2.5 x 8.43 x 23.62 in) With bezel
Weight (Approximate)
  • Maximum: 8.16 kg (18 lb)

    (All processors, 24 DIMMs, drives, mezzanine cards, and one flash cache battery installed)

  • Minimum: 6.57 kg (14.5 lb)

    (One processor and 1 DIMM installed)

top

Environmental specifications

specification
Description
System inlet temperature
Operating temperature:
  • 10° to 35°C (50° to 95°F)

  • The upper limit may be limited by the type and number of options installed

  • System performance may be reduced if operating with a fan fault

Non-Operating temperature:
-30° to 60°C (-22° to 140°F)
Extended ambient operating support:
Qualifications for extended ambient configurations are detailed at below link:
Relative humidity (Non-Condensing)
Operating relative humidity:
10% to 90% - 28°C (82.4°F)
Non-Operating relative humidity:
5% to 95% - 38.7°C (101.7°F)
Acoustic noise
For acoustic noise specifications, please check the link below for HPE Synergy 12000 frame quickspecs:

top

Electrical specifications

specification
Description
Power

top


Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.

*Adds to cart & you can request a quote from the cart page

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground Shipping time: 2-7 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-10 business days
Excludes weekends, holidays or weather delays.
3 Business Days Shipping time: 3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 3-6 business days
Excludes weekends, holidays or weather delays.
2 Business Days Shipping time: 2 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-5 business days
Excludes weekends, holidays or weather delays.
Overnight / Next Business Day Shipping time: 1 business day
Order processing time: 0-3 business days
Delivery time after order is placed: 1-4 business days
Excludes weekends, holidays or weather delays.


International Shipments

International Economy Shipping time: 4-6 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 5-9 business days
Excludes weekends, holidays or weather delays.
International Priority Shipping time: 1-3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-6 business days
Excludes weekends, holidays or weather delays.



For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Subscribe
