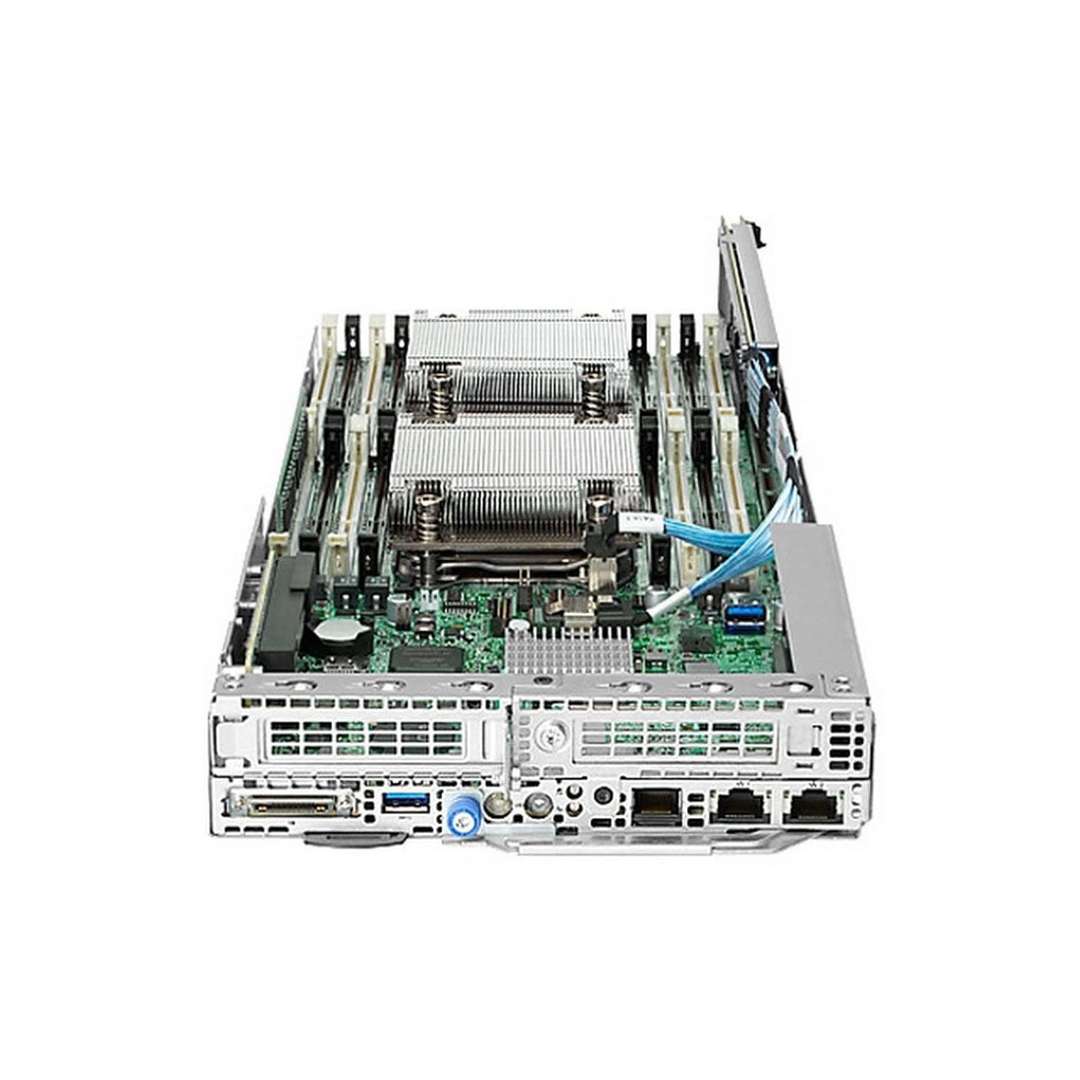

HPE ProLiant XL170r Blade Server (G10) CTO

Contact for Pricing Price: Configure for Price

Brand:

Type:

CTO Servers

Condition:

ECS Refurbished & Tested

Warranty:

ECS 1 Year Hardware Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

The HPE ProLiant XL170r Gen10 server deployed in the HPE Apollo 2000 Gen10 system delivers twice the density of traditional rack mount systems and firmware-level server security with a flexible scale-out architecture for your high-performance computing (HPC) workloads. Each server node can be serviced individually without affecting the operation of other nodes sharing the same chassis to provide increased server uptime.

Each server harnesses the performance of either 2666 MT/s or 2933 MT/s HPE DDR4 SmartMemory (16 DIMM slots per node) and dual Intel Xeon processor Scalable family in a very efficient solution that shares both power and cooling infrastructure. Flexible storage options can support four small form factor (SFF), or three large form factor (LFF) disk drives or four NVMe solid state drives (SSDs).

What's New for XL170r Gen10

6-channel Intel Xeon Scalable processor family (Cascade Lake).
Intel Deep Learning Boost - Vector Neural Network Instruction (VNNI) set to accelerate deep learning and AI workloads with a new set of Intel® Advanced Vector Extension (Intel AVX-512) instructions.
Support for higher frequency DDR4 2933 MT/s 1 DIMM per channel (DPC) as well as larger capacity 128 GB SmartMemory.
Support for discrete Intel Arria 10 FPGA

Data Center Optimization with High Manageability

HPE ProLiant XL170r Gen10 Server delivers twice the density of 1U servers, offering the equivalent of four 1U servers in a 2U chassis.

Comprehensive manageability via tools such as HPE iLO 5 management, HPE Apollo Platform Manager, and HPE Insight Cluster Management Utility (CMU).

Comprehensive Server Security

Every HPE ProLiant XL170r Gen10 Server uses HPE iLO 5 management to deliver a Silicon Root of Trust for firmware level security.

Commercial National Security Algorithms (CNSA) level security provides the highest level of security in the industry.

Rapid recovery of critical firmware via secure recovery to the last known good state on detection of compromised firmware.

Firmware Runtime Validation periodically scans essential firmware for compromised code during runtime and sends alerts if compromised code is discovered.

Flexible Scale-out Architecture

HPE ProLiant XL170r Gen10 Server and HPE ProLiant XL190r Gen10 Server can be mixed and matched within the HPE Apollo 2000 Gen10 System.

Provides storage and I/O flexibility with drive mapping for enhanced storage allocation.

Right-sized scaling allows starting small and growing as business grows.

Specs 1

Product features

Feature	Description
Form Factor	The ProLiant Xl170r Gen10 Server is a half width tray for the HPE Apollo 2000 Chassis
Embedded Management	HPE Integrated Lights-Out (HPEiLO)
Unified Extensible Firmware Interface (UEFI)	iLO RESTful API is Redfish API conformance and offers simplified server management automation
Server Utilities Active Health System	The HPE Active Health System (AHS) is an essential component of iLO management portfolio that provides continuous, proactive health monitoring of HPE servers
Active Health System Viewer	Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations
Smart Update	Keep your servers up to date with HPE’s Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP)
iLO Amplifier Pack	Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale
HPE iLO Mobile Application	Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices
RESTful Interface Tool	RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale
Scripting tools	Provision 1 to many servers using your own scripts to discover and deploy with Scripting Toolkit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell
HPE OneView Standard	HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees
HPE Systems Insight Manager (HPE SIM)	Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers
Security	UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust Support for Commercial National Security Algorithms (CNSA) iLO Advanced Premium Security Edition Granular control over iLO interfaces Common Access Card (CAC) 2-factor Authentication Tamper-free updates – components digitally signed and verified Secure Recovery – recover critical firmware to known good state on detection of compromised firmware TPM (Trusted Platform Module) 1.2 option TPM (Trusted Platform Module) 2.0 option Bezel Locking Kit Intrusion Security Kit option Runtime Firmware Validation – Periodically scan essential firmware for compromised code during runtime

Software overview

Feature	Description
Server Management Software Licenses	HPE iLO Advanced HPE iLO Advanced Premium Security Edition HPE iLO Scale-Out HPE OneView Advanced HPE Insight Cluster Management Utility (CMU) HPE Performance Software— Message Passing Interface
Operating Systems and Virtualization Software Support for ProLiant Servers	Windows Server 2012 R2 (Most Recent Version) Windows Server 2016 (Most Recent Version) VMware ESXi 6.0 U3 VMware ESXi 6.5 and U1 upon release Red Hat Enterprise Linux (RHEL) 6.9, 7.3 SUSE Linux Enterprise Server (SLES) 11 SP4, 12 SP2 CentOS
NOTE: HPE iLO Standard (embedded in server) HPE iLO Advanced (requires license) HPE iLO Advanced Premium Security Edition (requires license) Intelligent Provisioning (embedded in server) HPE OneView Standard (requires download) HPE OneView Advanced (requires license) CentOS not directly supported / Community Supported (Based on RHEL so RHEL testing and enablement applicable to CentOS) CentOS 6.9 / CentOS 7.3

Physical specifications

Specifications	Description
Server dimensions (L x W x D)	4.13 x 18.45 x 65.80 cm (1.63 x 7.27 x 25.91 in)
Weight (approximate)	Maximum 6.91 kg (15.23lb)

Environmental specifications

Specifications

Description

System inlet temperature standard operating support

10°C to 35°C (50°F to95°F)

Extended ambient operating support

10°C to 5°C(50°F to 41°F) and 35° to 40°C (95°F to 104°F)

-30° o 60°C (-22° to 140°F)

Maximum rate of change is 20°C/hr (36°F/hr)

Relative humidity (Non-condensing) operating

8% to 90%

Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing

Non-operating

5 to 95%

Relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing

Altitude operating

3050 m (10,000 ft)

Attitude non-operating

9144 m (30,000 ft)

Acoustic noise

r2200 Chassis

Configuration SKU	Entry	Base	Performance
Idle
LWAd	6.7 B	7.8 B	8.4 B
LpAm	52 dBA	62 dBA	70 dBA
Operating
LWAd	6.9 B	8.2 B	8.9 B
LpAm	53 dBA	66 dBA	74 dBA

r2600 Chassis

Configuration SKU	Entry	Base	Performance
Idle
LWAd	6.7 B	7.7 B	7.9 B
LpAm	52 dBA	64 dBA	68 dBA
Operating
LWAd	6.9 B	8.0 B	8.7 B
LpAm	54 dBA	66 dBA	70 dBA

r2800 Chassis

Configuration SKU	Entry	Base	Performance
Idle
LWAd	6.7 B	7.7 B	7.9 B
LpAm	52 dBA	64 dBA	68 dBA
Operating
LWAd	8.6 B	8.6 B	8.7 B
LpAm	69 dBA	70 dBA	70 dBA

Thermal limitations

Chassis	12 LFF front end : 9 - 12 drives	12 LFF front end : 0-8 drives (Removable drive blank at Bay 2)	24 SFF combo front end	16 NVME front end
Processor	150 W and 140 W SKUs limited to 30C amb	No limitation	No limitation	No limitation
DIMM	Non-redundant fan SKU : No limitation Redundant fan SKU : 128GB and 64GB LRDIMMs not supported, 32GB RDIMM limited to 30C amb.	Non-redundant fan SKU : No limitation Redundant fan SKU :128GB LRDIMM limited to 30C amb.	Non-redundant fan SKU : No limitation Redundant fan SKU : 128GB LRDIMM limited to 30C amb.	No limitation
Storage card	P408i-p & P408e-plimited to 25C amb.	P408i-p & P408e-plimited to 30C amb.	P408i-p & P408e-plimited to 28C amb.	P408i-p & P408e-plimited to 30C amb.
PCIe NIC card	TBD	TBD	TBD	TBD
ALOM	TBD	TBD	TBD	TBD
mLOM card	TBD	TBD	TBD	TBD
InfiniBand	TBD	TBD	TBD	TBD
FC HBA	TBD	TBD	TBD	TBD
Fabric adaptor	TBD	TBD	TBD	TBD

NOTE:Acoustics levels presented here are generated by the test configuration only.

Acoustics levels will vary depending on system configuration.

Values are subject to change without notification and are for reference only.
