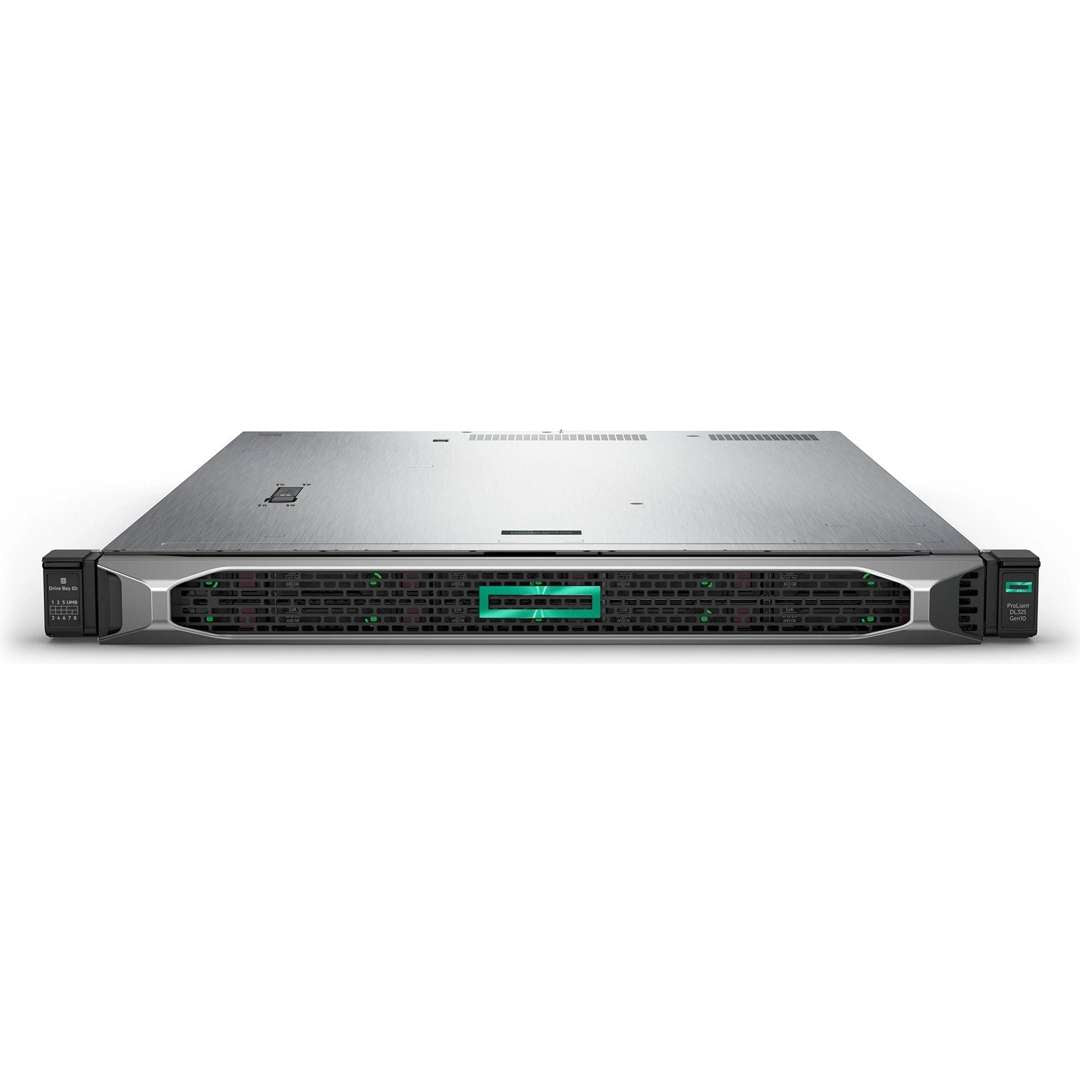

HPE ProLiant DL325 Gen10 CTO Rack Server

Part#:
DL325G10
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

AMD EPYC 7002 Series

Supports (1) processor - View product features for supported memory

AMD EPYC 7001 Series

Supports (1) processor - View product features for supported memory

HPE Memory

Supports up to 16 DIMMs

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA/NVMe (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE M.2 Drives

HPE PCIe Drives

3 PCIe Slots (1 Full Height, 2 Low Profile)

HPE Network Adapters

3 PCIe Slots (1 Full Height, 2 Low Profile)

HPE Host Bus Adapter

3 PCIe Slots (1 Full Height, 2 Low Profile)

HPE FlexibleLOM Adapter

HPE InfiniBand Adapter

3 PCIe Slots (1 Full Height, 2 Low Profile)

HPE Power Supplies

Supports up to (2) PSU's

HPE Expansion

3 PCIe Slots (1 Full Height, 2 Low Profile)

HPE Options

HPE Rail Kits

HPE Optical Drives

HPE Security

ECS Warranty

HPE DL325 Gen10 CTO Rack Server Product Description

Building on HPE ProLiant as the intelligent foundation for hybrid cloud, The HPE ProLiant DL325 Gen10 server offers the 2nd generation AMD EPYC 7000 Series processor delivering up to 2X the performance of the prior generation. The HPE ProLiant DL325 delivers increased value to clients through intelligent automation, security and optimization. With more cores and increased memory bandwidth, the HPE ProLiant DL325 offers two-socket performance in a one-socket 1U rack profile.

The HPE ProLiant DL325 Gen10 server with the AMD EPYC single socket architecture, enables businesses to acquire enterprise class processor, memory and I/O performance and security without having to purchase a dual processor.

What’s New for DL325 Gen10

  • Next generation AMD EPYC 7xx2 Series Processor Family with the 7nm processor doubling the core density from the previous generation.
  • Faster application performance with increased memory speeds up to 2933 MT/s.
  • With up to 64 cores and 128 threads per server, customers can take advantage of increased parallelism to run multithreaded simulations faster and run more single-threaded workloads simultaneously.
  • Support for S100i Smart Array Controller provides software RAID capabilities.
  • HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
  • Up to ten low latency NVMe drives can deliver software-defined storage (SDS) and high performance storage applications.

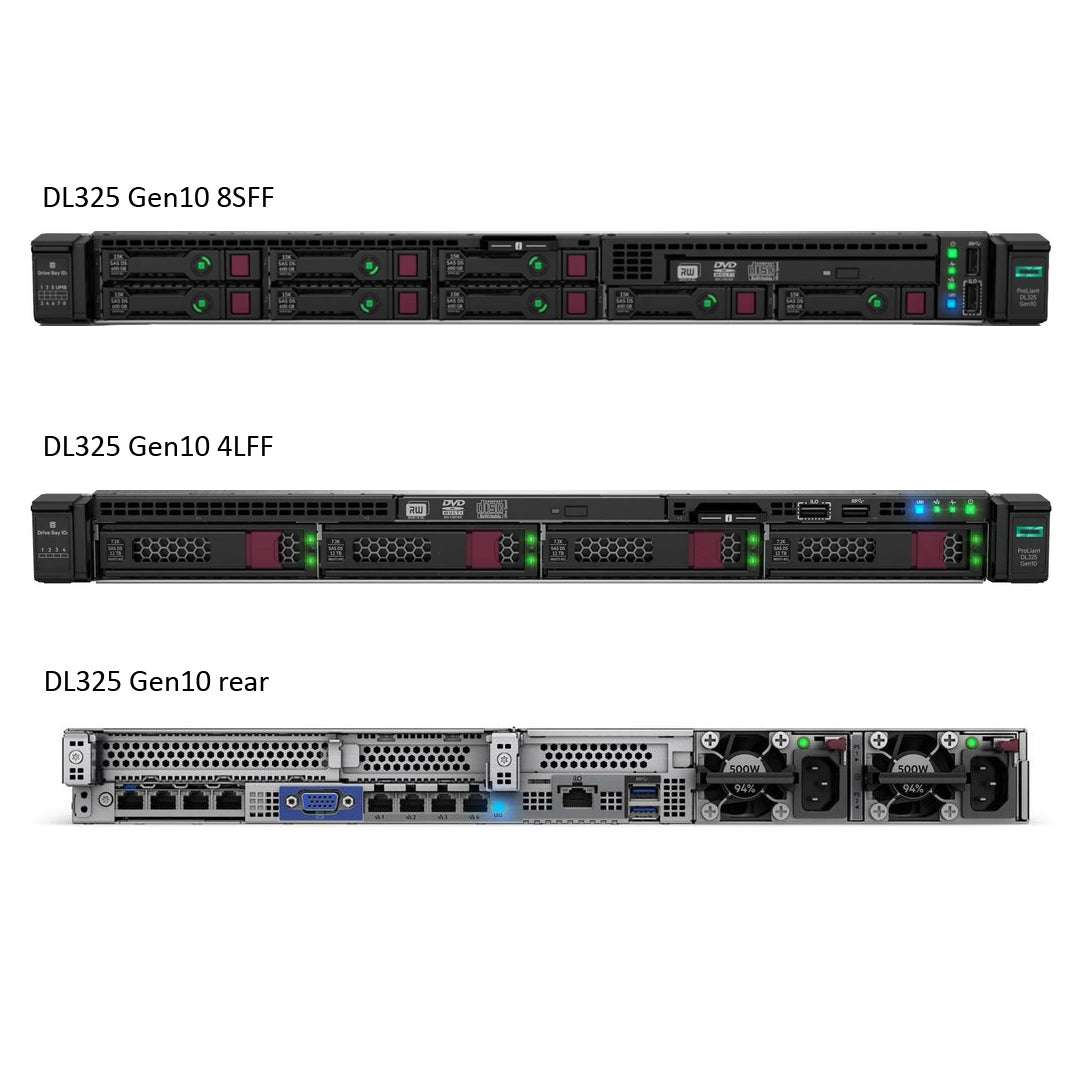

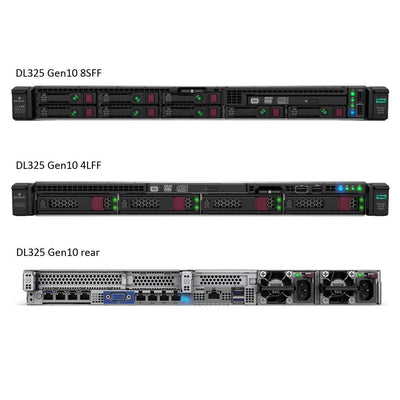

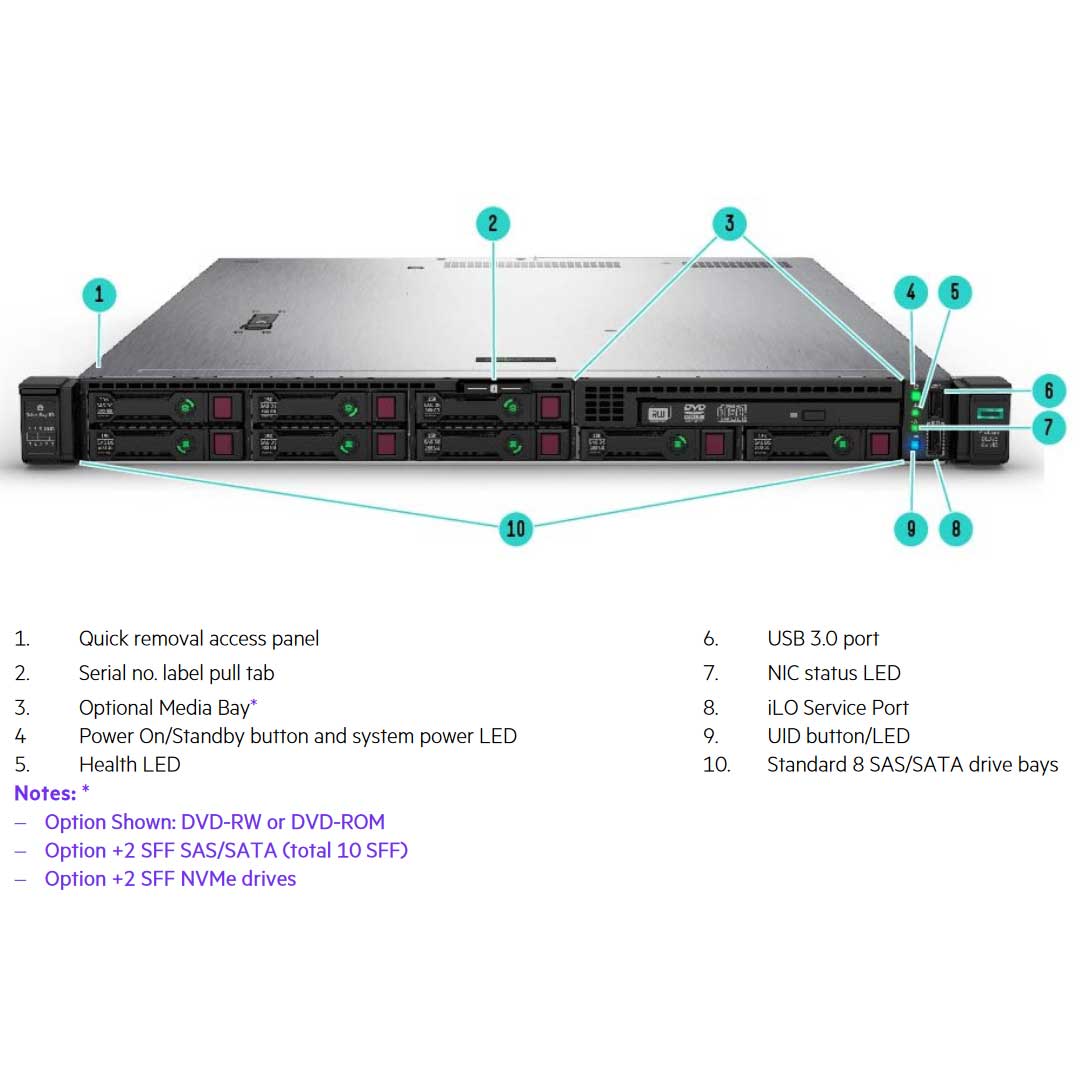

DL325 Gen10 8SFF

DL325 Gen10 8SFF

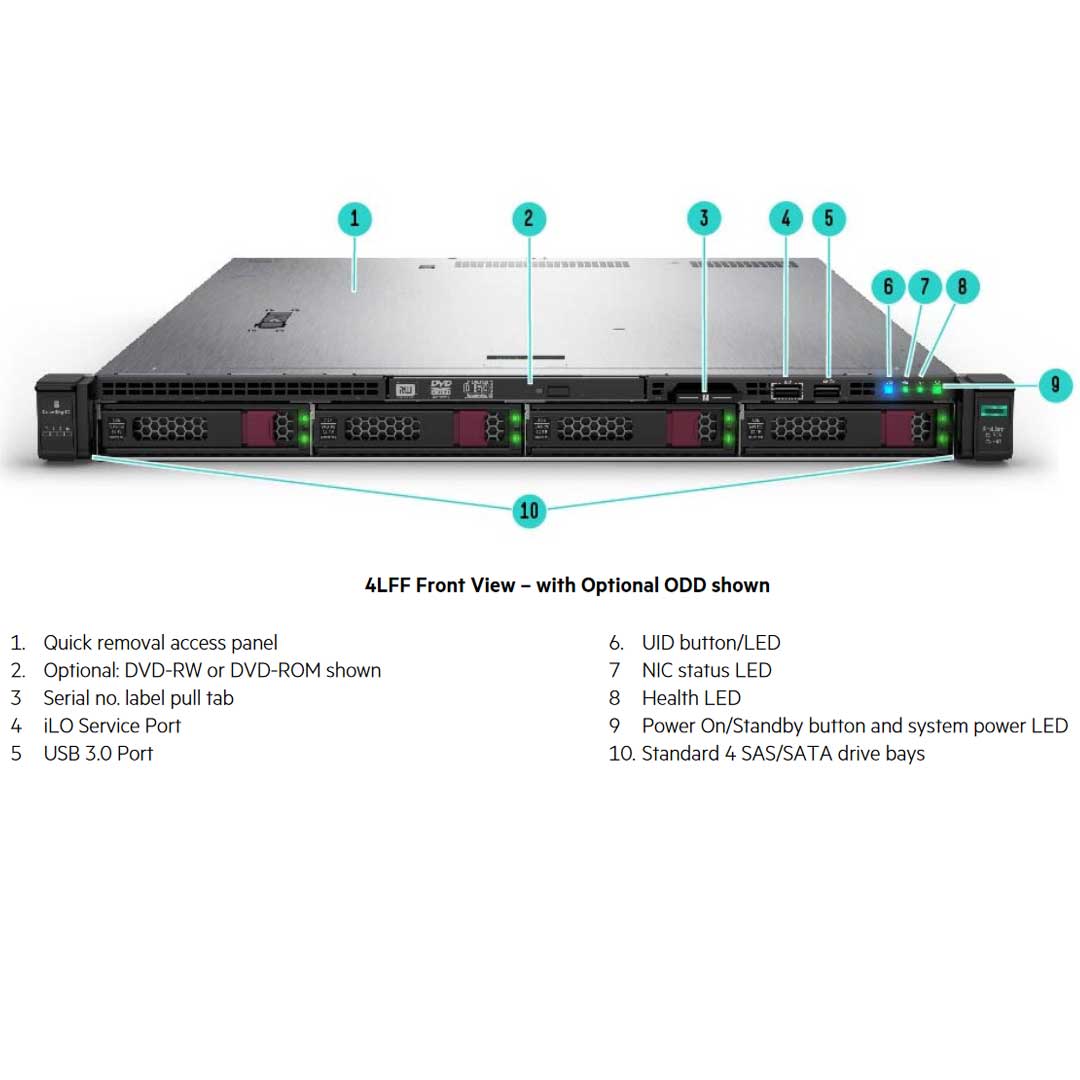

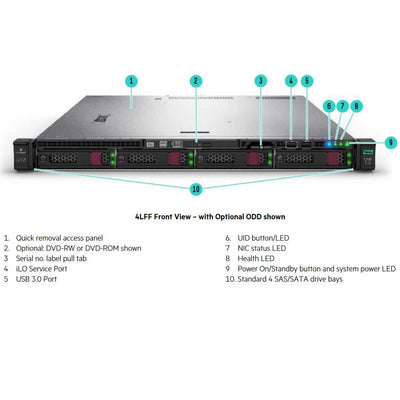

DL325 Gen10 4LFF

DL325 Gen10 4LFF

Delivering 2P Performance at 1P Economics

HPE ProLiant DL325 Gen10 server supports industry standard technology utilizing the AMD EPYC 7000 series processor family with up to 64 cores, 12Gb SAS and HPE SmartMemory up to 2933 MT/s DDR4 memory

HPE ProLiant DL325 Gen10 server has a dense chassis that accommodates up to 10 SFF, up to 4 LFF, or up to 10 NVMe drive options as well as up to 3 PCIe 3.0 slots.

The embedded SATA HPE Smart Array S100i Controller is standard while the redesigned HPE Smart Array Essentials and Performance Controllers allow you the flexibility to choose the 12 Gbps controller to optimize your environment.

Options for HPE FlexibleLOM or PCIe standup adapters offer a choice of networking bandwidth (1GbE to 4x10GbE) and fabric enabling you to scale to the changing needs of your business.

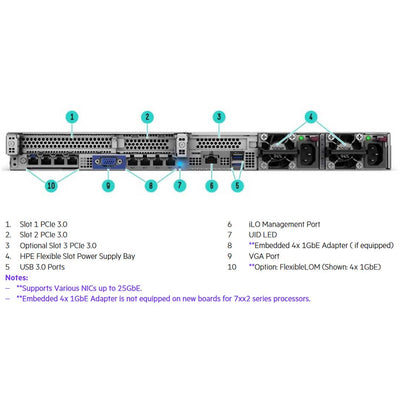

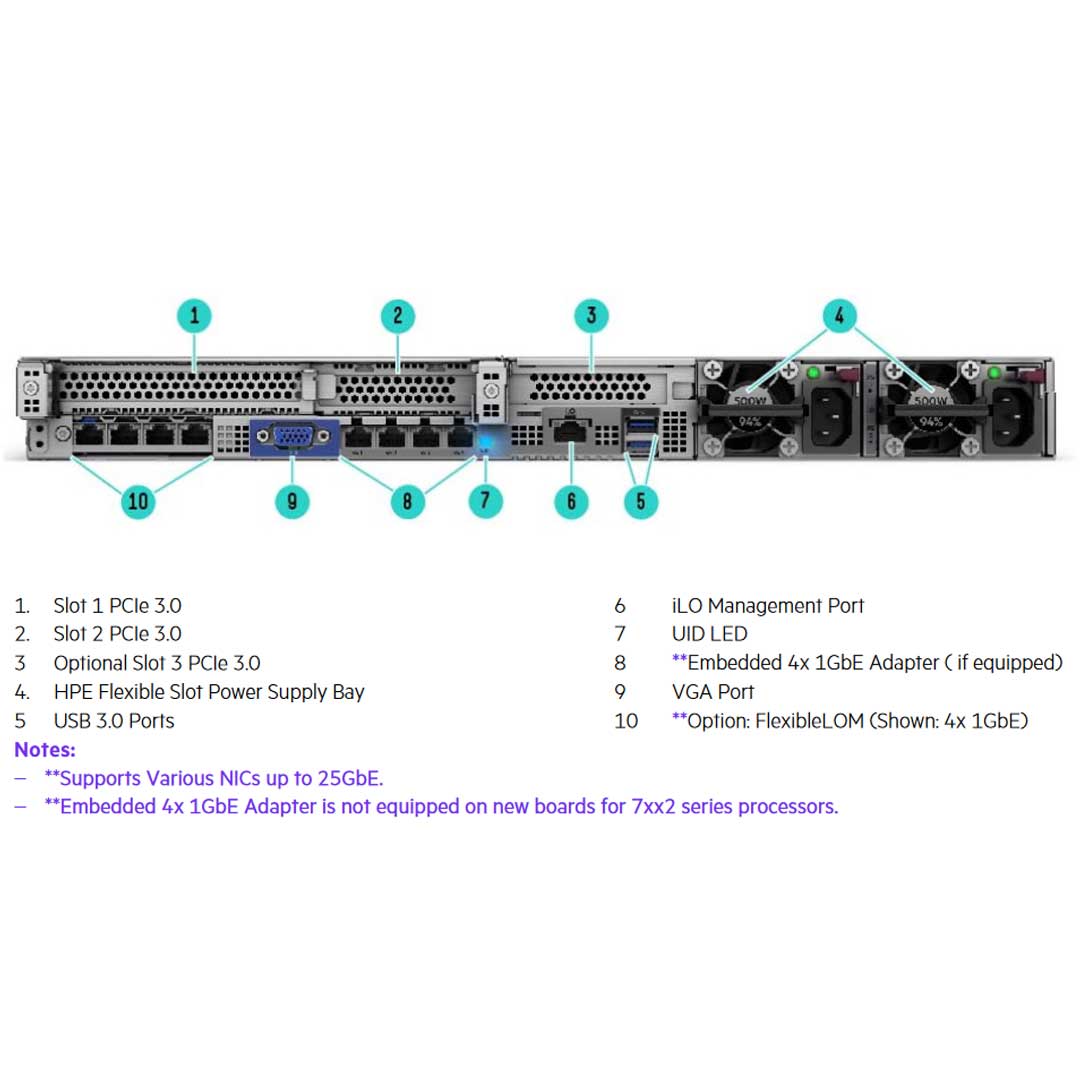

DL325 Gen10 rear

DL325 Gen10 rear

Product features

Feature
Description
Processors
AMD EPYC Processor
Cores
Base Frequency
Max Frequency
Max Memory
Wattage
Cache
Memory
AMD EPYC 7xx2 Series processor family
EPYC 7702P
64
2.0GHz
3.35GHz
2TB
200
256MB
2933MT/S
EPYC 7502P
32
GHz
3.35GHz
2TB
180
128MB
2933MT/S
EPYC 7452
32
GHz
3.35GHz
2TB
155
128MB
2933MT/S
EPYC 7402P
24
GHz
3.35GHz
2TB
180
128MB
2933MT/S
EPYC 7302P
16
GHz
3.3GHz
2TB
155
128MB
2933MT/S
EPYC 7262
8
3.2GHz
3.4GHz
2TB
155
128MB
2933MT/S
AMD EPYC 7xx1 Series processor family
EPYC 7601
32
2.2 GHz
3.2 GHz
2TB
180
64MB
2666 MT/S
EPYC 7551P
32
2.0 GHz
3.0 GHz
2TB
180
64MB
2666 MT/S
EPYC 7501
32
2.0 GHz
3.0 GHz
2TB
155/170
64MB
2666 MT/S
EPYC 7451
24
2.3 GHz
3.2 GHz
2TB
180
64MB
2400/2666 MT/S
EPYC 7401P
24
2.0 GHz
3.0 GHz
2TB
155/170
64MB
2400/2666 MT/S
EPYC 7351P
16
2.4 GHz
2.9 GHz
2TB
155/170
64MB
2400/2666 MT/S
EPYC 7301
16
2.2 GHz
2.7 GHz
2TB
155/170
64MB
2400/2666 MT/S
EPYC 7281
16
2.1 GHz
2.7 GHz
2TB
155/170
32MB
2400/2666 MT/S
EPYC 7261
8
2.5 GHz
2.9 GHz
2TB
155/170
64MB
2400/2666 MT/S
EPYC 7251
8
2.1 GHz
2.9 GHz
2TB
120
32MB
2400 MT/S
EPYC 7371
16
3.1GHz
3.8GHz
2TB
155/170
64MB
2400/2666MT/S
Chipset
No chipset - System on Chip (SoC) design
On system management chipset
HPE iLO 5 ASIC
Memory
Type
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM)
DIMM slots available
16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel
Maximum capacity (LRDIMM)
16 x 128 GB LRDIMM - 2666 MT/S
Maximum capacity (RDIMM)
16 x 32 GB RDIMM - 2666 MT/S
Expansion slots
Expansion slot
Technology
Bus Width
Connector Width
Slot Form Factor
Primary Riser
1
PCIe 3.0
X16
X16
Full-height, full-length slot
2
PCIe 3.0
X8
X8
Low profile
Secondary Riser
1
PCIe 3.0
X16
X16
Low profile
Storage controllers
The Gen10 controller naming framework has been updated to simplify identification as depicted below
One of the following depending on model
Software RAID
  • HPE Smart Array S100i SR Gen10 SW RAID

Essential RAID Controller
  • HPE Smart Array E208i-a SR G10 LH Controller

  • HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID Controller
  • HPE Smart Array P408i-a SR G10 LH Controller

  • HPE Smart Array P408e-p SR Gen10 Controller

  • HPE Smart Array P816i-a SR G10 LH Controller

Internal storage devices
  • Optical drive - Optional: DVD-ROM, DVD-RW

  • Hard drives - None ship standard

Maximum internal storage
Internal storage
Capacity
Ccofiguration
Hot Plug SFF SAS
24.0TB
8+2 x 2.4TB (With optional 2SFF drive cage)
Hot Plug SFF SAS
20.0TB
8+2 x 2TB (With optional 2SFF drive cage)
Hot Plug LFF SAS
48TB
4 x 12TB
Hot Plug LFF SATA
48TB
4 x 12TB
Hot Plug SFF SAS SSD
153TB
8+2 x 15.3TB (With optional 2SFF drive cage)
Hot Plug LFF SATA SSD
7.68TB
4 x 1.92TB
Hot Plug SFF NVMe PCIe SSD
153.6TB
8+2 x 4TB NVMe
Hot Plug SFF SATA SSD
76.8 TB
8+2 x 7.68TB (With optional 2SFF drive cage)
Power supply
  • HPE 500 W non hot plug low halogen FIO power supply

  • HPE 500 W flex slot platinum hot plug low halogen power supply kit

  • HPE 800 W flex slot platinum hot plug low halogen power supply kit

  • HPE 1600 W flex slot platinum hot plug low halogen power supply kit

Interfaces
Serial
Optional, rear
Video port
1 Rear VGA port - Standard
Network ports
4 x 1Gb ports shipping standard with optional FlexibleLOM or stand up card
HPE iLO Remote management network port
1Gb dedicated
Front iLO service port
1 standard
Micro SD slot
1 Micro SD
USB 3.0
Up to 4 total: 1 front, 2 rear, 1 internal (Secure)
Form factor
1U rack
Chassis
  • 8 SFF with optional optical drive, 2 SFF SAS/SATA or 2 NVMe drive bay options

  • 8 SFF NVMe with optional optical drive 2 SFF SAS/SATA or 2 NVMe drive bay options

  • 4 LFF with an optional optical drive bay

System fans
  • 4LFF Chassis includes 5 single rotor hot swappable cable fans

  • 8SFF Chassis includes 5 dual rotor hot swappable cable fans

  • NVMe Chassis includes 7 dual rotor hot swappable cable fans

Industry standard compliance
  • ACPI 6.1 compliant

  • PCIe 3.0 compliant

  • WOL support

  • Microsoft logo certifications

  • PXE support

  • VGA port

  • USB 3.0 compliant (Internal)

  • USB 2.0 compliant (External ports VIA SUV)

  • Energy star

  • SMBIOS 3.1

  • UEFI 2.6

  • Redfish API

  • IPMI 2.0

  • Secure digital 2.0

  • Advanced Encryption Standard (AES)

  • Triple Data Encrytion Standard (3DES)

  • SNMP v3

  • TLS 1.2

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active directory v1.0

  • ASHRAE A3/A4

  • Unified Extensible Firmware Interface (UEFI) Forum

Graphics
Integrated video sStandard
  • Video modes up to 1920 x 1200 - 60 Hz (32 bp)

  • 16MB video memory

HPE iLO 5 on system management memory
  • 32MB flash

  • 4Gb DDR 3 with ECC protection

HPE Server UEFI/legacy ROM
UEFI is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with users server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (Default) and Legacy BIOS Mode
UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:
  • Secure boot and secure start enable for enhanced security

  • Operating System (OS) specific functionality

  • Support for > 2.2 TB (Using GPT) boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using iLO RESTful API that is Redfish API conformant

  • PXE boot support for IPv6 networks

  • Workload profiles for simple performance optimization

UEFI Boot Mode only:
  • TPM 2.0 support

  • NVMe boot support

  • iSCSI software initiator support

  • HTTP/HTTPs boot support as a PXE alternative

  • Boot support for option cards that only support a UEFI option ROM

Security
  • UEFI secure boot and secure start support immutable silicon root of trust

  • FIPS 140-2 validation (iLO 5 certification in progress)

  • Common criteria certification (iLO 5 certification in progress)

  • Configurable for PCI DSS compliance

  • AES and Triple Data Encryption Standard (3DES) on browser

  • Support for Commercial National Security Algorithms (CNSA)

  • Tamper-free updates - Components digitally signed and verified

  • Secure recovery - Recover critical firmware to known good state on detection of compromised firmware

  • Ability to rollback firmware secure erase of NAND/User data

  • Trusted Platform Module (TPM) 1.2 option

  • TPM 2.0 option

  • Bezel locking kit option

  • Chassis Intrusion detection option

top

Software overview

Feature
Description
OS and virtualization software support for ProLiant servers
  • AMD EPYC 7xx2 series processor family

    • Windows Server 2019

    • VMware ESXi 6.5 U3

    • VMware ESXi 6.7 U3

    • Red Hat Enterprise Linux (RHEL) 7.6

    • SUSE Linux Enterprise Server (SLES) 12 SP4

    • SUSE Linux Enterprise Server (SLES) 15 SP1

  • AMD EPYC 7xx1 Series processor family

    • Windows server 2012 R2 (Most recent version)

    • Windows server 2016 (Most recent version)

    • VMware ESXi 6.5 U2 and 6.7

    • Red Hat Enterprise Linux (RHEL) 7.4 and 7.5

    • SUSE Linux Enterprise server (SLES) 12 SP3

    • ClearOS

top

Physical specifications

Specifications
Description
System unit dimensions (H x W x D)
61.49 x 4.29 x 43.46 cm (24.21 x 1.69 x 17.11 in)
Weight (Approximate)
  • Minimum: 10 kg (22.05 lb)

  • Maximum: 15.60 kg (35.27 lb)

top

Electrical specifications

Specifications
Description
Rated line voltage
  • 100 to 120 V ac

  • 200 to 240 V ac

BTU rating
  • 800 W power supply - 3207 BTU/hr at 100 V ac

  • 500 W power supply - 1979 BTU/hr at 100 V ac

Power supply output
Rated Steady-State Power
  • For 1600 W power supply: 1600 W (At 240 V ac)

  • For 800 W power supply: 800 W (At 100 V ac)

  • For 500 W power supply: 500 W (At 100 V ac)

Maximum Peak Power:
  • For 1600 W power supply: 1600 W (At 200 to 240 1 V ac)

  • For 800 W power supply: 800 W (At 100 to 127 V ac)

  • For 500 W power supply: 500 W (At 100 to 127 V ac)

top

Environmental specifications

Specification
Description
Operating temperature
0° to 35°C (50° to 95°F)
Extended ambient operating temperature
5° to 10°C (41° to 50°F)
Non-operating temperature
-30° to 60°C (-22° to 140°F)
Operating relative humidity
8% to 90% relative humidity
Non-operating relative humidity
5% to 95% relative humidity
Operating altitude
3050 m (10,000 ft)
Non-operating altitude
9144 m (30,000 ft)
Acoustic noise
  • Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109)

  • The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels

Configuration SKU
LWAd
LpAm
Idle
4.8 B Entry
32 dBA Entry
4.8 B Base
34 dBA Base
4.8 B Perf
35 dBA Perf
Operating
5.2 B Entry
37 dBA Entry

5.2 B Base
38 dBA Base

5.2 B Perf
37 dBA Perf

top

Safety certifications

Specifications
Description
Emissions Classification (EMC) - Regulatory information
To view the regulatory information for users product, view the safety and compliance information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center .

top
