HPE ProLiant DL20 Gen9 CTO Server

Part#:
DL20G9
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
Warranty:
ECS 1 Year Hardware Warranty

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon E3-1200v6

Supports (1) processor

Intel Xeon E3-1200v5

Supports (1) processor

HPE Memory

Supports up to 4 DIMMs

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE LFF Drives SAS (3.5in)

HPE LFF Drives SATA (3.5in)

HPE M.2 Drives

816284-B21 cable kit is a mandatory option required to support M.2 SSDs

HPE Network Adapters

2 PCIe Slots (1 Full Height and 1 Low Profile)

HPE Host Bus Adapter

2 PCIe Slots (1 Full Height and 1 Low Profile)

HPE FlexibleLOM Adapter

Riser kit ( 811259-B21 ) is required when FlexibleLOM is selected

HPE InfiniBand Adapter

2 PCIe Slots (1 Full Height and 1 Low Profile)

HPE Power Supplies

HPE Options

HPE Rail Kits

HPE Optical Drives

HPE Security

ECS Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

DL20 Gen9 Product Description

The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200 v5/v6 processors provides a unique blend of enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses and service providers. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.

The DL20 Gen9 Server offers a range of HPE Qualified Options to fit most needs like affordable drives for light workloads, solid state drives for the demanding requirements, from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power supply, from multiple storage controllers to the HPE FlexibleLOM networking cards-helping customers find the right configuration for their workloads.

What's New for DL20 Gen9

  • Introducing support for Intel Xeon E3-1200v6 and 2400 MHz UDIMM

  • Build a fully functional server with ClearOS that is just right for user at no upfront cost

  • Now a docker ready server

  • NVIDIA M2000 GPU support included for graphics intensive workload

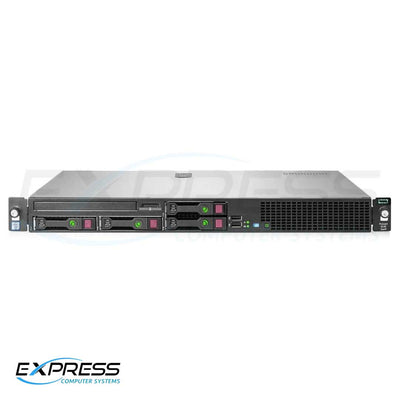

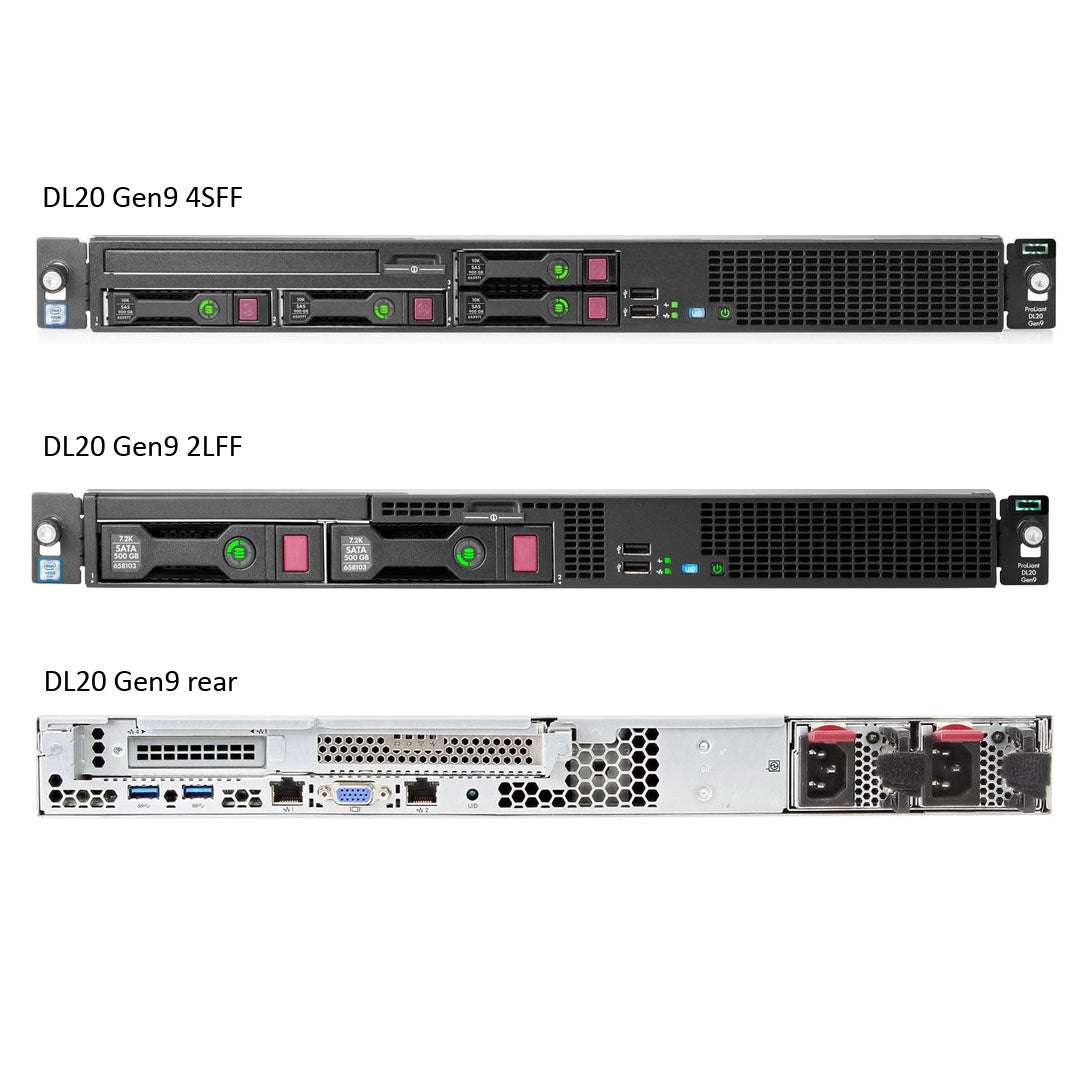

DL20 Gen9 4SFF

DL20 Gen9 4SFF

DL20 Gen9 2LFF

DL20 Gen9 2LFF

Optimized Reliable Solution

The HPE ProLiant DL20 Gen9 server is a 1P 1U rack server that combines the right balance of performance, expandability, reliability and manageability for a variety of business needs.

The DL20 Gen9 server combines a dense and compact form factor with redundant power supply capability which keeps your business running and provides data protection and accessibility even in the event of a power supply failure.

Customers can protect against data loss and downtime with the enhanced error handing of HPE DDR4 ECC memory options while also improving workload performance and power efficiency.

Trusted and proven HPE Smart Array technology provides businesses with protection for critical data through RAID mirroring and striping capability and, with FBWC up to 4 GB, captures and holds data indefinitely in the event of a power loss, equipment failure, or human error.

Your business cannot afford disruptions due to downtime on your server. HPE Insight Online with HPE Insight Remote Support provides 24x7 remote monitoring with anywhere, anytime personalized access to your IT and support status to get your business up and running.

Ease of Use for Many Environments and Workloads

The HPE ProLiant DL20 Gen9 server is a short-depth chassis of 15.05-inch providing mobility and easy deployment in a wide variety of environments.

The HPE embedded management solution based on HPE iLO 4 provides simple, versatile and comprehensive tools to deploy, manage and troubleshoot servers—even for customers with limited IT resources.

The ProLiant DL20 Gen9 server has the great quality and design features that are a hallmark of the ProLiant family such as tool-less access to system components and enhanced serviceability.

Great Combination of Performance and Efficiency

The HPE ProLiant DL20 Gen9 server supports Flex LOM which enables next-generation network capability for faster data transfer.

You have a wide choice of dual core and quad core Intel Pentium and Xeon E3-1200 processors with up to 64 GB of DDR4 ECC memory to handle any demands that your workload might make on the HPE ProLiant DL20 Gen9 Server.

The ProLiant DL20 Gen9 server consumes up to 29% less power compared to the previous generation which combined with the efficient, redundant power supply solution provides you with an Energy Star certified power saving solution.

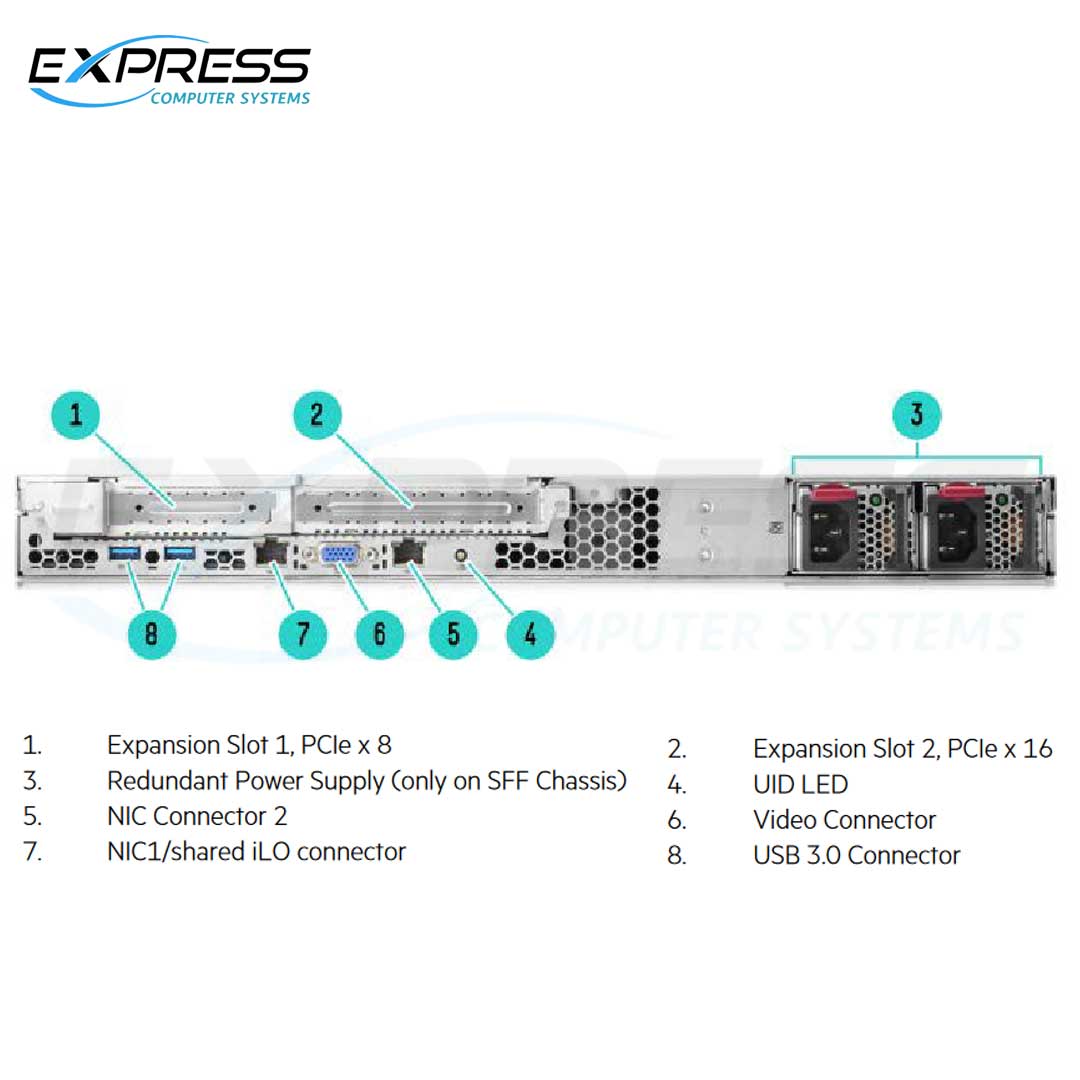

DL20 Gen9 rear

DL20 Gen9 rear

Product features

Feature
Description
Processor (One of the following depending on model)
Model
CPU frequency
Cores
L3 Cache
Power
DDR4 Hz
G4400
3.3 GHz
2
3MB
54 W
2133
G4500
3.5 GHz
2
3MB
51 W
2133
i3-6100
3.7 GHz
2
3MB
51 W
2133
E3-1220v5
3.0 GHz
4
8MB
80 W
2133
E3-1225v5
3.3 GHz
4
8MB
80 W
2133
E3-1230v5
3.4 GHz
4
8MB
80 W
2133
E3-1240v5
3.5 GHz
4
8MB
80 W
2133
E3-1270v5
3.6 GHz
4
8MB
80 W
2133
E3-1280v5
3.7 GHz
4
8MB
80 W
2133
G4560
3.5 GHz
2
3MB
54 W
2400
i3-7300
4.0 GHz
2
3MB
51 W
2400
E3-1220v6
3.0 GHz
4
8MB
72 W
2400
E3-1225v6
3.3 GHz
4
8MB
73 W
2400
E3-1230v6
3.5 GHz
4
8MB
72 W
2400
E3-1240v6
3.7 GHz
4
8MB
72 W
2400
E3-1270v6
3.8 GHz
4
8MB
72 W
2400
E3-1280v6
3.9 GHz
4
8MB
72 W
2400
Chipset (One of the following depending on model)
Intel C232 chipset
On system management chipset
HPE iLO (Firmware HPE iLO4 2.3) 4GB NAND
Memory protection
ECC
Memory
Type
DDR4 Unbuffered (UDIMM)
DIMM Slots available
4 (4 DIMM slots per processor; 2 channels per processor, 2 DIMMs per channel)
Maximum capacity (UDIMM)
64GB (4 x 16GB UDIMM 2133 MHz)
Network controller
  • HPE Ethernet 1Gb 2-port 332i Network Adapter or BCM5720

The HPE ProLiant DL20 Gen9 server offers the user a dual-port NIC standard with the option toupgrade with a variety of networking options
Storage controller (One of the following depending on model)
Entry models
HPE Dynamic Smart Array B140i controller
Base models
HPE Dynamic Smart Array B140i controller
Performance models
HPE H240 FIO Smart Host Bus Adapter (HBA)
Expansion slots
Dual side low profileriser
Expansion slots
Technology
Bus width
Connector width
Form factor
1
PCIe 3.0
X8
X8
Half length/half height
2
PCIe 3.0
X8
X8
Half length/full height
FlexibleLOM riser
Expansion slots
Technology
Bus width
Connector width
Form factor
1
Flexible LOM
X8
X8
Half length/half height
2
PCIe 3.0
X8
X8
Half length/full height
GPU riser
Expansion slots
Technology
Bus width
Connector width
Form factor
1
Flexible LOM
-
-
-
2
PCIe 3.0
x16
x16
Half length/full height
Internal storage devices
Optical drives
Ships standard in performance models
Optional: DVD-ROM, DVD-RW
Hard drives
None ship standard
Hard drive bays
  • 4 SFF Drive bays total with optical bay

  • 2 LFF Drive bays total with optical bay

Power supply
  • HPE 290 W FIO power supply

  • HPE 900 W ac 240 V dc redundant power supply

Upgradeability
  • FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options

  • Up to 4 DIMM slots available for higher memory capacity

  • Up to 4SFF drive bays or 2LFF drive bays

  • HPE Smart Array or Smart HBA controller

  • Redundant power supply

NOTE: RPS is only compatible with DL20 SFF Chassis. Customer can upgrade from DL20 Gen9 on SFF chassis with 290W PSU to 900W redundant power supply
Maximum internal storage (One of the following depending on model)
Drives
Capacity
Configuration
Hot Plug SFF SAS
8TB
4 x 2TB
Hot Plug SFF SATA
8TB
4 x 2TB
Hot Plug LFF SAS
16TB
2 x 8TB
Hot Plug LFF SATA
16TB
2 x 8TB
Hot Plug SFF SAS SSD
15.36TB
4 x 3.84TB
Hot Plug SFF SATA SSD
15.36TB
4 x 3.84TB
Hot Plug LFF SATA SSD
15.36TB
4 x 3.84TB
Non Hot Plug LFF SATA
8TB
2 x 4TB
System fans
1P Model: 3 Fans (Non-redundant)
NOTE: DL20 Server has 3 fans, 2 front fan assemblies and 1 center fan assembly which ship standard, non-redundant
Interfaces
Video
1 Rear video connector
USB
5 USB Ports (Standard)
  • Front: 2 x USB 2.0

  • Rear: 2 x USB 3.0

  • Internal: 1 x USB 3.0

Micro SD slot1
1 Micro SD
LOM Network ports2
2 x 1 GbE ports
NOTE:
  1. The SD slot is not a hot-pluggable device. User should not attempt to plug an SD card into the SD slot while the server is powered.
  2. Users can upgrade to next generation network (10 GbE) by installing a FlexibleLOM riser.
Industry standard compliance
  • Unified Extensible Firmware Interface Forum (UEFI)

  • PCIe 3.0

  • PXE Support

  • WOL Support

  • Microsoft logo certifications

  • USB 3.0 Support

  • ASHRAE A3

Graphics
Integrated Matrox G200 video standard
On board graphics: Integrated Matrox G200 video standard
  • 1280 x 1024 (32 bp)

  • 1920 x 1200 (16 bp)

HP iLO 4 On system management memory
  • 16MB Flash

  • 256MB DDR 3 with ECC (112MB after ECC and video)

HPE NVIDIA Quadro K2200 and M2000 GPU module
NOTE: Install GPU riser option to support GPU card. A GPU enablement kit 811271-B21 is mandatory to support GPU.
ServerUEFI/Legacy ROM
UEFI is an industry standard that provides better manageabilityand more secured configuration than the legacy ROM while interacting with users server at boot time
  • Secure boot

  • Operating system specific functionality

  • Support for > 2.2TB (Using GPT) Boot drives

  • USB 3.0 stack

  • Embedded UEFI shell

  • Mass configuration deployment tool using RESTful API for iLO 4

  • PXE boot support for IPv6 networks

  • Boot support for option cards that only support a UEFI option ROM

  • Network stack configurations

Security
  • Power-on password

  • Serial interface control

  • Administrator's password

  • TPM 1.2

  • APCI 2.0b

  • TPM 2.0

Form factor
  • 1U Rack form factor (4SFF and 2LFF)

  • 4SFF and 2LFF version

  • 4.32 cm (1.70 in) Height x 38.22 cm (15.05 in) Depth x 43.46 cm (17.11 in) Length

NOTE: Depth of the chassis is measured from rear to ear at 15.05 inch. Depth from rear to bezel is 15.5 inch
Embedded management
  • HPE Integrated Lights-Out (HPE iLO)

    • iLO Essentials

    • iLO Scale-Out

    • iLO Advanced

  • Unified Extensible Firmware Interface (UEFI)

  • RESTful API

  • Intelligent provisioning

  • Embedded remote support

Server utilities
  • Smart update

  • HPE Systems Insight Manager (HPE SIM)

  • Scripting tool kit and windows PowerShell

  • RESTful interface tool

  • HPE iLO mobile application

  • HPE Insight online

Security
  • Power-on password

  • Serial interface control

  • Administrator's password

  • UEFI

  • TPM 1.2

  • TPM 2.0

  • APCI 2.0b

Server management
HPE Insight control
HPE Insight control, lets user deploy, migrate, monitor, remote control, and optimize usersIT infrastructure through a single, simple management console

top

Software overview

Feature
Description
Operating systems and virtualization software support
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • VMware

  • ClearOS

NOTE:
  • VMware availability is dependent on general availability from the vendor. DL20 supports VMware 5.5U3 and 6.0 U1.
  • ClearOS allows the user to build a fully functional server that is just right for the user at no upfront cost. It is available via CTO preload, Intelligent Provisioning or via download.

top

Physical specifications

Specifications
Description
Dimensions (H x W x D):
  • 4 SFF

    4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in)

  • 2 LFF

    4.32 x 43.46 x 38.22 cm (1.70 x 17.11 x 15.05 in)

Weight (Approximate):
  • Non-Hot Plug 2 LFF fully loaded (All hard drives, power supplies, and processors installed):

    7.88 kg (17.37 Ib)

  • Hot plug 2LFF fully loaded (One hard drive, power supply, and processor installed):

    7.9 kg (17.41 lb)

  • 4 SFF Fully loaded:

    8.7 kg (19.18 lb)

top

Electrical specifications

Specifications
Description
 290 W Non-Hot plug power supply
Range input voltage
100 to 240 V ac
Rated input current
5.5 A Max (At 100 V ac)
Rated input frequency
50 to 60 Hz
Rated input power
550 W (At 100 V ac)
Maximum BTU rating
  • 1130 BTU/hr (At 115 V ac)

  • 1126 BTU/hr (At 230 V ac)

Power supply output
  • Rated steady-state power:

    290 W Max

  • Maximum peak power:

    366 W Within 10 seconds

900 W Redundant power supply
Rated input voltage
  • 100 to 127 V ac

  • 200 to 240 V ac

Rated input frequency
50 to 60 Hz
Rated input current
  • 6.3 A at 100 V ac

  • 4.9 A at 200 V ac

Maximum rated input power
  • 619 W at 100 V ac

  • 976 W at 200 V ac

Maximum BTU rating (Non redundant)
  • 2112 at 100 V ac

  • 3329 at 200 V ac

Power supply output
  • Rated steady-state power:

    550 W at 100 to 127 V ac input

    900 W at 200 to 240 V ac input

  • Maximum peak power:

    550 W at 100 to 127 V ac input

    900 W at 200 to 240 V ac input

top

Environmental specifications

Specifications
Description
Operating temperature
10° to 35°C (50° to 95°F)
Non-operating temperature
-30° to 65°C (-22° to 149°F)
Operating relative humidity
8% to 90% Non-Condensing
Non-Operating relative humidity
5% to 95% Non-Condensing
Operating altitude
3050 m (10,000 ft)
Non-Operating altitude
9144 m (30,000 ft)
Acoustic noise
LWAd
LpAm
Idle
  • Entry 3.7 B

  • Base 3.8 B

  • Performance 3.4B

  • Entry 20.0 dBA

  • Base 20.0 dBA

  • Performance 18.0 dBA

Operating
  • Entry 3.7 B

  • Base 4.7 B

  • Performance 5.6 B

  • Entry 20.0 dBA

  • Base 30.0 dBA

  • Performance 34.0 dBA

NOTE: Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

top

Safety certifications

Specifications
Description
FCC Rating
Class A
Normative standards
  • CISPR 22

  • EN55022

  • EN55024

  • FCC CFR 47, Pt 15

  • ICES-003

  • CNS13438

  • GB9254

  • K22;K24

  • EN 61000-3-2

  • EN 61000-3-3

  • EN 60950-1

  • IEC 60950-1

top


Current Configuration

Server Chassis

None

HPE Processors

None

HPE Memory

None

HPE RAID Controllers

None

HPE SFF Drives SAS (2.5in)

None

HPE SFF Drives SATA (2.5in)

None

HPE LFF Drives SAS (3.5in)

None

HPE LFF Drives SATA (3.5in)

None

HPE M.2 Drives

None

HPE Network Adapters

None

HPE Host Bus Adapter

None

HPE FlexibleLOM Adapter

None

HPE InfiniBand Adapter

None

HPE Power Supplies

None

HPE Options

None

HPE Rail Kits

None

HPE Optical Drives

None

HPE Security

None

ECS Warranty

None
*list also serves as quicklinks to each section

Price as Configured: $0.00

Add to Cart

Please select at least 1 item from the configuration list before adding to cart
