HPE ProLiant DL20 Gen9 Non-Hot-Plug 2 LFF Server Chassis | 819784-B21

Brand:
MPN:
819784-B21
Type:
Chassis
Condition:
ECS Refurbished & Tested

Total: $425.00


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
CTO Server [Chassis] HPE ProLiant DL20 Gen9 Non-hot Plug 2LFF Configure-to-order Server HPE ProLiant DL20 Gen9 2LFF Configure-to-order Server HPE ProLiant DL20 Gen9 4SFF Configure-to-order Server
SKU Number 819784-B21 819785-B21 819786-B21
Processor 1 1 1
DIMM Slots 4 DIMM slots for UDIMM DDR4 Memory
Storage Controller HPE Dynamic Smart Array B140i
PCIe 2 PCIe 3.0 Slots
Drive Cage - included 2LFF Non Hot Plug 2LFF Hot Plug 4SFF Hot Plug
Network Controller HPE embedded 1Gb 2-port 332i network Adapter
Fans 3 non hot plug, non-redundant
USB 2 front, 1 internal, 2 rear
Ears HPE Thumbscrew Ears

HPE ProLiant DL20 Gen9 Non-hot Plug 2LFF Server Chassis | 819784-B21

The dense and compact HPE ProLiant DL20 Gen9 Server powered by Intel Pentium, Core i3 and E3-1200 v5/v6 processors provides a unique blend of enterprise-class capabilities at a great value-making it an ideal rack server platform for growing businesses and service providers. It offers outstanding configuration flexibility to cater to a wide variety of business requirements at an affordable price point.

The refurbished DL20 Gen9 Server offers a range of HPE Qualified Options to fit most needs like affordable drives for light workloads, solid state drives for the demanding requirements, from a single non-hot plug power supply to an efficient HPE Hot Plug Redundant Power supply, from multiple storage controllers to the HPE FlexibleLOM networking cards-helping customers find the right configuration for their workloads.

What's New for DL20 Gen9

  • Introducing support for Intel Xeon E3-1200v6 and 2400 MHz UDIMM
  • Build a fully functional server with ClearOS that is just right for user at no upfront cost
  • Now a docker ready server
  • NVIDIA M2000 GPU support included for graphics intensive workload

Data protection, ease of use, reliability, and performance

The server’s data protection features include optional redundant power supplies, DDR4
memory, enhanced error handling, HPE Smart Array RAID mirroring and striping  capabilities, and flash-backed write cache (FBWC) up to 4 GB. FBWC protects data by capturing and holding it indefinitely in the event of a power loss, equipment failure, human error, or virus attacks. Layering on business continuity features, the HPE Insight Online option with HPE Insight Remote Support provides 24x7 remote monitoring and anywhere, anytime access to your IT and support status to get your business up and running quickly if something goes wrong.


Know your Server - CTO Configuration Support

Need help with the configuration? Contact us today!

Product Specs for HPE 819784-B21

More Specs

Technical specifications HPE ProLiant DL20 Gen9 SErvEr
Compute Choose from one Intel Xeon E3-1200 v5 or v6 Series, Up to 2 PCIe 3.0 slots
Memory 4 x DDr4, up to 2133 MHz (64 GB max)
Storage HPE Dynamic Smart Array B140i, HPE Smart Array Controller P440 with FBWC, and HPE Smart HBA H240

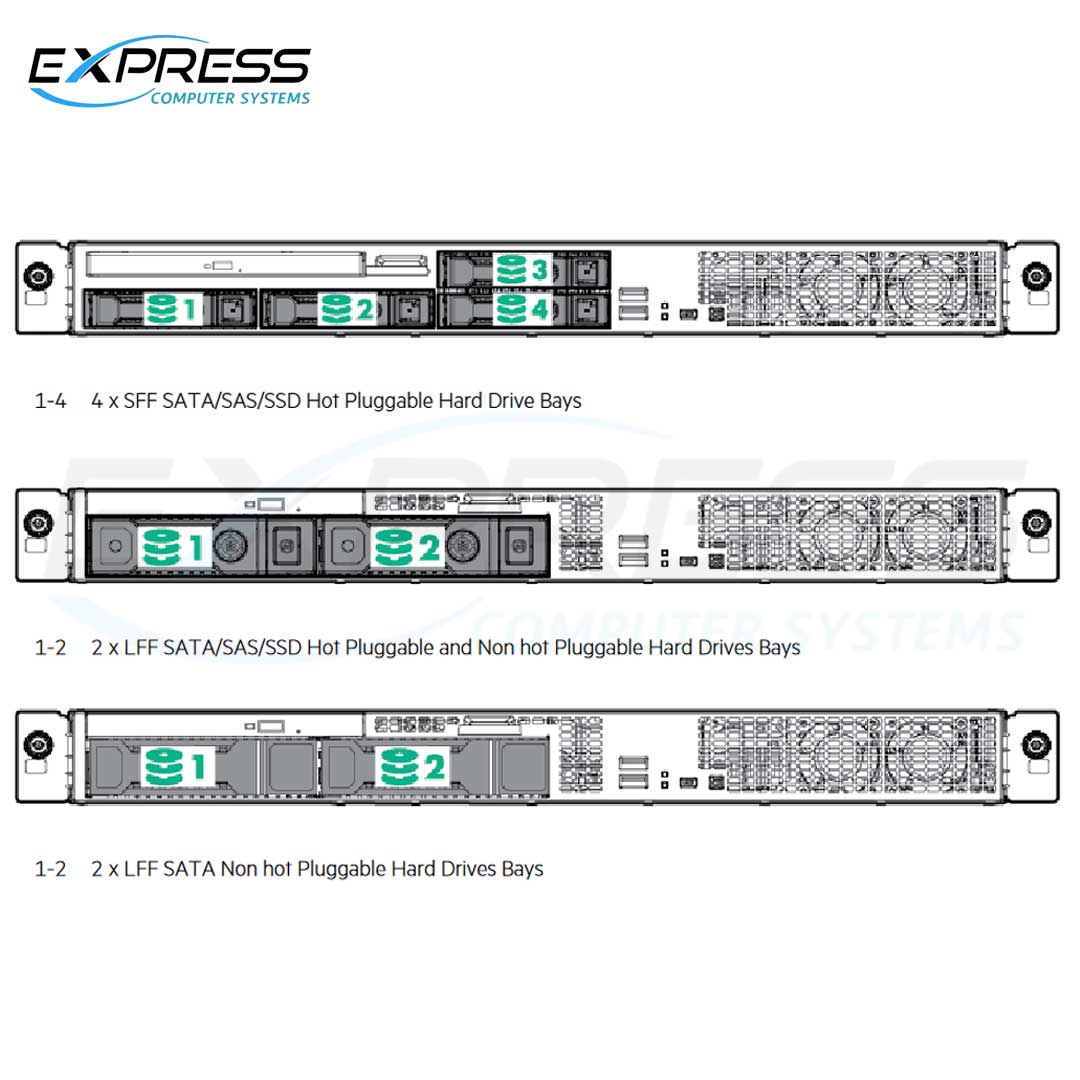

HPE SmartDrives 2LFF Non hot-Plug & Hot Plug (SAS/SATA); 4SFF Hot Plug (SAS/SATA)
Networking 2 x 1GbE embedded Ethernet Adapter and FlexibleLOM
vGA/serial/USB ports/SD 2 rear USB 3.0, 2 front USB 2.0, and 1 internal USB 3.0
GPU support One single-width, half-length GPU (optional)
On-premise management HPE iLO 4 (Advanced/Scale-out/Essentials Optional)
On-cloud management HPE Insight Online with enhanced mobile application
On-system management HPE iLO 4, HPE Intelligent Provisioning, HPE System Update Manager (SUM), HPE RESTful Interface Tool
Power and cooling Standard 290 W power supply; 900 W AC 240vDC redundant power supply (optional for SFF chassis only)
Industry compliance ASHRAE A3, ENErGY STAr (only on RPS configuration models)*
Form factor/chassis depth Rack (1U) 15.05" (ear to rear)
System rOM UEFI and Legacy BIOS
System fan features Depending on model SKU. Standard 2 fans, none-hot-plug. Optional 4 additional fans, hot-plug and N+1 redundancy Reference QuickSpecs for config. detail.
Network controller HPE Ethernet 1Gb 4-port 369i Adapter
Storage controller 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a SR Gen10 and/or 1 HPE Smart Array E208i-a Gen10, depending on model. For detail reference QuickSpecs.
Product Dimensions (metric) 18.2 x 25.51 x 6.85 in
Weight 46.30 lb
Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard), HPE iLO Advanced, and OneView Advanced (optional)
Drive supported 24 SFF SAS/SATA HDD/SSD, or 16 SFF SAS/SATA HDD/SSD and 8 SFF NVMe SSD. 12 LFF SAS/SATA HDD/SSD or 12 LFF NHP SATA HDD, depending on model. Upgrade option kits are available.

Spec Sheet

Technical Guide
