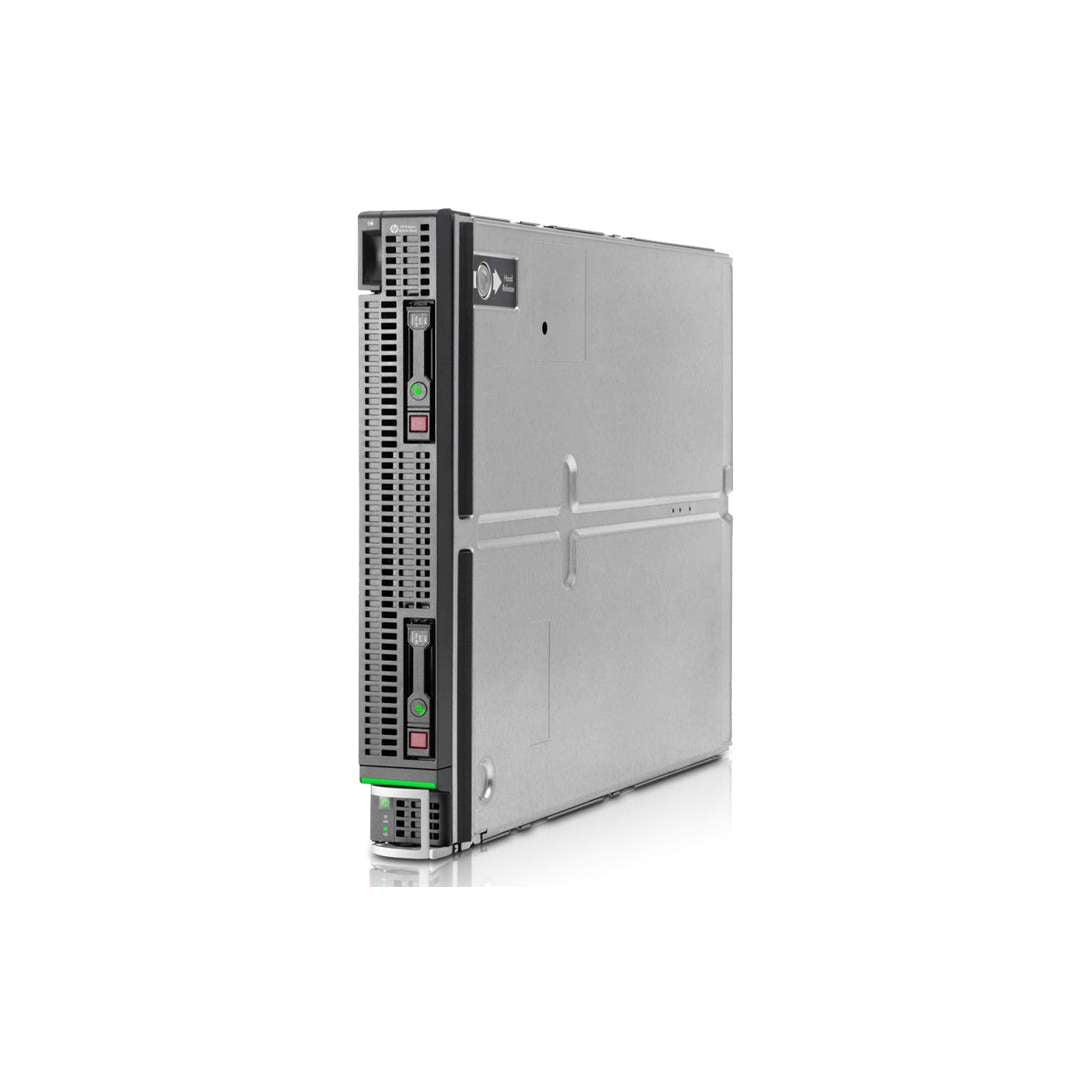

HPE ProLiant BL660c Gen8 CTO Server Blade

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

Multi-Quantity Discounts Available for ALL Line Items

** LARGE DISCOUNTS available for complete systems. Pricing displayed is for single item purchases **

Use the configuration tool to create your solution and submit it us for a quote OR send us a message with your complete build requirements to receive best pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

Intel Xeon E5-4600

Supports up to (4) processors

Intel Xeon E5-4600v2

Supports up to (4) processors

HPE Memory for E5-4600 Series Processors

8 DIMMs per processor (up to 32 DIMMs in a four-processor configuration)

HPE Memory for E5-4600 v2 Series Processors

8 DIMMs per processor (up to 32 DIMMs in a four-processor configuration)

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE Network Adapters

3 Mezzanine Slots (1) Type A and (2) Type A or Type B

HPE FlexibleLOM Adapter

Supports (2) FlexibleLOMs

HPE InfiniBand Adapter

3 Mezzanine Slots (1) Type A and (2) Type A or Type B

HPE Host Bus Adapter

3 Mezzanine Slots (1) Type A and (2) Type A or Type B

HPE Expansion

HPE Options

HPE Security

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

HPE BL660c Gen8 CTO Blade Server Product Description

The HPE ProLiant BL660c Gen8 Server series is ideal for virtualization, database, business processing, and general 4P data-intensive applications where fine-tuning of data center space and price/performance is paramount. Supporting the high-density and cost effective Intel Xeon E5-4600 processors, the BL660c Gen8 Server series redefines density-optimized 4-socket blade technology without compromising on performance, scalability, and expandability.

HP ProLiant BL660c Gen8 Server Blade redefines density optimized 4S blade technology. This scale-up server blade offers the ideal four-socket dense form factor without compromising on 4P performance, scalability, and expandability. The HP ProLiant BL660c Gen8 Server Blade is ideal for virtualization, database, business processing, and general 4P data-intensive applications where data center space and price/performance are paramount.

What's New for BL660c Gen8

  • Support for the Intel Xeon processor E5-4600v2 product family
  • Support for DDR3-1600 1.35 V memory
  • Support for DDR3-1866 1.5 V memory
  • Support for 12G SAS High Endurance Hot Plug SFF (2.5-inch) Enterprise Performance and Enterprise Mainstream Solid State Drives

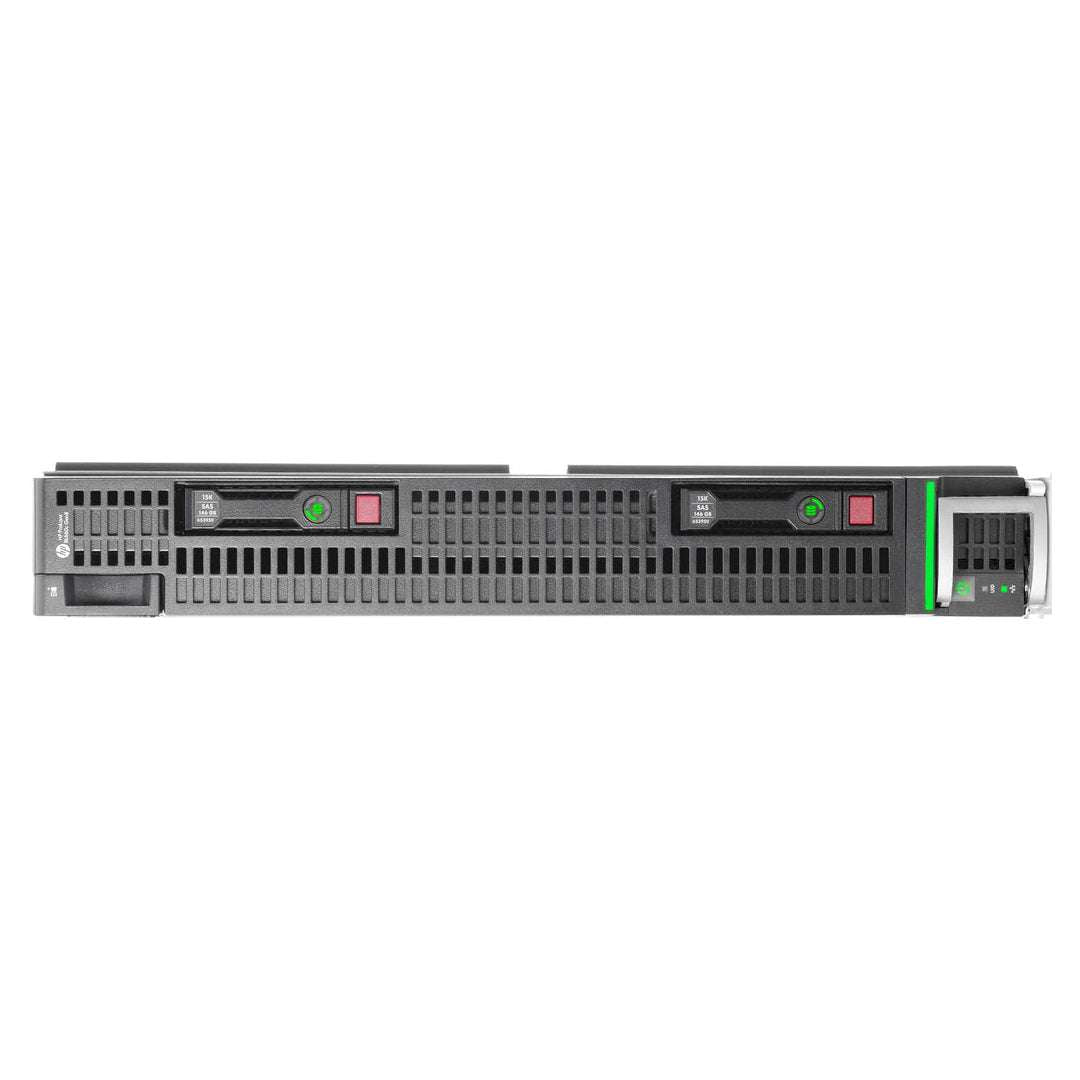

BL660c Gen8 panel view

BL660c Gen8 panel view

Powerful Performance

Built on the Gen8 features of the ProActive Insight architecture, the HP BL660c Gen8 offers improvements in performance, memory, networking, I/O, storage, and management.

It supports up to four E5-4600 processors, up to four 10 Gb FlexFabric ports with the Gen8 FlexibleLOM solution and 1.0 TB of Gen8 HP SmartMemory (SmartMemory uses less power but without impact to performance), and comes with three PCIe 3.0 expansion slots (two x 16, one x 8).

Gen8 embedded Smart Array P220i RAID controller supports the HP Smart Storage and SmartDrive carrier, and a choice of a very wide section of hot plug SAS, SATA, SAS SSD, and SATA SSD hard drives.

With all this infrastructure in a box, you can handle more data-demanding virtualization, database, business processing, decision support, and HPC applications.

Ideal 4P Form Factor

The HP ProLiant BL660c Gen8 Server Blade is a new density-optimized server blade offering 4P performance in a single-wide, full-height form factor.

You get double the computing density compared to the previous 4P Intel-based server blade without compromising on performance, scalability, and expandability.

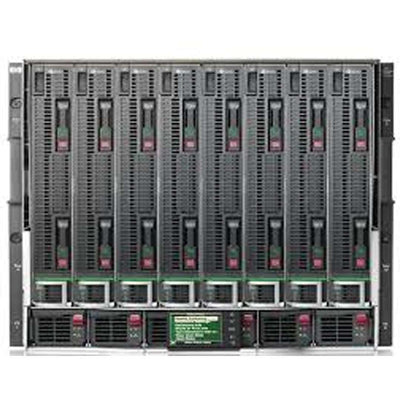

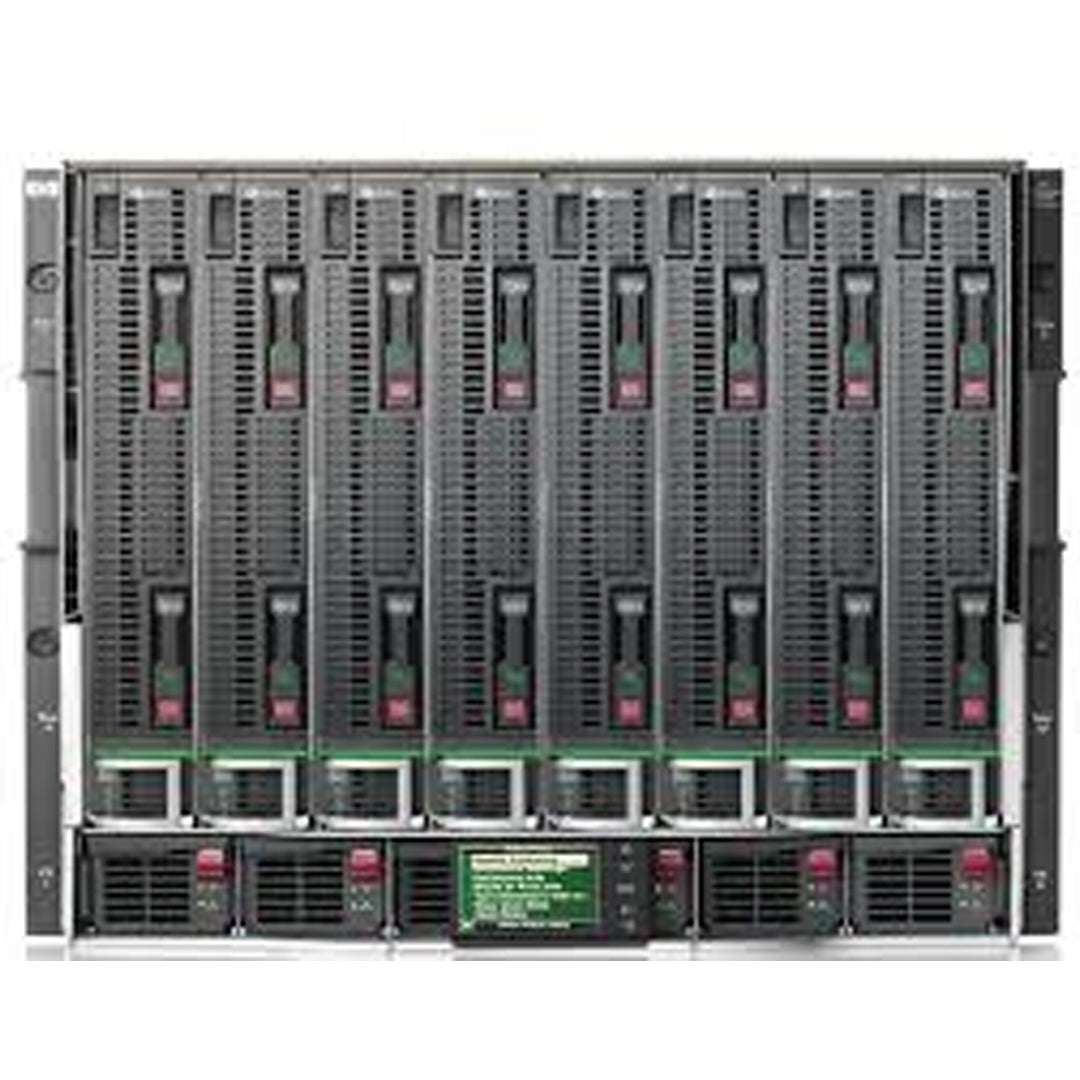

BL660c Gen8 chassis view

BL660c Gen8 chassis view

Product features

Feature
Description
Processor(One of the following depending on model)
E5-4600 v2 series Processors
  • HPE BL660c Gen8 E5-4657Lv2 (2.4 GHz/12-core/30MB/115 W) Processor

  • HPE BL660c Gen8 E5-4650v2 (2.4 GHz/10-core/25MB/95 W) Processor

  • HPE BL660c Gen8 E5-4640v2 (2.2 GHz/10-core/20MB/95 W) Processor

  • HPE BL660c Gen8 E5-4627v2 (3.3 GHz/8-core/16MB/130 W) Processor

  • HPE BL660c Gen8 E5-4620v2 (2.6 GHz/8-core/20MB/95 W) Processor

  • HPE BL660c Gen8 E5-4610v2 (2.3 GHz/8-core/16MB/95 W) Processor

  • HPE BL660c Gen8 E5-4607v2 (2.6 GHz/6-core/15MB/95 W) Processor

  • HPE BL660c Gen8 E5-4603v2 (2.2 GHz/4-core/10MB/95 W) Processor

E5-4600 series Processors
  • Intel Xeon E5-4650 (2.7 GHz/8-core/20MB/130 W) Processor

  • Intel Xeon E5-4650L (2.6 GHz/8-core/20MB/115 W) Processor

  • Intel Xeon E5-4640 (2.4 GHz/8-core/20MB/95 W) Processor

  • Intel Xeon E5-4620 (2.2 GHz/8-core/16MB/95 W) Processor

  • Intel Xeon E5-4617 (2.9 GHz/6-core/15MB/130 W) Processor

  • Intel Xeon E5-4610 (2.4 GHz/6-core/15MB/95 W) Processor

  • Intel Xeon E5-4607 (2.2 GHz/6-core/12MB/95 W) Processor

  • Intel Xeon E5-4603 (2.0 GHz/4-core/10MB/95 W) Processor

Cache memory(One of the following depending on model)
  • 30MB Level 3

    For E5-4657L v2 processor

  • 25MB Level 3

    For E5-4650 v2 processor

  • 20MB Level 3

    For E5-4650, E5-4650L, E5-4640, E5-4640 v2, E5-4620 v2 processors

  • 16MB Level 3

    For E5-4650, E5-4650L, E5-4640, E5-4640 v2, E5-4620 v2 processors

  • 15MB Level 3

    For E5-4617, E5-4610, E5-4607 v2 processors

  • 12MB Level 3

    For E5-4607 processor

  • 10MB Level 3

    For E5-4603, E5-4603 v2 processors

Chipset 1
Intel C600 Series Chipset
Upgradeability
Upgradeable to four (4) processors
On System Management Chipset
HPE iLO (Firmware: HP iLO 4)2
Memory protection
  • Data bus ECC protection

  • Advanced ECC/SDDC

  • Rank sparring (on line spare)

  • Lockstep mode

  • DIMM address/control bus parity protection

  • Failed DIMM isolation

  • Demand scrubbing

  • Patrol scrubbing

  • Memory thermal control

Memory(One of the following depending on model)3
  • Type

    • HP SmartMemory

    • DDR3 Load Reduced (LRDIMM) and Registered (RDIMM)

  • Standard (Pre-configured models)

    • 128GB (8 x 16GB) DDR3 1600 MHz RDIMMs at 1.5 V

    • 128GB (8 x 16GB) DDR3 1333 MHz RDIMMs at 1.35 V

  • Maximum (LRDIMM)

    • 1.0TB (32 x 32GB) up to 1866 MHz at 1.5 V

  • Maximum (RDIMM)

    • 512GB (32 x 16GB) up to 1600 MHz at 1.35 V

    • 768GB (32 x 24GB) up to 1333 MHz at 1.35 V

Network controller 4
Two (2) HP FlexibleLOM connectors for one or two dual-port FlexibleLOMs
Expansion slots
  • Three (3) I/O expansion mezzanine slots:

    • x8 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1))

    • x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2))

    • x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 3))

  • Mezzanine card options include:

    • Dual-port to quad-port (depending on the model) 10Gb FlexFabric, 10Gb Flex-10, 10Gb Ethernet, and 1Gb Ethernet for additional Ethernet network ports

    • Dual-port 8Gb Fibre Channel HBA for SAN connectivity

    • QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity

    • HP Smart Array P721m Controller for direct attached SAS Storage

    • HP I/O Accelerator Options for higher I/O performance and low latency access to storage, with the reliability of solid state

Storage controller (All models)
  • One (1) embedded HP Smart Array P220i Controller5

  • Available options - Smart Array Advanced Pack 2.0 Software for enhanced performance, reliability, availability, and security of system data

Maximum internal storage 6
  • Hot Plug SFF SAS - 2.4TB (2 x 1.2TB)

  • Hot Plug SFF SATA - 2.0TB (2 x 1.0TB)

  • Hot Plug SFF SAS SSD - 1.6TB (2 x 800GB)

Interfaces 7
  • Micro SDHC Slot - One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

  • USB 2.0 Port - One (1) internal USB 2.0 connector for USB flash media drive keys

Graphics
  • Integrated Matrox G200 video standard

    • 1280 x 1024 (32 b/p)

    • 1920 x 1200 (16 b/p)

  • HP iLO 4 On System Management Memory
    • 16MB Flash

    • 256MB DDR 3 with ECC (112 MB after ECC and video)

Form factor
HP ProLiant BL660c Gen8 is a single-wide, full-height server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures
Industry standard compliance
  • ACPI 2.0

  • Microsoft Logo certifications

  • USB 2.0 Support

  • IMPI 2.0

  • Secure Digital 2.0

  • TMP 1.2 Support

  • IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP

  • SSL 2.0

  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)

  • Active Directory v1.0

  • PCIe 3.0

  • SR-IOV capability (requires network adapter and operating system support)

NOTE: 1. Click here for more information regarding Intel chipsets Non-HPE site.

2. Click here for more information on iLO .

3. HP memory from previous generation servers are not qualified or warranted with this server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. Click here for additional information on HP SmartMemory . LRDIMMs and RDIMMs are distinct memory technologies and cannot be mixed within a server.Depending on the memory configuration and processor model, the memory speed may run at 1600 MHz, 1333 MHz or 1066 MHz.

4. FlexibleLOM options include 10Gb FlexFabric, 10Gb Flex-10, and 10Gb Ethernet.FlexFabric capabilities require the use of an HP Virtual Connect FlexFabric module. The server supports one or two FlexibleLOMs, which must be identical. For Pre-configured Model configurations, two FlexibleLOMs are already included; no additional FLexibeLOMs are added.For a Factory Integrated Model configuration with one FlexibleLOM, it is added in the HP Networking section of "Step 2" in the Factory Integrated Models section. For a Factory Integrated Model configuration with two FlexibleLOMs, the second FlexibleLOM (although same technology) is a different part number. User must select the first FlexibleLOM in the "Step 2" HP Networking section and select the second FlexibleLOM in the "Step 4" HP Networking section. All FlexibleLOMs are dual port: one port is routed to interconnect module bay 1 and the other to bay 2.

5. The HP Smart Array P220i includes 512MB flash-backed write cache (FBWC) supporting RAID 0 and 1 on pre-configured models and is optional on factory integrated models.The HPE Smart Array P220i supports upgradeable firmware with recovery ROM. The HP Smart Array P220i supports two (2) small form factor (SFF) hot plug drive bays.

6. The ProLiant BL660c Gen8 server includes the new HP hot plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HP drives from previous generation servers are not compatible with the ProLiant BL660c Gen8 drive bays.The mixing of standard SAS drives with SAS SSD drives is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.

7. The above options are for integrated hypervisor virtualization environments needing a low cost boot solution with the highest performance and reliability.

top


Software overview

Feature
Description
Operating systems and virtualization software support for ProLiant servers 1
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Solaris

  • VMware

  • Citrix XenServer

HP Insight management software
  • HPE Service Pack for ProLiant (SPP)

  • HPE Insight Control

  • HPE iLO Advanced License for ProLiant BladeSystem Servers

  • HPE Matrix Operating Environment

High performance clusters
  • HPE Cluster Platforms

  • HPE HPC Interconnects

  • HPE Insight Cluster Management Utility

  • HPE HPC Linux Value Pack

NOTE: 1. For more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for server, visit the Support Matrix and the driver download page. Click here to access the support matrix . Click here to access the driver download page .

top

Physical specifications

Specifications
Description
Dimensions (H x W x D) (with bezel)
366.27 x 56.54 x 516.67 mm (14.42 x 2.23 x 20.34 in)
Weight (approximate)
  • Maximum (4 processors, 2 FlexibleLOMs, 32 DIMMs, 2 hard drives, 3 mezzanine cards, and 2 flash cache batteries installed)

    • 12.3 kg (27.1 lb)

  • Minimum (2 processors, 1 FlexibleLOM, and 2 DIMMs installed)

    • 9.2 kg (20.2 lb)

top


Electrical specifications

Specifications
Description
HP BladeSystem c3000 Enclosure
Input requirements (per AC power supply)
  • Rated line voltage

    • 90 – 132 V ac

    • 180 – 264 V ac

  • Rated input current

    • 9.3 A (at 100 V ac)

    • 9.7 A (at 120 V ac)

    • 7.8 A (at 200 V ac)

    • 7.2 A (at 208 V ac)

    • 6.8 A (at 220 V ac)

    • 6.2 A (at 240 V ac)

  • Rated input frequency

    • 47 to 63 Hz

BTU rating
  • Maximum per power supply

    • 2728 BTU/hr (at 100 V ac)

    • 3069 BTU/hr (at 120 V ac)

    • 4092 BTU/hr (at 200 to 240 V ac)

Power supply output (per power supply)
  • Rated steady-state power

    • 800 W (at 100 V ac)

    • 900 W (at 120 V ac)

    • 1200 W (at 200 to 240 V ac)

  • Maximum peak power

    • 880 W (at 100 V ac)

    • 990 W (at 120 V ac)

    • 1350 W (at 200 to 240 V ac)

HP BladeSystem c7000 Enclosure
Input requirements (Single phase model)
  • Rated input frequency

    • 50 to 60 Hz

  • Rated input voltage (2400 W PSU)

    • 200 to 240 V ac

  • Rated input current per power supply (2400 W PSU)

    • 13.9 A at 200 V ac

    • 13.3 A at 208 V ac

    • 12.6 A at 220 V ac

  • Rated input power per power supply

    • 2780 VA

Input requirements (Three phase NA/JPN model)
  • Rated input voltage

    • 200 to 208 V ac Line to Line 3-Phase Delta

  • Rated input frequency

    • 50 to 60 Hz

  • Max input current per line cord (2250 W PSU)

    • 22.6 A at 200 V ac

    • 21.8 A at 208 V ac

  • Max input power per line cord

    • 7836 VA Max

  • Max input current per line cord (2400 W PSU)

    • 24 A at 200 V ac

    • 23.1 A at 208 V ac

  • Max input power per line cord

    • 8340 VA Max

Input requirements (Three phase international model)
  • Rated input voltage

    • 346 V ac to 415 V ac Line to Line

    • 200 V ac to 240 V ac Line to Neutral

    • 3-Phase WYE

  • Rated input frequency

    • 50 to 60 Hz

  • Max input current per line cord (2250 W PSU)

    • 11.9 A at 220 V ac

    • 10.9 A at 240 V ac

  • Max input power per line cord

    • 7836 VA Max

  • Max input current per line cord (2400 W PSU)

    • 12.6 A at 220 V ac

    • 11.5 A at 240 V ac

  • Max input power per line cord

    • 8340 VA Max

Input requirements DC power
  • Rated input voltage

    • 36 to -72 V dc

  • Max input current per line cord

    • 75 A

  • Max input power per line cord

    • 2700 W

Output specifications (per power supply)
  • HP 2400 W high efficiency hot-plug power supply

    • 200 - 240 V ac 2400 W 92% efficiency

  • HP 2250 W -48 V dc hot-plug power supply

    • 2250 W

top

Environmental specifications

Specifications
Description
System inlet temperature
  • Operating1: 10° to 35°C (50° to 95°F)

  • Non-operating2: -30° to 60°C (-22° to 140°F)

Relative humidity (non-condensing)
  • Operating: 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

  • Non-operating: 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude
  • Operating: 3,050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

  • Non-operating: 9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

NOTE: 1. Measurement at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed. System performance may be reduced if operating with a fan fault or above 30°C (86°F).

2. Maximum rate of change is 20°C/hr (36°F/hr).

top


Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments

Standard Ground Shipping time: 2-7 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-10 business days
Excludes weekends, holidays or weather delays.
3 Business Days Shipping time: 3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 3-6 business days
Excludes weekends, holidays or weather delays.
2 Business Days Shipping time: 2 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-5 business days
Excludes weekends, holidays or weather delays.
Overnight / Next Business Day Shipping time: 1 business day
Order processing time: 0-3 business days
Delivery time after order is placed: 1-4 business days
Excludes weekends, holidays or weather delays.


International Shipments

International Economy Shipping time: 4-6 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 5-9 business days
Excludes weekends, holidays or weather delays.
International Priority Shipping time: 1-3 business days
Order processing time: 0-3 business days
Delivery time after order is placed: 2-6 business days
Excludes weekends, holidays or weather delays.



For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Same-Day Shipping
At Express Computer Systems, we know hardware emergencies can happen at anytime. We also understand that you want to receive the best hardware as quickly as possible. At Express Computer Systems we'll ship the majority of our orders out the same day payment is made. Curious if the item you need will make it out on time? Feel free to contact us directly via the Contact Us link at the bottom, Live Chat feature or (800) 327-0730.

Buy, Sell, Rent, Lease, Trade-In
At Express Computer Systems we not only will sell you equipment at a great value, but we'll also purchase your used Dell, Cisco, NetApp or other networking equipment. Feel free to contact us with the model of the items you're looking to sell and we'll get you a quote ASAP. We also have flexible financing options for your purchasing needs.

In-House Configuration and Testing Lab
Every item we sell is tested on-site in our state-of-the-art hardware engineering lab. We use certified technicians to test every piece of equipment as well as updating all necessary firmware. The highest quality of testing and certification is guaranteed. We warranty all of our items we sell. Ask us today about warranty for a specific item.

Subscribe
