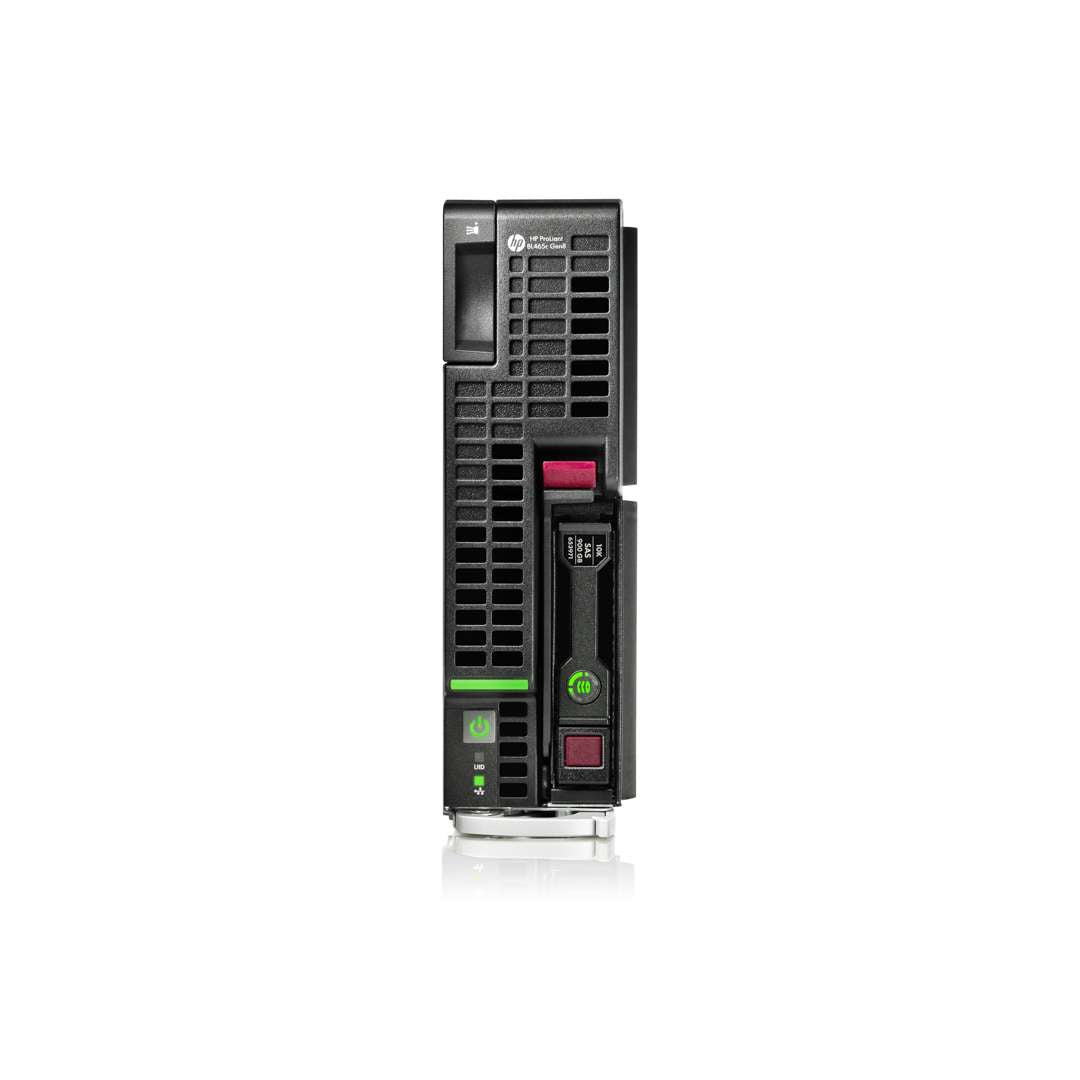

HPE ProLiant BL465c Gen8 CTO Server Blade

Part#:
BL465CG8
Brand:
HPE
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

HPE Processors

AMD Opteron 6300

Supports up to (2) processors

HPE Memory

8 DIMMs per processor (up to 16 DIMMs in a dual-processor configuration)

HPE RAID Controllers

HPE SFF Drives SAS (2.5in)

HPE SFF Drives SATA (2.5in)

HPE Network Adapters

2 Mezzanine Slots (1 Type A and 1 Type A or Type B)

HPE FlexibleLOM Adapter

HPE InfiniBand Adapter

2 Mezzanine Slots (1 Type A and 1 Type A or Type B)

HPE Options

HPE Security

ECS Warranty

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

HPE BL465c Gen8 CTO BladeServer Product Description

The ProLiant BL465c Gen8 Server Blade provides a unique blend of core density combined with a broad memory footprint in a half-height form factor that delivers unparalleled price/performance leadership for virtualization, IT infrastructure, database, and high-performance computing (HPC) environments. With up to 512 cores in a single enclosure and up to 2048 cores in a single rack, these servers provide very dense deployment for the data center.

The first server blade to deliver over 2000 cores per rack. It provides a unique blend of core density with a broad memory footprint in a half-height form factor, providing unparalleled price/performance leadership for virtualized environments. Designed for midmarket and enterprise IT environments, the HP ProLiant BL465c Gen8 Server Blade is an intelligent server that can meet the demands of your growing business, while enhancing the performance of applicationsand improving the computing power.

What's New for BL465c Gen8

  • Support for 6G SATA Solid State drives
  • Up to two (2) AMD Opteron 6300 Series Processors with up to 16 cores per CPU, providing new levels of performance and efficiency over the previous generation.

Built for Performance, Efficiency, and Serviceability

AMD Opteron 6300 Series Processors provide new levels of performance and efficiency over the previous generation.

The Health Status LED on the server blade and the Location LED on the HPE Smart Drives allow for quick visibility to issues or blades that need to be located and serviced.

Improved efficiency with support for 1.25V ULV and 1.35 LV HPE SmartMemory.

Improved access to mezzanine cards enables quicker removal and easy access to the new FlexibleLOM card. The FlexibleLOM was designed with easy lift and remove handles.

Improved Application, Storage, and I/O Performance

HPE SmartMemory provides unmatched performance, quality and manageability advantages above industry standard memory, with support for up to 512 GB capacity at 1333 MHz and up to 256 GB at 1600 MHz.

The integrated HPE Smart Array P220i RAID controller with 512 MB Flash Backed Write Cache supports HPE Smart Storage and HPE SmartDrives. Choice of two (2) 2.5-inch SFF SAS, SATA, or SSD drives.

BL465c Gen8 1x8 and 1x16 I/O expansion slots support the highest performing mezzanine option cards and provide I/O bandwidth improvements over the previous generation.

HPE FlexibleLOM provides the ability to customize server networking today and the ability to meet future needs without overhauling server hardware. Provides choice of bandwidth and fabric (Ethernet, FCoE, InfiniBand), and supports wake on LAN (WOL).

Product features

Feature
Description
Processor1
Sixteen-core processors:
  • AMD Opteron 6380 (2.5 GHz/16-core/16MB/115 W) Processor

  • AMD Opteron 6378 (2.4 GHz 16-core/16MB/115 W) Processor

  • AMD Opteron 6376 (2.3 GHz 16-core/16MB/115 W) Processor

  • Low Power AMD Opteron 6366HE (1.8 GHz/16-core/16MB/85 W) Processor

  • AMD Opteron 6278 (2.4 GHz/16-core/16MB/115 W) processor

  • AMD Opteron 6276 (2.3 GHz/16-core/16MB/115 W) processor

  • AMD Opteron 6274 (2.2 GHz/16-core/16MB/115 W) processor

  • AMD Opteron 6272 (2.1 GHz/16-core/16MB/115 W) processor

  • Low Power AMD Opteron 6262HE (1.6 GHz/16-core/16MB/85 W) processor

Twelve-core processors:
  • AMD Opteron 6348 (2.8 GHz/12-core/16MB/115 W) Processor

  • AMD Opteron 6344 (2.6 GHz/12-core/ 16MB/115 W) Processor

  • AMD Opteron 6238 (2.6 GHz/12-core/16MB/115 W) processor

  • AMD Opteron 6234 (2.4 GHz/12-core/16MB/115 W) processor

Eight-core processors:
  • AMD Opteron 6328 (3.2 GHz/8-core/16MB/115 W) Processor

  • AMD Opteron 6320 (2.8 GHz/8-core/16MB/115 W) Processor

  • AMD Opteron 6220 (3.0 GHz/8-core/16MB/115 W) processor

  • AMD Opteron 6212 (2.6 GHz/8-core/16MB/115 W) processor

Quad-core processors:
  • AMD Opteron 6308 (3.5 GHz/4-core/16MB/115 W) Processor

  • AMD Opteron 6204 (3.3 GHz/4-core/16MB/115 W) processor

Chipset2
AMD SR5690 and SP5100
Cache memory
16MB Level 3 cache memory
Upgradeability
Upgradeable to two (2) processors
On system management chipset
HP iLO (Firmware: HP iLO 4)
Memory protection
  • Advanced ECC

  • Online spare mode

Memory type3
  • Type

    • HP SmartMemory

    • DDR3 Load Reduced (LRDIMM) or Registered (RDIMM)

  • Standard (Pre-configured models)

    • 16GB (2 x 8GB) DDR3 1333 MHz RDIMMs at 1.35 V

  • Maximum (LRDIMM)

    • 512GB (16 x 32GB) at 1333 MHz

  • Maximum (RDIMM)

    • 256GB (16 x 16GB) up to 1600 MHz

Network controller4
  • One (1) HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM5

  • One (1) HP Flex-10 10Gb 2-port 530FLB FlexibleLOM6

  • One (1) HP Ethernet 10Gb 2-port 560FLB FlexibleLOM6

  • Standard iLO Network Controller:

    • One (1) 10/100 Mb/s port for the HP iLO 4 On System Management Chipset

    • One (1) 10/100 Mb/s port for the HP iLO 4 On System Management Chipset

    • One (1) 10/100 Mb/s port for the HP iLO 4 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mb/s) to BladeSystem link is 1 Gb/s.

Graphics
Integrated Matrox G200 video standard:
  • 1280 x 1024 (32 b/p)

  • 1920 x 1200 (16 b/p)

Maximum internal storage7
  • Hot Plug Small Form Factor (SFF) SAS 2.4TB (2 x 1.2TB)

  • Hot Plug Small Form Factor (SFF) SATA 2.0TB (2 x 1.0TB)

  • Hot Plug Small Form Factor (SFF) SAS SSD 3.2TB (2 x 1.6GB)

  • Hot Plug Small Form Factor (SFF) SATA SSD 3.2TB (2 x 1.6TB)

Expansion slots
Two (2) I/O expansion mezzanine slots:
  • x8 PCIe 2.0 Type A (supports Type A mezzanine cards) (expansion slot 1)8

  • x16 PCIe 2.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2)9

Mezzanine card options include:
  • Dual-port 10Gb FlexFabric,10Gb Flex-10, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports.

  • Dual-port 8Gb Fibre Channel HBA for SAN connectivity.

  • QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity.

  • I/O accelerator mezzanine options for high transaction rate local storage.

  • Smart Array SAS RAID controller mezzanine options for external direct attach and shared SAS storage.

Interface10
  • Micro SDHC slot: One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

  • USB 2.0 port: One (1) internal USB 2.0 connector for USB flash media drive keys

Other features
  • Security

  • High availability

  • HP Server ROM service

NOTE: 1: Processor wattage references reflect Thermal Design Power (TDP). Click here for more information on Thermal Design Power (TDP) and Average CPU Power (ACP) Non-HPE site.

2: Click here for more information regarding AMD chipsets Non-HPE site .

3: HP memory from previous generation servers are not qualified or warranted with this server. HP SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen8. Click here for additional information on the HP SmartMemory .

LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

UDIMM max DIMM population is 16.

Depending on the memory configuration and processor model, the memory speed may run at 1600 MHz, 1333 MHz, or 1066 MHz. Click here to see the Memory Population Table or the Online Memory Configuration Tool .

4: Supports one of the following FlexibleLOMs and iLO Management.

5: Supports FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and autosensing 10Gb/1Gb Ethernet.

Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.

FlexFabric capabilities require the use of an HP Virtual Connect FlexFabric module. Fibre Channel over Ethernet (FCoE) is supported with the HP 10GbE Pass-Thru Module, HP 6120XG Blade Switch with the CEE license installed, HP Cisco B22HP Fabric Extender and HP Cisco B22HP Fabric Extender with 16 FET for BladeSystem c-Class.

6: FlexibleLOMs are not compatible with prior generation c-Class server blades

7: The ProLiant BL465c Gen8 server includes the new HP small form factor (SFF) hot plug SmartDrive carrier for enhanced management and reduced maintenance errors. HP drives from previous generation servers are not compatible with the ProLiant BL465c Gen8 drive bays.

The mixing of standard SAS drives with SAS SSD drives is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.

8. This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 4.

9. This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to bay 8.

10. The above options are for integrated hypervisor virtualization environments needing a low cost boot solution with the highest performance and reliability.

top

Software overview

Feature
Description
Operating System (OS) and virtualization software support1
  • Microsoft Windows Server

  • Red Hat Enterprise Linux (RHEL)

  • SUSE Linux Enterprise Server (SLES)

  • Oracle Solaris

  • VMware

  • Citrix XenServer

NOTE: 1. For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for server, visit our Support Matrix or the driver download page. click here to access the Operating System Support Matrix . Click here to access the driver download page .

top

Physical specifications

Feature
Description
Dimensions (H x W x D)
18.07 x 5.54 x 51.76 cm (7.11 x 2.18 x 20.37 in)
Weight
  • Maximum1: 6.33 kg (14.00 lb)

  • Minimum2: 4.75 kg (10.50 lb)

NOTE: 1: All processors, sixteen (16) DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed.

2: One processor and two (2) DIMMs installed.

top

Environmental specifications

Feature
Description
System inlet temperature
Operating:
  • 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight.

  • Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

  • System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating:
  • -30° to 60°C (-22° to 140°F)

  • Maximum rate of change is 20°C/hr (36°F/hr).

Relative humidity
Operating:
  • 10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing

Non-operating:
  • 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing

Altitude
Operating:
  • 3,050 m (10,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Non-operating:
  • 9,144 m (30,000 ft)

  • Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

NOTE:For acoustic noise and power specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs:

Click here to view HP BladeSystem c3000 Enclosure QuickSpecs .

Click here to view HP BladeSystem c7000 Enclosure QuickSpecs .

top


Technical specifications

Feature
Description
HP Smart Array P220i Controller
Disk drive interface
6 Gb/s Serial Attached SCSI (SAS)
Server Interface
x4 PCI Express host interface
Cache memory
512MB Flash Backed Write Cache (FBWC) standard
Logical drives supported
64 (with included 512MB cache)
Host memory addressing
64-bit, supporting servers memory space greater than 4GB
RAID support
RAID 1 (mirroring) and RAID 0 (striping)
Other
Upgradeable firmware with recovery ROM Online drive flash (with SAS drives)
HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
Type
Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing 1Gb/10Gb Ethernet capability)
Network processor
Emulex BE3
Data transfer method
x8 PCI Express 2.0
Network transfer rate1
Two ports, each at 20 Gb/s full duplex; 40 Gb/s aggregate full duplex theoretical bandwidth
IEEE Compliance
802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and 802.3x
Standard features
  • ProLiant Teaming including Network Fault Tolerance, Transmit Load Balancing, and Switch-Assisted Load Balancing.

  • 9K Jumbo frames (4K Jumbo frames when in FCoE mode).

  • Microsoft Windows Receive Side Scaling (RSS).

  • Hardware-based accelerated iSCSI.

  • iSCSI boot.

  • Flex-10 capability.

  • Fibre Channel over Ethernet (FCoE).

  • TCP/IP offload engine (stateless TCP/IP).

  • Autosensing 1Gb/10Gb Ethernet.

NOTE: 1. Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed.

Each port on the 554FLB adapter transmits from the server at 20 Gb/s (theoretical) full duplex.

top

Safety certifications

Feature
Description
IEEE compliance
  • 802.1p

  • 802.1q

  • 802.1qau

  • 802.3ad

  • 802.3ae

  • 802.3ap (10GBase-KX4)

  • 802.3x

Industry standard compliance
  • ACPI 2.0

  • Microsoft Logo certifications

  • USB 2.0 Support

  • IPMI 2.0

  • Secure Digital 2.0

  • TPM 1.2 support

  • IEEE (specific IEEE standards dependent on Ethernet adapter card(s) installed)

  • Advanced Encryption Standard (AES)

  • Triple Data Encryption Standard (3DES)

  • SNMP

  • PCIe 2.0

top
