HPE NVIDIA Tesla A2 16GB PCI-e 4.0x8 60W SW FH/HL GPU | R9H23C

Price: Ask for Quote

Brand:
MPN:
R9H23C
Type:
GPU
Condition:
ECS Refurbished & Tested

Request Quote

Note: Please include as much details and relevant options about the item to help us match your request with an accurate price.


-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

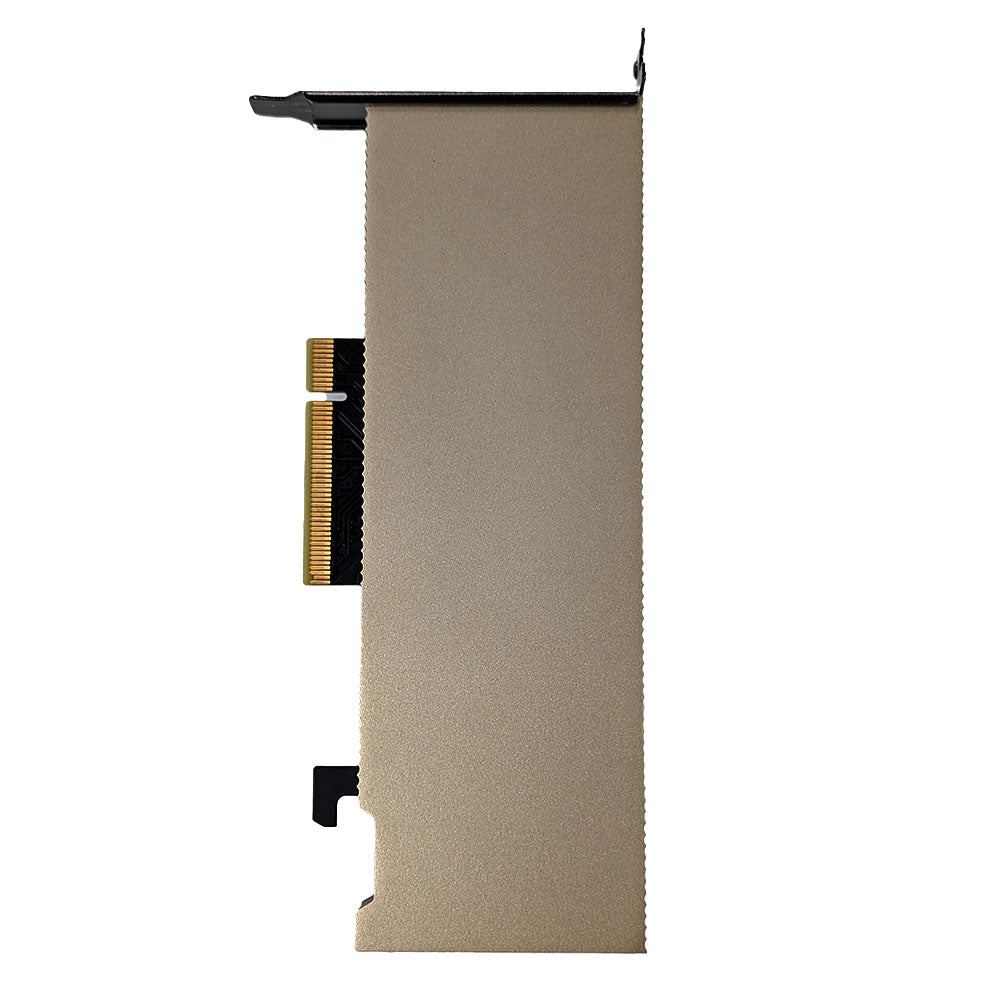

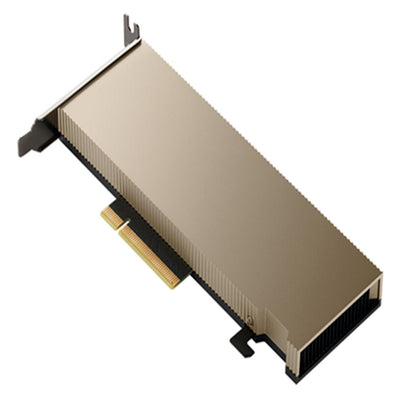

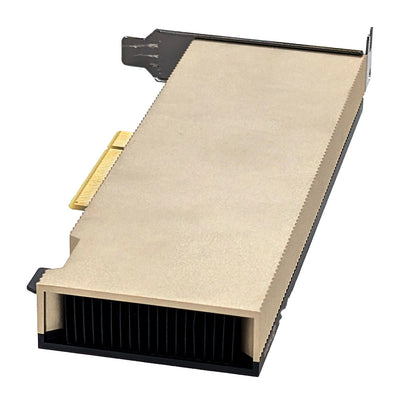

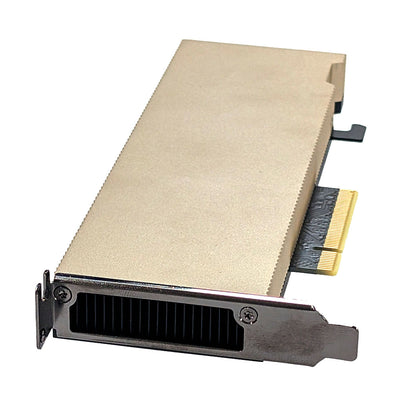

 HPE NVIDIA Tesla A2 16GB PCI-e 4.0x8 60W SW FH/HL GPU | R9H23C

The NVIDIA A2 Tensor Core GPU provides entry-level inference with low power, a small footprint, and high performance for NVIDIA AI at the edge. Featuring a low-profile PCIe Gen4 card and a low 40-60W configurable thermal design power (TDP) capability, the A2 brings versatile inference acceleration to any server for deployment at scale.

  • PN:R9H23C - P51434-001
  • Model: A2
  • GPU Memory: 16 GB GDDR6
  • Memory ECC: Y
  • Memory Bandwidth: 200 GB/sec
  • Max Power Consumption: 60W
  • Graphic Bus / System Interface: PCIe Gen4x8
  • Interconnect Bandwidth: 32 GB/sec (PCIe 4.0)
  • Slot Width: SW
  • GPU Height / Length: FHHL
  • Auxiliary Cable: N/A
  • Workload: Inferencing/Edge/VDI

SPS-PCA, NVIDIA A2 GPU MOD

    DL380 Gen10 Plus Notes:
    Requires HPE DL38X Gen10+ PRI/SEC w/o Retainer Kit (P38771-B21)

    Requires HPE DL38X Gen10+ Ter w/o Retainer Kit (P38774-B21) if tertiary riser is selected

    This option requires the High Performance Fan Kit (P14608-B21) to be selected.

    This option requires the High Performance Heat sink (P27095-B21)

    System memory should be 2x GPU memory.

    Max of 8 NVMe drives allowed with this GPU, all NVMe drives must be under 11W

    This GPU and SAS4 drives cannot be selected together.

    This GPU and 40Gb or above Networking/InfiniBand/Smart IO adapters cannot be selected together.

    If NVMe Drive is selected with this Graphics Option then it can be populated in front cage only. Pleaseconsider this limitation while selecting Drives and Drive Cage.

    This Graphics option and SAS4 Drives cannot be selected together

    Graphics Option and 100Gb or above PCIe Networking/ Infiniband/ Smart IO (HW) Cards cannot beselected together.

    DL360 Gen 11 Notes:
    − Can support the GPU adapter with Max. length up to 9.5" (full length adapters are not supported) at PCIe Slot 1 and Slot 3. There is mechanical interference from the GPU bracket when installing A2 at Slot2.
    − Nvidia GPU A2 will be available in all 3 slots (incl. Slot 2) expected in Q4 2023 with new low-profile bracket in the A2 kit.
    − Requires high performance fans
    − Can be installed at Slot 1 and Slot 3 (if 2 nd processor is selected).
    − Max 2x350W CPU, 32x128GB DIMM, and max 10SFF, will need to operated at 20C. Will not be a feasible configuration to support.
    − In 8SFF CTO Model, if the Graphics Option is selected with the Processor that is more than 270W, then Maximum of 8
    NVMe/ SAS/ SATA drives can be selected.
    − In EDSFF CTO Model, if the Graphics Option is selected with Processor Wattage is more than 270W, then DLC Module
    must be selected.
