Dell PowerEdge FC830 CTO Blade Server

Part#:
FC830
Brand:
Dell
Type:
CTO Servers
Condition:
ECS Refurbished & Tested

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Server Chassis

Processors

Intel Xeon E5-4600v3

Supports up to (4) processors

Intel Xeon E5-4600v4

Supports up to (4) processors

Memory

12 DIMMs per processor (up to 48 DIMMs in a 4-processor configuration)

Internal Dual SD Module (IDSDM)

RAID Controllers

uSATA (1.8") Drives

SFF (2.5") SAS/NLSAS Drives

SFF (2.5") SATA Drives

Network Daughter Card

Supports up to (2) NDC's

Mezzanine Card for Fabric B

Supports up to (2) Mezzanine Cards for Fabric B

Mezzanine Card for Fabric C

Supports up to (2) Mezzanine Cards for Fabric C

iDRAC Remote Options

ECS Warranty

Dell PowerEdge FC830 CTO Blade Server Product Description

Powerful 4-socket server with dense compute, memory scalability and a highly expandable storage subsystem, the Dell PowerEdge FC830 is designed for data centers requiring the performance and reliability enterprise applications demand.

With powerful processors, enormous memory and highly scalable I/O capabilities, the PowerEdge FC830 excels at running a wide range of database-driven, mission-critical applications for midsize and large businesses, like enterprise resource planning (ERP) and customer relationship management (CRM). Combining exceptional performance and data access capabilities, the FC830 is also ideal for the database tier of web tech and HPC environments or large-scale virtualization.

Dell PowerEdge FX Architecture

Flexible, scalable, powerful

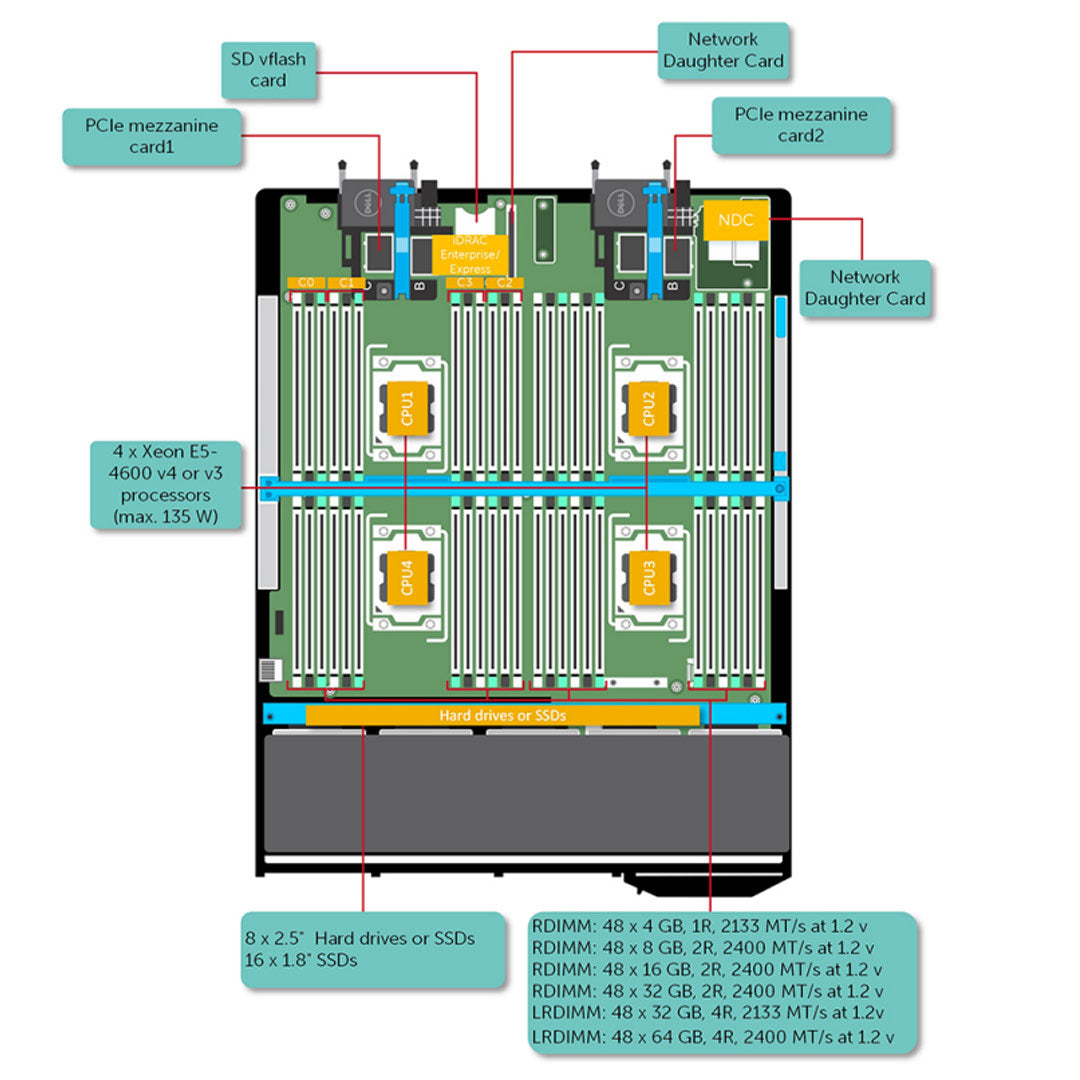

Powered by up to four 22-core Intel Xeon E5-4600 v4 processors, each FC830 has 48 DIMMs, 16 x 1.8-inch, or eight 2.5-inch frontaccess drives, a dual-port 10GB select network adapter (SNA) and access to four PCI Express (PCIe) expansion slots in the shared chassis.

Fit the infrastructure to the job

Build an infrastructure that’s tailormade for your unique IT requirements. The FC830 provide flexible virtualization with great VM density and highly scalable resources for the consolidation of large or performance-hungry VMs, and also offers a rich set of storage options, including the PowerEdge FD332 storage block, which provides up to 16 direct-attached drives

The efficiencies of shared infrastructure

FC830 servers are housed in the FX2 enclosure, a 2U converged platform delivering the density of a blade architecture with the simplicity and cost benefits of rack-based systems — all in a compact modular design. The FX2 delivers efficiency through shared power, cooling, networking and management, as well as PCIe slots and I/O module options that enable any style of storage — DAS, SAN or NAS.

Right-size your IT

Quickly and efficiently add resources to the chassis at the single block level, or add one or more fully loaded 2U enclosures. A single FX2 with two FC830 servers, scales up to 176 cores, 96 DIMMs of memory and 32 drives of in-server storage so you can readily tailor your infrastructure with the right power, storage and connectivity to meet your unique business needs.

FeatureTechnical specification
Form factorFull-width – supports up to 2 sleds per PowerEdge FX2 enclosure
DimensionsW: 48.8 cm (19.2 in)
D: 37.6 cm (14.8in)
H: 5.1 cm (2 in)
ProcessorIntel® Xeon® processor E5-4600 v4 product family
Processor sockets: 4
Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 16, 18, 22
Chipset: Intel C610 series
Memory1Up to 1.5TB (48 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4 up to 2400MT/s
I/O mezzanine cardsAccess to 4 x PCIe 3.0 (x8) expansion slots, (up to 8 for certain configurations)
RAID controllersInternal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P
Primary storageHot-plug hard drive options:
PowerEdge Express Flash NVMe PCIe, SATA HDD/SSD or SAS HDD/SSD

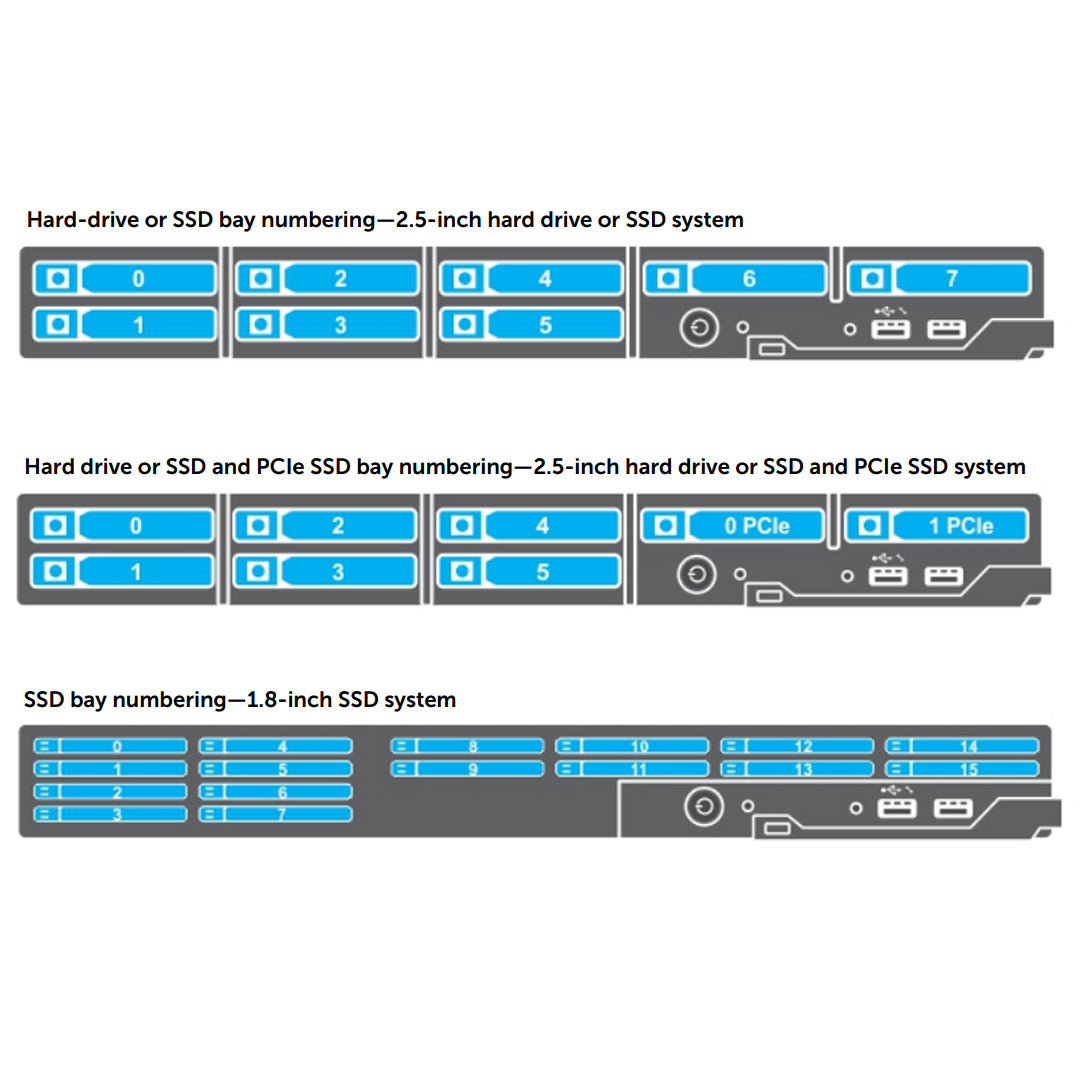

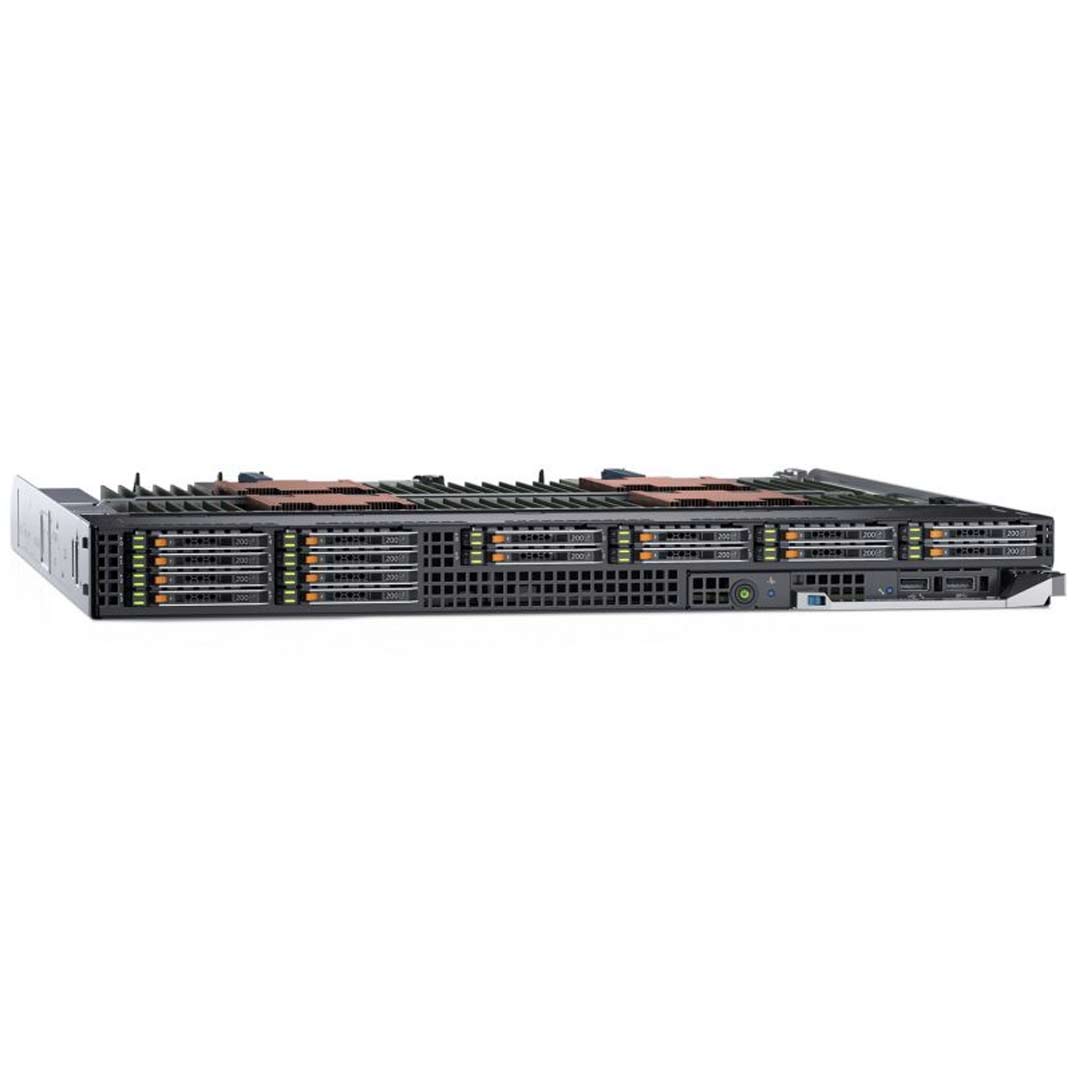

Up to 16 x 1.8" SSD or 8 x 2.5"
Optional adaptersOptional NICs and HBAs
Power suppliesChassis level – PowerEdge FX2 hot-plug PSU: 2000W or 1600W AC in 1+1 redundant or 2+0 non-redundant configurations
Video cardVideo type Matrox® G200 (integrated with iDRAC8)
Video memory: 16MB shared with iDRAC8 application memory
Systems management• FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console
• OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products
• CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs
• Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management
Operating systemsMicrosoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
For more information on the specific versions and editions, visit Dell.com/OSsupport.
